Note：

Features:

3.0dB ultra-low noise
5V to 16V operating input range
Working with certified IEEE 802.11a/n Wireless LAN devices
Simply plug and play, no software is required
80X the power, improving the link quality and coverage of certified WLAN devices

Specifications:

5.8GHz Channel Parameters:
1.Frequency Range :5725-5850MHz
2.Operating Voltage :5-16V
3.Receiving Gain :16dB±1
4.Transmission Gain: 18dB±1
5.Max Output Power(P1dB) :36dBm(4W)
6.Input Trigger Power :Min:3dBm Max:20dBm
7.EVM :3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8.Noise Figure :＜3.0dB
9.Current Supply :485mA@Pout 28dBm 12V
10.TX/RX Switch Time Delay :＜1 us
11.LED Indicator :Transmitter: Green; Receiver: red

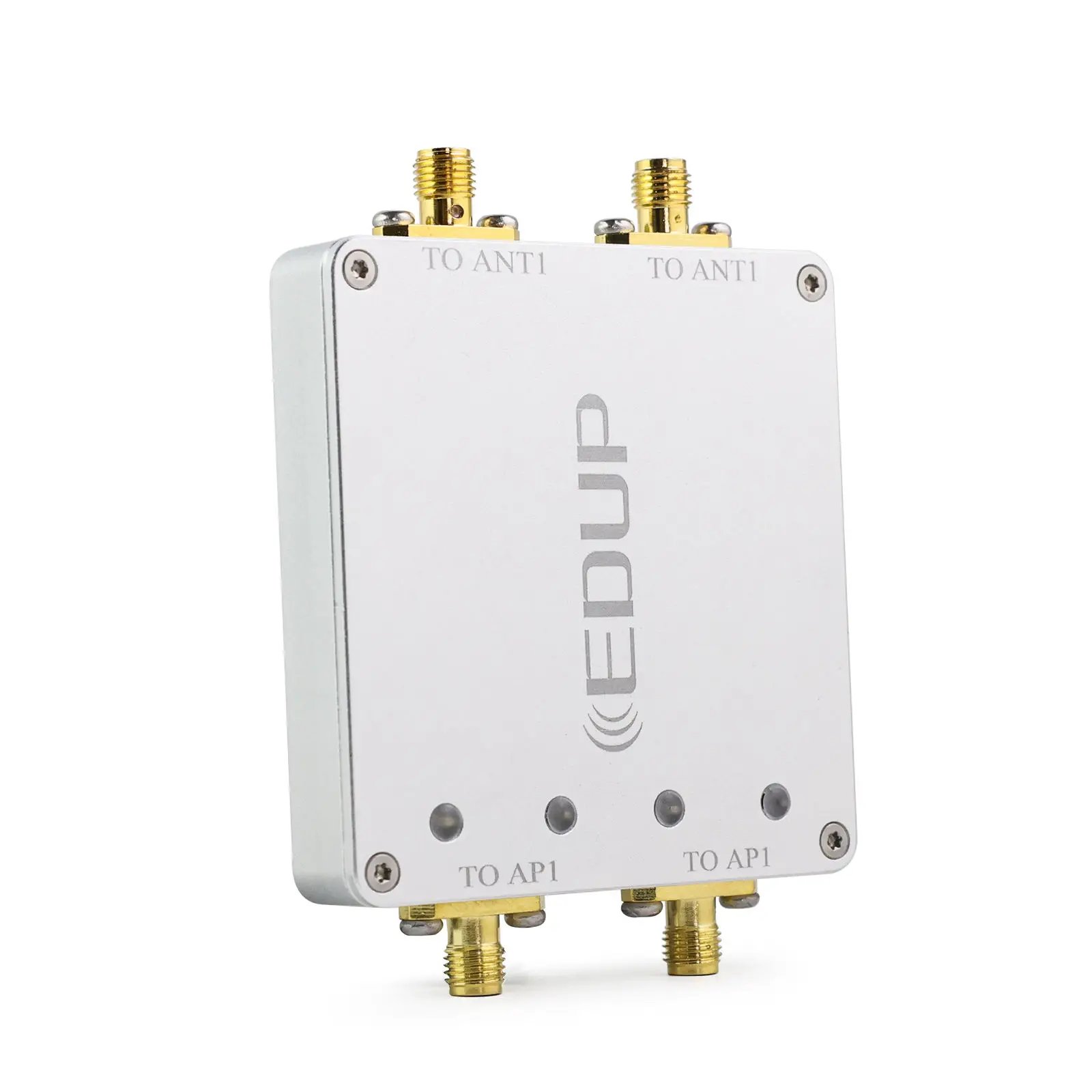

12.RF Connector :Input: SMA-K; Output: RP-SMA-K

2.4GHz Channel Parameters:
1.Frequency Range :2400-2500MHz
2.Operating Voltage :5-16V
3.Receiving Gain :16dB±1
4.Transmission Gain: 18dB±1
5.Max Output Power(P1dB) :36dBm(4W)
6.Input Trigger Power :Min:3dBm Max:20dBm
7.EVM :3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8.Noise Figure :＜3.0dB9
9.Current Supply :485mA@Pout 28dBm 12V
10.TX/RX Switch Time Delay :＜1 us
11.LED Indicator :Transmitter: Green; Receiver: red
12.RF Connector :Input: SMA-K; Output: RP-SMA-K
13.Storage Temperature :-40℃～+150℃
14.Operating Humidity :Up to 95% rel. humidity
15.Operating Temperature :-30℃～+70℃

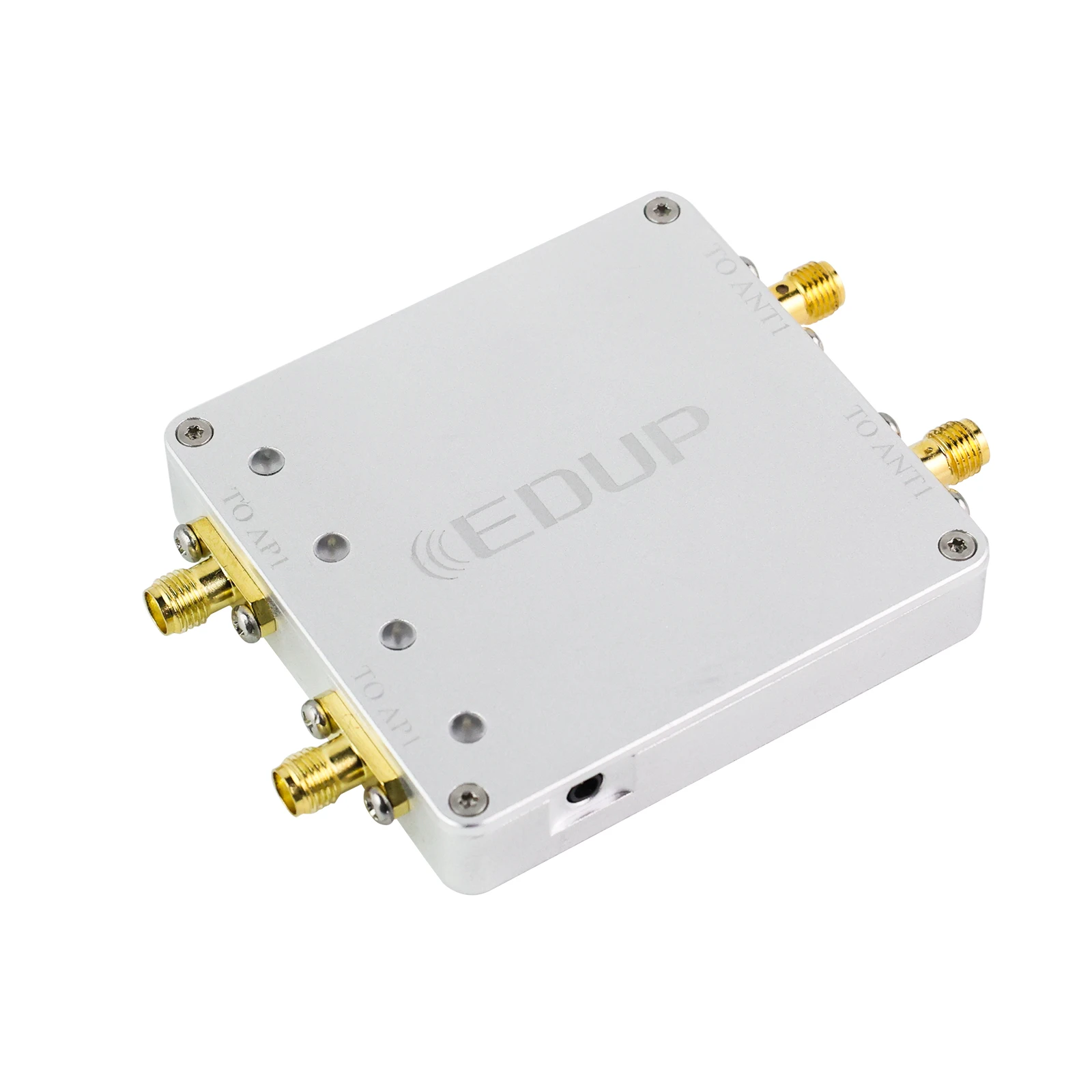

16.Power Socket :2.5*0.7mm DC( default )
17.Shell Size :65*61*12(mm)
18.Shell Material :Aluminum
19.Net Weight :0.12Kg

Shipping and Returns:

Shipping is available from China, Russia and Spain

Warranty:

Products ordered from China come with a 75-day money-back guarantee.
