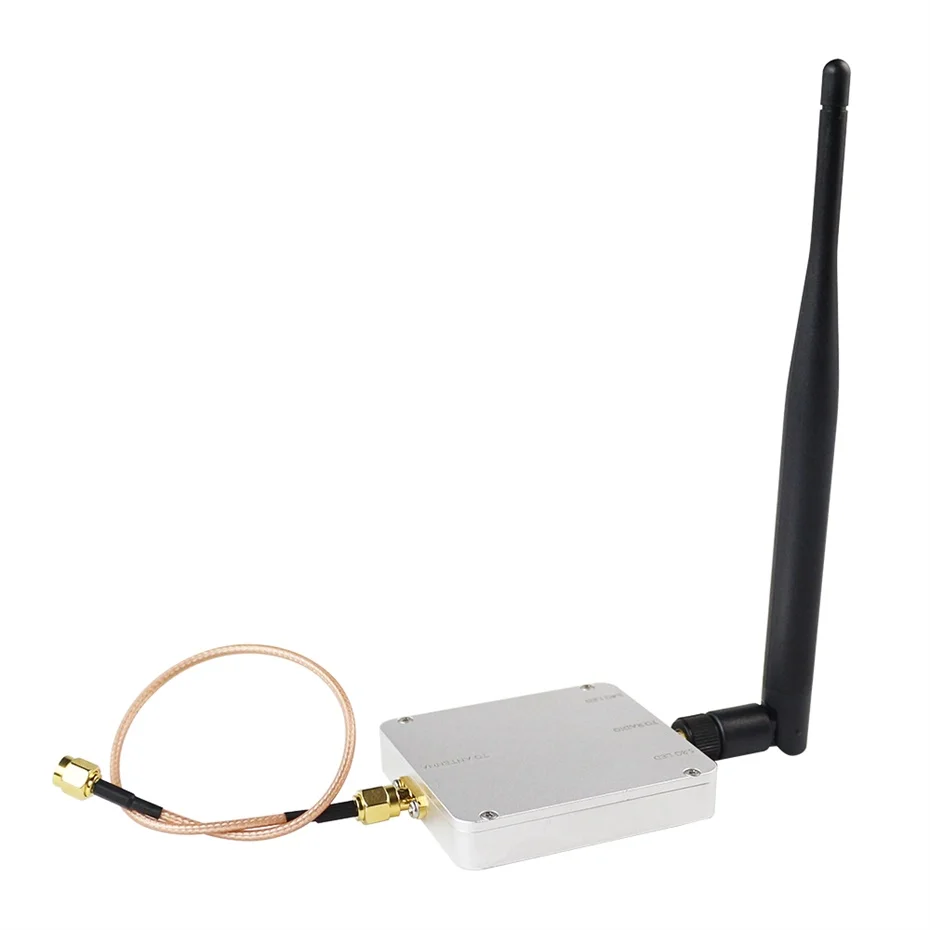

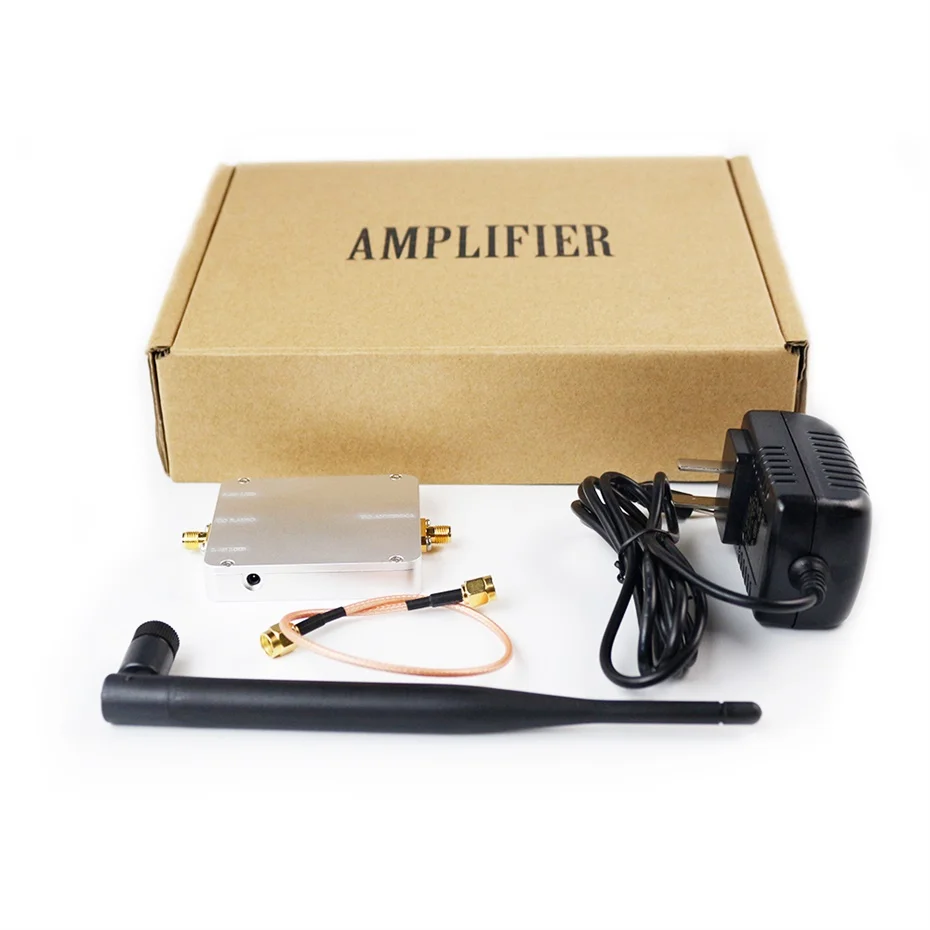

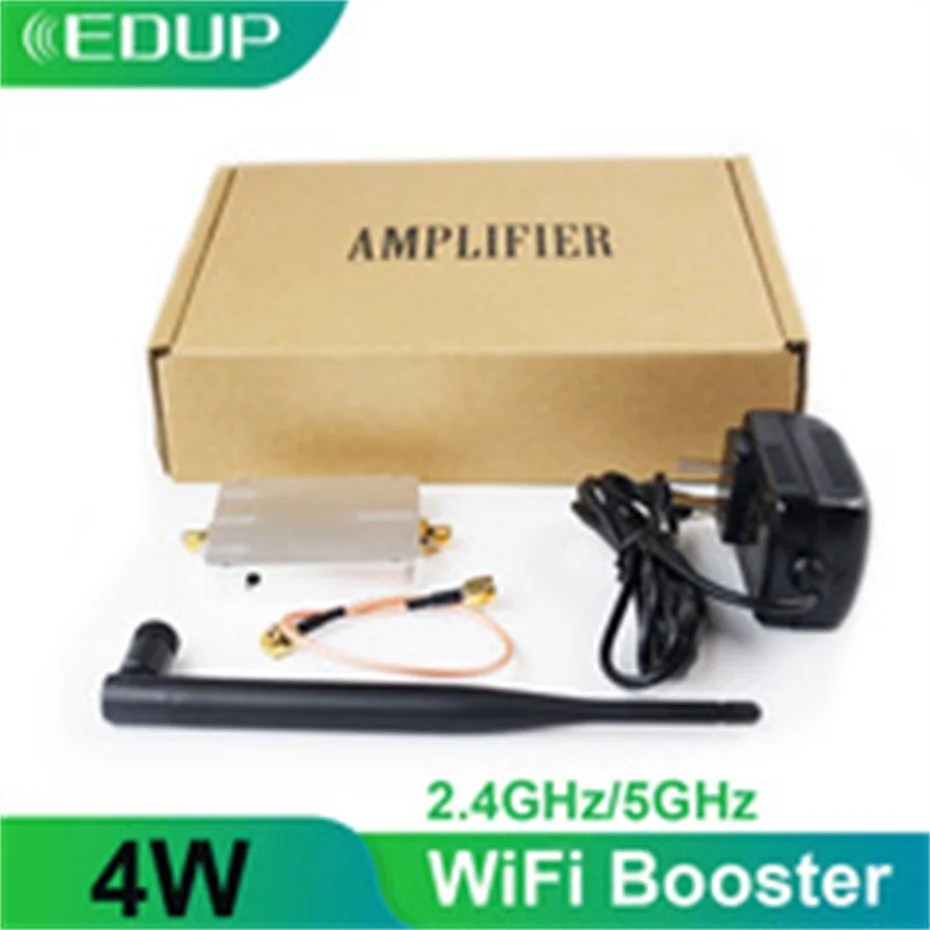

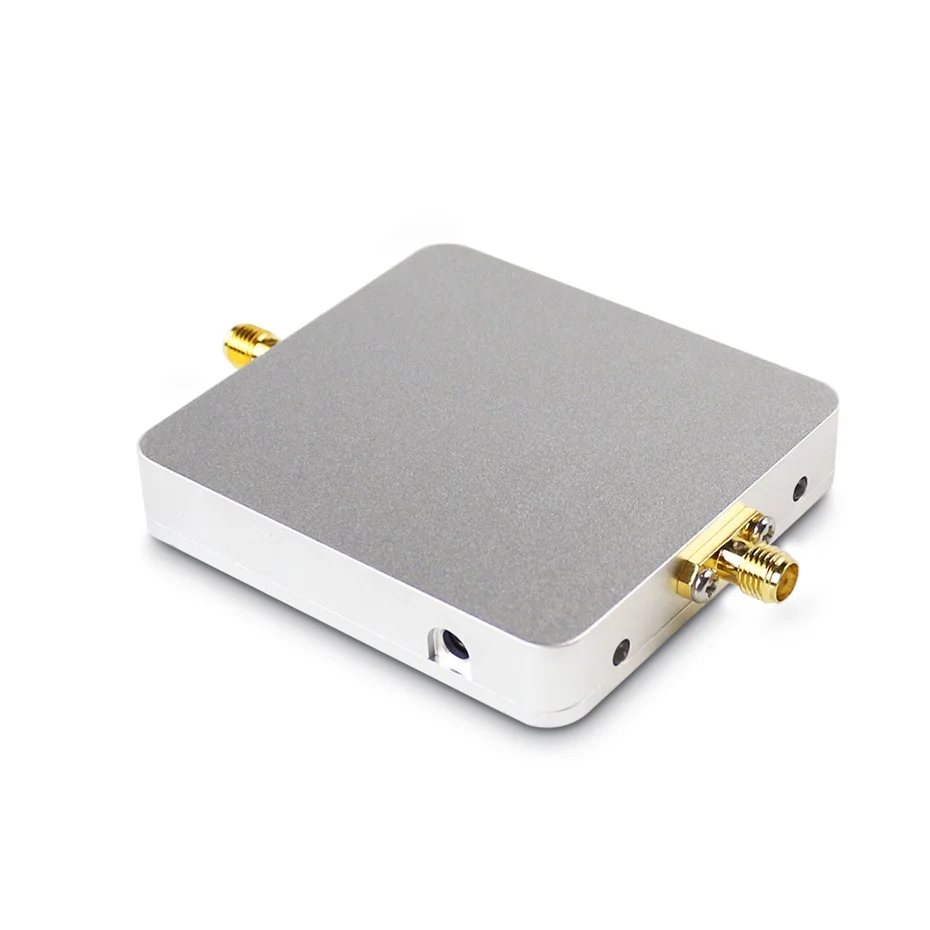

EDUP WiFi Booster 4W Wireless Signal Repeater Amplifier 2.4G&5G with AI Shell Signal Range Extender Adapter for Router Drone
(No reviews yet)
Write a Review
Description
Features:
New design for simple,simple,simple ;
2.4G &5.8G dual band, Auto switch frequency;
Max. 4000mW real output power;
6-16V wide voltage range,support different power supply;
Aluminum-alloy case by CNC, anti-interference;
Designed for Drones, UAV, RC equipment....
Technical Specifications:
Booster Model: EP-AB015
Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,
carrier from transmitter and automatically switch receiving
to transmitting mode.

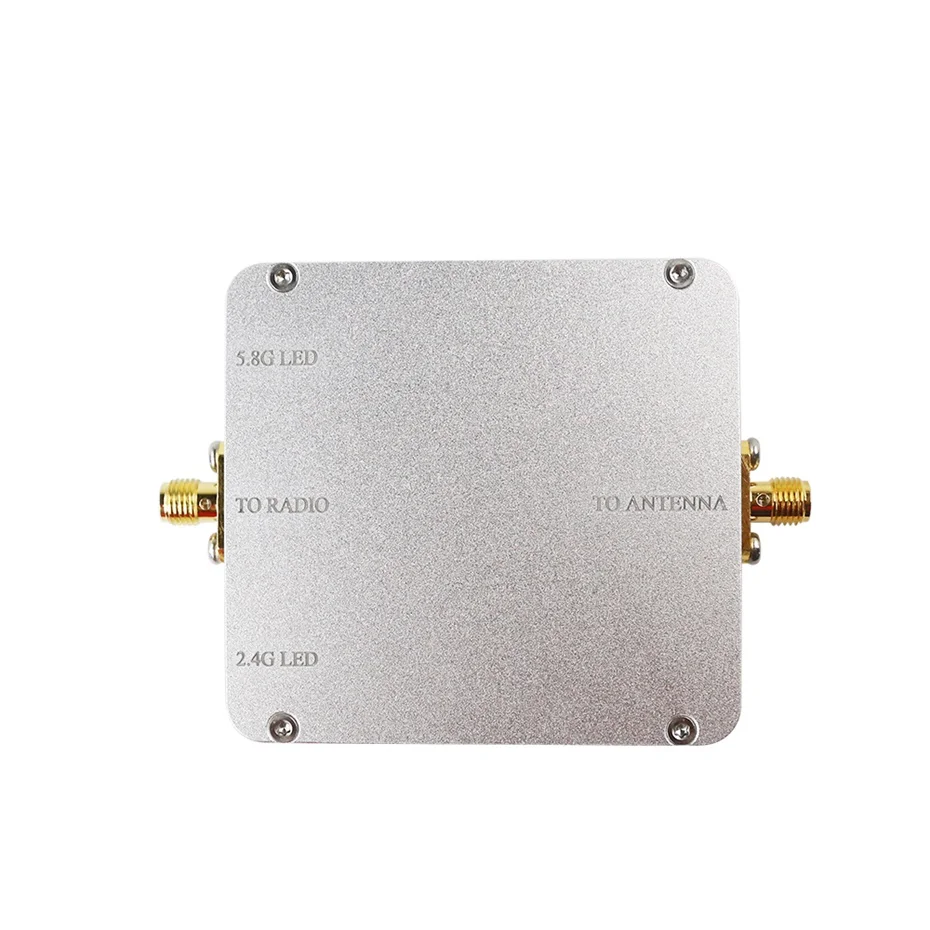

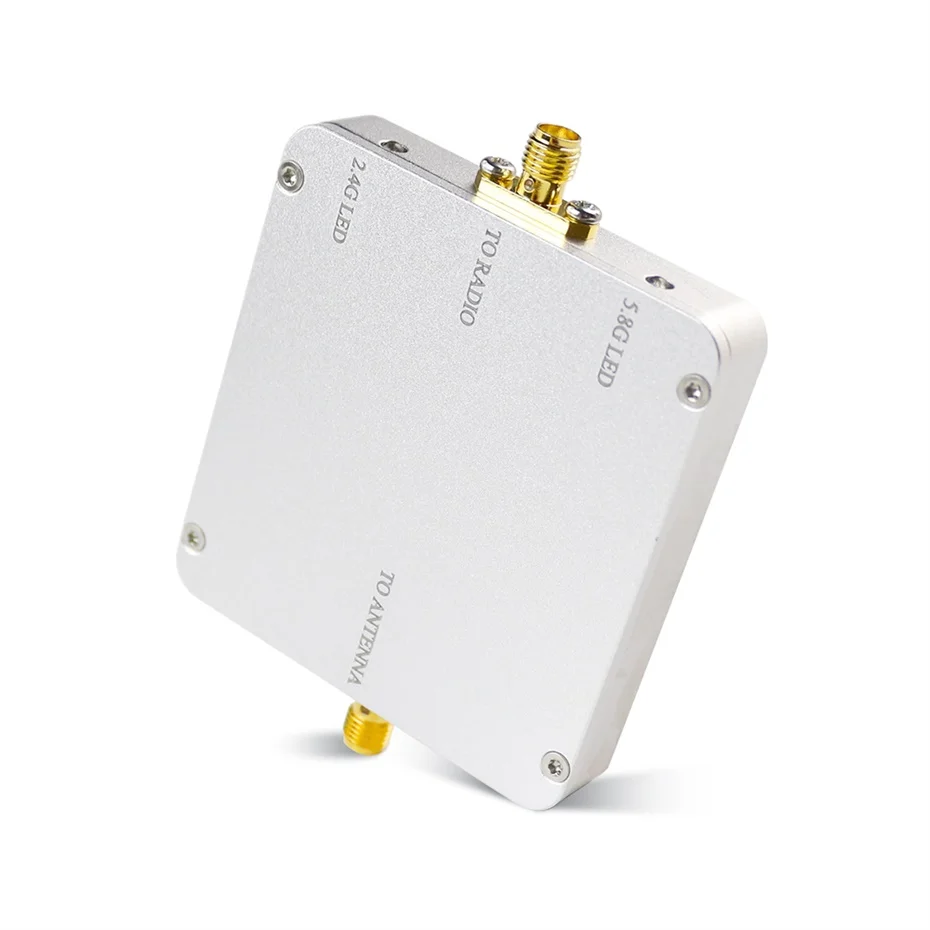

Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:5~23 dBm
Transmit Gain:15~18dB
Output Power:4000mW (36dBm)
Receiver Gain:15~17 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 6V~16V
Operating Temperature:-30°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 100g
Booster Size:65*61*11.5(mm)
