EDUP WiFi Booster 2.4GHz 4W Wireless Power Signal Amplifier Detachable Antenna Signal Range Extend 802.11b/g/n for Router Drone

Features:

2.5dB ultra-low noise:Reduce signal interference and improve output SNR
5V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
50X the power, improving the link quality and coverage of certified WLAN devices

Specifications:

Frequency Range:2400-2500MHz
Operating Voltage:5-16V
Receiving Gain:19dB±1
Transmission Gain:17dB±1
Max Output Power(P1dB):36dBm(4W)
Input Trigger Power:Min:3dBm Max:23dBm
EVM:3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Noise Figure:<2.5dB
Current Supply:580mA@Pout 28dBm 12V
TX/RX Switch Time Delay:<1 us
LED Indicator:Transmitter: Green; Receiver: red
Operating Temperature:-30℃~+70℃
Storage Temperature:-40℃~+150℃
Operating Humidity:Up to 95% rel. humidity

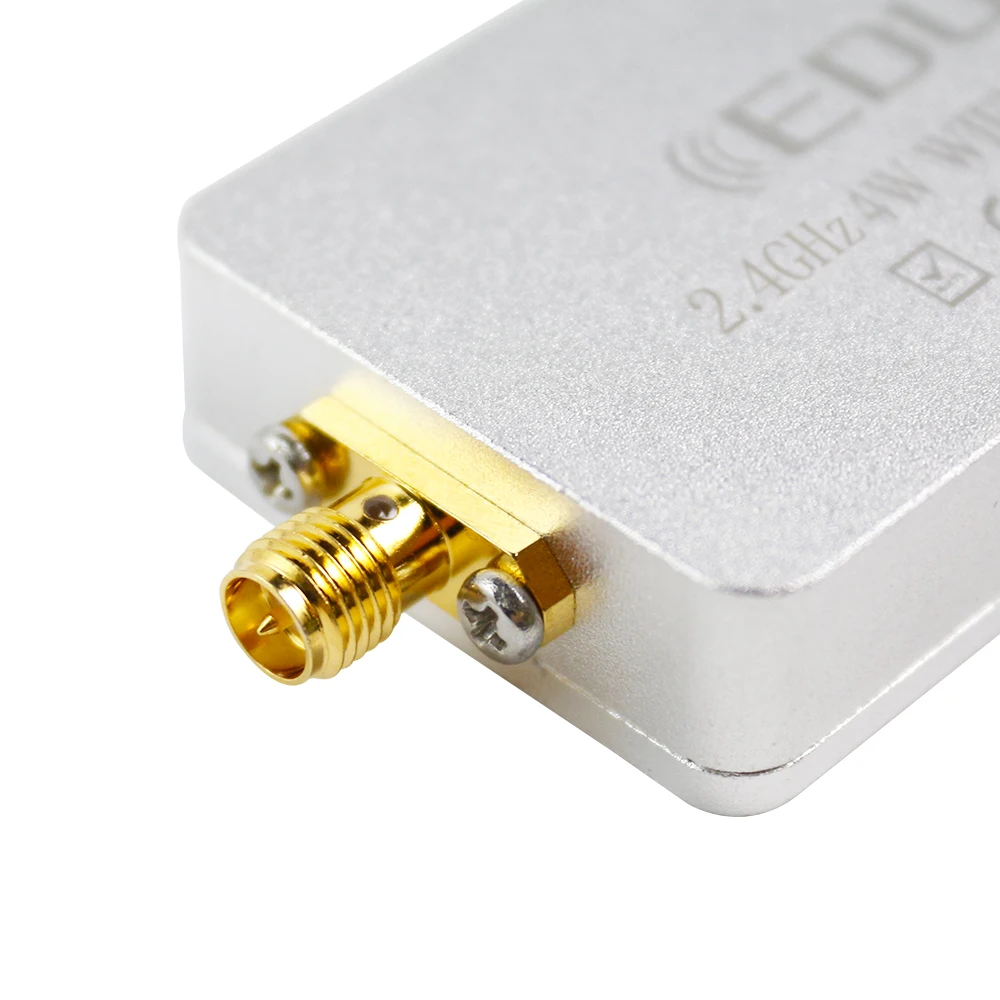

RF Connector:Input: SMA-K; Output: RP-SMA-K

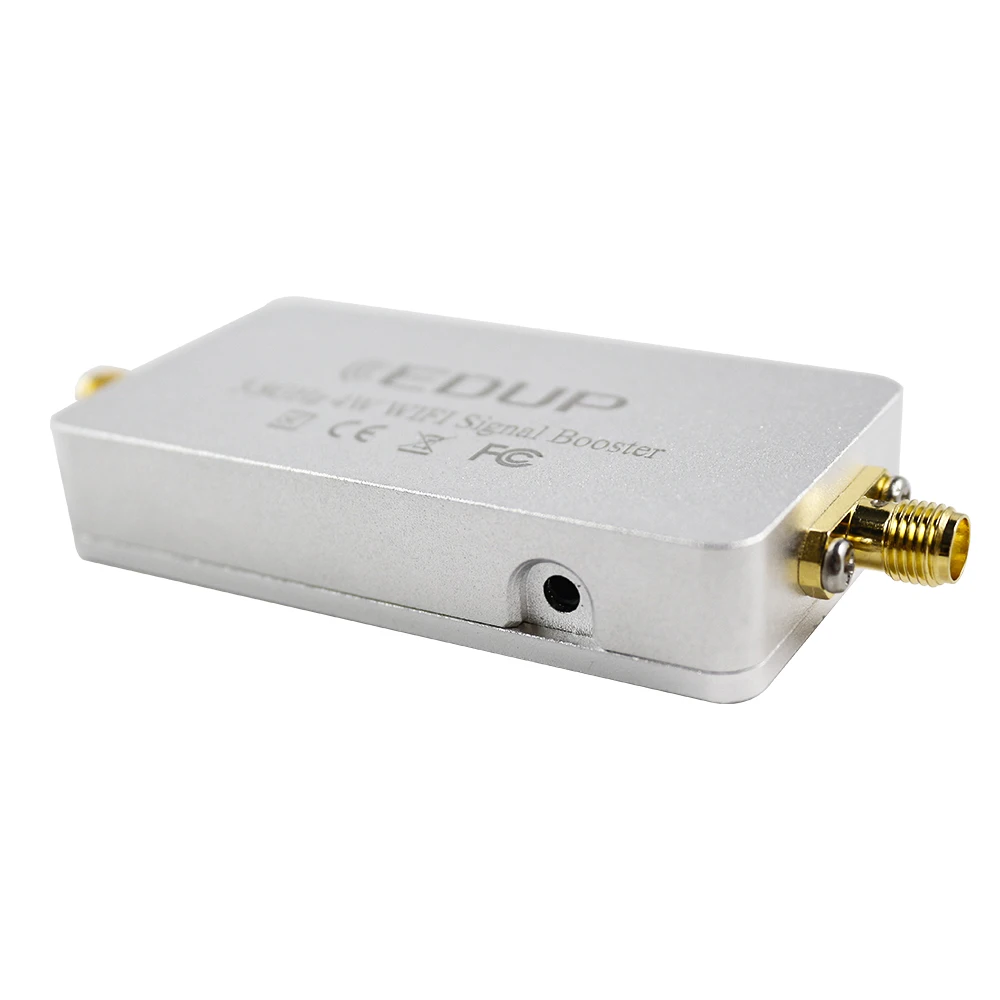

Power Socket:2.5*0.7mm DC
Shell Size:65*35*13(mm)
Shell Material:Aluminum
Net Weight:0.06Kg

Note:

1.12V /1A power supply.
2.Heat dissipation is recommended, such as adding heat sink or radiator fan.
3.Antenna should be screwed first, then plug the power adapter, finally connect the device.
4.The output could reach 36dBm, when input power is 19dBm or 20dBm (default gain is 17dB).
