EDUP 5.8GHz Wifi Extender 4W Drone Wifi Signal Booster Wifi Amplifier Detachable Antenna Long Range Repeater Wireless Adapter
Description
Note:
1. The item need connect with the Access Point Router together, then it can work and the Access Point Router is NOT included.Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router Please comfirm that you device output power range is between 3dBm and 20dBm,only that the wifi signal booster could work well.

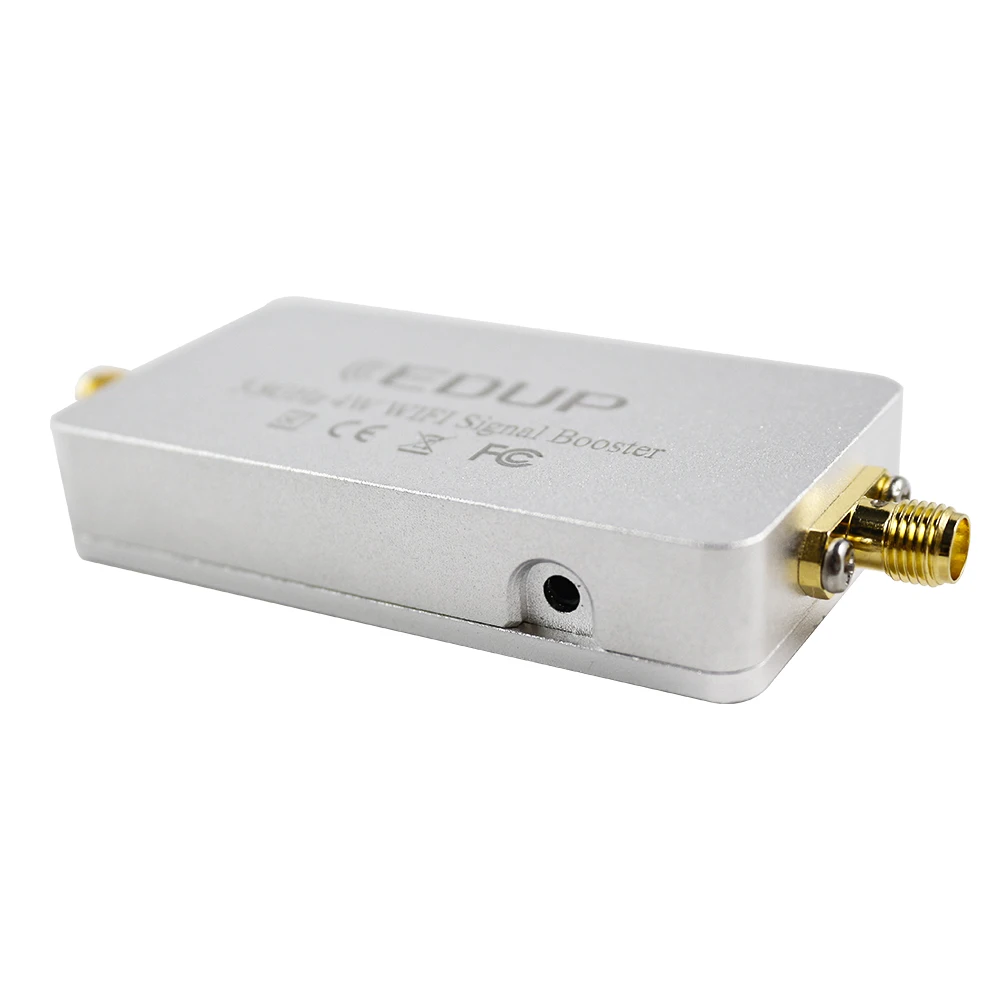

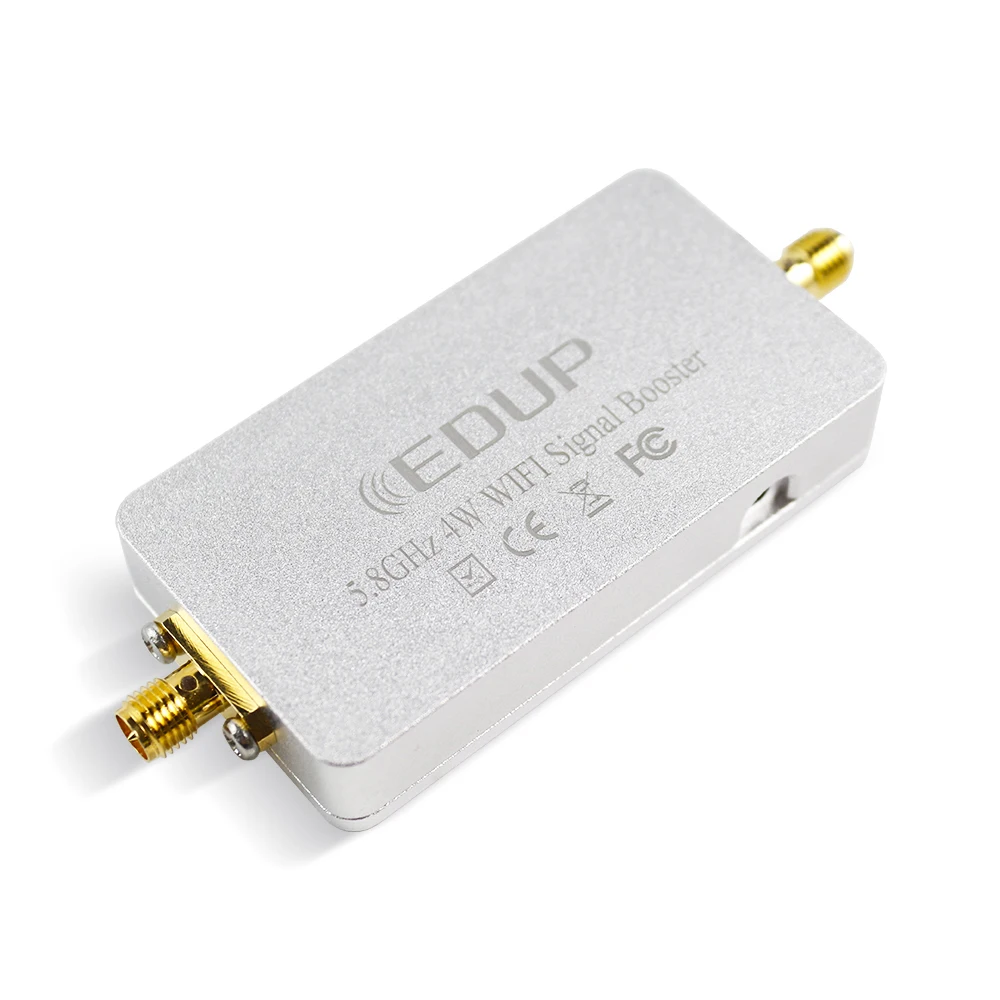

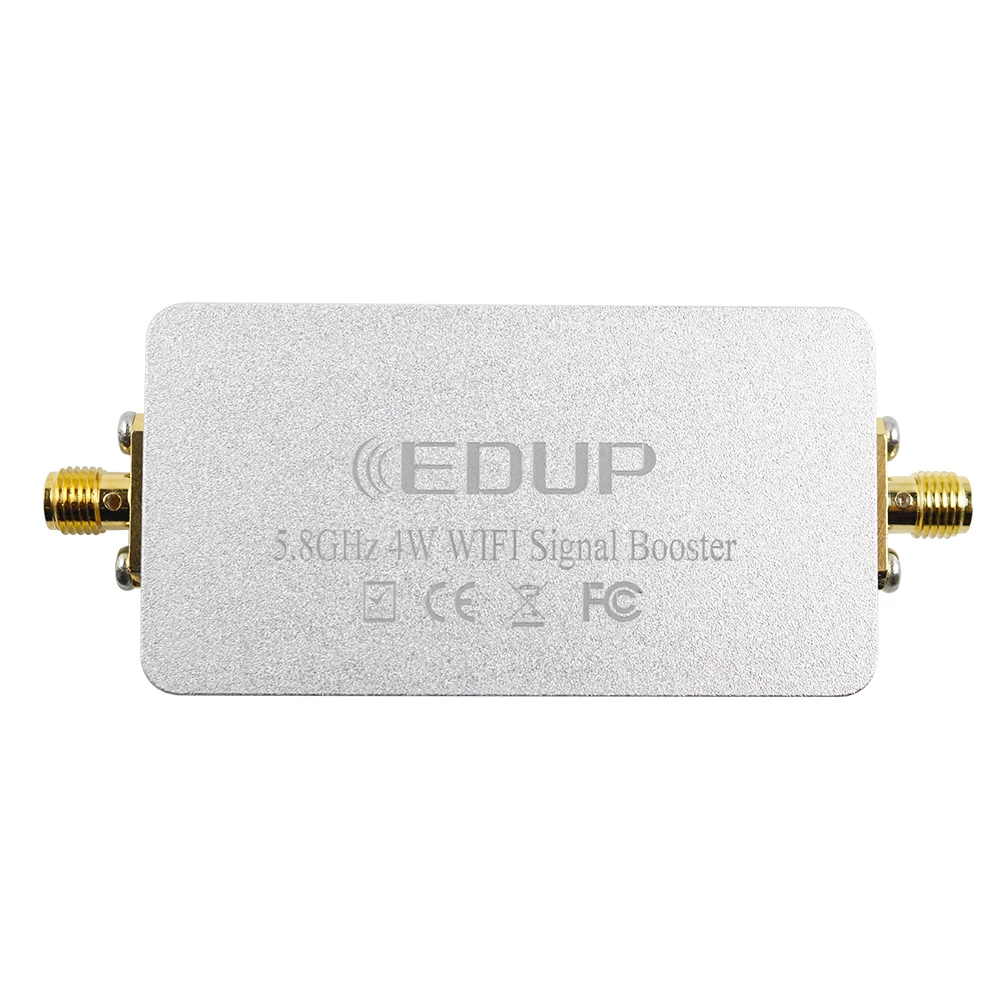

Option 1：AB019
Features:
3.0dB ultra-low noise
5V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
80X the power, improving the link quality and coverage of certified WLAN devices
Specifications:
Frequency Range:5725-5850MHz
Operating Voltage:5-16V
Receiving Gain:15dB±1
Transmission Gain:19dB±1
Max Output Power(P1dB):36dBm(4W)
Input Trigger Power:Min:3dBm Max:20dBm
EVM:3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
Noise Figure:<3.0dB
Current Supply:485mA@Pout 28dBm 12V
TX/RX Switch Time Delay:<1 us
LED Indicator:Transmitter: Green; Receiver: red
Operating Temperature:-30℃~+70℃
Storage Temperature:-40℃~+150℃
Operating Humidity:Up to 95% rel. humidity

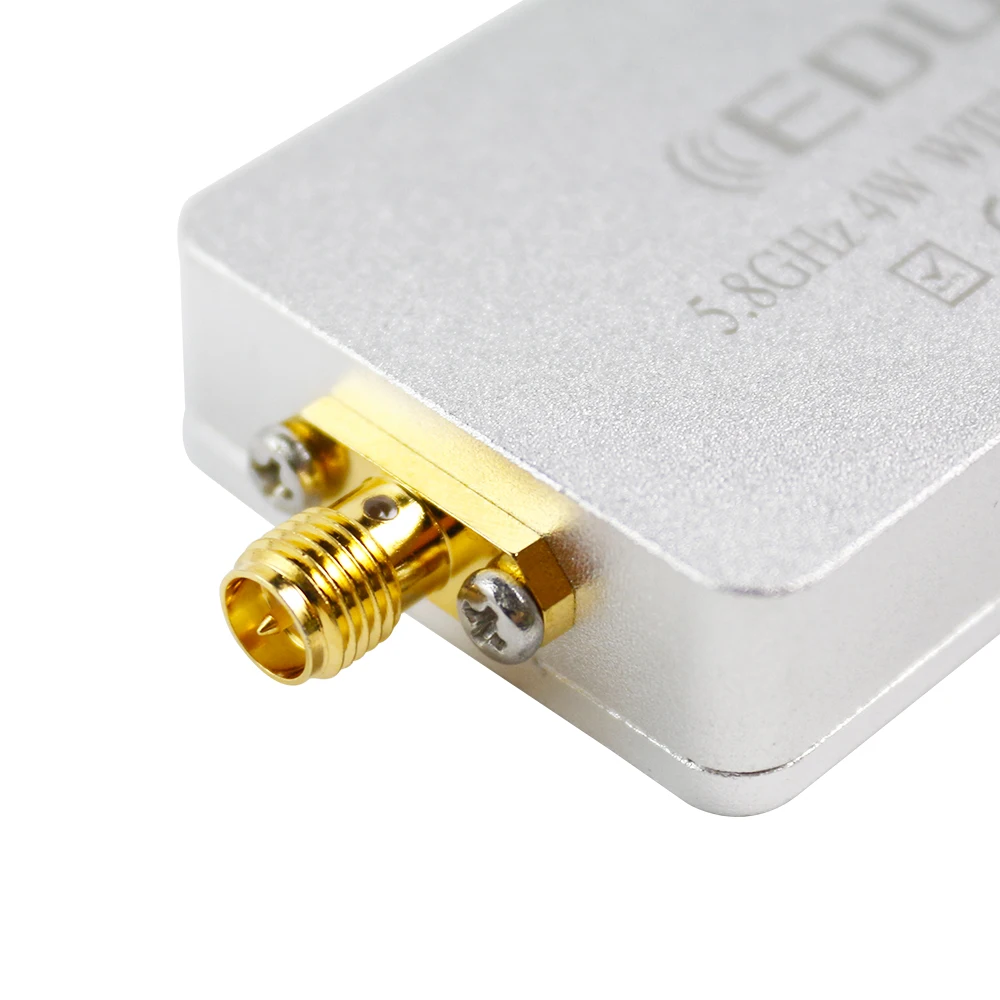

RF Connector:Input: SMA-K; Output: RP-SMA-K
Power Socket:2.5*0.7mm DC( default )
Shell Size:65*35*13(mm)
Shell Material:Aluminum
Net Weight:0.06Kg
Option 2：AB018
Features:
2.5dB ultra-low noise:Reduce signal interference and improve output SNR
5V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
50X the power, improving the link quality and coverage of certified WLAN devices
Specifications:
Frequency Range:2400-2500MHz
Operating Voltage:5-16V
Receiving Gain:19dB±1
Transmission Gain:17dB±1
Max Output Power(P1dB):36dBm(4W)
Input Trigger Power:Min:3dBm Max:23dBm
EVM:3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Noise Figure:<2.5dB
Current Supply:580mA@Pout 28dBm 12V
TX/RX Switch Time Delay:<1 us
LED Indicator:Transmitter: Green; Receiver: red
Operating Temperature:-30℃~+70℃
Storage Temperature:-40℃~+150℃
Operating Humidity:Up to 95% rel. humidity
RF Connector:Input: SMA-K; Output: RP-SMA-K
Power Socket:2.5*0.7mm DC
Shell Size:65*35*13(mm)
Shell Material:Aluminum
Net Weight:0.06Kg
Option 3：AB015
Features:
New design for simple,simple,simple ;
2.4G &5.8G dual band, Auto switch frequency;
Max. 4000mW real output power;
6-16V wide voltage range,support different power supply;
Aluminum-alloy case by CNC, anti-interference;

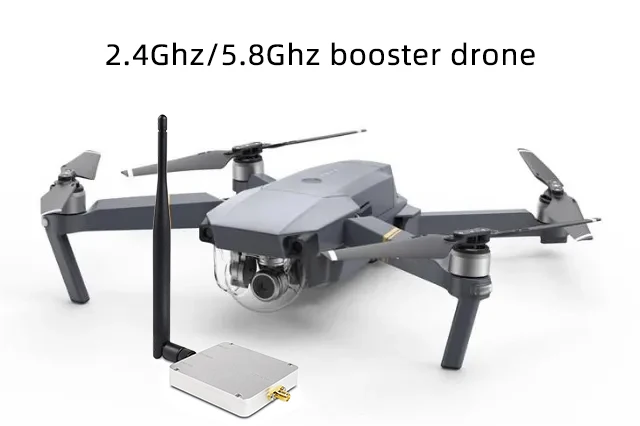

Designed for Drones, UAV, RC equipment....
Specifications:
Booster Model: EP-AB015
Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,carrier from transmitter and automatically switch receiving to transmitting mode.
Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:5~23 dBm
Transmit Gain:15~18dB
Output Power:4000mW (36dBm)
Receiver Gain:15~17 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 6V~16V
Operating Temperature:-30°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 100g
Booster Size:65*61*11.5(mm)
Attentions：
1.12V /1A power supply.
2.Heat dissipation is recommended, such as adding heat sink or radiator fan.
3.Antenna should be screwed first, then plug the power adapter, finally connect the device.
4.The output could reach 36dBm, when input power is 19dBm or 20dBm (default gain is 17dB).

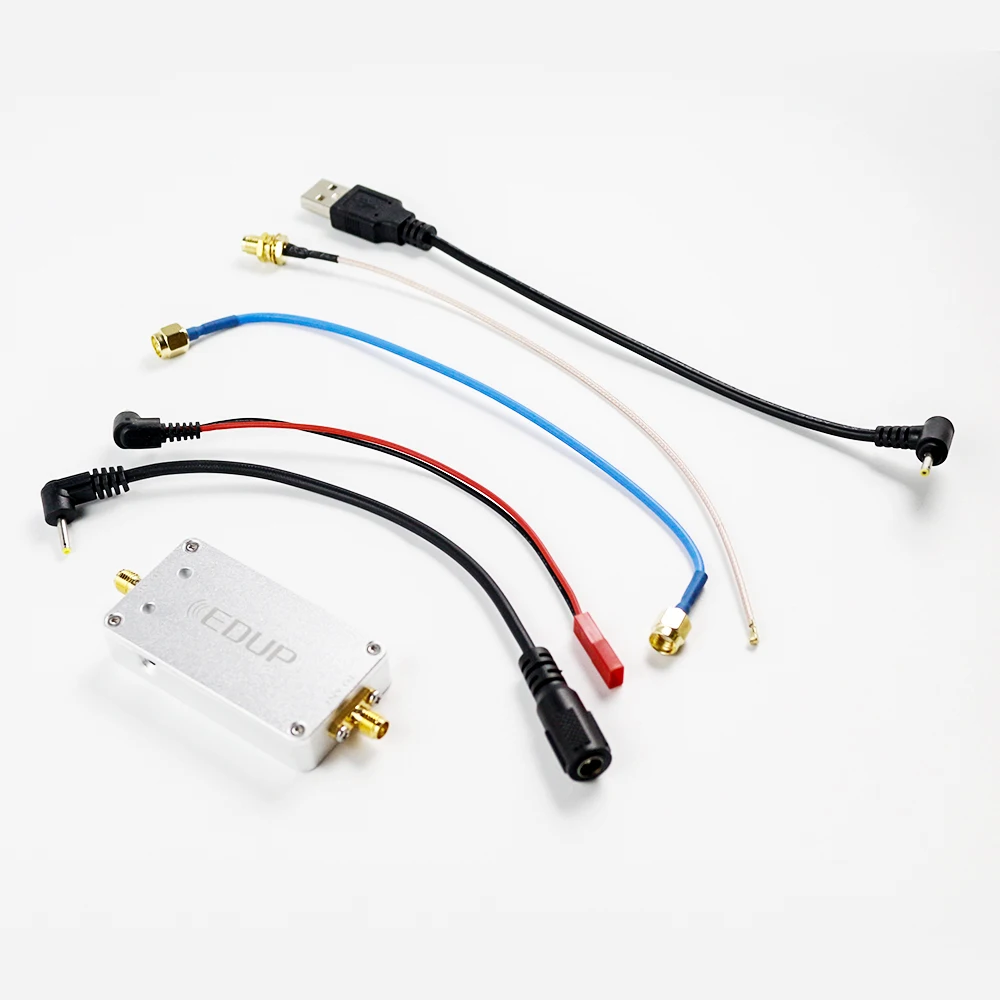

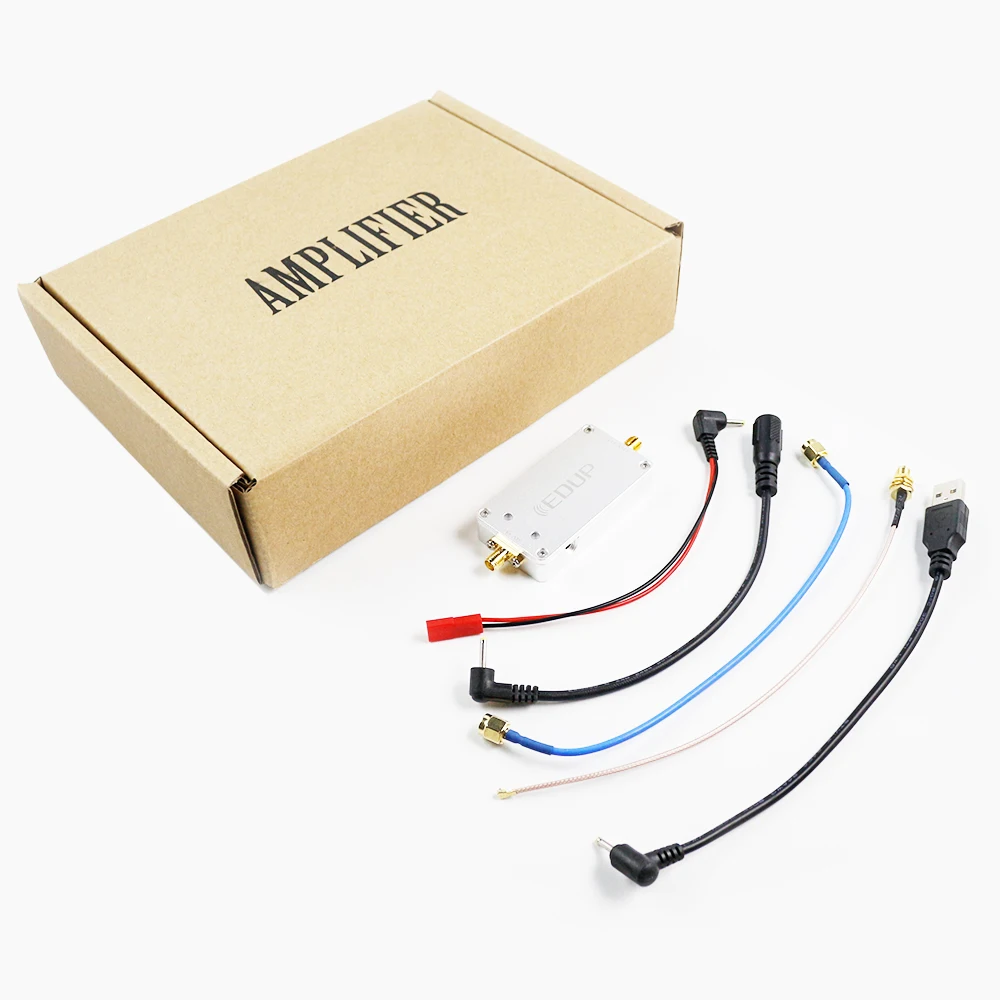

Package included:
1 x WiFi Amplifier
1 x Connector cable
1 x Power supply
1 x Manual
Shipping and Returns:
Shipping is available from China and Russia
Warranty:
Products ordered from China come with a 75-day money-back guarantee.
