Features And Specifications

▶Installation Type: Rearview Mirror, suitable for all vehicles with mirror

▶Screen(Display) Size: 12 Inch IPS Touch Screen

▶Chipset(Processor/CPU): Allwinner

▶Camera Sensor: Front 4MP + Rear 2MP + Inner 2MP

▶Camera Lens:

Front(6 Glass + 170 Degree Angle + F1.8 Aperture)

▶Video Resolution:

Front: 2560*1440P@30FPS;

Rear: 1920*1080P@30FPS;

Inner: 1920*1080P@30FPS

▶Photo Resolution: 12M

▶Video Code: H.264

▶Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)

▶OSD Languages: Russian (default), English, Hebrew, Chinese, French, Turkish, Spanish, Japanese, Arabic, Korean, polish, Lithuanian, Hungarian, Italian, Portuguese, German, Czech, Slovak, Dutch, Romanian, Greek

▶Basic Features: G-sensor,Resolution,Digital Zoom,Light source Frequency,Stream Media,Motion Detection,Cycle Recording,GPS,GPS Infn,Speed Unit,Speed Compensation,Screen Saver,Time&Date Display, Microphone, Boot Sound,Key Volume,Setting Guideline,Back camera mirror,Back camera flip,In-car camera mirror,In-car camera flip,With Rearview Mirror, Three Lens, With Ruler, Anti Surge Voltage Impact, Waterproof, Anti Fog, Anti Vibration, Real Time Surveillance, Cyclic Recording, Automatic White Balance, WDR,Time-lapse video Infrared light etc.

▶Memory Card: Micro SD Card, class 10 and 16GB to 256GB (Not included)

▶Rear Camera Upgrade: Support max 10 meters cable Rear Camera

▶Add Features: Night Vision, 3 Split Screen, 3 Cameras, GPS Tracker, Reverse image, parking monitor, WiFi

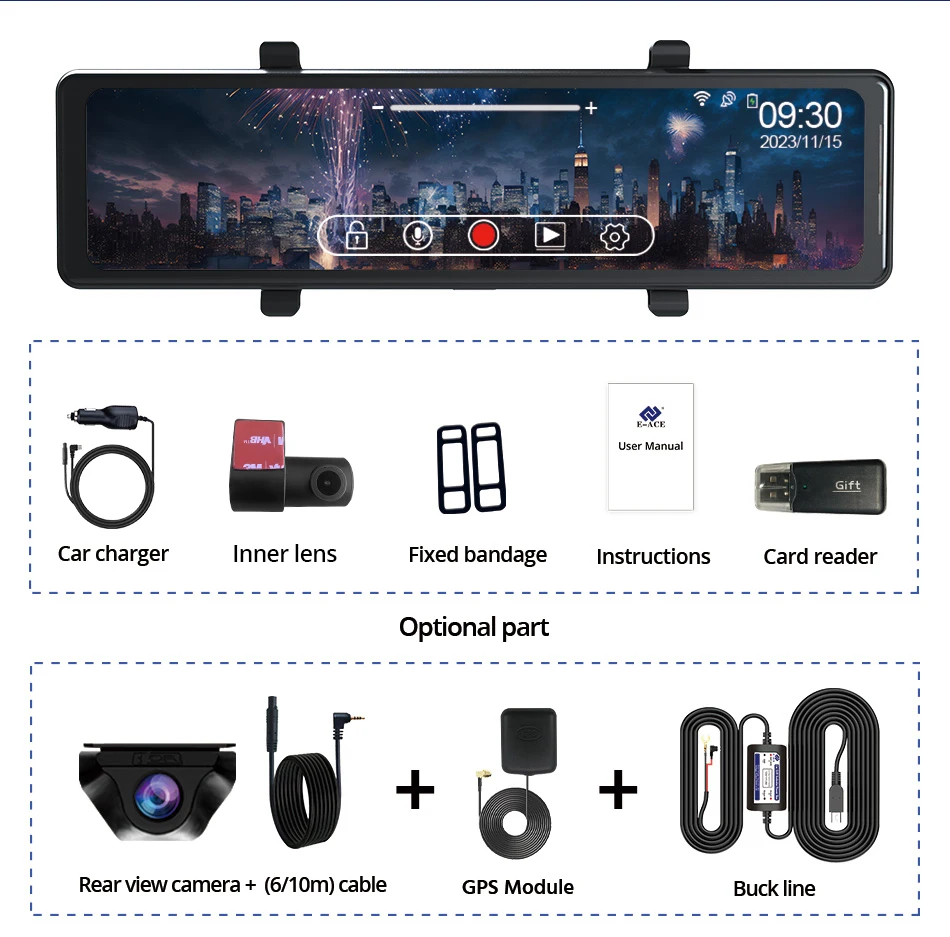

Packing List

▶1 x Packaging box

▶1 x DVR Mirror

▶1 x 1080P Inner camera which can recorder inner car

▶1 x Power charger

▶1 x User manual

▶2 x Bandages

▶1 x USB Card Reader (Gift)

▶1 x GPS Module(Optional)

▶1 x Rearview Camera With 6 Meters Cable(Optional)

▶1 x Buck Line For 24H Parking Monitoring(Optional)

▶1 x Real Class 10 High Speed TF Card(Optional)

Pay Attention

▶About 24h Monitoring

The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).

▶About Video

Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.

Why do you need a dash cam

The driving recorder can record a series of traffic accidents such as vehicle collision.

It can monitor for 24 hours to avoid theft and scratches in the vehicle. It can recorder front, inside and rear back at the smae time.

Features:

Front Ultra HD 2K  2560*1440P

Front camera with 2K 2560×1440P Ultra HD resolution, With the high-sensitivity sensor, this car camera can perform the higher quality and vivid images and videos.  it can sense the surrounding environment and delicately handle complex light. With fast image capture rate and image processing capability, it can enhance image clarity to perform more naturally vivid and lifelike image quality.

Front Camera 2K Higher Quality Image

Inner camera 1920*1080P

It can install on the front window to recorder inner car. With this function, you can record more happiness time in the car, also you can watch your baby when drive.

1080P resolution clear viewing the suitaion in the car.

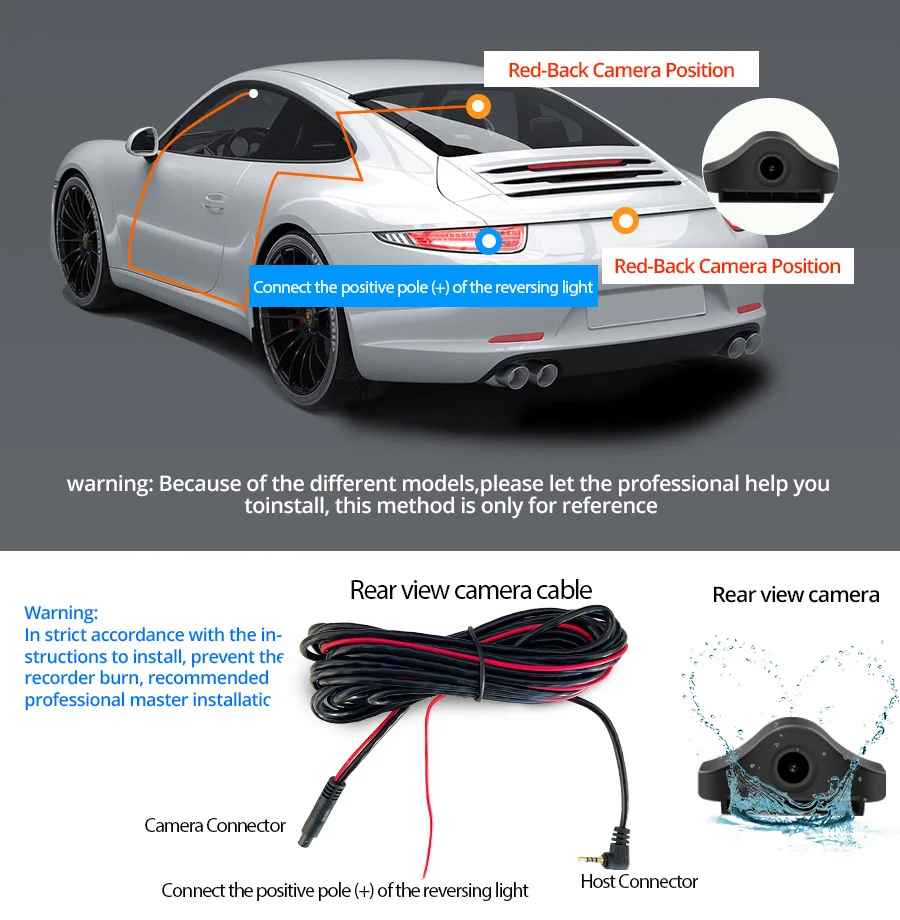

Rearview Camera 1920*1080P (Optional)

1080P resolution clear viewing rear view images,and are-versing line Better than the original car reversing images,reversing more secure.

Super Night Vision

Allwinner 2K sensor , achieving an outstanding low-light performance higher than conventional 2K-resolution sensor, captures crisp clear night time video footage in low-light condition.

3 Camera Lenses Simultaneously Record

In addition to front and rear view, you can also observe everything that happens inside the car.You can choose a different screen viewing mode, front and rear view ,car inside and front view, large wide-angle high-definition picture quality, wider vision, driving more secure.

11.28 Inch Touch Screen

The display employs new techniques and technology to precisely follow the curves of the design, ll the way to the elegantly roundedcorners, to ensure 100% image view will be displayed in this 11.28 inch entirely screen.

3 Split Screens

3 split screen design to switch front and rearview，built-in recording, big screen and clearly and ersily to check rear view.you can switch views by swiping your finger left or right.

1:1:1 Split Screen

1:1:1 split screen design to switch front and rearview recording,big screen and clearly and ersily to check rear view.You can switch views by swiping your finger left or right.It contains 3 views:front view,rear view, front &inner& rear view.

Connect WiFi Control

You can control the DVR by connected mobile phone via WiFi, like recording video, the file recorded video from the overwriting.taking photo, playback preview,parameter settings, etc.

GPS Function(Optional)

Record your driving route, location, speed conveniently on the GPS Player.

GPS Antenna

Connect the GPS Antenna to DVR Mirror, after the GPS connect with satellites, will show the driving speed and compass on screen

Reverse Parking view

Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind.you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.

More Functions

24H Parking Monitor

If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

Time Lapse Video Function

Taking a 16G memory card as an example, only about one hour of video can be recorded in the 30-frame per second mode. After the time-lapse recording function is enabled, recording time under 1 frame per second mode will reach 30 hours (more than 24 hours), which will increase the maximum recording time and data storage by 30 times, ensuring the integrity of the recorded content, greatly saving memory Card space and protect your vehicle for more than 24 hours.(Note: Need to buy a buck line)

*Kindly Reminder: To enable time-lapse recording of the Dash Cam A50, so as to 24H Parking Monitor Function, Buck Line is required to be installed and sold separately.

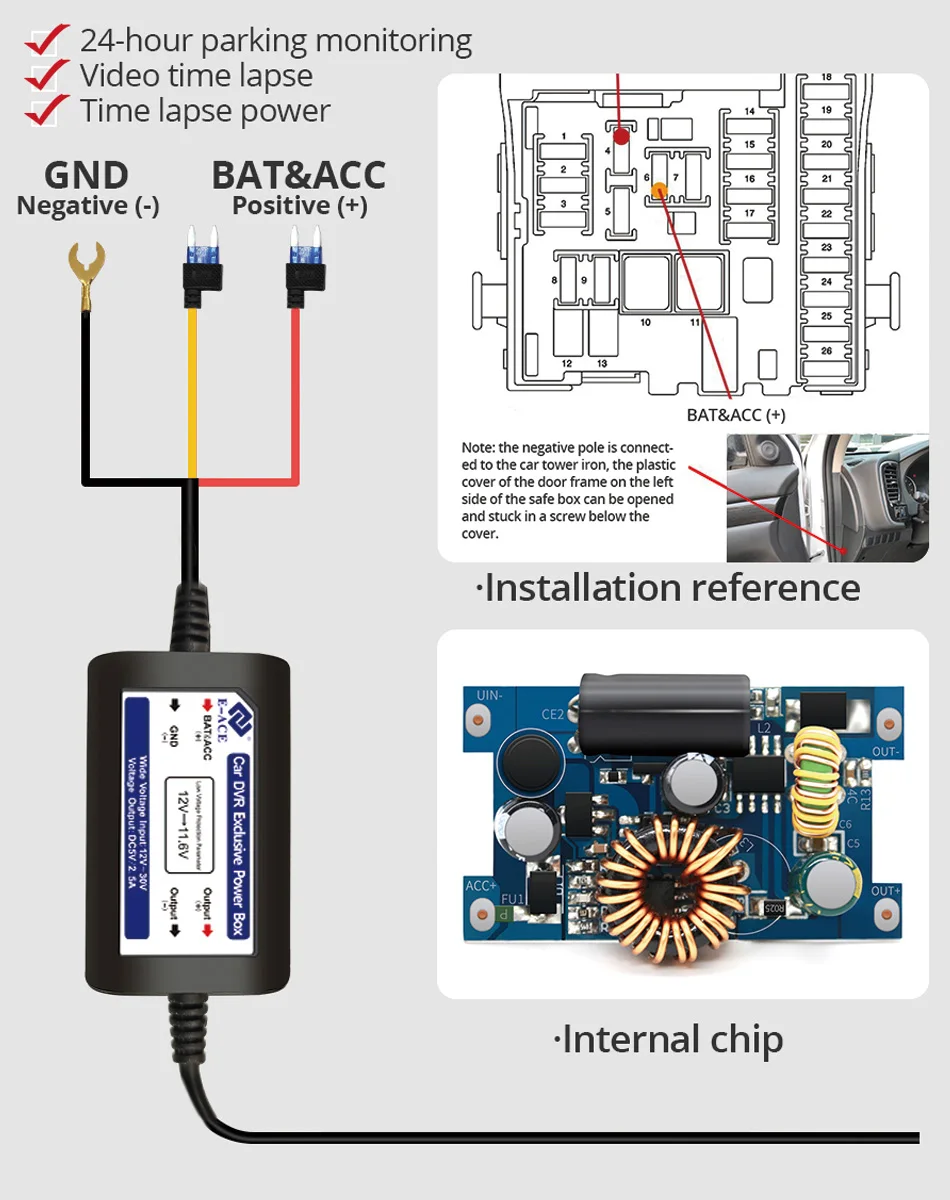

Buck Line

Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.

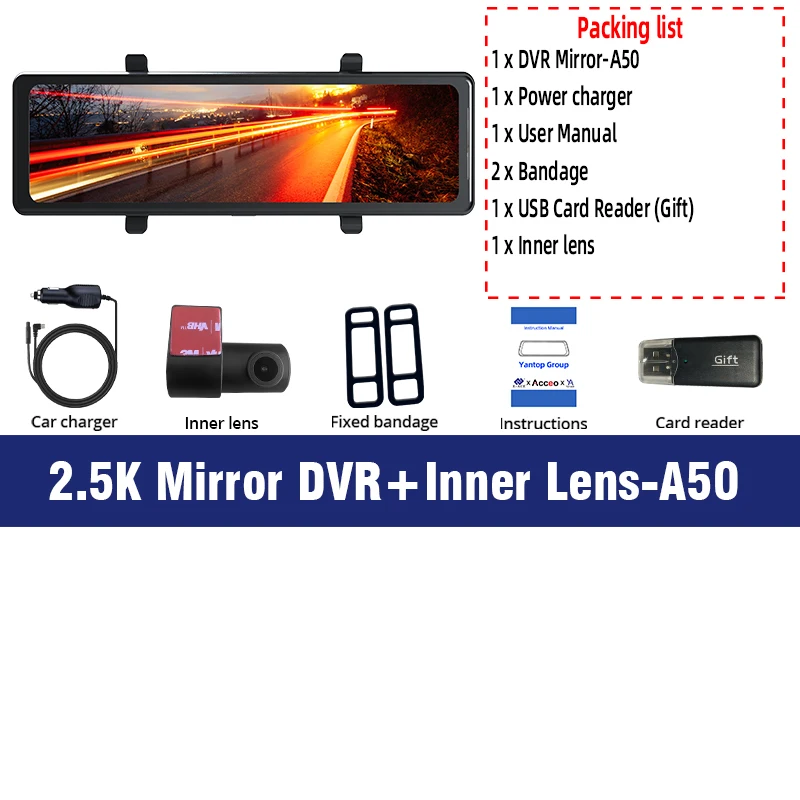

SKU(Color Name) Packing List

Color Name: A50

-1 x Packaging Box

-1 x DVR Mirror(2K)

-1 x Inner camear, can install on front window(1080P)

-1 x Power charger

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader (Gift)

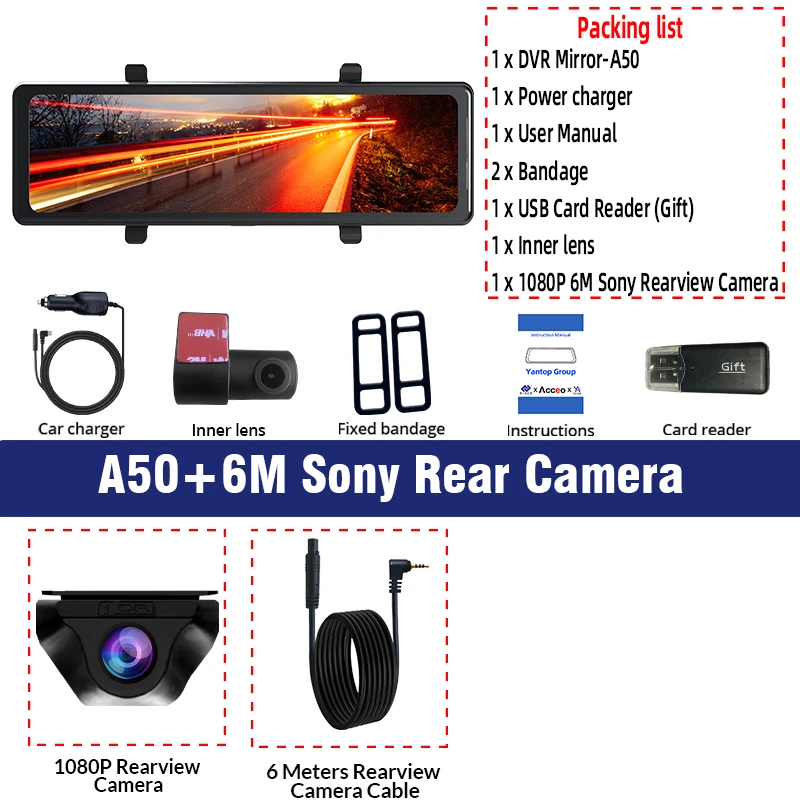

Color Name: A50-6M RCC

-1 x Packaging Box

-1 x DVR Mirror(2.5K)

-1 x Power charger

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader (Gift)

-1 x 6 Meters 1080P Rearview Camera

Color Name: A50-6M RCC-GPS

-1 x Packaging Box

-1 x DVR Mirror(2.5K)

-1 x Power charger

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader (Gift)

-1 x 6 Meters 1080P Rearview Camera

-1 x GPS Module
