Please note before placing order |
1) Shipment & Import duties
a. Seller is irresponsable for import taxes (if any) of destination. Shipping Invoice will declare true value.
b. Free Shipping, but if buyer's address belongs to remote area for the appointed shipping way, seller will charge the extra shipping cost, or ship by other way.
2) Operating System
Windows 7 (unactivated, no license) is pre-installed by default,. If you need other OS, please leave us a message in advance, or you can re-install by yourself.
3) If you have special request, please let us know in advance.
Specification |
Cooling Mode | Fanless Design |

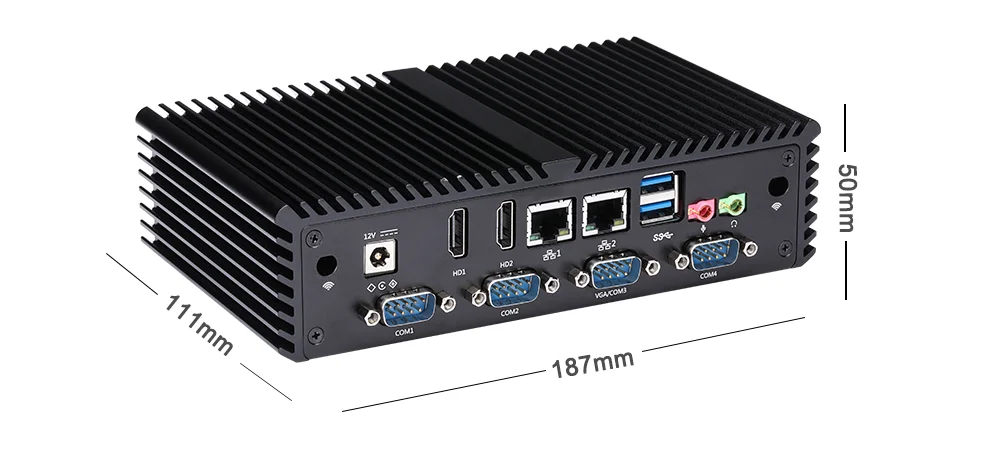

Dimension | 187 x 111 x 50mm |

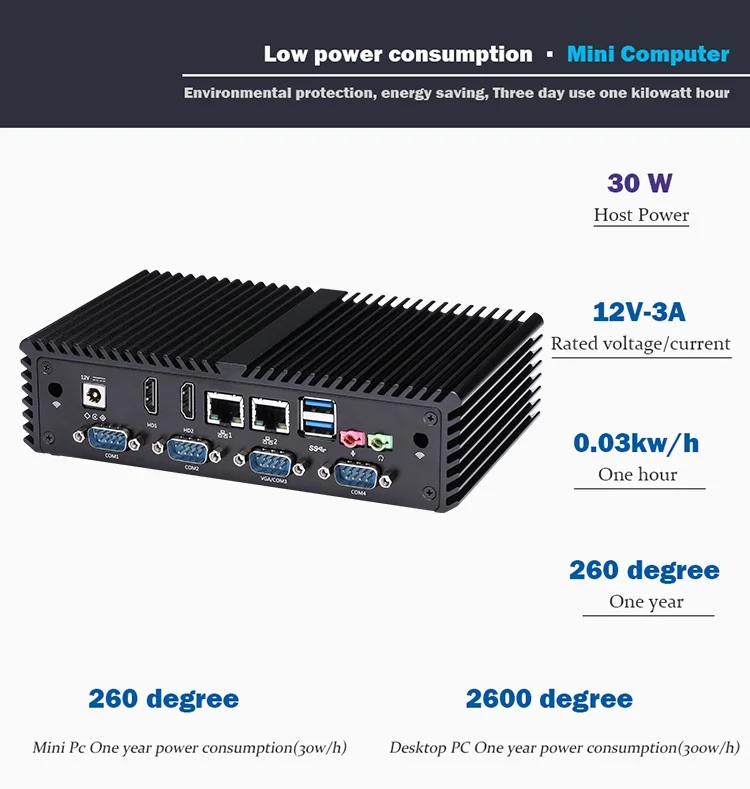

Power Consumption | TDP 15W |
Onboard CPU | Intel Core i7 4500U Dual Core Processor 1.8GHz Up to 3.0GHz 4M Cache |
Processor Graphics | Intel HD Graphics 4400, Support AES-NI |
Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G,1333/1600MHz) |
Hard Disk | 1 x 2.5-inch HDD/SSD1 x Mini-PCIe for mSATA SSD |
Chipset | By CPU |
Onboard LAN | 2 x Intel I211-AT Gigabit LAN |
Audio Solution | Realtek ALC662 HD Audio |
Watch Dog | Yes |
Materia | Aluminum |
Weight | 1.1kg |
Kensington Lock | Support |
Power Adapter | 12V 5A |
DC Jack | 5.5mm x 2.5mm |
Mounting | VESA Mounting Bracket |
Power Cable | EU/US/AU/EN etc. |
Humidity | 10%~90% |
Operating Temp | 0degC~50degC |
Non-Operating Temp | -20degC~80degC |
Front-Panel Connectors | 1 x Power Button1 x Power LED, 1 x HDD LED2 x USB 3.0, 2 x USB 2.02 x RS-232 Serial port (COM5, COM6) |
Internal Connectors | 1 x Full Length Mini-PCIe for SSD1 x Mini-PCIe for Option (Full-length for 3G, or Half length for Wi-Fi Module by default)1 x SIM Card Slot1 x Automatically Boot Jumper1 x 2.0 Pitch Header for GPIO1 x 2.0 Pitch Header for VGA1 x DC-in Header*COM2 can be set up as RS-232/RS-485 (Factory Setting)*COM3 can be set up as VGA (Factory Setting) |
Back-Panel Connectors | 1 x 12V DC Power Jack2 x HDMI, 1 x VGA(Optional)2 x RJ-45 Port for Gigabit LAN2 x Audio (Mic-in & Line-out)2 x USB 3.04 x RS-232 Serial ports(COM1, COM2, COM3, COM4) |
Operating System | Support Windows, Linux, etc |
Pls Note:
1. If there is NO RAM, please use DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM. They DO NOT support DDR3 1.5V RAM.
2. This PC is also incompatible with some 1.35V RAM model likes Crucial etc. Seller is irresponsible and makes no compensation for buyer's own RAM.
The computer is also designed to be easy to disassemble so you can add memory, storage, or other hardware.
It has an all-aluminium alloy chassis with a convection cooling system that doesn't require any fans.
Press "delete " Key, you can enter the BIOS, Press " F11" boot from USB.

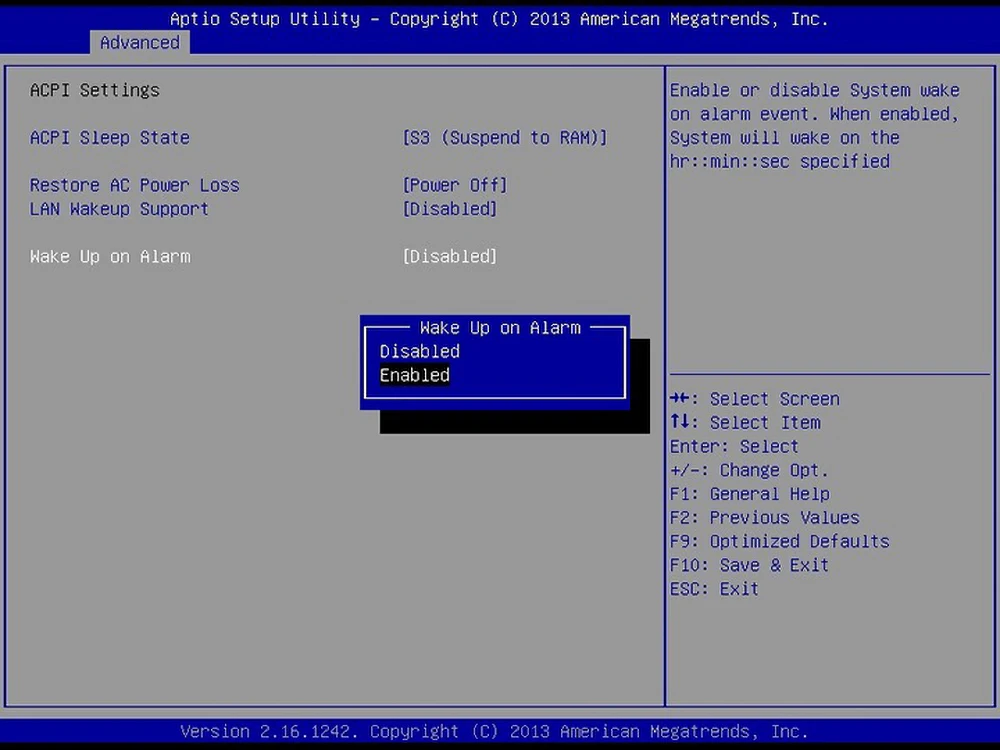

BIOS are able to configure for Auto satartup after Power interruption.
BIOS supports specific time startup.

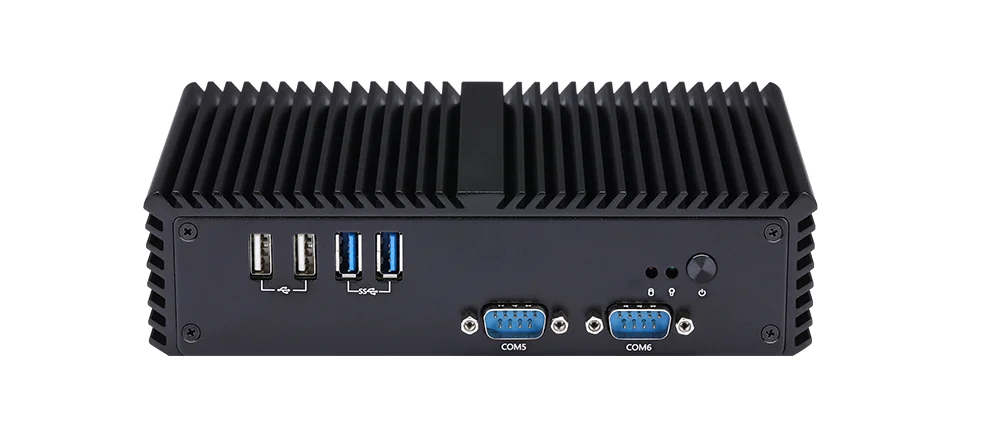

Front Port
1 x Power Button
1 x Power LED, 1 x HDD LED
2 x USB 3.0, 2 x USB 2.0
2 x RS-232 Serial port (COM5, COM6)

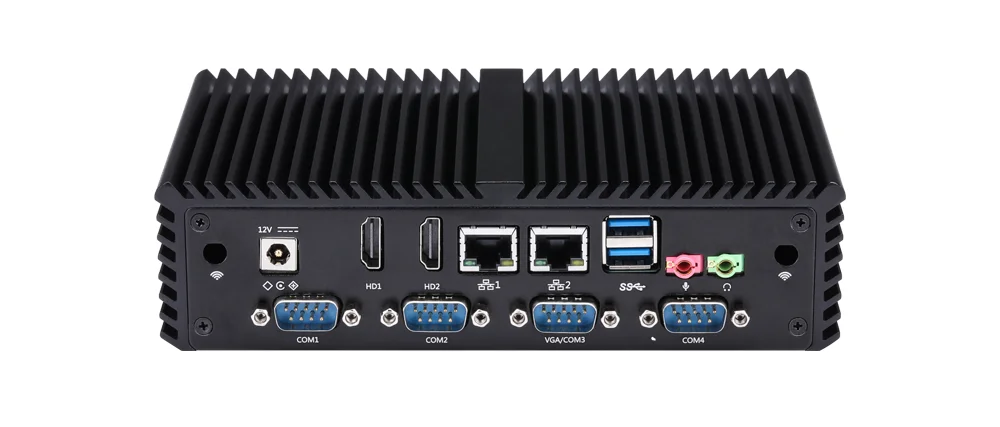

Back Port
1 x 12V DC Power Jack

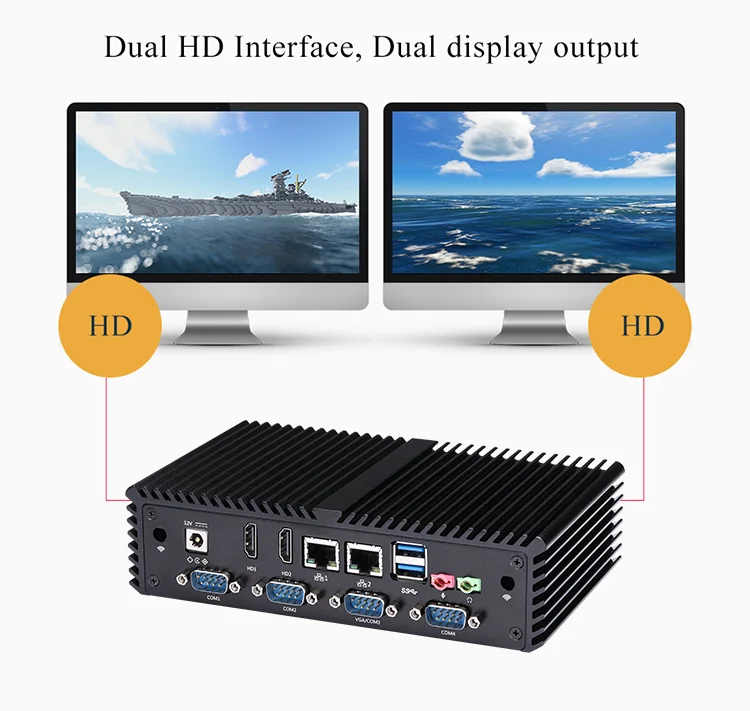

2 x HDMI, 1 x VGA(Optional)
2 x RJ-45 Port for Gigabit LAN
2 x Audio ( Mic-in & Line-out )
2 x USB 3.0
4 x RS-232 Serial ports (COM1, COM2, COM3, COM4)
1. Full-length Mini PCI-e slot (Part ①) only supports mSATA SSD.
2. Full-length Mini PCI-e slot (Part ③) is only for 3G/4G module.
3. Half-length Mini PCI-e slot (Part ②) is only for WiFi (/Bluetooth).
4. SIM Card Socket.
5. SO-DIMM slot (Part ④) is only for DDR3L RAM.
Pls Note:
1. Mini PCI-e cann't be supported WiFi and 3G/4G module as the same time in this computer.
It only supports WiFi by default. If you want to choose 3G/4G function, pls leave a message.
2. We don't provide SIM card and 3G/4G module.
