Customized Instruments 300KM/H 85MM GPS Speedometer 8KTachometer 52mm Fuel Voltmeter Water/ Oil Temp Oil Press Gauge With Sensor
Description
300KM/H 85MM GPS Speedometer 8000RPM Tachometer 52mm Fuel Voltmeter Water Temp Oil Temp Oil Press Gauge With Sensors for car boat
Features:
* 100% Brand new and high quality
* The instrument adopts the cross coil to drive the pointer, the durability is good, and the seismic performance is good.
* Protection grade is IP67, the whole body is completely waterproof.
* Excellent antifogging function.
* With polarity reverse protection function.
* 316 Stainless steel bezel with curved glass.
Specifications:
* Material: PVC + Stainless steel + Glass
* Panel color: silver / black
* Fixing dimension: 85mm
* Working voltage:9~32VDC
* Working current: ≤100mA
* Operating temperature: -30°~75°
* Storage temperature:-40°~85°
* Levels of protection: IP67
* Range: 0-300km/h
Package include:
1 x GPS Speedometer
1 x GPS Antenna
1 x Instruction manual
Wholesale and Drop shipping
- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.
- For drop shipping, We could send the goods to your customers directly and won't leave information about us if you'd like to.
85MM GPS Speedometer
85mm Tachometer
Specification:
- Name: Tachometer
- 7 Colors Backlight
- High Precision
- Size:85mm
- Signal : Pulse
- Working voltage: 9-32VDC
- Working current: ＜120mA
- Backlight :7 Color backlight
- Engine hours: 0.0-99999.9H
- Working temperature: -30-70℃
- Storage temperature: -40-85℃
- Waterproof and dustproof grade IP67.
- Functions: current tacho/RPM and hour
- Operation mode: LCD display, stepper motor
- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine
52mm water temp gauge
Specifications:
[1]Working current::≤60mA
[2]Working voltage:9~32 V
[3]Install diameter:Φ52mm
[4]Indication range:0~120℃
[5]Input signal:287.4~22.4 ohm
[6]Storage temperature:-40℃~+85℃
[7]Operating temperature:-30℃~+75℃
[8]Waterproof :front cover IP67,back cover IP5
[9]>Backlight: 7 Colors ,red,yellow,orange,green,blue,purple,white, you can chose the color that press the gauge back button
52mm fuel level gauge
Specification:
* Material:stainless steel 316L+anti-fog glass
* Install diameter:Φ52mm or 2-1/16"
* Indication range:E-F
* Input signal:0~190ohm
* Backlight color:red,yellow,orange,green,blue,purple,yellow green, You can choose what you need color that press the gauge back button
* Working current::≤60mA
* Operating temperature:-30℃~+75℃
* Storage temperature:-40℃~+85℃
* Grade of protection:IP67
* Item color:Black,White
* Item condition:new
* Package method:neutral box
52mm oil pressure sensor
Specification:
* Install diameter:Φ52mm
* Material:stainless steel 316L+anti-fog glass
* Backlight Color: red.yellow.orange.green.blue.purple.white, You can choose what you need color that press the gauge back button
* Working voltage:9~32VDC
* Input signal:10~184ohm
* Working current::≤60mA
* Operating temperature:-30℃~+75℃
* Storage temperature:-40℃~+85℃
* Waterproof:front cover IP67,back cover IP5
* Oil Pressure Gauge fit Car /Boat/Yacht/Truck,etc.

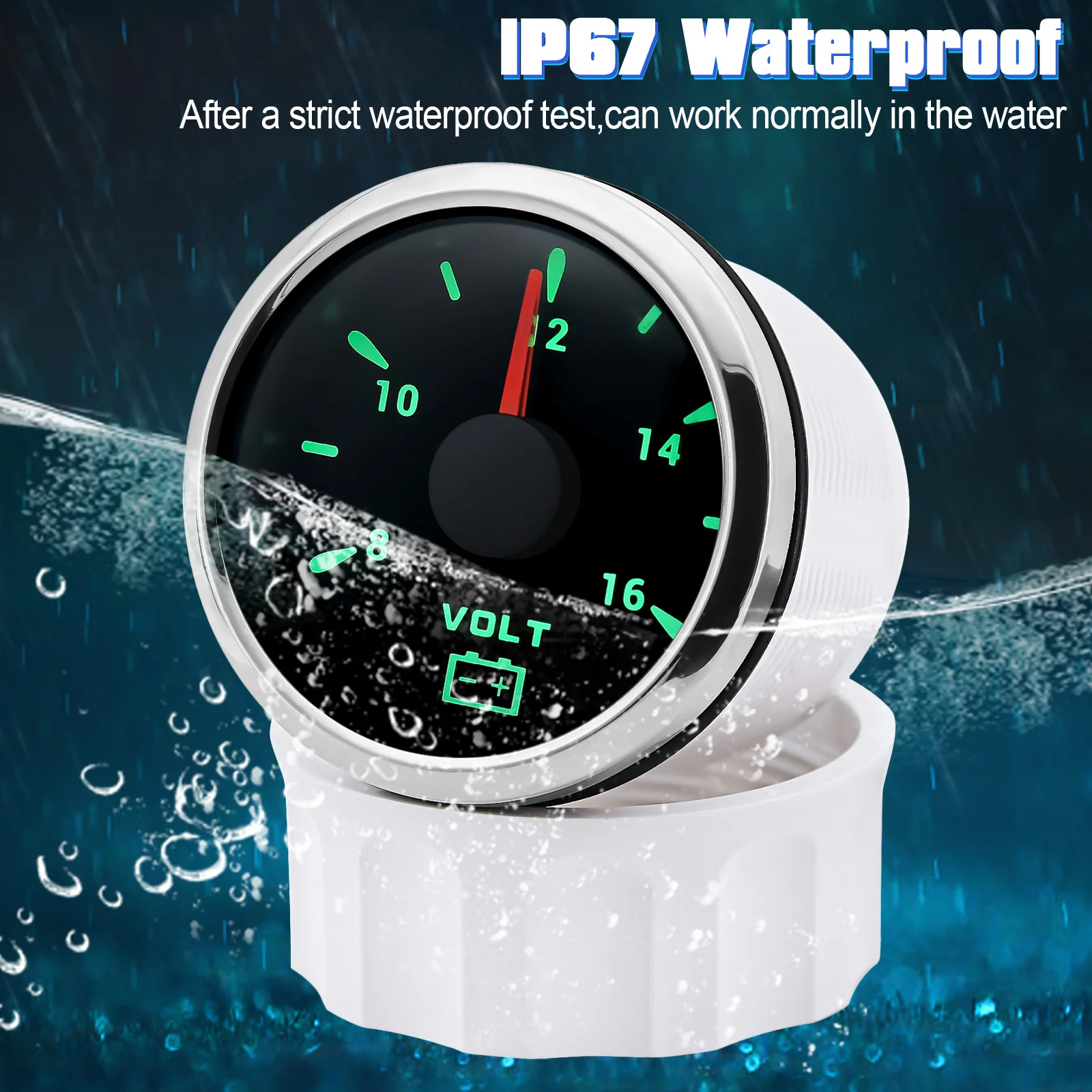

52mm 8-16V Voltmeter
Specifications:
* Name:52mm Voltmeter
* Bezel Materials: Stainless Steel
* Install Diameter: 52mm(2-1/16'')
* Operating Voltage:9-32VDC
* Measurement Rane:8~16V
* Backlight:7 colors backlight
* Grade Of Protection :Completely waterproof
* Blacklight Color:red (default) →green → blue → white→ yellow green → orange → Purple → Olive(automatic).
* Voltmeter Gauge Support :Boat ,Car , Motorcycle
*Voltage Meter fit for Car , Boat ,Motorcycle
Connection:
Black: Ground(-)
Red: 9-32VDC
Blue: Signal Input
Yellow: Backlight
White: Reserve up to: 36V (≤ 1 min)).
52mm oil temp gauge
Fuel level sensor
