Description
Product name:Cow Cattle Mastitis Detector Dairy Livestock Breast detector tester Subclinical Mastitis Detector Dairy farm nipple detect
Material: The outer casing is made of polypropylene plastic.
Product advantage
-1. The machine body is waterproof, the switch is waterproof, and the insulated handle;

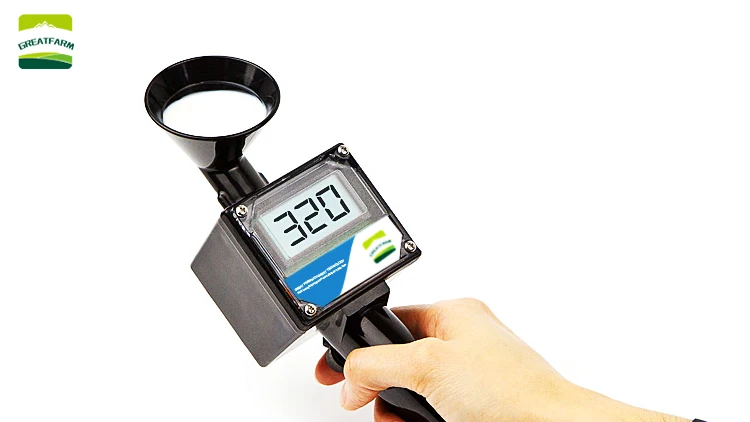

-2. Large digital display screen: automatically display numbers, the data is intuitive and accurate;
-3. Removable replacement Battery: Display "LB", please replace the battery with new one.
-4. Anti-collision, chemical resistance, easy to clean.
Detection step
-1. Press the switch to wait for two horizontal lines on the display
-2. Place the sampling cup under the nipple 1 and squeeze the milk directly into the sampling cup. The milk should be full of cups, at least not below the tick mark.
-3. After 2 seconds, press the switch key again to start the test, and the screen displays the test result
-4. Pour the tested milk into an empty bucket (slightly shake and remove the residual liquid from the sampling cup).
-5. Repeat the above steps to detect nipples 2, 3 and 4.
-6. Dip the sample cup into clean water and turn it to wash away the residual milk.
Note: When a breast is detected with recessive mastitis, the sample cup should be thoroughly cleaned to prevent residual milk from affecting the next test.

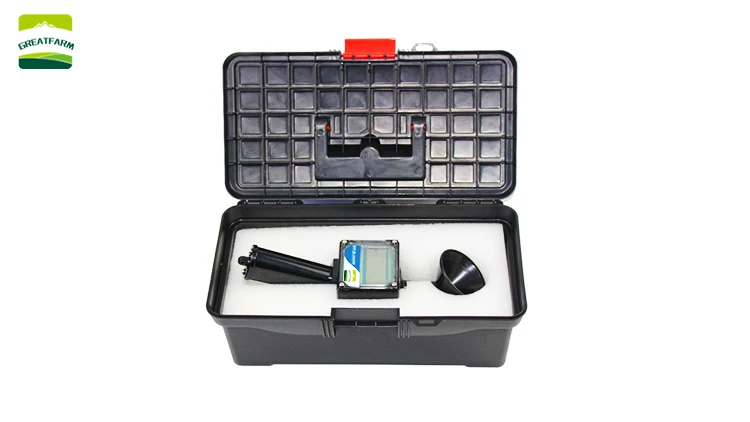

Product acessories
-1. DRAMISKI MD4Q mastitis detector;
-2. 1 x 9V 6F-22 type battery;
-3. Reusable transport packaging (made of plastic)
-4. Manual.
Unit weight | 265 g (with battery) | |
Dimensions | 25.0 x 7.0 x 9.0 cm | |
Power supply | 1 x 9 V battery, type 6F-22 | |
Battery low indication | automatic | |
Power input | about 18 mA | |
Measurement control | single chip microcomputer | |
Estimated working time on one battery pack | about 22h | |
Display | LCD display 4 x 3 digits | |
Measuring range | 10-990 units | |
Measurement resolution | 10 units | |
Recommended storage temperature | from 5°C to 45°C |
