Description

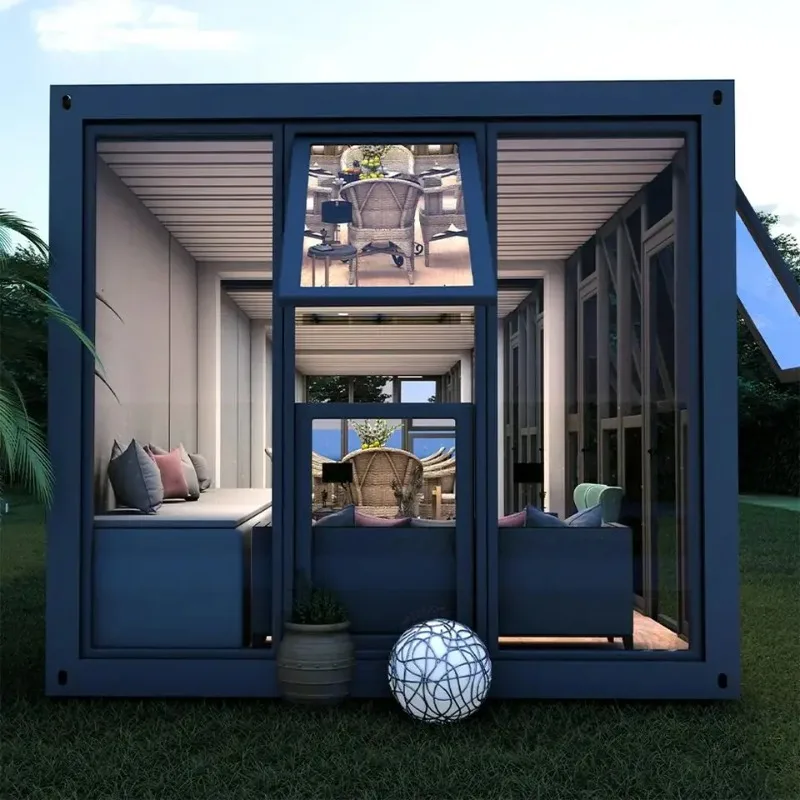

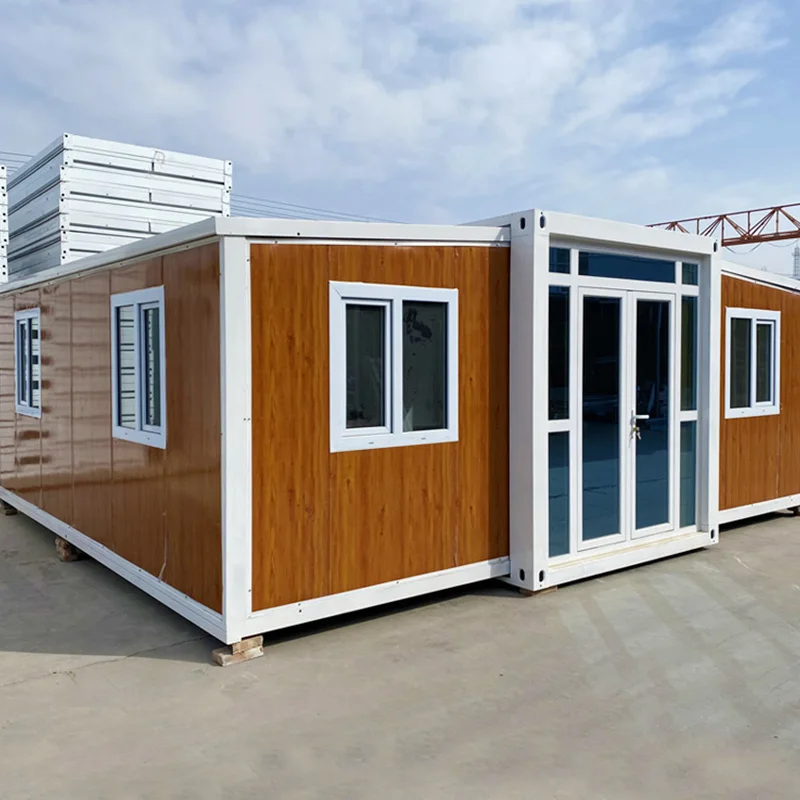

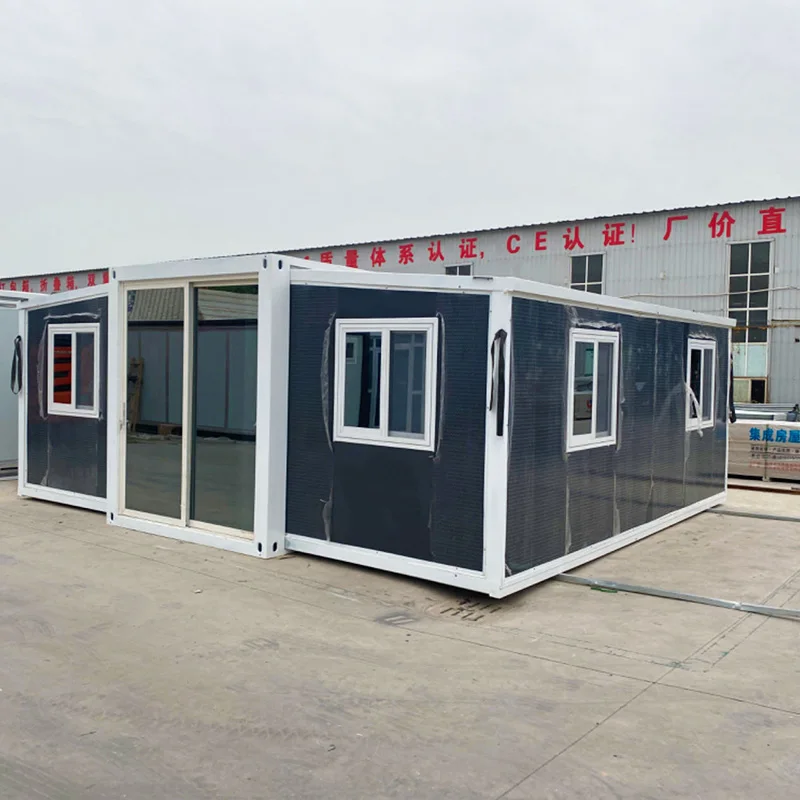

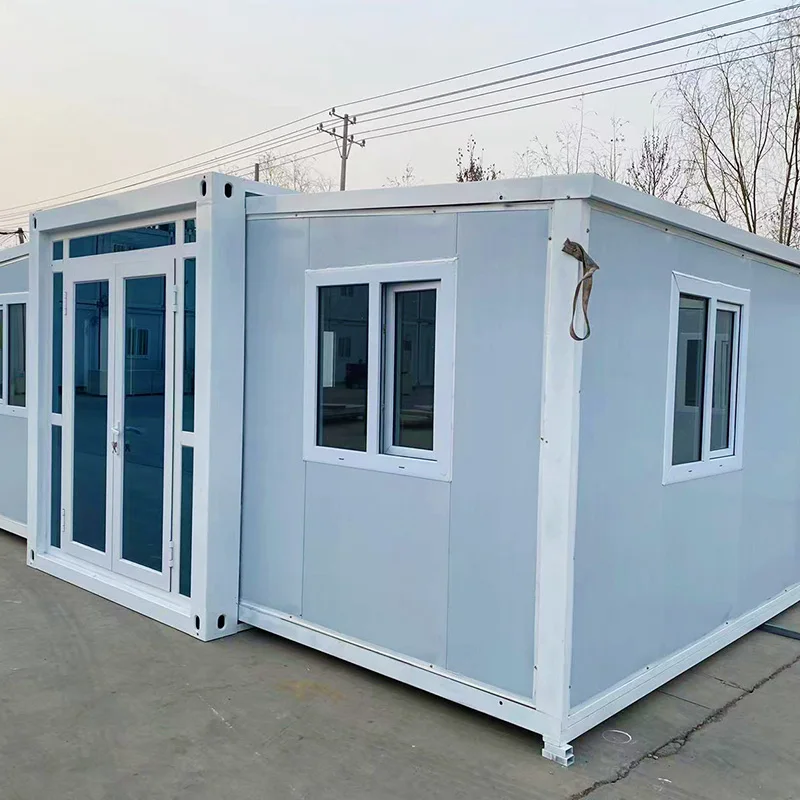

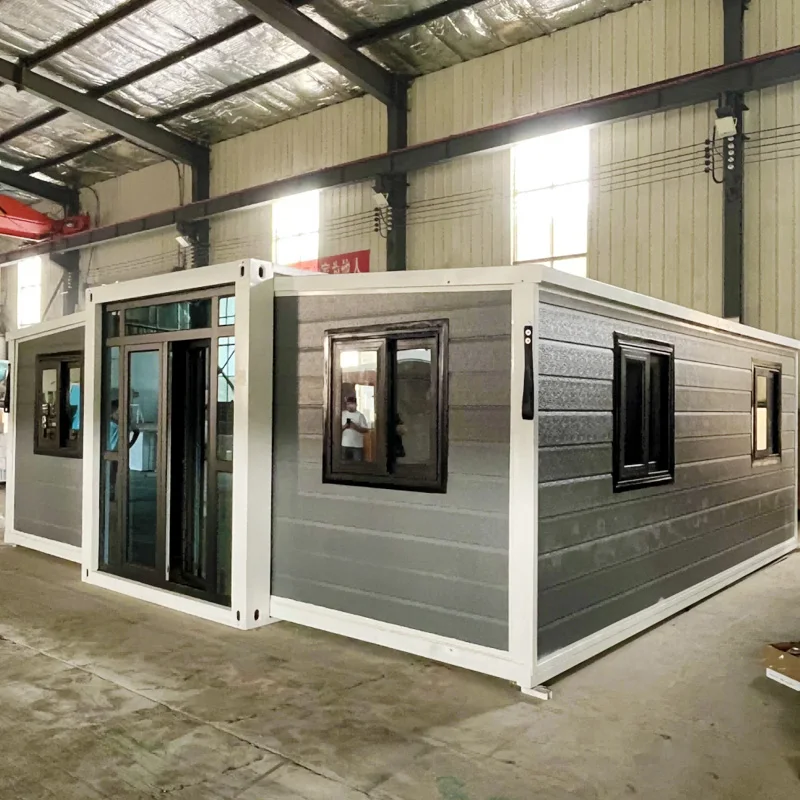

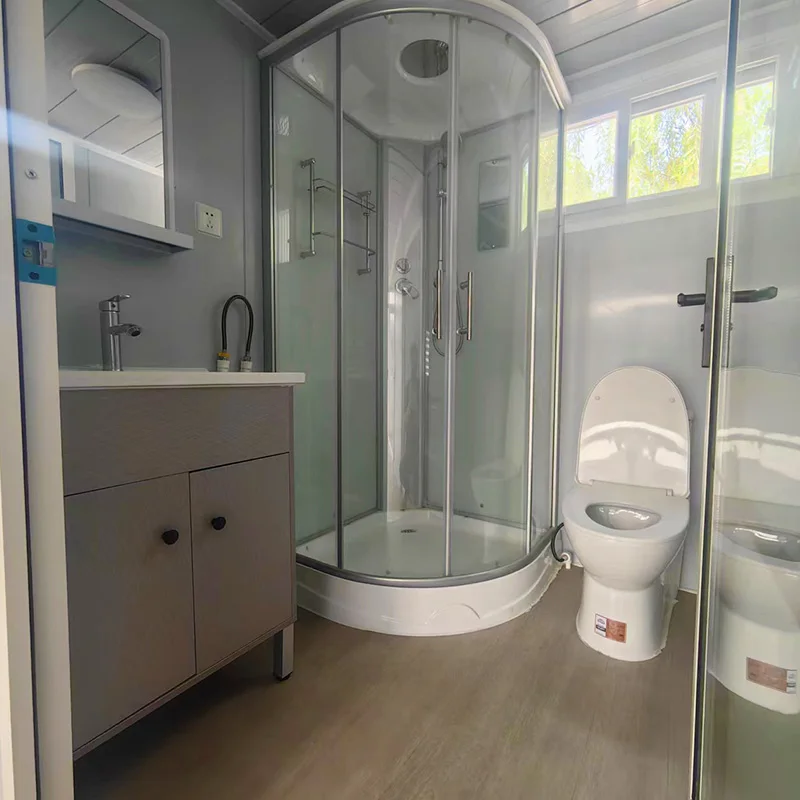

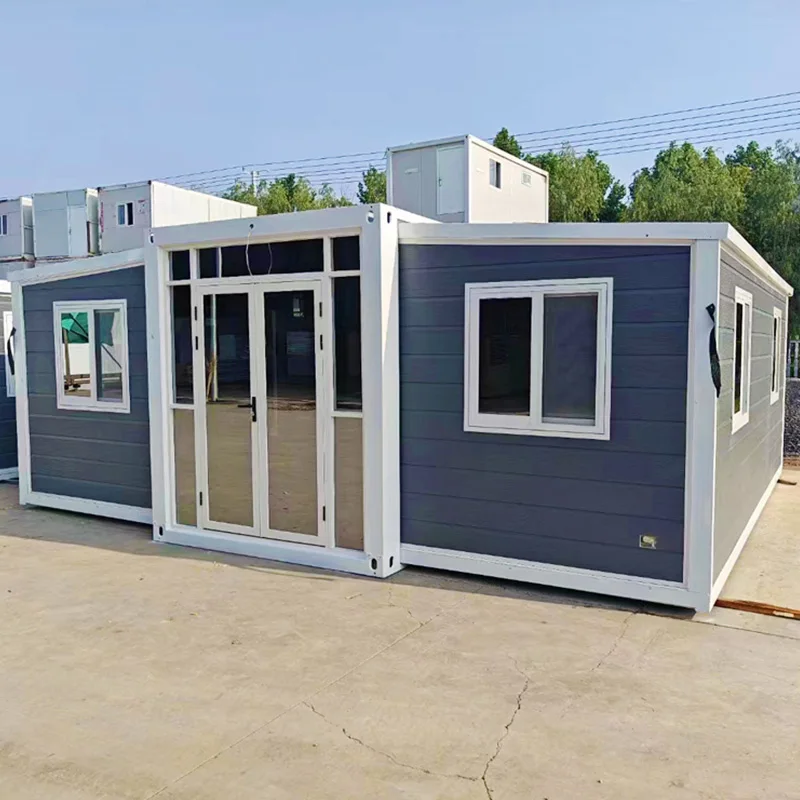

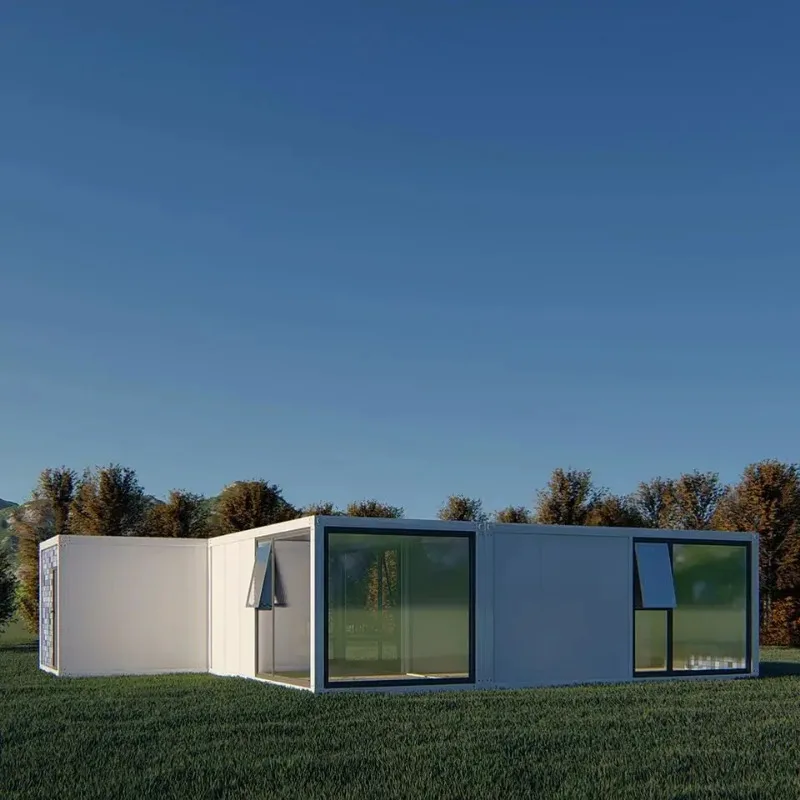

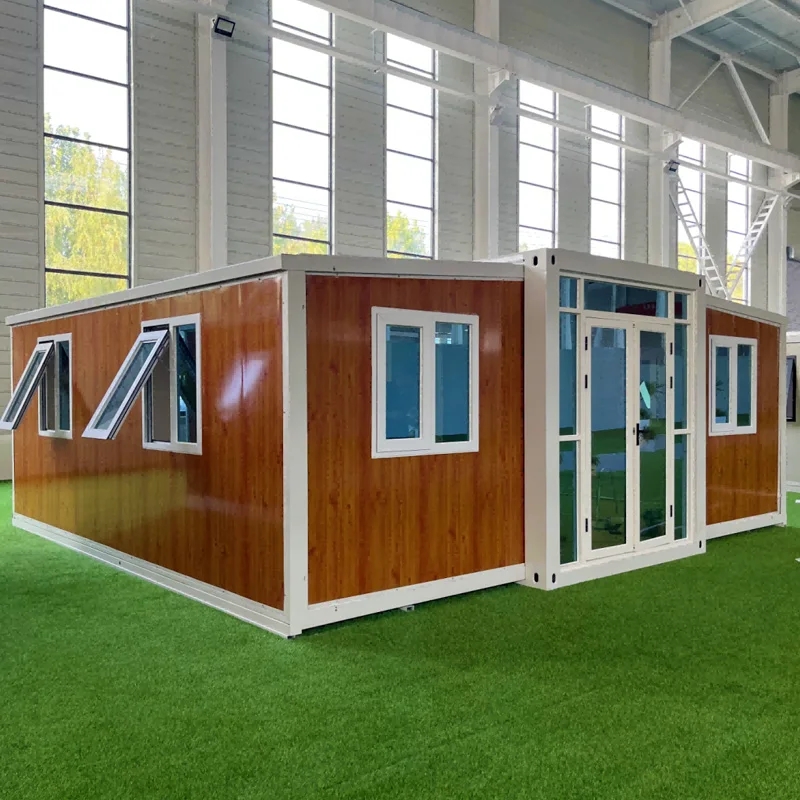

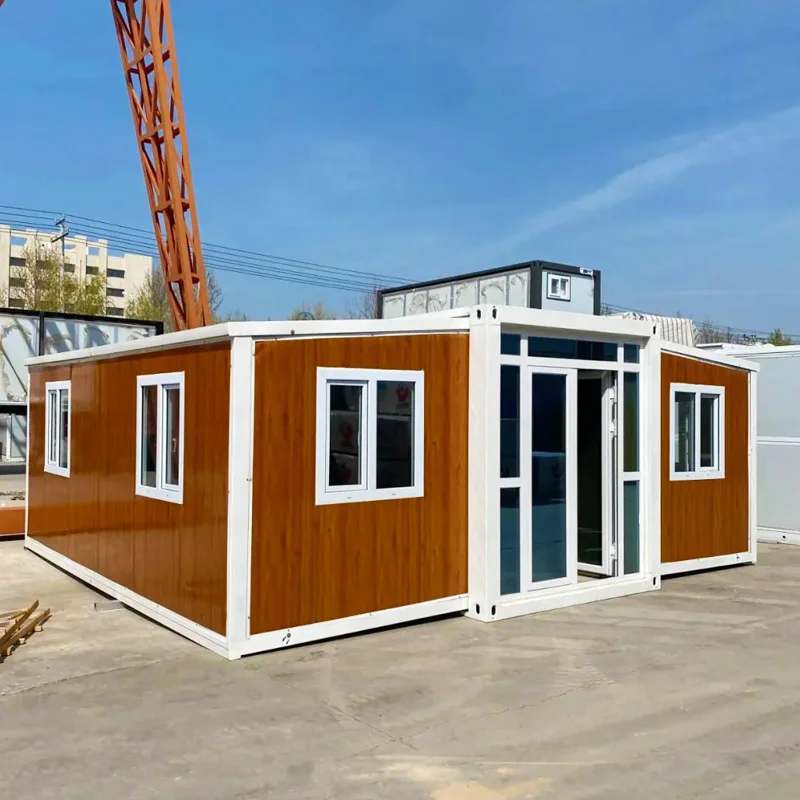

Product design display
![](https://ae01.alicdn.com/kf/Sd32818c8515a4a9e871170abdc8c467cs.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/Sf58354d6d2974089a27c49d9f98f349eK.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S45a418c5a80343bfb1dc502ef362d4c8e.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/Sa267dcbcd43f4718abb9db251b6c90747.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/Scd2574837c1b42309356eba8763c99e5I.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S1ccd4091b4664e3bb10f6deaaa45d842q.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S88afa96e97b24bcf8b16edebd404f658T.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S5df54ba1c893421e9a84a6b108d2fe86v.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S5000327d0b3e4a9d8f064877ed9671be1.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S589d9928200d4ac4b9a071b7a31de6fad.jpg?width=800&height=800&hash=1600)
Why choose a mobile house
![](https://ae01.alicdn.com/kf/Sc0ed0a61f5b14af18c1e71930c2c6cc1z.jpg?width=800&height=279&hash=1079)
![](https://ae01.alicdn.com/kf/S6d43baf7ee354a888dbc3af1c86264d9F.jpg?width=800&height=800&hash=1600)
Quickest, lightest and most efficient way of building housing
One crucial benefit is more efficient construction. Onsite production often gets delayed by bad weather, material shortages,planning issues and even material theft. Whereas modular construction is a highly organised and streamlined process that can see construction project times reduced by up to 50% as models are ready before they leave the factory. When materials are deliveredonsite, construction workers can immediately build with 100% completed parts.
![](https://ae01.alicdn.com/kf/Sd22d0b10b8ef480b88c303484bba87058.jpg?width=800&height=800&hash=1600)
Increased use of modern technologies
Another reason for the increased popularity of modular construction is the improvement in technology. Expertise in BIM, for example, is a crucial component to success. It's no wonder then, that according to Report Linker, the market for Building Information Modelling (BIM) is expected to grow significantly in the next four years. BIM helps ensure you hit schedules and don't go over budget. In fact, according to the Dodge Data & Analytics' recent research on modular and prefabricated construction, using BIM will improve budget and schedule performance by 30%.
![](https://ae01.alicdn.com/kf/Sb300f6a4daf244a6a0383d2aff6e95c2B.jpg?width=800&height=800&hash=1600)
Collaboration made easier
![](https://ae01.alicdn.com/kf/Sd7b6fe861f35424d9279c3cc220e00d9B.jpg?width=800&height=800&hash=1600)
High-quality manufacturing and less waste
Modular buildings also use almost 67% less energy than traditional buildings. This is partly thanks to BIM software, which makes it easy for designers to make changes and corrections before transporting materials. Small mistakes onsite can send tons of unwanted materials into landfill, and even correct materials are vulnerable to rot and damage in harsh weather. But modular construction has put a stop to this, resulting in a 90% reduction of project material waste.
Product packaging

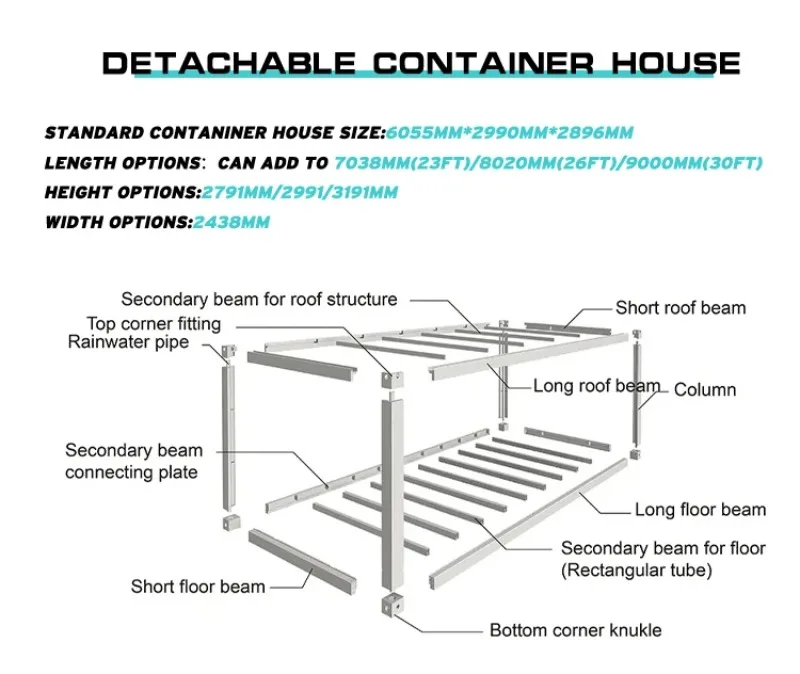

Detachable Flat pack Container Material list
Product specification
|
Length*width*height
|
Inner 6055mm*2438mm*2896mm/Outer 6055mm*2990mm*2896mm
|
|
Roof form
|
Roof tile, color steel plate
|
|
Drainage form
|
External drainage organization
|
|
Number of layers
|
≤3 layers
|
Design Parameters
|
Service life
|
10 years
|
|
Earthquake resistance
|
Level 8
|
|
Wind resistance
|
Level 12
|
|
Fire prevention
|
Class A, flame retardant
|
Wall
|
Wall panel
|
950 type 50mm rock wool sandwich panel
|
|
Wall panel
|
Double-sided color steel plate 0.3mm thick
|
|
Keep warm
|
Rock wool, bulk density 80KG
|
Door
|
specification
|
950*2070
|
|
Material
|
304 stainless steel
|
Window
|
specification
|
925*1200
|
|
Frame material
|
U-PVC window
|
|
glass
|
Single glass, 5mm
|
Electricity
|
Voltage
|
Not included in the standard box, can be customized according to customer requirements,
additional charges
|
|
wire
|
|
|
Distribution box
|
|
|
illumination
|
|
|
illumination
|
|
Decoration
|
Top and column edging
|
Color steel angle aluminum
|
|
Skirting
|
Brown PVC
|
Product Installation Video

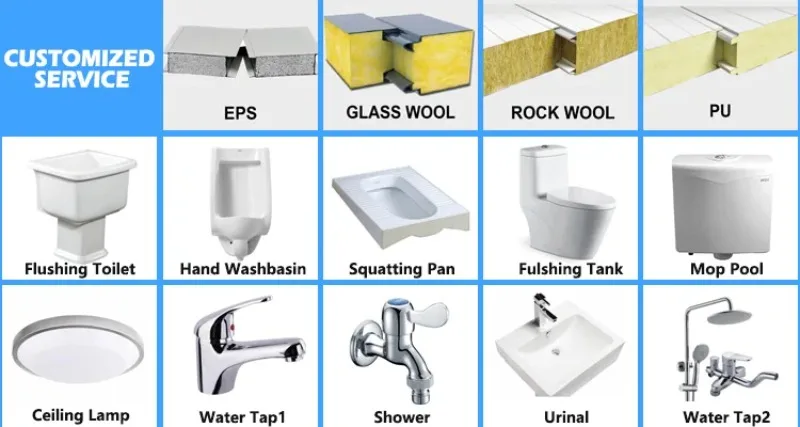

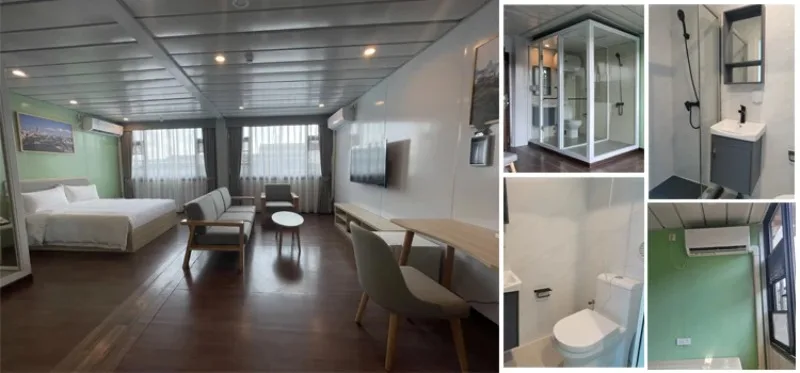

Company Customization Capability
![](https://ae01.alicdn.com/kf/Sb7077f32a34b411183dbb88608fd7a15t.jpg?width=800&height=444&hash=1244)
![](https://ae01.alicdn.com/kf/Sfa04fb4a10fd4d879f2e025ddcf24ef2l.jpg?width=800&height=674&hash=1474)
![](https://ae01.alicdn.com/kf/Sbf6e62e92bfd4e9e80dbec0baed17a3dL.jpg?width=800&height=256&hash=1056)
![](https://ae01.alicdn.com/kf/Sc3f378421d9a43869397ec4ed8840fabO.jpg?width=800&height=373&hash=1173)
![](https://ae01.alicdn.com/kf/S897b34a4ea064954b0e317be2991138dF.jpg?width=800&height=427&hash=1227)

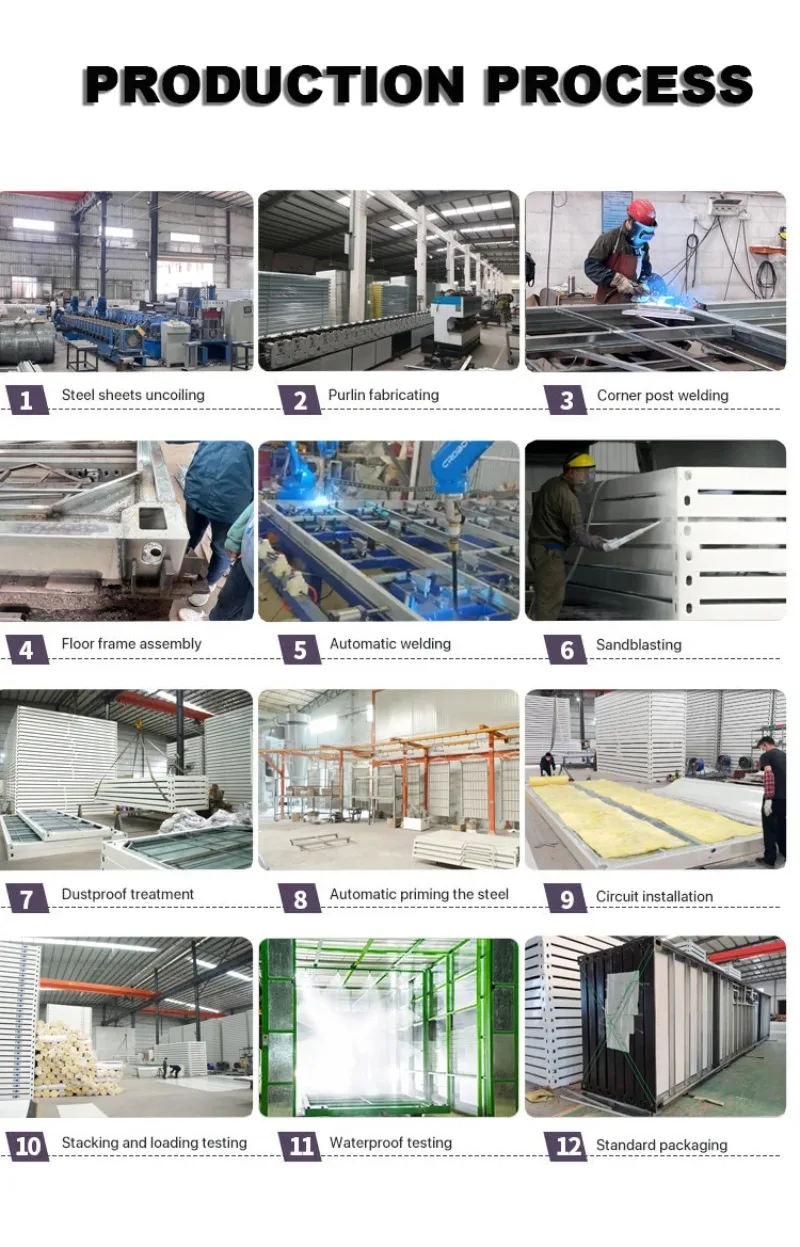

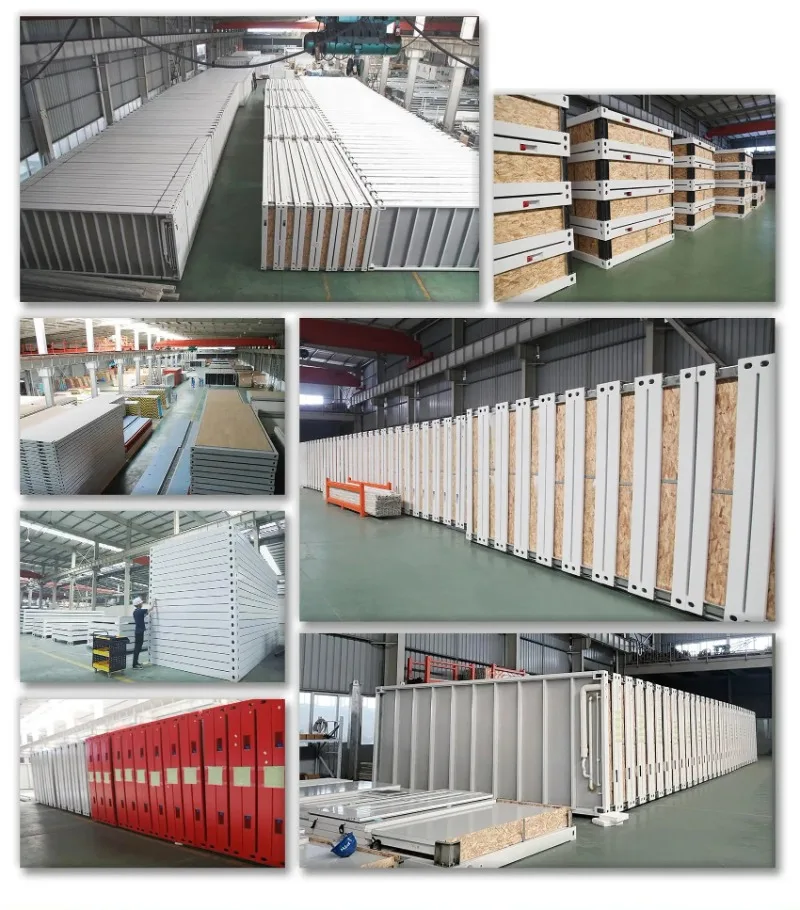

Product production process
![](https://ae01.alicdn.com/kf/S4e30b6d07f0f4279a6166e132e662077H.jpg?width=800&height=1247&hash=2047)
![](https://ae01.alicdn.com/kf/S580e33ce6f26414d9f9e4638dc850c12T.jpg?width=800&height=910&hash=1710)
Professional and efficient team collaboration, efficient collaboration in design, rendering, production, quality inspection and delivery
