Comfast AX3000 WiFi 6 Ceiling AP 2.4G&5G Dual Band Wireless Gigabit Access Point High Power Indoor WiFi Coverage Router Extender

Description:

CF-E393AX is a 3000Mbps high-power WiFi6 ceiling AP that supports 2.4&5.8GHz, dual-band anti-interference, wide-area coverage without dead spots, and seamless roaming. It is suitable for various large-scale indoor scenarios, such as shopping malls, supermarkets, Scenes such as hotels, corporate schools, conferences and exhibitions.

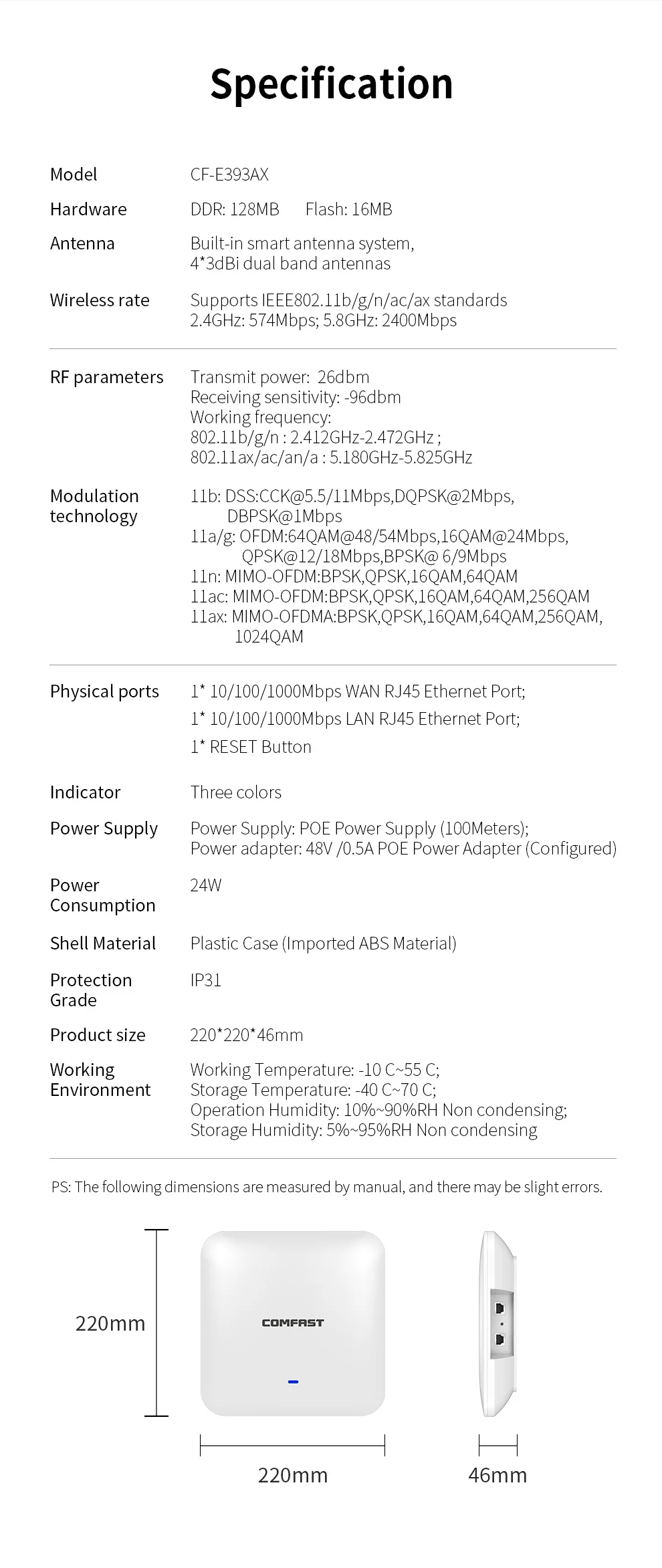

Specifications:

1. MT7981A+MT7976D+MT7531AE Chipset; DDR: 128MB; Flash: 16MB

2. New generation WiFi6 standard, Effectively improve coverage compared with WiFi5

3. Support 802.11a/b/g/n/ac/ax wireless standard

4. Built in 4*3dBiAntennas

5. 3000Mbps high speed wireless transmission rate (2.4GHz: 574Mbps; 5GHz: 2400Mbps)

6. Full Gigabit network port transmission, more powerful, no fear of multiple wall blocking

7. 48V 0.5A POE power supply, engineering is more convenient

8. Greater bandwidth boost, from 256-QAM to 1024-QAM

9. Lower latency for simultaneous multi-user data transmission

10. Strong anti-interference capability to mitigate interference problems under the same channel

11. Supports UL MU-MIMO, OFDMA and 1024QAM technologies

Packing list:

1* CF-E393AX AP

1* 48V POE Power Adapter

1* Network Cable

1* User Manual

1* Warranty Card

1* Accessories Screws

CF-E393AX 3000Mbps Gigabit WiFi 6 Wireless Ceiling AP

Dual Band 3000Mbps High Speed; Support More than 220 Users; Support Seamless Roaming; Easy to Setup, POE Power SupplyPerformance Upgrade High Speed

WiFi 6 full signal coverage, enjoy seamless roaming freely, no lag and easy to install. One-click deployment, enjoy enterprise-level WiFi treatment.

Support WiFi 6 standard, Strong 3 cores, Full Gigabit Ports, 2.4G&5GHz Dual band, POE power supply, OFDMA technology, Support 220+ Users, Centralized management, Seamless Roaming.

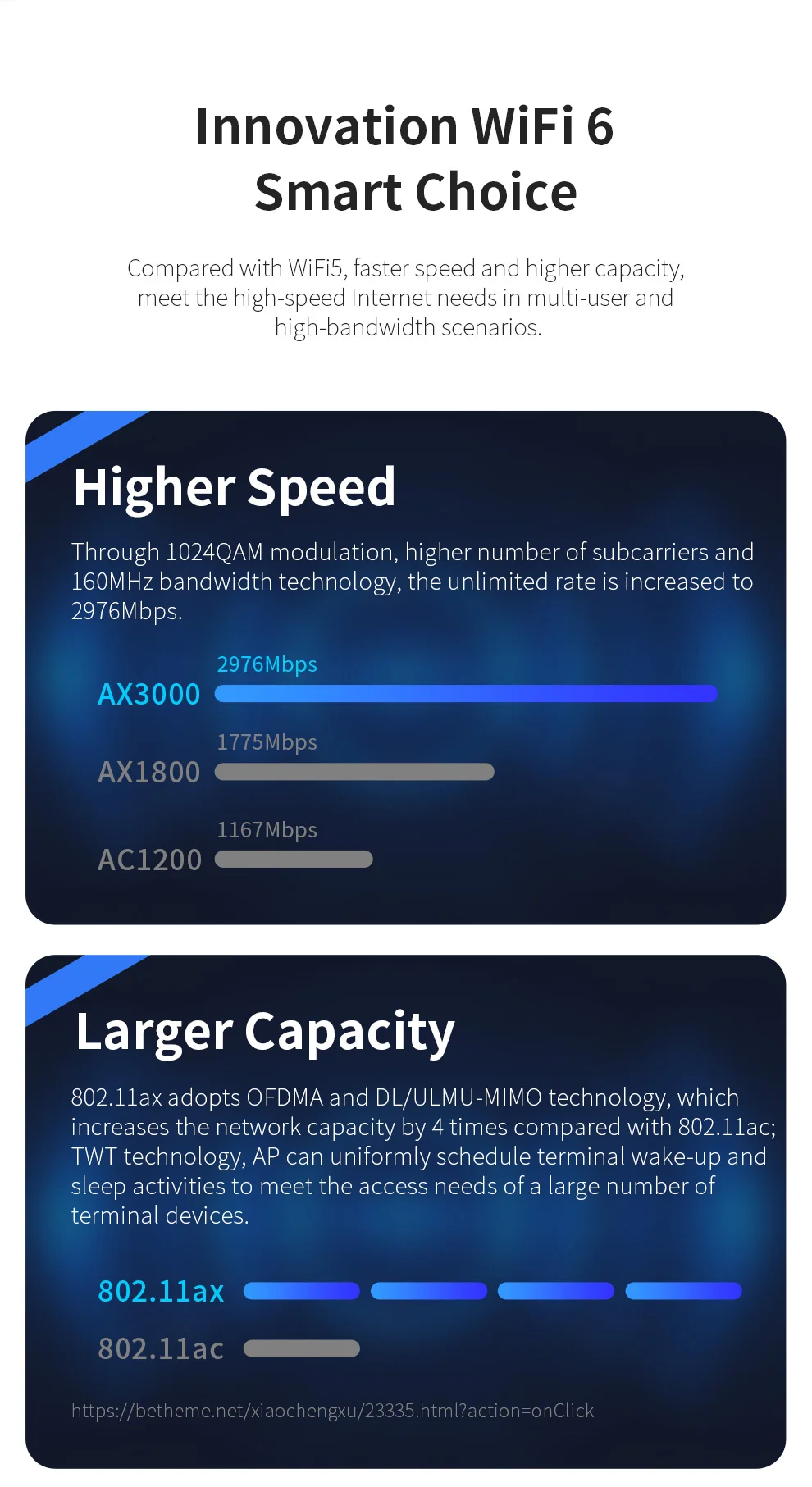

Innovation WiFi 6 Smart Choice

Compared with WiFi5, faster speed and higher capacity, meet the high-speed Internet needs in multi-user and high-bandwidth scenarios.

1. Higher Speed

Through 1024QAM modulation, higher number of subcarriers and 160MHz bandwidth technology, the unlimited rate is increased to 2976Mbps.

2. Larger Capacity

802.11ax adopts OFDMA and DL/ULMU-MIMO technology, which increases the network capacity by 4 times compared with 802.11ac; TWT technology, AP can uniformly schedule terminal wake-up and sleep activities to meet the access needs of a large number of terminal devices.3. Wider Coverage

802.11ax uses a better Long OFDM symbol transmission mechanism and 2MHz narrowband transmission to effectively reduce the terminal packet loss rate, improve the terminal receiving sensitivity, and have wider WiFi coverage.

4. Anti-interference

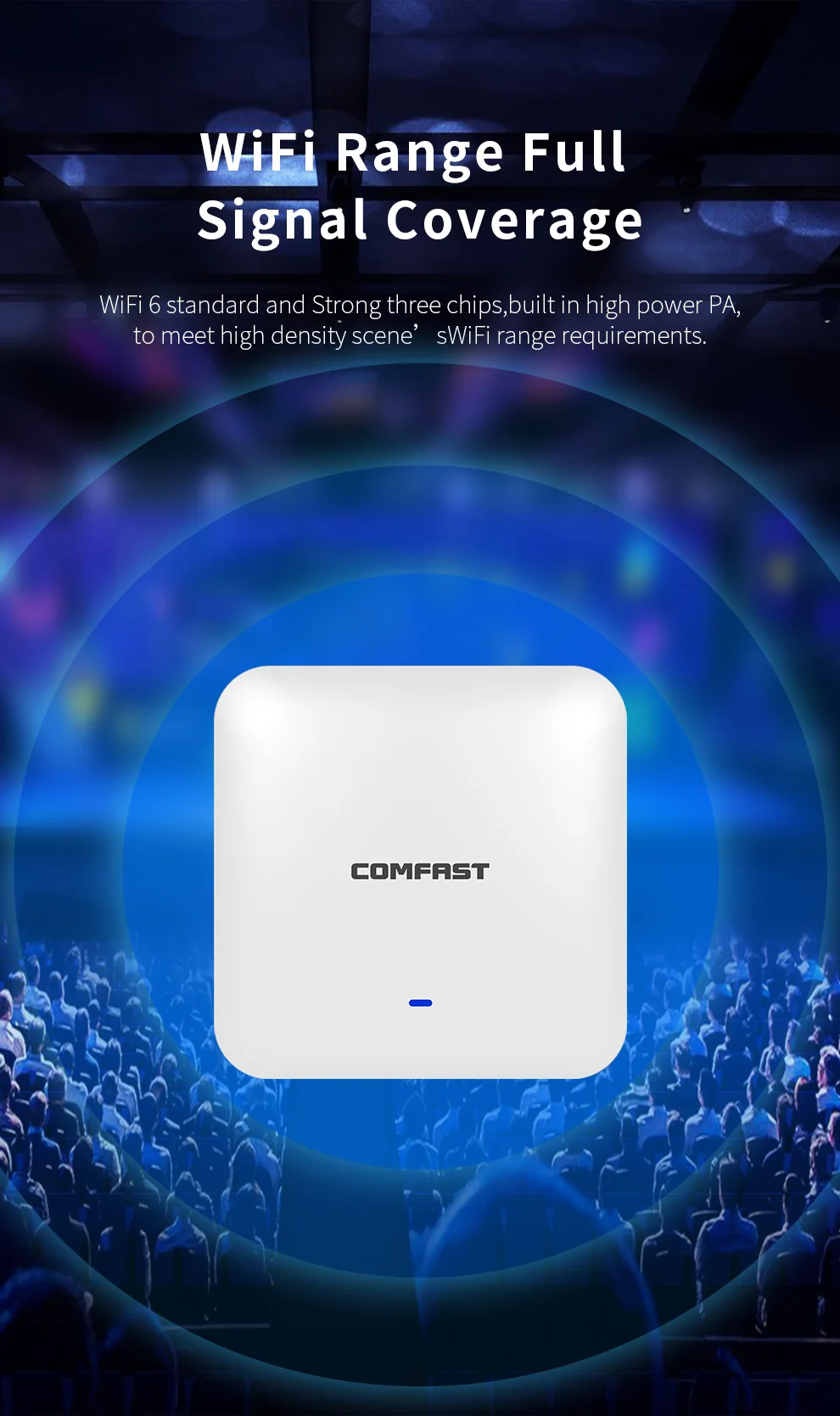

802. l1ax supports BSS color code, dynamic CCA threshold and power control, which can effectively alleviate the problem of co-channel interference in multi-user scenarios.WiFi range full signal coverage

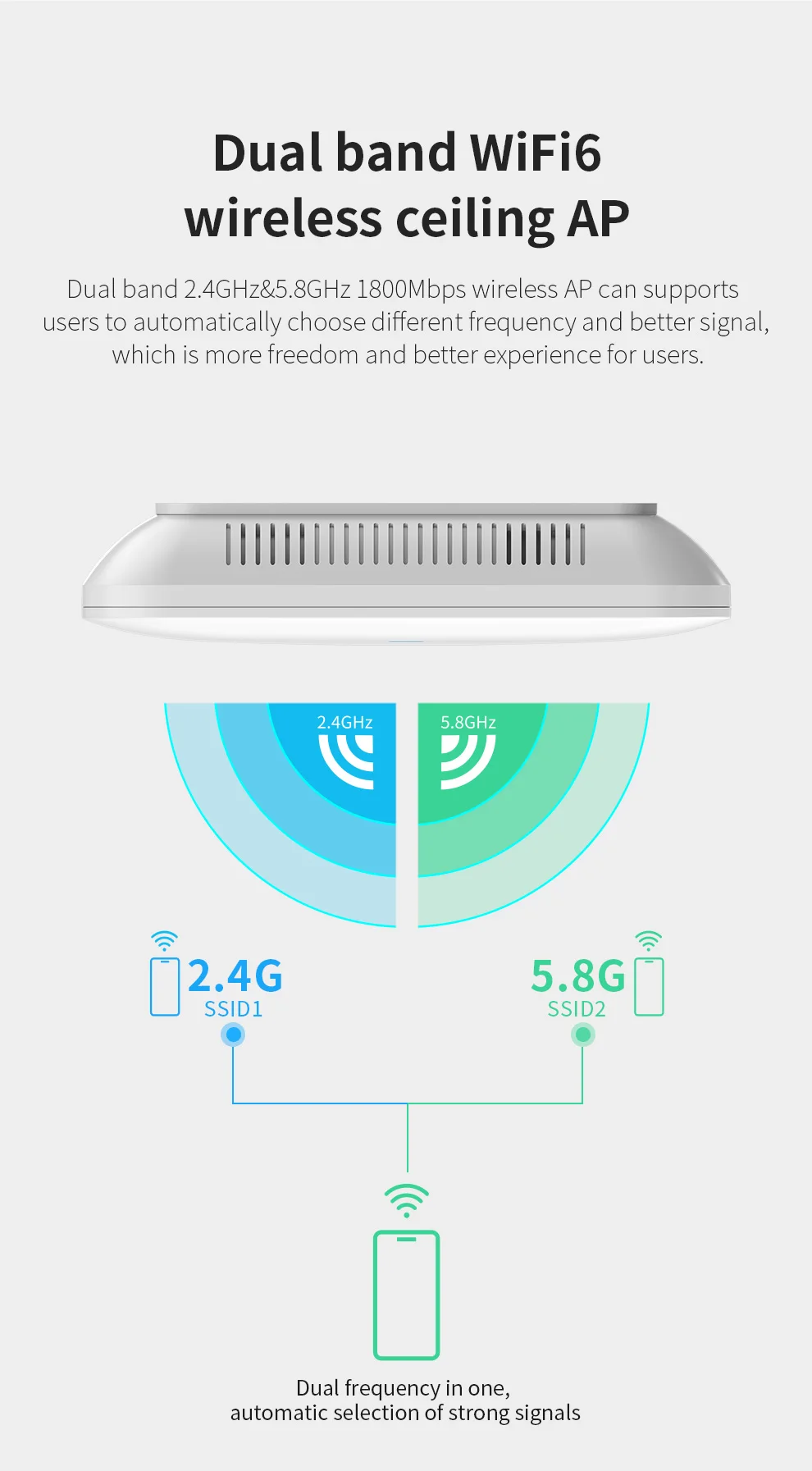

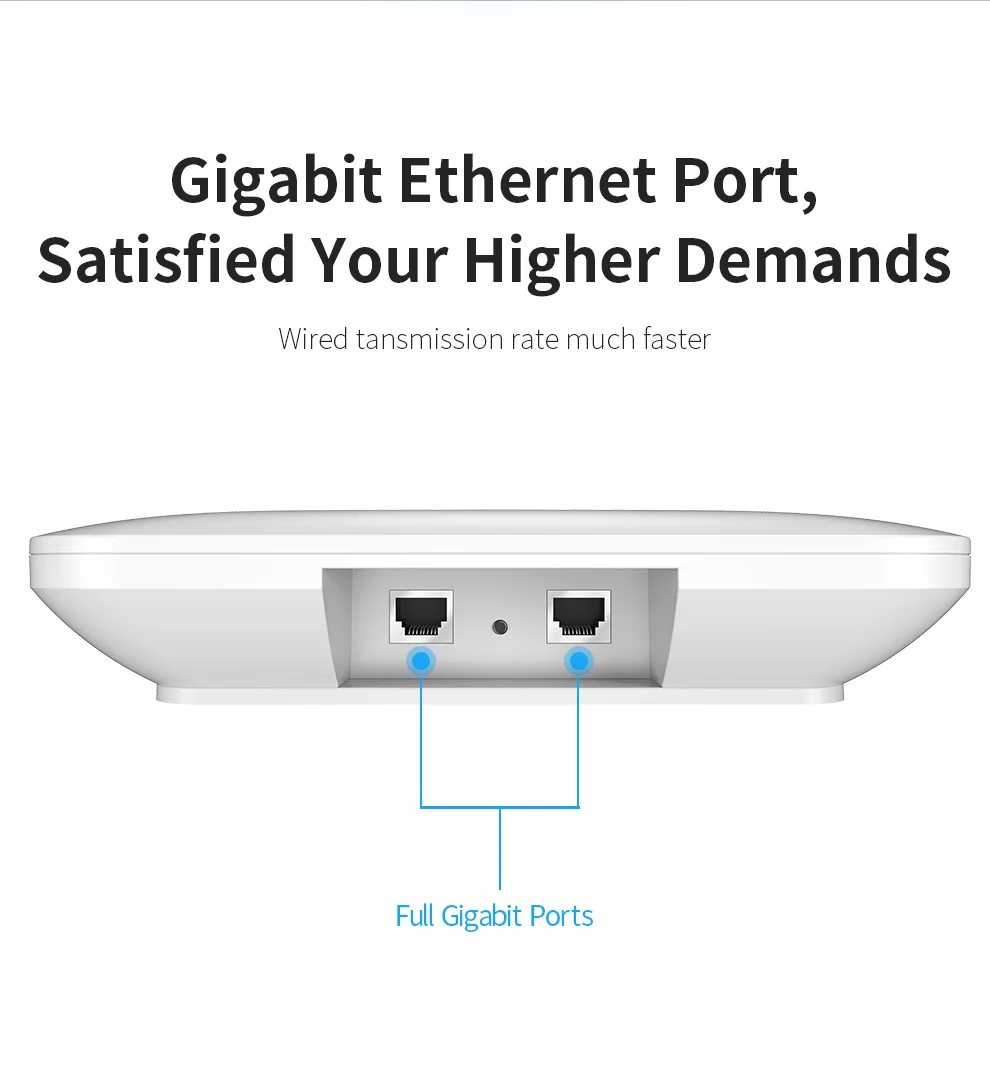

Wired tansmission rate much fasterDual band WiFi6 Ceiling AP

2.4GHz&5.8GHz 3000Mbps wireless AP can supports users to automatically choose different frequency and better signal,
which is more freedom and better experience for users.

Reduce latency Enjoy high speed network

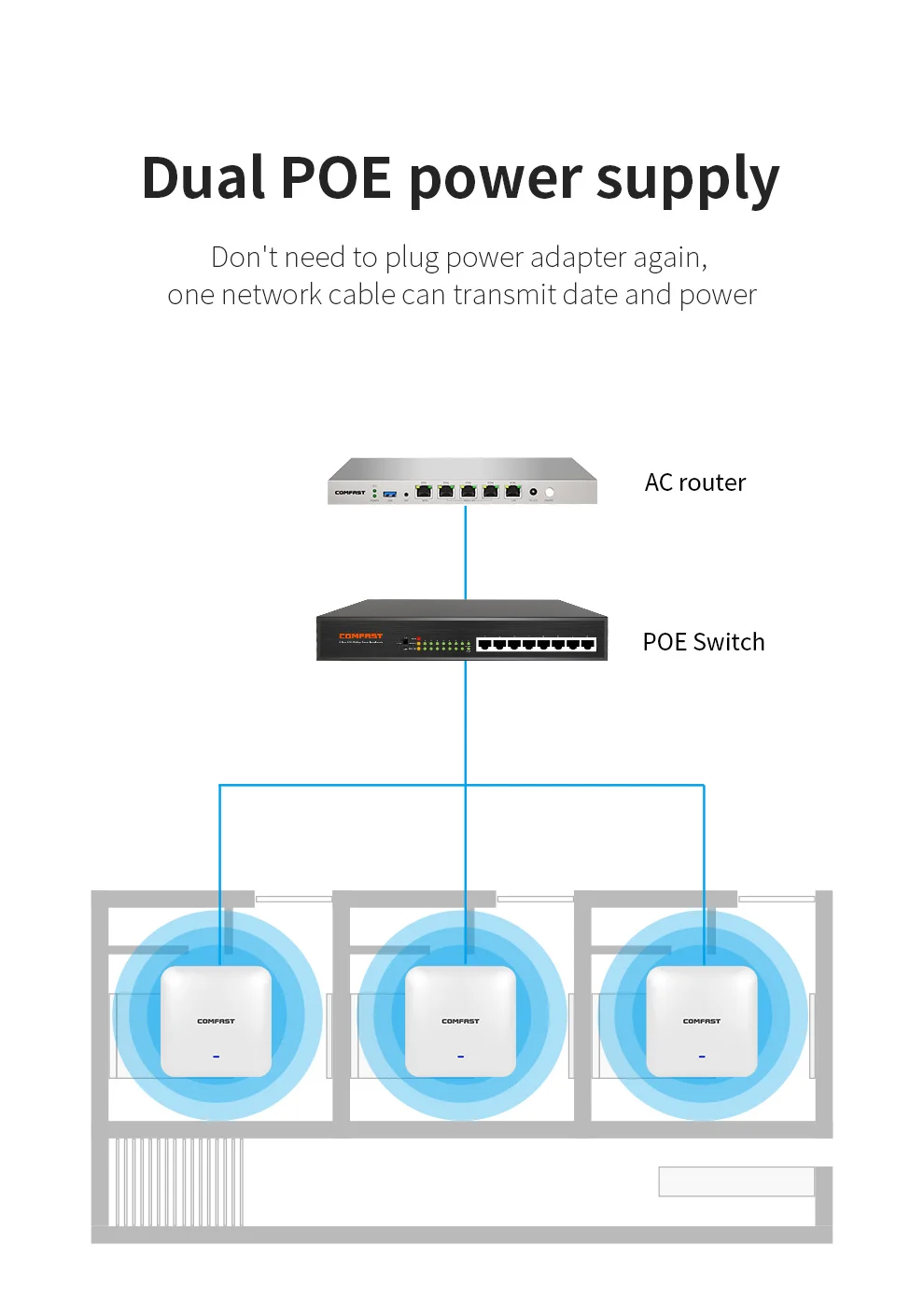

Multiple users can connect simultaneously, and latency lower to 10ms, and smoother networkDual POE power supply

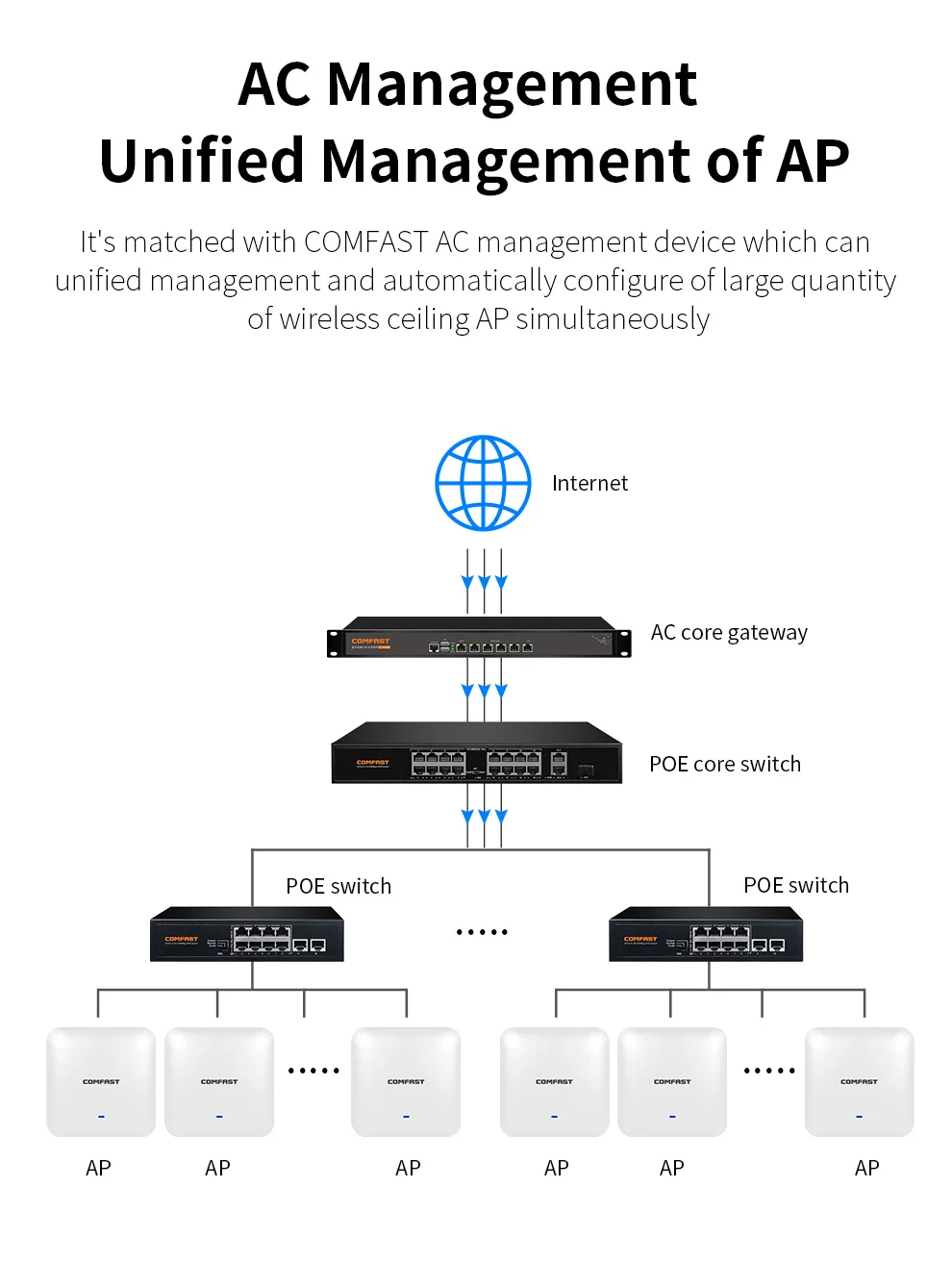

Don't need to plug power adapter again, one network cable can transmit date and powerAC Management, Unified Management of AP

It's matched with COMFAST AC management device which can unified management and automatically configure of large quantity of wireless ceiling AP simultaneouslySeamless roaming FunctionInstallation Diagram

Ceiling-mount Installation/ Wall-mounted InstallationApplication multi-scenes

Provide WiFi coverage and marketing solution for varieties of scenes

FAQ

Q1. What is the coverage of this ceiling AP?

A: This indoor AP can cover 100-300 square meters(No obstacles such as walls, Glass, etc)

Q2. Does it support openWRT or ddWRT?

A: Support, but currently we do not provide firmware services, you need to find the suitable firmware and flashing it according to the chipset(MT7621A+7605D+7975D), if you have no experience, it is not recommended to do it yourself.

Q3. How many SSID are supported?

A: Up to 16 SSID can be set.

Q4. What is the maximum number of users supported?

A: Support the maximum number of 220 users to access.

Q5. Does it support seamless roaming?

A: Yes, support. Seamless roaming function can be realized when use with our COMFAST AC management. If you need, please contact customer serive for recommendation.

Q6. Can it be used as a WiFi repeater?

A: Yes, this AP supports AP/ Repeater/ Router/Bridge 4 working modes. But it is better to set it to AP mode.

Q7. Does it support POE switch power supply?

A: This AP is equipped with a 48V 0.5A POE adapter, you can also connect with 48V POE switch for power supply.
