Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi

(No reviews yet) Write a Review
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
  • Cheap Intel i3 7167U i5 7200U i7 Mini Computer DDR4/DDR3 Win10 Linux Barebone Portable PC 4K HTPC Copper Fan 6*USB HDMI VGA WiFi
$223.61 - $425.84

Description

Barebone Mini PC ("No Ram No Storage" bundle) package DO NOT include WiFi(antennas), if you need please pay an extra US $7 at this link. Other bundles include 2.4GHz WiFi(antennas) by default.
The PC had best to use Samsung, SKhynix, Micron, etc. original brand accessories, We DO NOT compensate for the Buyer's own ram and hard drive.

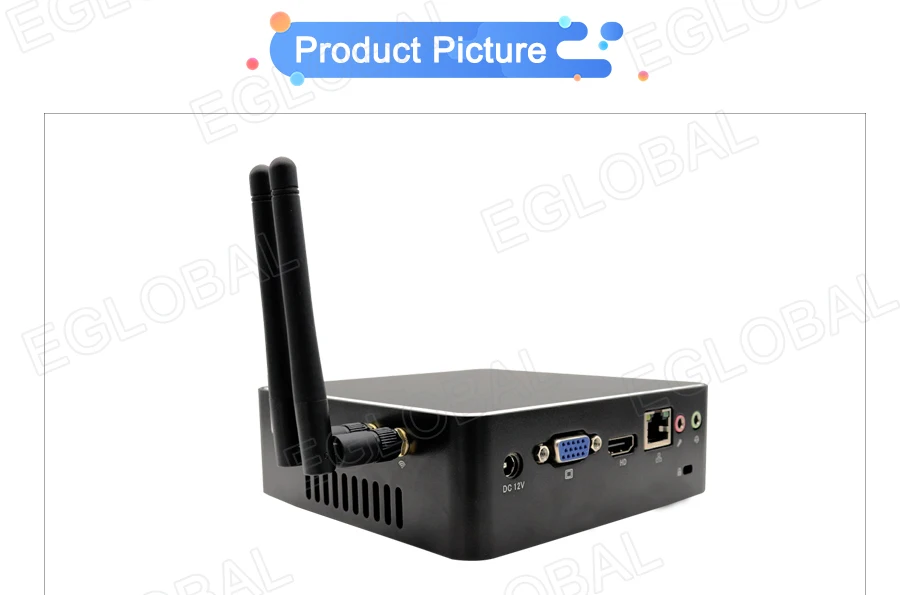

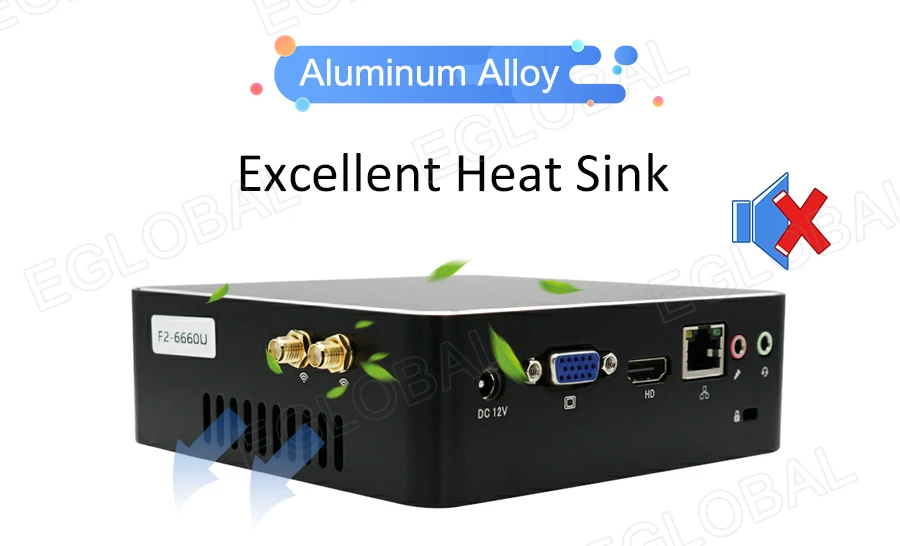

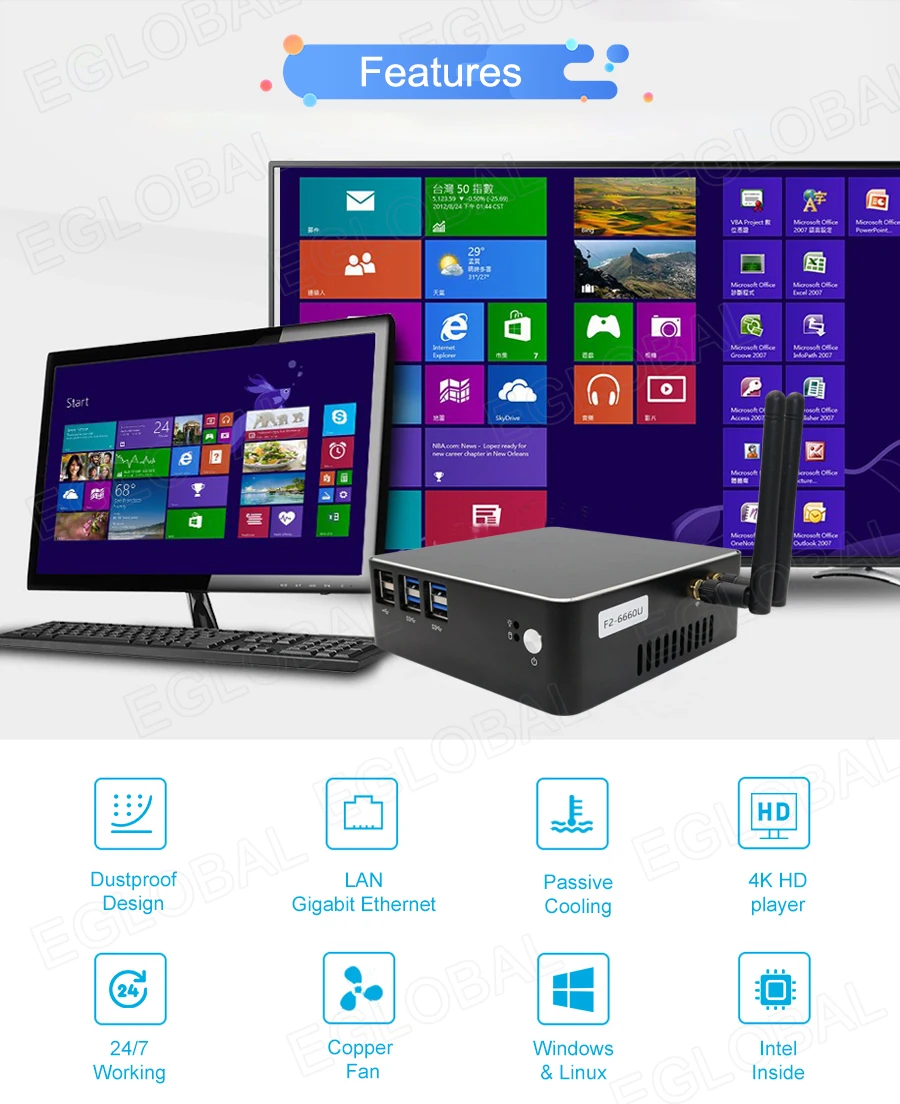

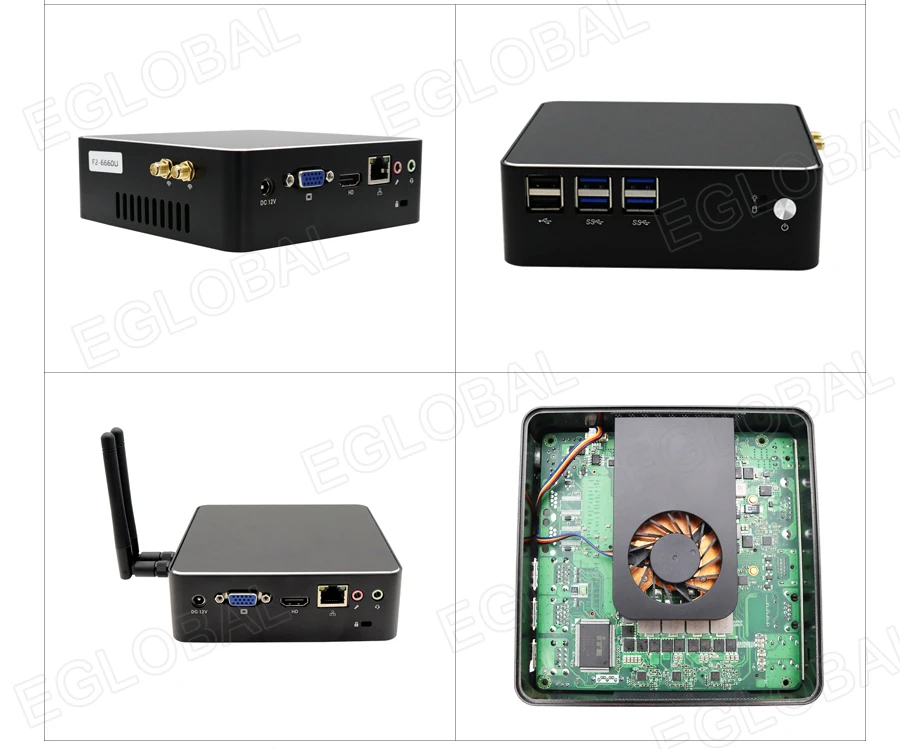

- Full Aluminum Alloy Black color shell, Exquisite production craft on the outside design.
- Support 1*mSATA SSD+1*2.5''SATA SSD/HDD(no space to install HDD, only 42.5mm thin height, pls leave message for F2 thick case 47MM to install HDD).

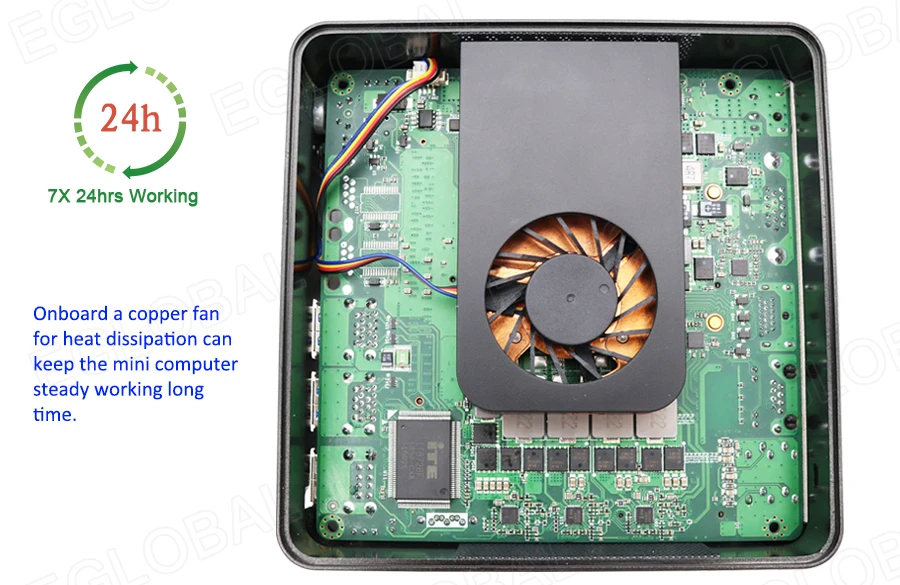

- Silent copper cooling fan, work as long as 24 hours.
- Low consumption TDP only 15W, save much energy and eco-friendly.

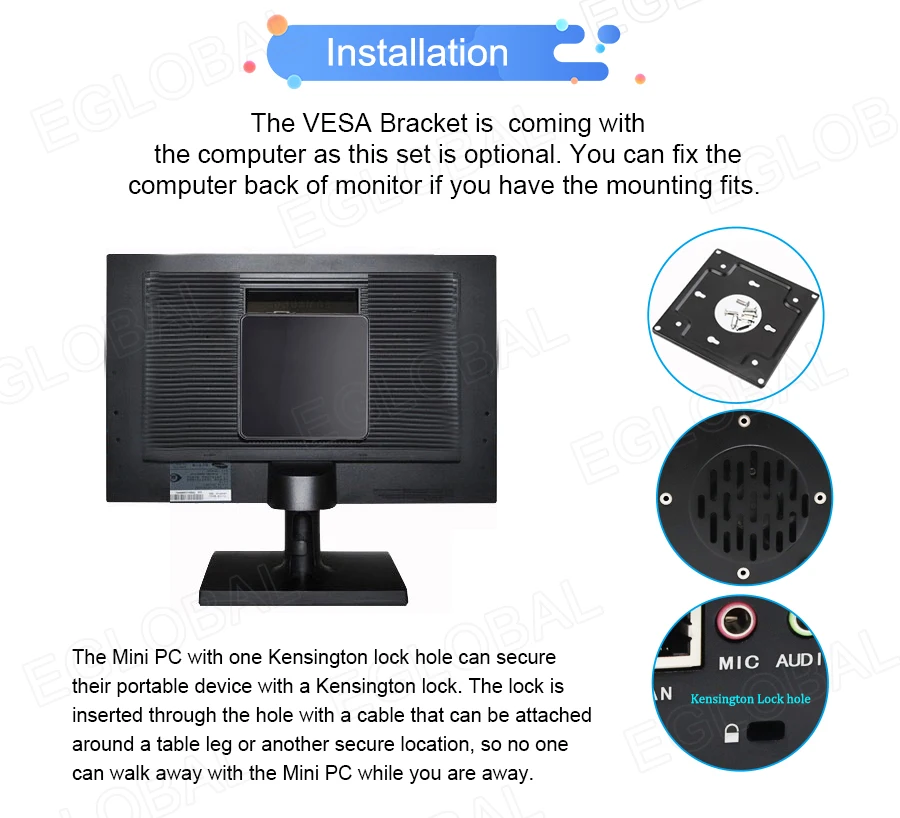

- Can be mounted back of the monitor or wall by VESA bracket.

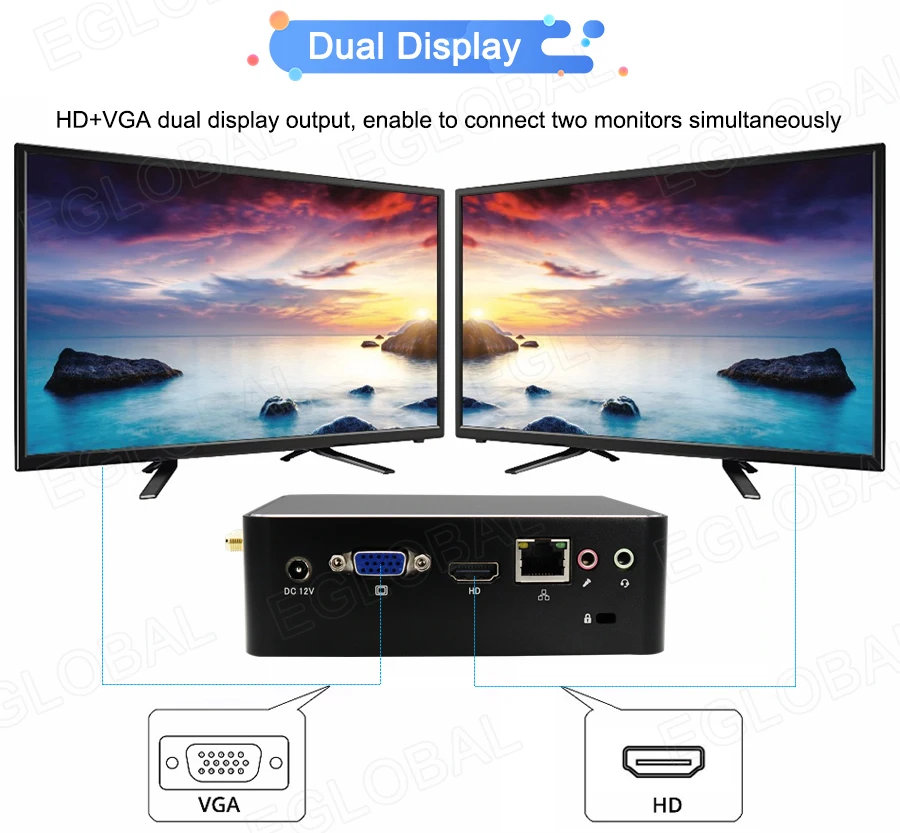

- Support HDMI and VGA dual display output synchronously.
- 1*Kensington Lock holes let the device safer in schools, offices, hotels, etc.

Onboard CPU

Intel Core i3 4010Y 2 cores 4 threads 1.3GHz 3MB cache(maybe i3-4020Y, i3-4010U etc)

Intel Core i5 4200U 2 cores 4 threads 1.6GHz max 2.6GHz 3MB cache(maybe i5-4250U, i5-4300U, etc)

Intel Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache Iris® Plus Graphics 650(maybe i3-7100U, i3-7130U, etc)

Intel Core i5 7200U 2 cores 4 threads 2.5GHz max 3.1GHz 3MB cache(maybe i5-7267U, i5-7300U, etc)

Intel Celeron 2955U 1.4GHz 2 Cores 4 Threads 2MB cache TDP15W Intel® HD Graphics

Intel SKYLAKE 14nm CPU Intel Core i3-6157U 2.4GHz 2 Cores 4 Threads 3MB cache TDP28W Intel® Iris® Graphics 550(maybe i3-6167U, i3-6157U, i3-6010U, i3-6006U, etc.)

Intel SKYLAKE 14nm CPU Intel Core i7-6660U 2.4GHz Max 3.4 GHz(Turbo boost
Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.

Motherboard

Intel SKYBAY (Intel Kaby Lake-ULT )

Memory Types

DDR3L 1333/1600MHz 1.35V Non-ECC laptop Memory Support Max 8GB

DDR4 2133/2400MHz 1.2V Non-ECC laptop Memory Support Max 16GB

Hard Disk

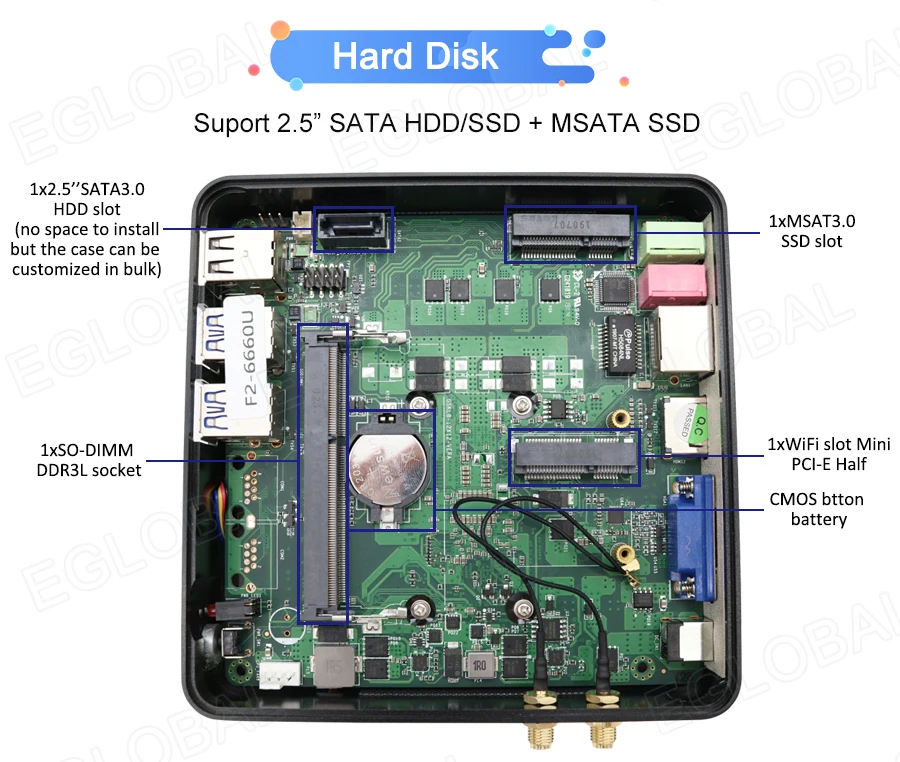

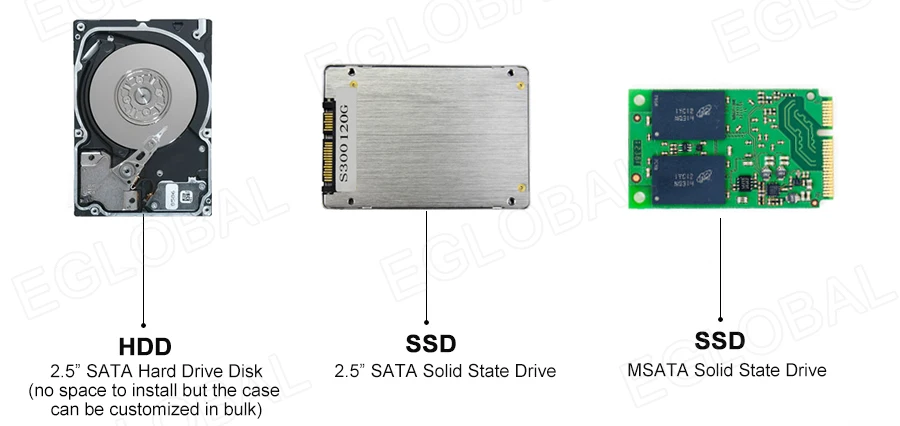

Support install 1*mSATA SSD+1*2.5''SATA HDD/SSD

WiFi

With dual antennas, 300M,802.11.b/g/n

Integrated Graphics

Intel HD Graphics(depends on CPU)

BIOS

American Megatrends

Feature

MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST

Network Card

Realtek RTL 8168/8111/8112 1000 BaseT LAN (Gigabit Ethernet Controller)

Audio Card

ALC892
Intel Panther Point HDA

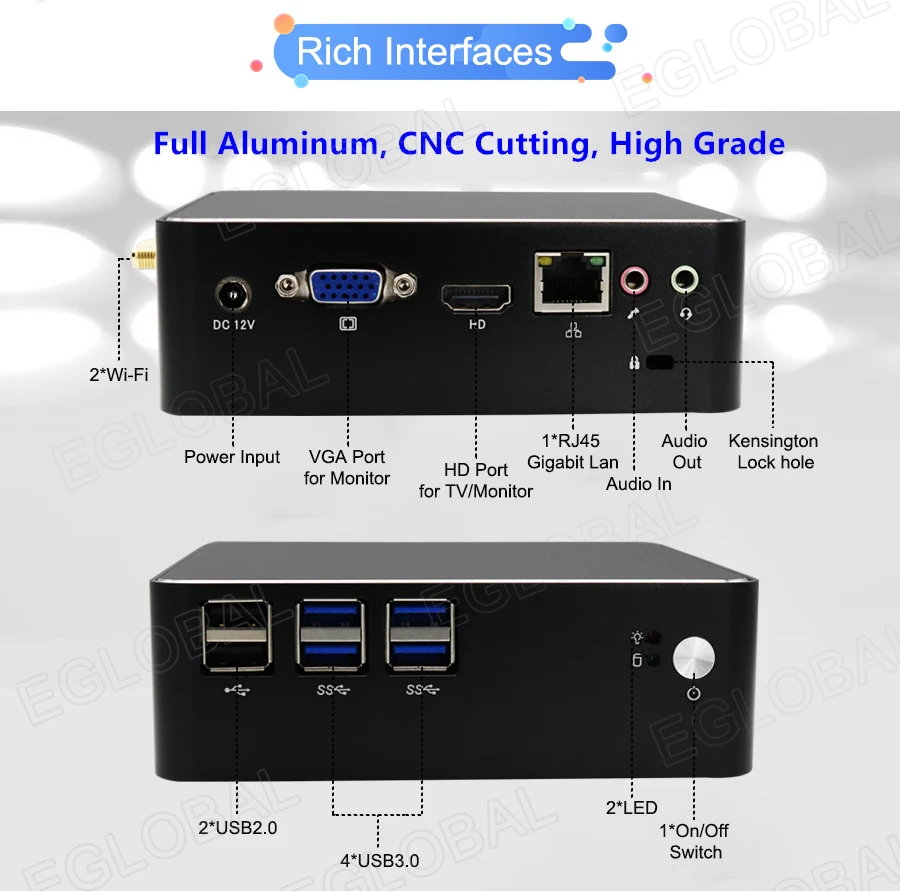

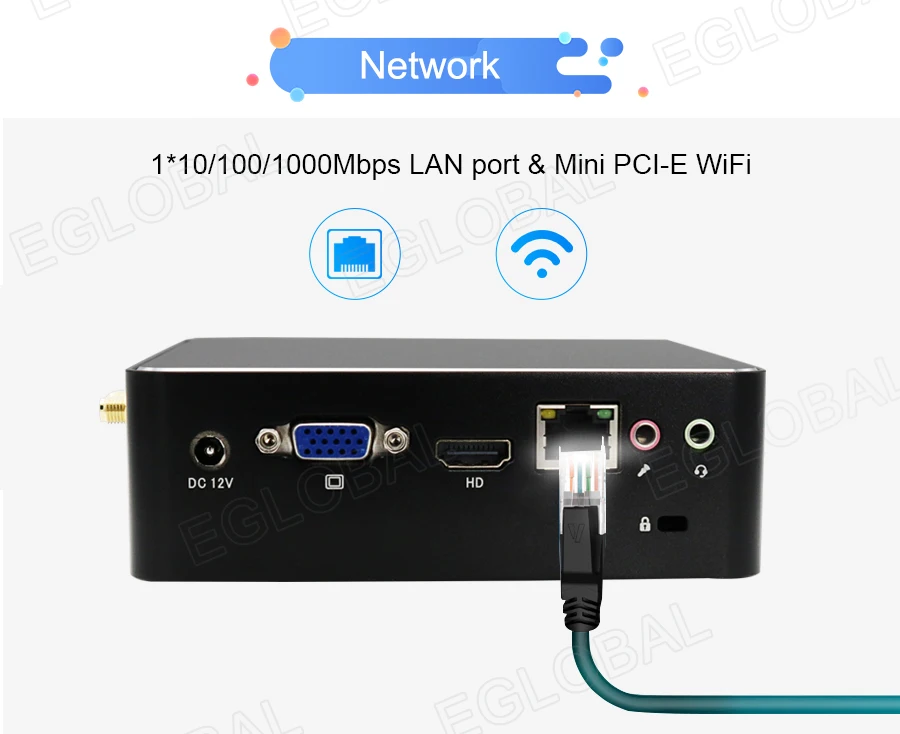

I/O Ports

• Power ON/OFF

• HDD LED+PW LED

• 4 x USB 3.0

• 2 x USB 2.0

• 1 × DC IN

• 1 × HDMI

• 1 × VGA

• 1 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive)

• 1 × MIC 3.5mm

• 1 × SPK 3.5mm

• 2 x WIFI antennas ports

Operating System

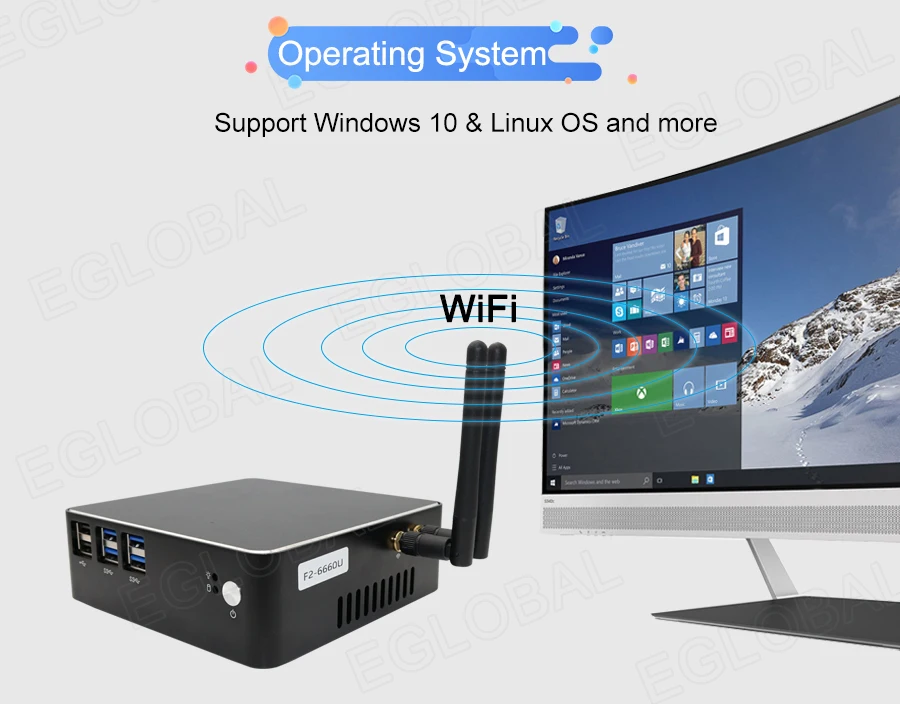

Support Windows 7/8/10, Linux, etc

Power Consumption

TDP 15W

Case Color

Black

Power

Input: AC100-240V AC/50-60Hz
Output: DC 12V/5A

Operating Temperature

-20-80℃

Storage Temperature

0℃-80℃

Relative Humidity

10%~90% (non-condensing)

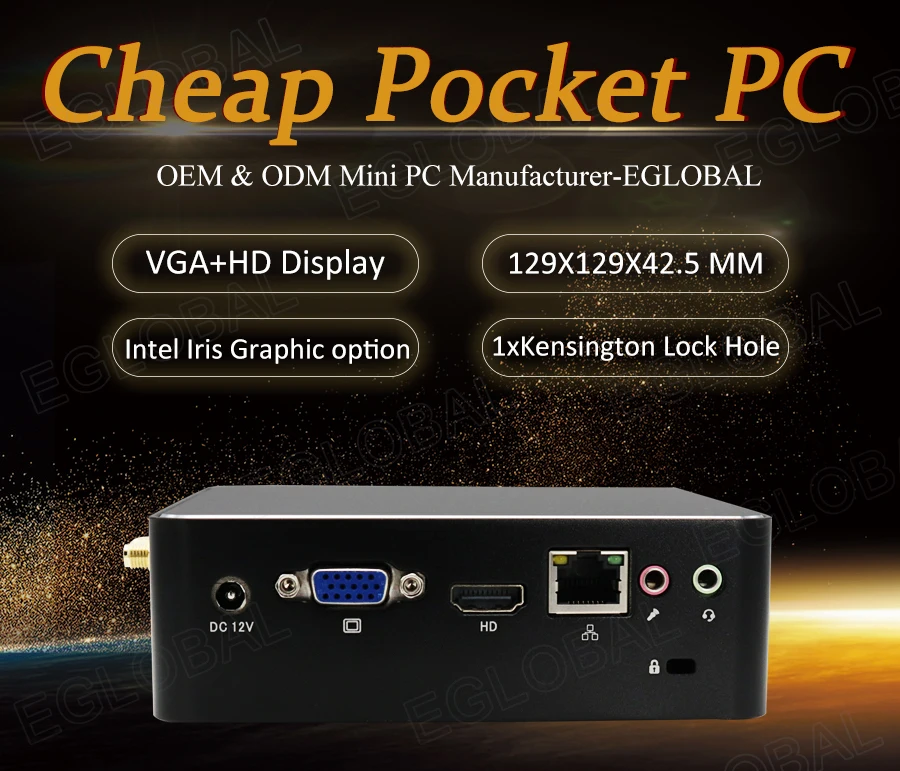

Dimension

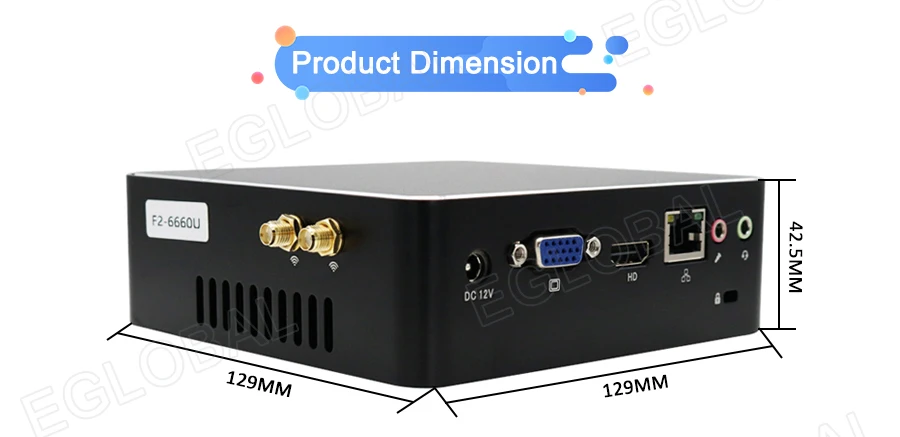

129*129*42.5MM(don't install 2.5" SATA HDD, pls leave message for F2 thick case 47MM to install HDD)

Weight

0.65kg

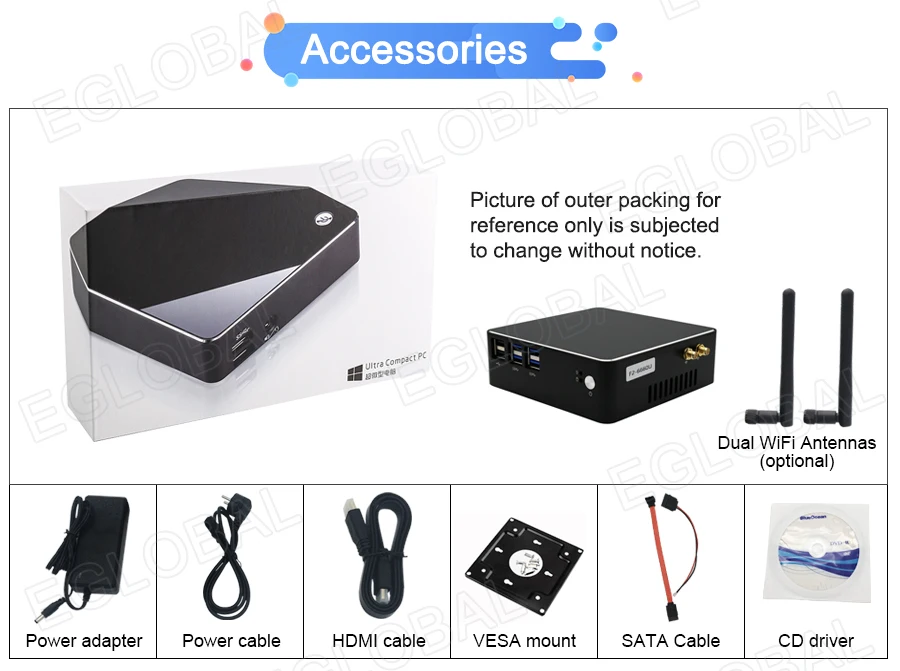

Package Content

1x Mini PC

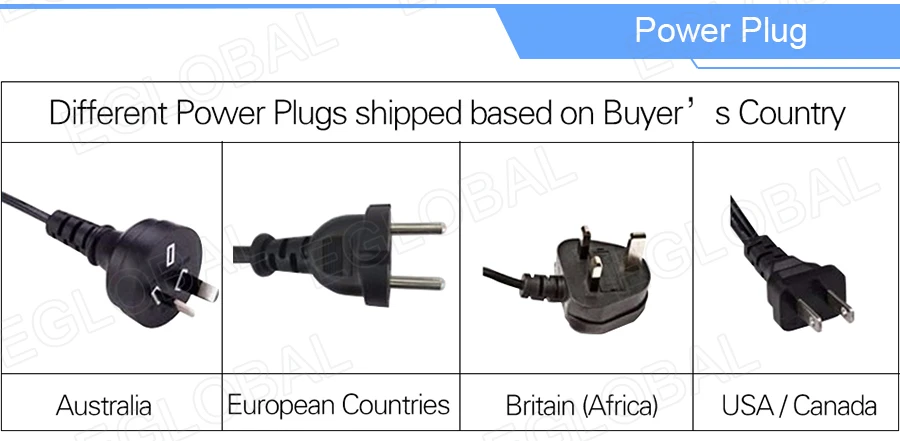

1x Power Adapter (Correct plug shipped based on buyer's country)
1x WiFi Module with dual antennas( if you buy "No Ram No HD No Wifi" package come no with WiFi dual antennas, you can click "This link", place 7 pieces =$7 for wifi)

1xHDMI cable(as a gift)

1xSATA cables

1xVESA Bracket


Free Operating System: Default installed our trial activated OEM windows 10 pro license English for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek, etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. The Seller is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand: Samsung, Micron, SanDisk, Toshiba, Hynix, Crucial, Liteon, Kingfast, Phison, etc. What brand we use depends on our test and our stocks.

1. USB Infrared remote (can turn power off and control media center like kodi) add an extra cost US$14.

2. External USB DVD-ROM adds an extra cost $18.

3. USB 2.4GHz Air Keyboard& Mouse, adds an extra cost $20.

4. Genuine OEM license sticker costs $35.

5. 2.5'' 500GB HDD adds an extra $50, 2.5'' 1TB HDD adds an extra $65, 2.5'' 2TB HDD adds an extra $100.

Uprading link: https://www.aliexpress.com/item/765856572.html

(how many dollars to upgrade, pay how many pieces, US$1=1pc, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for...)
