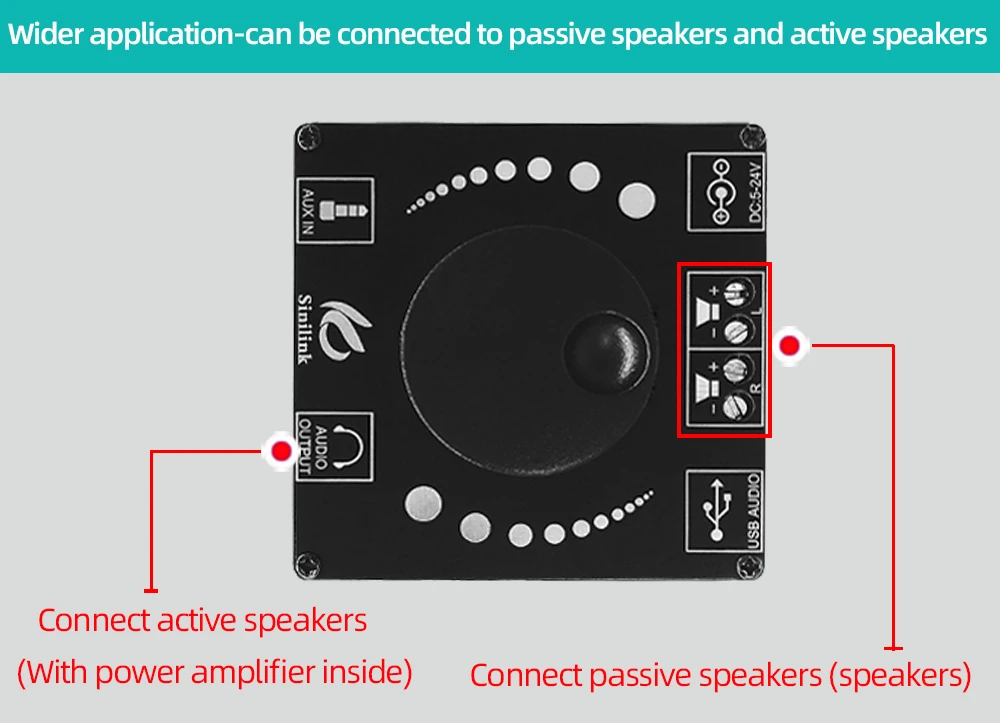

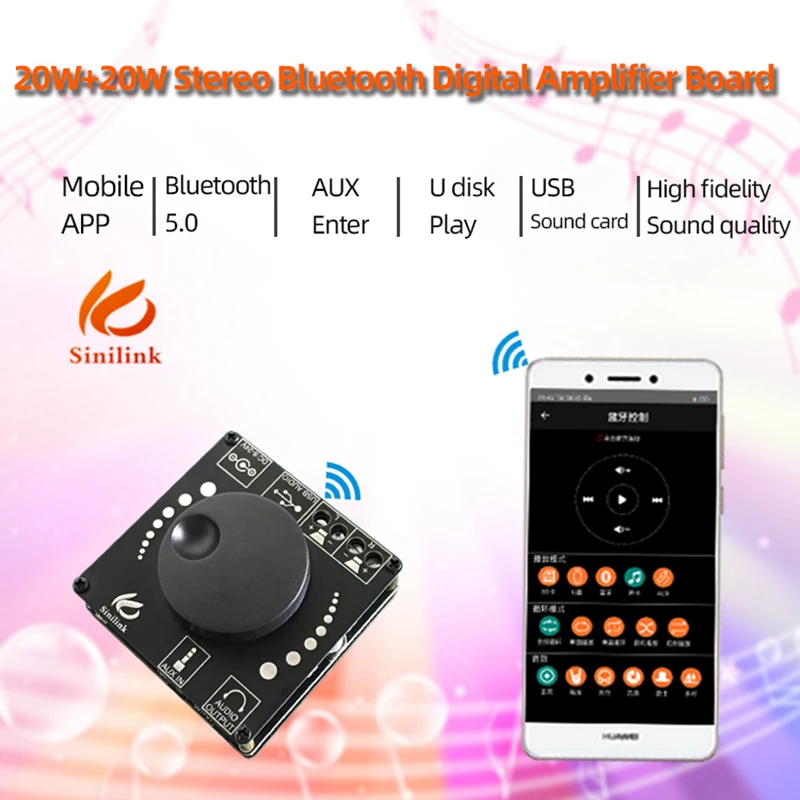

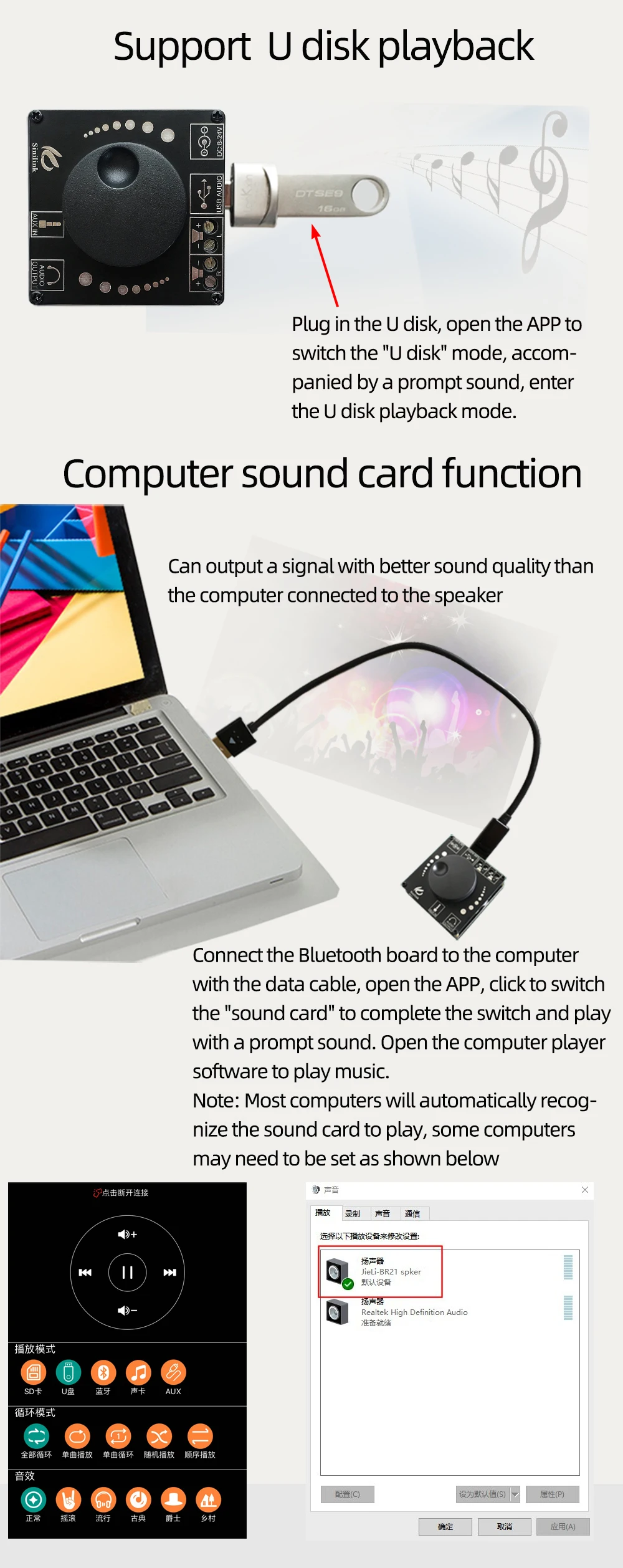

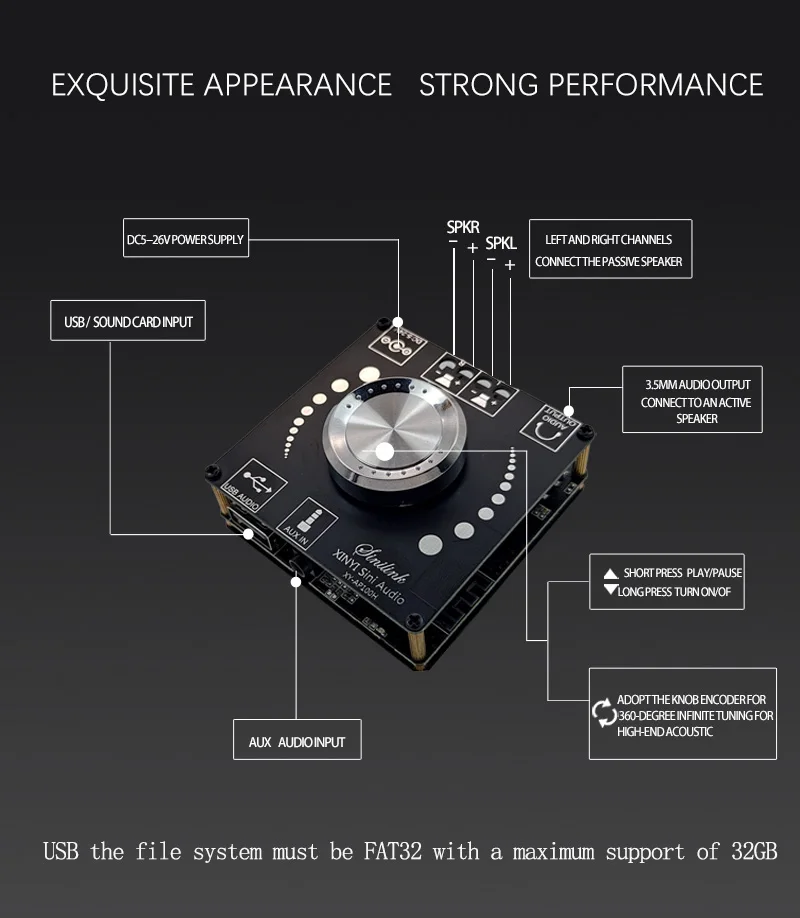

Supports 3 audio input modes: 1.AUX input, 2. Bluetooth input, 3.U disk playback APP control

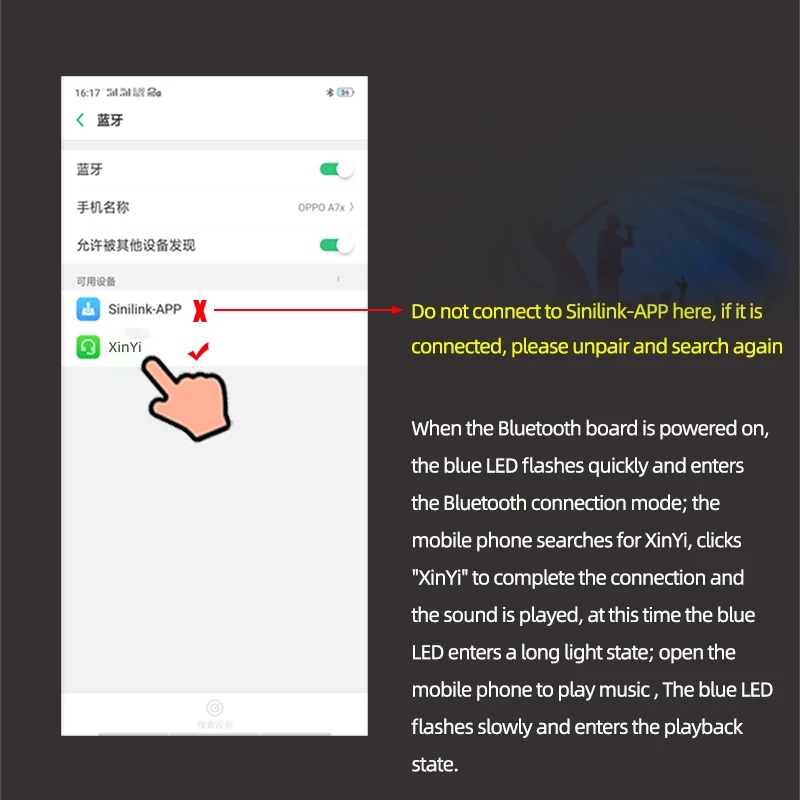

1.Bluetooth Name:

Turn on your phone's Bluetooth and search: "XinYi"

2.APP Download ：

Mobile application Marketplace or App Store， Search："Sinilink" .

Unit Price:

AP15H: AP3016 20W*2 AUX Bluetooth 5.0 = $10.5
AP50L: AP3050 50W*2 AUX Bluetooth 5.0 = $11
AP50H:TPA3116D2 50W*2 AUX Bluetooth5.0=$13
AP100L: AP3050 100W*2 AUX Bluetooth 5.0 =$14
AP100H:TPA3116D2 100W*2 AUX Bluetooth 5.0=$17

Product Presentation:

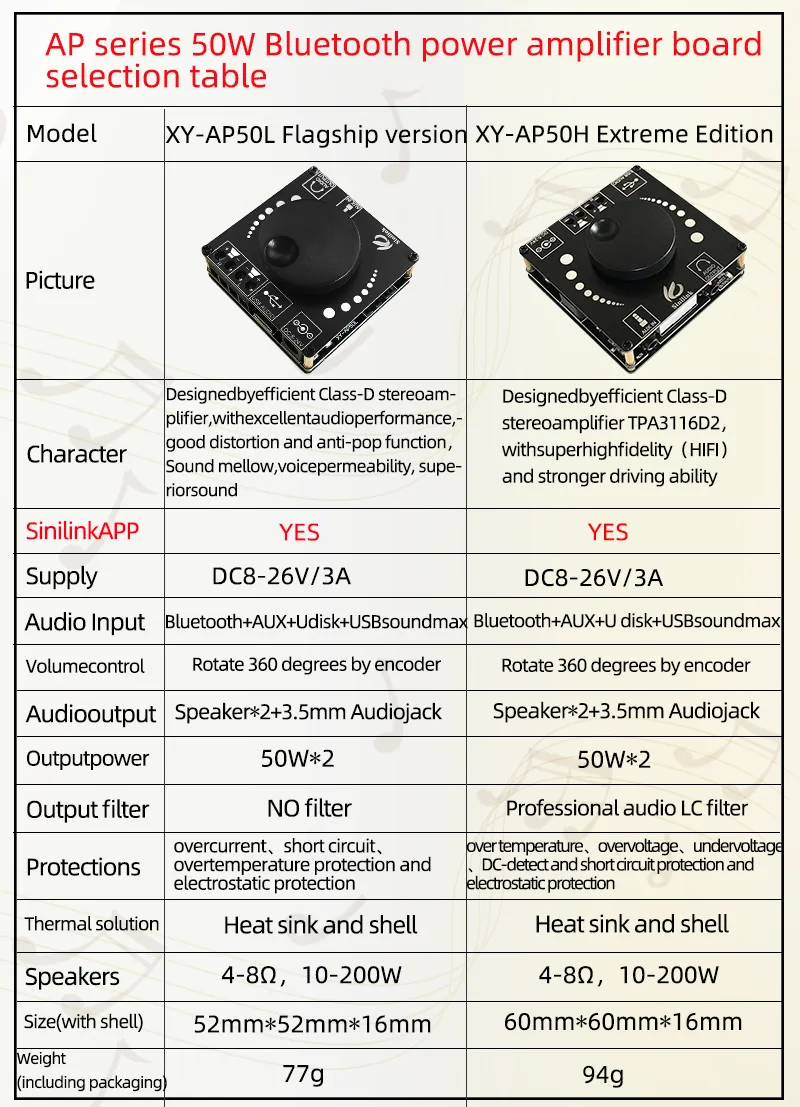

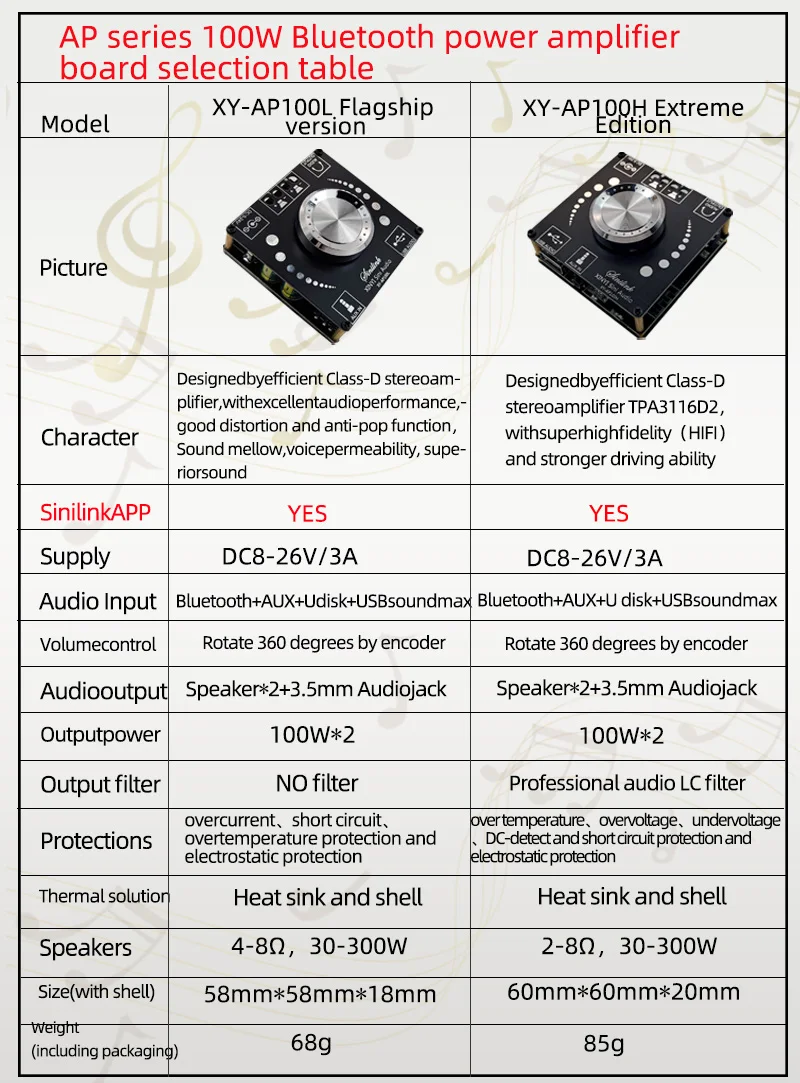

There are two versions of this product. The main difference lies in the difference of the amplifier chip used, the difference of the output filter or not, the difference of the size.

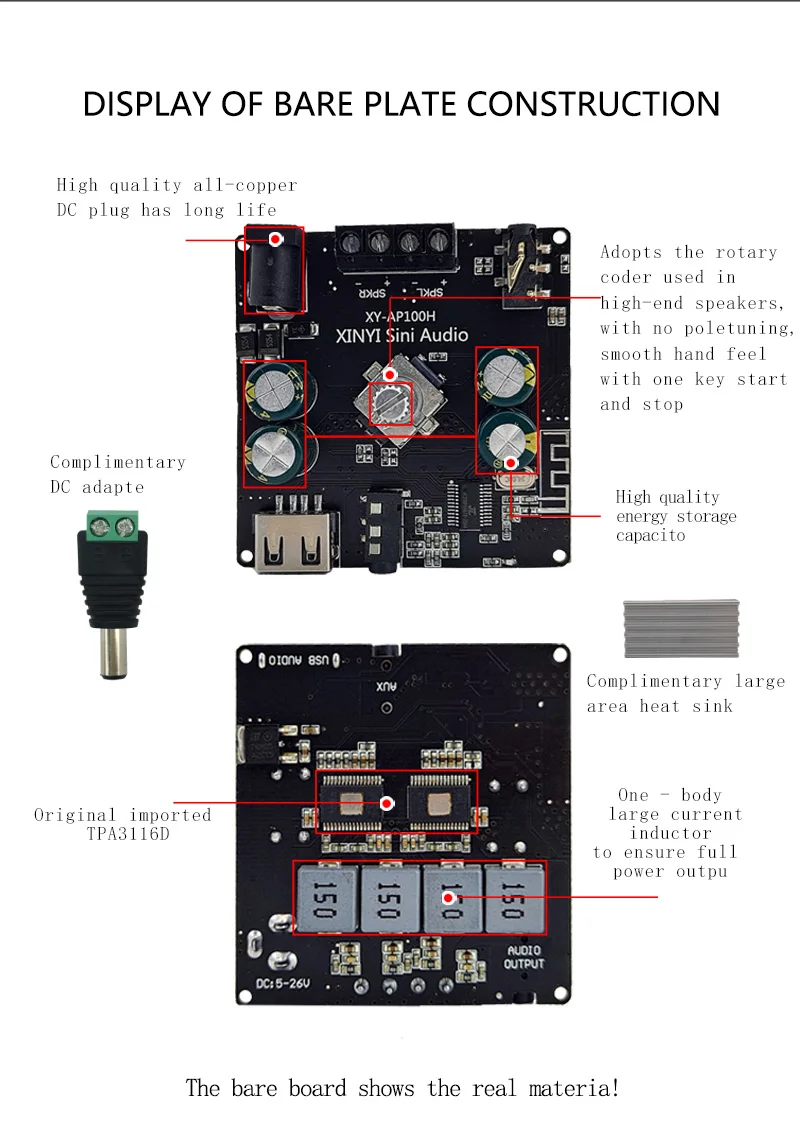

AP50H/AP100H adopts imported TPA3116D2
AP50L/AP100L adopts domestic AP3050
AP15H adopts domestic AP3016

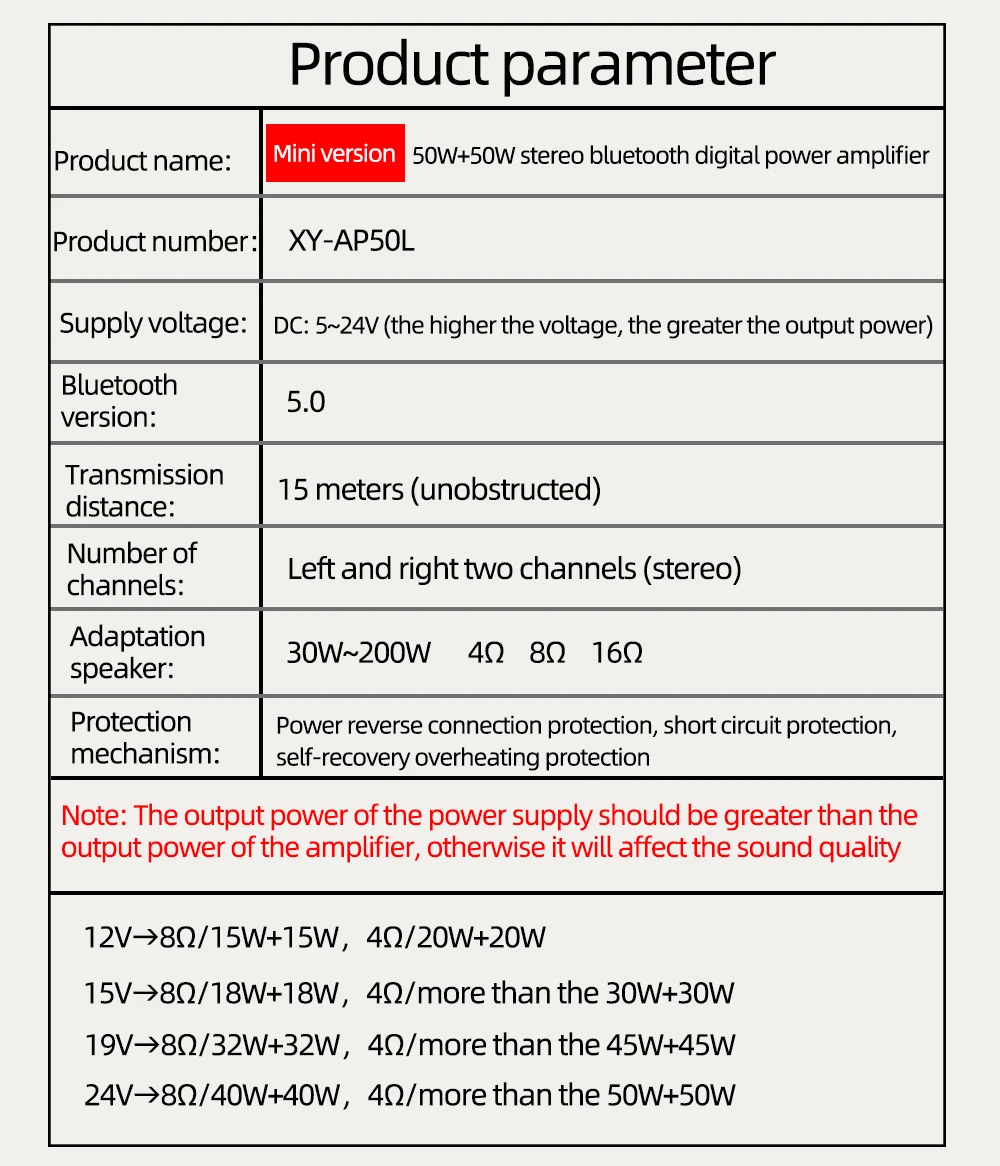

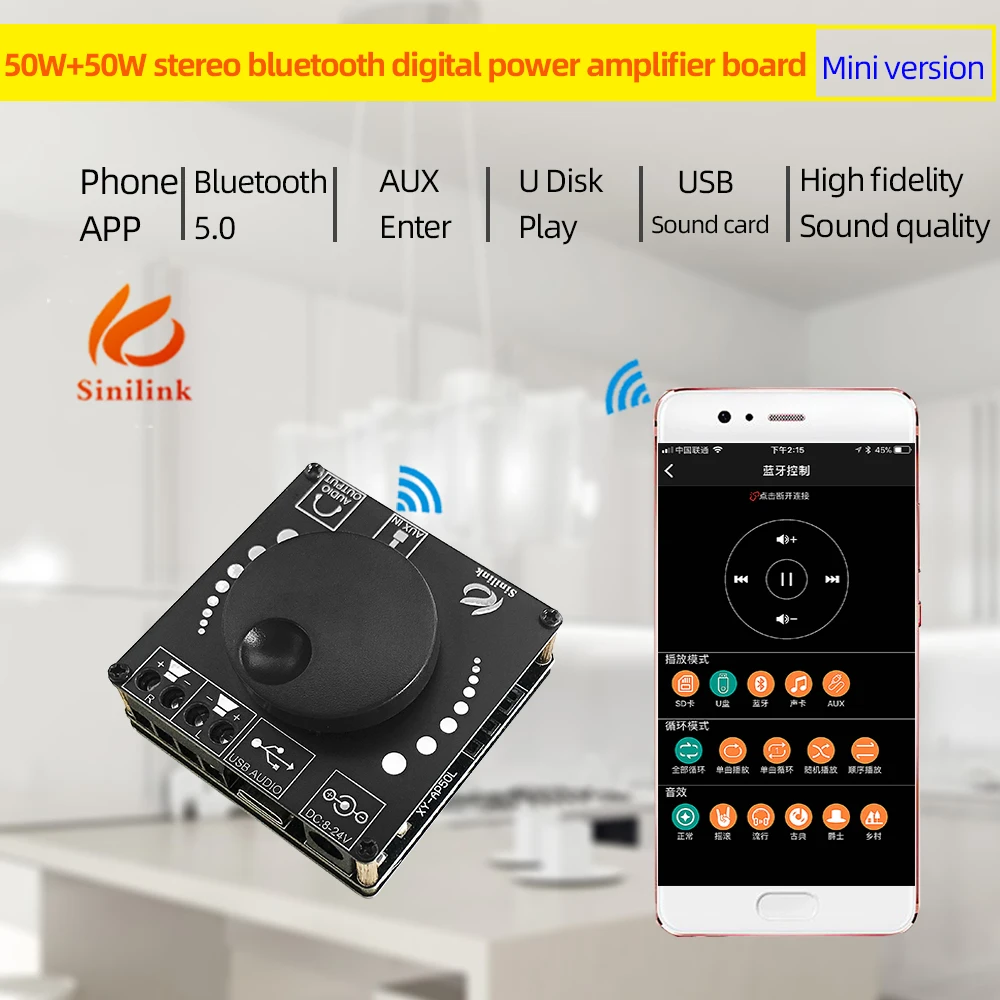

1.AP50L AP3050：

Bluetooth 5.0 AP3050 2.0 50W*2
1.Bluetooth version: 5.0 (without sunscreen, 15 meters)
2.Output channel: 2.0 channel
3.Chip model: AP3050D

1.Working mode: class D
2.Static current: 60mA
3.Work efficiency: 90%
4.Audio input: support bluetooth, AUX analog signal, USB
5.MAX output power : 50W*2
6.Frequency response: 20Hz to 20KHz
7.Working voltage: DC5V - 24V
8.Recommended power voltage: DC19V
9.Fit speaker parameters: 4-8 ohms

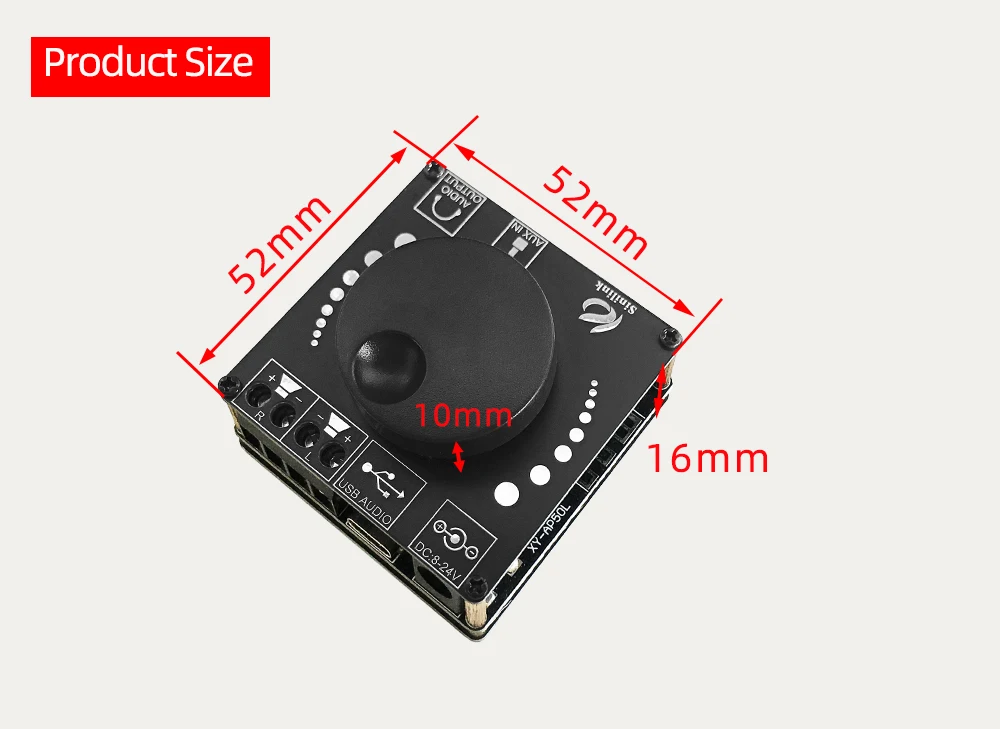

10.Size: 52 mm * 52 mm * 16mm
11.Net weight: about 77g

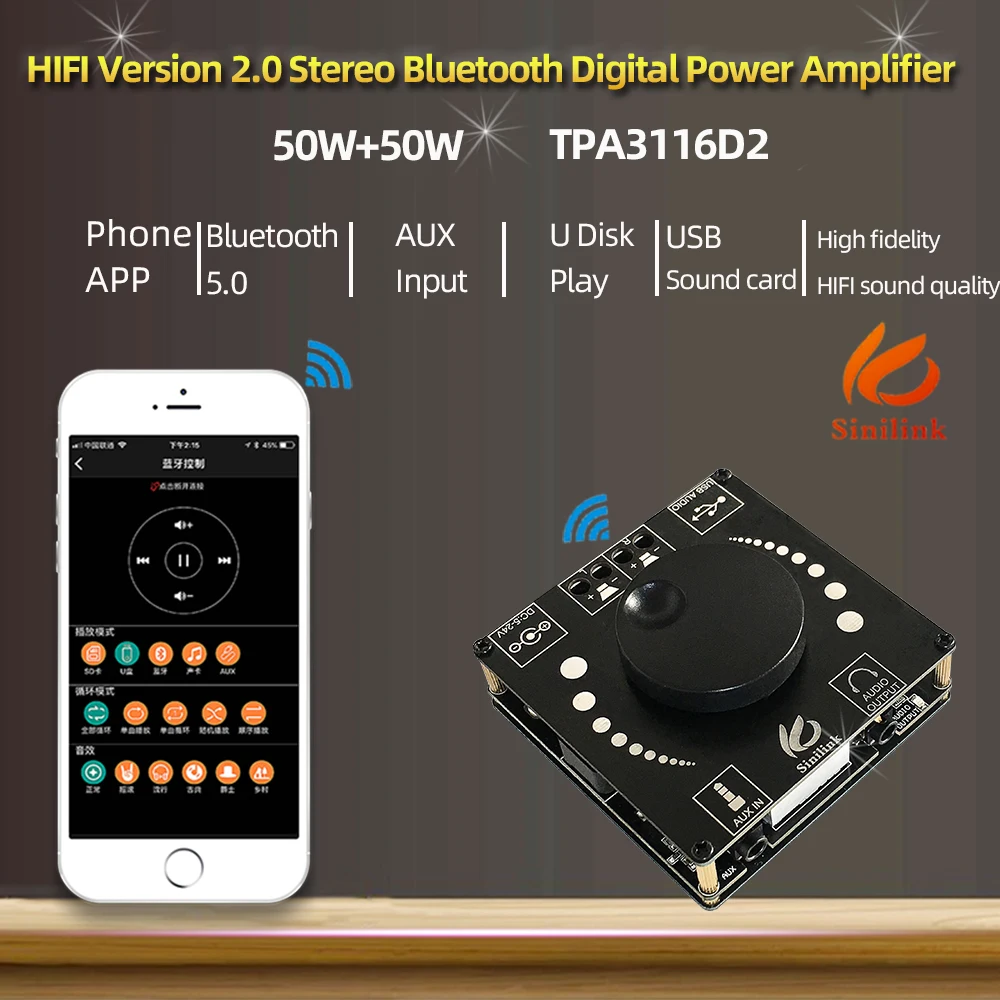

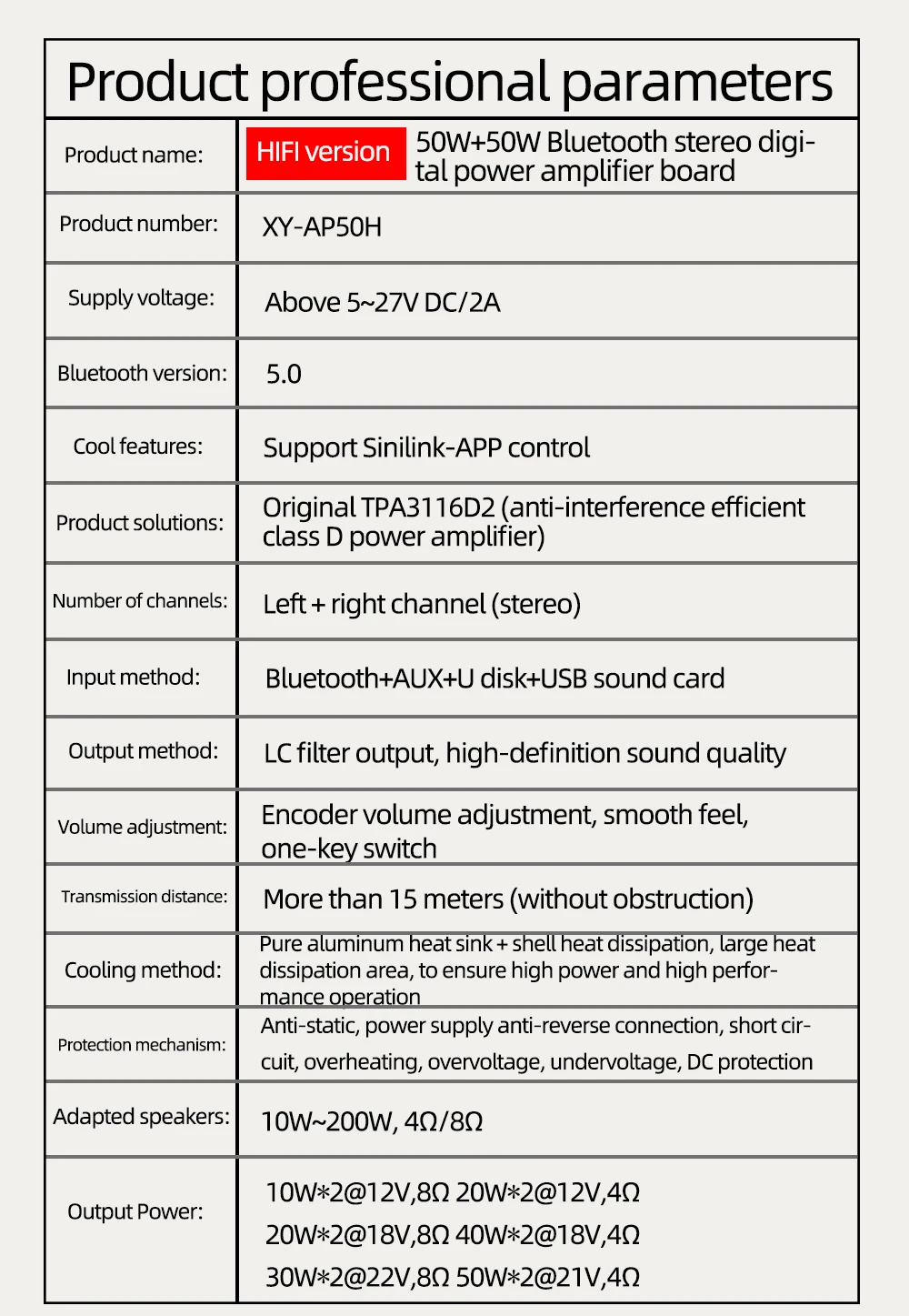

2.AP50H TPA3116D2

Bluetooth 5.0 TPA3116D2 2.0 50W*2
1.Bluetooth version: 5.0 (without sunscreen, 15 meters)
2.Output channel: 2.0 channel
3.Chip model: TPA3116D2

1.Working mode: class D
2.Static current: 60mA
3.Work efficiency: 90%
4.Audio input: support bluetooth, AUX analog signal, USB
5.MAX output power : 50W*2
6.Frequency response: 20Hz to 20KHz
7.Working voltage: DC5V - 24V
8.Recommended power voltage: DC19V
9.Fit speaker parameters: 4-8 ohms

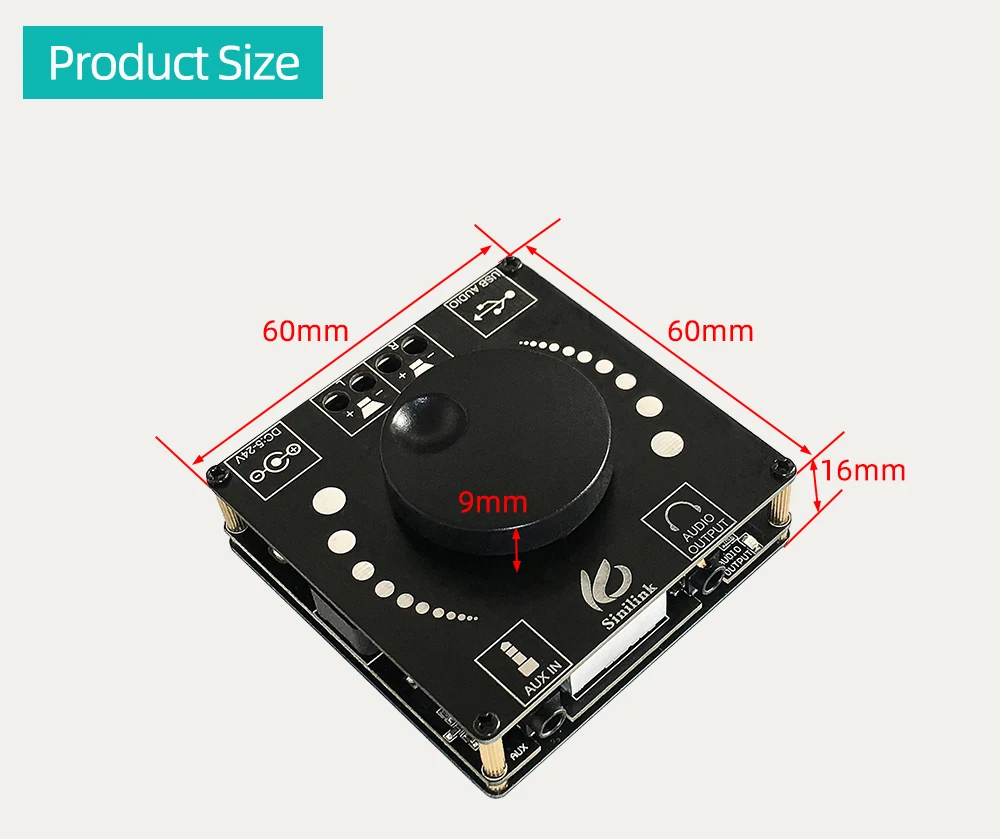

10.Size: 60 mm * 60 mm * 16mm
11.Net weight: about 94g

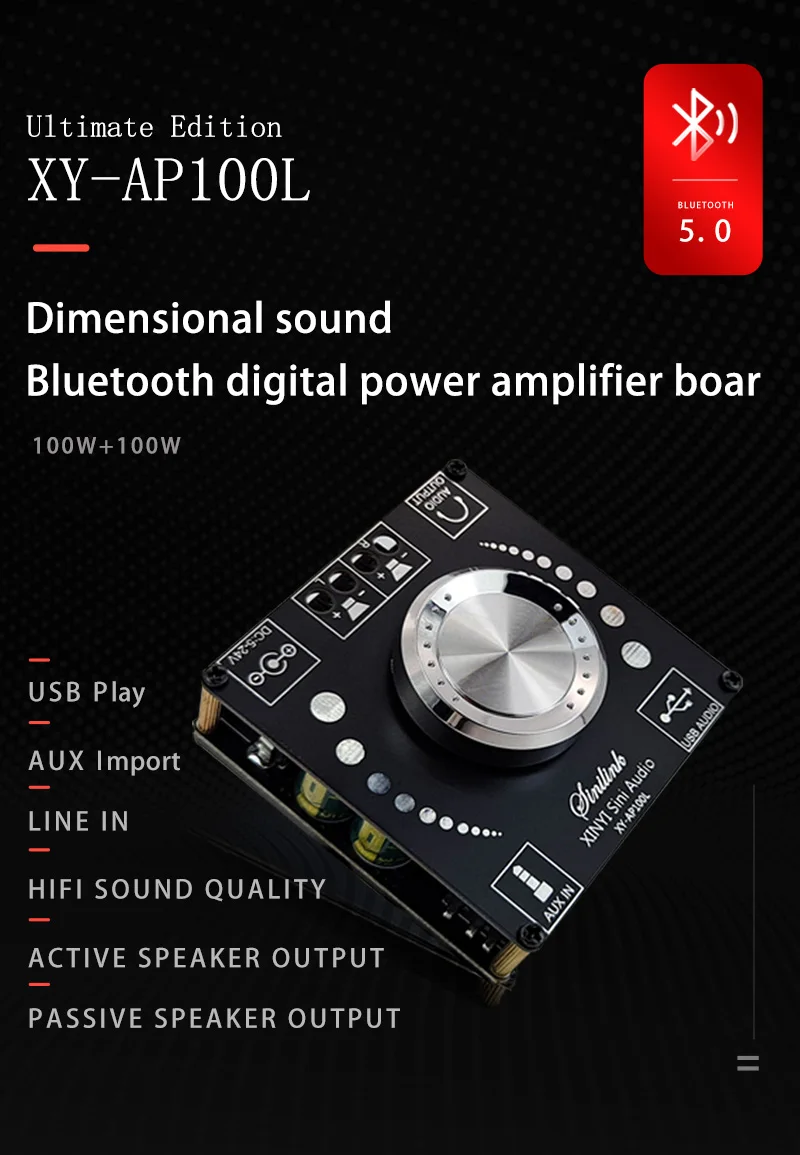

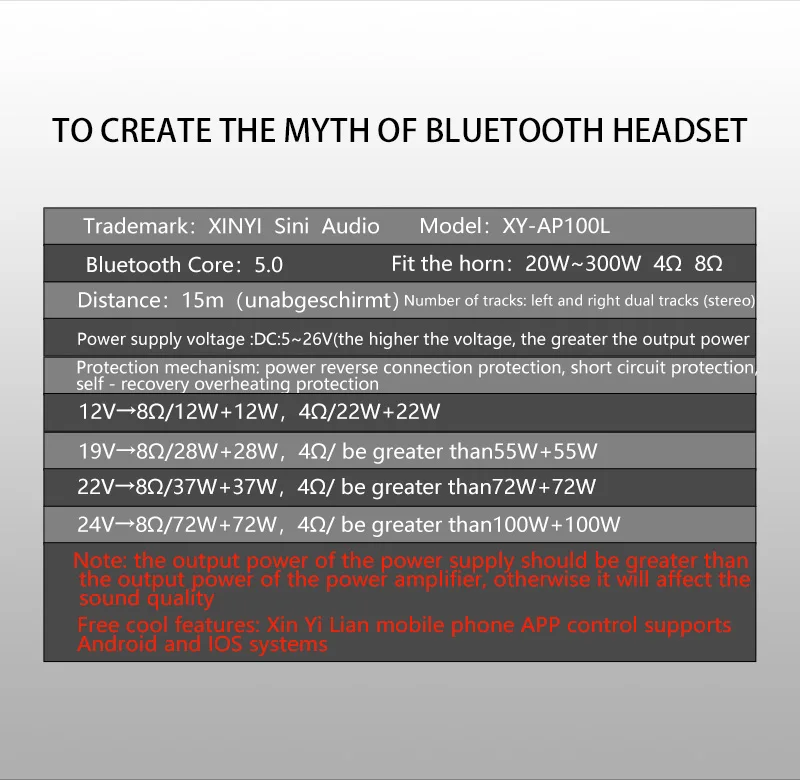

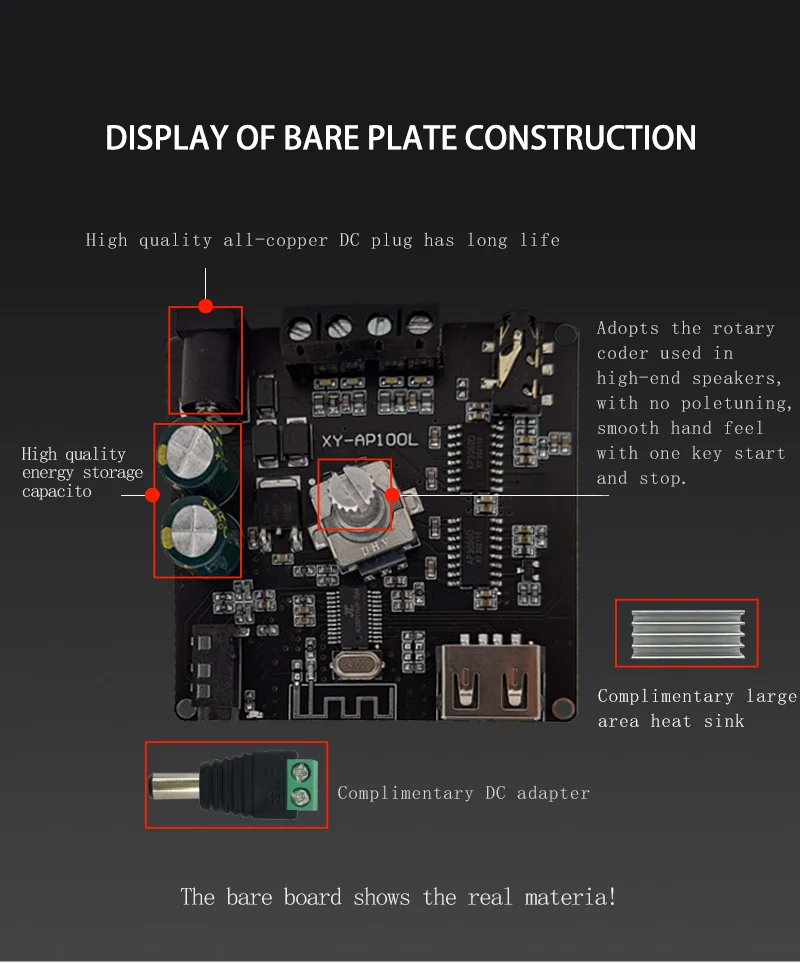

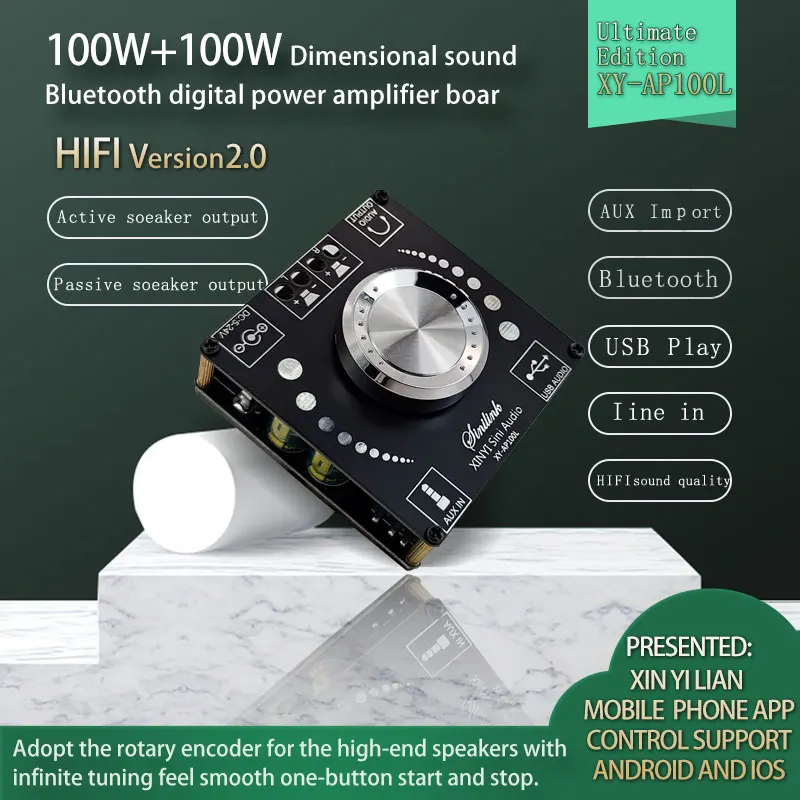

3.AP100L AP3050*2：

Bluetooth 5.0 AP3050 2.0 100W*2
1.Bluetooth version: 5.0 (without sunscreen, 15 meters)
2.Output channel: 2.0 channel
3.Chip model: AP3050D*2

1.Working mode: class D
2.Static current: 60mA
3.Work efficiency: 90%
4.Audio input: support bluetooth, AUX analog signal, USB
5.MAX output power : 50W*2
6.Frequency response: 20Hz to 20KHz
7.Working voltage: DC5V - 24V
8.Recommended power voltage: DC19V
9.Fit speaker parameters: 4-8 ohms

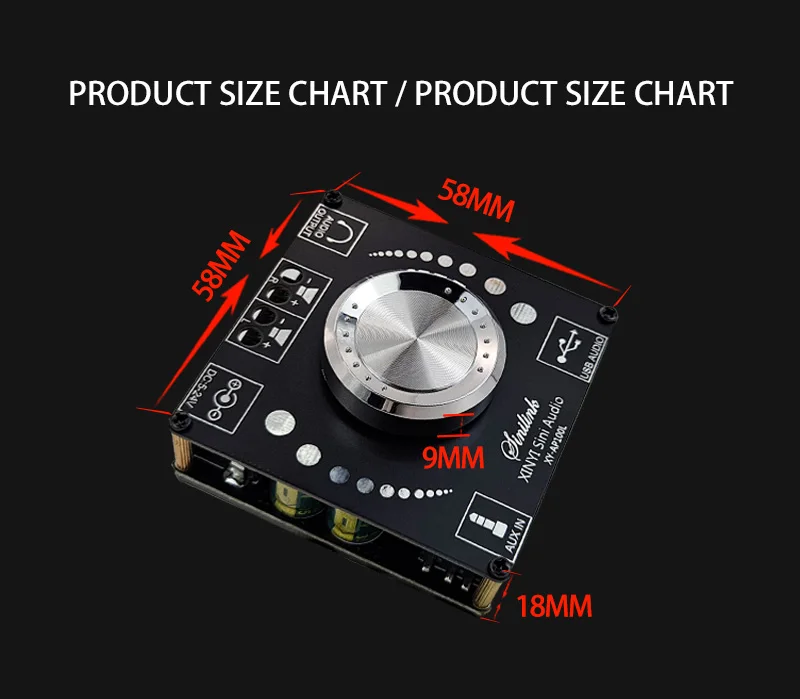

10.Size: 58mm * 58mm * 18mm
11.Net weight: about 68g

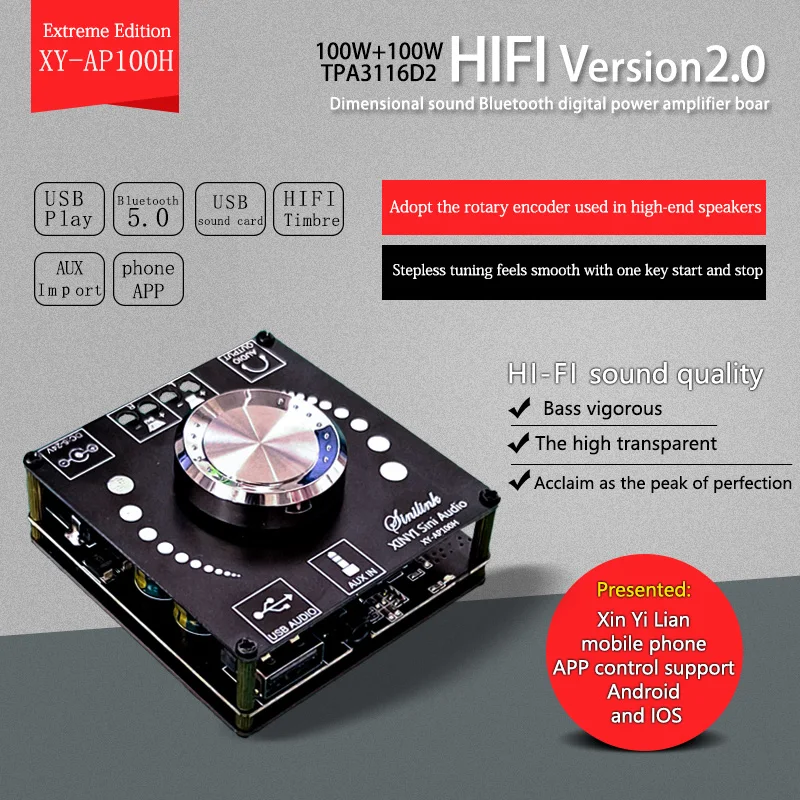

4.AP100H TPA3116D2*2

Bluetooth 5.0 TPA3116D2 2.0 100W*2
1.Bluetooth version: 5.0 (without sunscreen, 15 meters)
2.Output channel: 2.0 channel
3.Chip model: TPA3116D2*2

1.Working mode: class D
2.Static current: 60mA
3.Work efficiency: 90%
4.Audio input: support bluetooth, AUX analog signal, USB
5.MAX output power : 50W*2
6.Frequency response: 20Hz to 20KHz
7.Working voltage: DC5V - 24V
8.Recommended power voltage: DC19V
9.Fit speaker parameters: 4-8 ohms

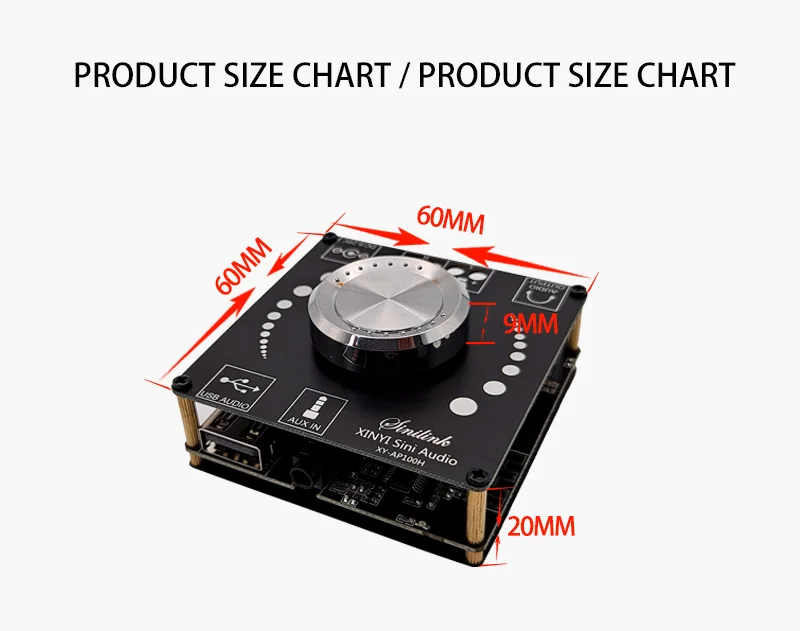

10.Size: 60mm * 60 mm * 20mm
11.Net weight: about 85g

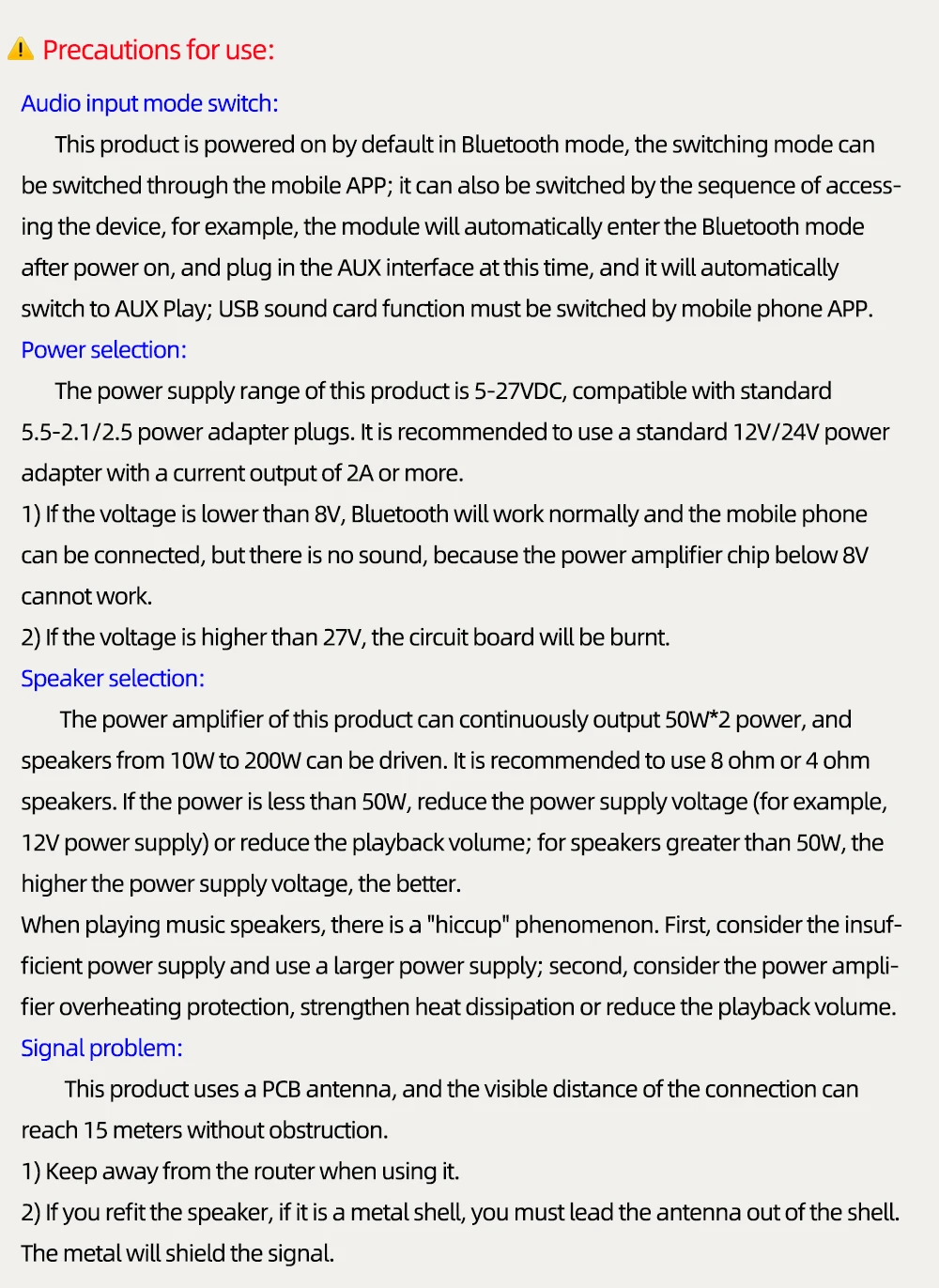

NOTE：

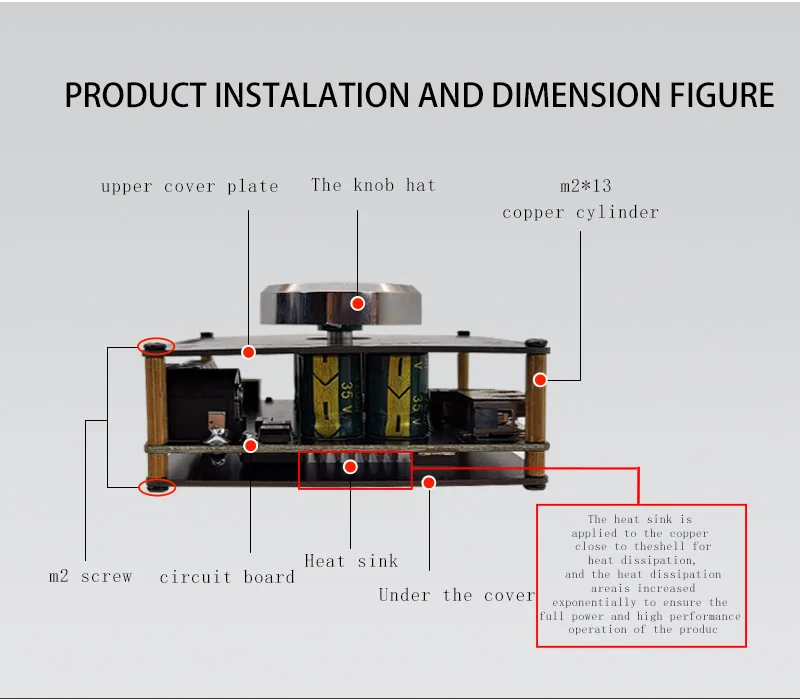

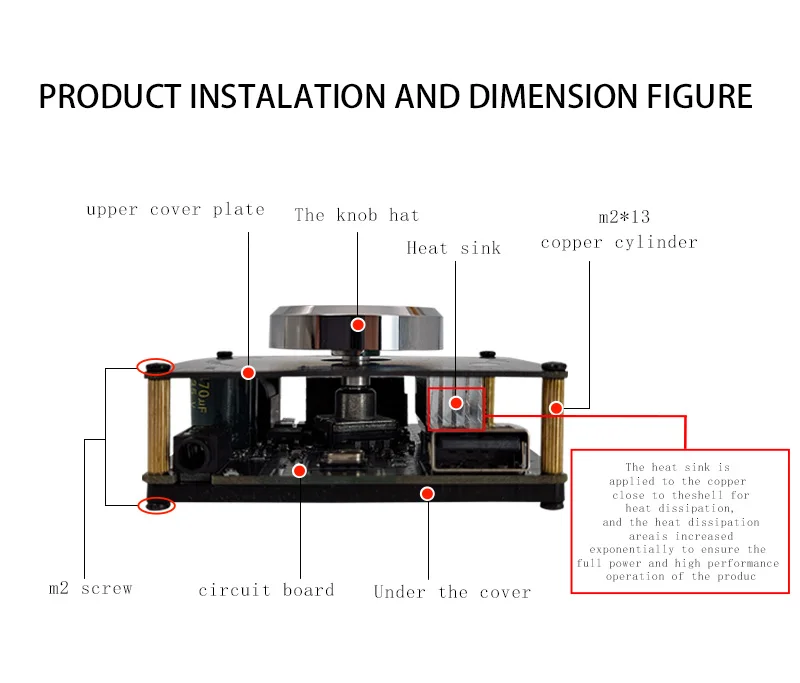

1.For DIY---The outer casing is a material package, It needs to be assembled by itself, and the material package is given a screwdriver.

2.---Attention!The heat sink tape 3M glue needs to be pasted to the chip by itself. Please refer to the picture in the description. The hotter the more sticky the thermal conductivity is.The shell version needs to be assembled by yourself. Screwdriver is given with the shell version.

3.For use---The power switch on the board is standby switch. After the switch is off, the machine is in standby state with low power consumption. If the power is completely turned off or the DC plug on the machine can be unplugged for a long time.O

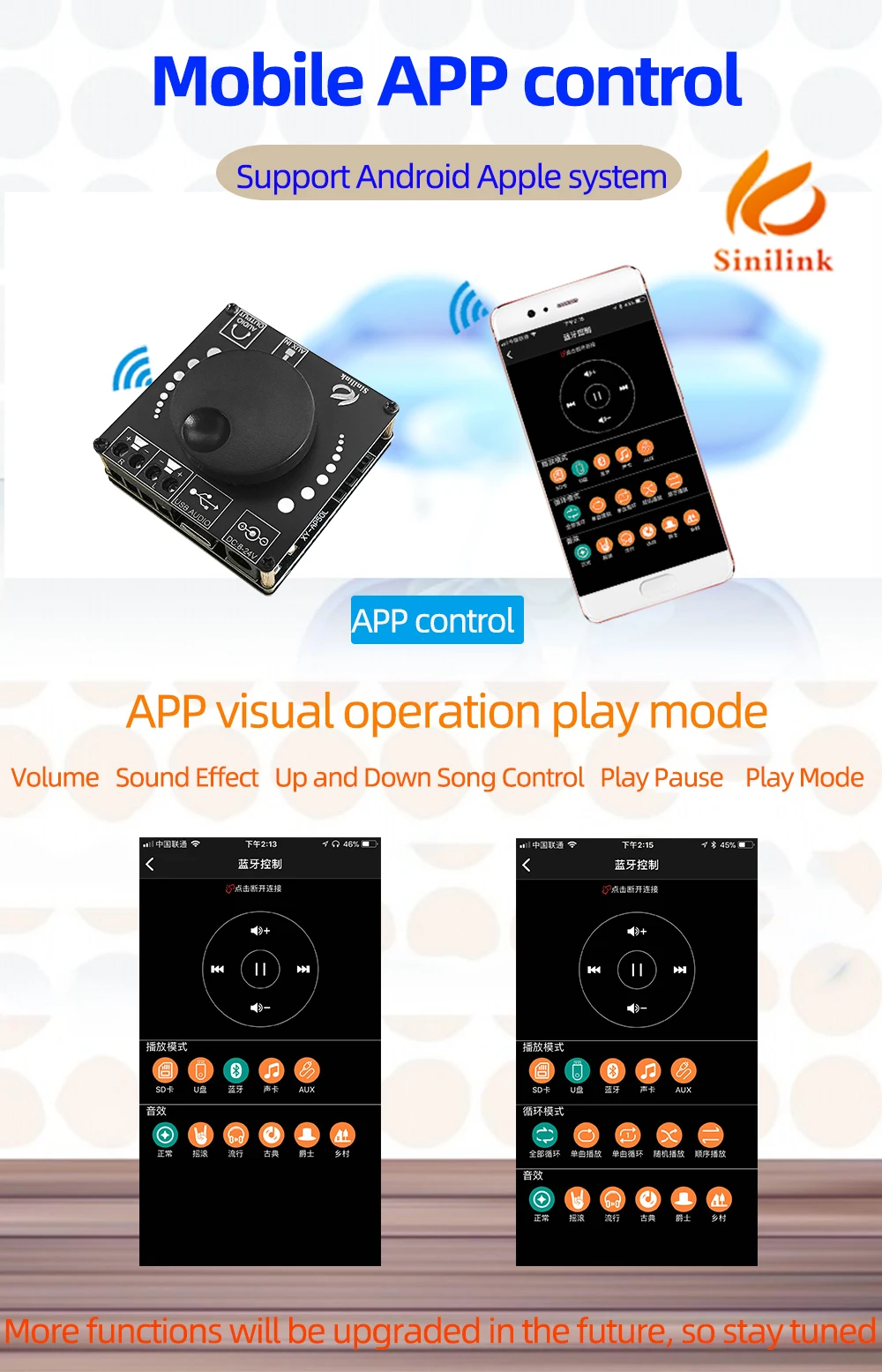

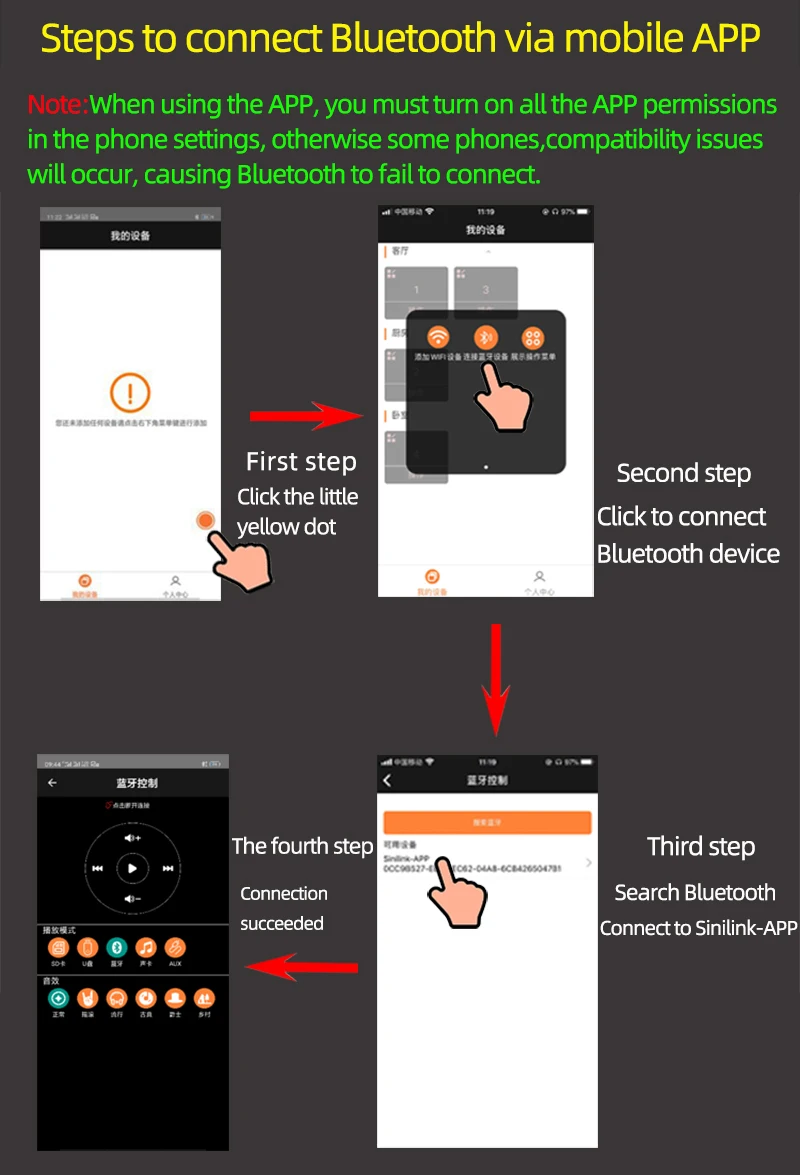

Bluetooth mode setting

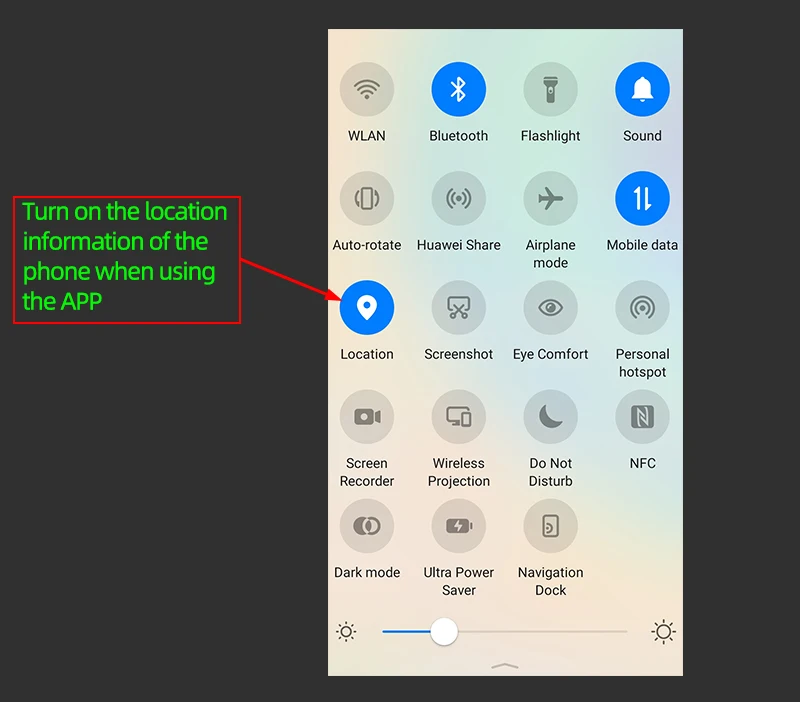

Or Mobile APP controls Settings

1.In addition to the traditional hardware and Bluetooth control mode, there is another mobile APP control mode

2.APP download address:
Apple IOS: search in the Apple store: sinilink
Android: https://m.pp.cn/detail.html?ch_src=pp_dev&appid=7921907&ch=default or download from the official website: http://www.sinilink.com/release.apk
Or download the APP on your mobile phone: PP Assistant, search for ‘sinilink’ to download in PP Assistant or scan the code to download the APP
(Note: Android major mainstream markets have been put on the Xiaomi market, and the Huawei market has recently been put on the shelves)
For foreign customers, please download from Google Market, search for ‘sinilink’ to download
Computer client software download address:
http://www.sinilink.com/download/tools/Sinilink-Setup.exe
