Barebone Mini PC Fanless Mini PC Computer Intel Celeron 2955U/Pentium 3556U Dual Core Micro Desktop PC 1080PUSB3.0 HDMI tiny PC
Description
Mini PC, Fanless Computer
Intel Celeron 2955U 1.4GHz / Pentium 3556U 1.7GHz Dual Core
4*USB 3.0, 2*USB2.0, 1*HDMI, 1*VGA, 1*RJ45, TDP: 15W
Intel HD Graphics, Wifi, Fanless, Metal Case, No Noise
Product Advantages:
1. Special: 64 bits computing, Virtualization technology;
Support Wake-On-Lan; Support calls on function automatically;
Support SSD and HDD together, 1*mSATA3 SSD Slot, up to 512G SSD or 1TB Hardisk large volume;
Support Max 8GB DDR3 RAM; I/O port: 1*HDMI, 1*VGA, 1*NIC, 4*USB3.0, 2*USB2.0
2. Stable: Intel Braswell +Intel HD Graphics +Fanless
3. Smart: Fanless system, smart design, zero noise, work 24hrs working
4. Slim: Only 2.9mm body thickness, brushed aluminum alloy case
5. Smooth: Support 3D games, and HDMI full 1080P playback
6. Strong: Work for multiple application. For example: integrated with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projector, Hotel.
Product Specifications:
| General | ||
| Features | Fanless, HDMI+VGA, 4*USB 3.0, Full metal case. | |
| CPU | CPU Model | Intel® Celeron® Processor 2955U Dual Core 1.4GHz Intel® Pentium® Processor 3556U Dual Core 1.7GHz |
| Intel Smart Cache | 2MB | |
| Instruction Set | 64-bit | |
| Lithography | 22 nm | |
| TDP | 15W | |
| RAM | Memory Slot | 1*DDR3 SD RAM Slot |
| RAM type | DDR3L-1333/1600, 8GB Max. | |
| Storge | SSD & HDD type | mSATA & SATA |
| Capacity | SSD: 32GB, 64GB, 128GB, 256GB; HDD: 500GB, 1TB | |
| Operating System | Default: Windows 7; Optional: Windows 8.1, Windows 10, Ubuntu | |
| Audio | ALC662 chip, 6 channel sound | |
| Network | Onboard RTL8111DL10/100Mbps/1000Mbps Based T LAN | |
| Optional WiFi or WiFi+Bluetooth with Dual Antenna | ||
| Video | Intel® HD Graphics | |
| Graphics Base Frequency: 200MHz | ||
| Graphics Max Dynamic Frequency: 1GHz | ||

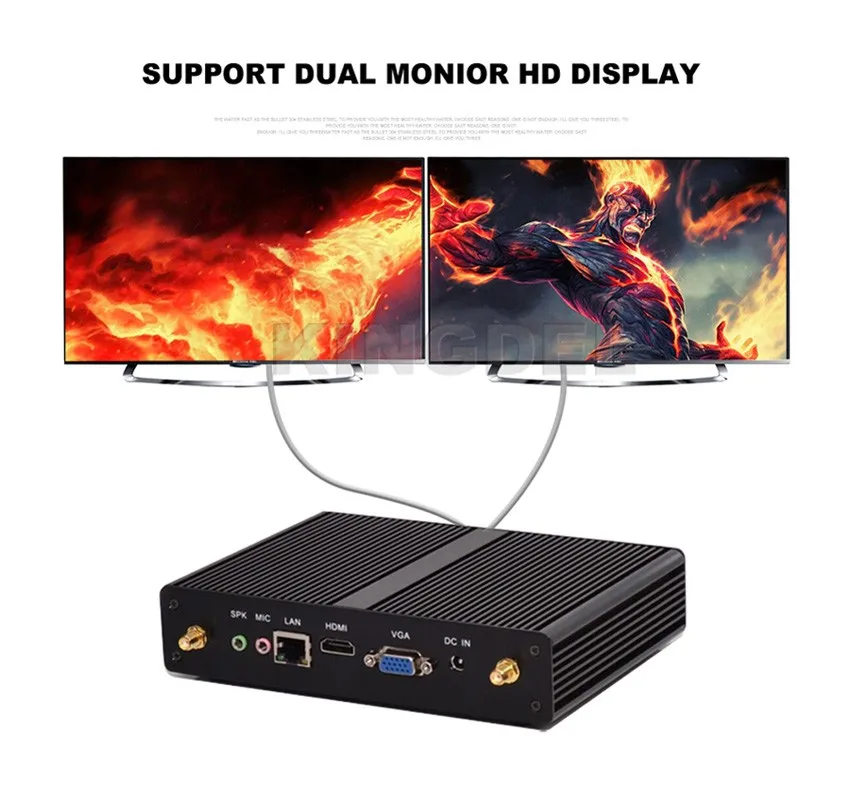

| VGA and HDMI full screen HD playback | ||
| I/O port | ||

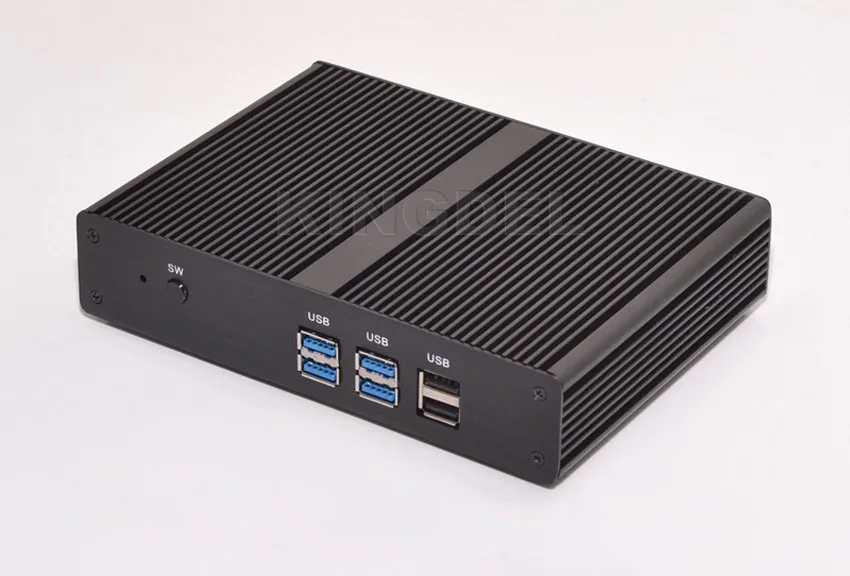

| Front Panel | 1* Power Switcher with Indicator, 4*USB 3.0, 2*USB 2.0 | |

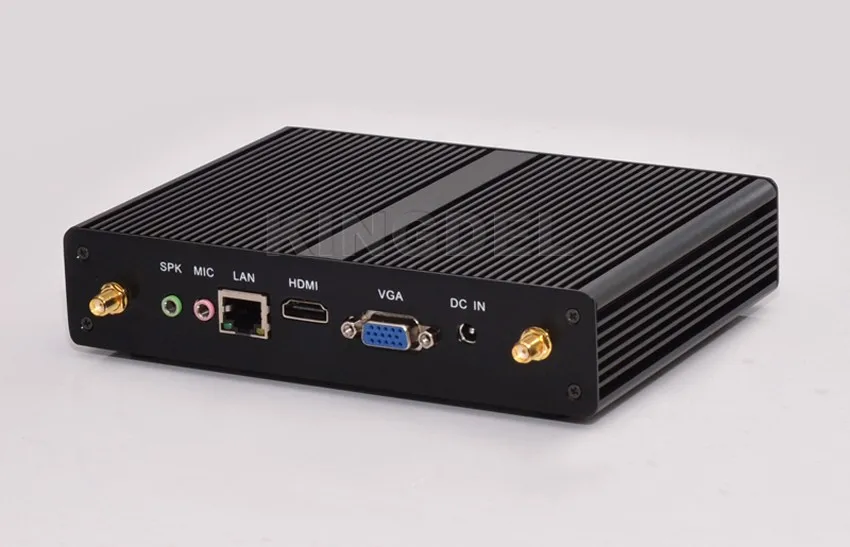

| Backside Panle | 1*DC in, 1*HDMI, 1*VGA, 1*LAN, 1*Mic., 1*Spkr. | |

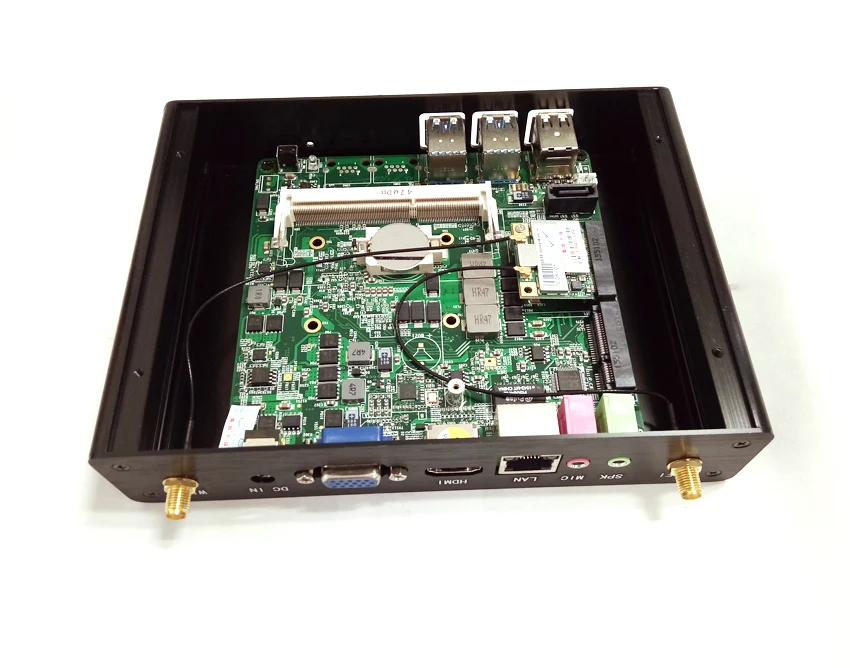

| Internal on Board | 1*SSD Slot (mSATA 2.0, 3Gbps), 1* mini PCIE for WiFi moudle | |
| Power & Working Environment | ||
| Input | DC100-240V AC/50-60Hz | |
| Output | DC12V-19V/3A | |
| Power Consumption | 17-25W | |
| Working Temperature | 0-70 centigrade(32F-140F) | |
| Storge Temperature | -20-80 centigrade | |
| Humidity | 10%-90%(no considensing) | |
| Energy Saving | Energy Saving Technology supported, speedstep | |
| Virtualization | Virtualization technology supported | |
| Product Demention & Details | ||
| Size | 170mm*120mmm*37mm | |
| Gross Weight | 1.5KG | |
| Computer Case | Full Black Aluminum Alloy Material | |

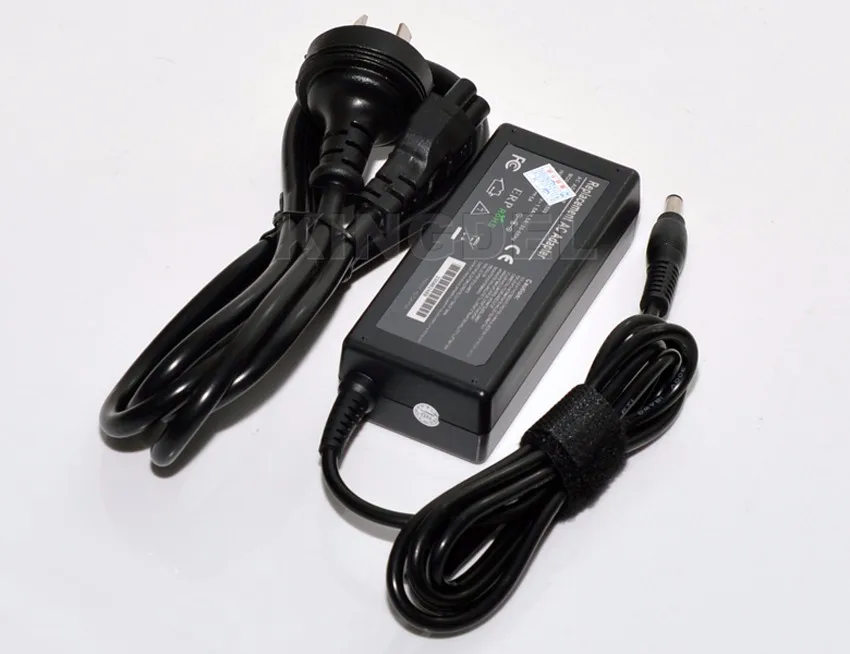

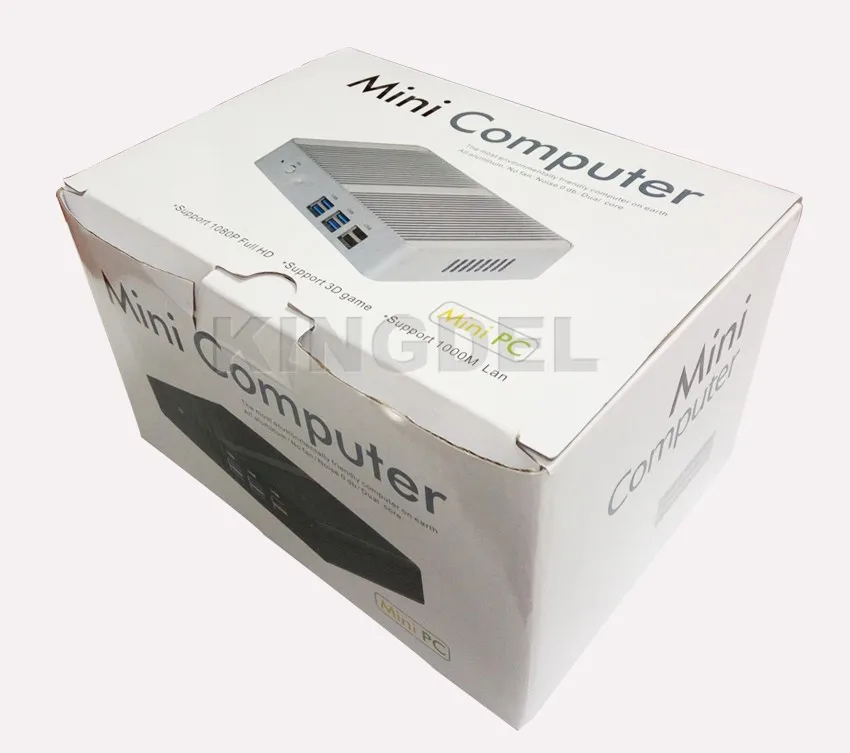

| What in Box | mini PC, Power Adapter, Power Cable, Stand Bracket, Screws, WiFi Antenna | |
Application:

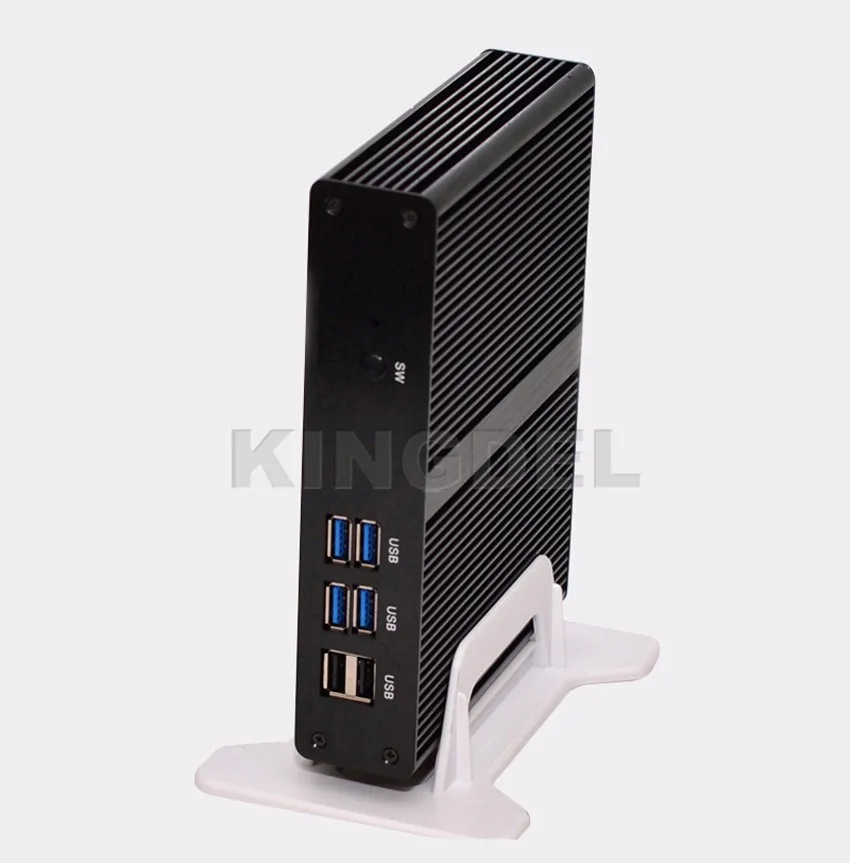

Product Photos:

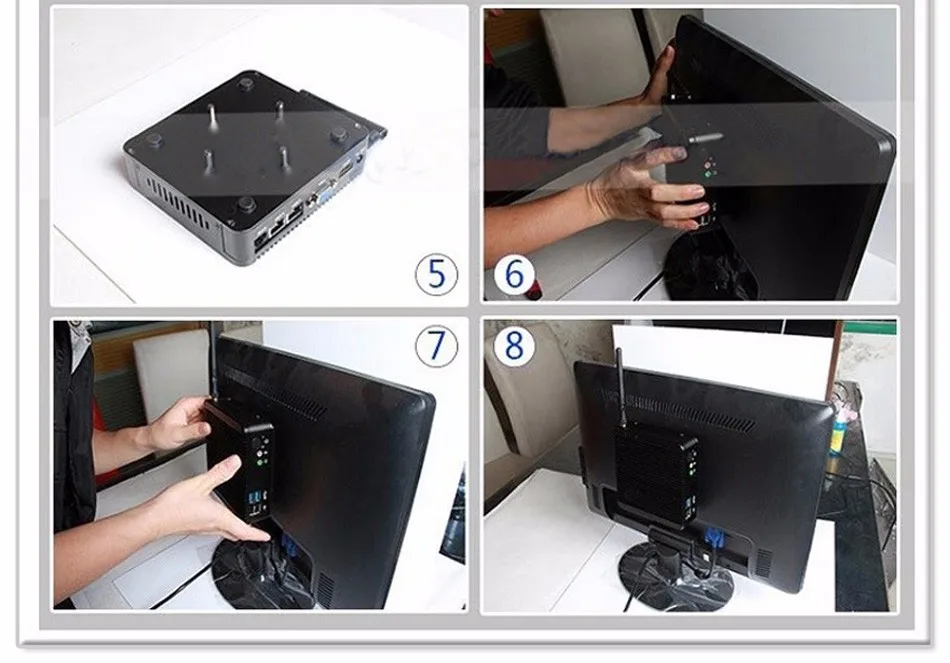

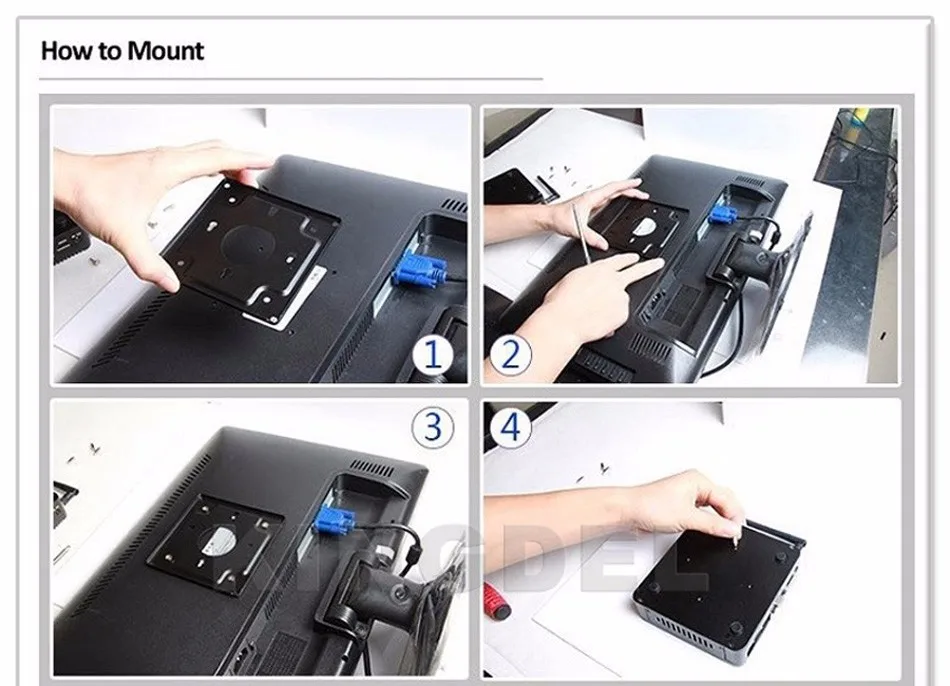

VESA Bracket costs extra USD5, Please click the picture pay together if you need:
