Baofeng UV-82 8W or 5W Walkie Talkie Long Range Dual Band VHF 136-174MHz UHF 400-520MHz CTCSS DCS Dual Display Two Way Radio

(No reviews yet) Write a Review

SKU:
UPC:
MPN:

$32.03 - $40.77

Current Stock:

Quantity:

Description

Description

Baofeng UV-82 8W or 5W Walkie Talkie Long Range Dual Band VHF 136-174MHz UHF 400-520MHz CTCSS DCS Dual Display Two Way Radio

Output : 8W/4W/1

Frequency Range: 136-174 MHz / 400-520 MHz
Double Launch Key Dual Band Dual Watch
High &Low Power Switchover
Battery Saving
VOX Function
Wide/Narrow Band Selection
Auto-Back Light
Dual Band Standby
Time-out Timer (TOT)
50 CTCSS and 104 DCS Codes
Voice Prompt
ANI Code
PC or Manual Program
DTMF Code
PTT-ID
ATUO Keypad Lock
Busy Channel Lock Function

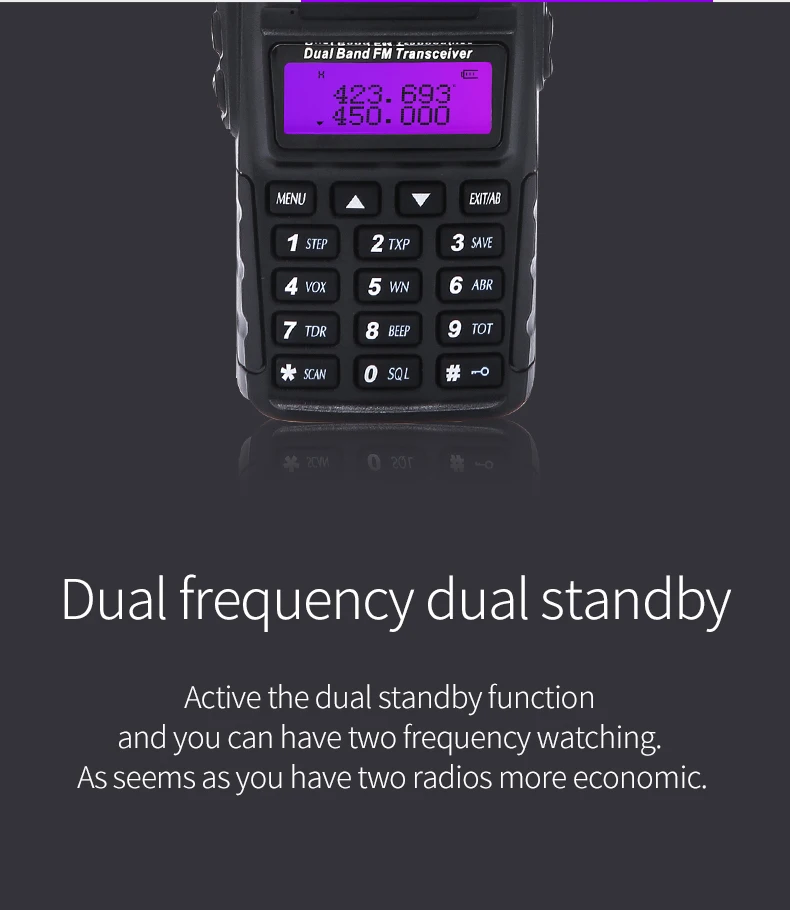

Dual Band, Dual Display and Dual Standby
Emergency Alarm
Priory Scanning Function
Relay Forwarding Confirmed (1750 HZ)

General
Frequency Range	VHF: 136-174MHz UHF: 400-520MHz
Channel Capacity	128*2group
Channel Spacing	2.5/5/6.25/10/12.5/20/25 50 KHz
Operating Temperature	-25~ +60
Operating Voltage	7.4V DC ±20%
Battery	2800mAH Li-ion
Frequency Stability	±2.5 ppm
Dimension (with battery and antenna)	110mm x58mmx32mm
Weight (with battery and antenna)	250g
Transmitter
RF Power Output	8W or 5W
Frequency Modulation	Wide 16KφF3E /Narrow 11KφF3E
Antenna Impedance	50Ω
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7.5μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.5A(6W)
QT/DQT deviation	0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Receiver
Sensitivity (12dB SINAD)		≤ 0.25 uV
Selectivity		55dB/50dB
Intermodulation		60dB
Adjacent Channel Selectivity		≥ 65dB / ≥ 60dB
Spurious Response		≥ 65dB / ≥ 60dB
FM Noise		45dB/40dB
Audio Power Output		1W
Audio Distortion		≤ 5%
