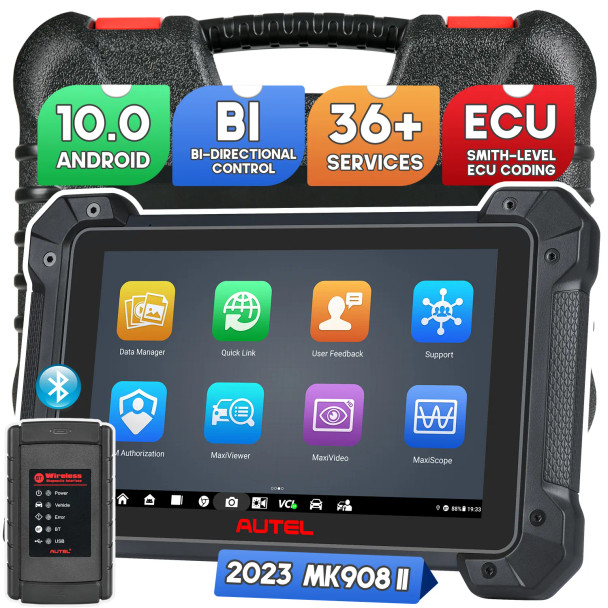

MK908 II Highlight:

● Local-Smith Level ECU Coding
● Refresh Hidden Function
● 36+ Reset Services & 10+ High-end Functions
● OE-Level All Module Diagnostics
● Bi-directional Control/ Active Test
● IMMO Key Service (Basic)
● Scan VIN/License & Troublesshooting Guided Function
● Pre-&Post Scan Diagnostic Report & WiFi Printing
● 2.4 & 5 GHz Dual WiFi -Fast/Stable/Safe - 50M Range
● 21+ Languages Support & NO-IP Limitation
● 150+ Brands Brands Worldwide from 1996-2023
● AutoAuth for 2018 and Newer FCA Vehicles
● Can work with MV105/MV108/BT506/MP408

Customize Your Cars

This function allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or programming. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU reprogramming, for various vehicle control systems, such as engine, transmission, ABS and more.

NOTE: The ECU programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle's ECU. ECU programming functions need to buy an Autel MaxiFlash Elite separately. Connect it to MK908 and update the scanner to a MK908P.

NOTE: ECU Coding is different from ECU Programming. And ECU Coding is NOT universally compatible.

ECU Coding & Adaptation

ECU Coding: MK908 II can match the modules with components, flash the hidden functions, and customize the OE settings as you wish. And also it has extensive compatibility, such as BMW, Porsche online coding(Including CCC, CTS, EACS, EHS, EQU, FSS, and SRC), Mercedes-Benz, Iveco, etc.

Commonly Reset Functions

1. Oil Light Reset: Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.

2. ABS Bleeding: Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal.

3. Battery Matching: Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.

4. DPF Regeneration: Only for diesel vehicles. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. When a regeneration cycle is completed, the DPF light automatically goes off.

5. SAS Reset: Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.

6. Injector Coding: Write the new injector code into the car system for correct cylinder injection quantity. Work for gasoline or diesel vehicles.

7. EPB Reset: Help replace and reset the brake pad. This function is required for maintenance of electronic braking system's safety and efficiency.

8. Replace Airbag ECU Module: Helps to match the new airbag information with the ECU and let it know the fault has been repaired.

9. A/F Reset - This is utility allows for the learnt Air Fuel Ration (AFR) to be re-initialized.The Air/Fuel ratio (A/F) is the mixture ratio or percentage of air and furl dilivered to the engine by the fuel system, A/F adaptation to meet the ideal air-fuel ratio of different fuel ensure engine best performance.

All System Diag

Bi-directional Control & Active Tests to determine whether a specific subsystem or component in vehicles goes well.

Full OBD2 Diagnose
● Read/ Erase Codes
● Component Test
● View Freeze Frame
● On-board Minitor Test
● Vehicle Info
● l/ M Readiness
● Live Data Stream
● MIL Fault Indicator Light

Friendly Functions:

● FCA AutoAuth
● Power Balance
● Renault Security Gateway
● Anti-theft lMMO Service (Basic)
● Online Acccount Login
● Pre-&Post Scan & Guided Function
● Report Management (Cloud-Based)
● Scan VIN/License/Plate
● Report WiFi Printing

Packing List:

● Main Unit
● Auxiliary Power Outlet Adapter
● Quick Reference Guide
● Bluetooth Diagnostic Interface
● Spare Fuse 6 x 30mm (2pcs)
● Packing List
● Main Cable
● Mini USB Cable
● Soft Cloth
● USB Cable
● USB to Ethernet Adapter
● Carrying Case 504 x360 ×133mm
● AC/DC Adapter (12V)
● Clamp Cable

Specifications:

● Operating System: Android™ 10.0
● Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
● Memory: 4GB RAM & 128GB On-board Memory
● Display: 10.1-inch LED screen with 1920x1200 resolution
● Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (2 USB TYPE-A ports and a Mini USB port), BT V5.0 + BR/EDR, SD Card (Support up to 64GB), HDMI
● Camera (rear): 16 Megapixel, AF with Flashlight
● Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
● Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
● Battery: 15000mAh
● Input Voltage: 12V (9-24V)
● Power Consumption: 6.5 W
● Operating Temp: 0 to 50°C (32 to 122°F)
● Storage Temp: -20 to 60°C (-4 to 140°F)
● Housing: Strong plastic housing with protective rubber boot
● Dimensions (W x H x D):
312mm(12.28")x208mm(8.18")x36mm(1.41")
● Weight: NW: 1.48kg (3.26 lb)
● Protocols:
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
