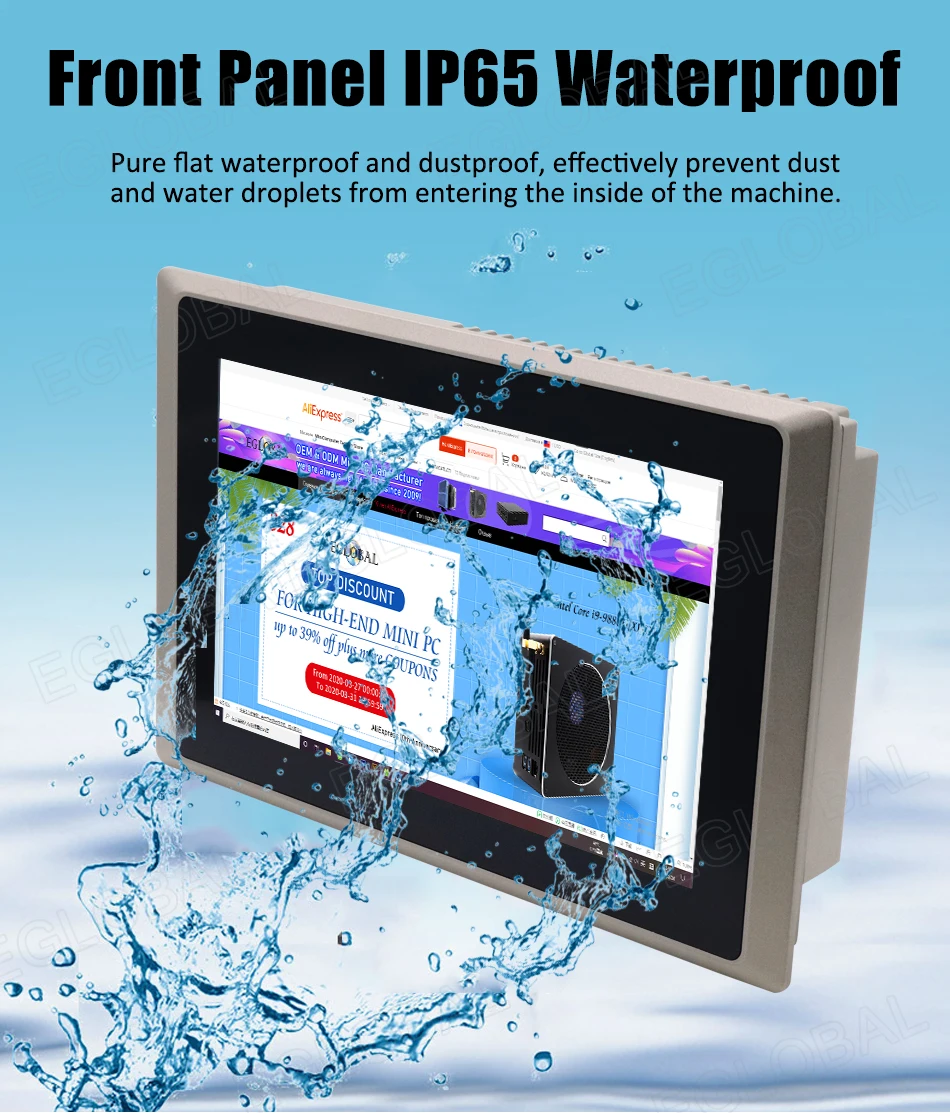

All in One Desktop i5 7200U 6360U I7 7500U Industrial Panel PC WES7 Barebone 15'' Touch Screen Computer IP65 Waterproof Touch PC
Description
Product Highlight:
| Basic Information: | |
| CPU | Intel Core i5-6360U/ Intel Core i5-7200U/Intel Core i7-7500U |
| TDP | 15W |
| Chipset | Refer to CPU |
| Memory | Onboard DDR3L 8GB RAM |
| OS | Windows 7/Windows 8/Windows 10/Linux/ WES7 |
| Watchdog timer | 1 ~ 255 seconds programmable |
| Video | Refer to CPU |

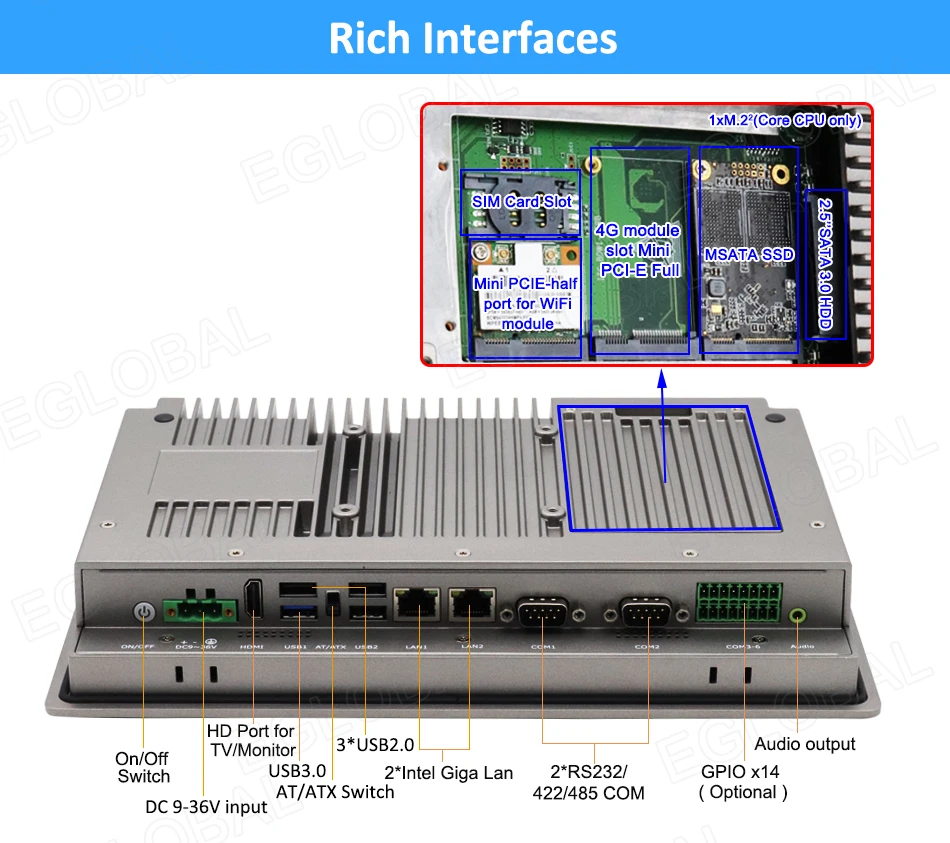

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x DC 9 ~ 36V 3-pin Phoenix Terminal |
| Amplifier | 2 x 8Ω 1W Amplifier output (Optional) |
| USB | 3 x USB2.0, 1 x USB3.0, Built-in 1xUSB2.0 Dongles Port |
| Display | 1 x HDMI |
| LAN | 2x Gigabit Ethernet RJ45 Intel i211-AT |
| Audio | 1 x Audio Line-out |

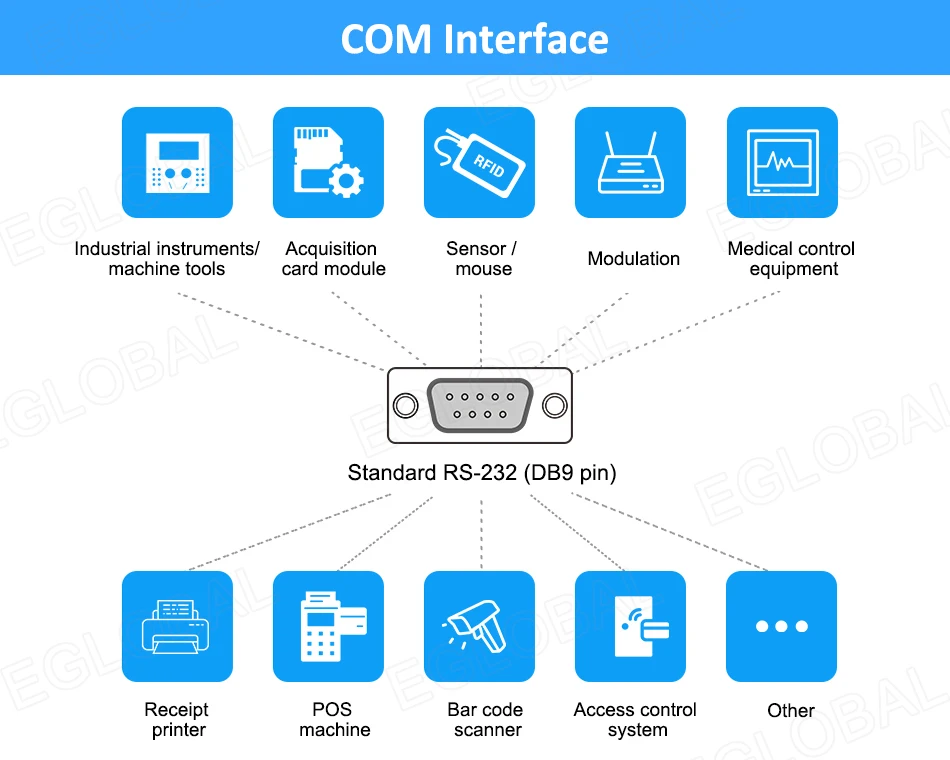

| COM | 2 x DB-9 COM1&COM2,RS-232/422/485 |
| GPIO | 1 x 14bit GPIO (Optional) |
| Others | 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal 2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal 1x Phoenix terminal remote switch interface |
| Storage | |

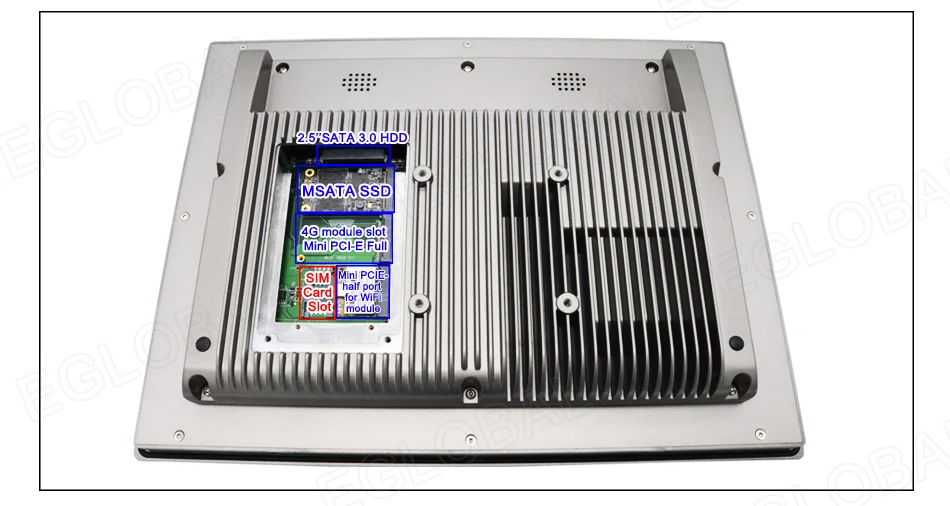

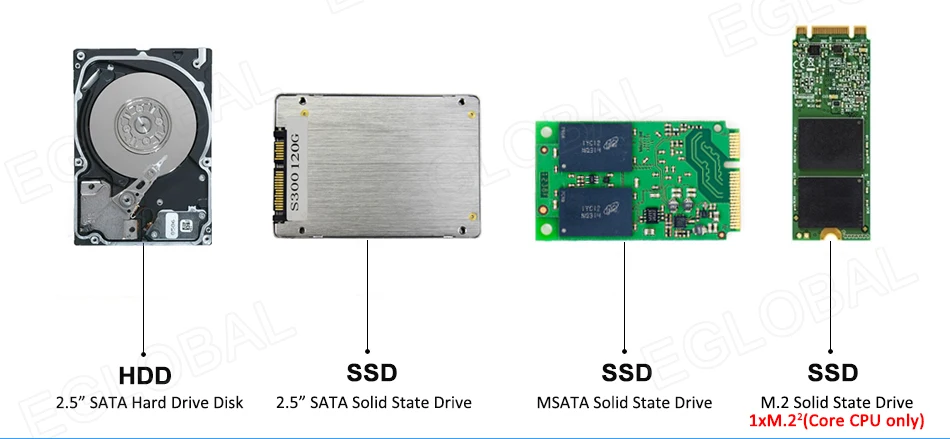

| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1xM.2² (Core CPU only) |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1x Mini PCIE Half port for WiFi module 1x Mini PCIE Full port for 3G/4G module |
| Antenna | 2 x inner RF cables without external antennas, |
| Power and Working Environment | |
| Input | DC 9 ~ 36V 3-pin Phoenix Terminal |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| Display Information |
|
| LCD Type | 15" TFT-LCD |
| Resolution | 1024x768 |
| Max color | 16.7M |
| Brightness | 350 cd/m² |
| Perspective (CR>=10) | -85~85° (H), -85~85° (V) |
| Backlight | LED |
| Backlight life (hour) | 30,000 |
| Product Dimension & Details | |

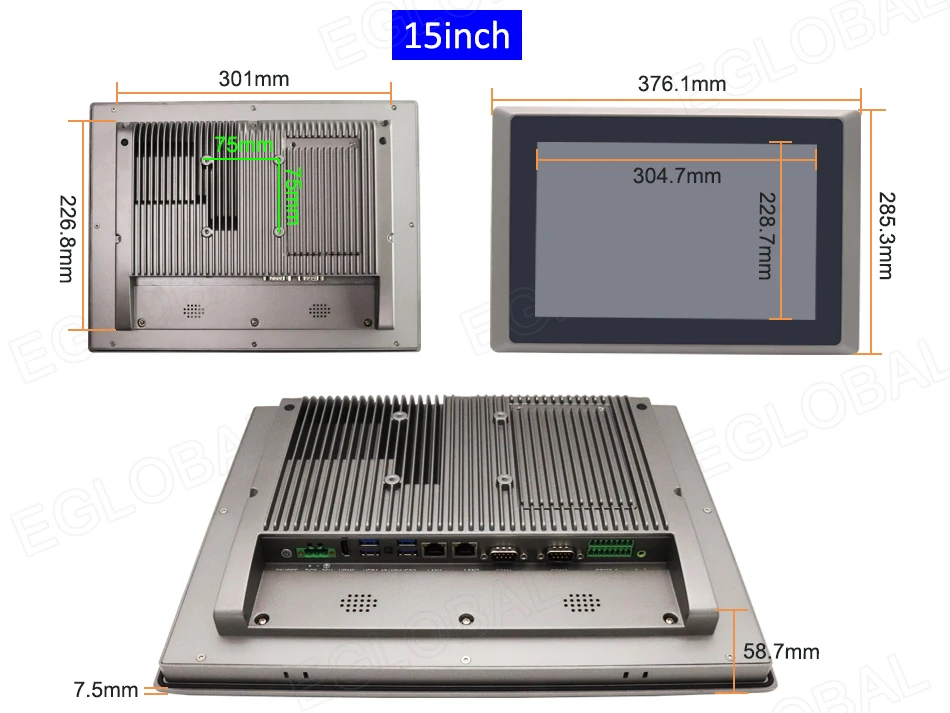

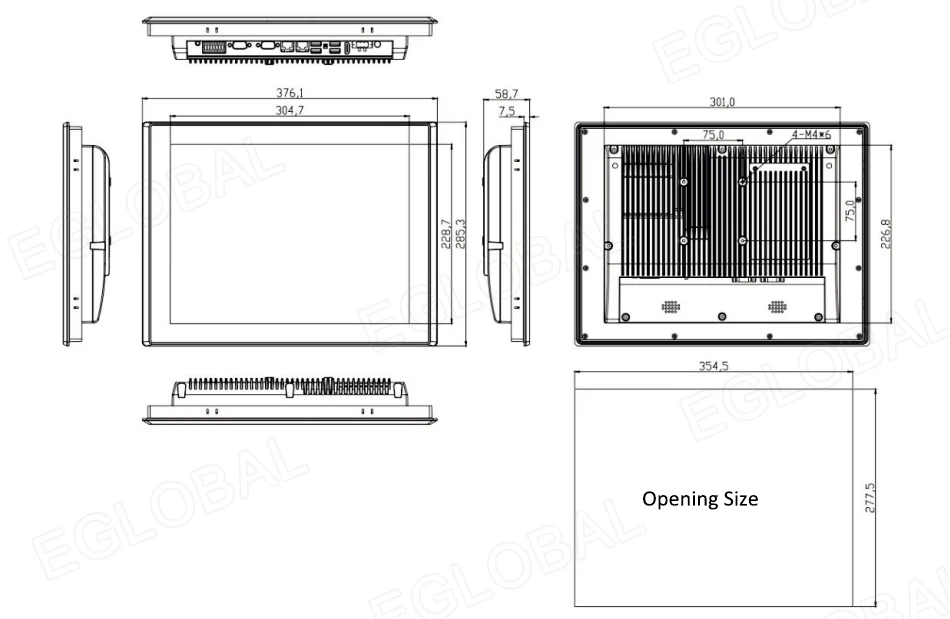

| Size | 376.1*285.3*58.7 mm |
| Weight | Net 6kg, Gross 7.6kg |
| Shell | Silver color aluminum alloy(any customized color for bulk order) |

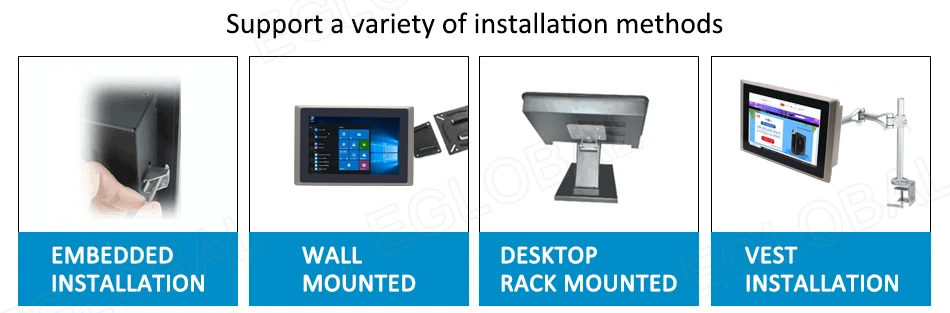

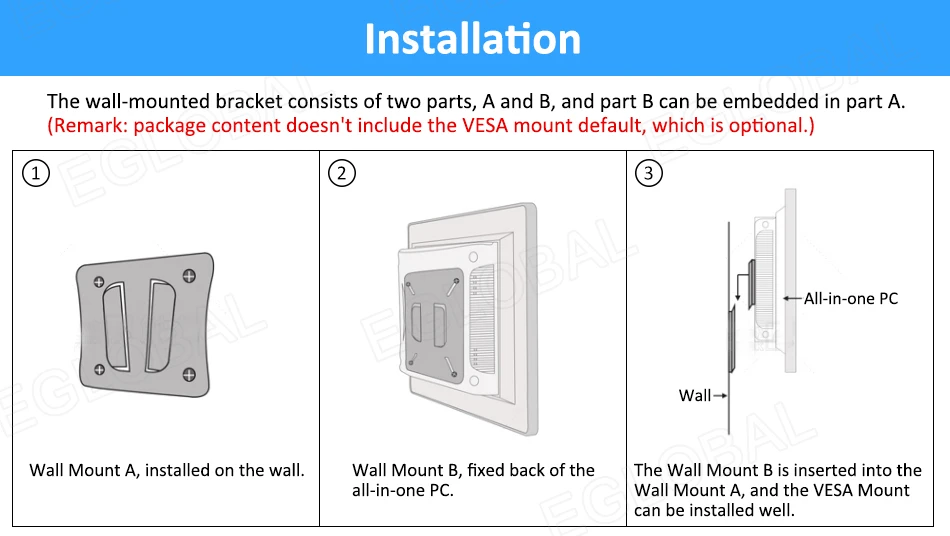

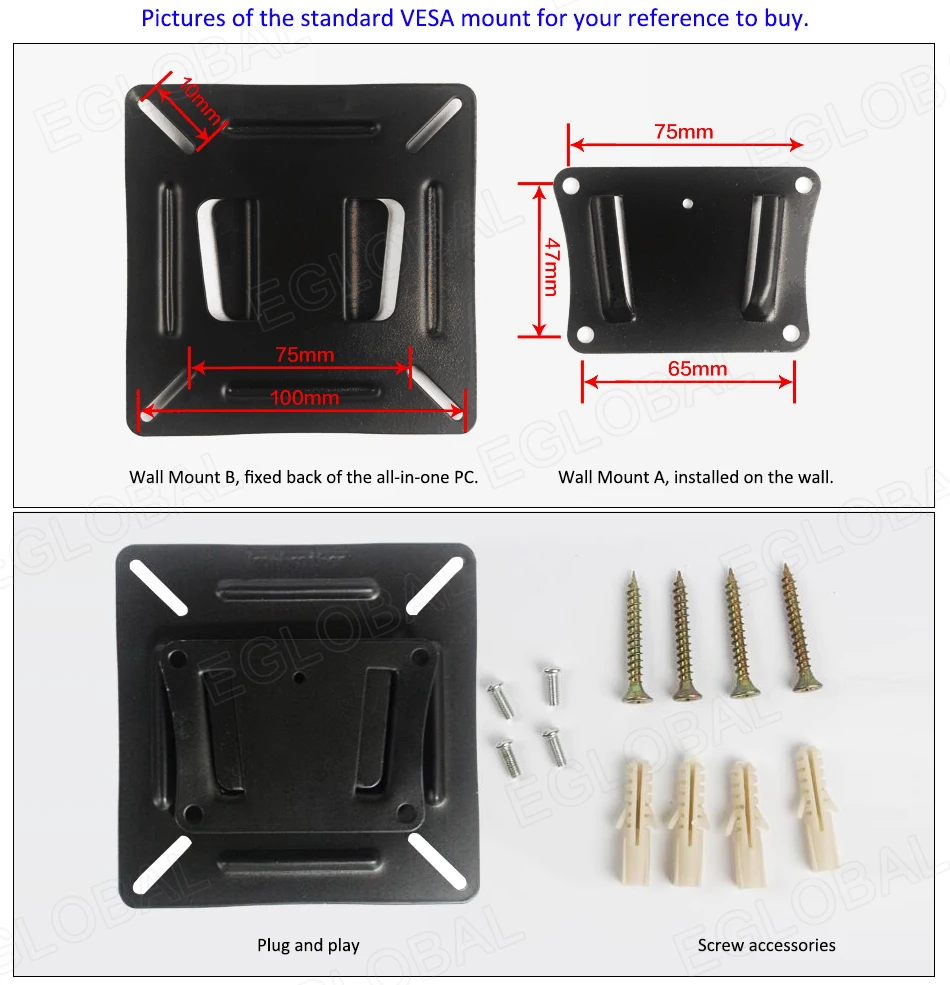

| Installation method | VESA 75/ Panel mounting |

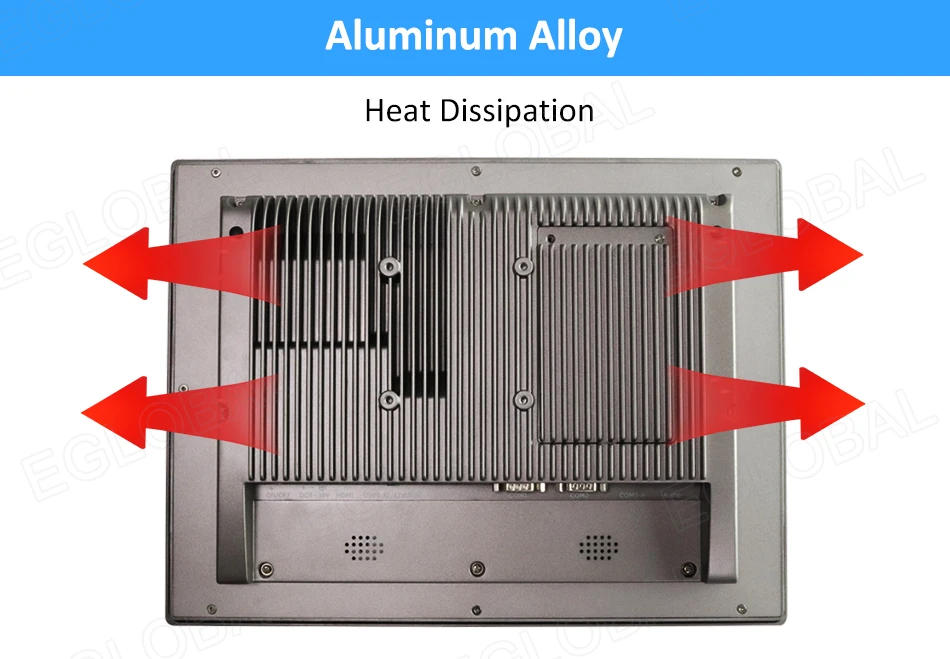

| Cooling Mode | Fanless |
| Package Content | |

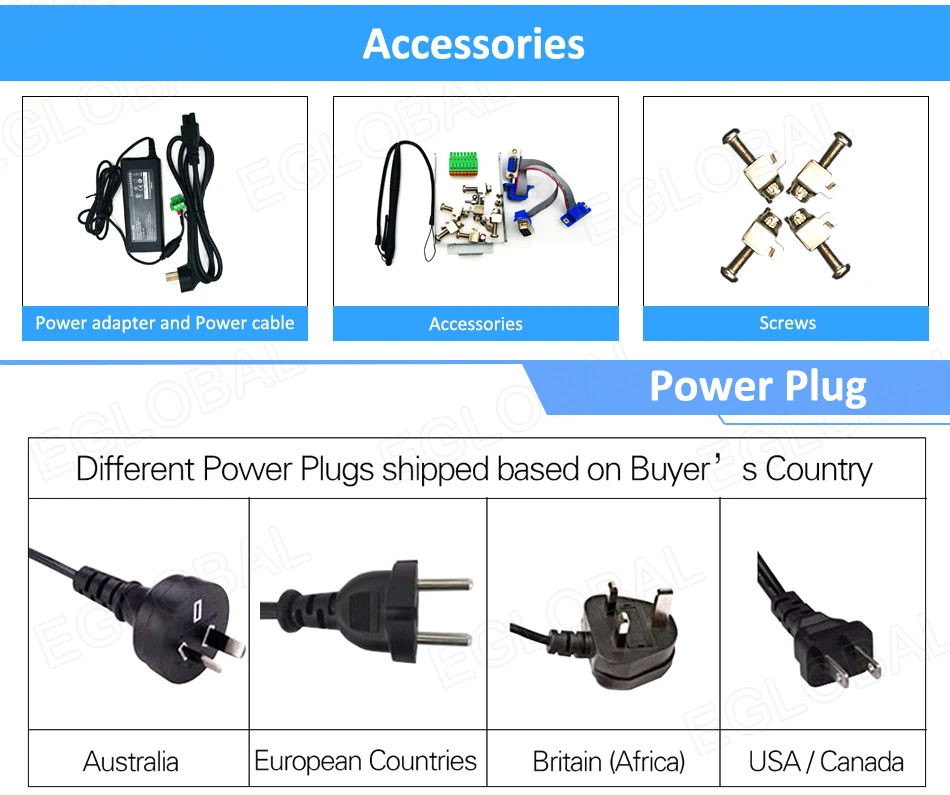

| Standard | 1xAll-in-one PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xTouchpen |
| Touch Screen Information |
|
| Type | 5-wire resistive |
| Transmitiance | 78% |
| Lifetime | 250g clicks 10 million times |
Kindly Remind：
Tips:
System:
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.

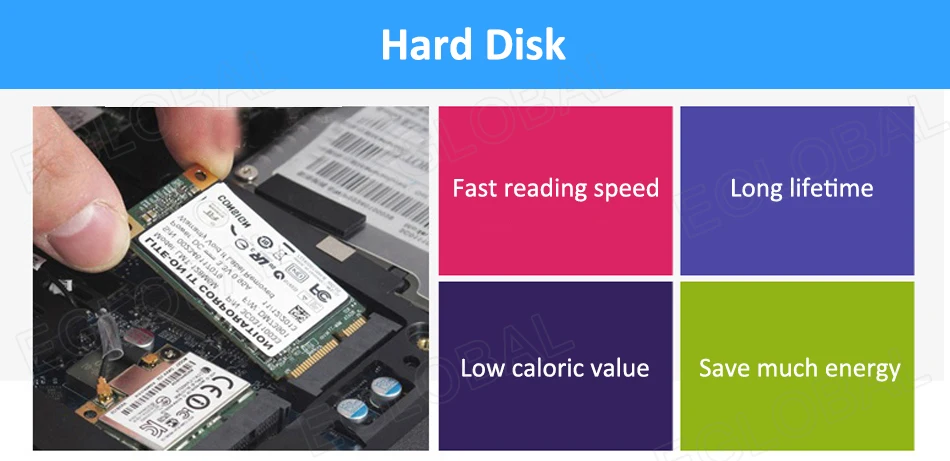

Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.
