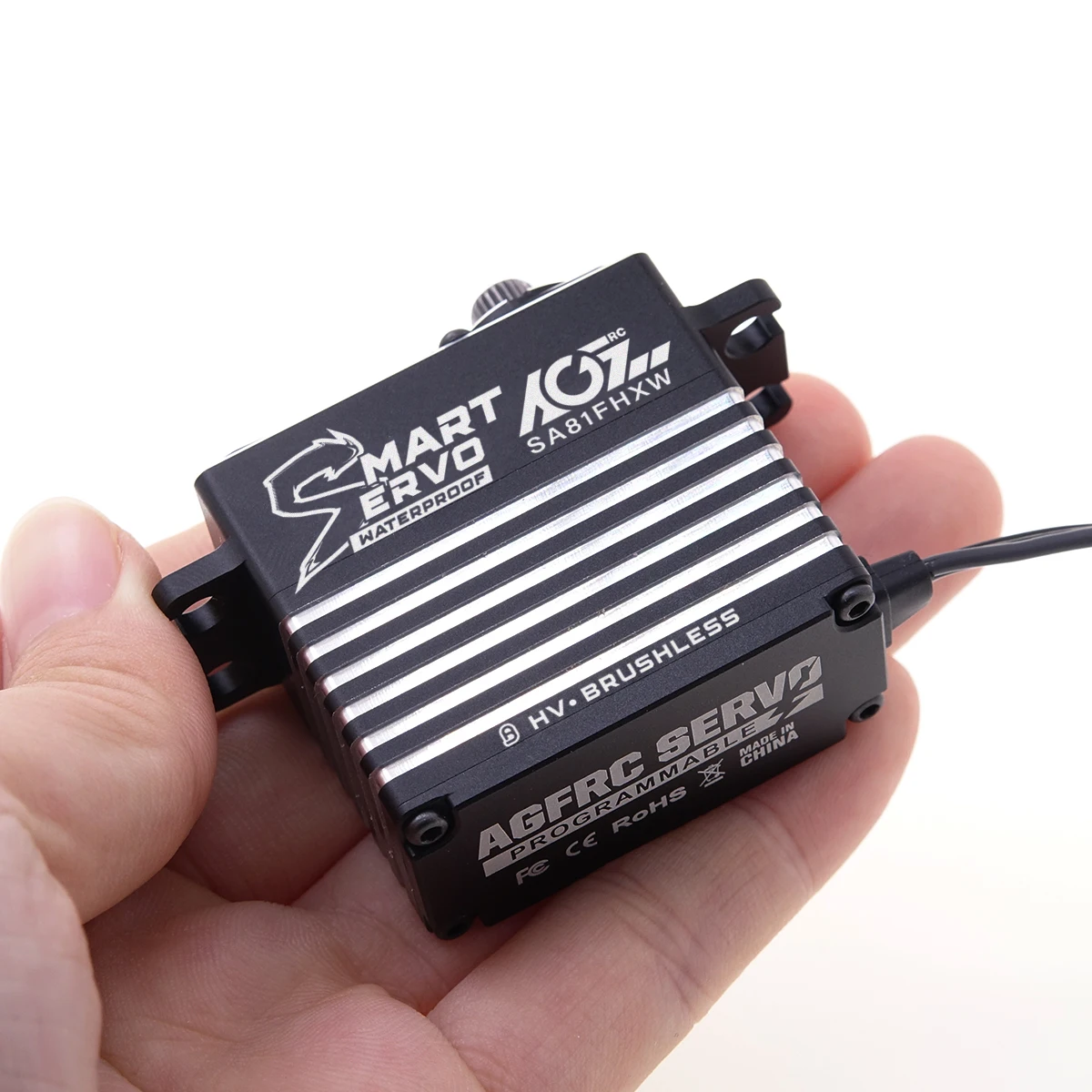

AGFRC SA81FHXW 54KG Servo Super High Torque 0.082Sec Fast Speed Waterproof Programmable 4-Pole Brushless For RC Truck Crawler
Description
AGFRC SA81FHXW 54KG Super Torque 0.082Sec High Speed CNC Shell Strong Steel Gear 4-Pole Brushless Smart Servo For RC Truck /Crawler
The 54KG torque SA81FHXW 2S high performance 4-pole brushless servo maintains the exterior design and materials of the SA81FHMW and SA81FHSW. But the difference is that it has a super fast speed of 0.082Sec, Perfect for racing and events full of speed and passion. And the CNC shell and heat sink design can effectively solve the hot situation during the competitions. Even in rainy, wet environments and thick snow, IP67 magnetic water resistance can break through the limitations brought by these environments. In addition, the programmable function can also support regular mode and winch mode. Don't forget that it also has super reliable 4 bearings and Pin shaft, believe that no matter what the scene can bring you more surprises.
Feature
* Programmable HV Digital Servo
* 2S 8.4V High Voltage
* IP67 Magnetic Waterproof Function
* Heat Sink Aluminum Case
* Strengthened Stainless Steel Gears
* New Type High Quality 4-Pole Brushless Motor
* Super Reliable Four Ball Bearing
* Reinforce Pin Shaft and Structure
* Totally Green Material and Production
* Support Parameter Programming Regular Mode And Winch Mode
* Superior Servo Ideal For 1/10, 1/8 Scale Cars, Boats, Large Size Airplane/Jet, Off Road, Monster Truck, Truggy, Even Medical Equipment and Robot Parts Teaching.
Specification
Item name: SA81FHXW
Operating Voltage: 4.8-8.4V
Operating speed: 0.125sec/60° @ 4.8V
Operating speed: 0.105sec/60° @ 6.0V
Operating speed: 0.092sec/60° @ 7.4V
Operating speed: 0.082sec/60° @ 8.4V
Stall Torque: 36 kg-cm (500 oz-in) @ 4.8V
Stall Torque: 43 kg-cm (597 oz-in) @ 6.0V
Stall Torque: 48 kg-cm (667 oz-in) @ 7.4V
Stall Torque: 54 kg-cm (750 oz-in) @ 8.4V
Gear: Steel
Motor: 4-Poles Brushless Motor

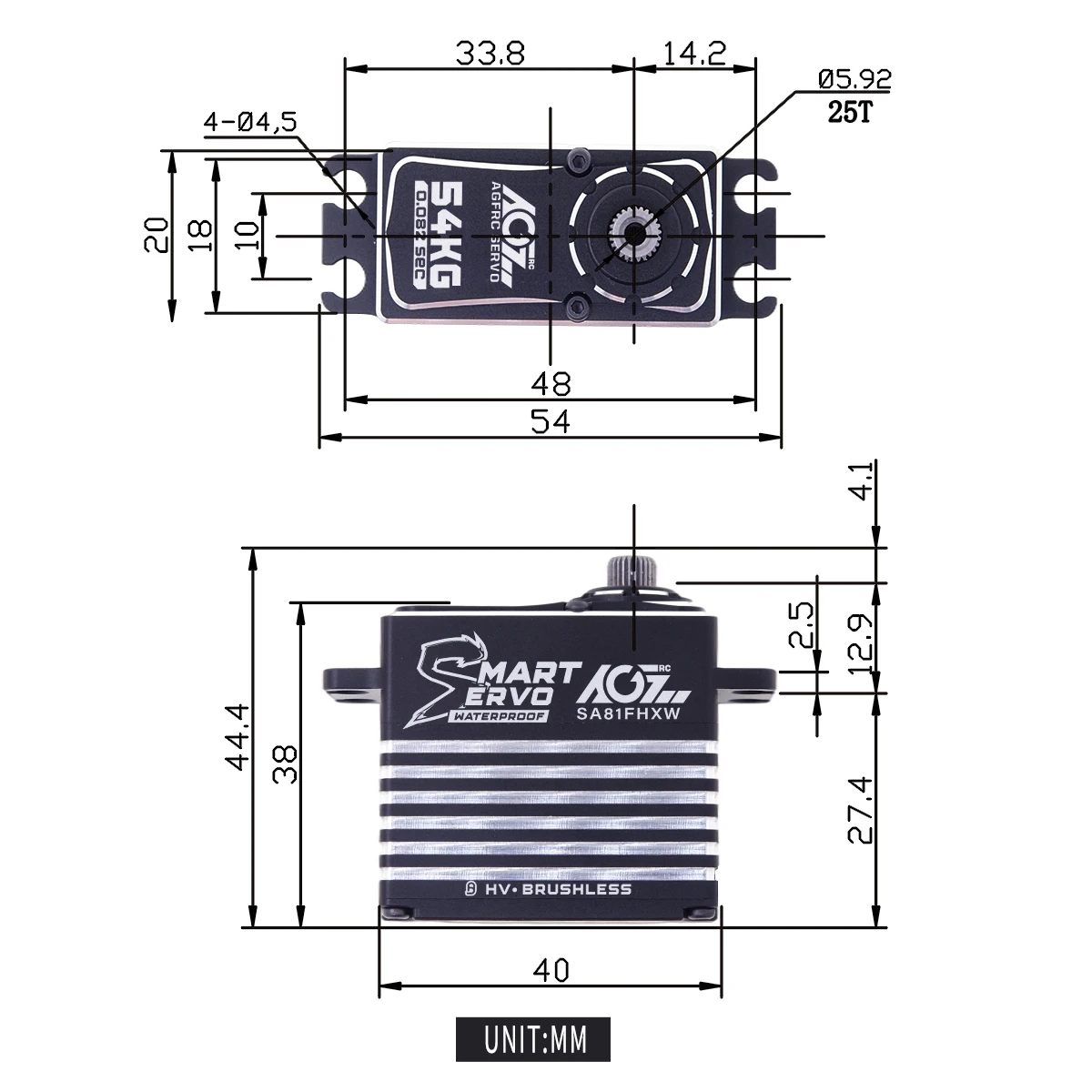

Size: 40*20*38mm (1.57 x 0.78 x 1.49 in)
Weight: 85g
Connector Wire: TYU 300 mm / 22AWG
About AGFRC

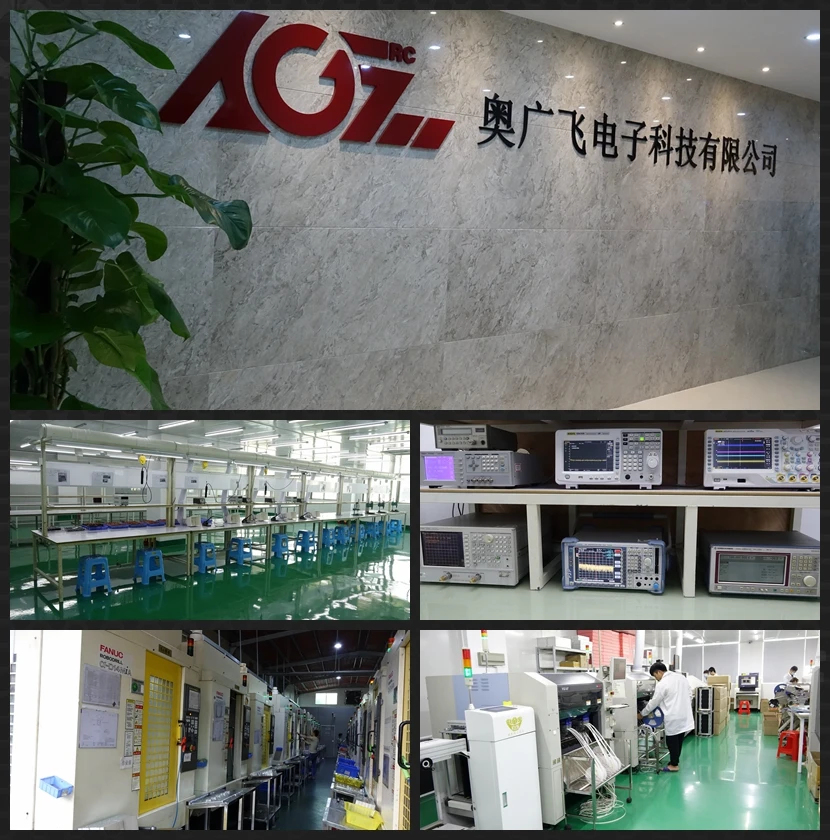

Huizhou AGF-RC Electronic Technology Co.,Ltd. is established in 2009, which is a high-tech enterprise owning more than 1200 square meters dust-free electronic manufacturing workshop, professional electronic R&D lab, SMT lines and high-precision CNC machines. Our technical team comes from Taiwan GWS and Guangdong Audi Toy, both are famous branded enterprises in RC industry. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all clients.
Since 2009, AGFRC has been focus on all series of RC servos, speed controllers(ESC), receiver modules and car gyros, supplying high quality RC products and RC solutions for many domestic and abroad famous brands. We are attracting more talents to join us for diversified development in RC control area, including high-frequency circuit, structure and software design, aim to achieve industrial-leading level in the field of model control or even other applications.
AGFRC is our new brand and all the products are certified with CE, ROHS, FCC. Hereby we welcome domestic and abroad dealers and distributors to be our agent, promote AGFRC all over the world. AGFRC expects to establish long term win-win cooperation with you! We promise AGFRC will serve all clients with higher standard, better quality and superior service.
