AGFRC Programmable IA81BHLW 2S HV Steel Gear 50KG Ultra Torque Analog Feedback Brushless Steering RC Servo Motor For Robotics

(No reviews yet) Write a Review

Description

Description

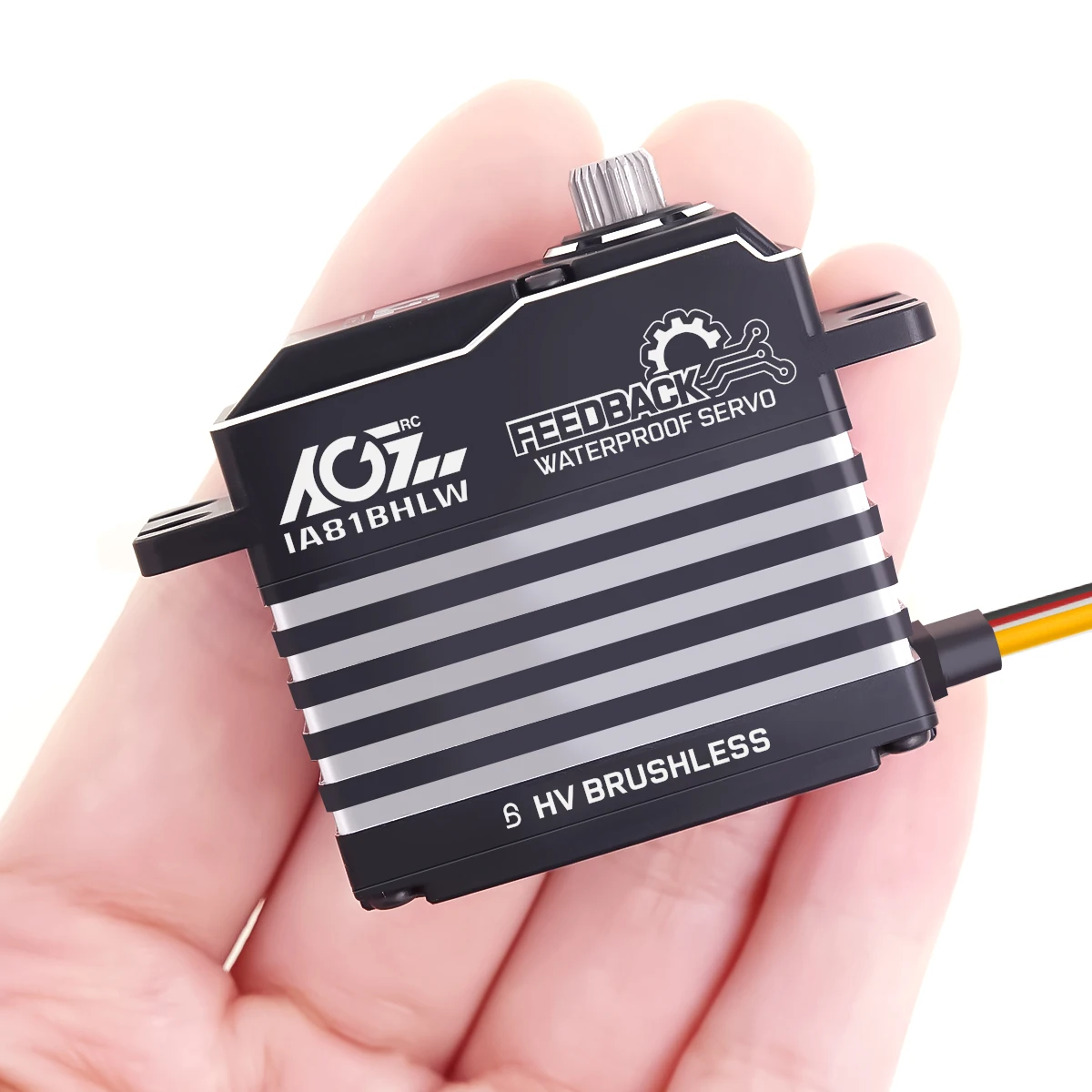

NEW AGFRC Programmable IA81BHLW 2S HV Steel Gear 50KG Ultra Torque Analog Feedback Brushless Steering RC Servo Motor Part For Robotics, Industry, Interactive Artwork, Small-scale Animatronics etc.

Beside the normal hobby servo, a special servo which can provide feedback could be more attractive. IA81BHLW is a modified version of A81BHLW standard size servo, providing access to feedback potentiometer through the additional fourth orange wire, which is capable to measure the output angle directly.

50KG super high torque and steel gear chain design for heavy duty application. Simply hookup the analog feedback wire to any Analog pin of Microcontroller. With this position feedback function, you can ensure the servo has reached its designated position or detect any potential impediments, of course, this allows additional closed-loop control from your controller. Enable for more complex robotics or industry applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Beside this IA81BHLW servo, we also have IA73BHLW, IB53BHU feedback servo with different feedback for selection. Custom spec is acceptable.

Note: Currently, USB programming cards are only applicable to Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit) system.

Feature

Full Aluminum Fast Cooling Case

Magnetic Waterproof IP67

2S LiPo High Voltage Capable

High Power Brushless Motor

Enhance Steel Gear and Structure

Separate Single Wire with JR Female Connector

Using Typical RC Servo Commands for Operation

Help to Implement Close-loop Position Control

Suitable for Robotics, Industry, Interactive artwork, Small-scale animatronics etc.

Standard 3-pin connector matching most popular modeling controllers and an additional servo position pin.

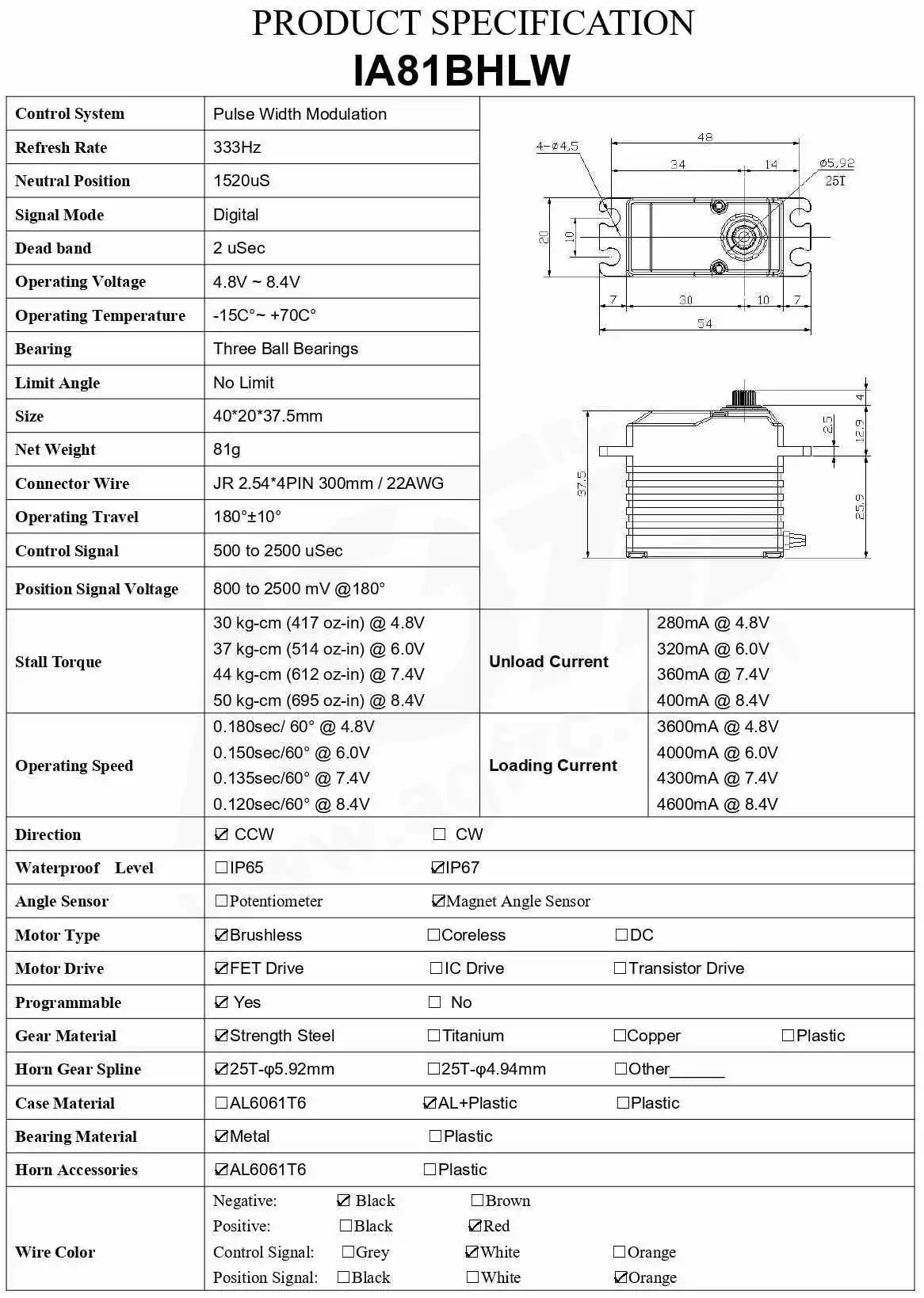

Specification

Model Name: IA81BHLW

Operating Voltage: 4.8-8.4V

Operating speed: 0.150sec/60° @ 6.0V

Operating speed: 0.135sec/60° @ 7.4V

Operating speed: 0.120sec/60° @ 8.4V

Stall Torque: 37 kg-cm (514 oz-in) @ 6.0V

Stall Torque: 44 kg-cm (612 oz-in) @ 7.4V

Stall Torque: 50 kg-cm (695 oz-in) @ 8.4V

Gear: Steel

Motor: Brushless

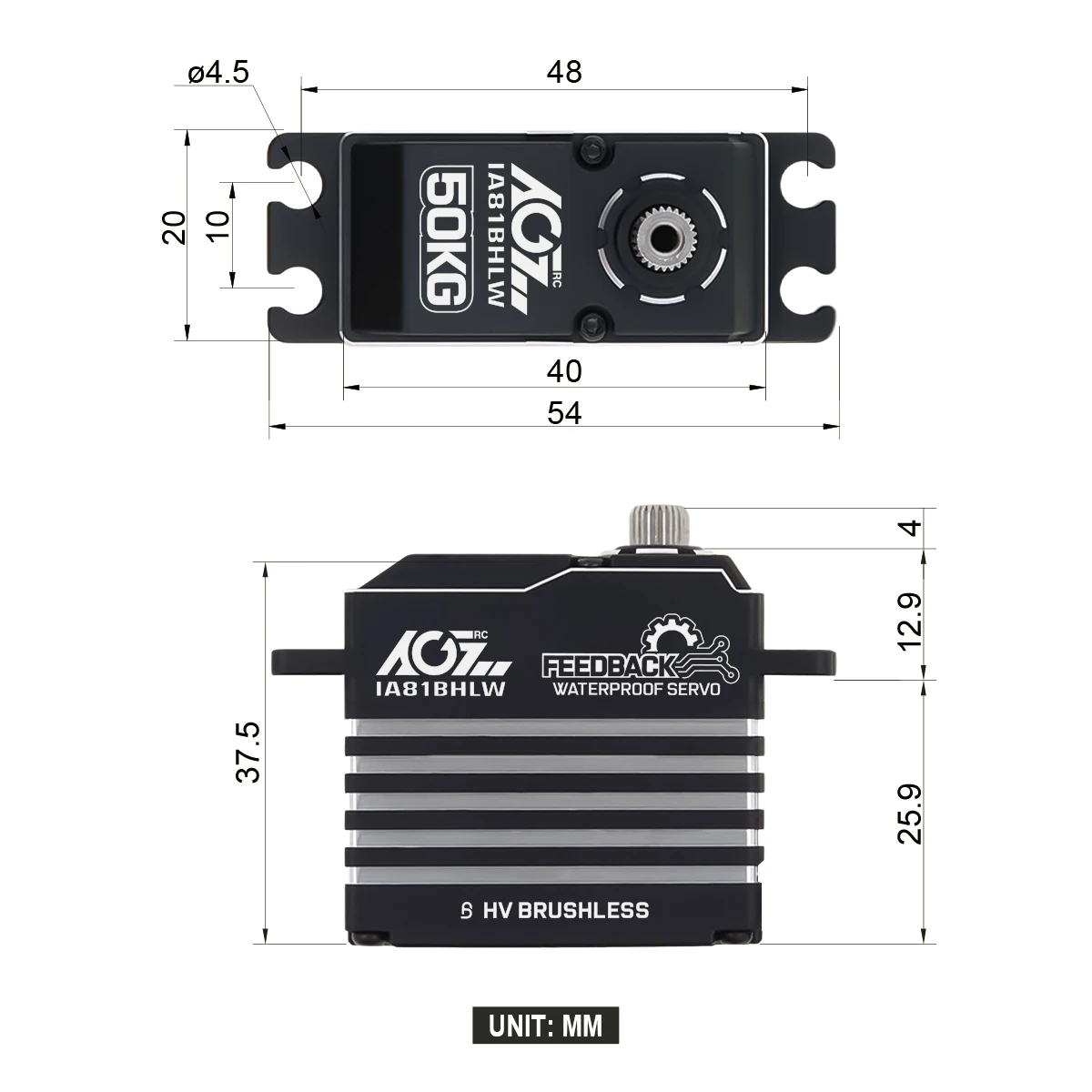

Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)

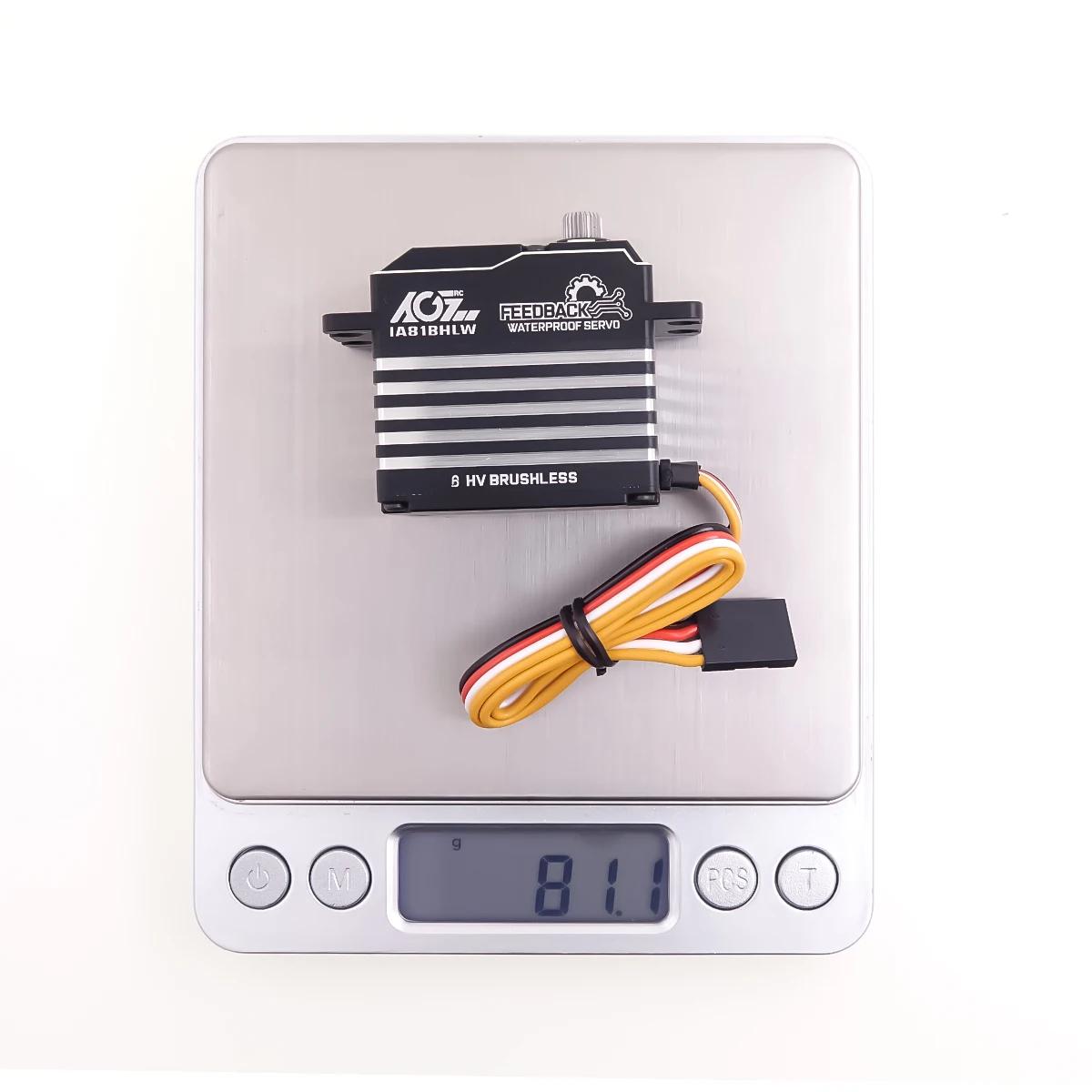

Weight: 83g

Connector Wire: JR Dupont 2.54* 4PIN 300mm / 22AWG

Position Signal Voltage: 800 to 2500 mV @180°

NOTE: This program card only ideal for AGFRC servo with ASS icon mark! AGFRC servo without ASS icon mark, and other brands of servo are not applicable.

System Requirement

1. Support Operating Voltage: USB（5V/500mA）.

2. Support Operating System: Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit).

3. Support Application: AGFrc Programmable Servos with ASS icon marked.
