AGFRC 1/5 Scale Giant Servo A280BHMW 78KG High Torque Steel Gears Programmable Digital Brushless RC Racing Servo For Crawler
Description
AGFRC A280BHMW A280BHLW 78KG 100KG 0.082Sec 5th Scale HV High Torque WP Brushless RC Racing Servo Large Aircraft Car Boat Model
A280BHMW is a 2s version 5th scale servo. It combines long-life brushless motor with monster torque design takes the driving experience of large model enthusiasts to a new level. It is ideal for 1/5 Monster Truck, Buggy, Crawler, Large Airplanes, Robot Arm, etc. Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthening gear structure improve the crashworthiness and life of the servo.
When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your model play in humid environment or rainy day. This A280BHMW is suitable for most 1/5 scale models, which require to use with 2s lipo battery. 78KG superb torque and 0.082Sec lightning fast speed, believe that your model can give full play to its handsome charm. Ultra light unique design with heat sink machining for medium and bottom case, so that the internal structure of the servo can absorb heat and smooth operation. Of course! In this era of rapid development, free choice is also a kind of happiness! So how could we do without the programmable function? It is fully upgrade to be bluetooth APP programmable in the near future. Please don't hesitate to add a reliable new partner to your model!
Feature
Heat Sink Aluminum Case
Extremely Strong Steel Gears
Super Reliable Five Ball Bearing
2S Lipo High Voltage Compatible
Associated 15T Aluminum Servo Horns
Magnetic Sensor Waterproof IP67
Easy Connection With Direct Power Wire
Bluetooth APP Programmable (Still not available now)
Specification

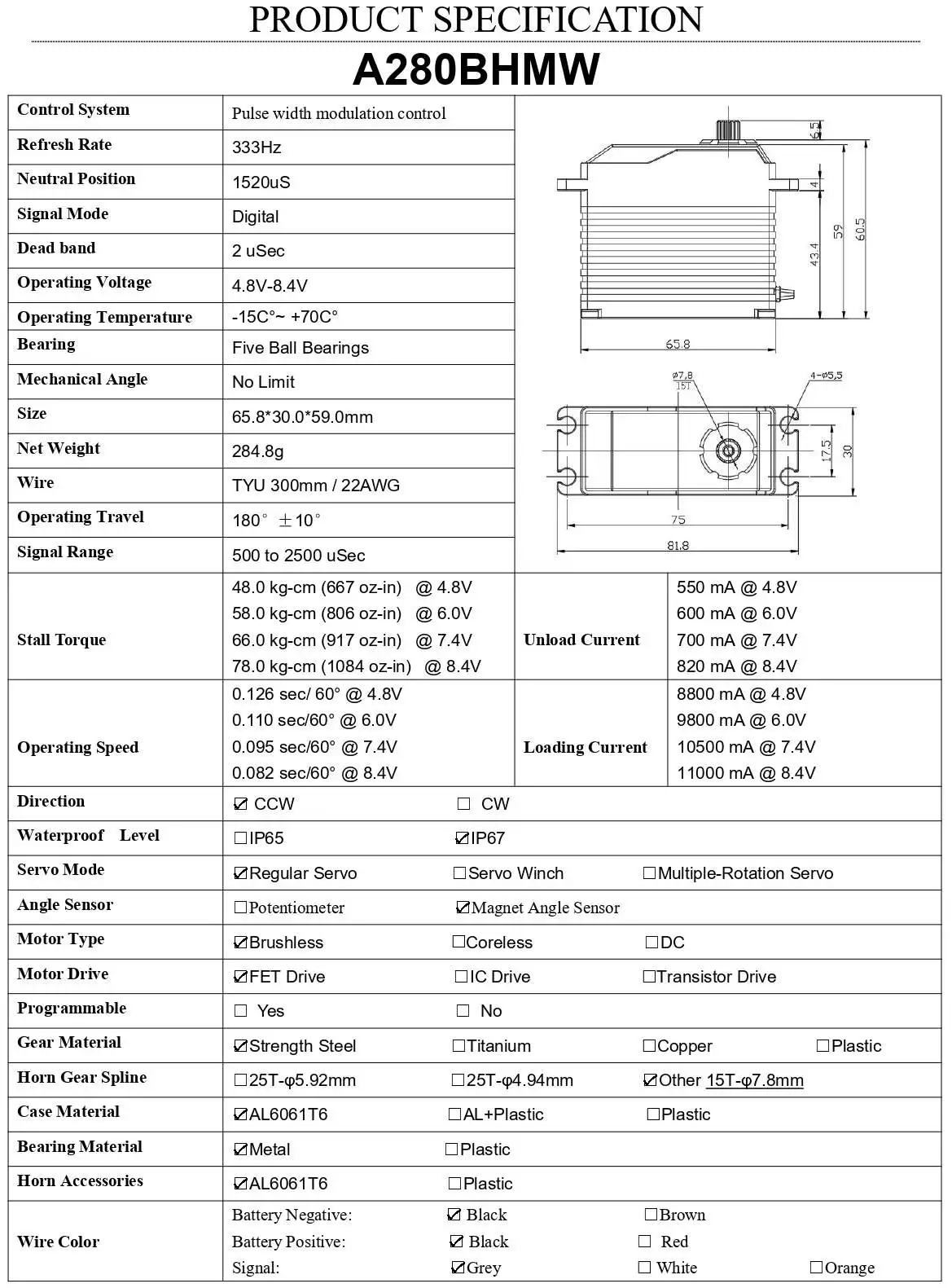

Item name: A280BHMW
Operating Voltage: 4.8-8.4V
Operating speed: 0.126 sec/60° @ 4.8V
Operating speed: 0.110 sec/60° @ 6.0V
Operating speed: 0.095 sec/60° @ 7.4V
Operating speed: 0.082 sec/60° @ 8.4V
Stall Torque: 48.0 kg-cm (667 oz-in) @ 4.8V
Stall Torque: 58.0 kg-cm (806 oz-in) @ 6.0V
Stall Torque: 66.0 kg-cm (917 oz-in) @ 7.4V
Stall Torque: 78.0 kg-cm (1084 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless
Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
Weight: 284.8g
Connector Wire: TYU 300mm / 22AWG

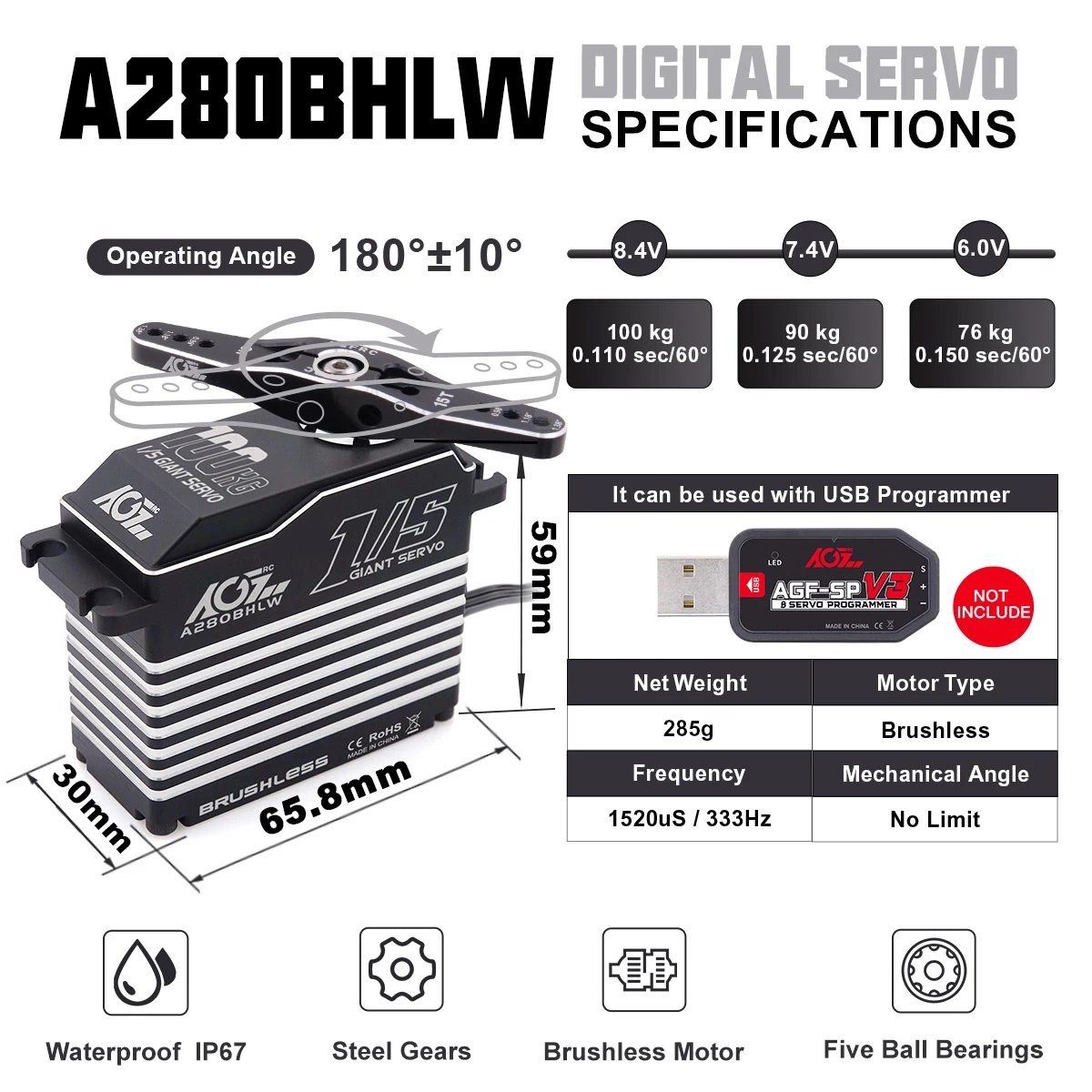

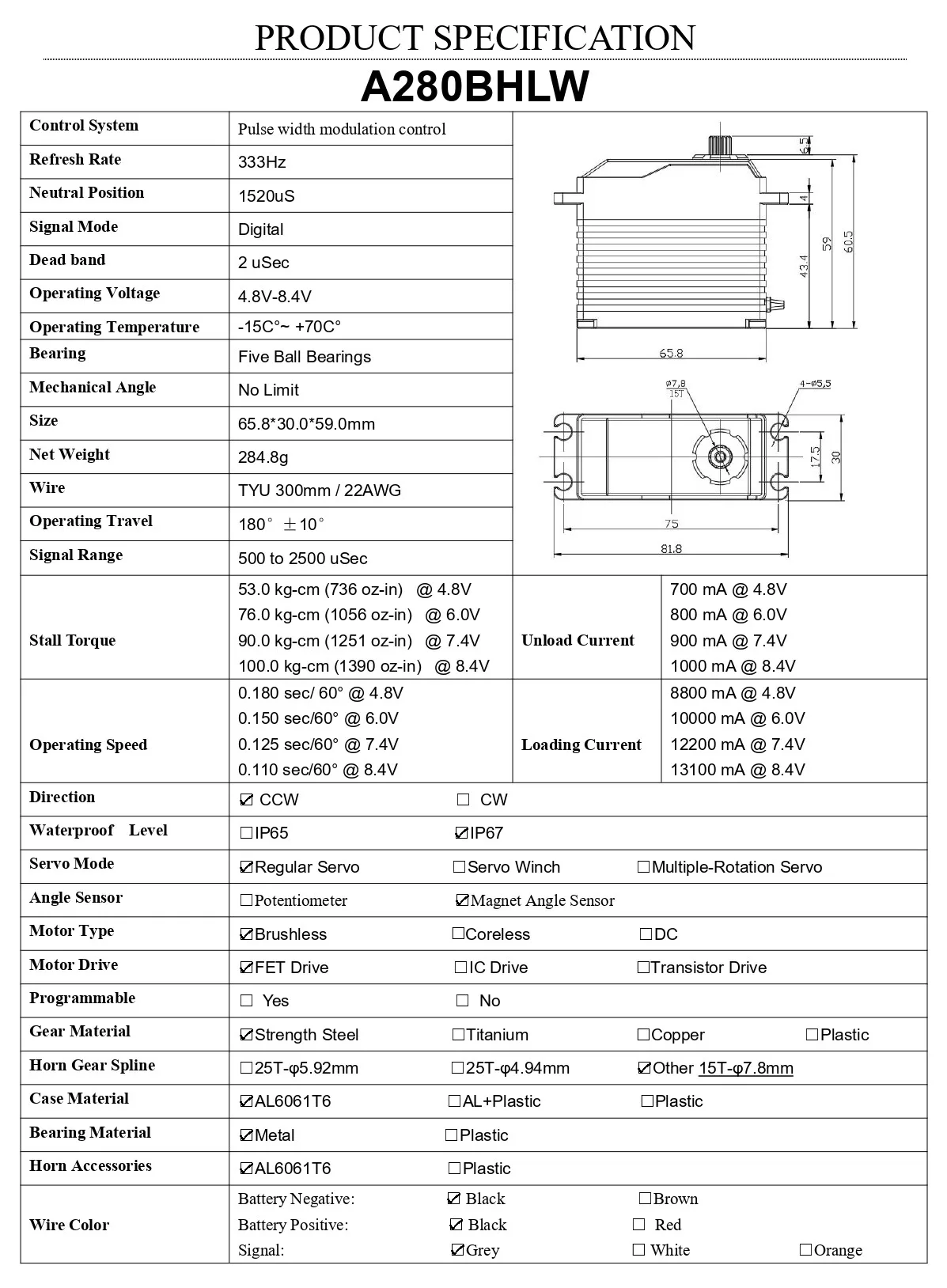

Item name: A280BHLW
Operating Voltage: 4.8-8.4V
Operating speed: 0.180 sec/ 60° @ 4.8V
Operating speed: 0.150 sec/60° @ 6.0V
Operating speed: 0.125 sec/60° @ 7.4V
Operating speed: 0.110 sec/60° @ 8.4V
Stall Torque: 53.0 kg-cm (736 oz-in) @ 4.8V
Stall Torque: 76.0 kg-cm (1056 oz-in) @ 6.0V
Stall Torque: 90.0 kg-cm (1251 oz-in) @ 7.4V
Stall Torque: 100.0 kg-cm (1390 oz-in) @ 8.4V
Gear: Strength Steel
Motor: Brushless
Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
Weight: 285g
Connector Wire: TYU+JST 300mm / 22AWG
About AGFRC
Huizhou AGF-RC Electronic Technology Co.,Ltd. is established in 2009, which is a high-tech enterprise owning more than 1200 square meters dust-free electronic manufacturing workshop, professional electronic R&D lab, SMT lines and high-precision CNC machines. Our technical team comes from Taiwan GWS and Guangdong Audi Toy, both are famous branded enterprises in RC industry. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all clients.
Since 2009, AGFRC has been focus on all series of RC servos, speed controllers(ESC), receiver modules and car gyros, supplying high quality RC products and RC solutions for many domestic and abroad famous brands. We are attracting more talents to join us for diversified development in RC control area, including high-frequency circuit, structure and software design, aim to achieve industrial-leading level in the field of model control or even other applications.
AGFRC is our new brand and all the products are certified with CE, ROHS, FCC. Hereby we welcome domestic and abroad dealers and distributors to be our agent, promote AGFRC all over the world. AGFRC expects to establish long term win-win cooperation with you! We promise AGFRC will serve all clients with higher standard, better quality and superior service.
