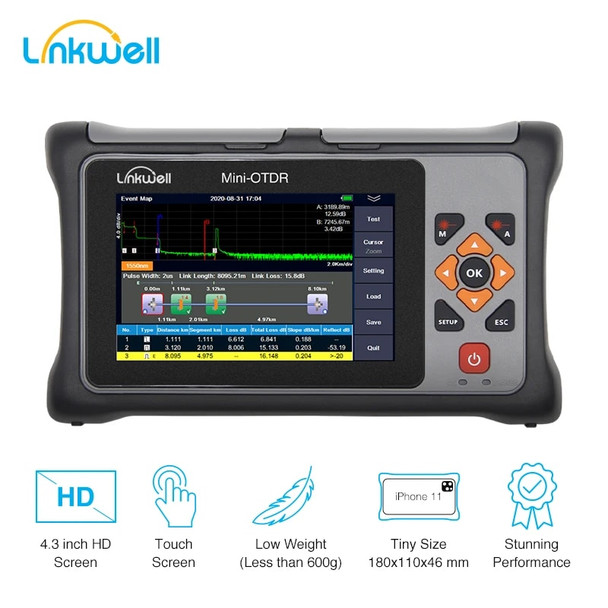

Active Fiber Live Test MINI OTDR 1550nm 22dB Optic Fiber Reflect Touch Screen Event Map Ethernet Cable Tester Equipment SM

Attention!!!

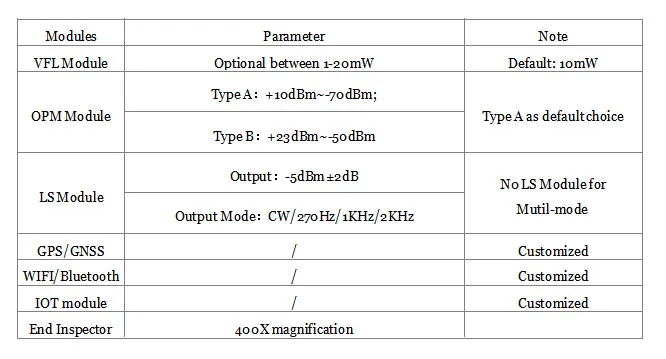

Defult OPM type is Type A: +10dBm ~ -70dBm.
If you need Type B :+26dBm ~ -50dBm specially, please remark it when you placing order.

Note:Type A use for Telecom, Type B use for CATV.

ACTIVE FIBER AND LIVE TEST EXPLANATION

Active Fiber and Live Testing

OTDR with Filter for both sides, It could filter wavelength 1490nm and below, and 1577nm and above.
For ACTIVE FIBER and Live Testing, it cannot work for the fiber with 1550nm wavelength.
Easily to say, OK to test ACTIVE/LIVE Fiber for Telecom. Cannot use for CATV with 1550nm wavelength.

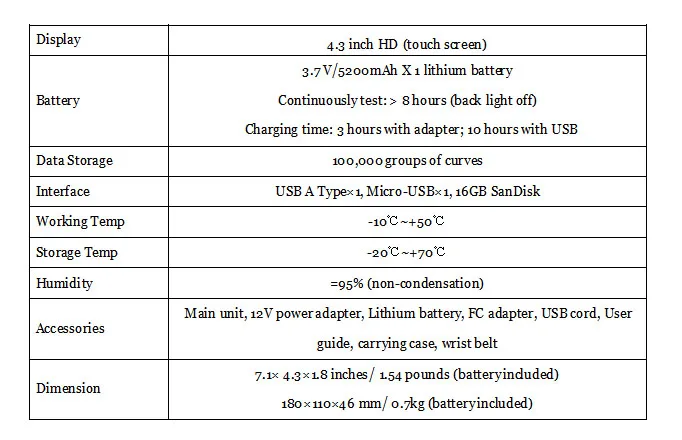

Dimension

Pro MINI OTDR Fiber Optic Reflectometer Touch Screen VFL OLS OPM Event Map Ethernet Cable Tester Equipment :
7.1× 4.3×1.8 inches/ 1.24 pounds (battery included)
180×110×46 mm/ 0.56kg (battery included)

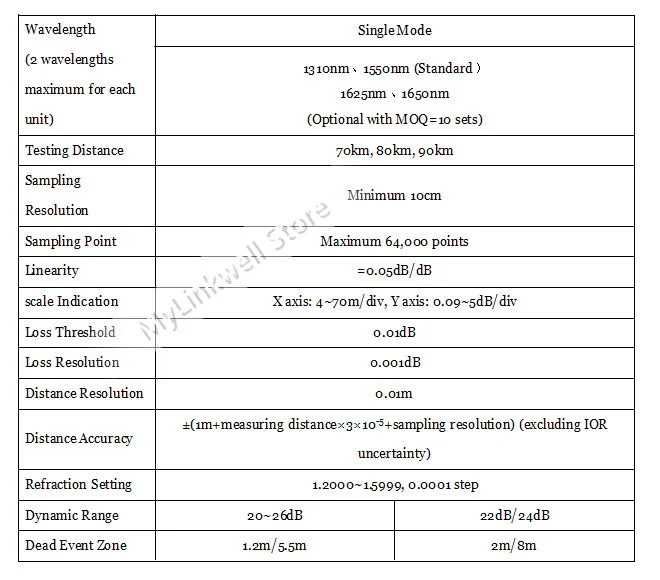

Single Mode
Wavelength: 1550nm
Dynamic Range: 22dB
Testing Range: 2m to 70km
