NOTE:Function is normal, slight dust scratches are inevitable.

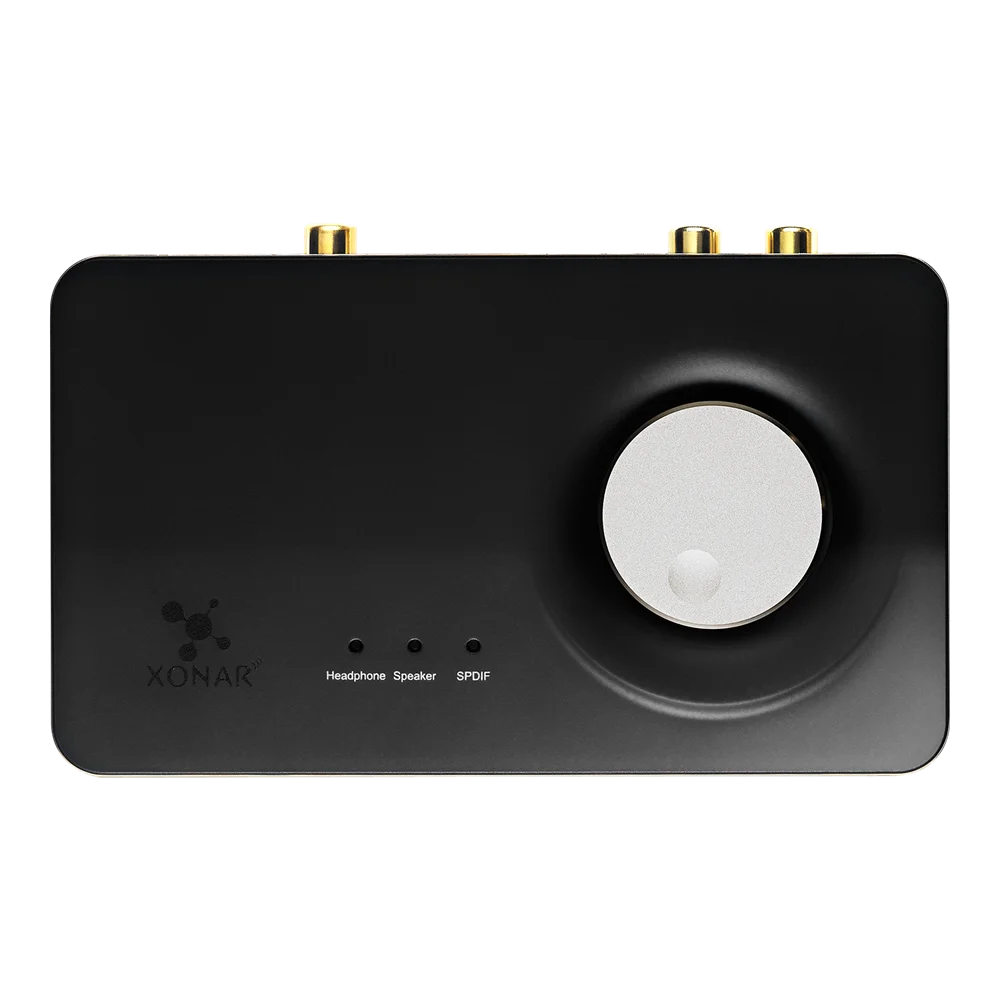

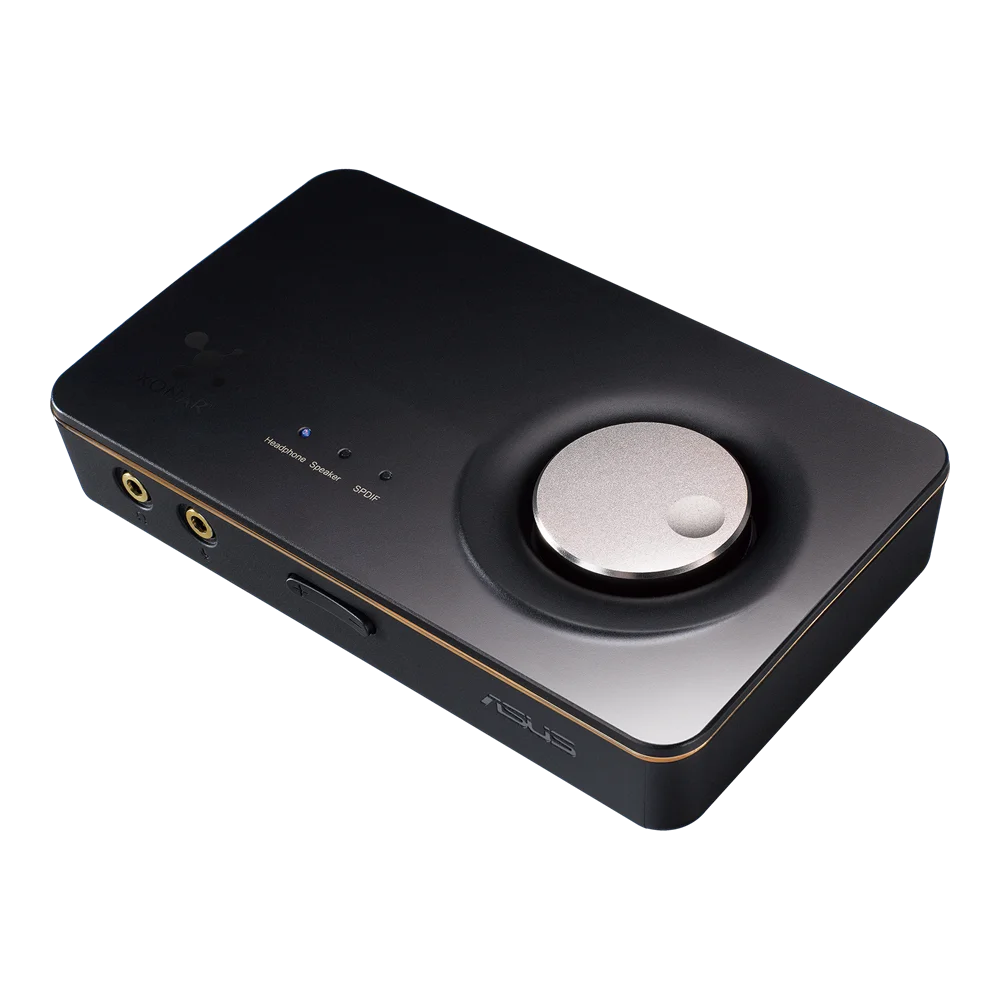

Xonar U7 MKII 7.1 USB sound card with headphone amplifier, 192kHz/24-bit HD sound, 114dB SNR

True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device

Integrated headphone amplifier boosts sound and reveals musical details

Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences

Clickable volume control knob for convenient switching between headphone and speaker output

Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters

Interface

USB

SNR(dB)

114dB

THD+N

0.0006 %(104 dB)

Headphone output power

Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)

Headphone output : 1.3 Vrms (3.677 Vp-p)

I/O

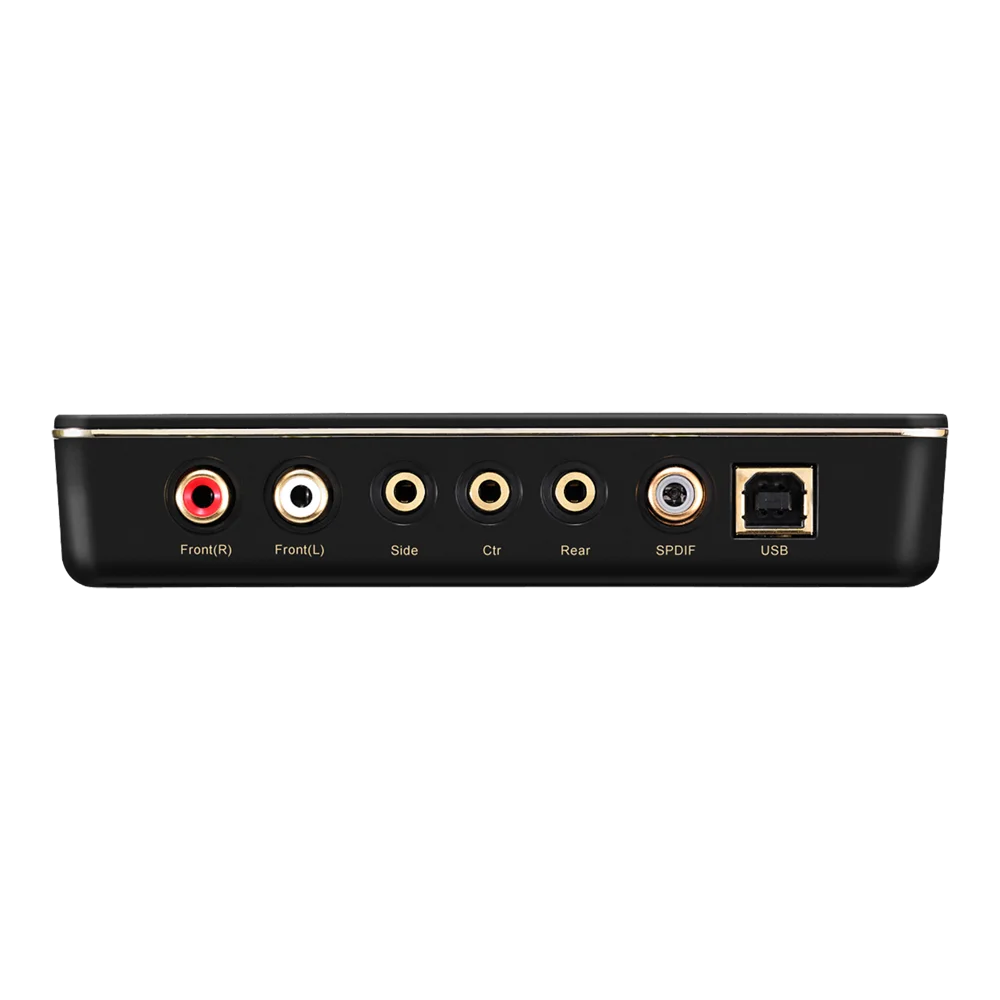

4 x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out)

2 x RCA (Un-Balanced)

1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)

1 x S/PDIF out (1 x Coaxial)

Audio Processor

Cmedia 6632AX

D-A Converter

Cirrus Logic CS4398

Cirrus Logic CS4362

A-D Converter

Cirrus Logic CS5361

ASIO

Yes

Accessory

S/PDIF adapter x 1

Quick start guide x 1

USB cable x 1

Operation System

Windows10(32/64bit)

Windows8.1(32/64bit)

Windows7(32/64bit)
