Technical parameters

model : 5v 8w

power:8-10w

adjust temperature range:330-450℃

Tin melting time:<15s

Auto sleep time: 10 Min

Cooling down:<30S

Precautions

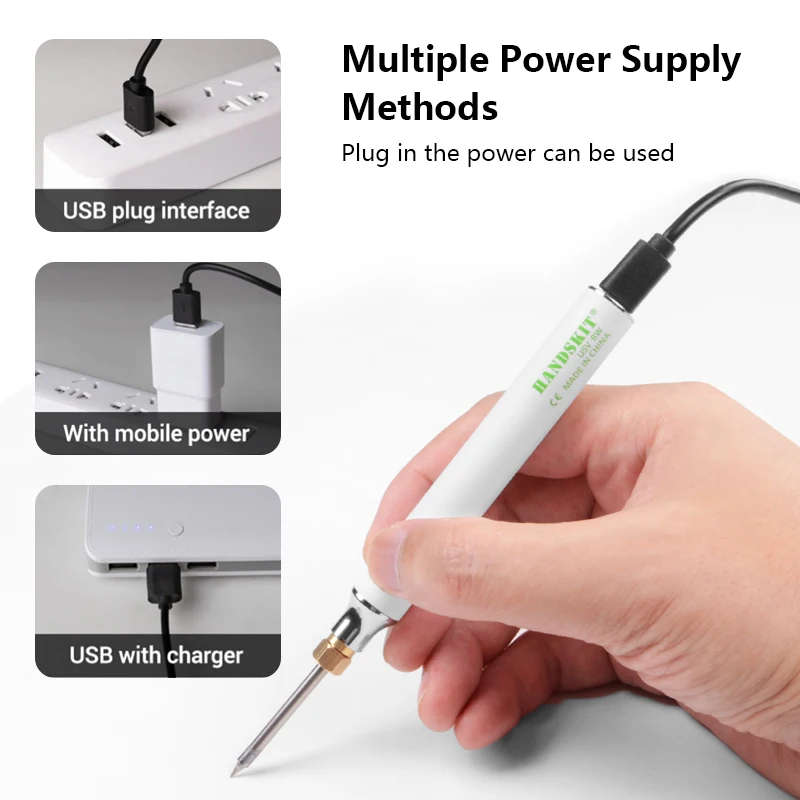

1. The power supply current should be greater than 1.7A. If the power supply current is insufficient, it will enter the protection and cause the light on the switch to flicker uncontrollably.

2. If the soldering iron tip is too tight, a short circuit will occur, and the light on the switch will flicker uncontrollably.

The operation is simple

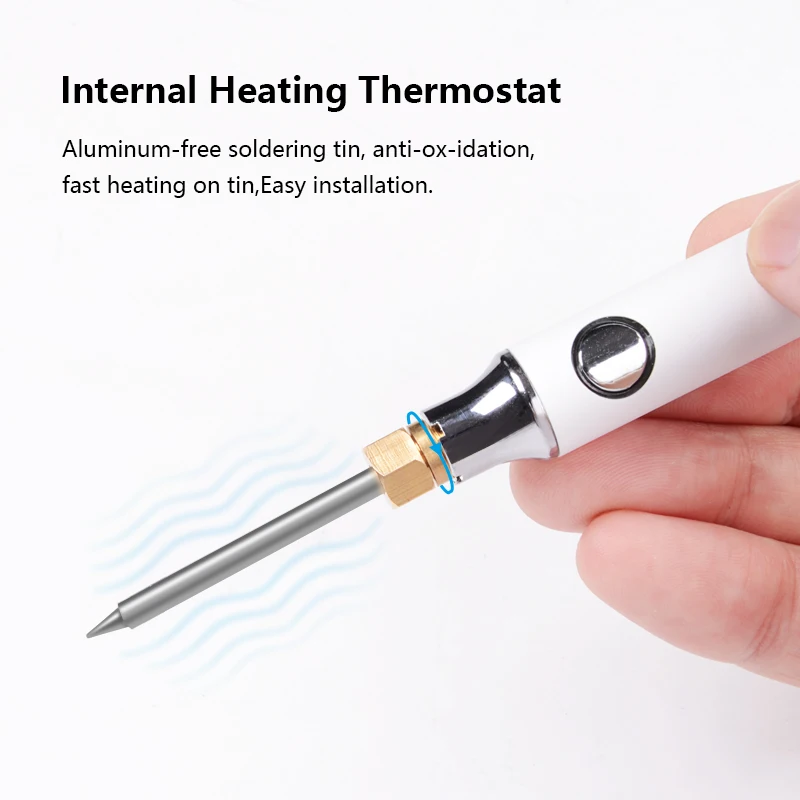

1. Install the soldering iron, do not fully tighten the soldering iron tip.

2. Plug in the cable.

3. For the first time, you need to press the switch 6 times to turn it on.

4. Press the button to switch the temperature mode. They are green (low temperature around 100-180°C), blue (200-300°C), and red (300°C+). The red gear is easy to burn out the soldering iron tip if it is used for a long time, so it is generally used for preheating. Please use the blue gear for maintenance and welding.
