Resolution

4k（3840*2160P）

Optical zoom

20x optical zoom

Image Sensor

1/1.8-inch high-quality CMOS sensor

Frame rate

60FPS

Focal length

f = 6.25mm ~ 125mm, F1.58 ~ F3.95

AI humanoid intelligent tracking

Supported, together with other tracking devices, can achieve the education, conference, live broadcast and other scenes of the intelligent director function

Focusing method

Auto/manual/one button focus

Horizontal field of view

3.5°～60°

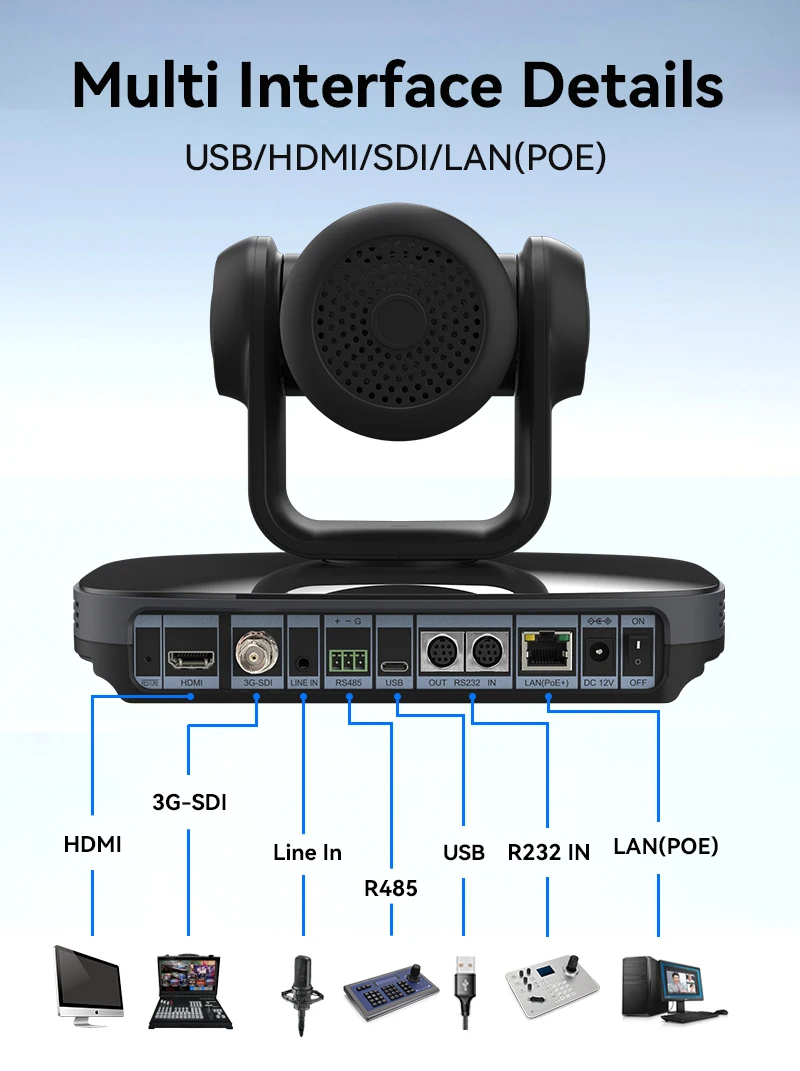

Support interface summary

Support HDMI, SDI, USB2.0, wired LAN ports, and POE power supply

White Balance

Auto/manual/indoor/outdoor/one-click

Backlight compensation

Support

Signal-to-noise ratio

≥55dB

Interface Function Performance

Streaming media protocol

NDI|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),
Onvif, DHCP, multicast and so on

Communication interface

1 channel, RS232 In: 8-pin mini DIN, maximum distance 30 m, VISCA/Pelco-D/Pelco-P protocol;
1 channel, RS232 Out: 8-pin small DIN, maximum distance 30 meters, VISCA protocol networking;
1 channel, RS485: 3-core Phoenix port, maximum distance :1200 m, VISCA/Pelco-D/Pelco-P protocol

Network port

1 channel,RJ45: 10M/100M/1000M adaptive Ethernet

Audio input interface

1 Line In, 3.5mm audio port

USB interface

1 road, USB2.0

Hd output

"1 channel, HDMI:2.0/1 channel, 3G-SDI: BNC type,800mVp-p, 75Ω, following SMPTE 424M standard"

Power interface

JEITA (DC IN 12V)

Network features

stream

Dual stream

code format

H.264、H.265、MJPEG

Streaming media

RTSP, RTMP, ONVIF, GB/T28181, VISCA, OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote restart, remote reset

UVC video encoding format

YUY2 / H.264 / MJPEG /H.265

PTZ

Horizontal rotation

±162.5°

Tilt rotation

-30°～+90°

Horizontal control speed

1.8~80°/S

Pitch control speed

1.5至49°/S

Preset Bit Speed

Horizontal: 60°/sec, Pitch: 30°/sec

Preset bits

User can set up to 255 preset positions (10 for remote control)

Table top

Tripod, wall hanging, hoisting (upside down)

General Specifications

Input Voltage

DC 12V / POE

Input Current

1A

Power consumption

Maximum 12W

Power adapter

European, Australian, American, Chinese, and British Specification

Random Accessories

12V/2A power supply, RS232 control cable, USB3.0 connection cable, USB2.0 connection cable, remote control, manual, warranty card

Optional Accessories

Keyboard controller,speakerphone
