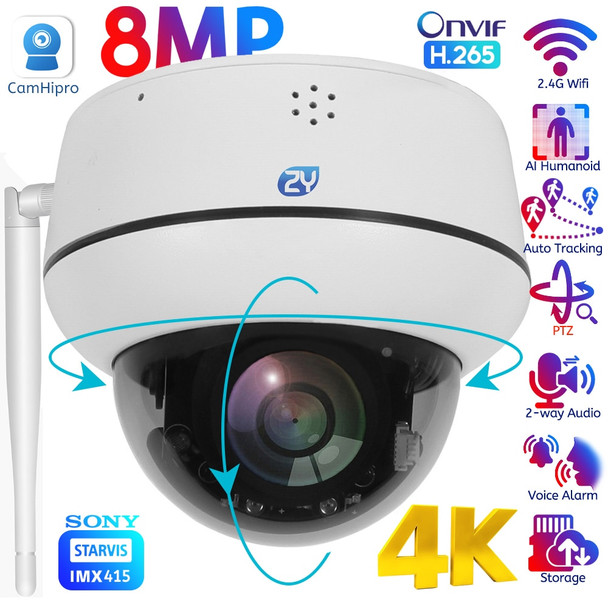

4K 8MP WiFi / PoE Pan Tilt Speed Dome Camera

Wireless H.265 Onvif IP66 Waterproof Outdoor & Indoor Use PTZ Camera with 3.6mm Lens 4X digital zoom Video Surveillance CCTV IP Camera CamHi / CamHipro App.

4K 8.3MP Ultra-HD Resolution

An Incredible Sony IMX415 8MP 4K Super HD PTZ IP Camera, With high resolution of 8.3megapixels (3840 x 2160), Show Higher-Quality Images,for both day and night vision,you can get exactly the details you need,much clearer than 1080p and 720p.

Starvis Enhanced Night Vision

Built-in Starvis CCD IMX415 Chip, Upgrade night vision and Low light imaging, With F2.1 aperture Lens, and 3D NR (Noise Reduction), DWDR (Digital Wide Dynamic Range) technology, See clear every details even in the backlight and night.

Pan Tilt 4X Digital Zoom

This PTZ camera can rotate 360° horizontally(Pan) and 120° vertically(Tilt). Set different preset locations, every corner covered. The WiFi IP camera with 4x digital zoom, you can enlarge the image to see more details.

AI Smart Humanoid Detect and Humanoid Tracking

Quickly find humanoid targets and auto tracking it and immediately send a notification to your phone only when humanoid triggered alarm, which help you filter out the annoying false alerts such as cars and trees.

Customizable Zones and Voice Alarm

Set motion detection zones to focus on important areas like doors or windows. The camera automatically broadcost your voice when detect trigger alarm, when you are sleeping or meeting or enjoy happy time with family, let such a smart camera guard your home !

Two Way Audio

The built-in ultra-responsive microphone allows you not only see but also hear, get in Intercom mode, you'll have smooth stable conversations through your mobile App wherever you are. so you can send commands to your pet, or scare off unwanted guests.

Multiple Alert Send To Your Mobile

Support App push, Email alert, FTP alert, With the motion detection features, real-time alerts will send to your phone to avoid property loss, Once you active the motion detection function, the security camera would snapshot and record video automatically.

Support Cruise and Scan

Preset your watch point, start patrol, the camera become your patrolman.

IP66 Waterproof Metal Alluminum Body

Compared to other plastic camera, this PTZ camera is full metal alluminum alloy body, can work in 55℃131℉ high temperature and -40℃-40℉ cold weather, waterproof level up to IP66, is stronger to withstand rough weather and Vandal Resistant.

SD Card and Onvif recorder storage

ZYsecurity CamHi security camera supports SD card storage up to 128GB. also it support onvif recorder, with smart H.265 technology,it could save over 5 times more memory space than other cameras.

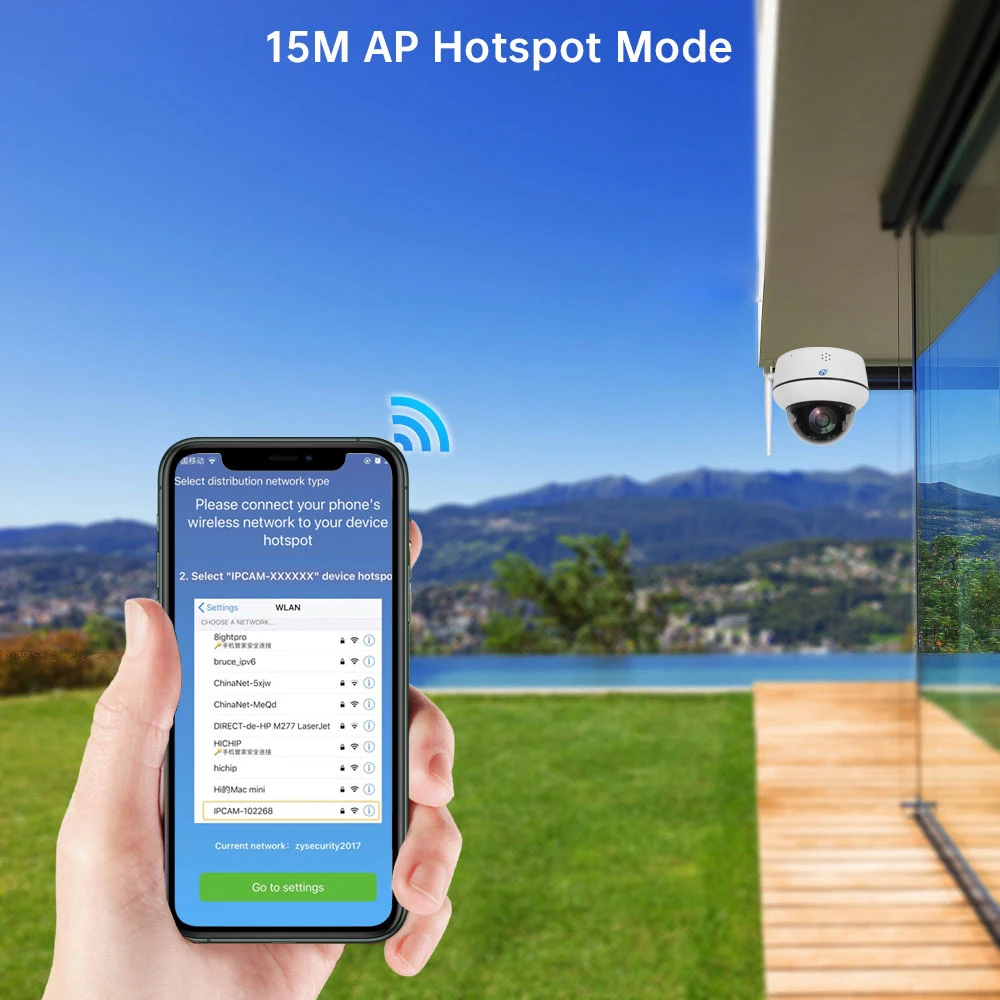

AP Hotspot and Multiple Connection Method

Enhansed 5dB router level Full copper core antenna, 10-15meters AP hotspot.

The camera can connect by 2.4G wifi and wired lan cable.

Power Over Ethernet, Easy PoE Installation

Thanks to the power over Ethernet (PoE) technology, this outdoor camera can transmit videos and get power simultaneously via only one network cable. Easy plug-and-play for a reliable connection.

(this function only for poe version)

Plug & Play - Quick and easy setup

ZYsecurity IP camera comes with a QR code that can be scanned with a mobile device using our free app (iOs and Android). This wireless camera can be quickly and easily set up.

WIFI Version & POE Version Details:

WIFI Camera Packing List:

POE Camera Packing List:

Specification

Model: ZY-WF05AR-POE (for POE Version)/ ZY-WF05AR-8M (for WiFi Version)
Operating system embedded LINUX
Main processor Mstar SSC338Q
Image Sensor SONY IMX 415 1/2.8" Ultra Low Illumination CMOS Sensor
Day and night mode Support

Compression standard
Compression standard Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm G.726/G.711
Compressed transport stream 32Kbps-6144bps, can be customized, default 1536Kbps

Images
Maximum image size 4K 8.3MP (3840x2160)
Sharpness First stream: Main stream:3840*2160@10fps, 2592*1944/2560*1440/1080P/960P/720P/D1@30fps
Sub-stream: 800x600/800x448/CIF@30fps
Character overlay Support OSD name,time and date information overlay
Image settings Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable

Network Function
Storage function Supports up to 128G Micro SD card storage and supports scheduled video storage
Motion detection Four independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server;
Network Protocol Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP
Access Protocol Supports ONVIF 2.4 Protocol

Interface
Audio input: Build-in MIC
Audio output: Built-in Speaker
LAN interface Wifi wireless,RJ45 10Base-T/100Base-TX,WIFI/802.11b/g/n wireless

PTZ speed dome
IR night distance 30M
LENS 3.6 HD Lens
waterproof level IP66
Working temperature -40 to +85 Celsius
Power adapter DC12V 2A
Working Humidity -10-95%

Manage your camera from CamHipro App：

First time connection, please press the RESET button in the equipment base for 10s to restart camera.

1:Download "CamHi" or "Camhipro" from the iPhone App Store or Google PlayStore.Or contact us to get all the software.
2:Enter the camera UID, user name and password: admin

Browser view and setting

Use the local area network.
Use a browser to log in to the camera's IP address. It is more convenient to set up various functions of the camera on the computer.
The functions displayed by the browser are more comprehensive. It is recommended to use the computer system's own IE browser

PC client CMS Software

Used for centralized management of single or multiple cameras
Both can be used within the local area network. Can also be accessed remotely
