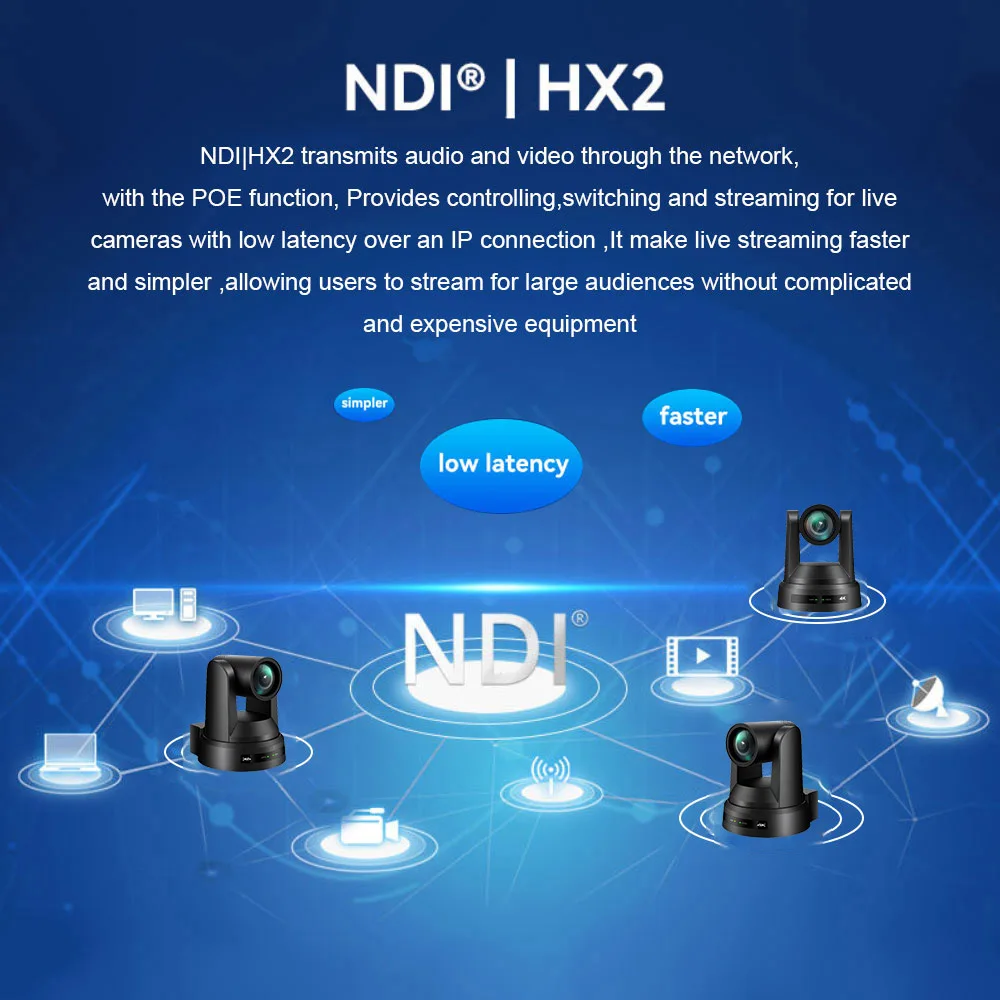

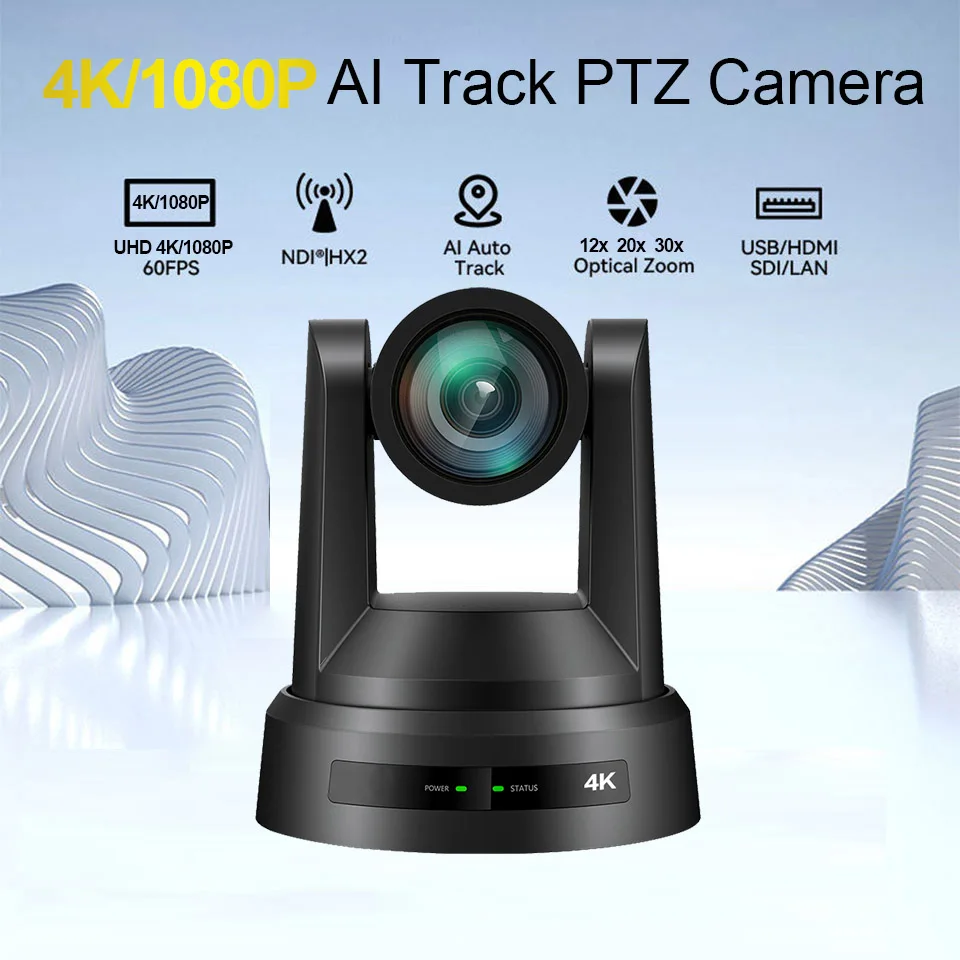

The NDI Camera POE PTZ Camera offers perfect functions, superior performance, and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less-than-ideal bandwidth conditions. The NDI camera for Church, education, Live Streaming, Broadcast, and houses of worship.

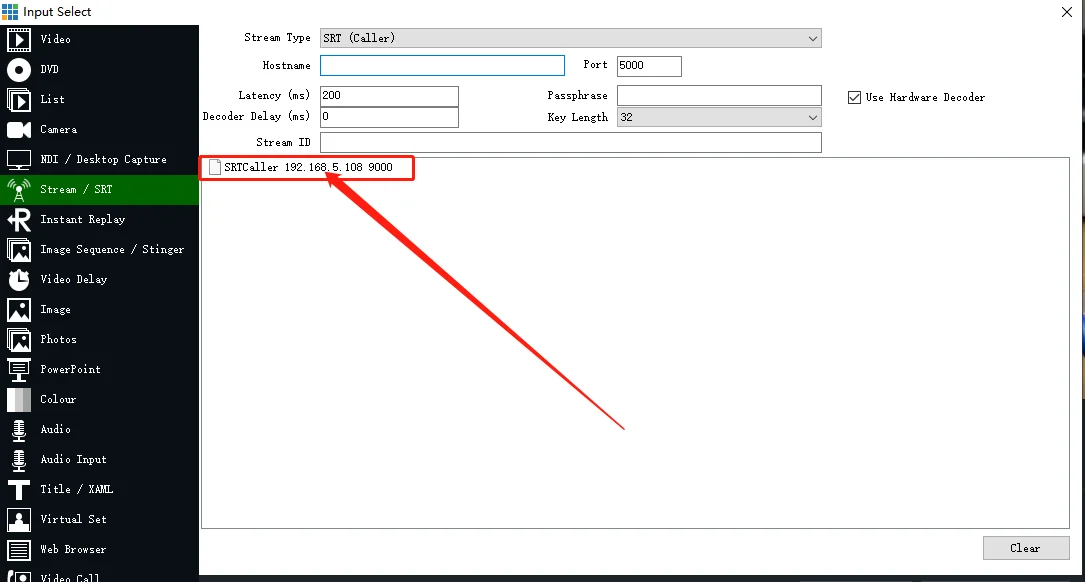

NDI Camera with HDMI. Compatible with Blackmagic and PTZ IP controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and Facebook.

Auto Tracking POE Camera also with USB3.0, Compatible with Zoom, Webex, Skype, Hangout, etc. software and hardware, Plug and Play, it's very convenient to use.

1. Superb High-definition Image
It employs a 1/2.8″ EXMOR CMOS, 2.38 Megapixels. The resolution is up to 1920x1080 with a frame rate of up to 60fps. 12X optical zoom with 72.5 deg. wide angle lens.

2. Trinity image auto-focusing technology

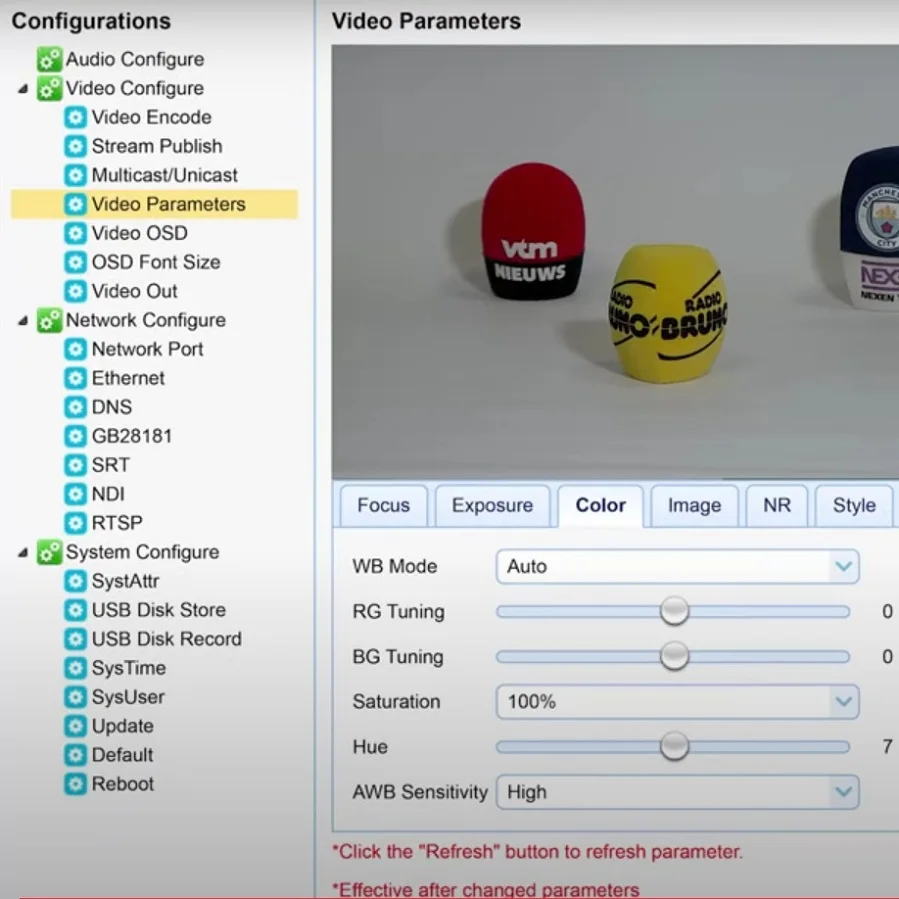

Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), and automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect and perfect trinity image automatic adjustment.

3. Low Noise and High SNR
Low noise CMOS ensures a super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.

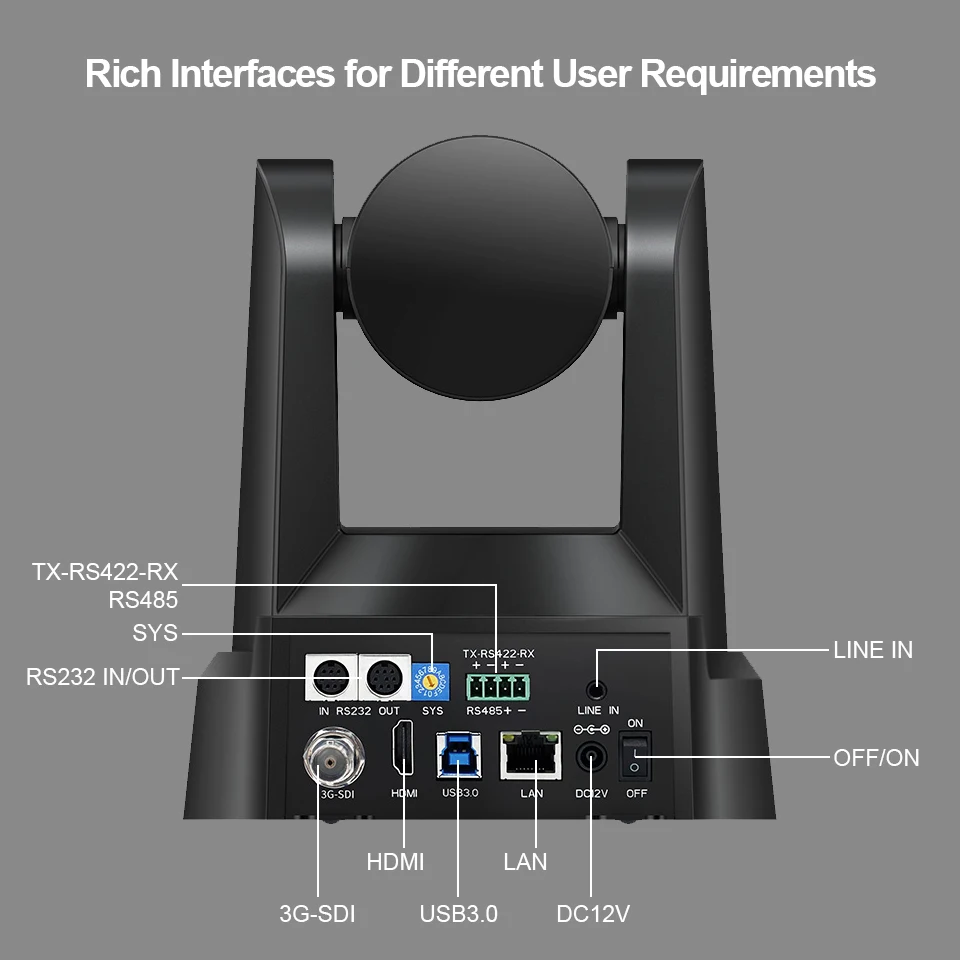

4. Multiple Video Output Interfaces
HDMI, 3G-SDI, USB 3.0, and LAN ports for video output. Both video and audio can be output from HDMI,  3G-SDI, LAN, and USB at the same time. The transmission distance of 3G-SDI 1080p60 is up to 100 meters.

5. Multiple Audio/Video Compression
LAN support H.264/H.265 video compression. Support 8000, 16000, 32000, 44100, and 48000 sampling frequency and AAC, MP3, G.711A audio coding.

6. Built-in gravity sensor

Built-in gravity sensor supports PTZ auto-flip function and is easy to install.

7. Multiple Network Protocol

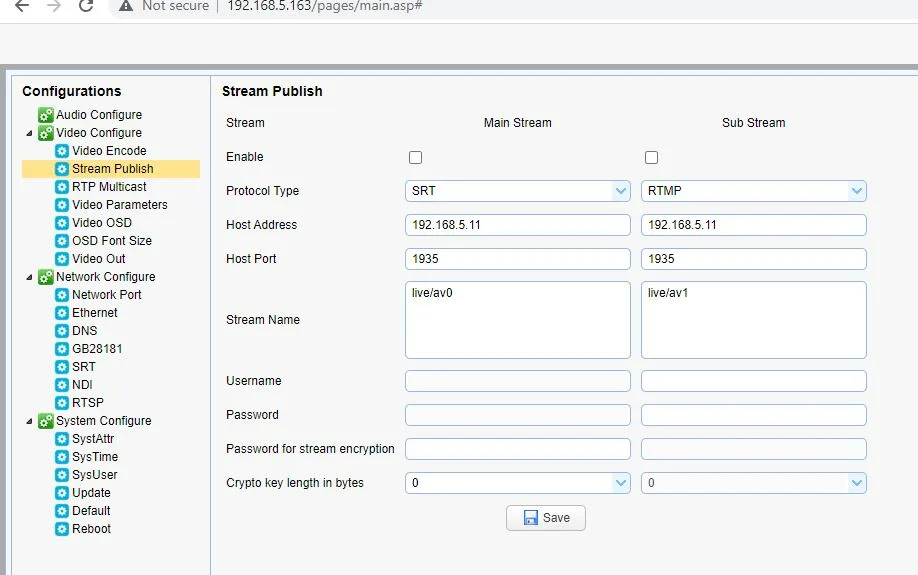

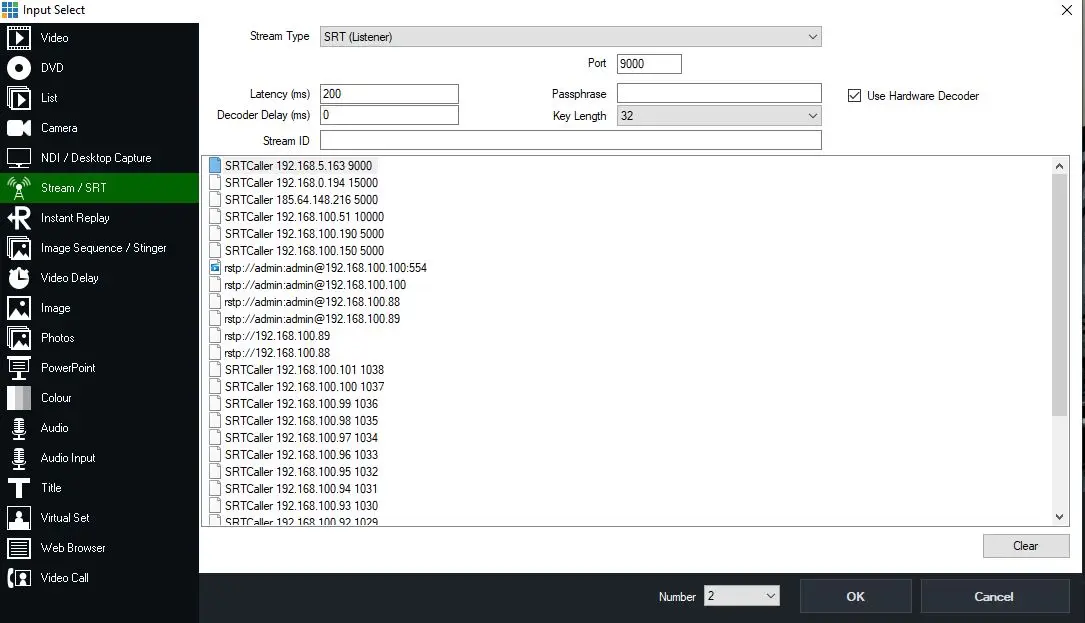

Supports ONVIF, GB/T28181,  RTSP,  and RTMP protocols; RTMP push mode,  easy to connect to the streaming server (Wowza, FMS); supports RTP multicast mode and VISCA control protocol.

8. Multiple Control protocol
RS422 (compatible with RS485); RS232 in & out; RS232 supports cascade function

9. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision to ensure PTZ works smoothly and with no noise.

10. Multiple Preset
Support 255 preset positions (the remote controller is set to 10 preset positions).

11. Multiple Remote Controller
Users can choose to use an IR remoter or wireless remoter according to the working environment. The 2.4G wireless remoter will not be affected by angle, distance, or infrared interface. Support remoter signal pass-through function, which is convenient for back-end use.

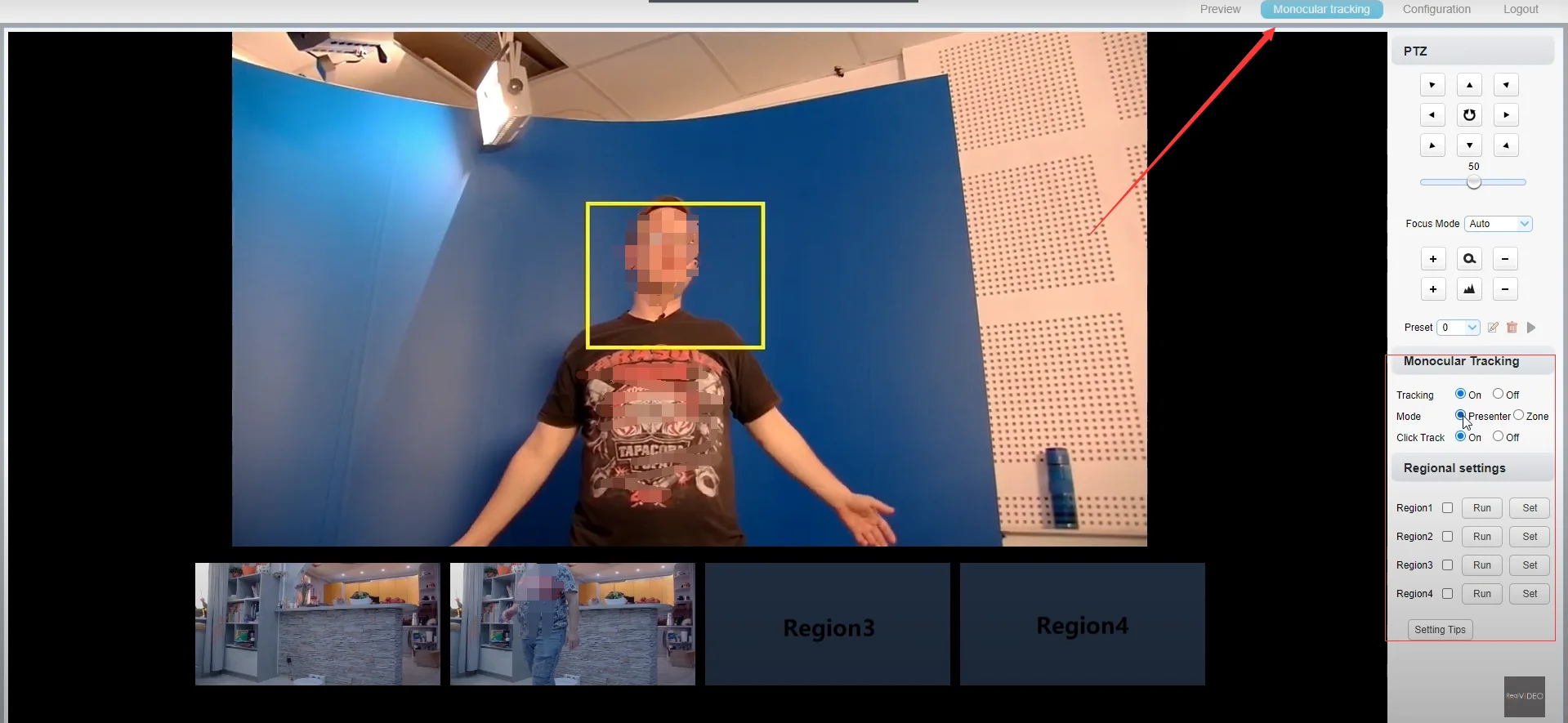

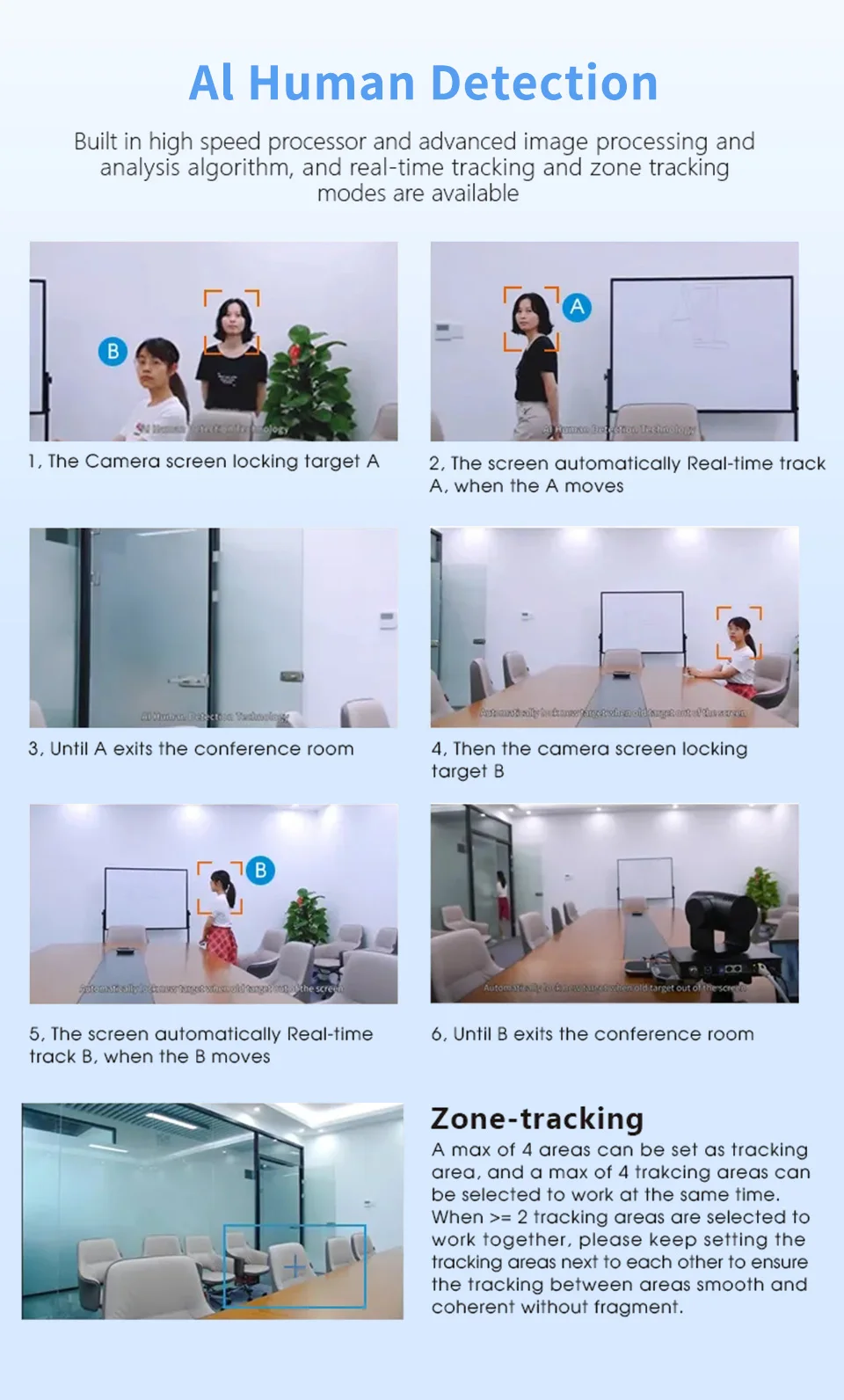

12. AI Tracking

Built-in high-speed processor and the use of advanced image processing and analysis algorithms. Real-time Tracking and Zone Tracking modes are available.

13. Multiple Applications

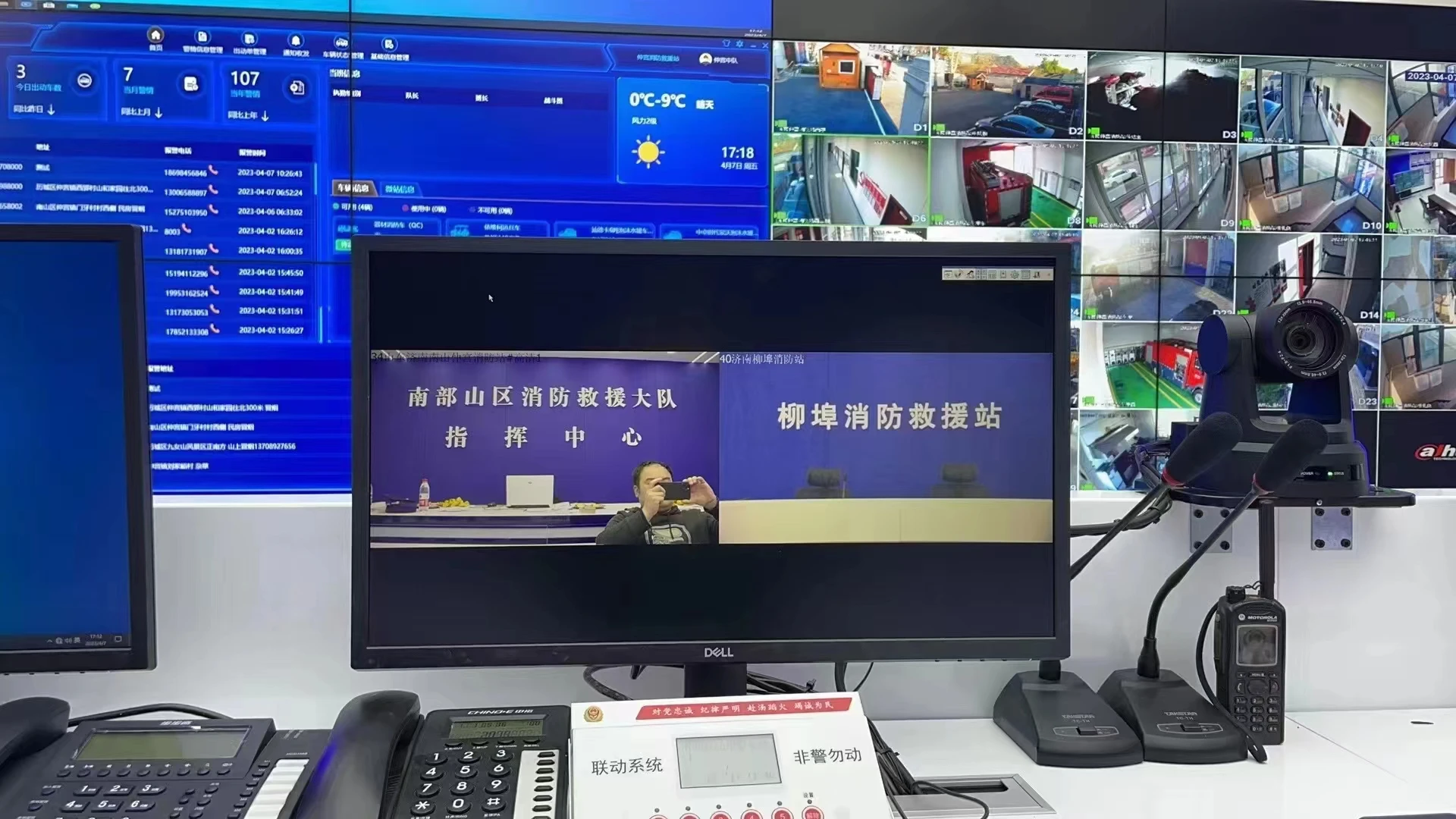

Online education,  Lecture Capture,  Broadcasting,  Video conferencing,  Telemedicine,  Unified Communication,  Emergency command and control systems, etc.

• Specifications:

  Model	12X	20X
  Camera Parameter
  Optical Zoom	12X 4.1～49.2mm	20X 5.05～91.49mm
  Sensor	1/2.8″EXMOR CMOS, 2.38Megapixels
  Effective Pixels	16: 9, 2.07 megapixel
  Video Format	HDMI/SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94； USB3.0: Main Stream：YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; Sub Stream：YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
  View Angle	72.5°(W) 6.57°(T)	58.6° (W) 3.6°(T)
  AV	F1.8 – F2.68	F1.8～ F2.9
  Digital Zoom	16X
  Minimum Illumination	0.5Lux (F1.8, AGC ON)
  DNR	2D & 3D DNR
  White Balance	Auto / Manual/ One Push/ Specify color temperature
  Focus	Auto/Manual/One Push Focus

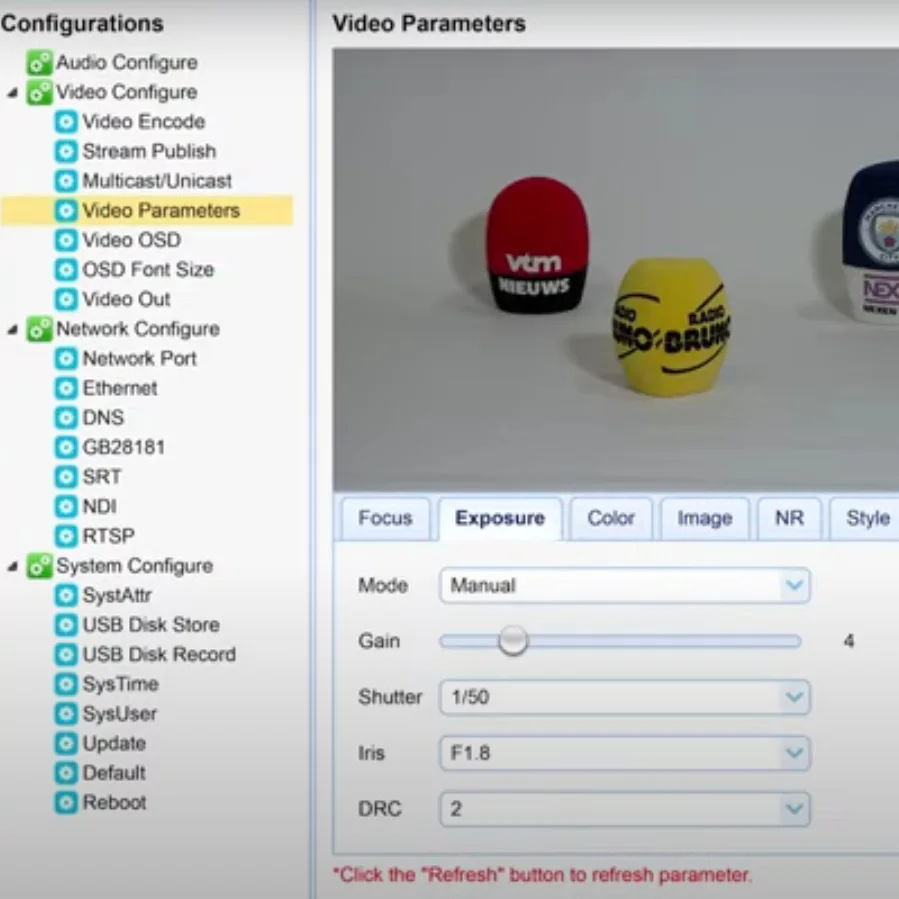

  Exposure mode	Auto/Manual/Shutter priority/ Aperture priority/Brightness priority
  Aperture	F1.8 ～ F11 CLOSE
  Shutter Speed	1/25～1/10000
  BLC	ON/OFF
  WDR	OFF/ Dynamic level adjustment
  Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  SNR	≥50 dB
  Input/Output Interface
  Video Interfaces	HDMI, SDI, LAN (POE), USB3.0( Type B compatible with USB2.0),A-IN，RS232-IN/OUT, RS422 (compatible with RS485);
  Video Compression Format	LAN Interface: H.265, H.264, Dual stream output USB3.0 Interface: Both main stream and sub stream supports YUY2,MJPEG,H.264,NV12,H.265
  Audio Input Interface	Double track 3.5mm linear input
  Audio Output Interface	HDMI, SDI, LAN,USB3.0
  Audio Compression Format	AAC/MP3/G.711A
  Network interface	10m/100M/1000M adaptive Ethernet port, support POE and audio/video output
  Network Protocol	RTSP, RTMP, ONVIF, GB/T28181; Support Network VISCA control protocol； Support remote upgrade, reboot, and reset
  Control Interface	RS232 (IN/OUT), RS422 compatible with RS485
  Serial communication protocol	VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
  USB Communication Protocol	UVC（video),UAC（audio）
  Power Interface	HEC3800 outlet (DC12V)
  Power Adaptor	Input: AC110V-AC220V Output: DC12V/1.5A
  Input Voltage	DC12V±10%
  Input Current	Maximum: 1A
  Power Consumption	Maximum: 12W
  PTZ Parameter

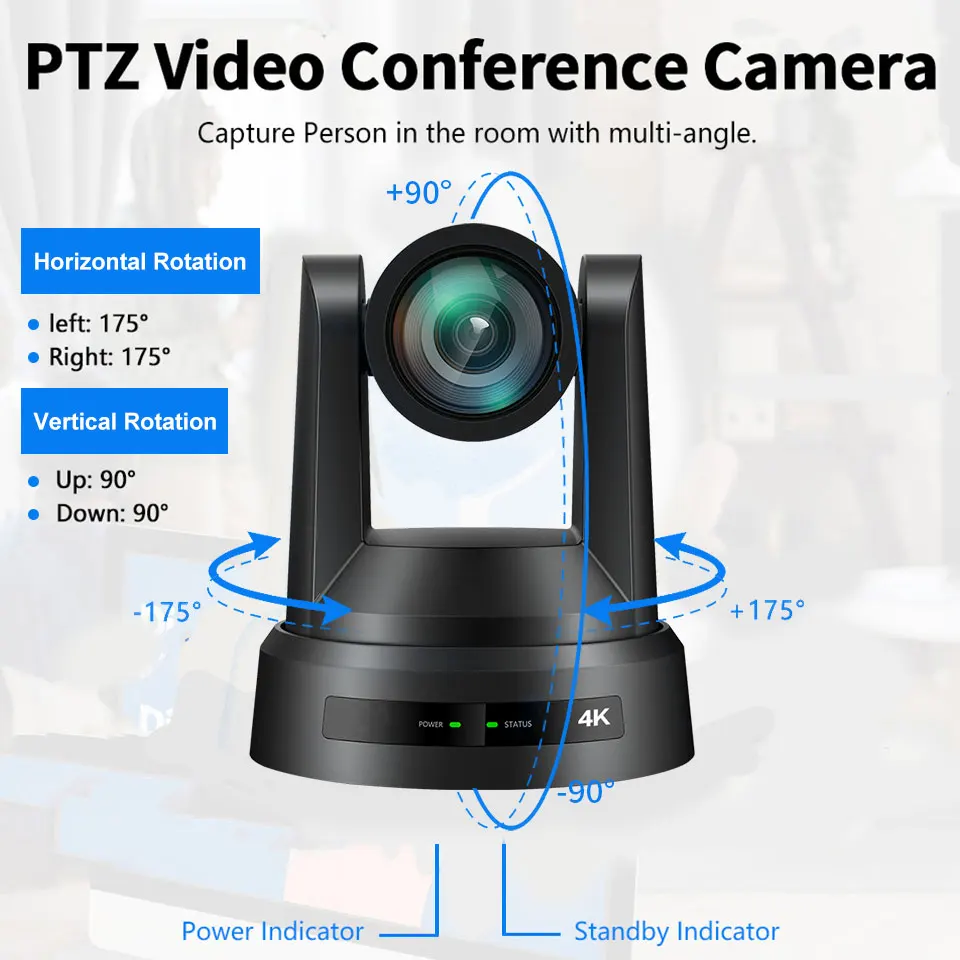

  Pan/Tilt Rotation	±170°, -30°～+90°
  Pan Control Speed	0.1°/s～100°/s
  Tilt Control Speed	0.1°/s～45°/s
  Preset Speed	Pan:100°/sec, Tilt: 45°/sec
  Preset Number	255 presets (10 presets via remote control)
  Other Parameter
  Stored Temperature	-10℃~+70℃
  Stored Humidity	20%~95%
  Working Temperature	-10℃~+50℃
  Working Humidity	20%~80%
  Dimension	143mm×176mm×169mm
  Weight	1.3KG
  Accessory
  Package	Power Supply, RS232 Control Cable, USB3.0 cable, IR Remote Control, User Manual Ceiling/Wall Mount(Optional)

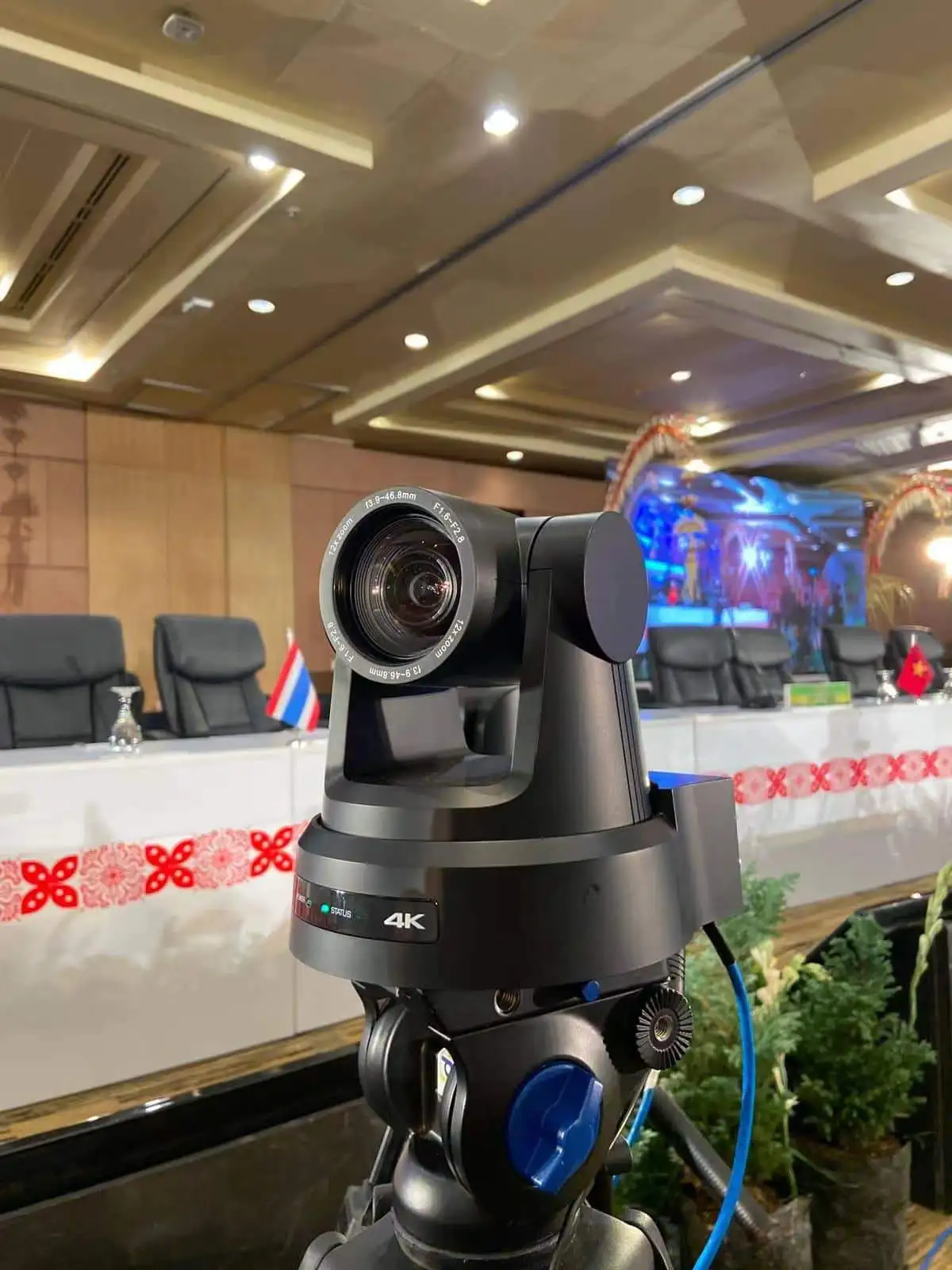

  4K Camera Parameter
  Model	HK591R
  Optical Zoom	12X Optical Zoom
  Viewing Angle	H: 8.2°（N）～71°（W） V: 4.5°（N）～42.7°（W）
  Iris Value	F = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  Sensor	1/2.5' CMOS image sensor,
  Effective Pixels	8.51M effective pixels 16:9
  Video Signal	HDMI: 4KP30、4KP25、1080P60、1080P50、1080I60、1080I50、 1080P30、1080P25、720P60、720P50； 3G-SDI: 1080P60、1080P50、1080I60、1080I50、1080P30、1080P25、720P60、720P50； "P" stands for progressive scan format images. "i" stands for images in interlaced scan format. USB3.0: YUY2/NV12 supports1920×1080P30、1280×720P30、1024×576P30、960×540P30、 800×448P30、640×360P30、640×480P30、320×176P30 MJPEG/H.264 supports3840×2160P30、1920×1080P30、1280×720P30、1024×576P30、960×540P30、800×448P30、640×360P30、640×480P30、320×176P30 USB3.0Compatible with USB2.0 YUY2/NV12supports 640×360P30、640×480P30、320×176P30 MJPEG/H.264 supports 3840×2160P30、1920×1080P30、1280×720P30、1024×576P30、960×540P30、800×448P30、640×360P30、640×480P30、320×176P30
  Minimum Illumination	0.05Lux(F1.8, AGC ON)
  DNR	2D﹠3D
  White Balance Mode	Automatic, manual, one-button white balance, specified color temperature
  Focus Model	Auto, manual, one-key focus
  Exposure Model	Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
  Iris Value	F1.8 ～ F11、CLOSE
  Shutter Speed	1/25～1/10000
  BLC	On/Off
  Dynamic Range	Off/dynamic level adjustment
  Image Adjustment	Brightness, Hue, Saturation, Contrast, Sharpness, Black and White Mode, Gamma Curve
  SNR	≥50dB
  Product Interface
  Product Interface	HDMI、3G-SDI、USB3.0（Type B compatible with USB2.0）、LAN(POE)、A-IN、RS232-IN、 RS232-OUT、RS422（Compatible withRS485）, Rotary Dip Switch, DC12V Power Supply, Power Switch
  Video Format	LAN: Both the mainstream and the secondary stream support H.265, H.264 USB3.0：Main stream support YUY2、MJPG、H264、NV12
  Audio Input Jack	Dual-channel 3.5mm linear input
  Video Input Jack	HDMI、3G-SDI、LAN、USB3.0
  Audio Compression Format	AAC、MP3、G.711A
  Network Port	10M/100M/1000Madaptive Ethernet port, support POE power supply, support audio and video output
  Network Protocol	RTSP、RTMP、ONVIF、GB/T28181；VISCA OVER IP、IP VISCA、RTMPS、SRT Support remote upgrade, remote restart, remote reset
  Control Jack	RS232-IN、RS232-OUT、RS422compaible with RS485
  Serial Communication Protocol	VISCA/Pelco-D/Pelco-P, support baud rate 115200/38400/9600/4800/2400
  USB Communication Protocol	UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
  Power Jack	HEC3800 power socket (DC12V)
  Power Adapter	Input AC110V-AC220V； Output DC12V/2.5A
  Input Voltage	DC12V±10%
  Input Currency	<1A
  Power Consumption	<12W
  PTZ
  Pan		-170°～+170°
  Tilt		-30°～+90°
  Pan Speed		0.1°/s～100°/s
  Tilt Speed		0.1°/s～45°/s
  Preset Speed		Pan：100°/s，Tilt：45°/s
  Preset Quantity		Maximum: 255（10 via remote controller）
  Other Parameter
  Storage Temperature		-10℃～+60℃
  Storage Humidity		20%～95%
  Working Temperature		-10℃～+50℃
  Working Humidity		20%～80%
  Dimension		181mm（L）×115mm（W）×149mm（D）
  Weight (Appx.)		1.35kg
  Environment		Indoor
  Accessory
  Standard	Power Adapter, RS232 Control Line, USB3.0 Connection Line, Remote Control, Manual, Warranty Card & Certificate
  Optional	Mounting Brackets
