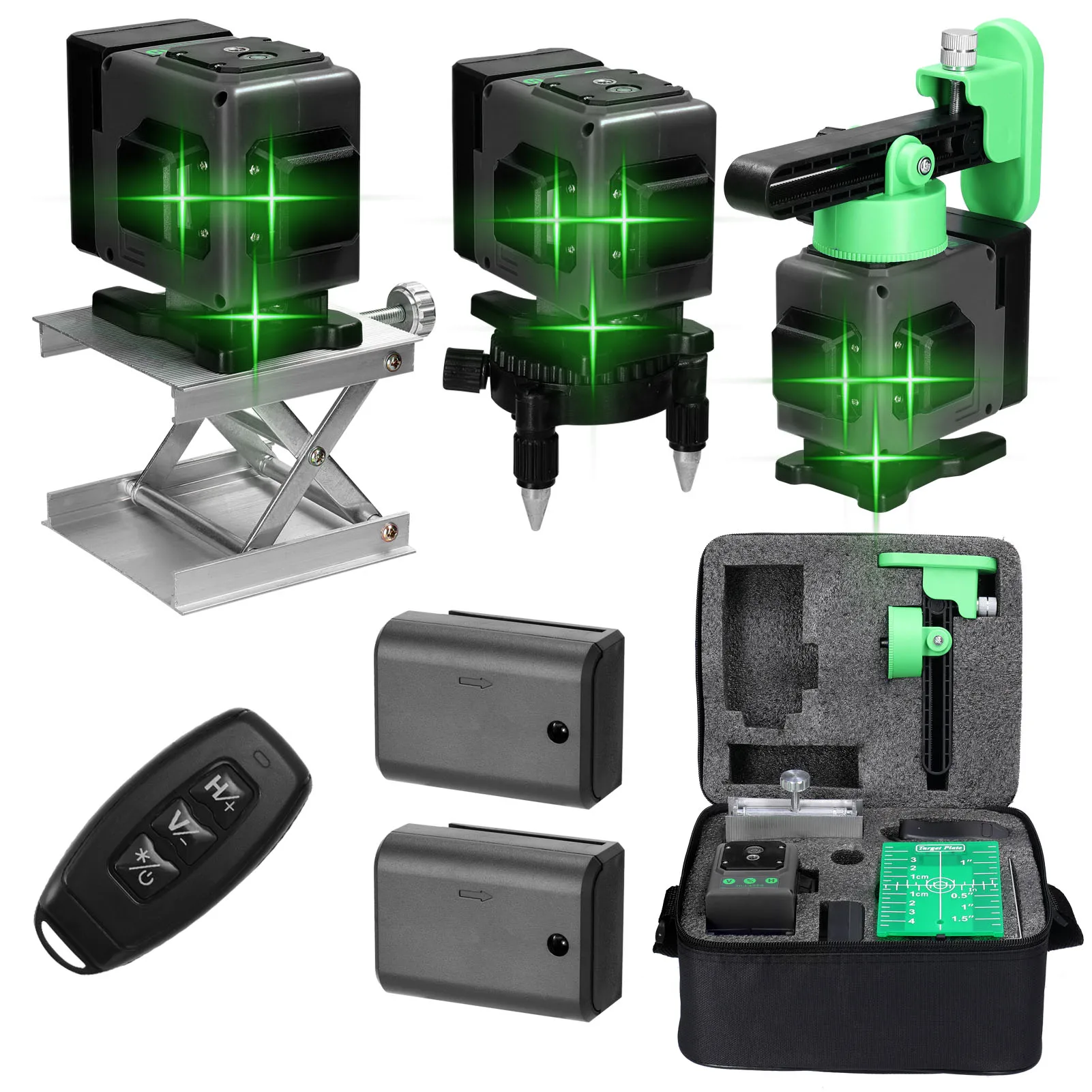

Description
-------3D Type1------

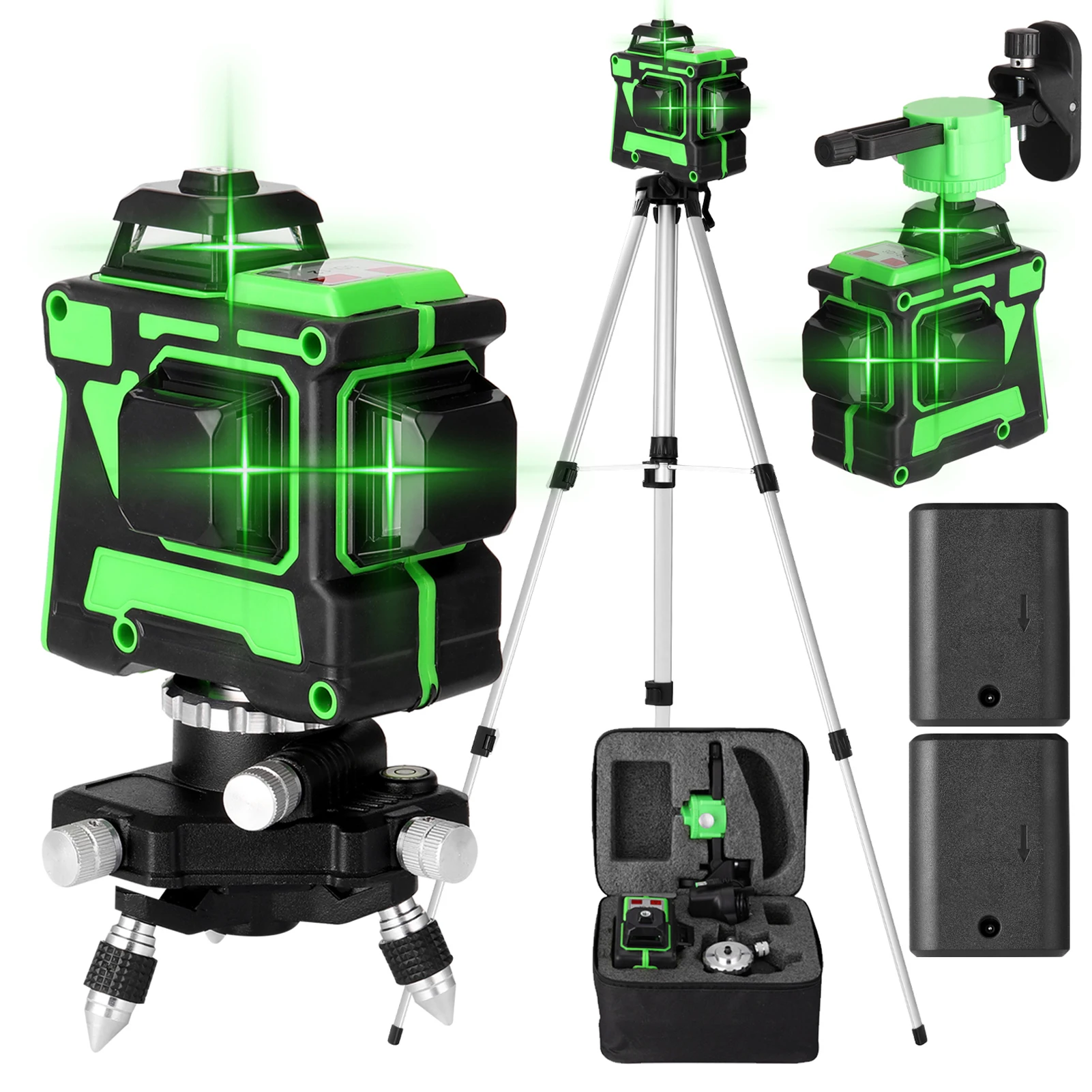

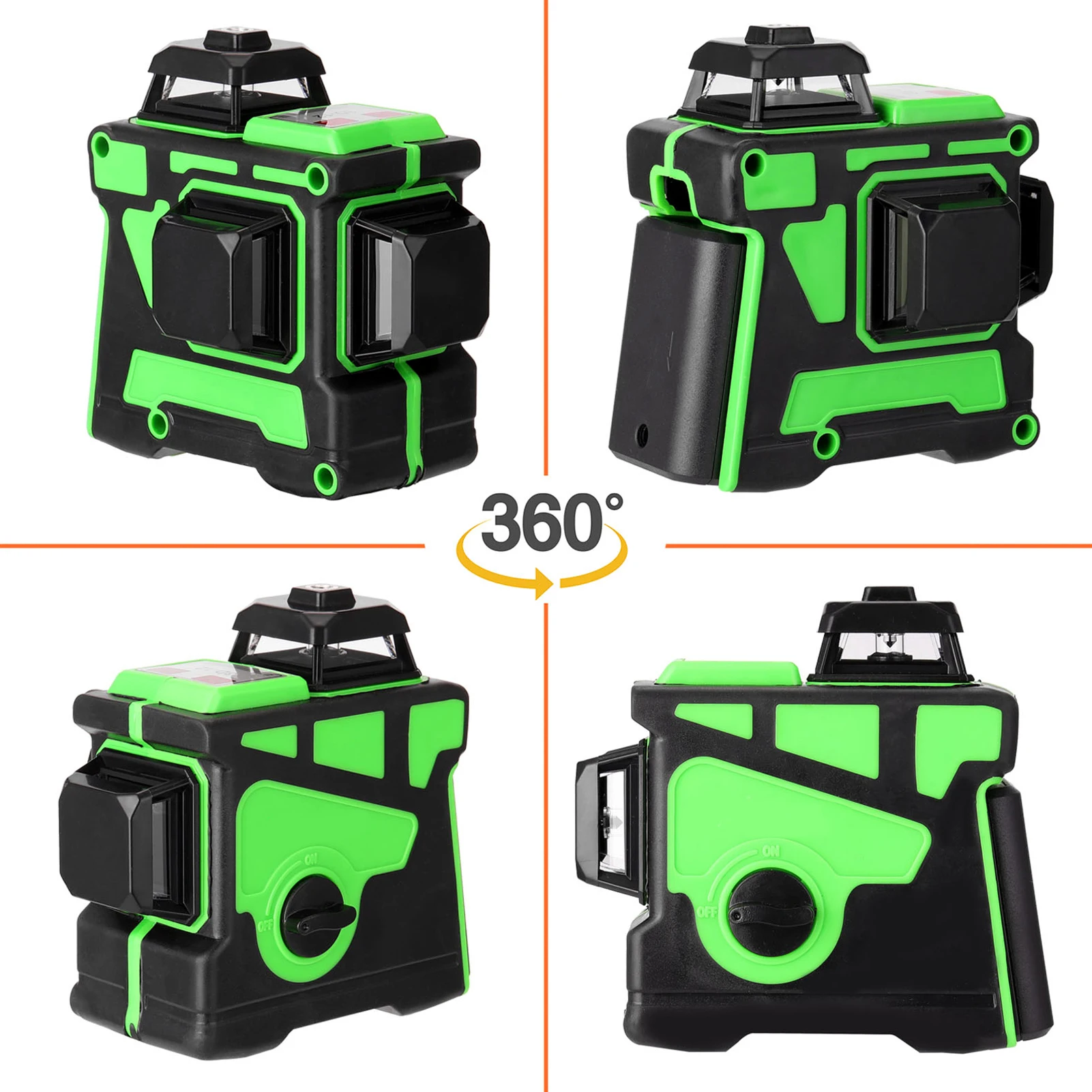

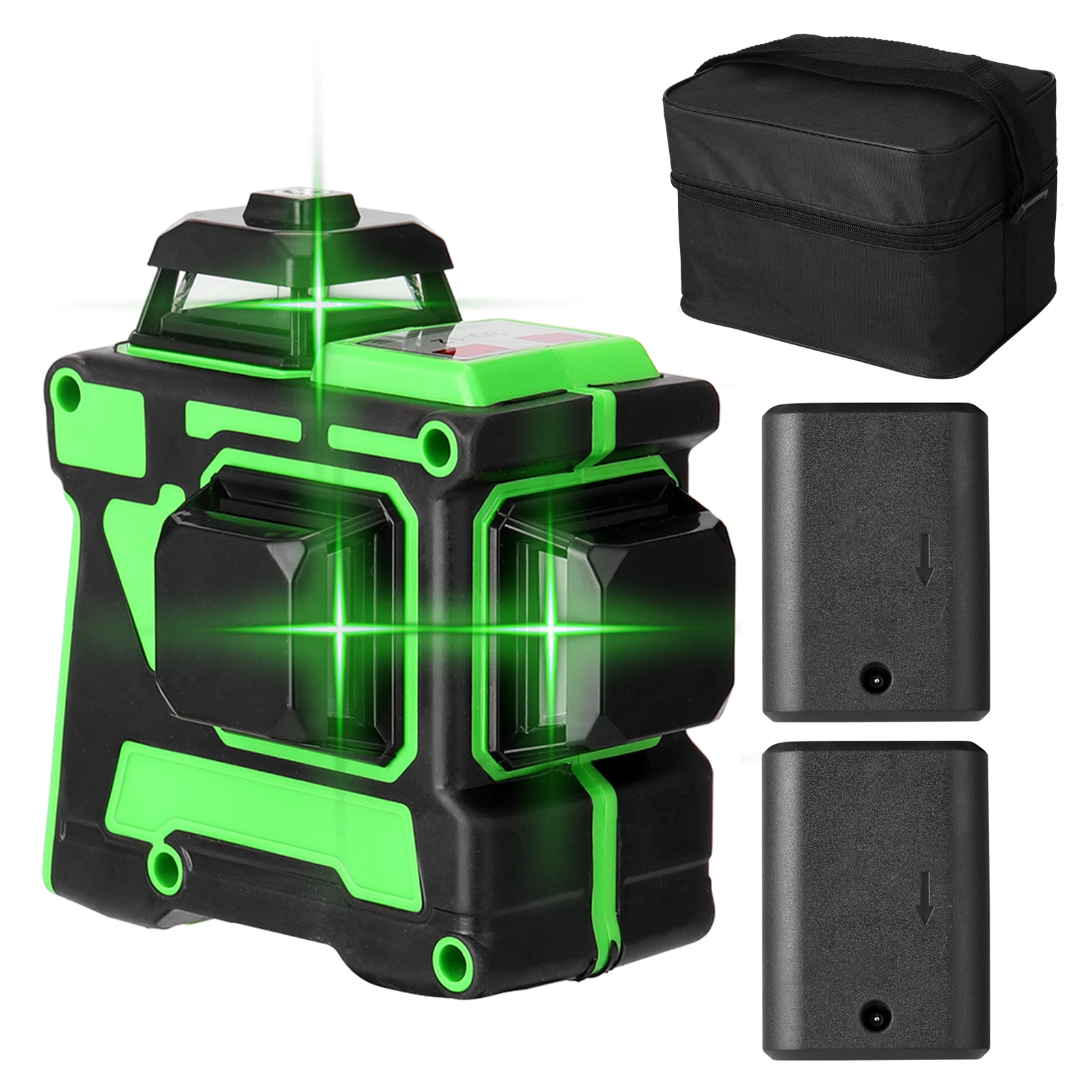

The 3D laser level meter can emit visible lase horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datum for indoor construction stakeout and calibration, easy to operate, and versatile. Comes with one extension bar, which is made of thicken aluminum alloy material, 3-heights adjustable, suitable to most of laser level with 5/8" interface. Perfect for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation. You can have a try.
Features:

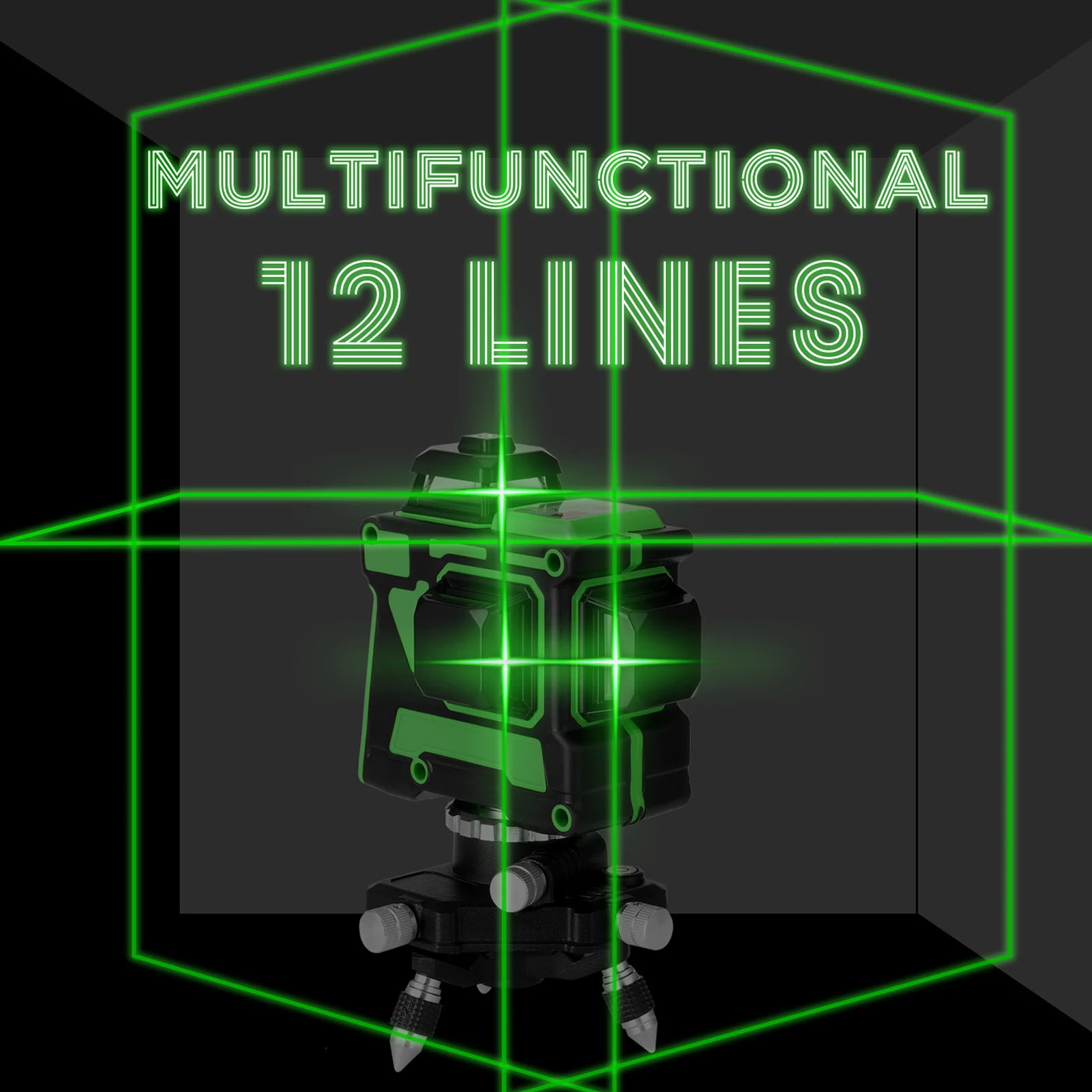

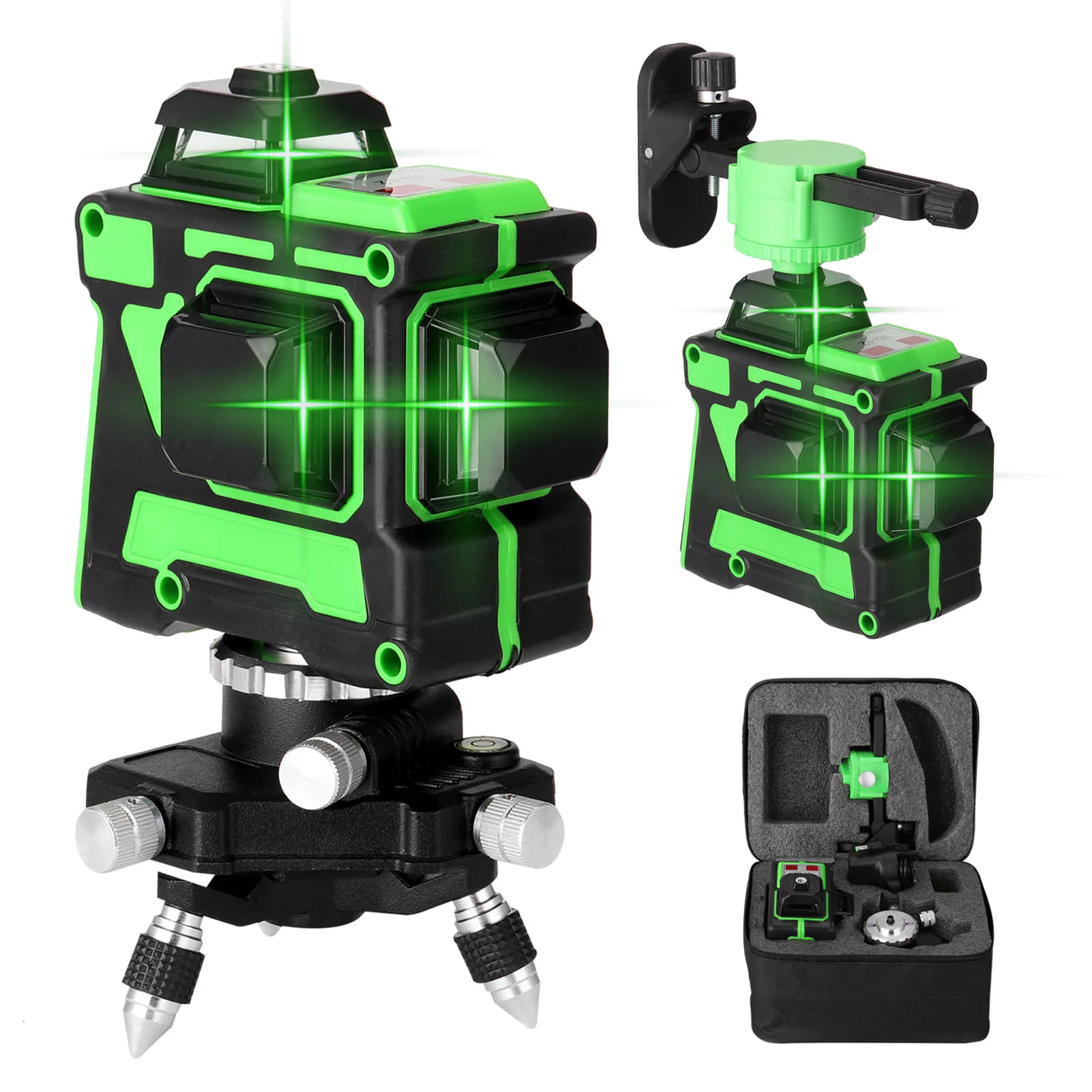

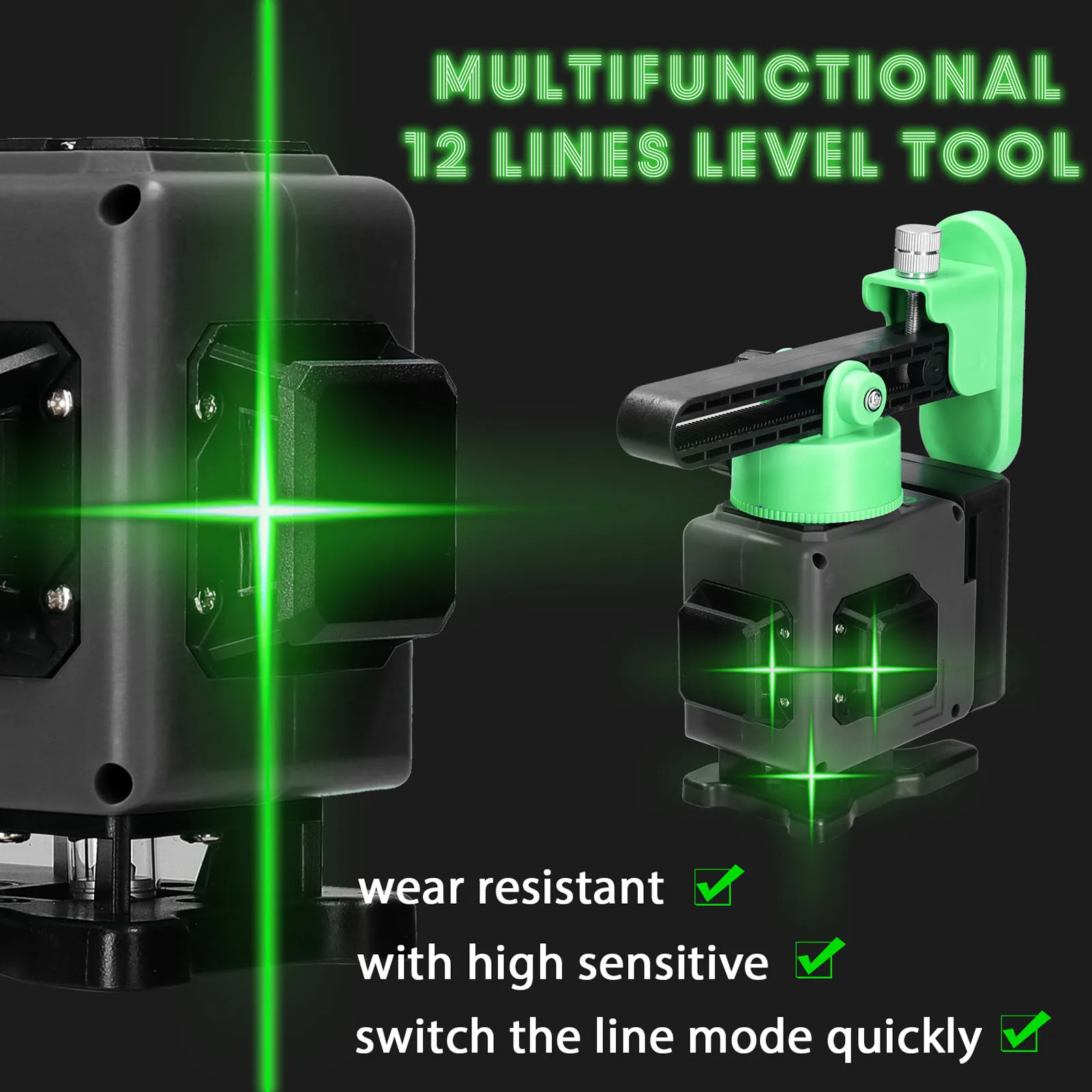

Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.
360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.

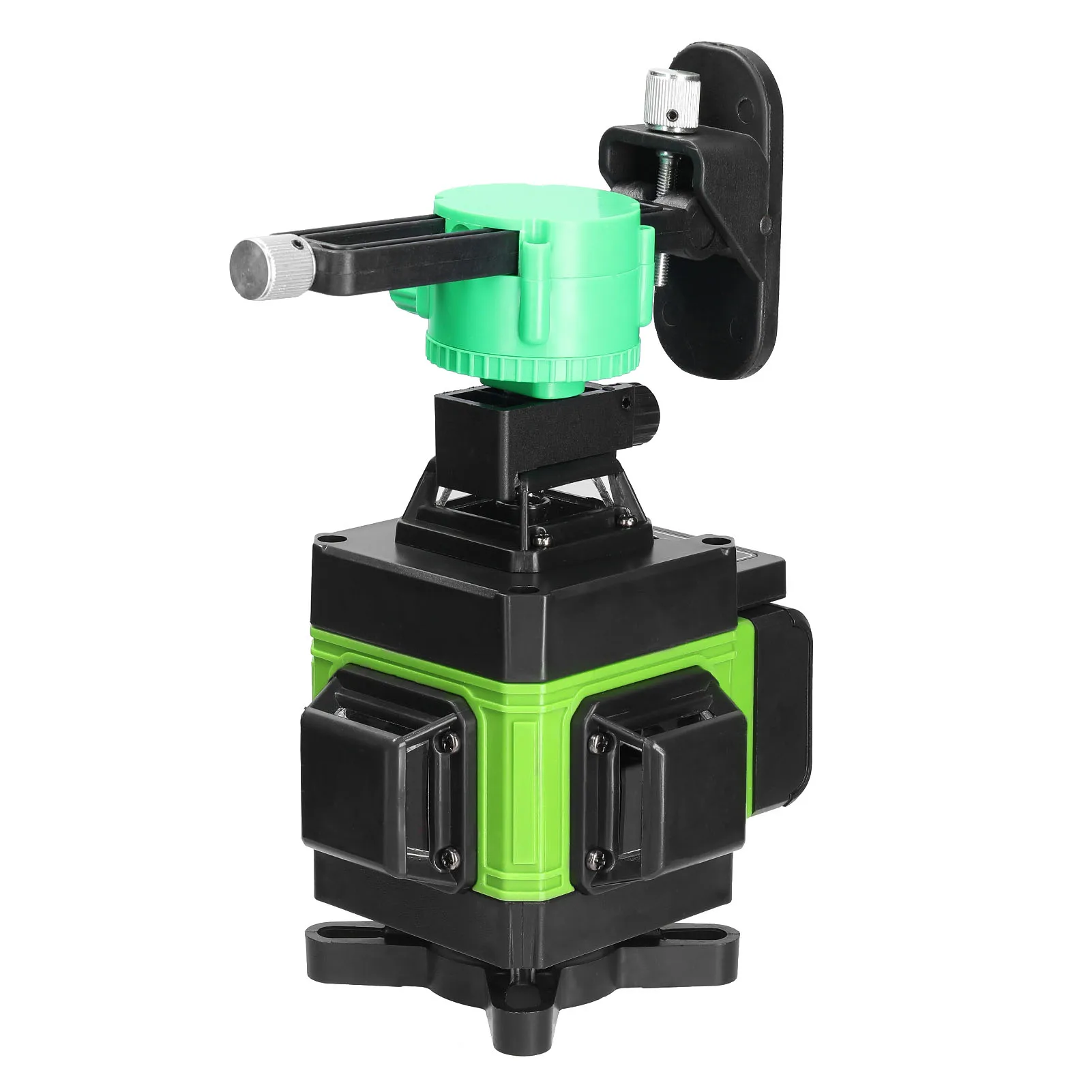

Comes with wall-mounted bracket, can be easily attached to the floor tiles, wall stickers, and ceilings, all 7mm pitch.
Waterproof and dustproof, suitable for both indoor and outdoor use.
Adopts optical glass, K9 material, fine transmission, with clear laser light.

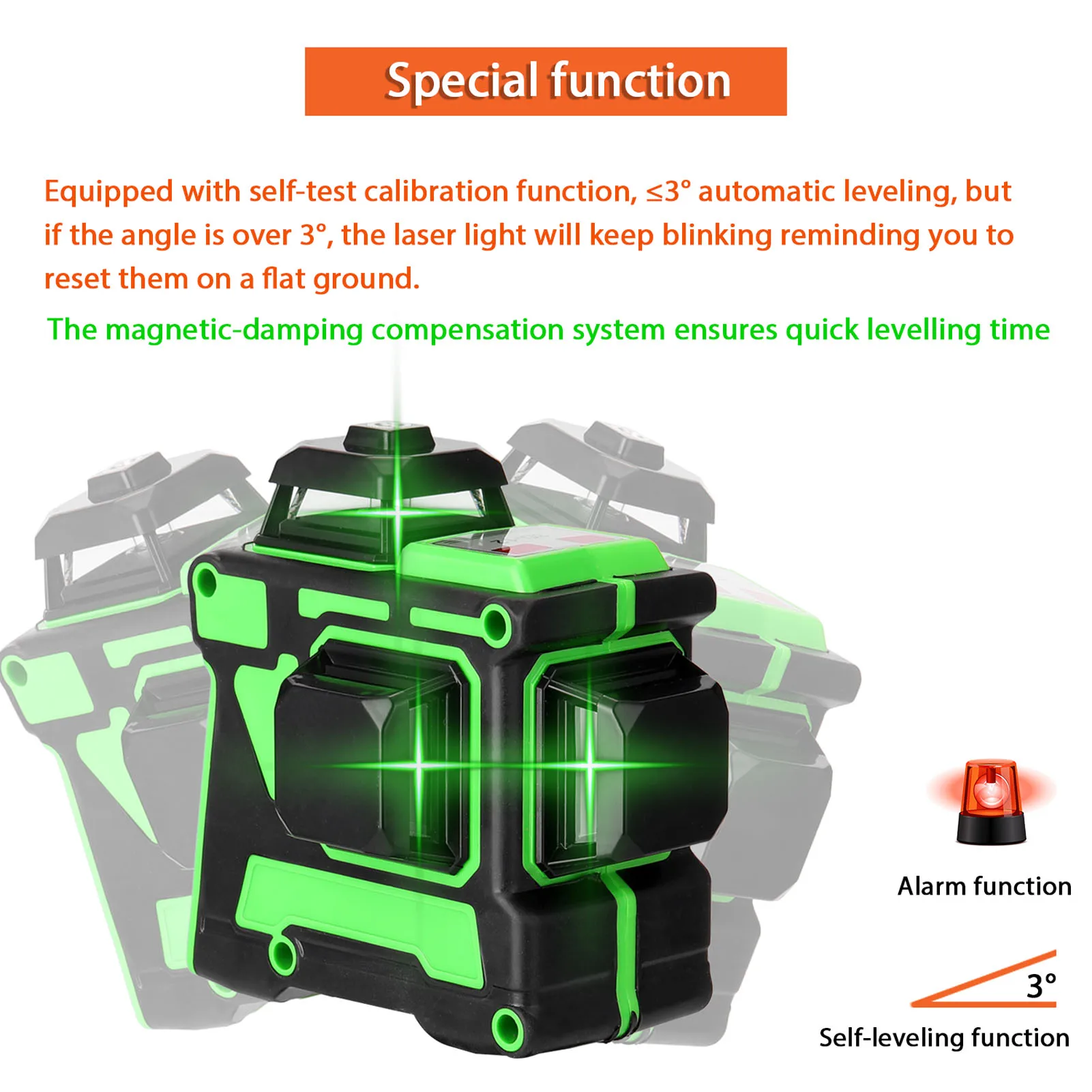

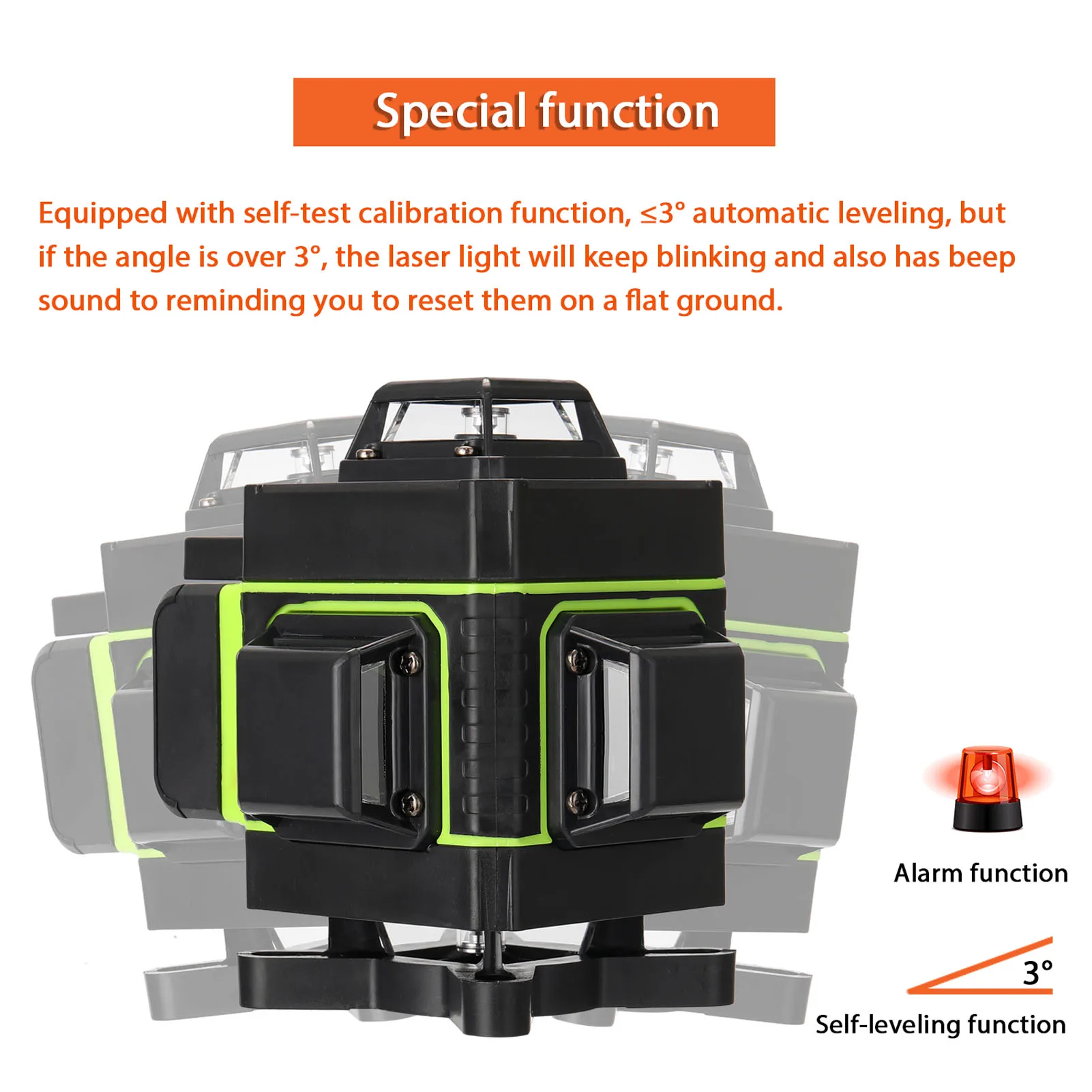

Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking reminding you to reset them on a flat ground.

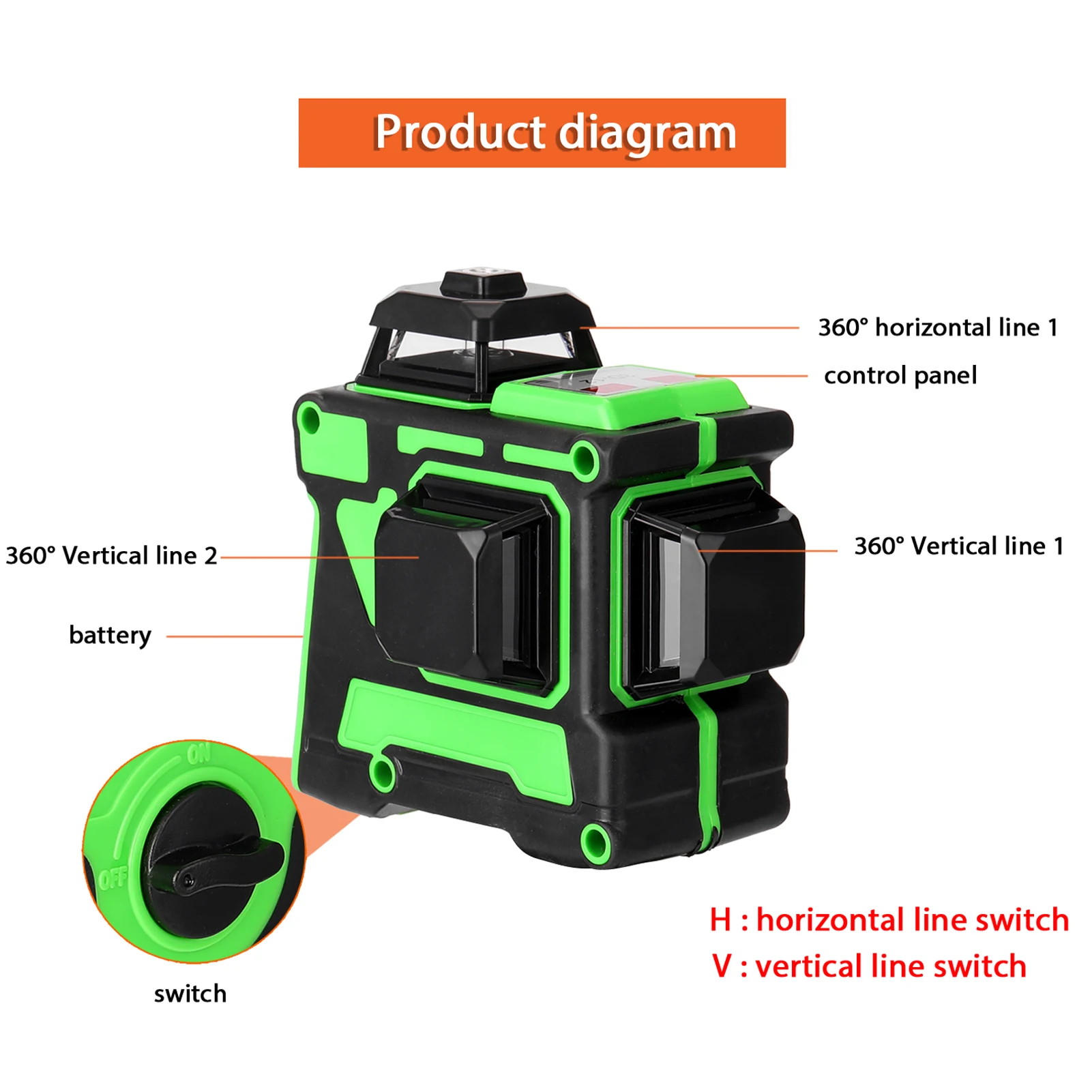

Rotation knob design, clockwise rotate to open it, anticlockwise rotate to close it.

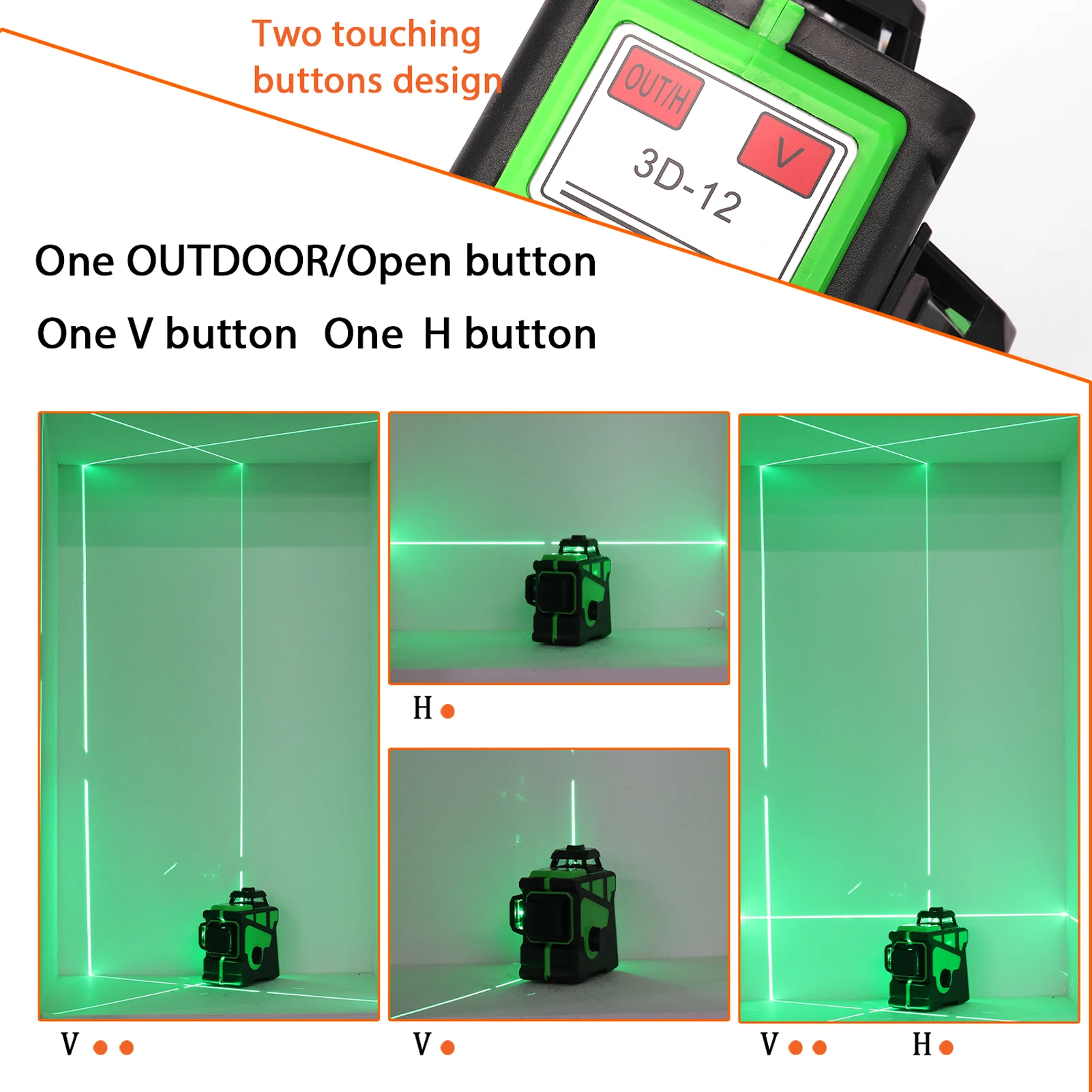

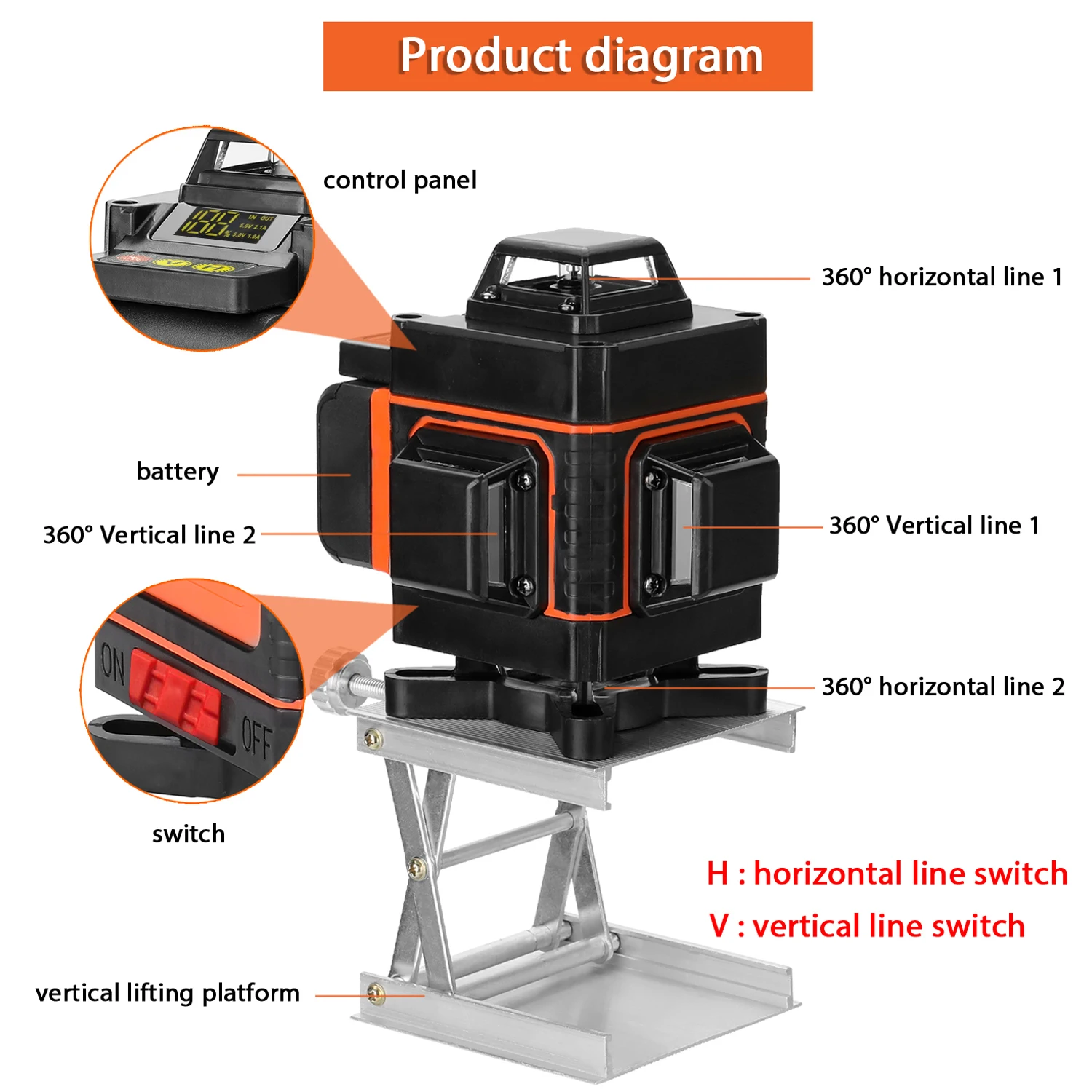

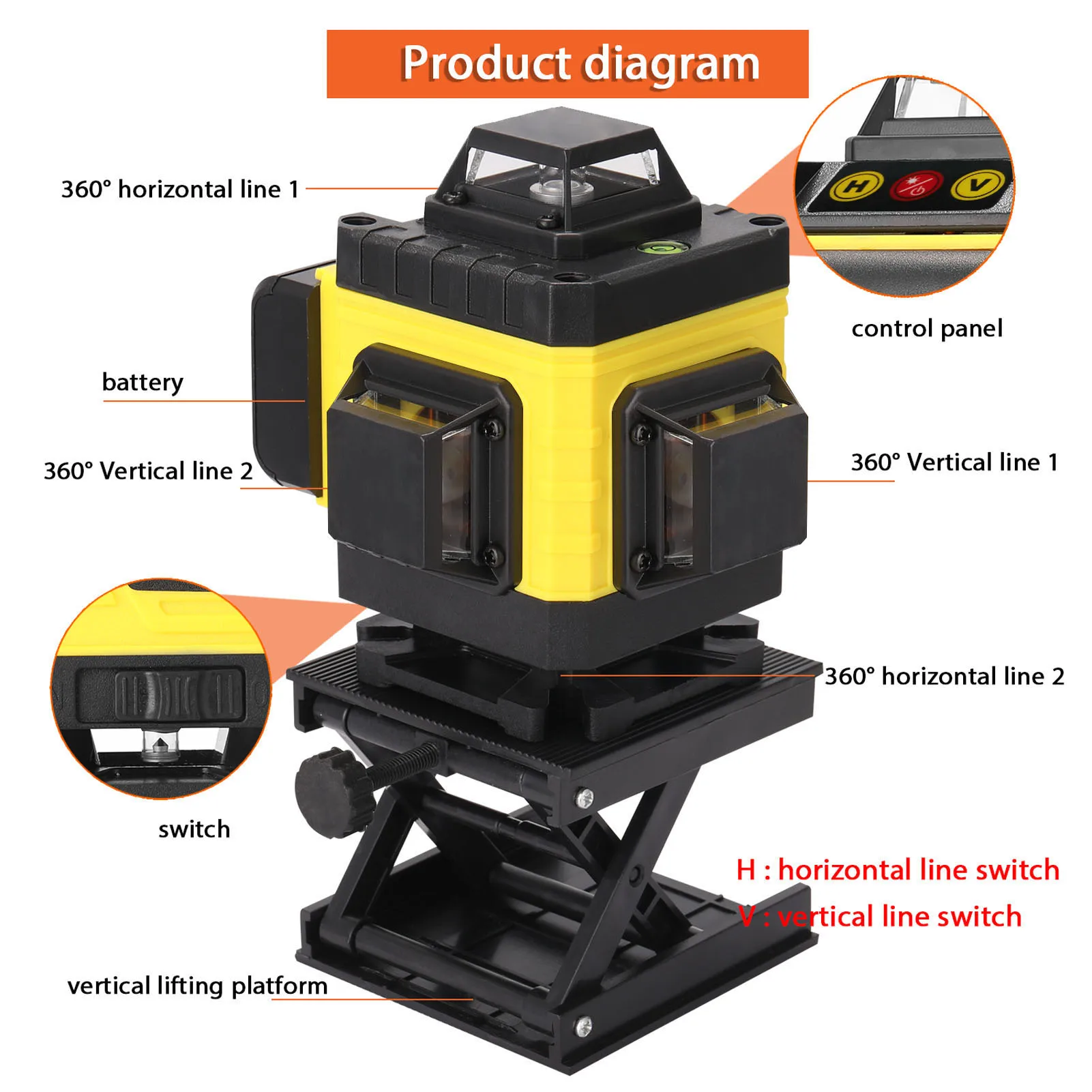

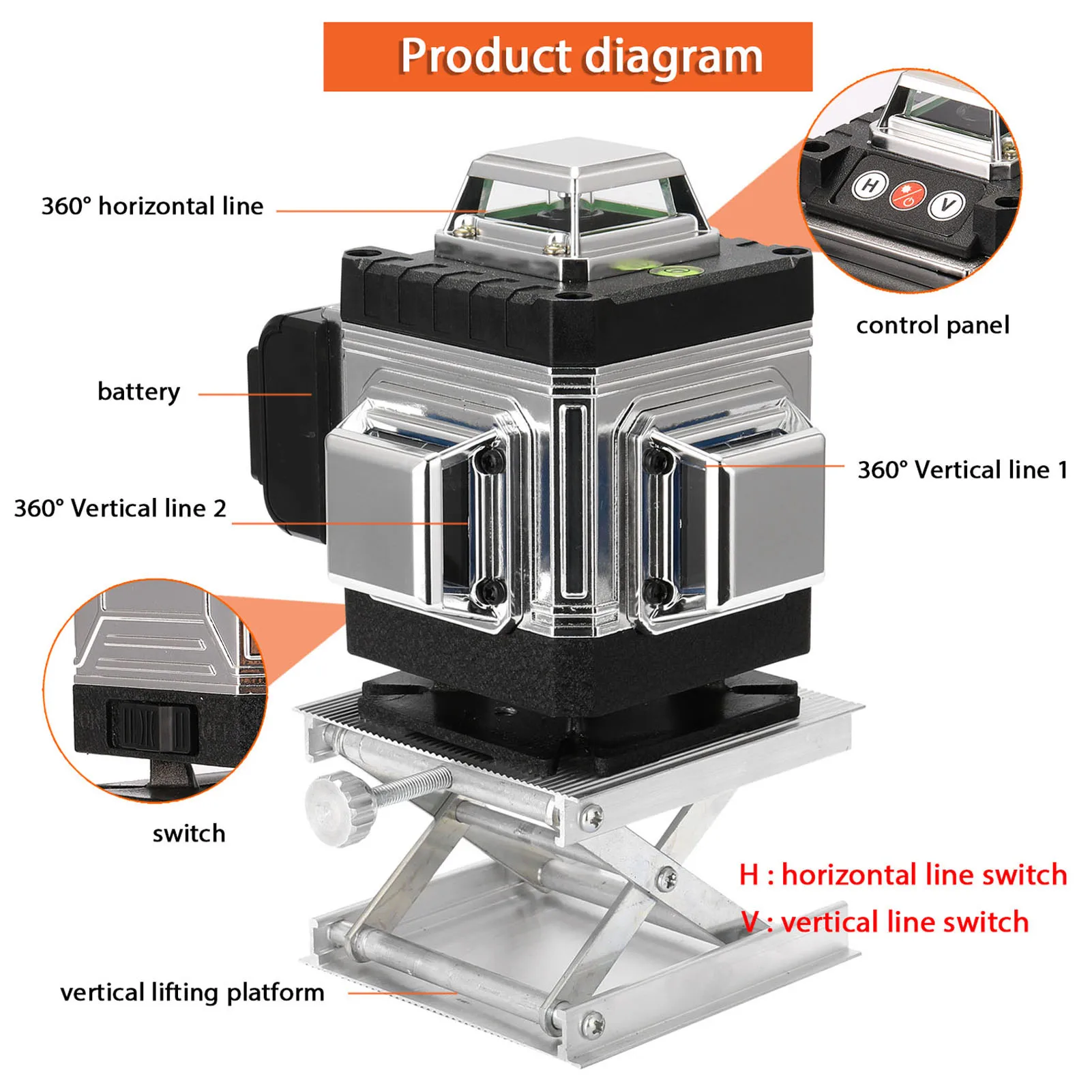

Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Easy to carry with the case, providing quick and convenient mobility and storage.

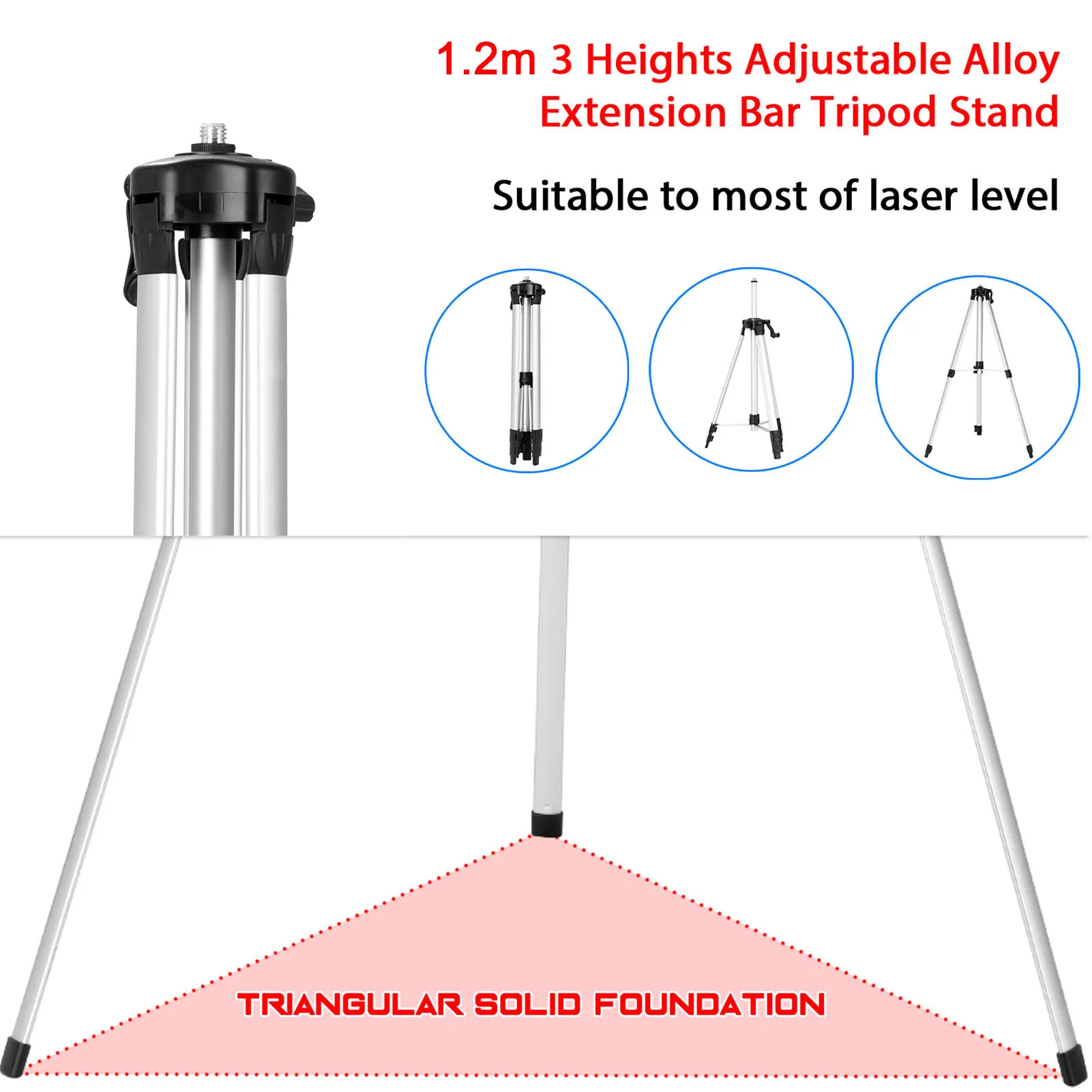

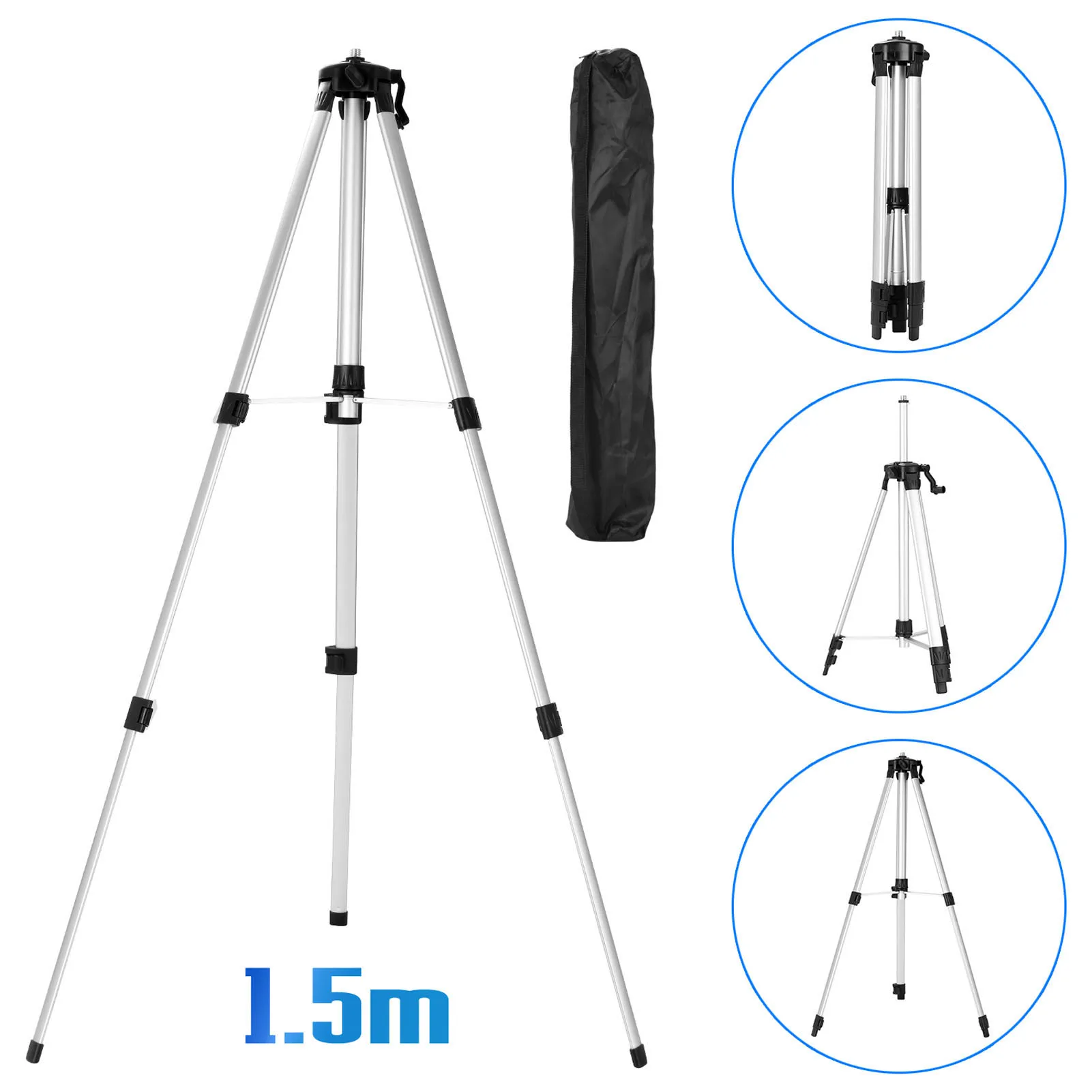

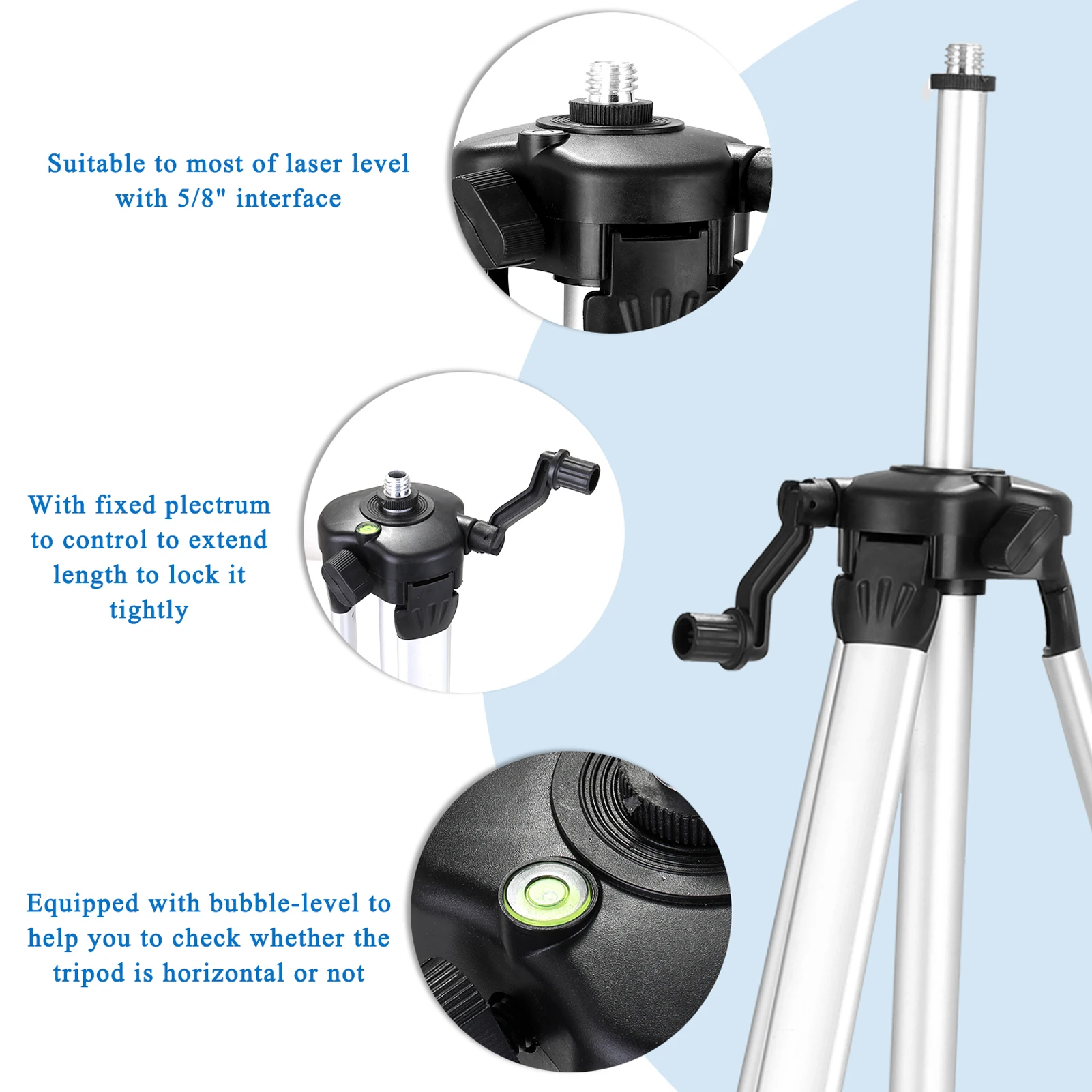

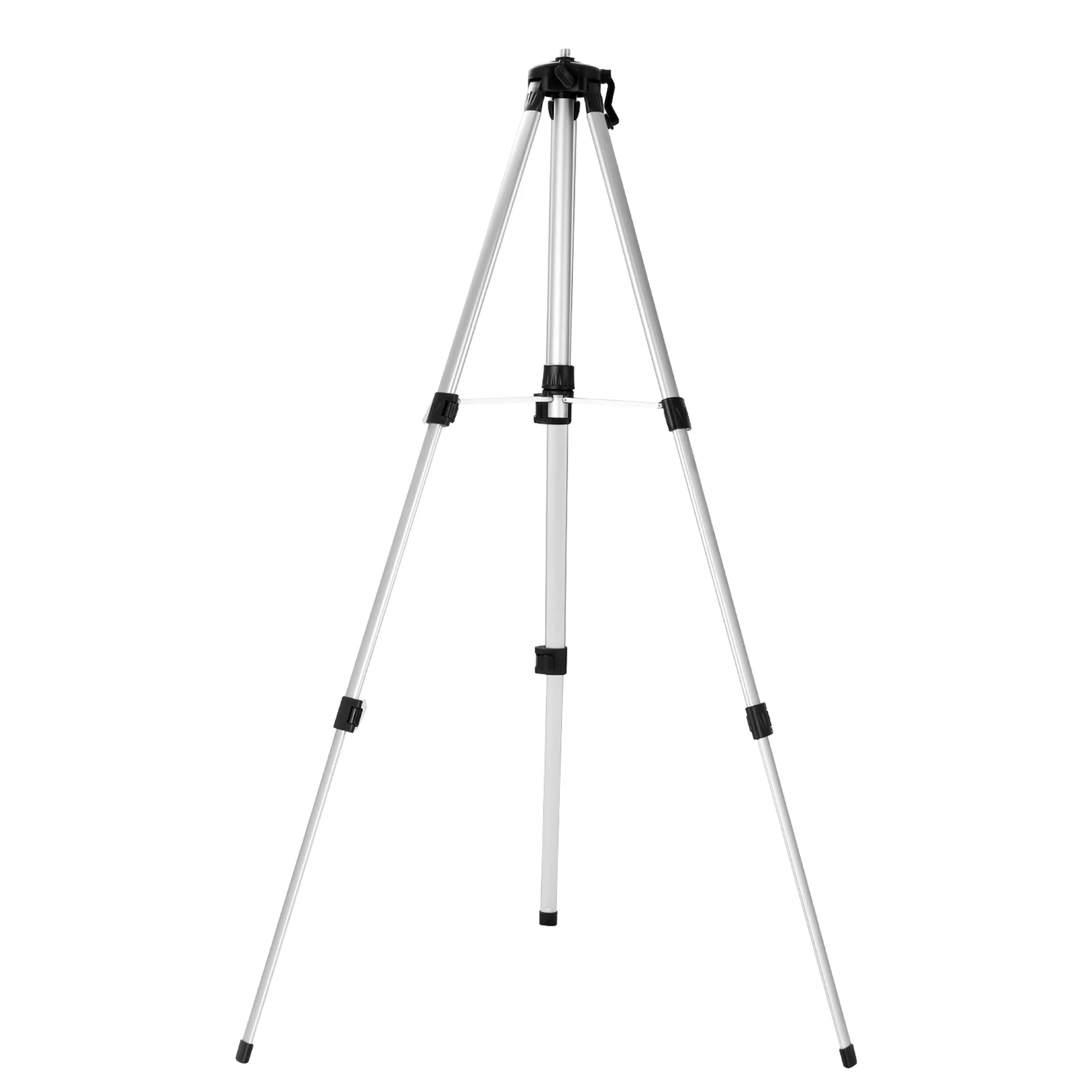

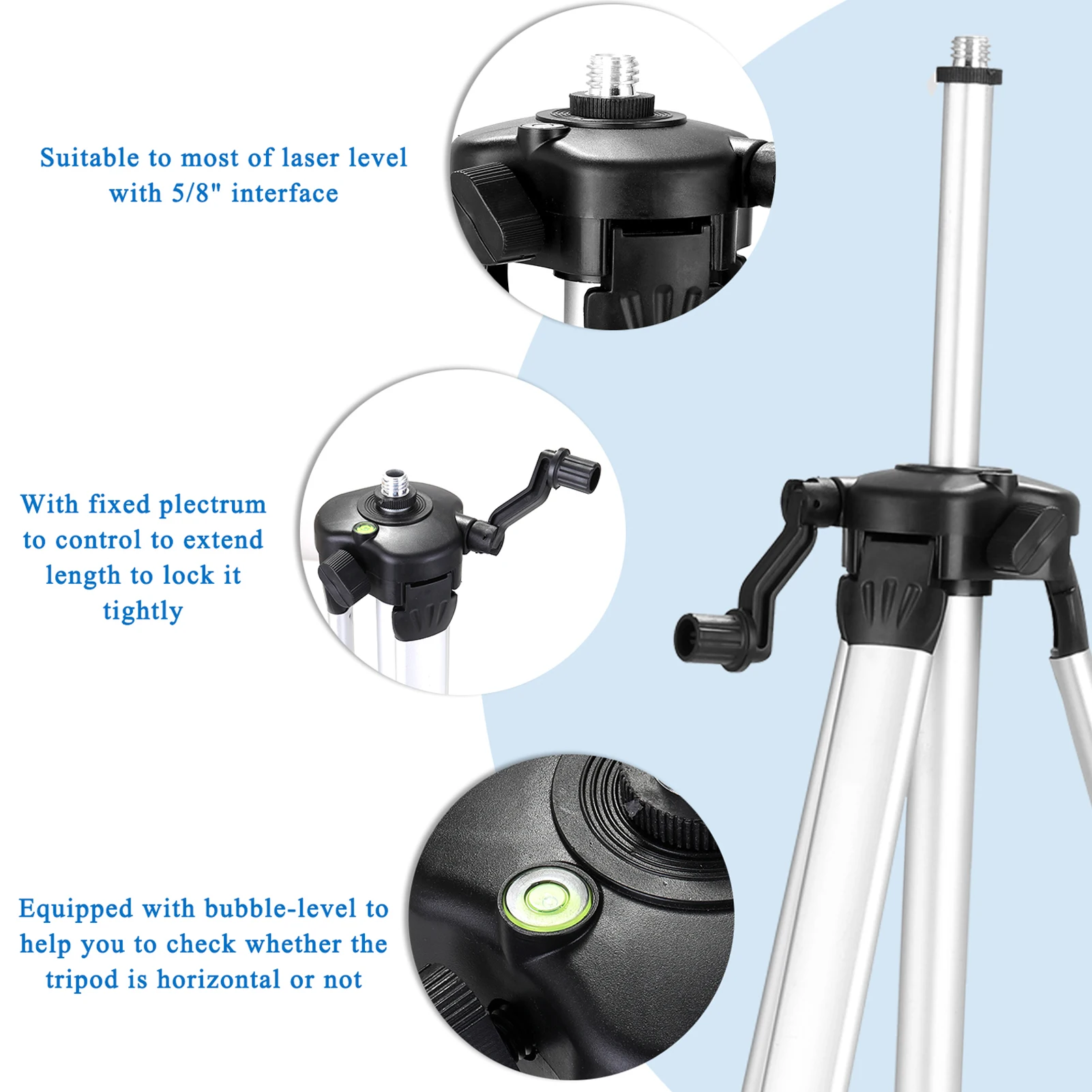

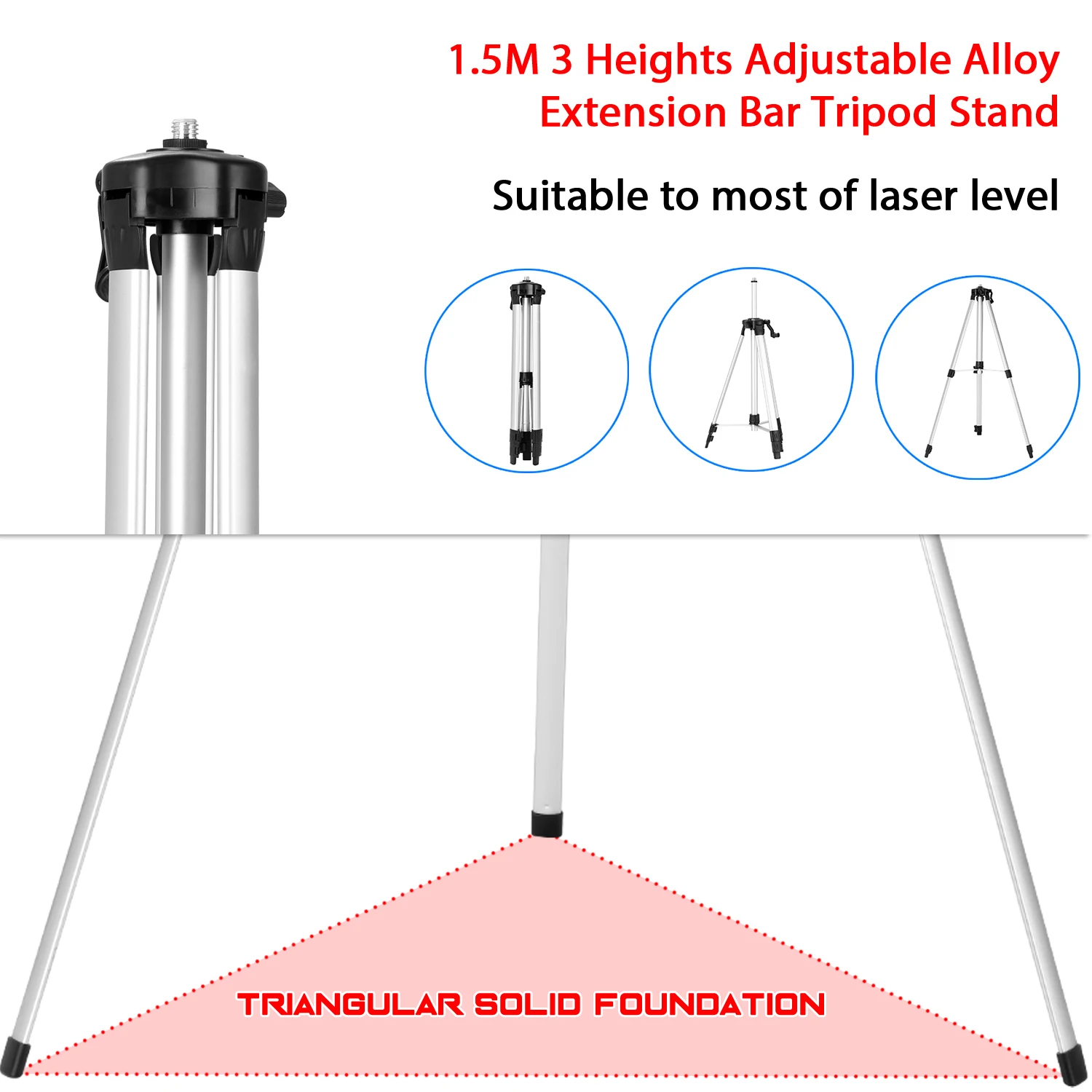

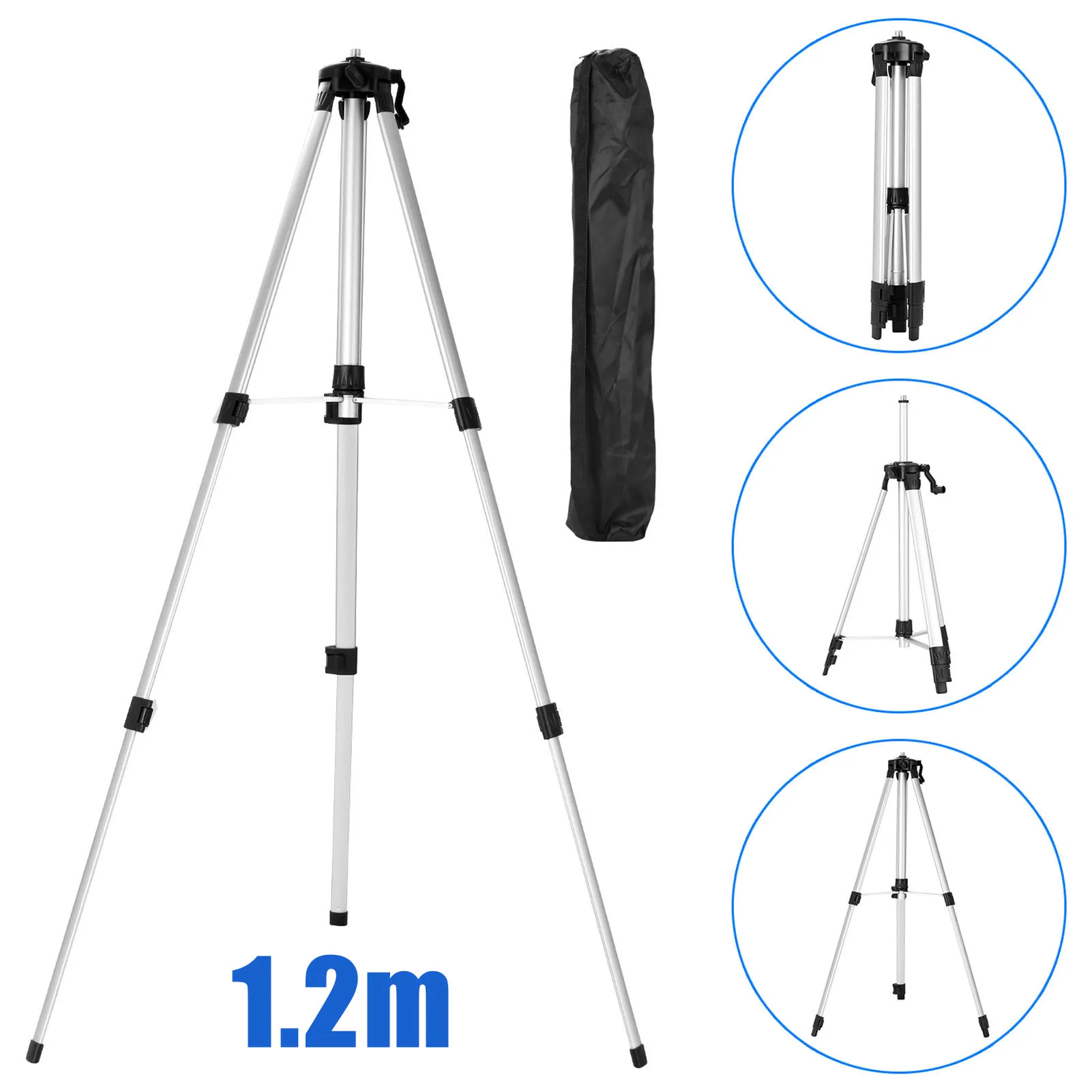

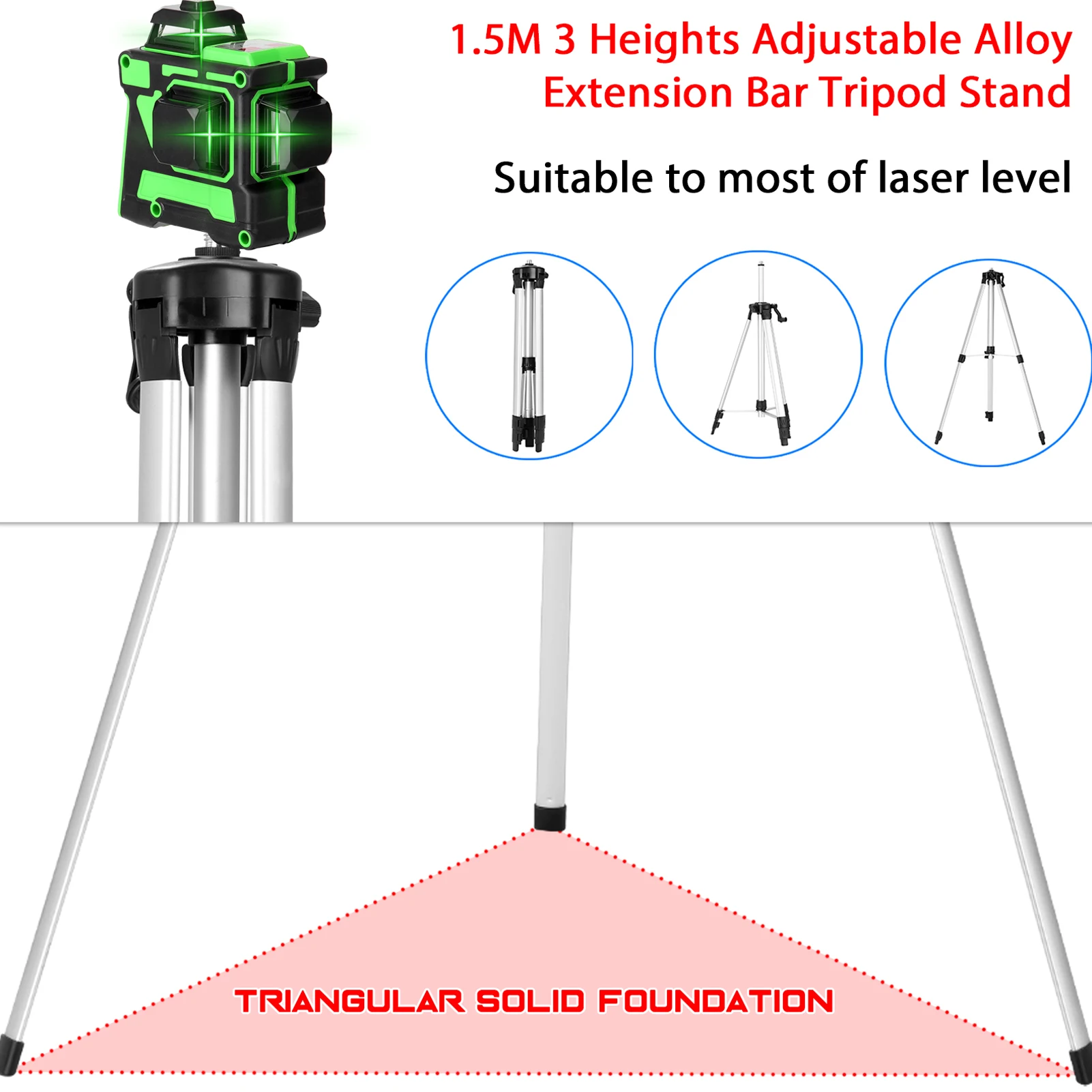

Extension Bar:
Made of thicken aluminum alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.
Equipped with bubble-level to help you to check whether the tripod is horizontal or not.
Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable to most of laser level with 5/8" interface.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 2400mAh (included, you will find there are two 18650 batteries inside if disassemble one)
Laser ray: 3D, 12 lines
Range: 30m
Laser lines accuracy: ±0.2mm/m
Laser light color: green light
Self-levelling-range: ±3°
Leveling time: <4s
Laser class: 2
Working temperature: -10℃ to 40℃
Storage temperature: -20℃ to 70℃
Moisture: 90%
Working time: 3-9 hours
Extension bar interface: 5/8"
Item size:
Laser level size: 137 * 110 * 217mm / 5.39 * 4.33 * 8.54in
Wall mounted bracket size: 160 * 86 * 65mm / 6.30 * 3.39 * 2.56in
Extension bar: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in
Package size: 44.8*26.7*22.4cm
Package weight: 2520g
Packing List:
1 * Level Machine with Battery
1 * Replacement Battery
1 * Wall Mounted Bracket
1 * Base Stand
1 * Iron Board
1 * Power Adapter
1 * Level Machine Carrying Bag
1 * Guideline
1 * Extension Bar
1 * Extension Bar Carrying Bag
Features:
Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.
360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.
Comes with wall-mounted bracket, can be easily attached to the floor tiles, wall stickers, and ceilings, all 7mm pitch.
Watreproof and dustproof, suitable for both indoor and outdoor use.
Adopts optical glass, K9 material, fine transmission, with clear laser light.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking reminding you to reset them on a flat ground.
Rotation knob design, clockwise rotate to open it, anticlockwise rotate to close it.
Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Easy to carry with the case, providing quick and convenient mobility and storage.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 1 * rechargeable battery, 3.7V, 4800mAh (included, you will find there are two 18650 batteries inside if disassemble it)
Laser ray: 3D, 12 lines
Range: 30m
Laser lines accuracy: ±0.2mm/m
Laser light color: green light
Self-levelling-range: ±3°
Leveling time: <4s
Laser class: 2
Working temperature: -10℃ to 40℃
Storage temperature: -20℃ to 70℃
Moisture: 90%
Continous time: 3-9 hours
Item size:
Assemble size: 137 * 110 * 217mm / 5.39 * 4.33 * 8.54in
Wall mounted bracket size: 160 * 86 * 65mm / 6.30 * 3.39 * 2.56in
Item weight: 1337g / 2.94lb
Package size: 257 * 217 * 170mm
Package weight: 1660g

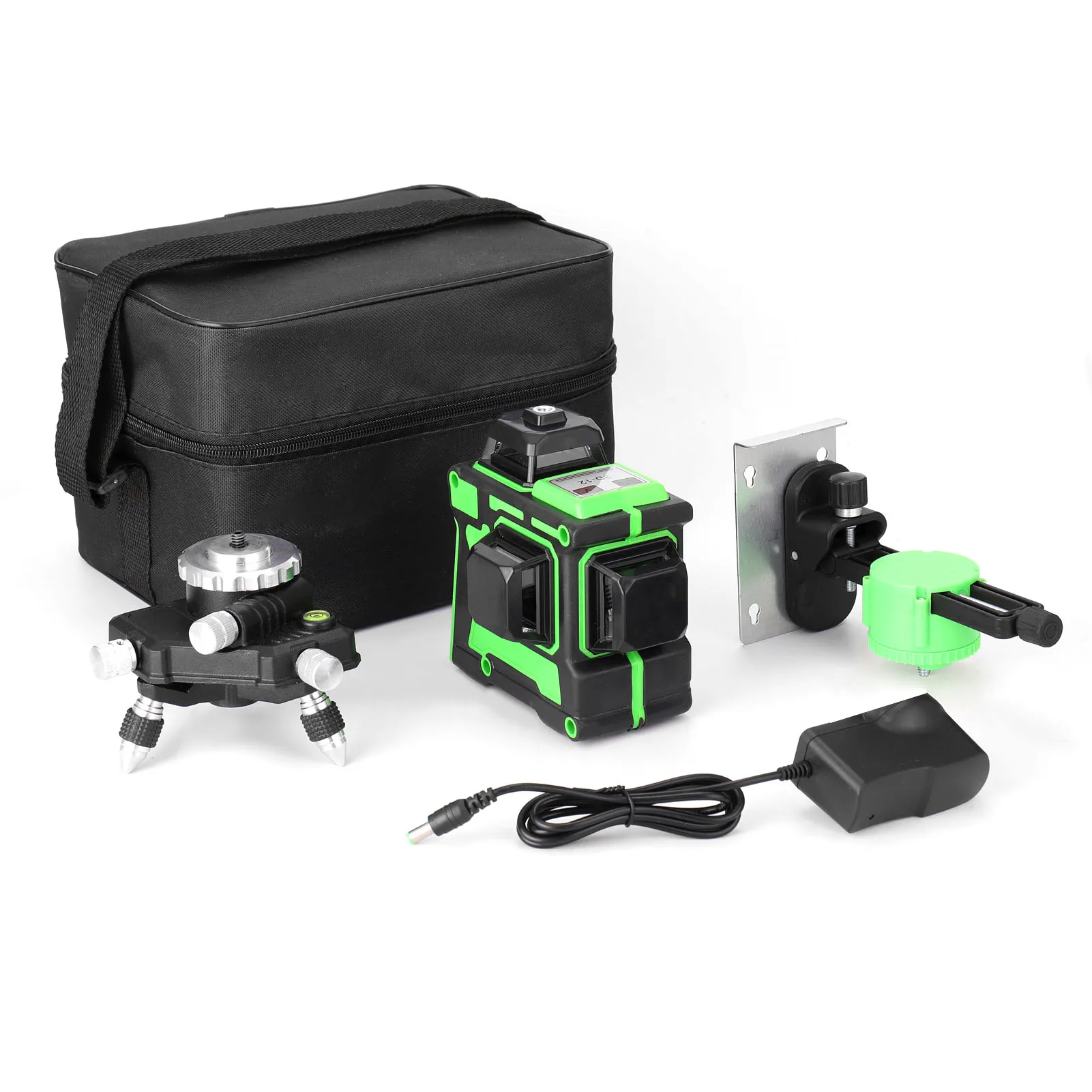

Packing List:
1 * Level Machine
1 * Wall Mounted Bracket
1 * Base Stand
1 * Iron Board
1 * Power Adapter
1 * Carrying Bag
1 * Guideline

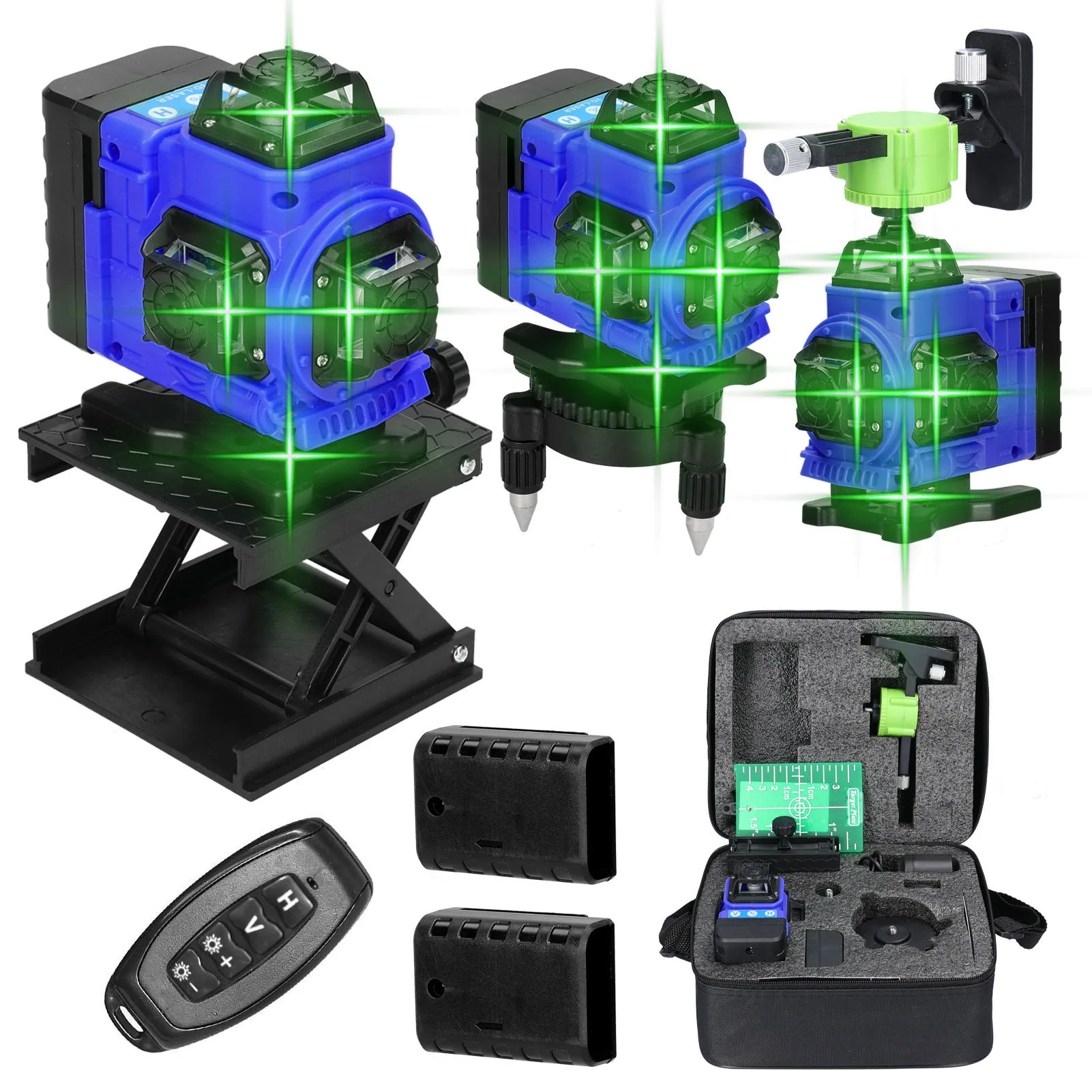

-------3D Type3------
Specifications:
Name: Laser Level
Main material: plastics+metal
Type: black-EU, blue-EU, green-EU, black-US, blue-US, green-US (optional)
Line type: 3 * 360°, 12 lines
Wavelength: 532nm (Green)
Accuracy: ±1mm/5m
Battery: 2 * rechargeable lithium batteries, 3.7V, 1200mAh (included)
Wall mounted distance: 7mm
Working temperature: -10℃ to 50℃
Working radius: 10m
Self-leveling angle: ±3°
Diagonal function: Yes
Level machine size: 95 * 73 * 94mm / 3.74 * 2.87 * 3.70in
Rotating base size: 97 * 82 * 71 mm / 3.82 * 3.23 * 2.80in
Wall-mounted bracket size: 85 * 62 * 150mm / 3.35 * 2.44 * 5.91in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 115 * 92 * 30mm / 4.53 * 3.62 * 1.18in
Carrying bag: 220 * 195 * 140mm / 8.66 * 7.68 * 5.51in
Item weight: 1096g / 2.42lb
Package size: 225 * 170 * 270mm / 8.86 * 6.69 * 10.63in
Package weight: 1242g / 2.74lb
Packing List:
1 * Level Machine
1 * Battery
1 * Battery Adapter
1 * Rotating Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Adapter
1 * Carrying Bag
1 * Guideline
The 3D laser level meter can emit visible lase horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datums for indoor construction stakeout and calibration, easy to operate, and versatile. Suitble for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation. You can have a try.
Features:
Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.
Watreproof and dustproof, suitable for both indoor and outdoor use.
Adopts optical , K9 material, fine transmission, with clear laser light.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking reminding you to reset them on a flat ground.
Rotation knob design, clockwise rotate to open it, anticlockwise rotate to close it.
Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Easy to carry with the case, providing quick and convenient mobility and storage.
Totally two types for you to choose: one battery type and two batteries type, you can choose according to your demands.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery(one battery type or two batteries according to your selection):
One battery type:1 * rechargeable battery, 3.7V, 4800mAh (included, you will find there are two 18650 batteries inside if disassemble it)
Two batteries type:2 * rechargeable battery, 3.7V, 4800mAh (included, you will find there are two 18650 batteries inside if disassemble one)
Laser ray: 3D, 12 lines
Range: 30m
Laser lines accuracy: ±0.2mm/m
Laser light color: green light
Self-levelling-range: ±3°
Leveling time: <4s
Laser class: 2
Working temperature: -10℃ to 40℃
Storage temperature: -20℃ to 70℃
Moisture: 90%
Continous time: 3-9 hours
Item size: 137 * 110 * 217mm / 5.39 * 4.33 * 8.54in
Package size: 27.1*21.5*17.3cm
Package weight: 1160g
Packing List (One battery type):
1 * Level Machine
1 * Battery
1 * Power Adapter
1 * Carrying Bag
OR
Packing List (Two battery type):
1 * Level Machine
2 * Battery
1 * Power Adapter
1 * Carrying Bag
![](https://ae01.alicdn.com/kf/S82609b730b4b4abeabddb6e6d7ccb538d.jpg)
![](https://ae01.alicdn.com/kf/Sf40bff820a4e431ab0473e49c5d8b908b.jpg)
![](https://ae01.alicdn.com/kf/Sf95dd9d801524f379cb115e200cab404u.jpg)
![](https://ae01.alicdn.com/kf/S1e4f7e751cee46988d2f22ad083f1fd79.jpg)
![](https://ae01.alicdn.com/kf/Sb8196db04e144b1cbe6651f23396748f2.jpg)

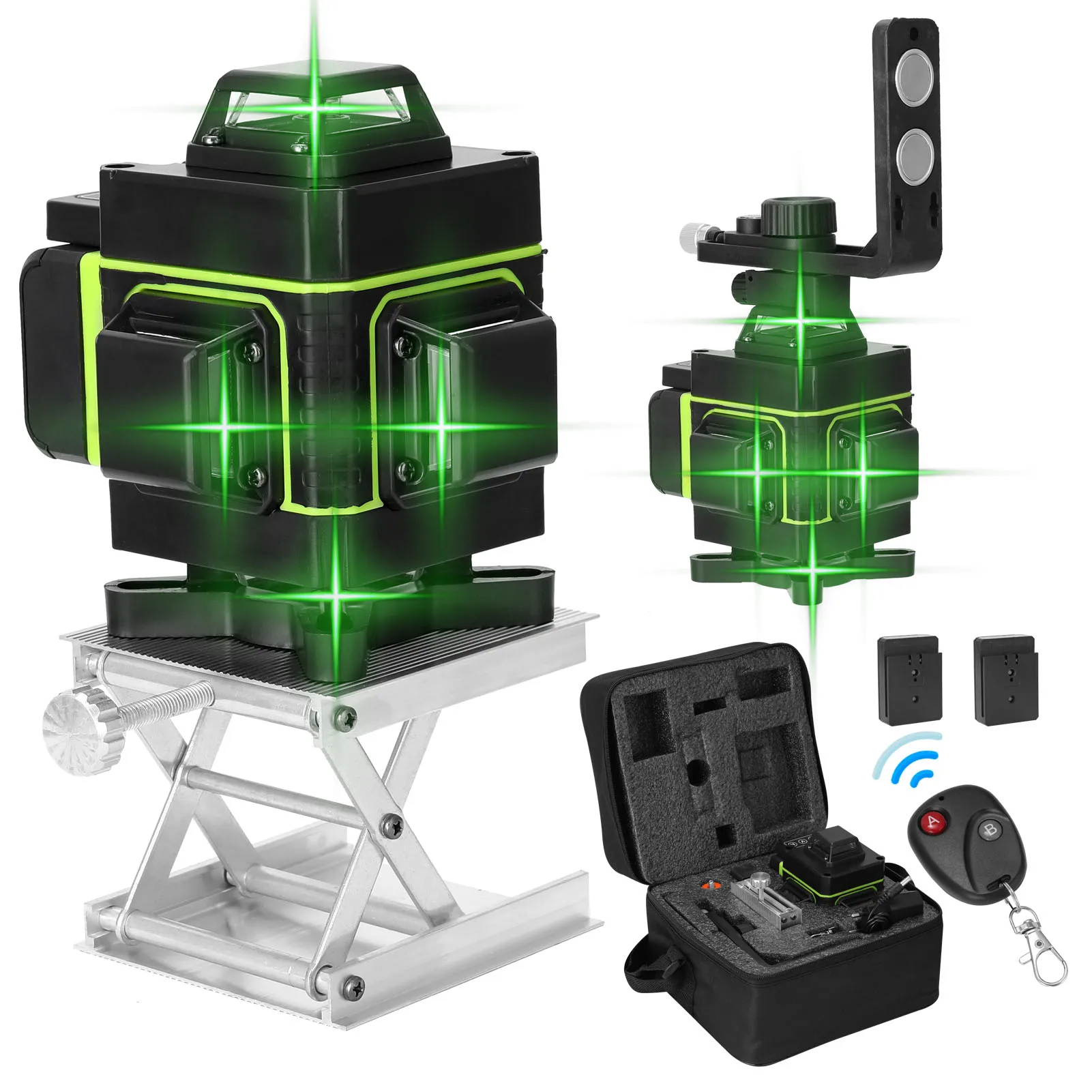

Features:

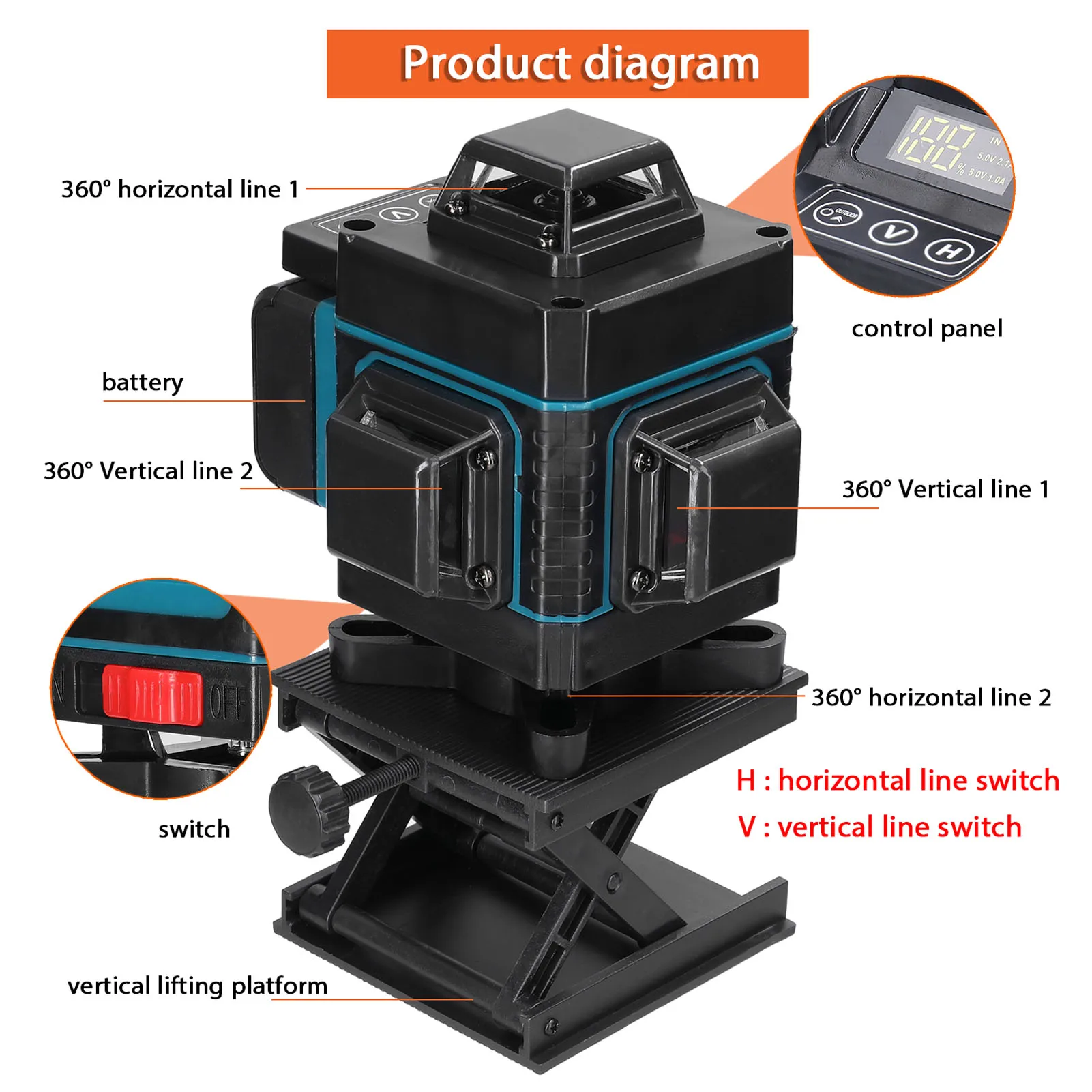

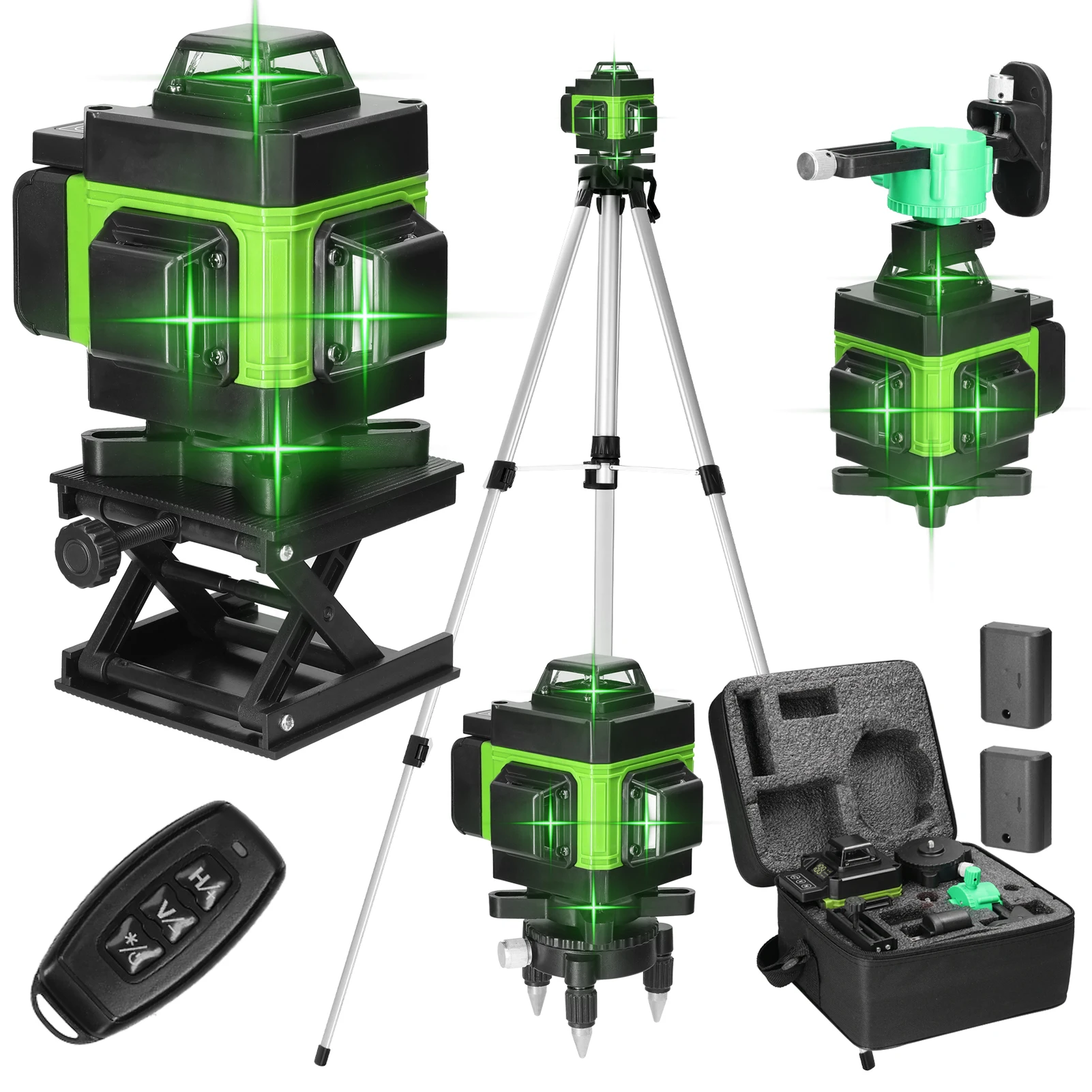

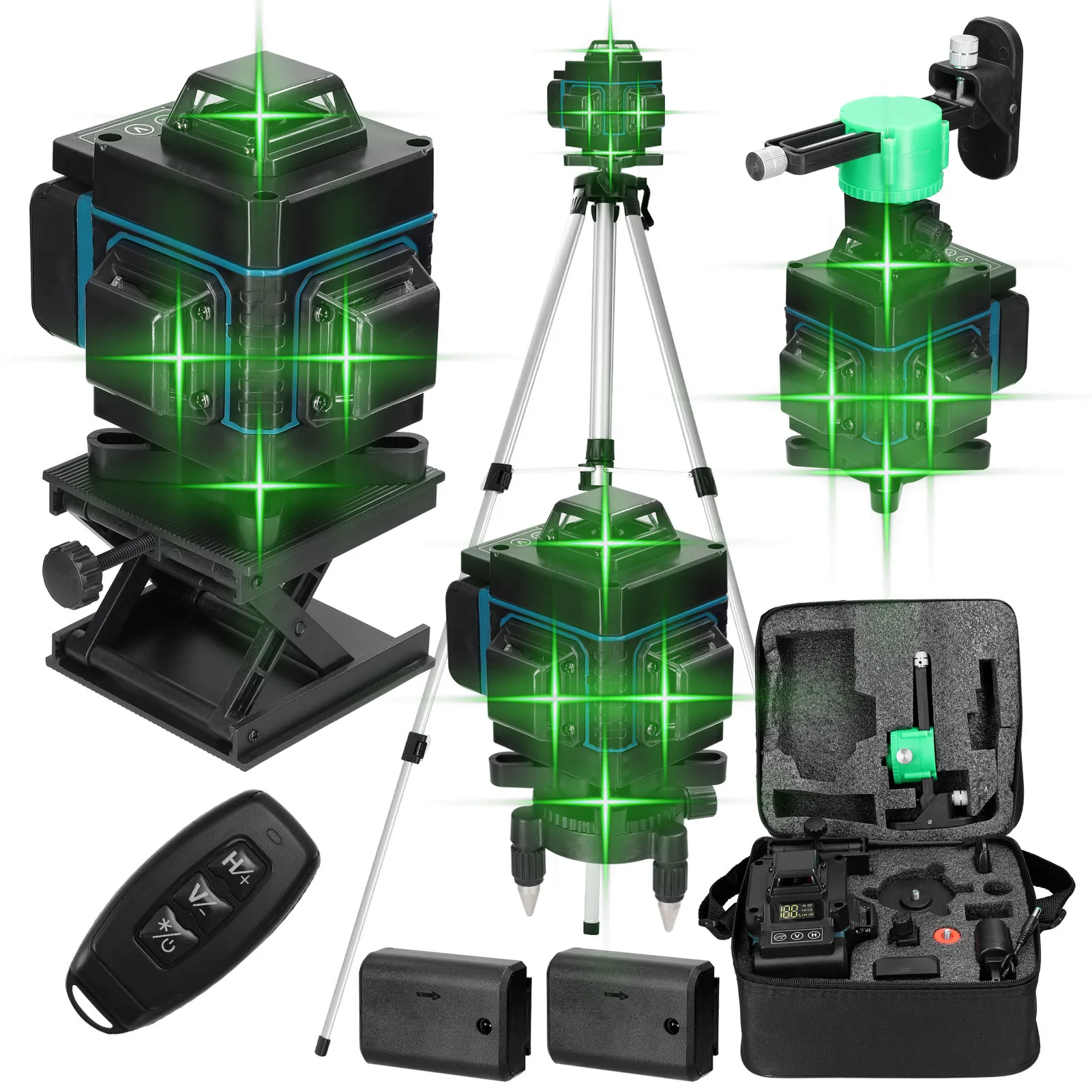

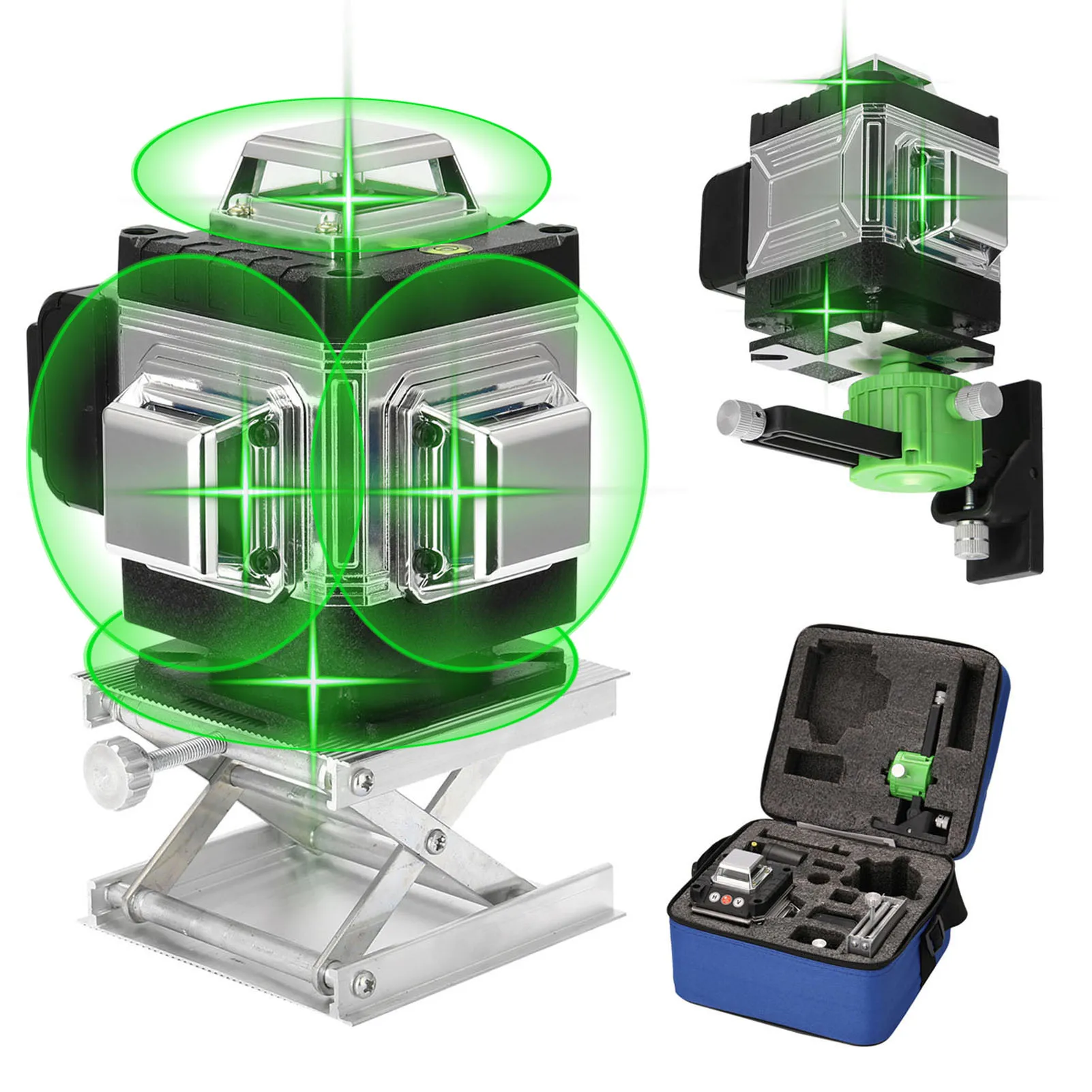

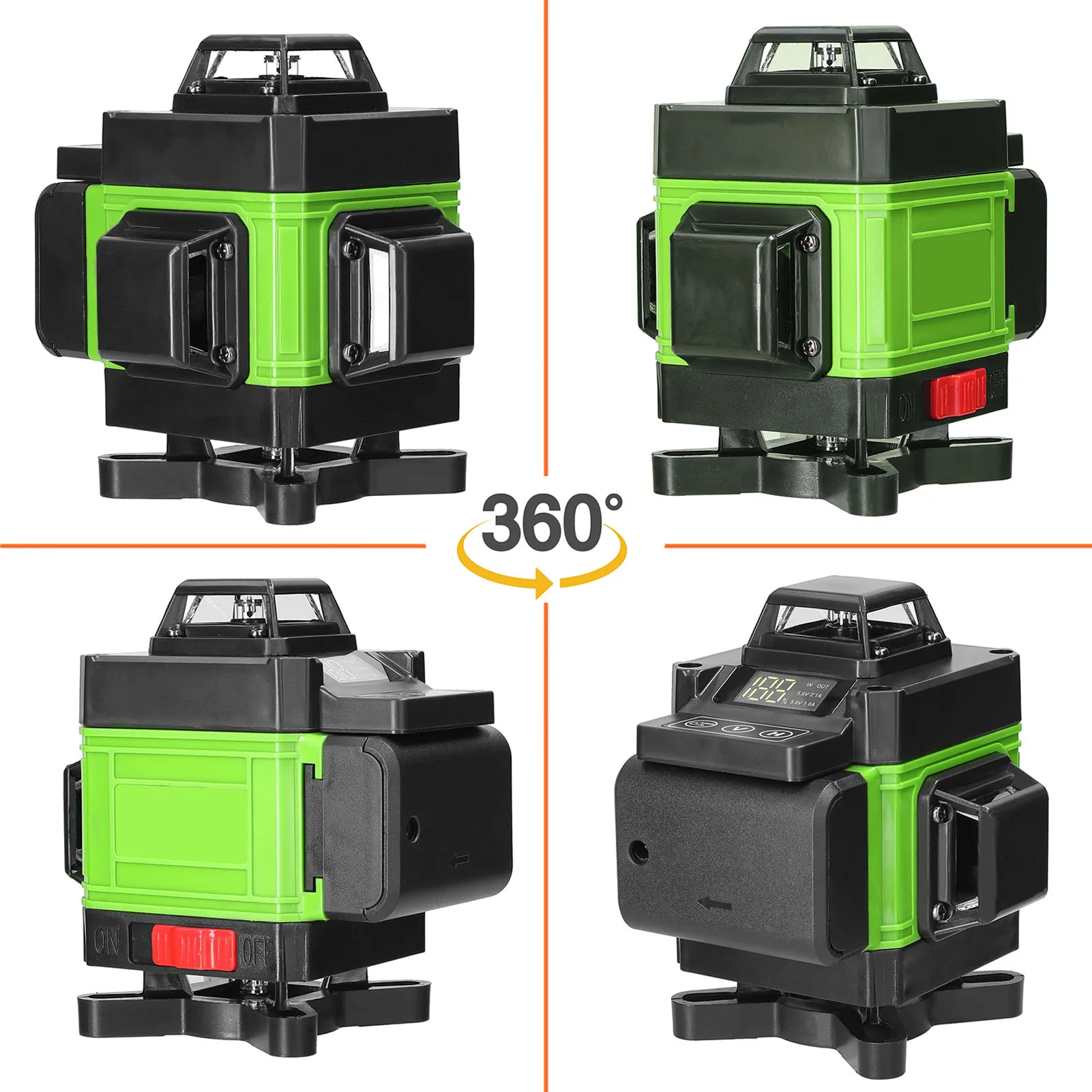

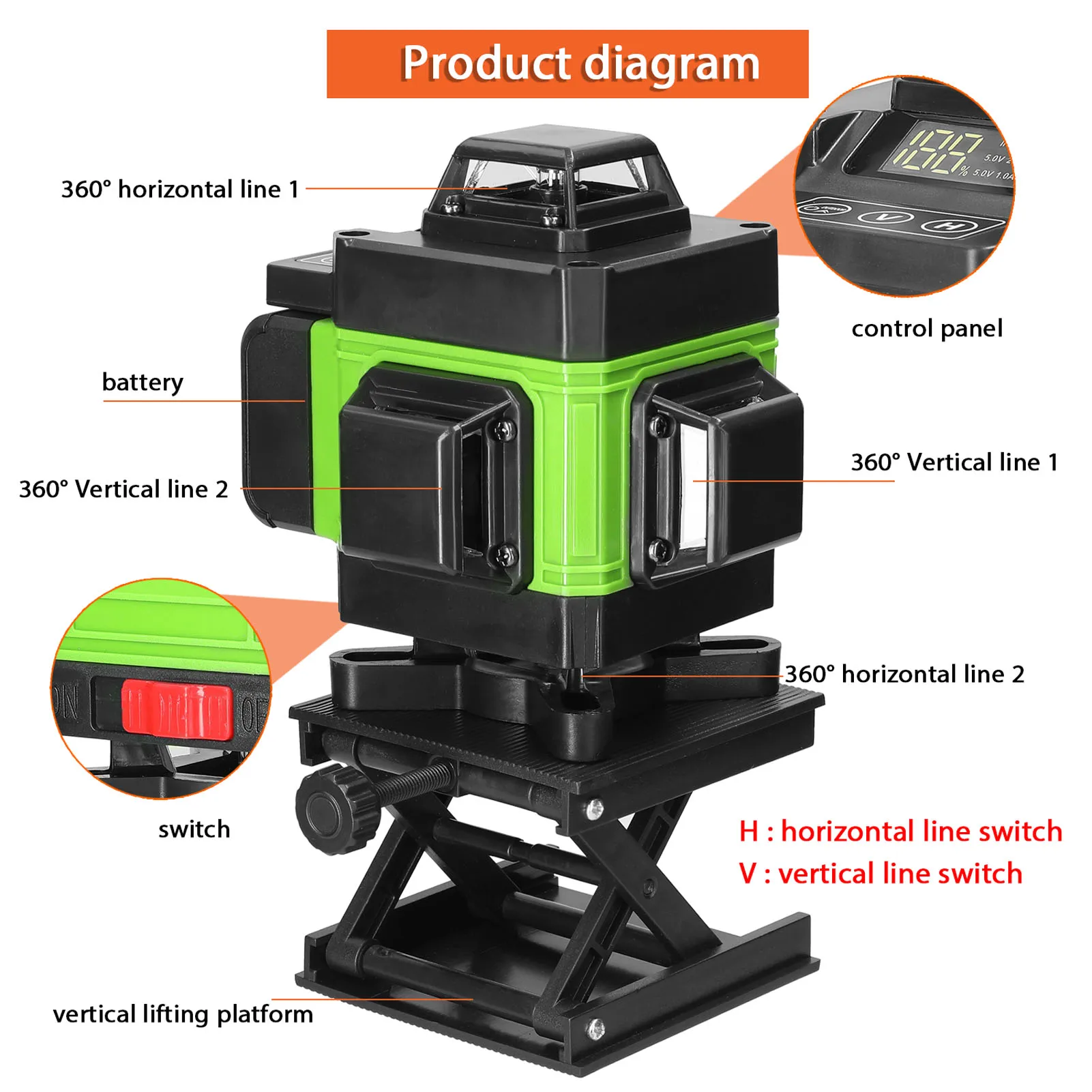

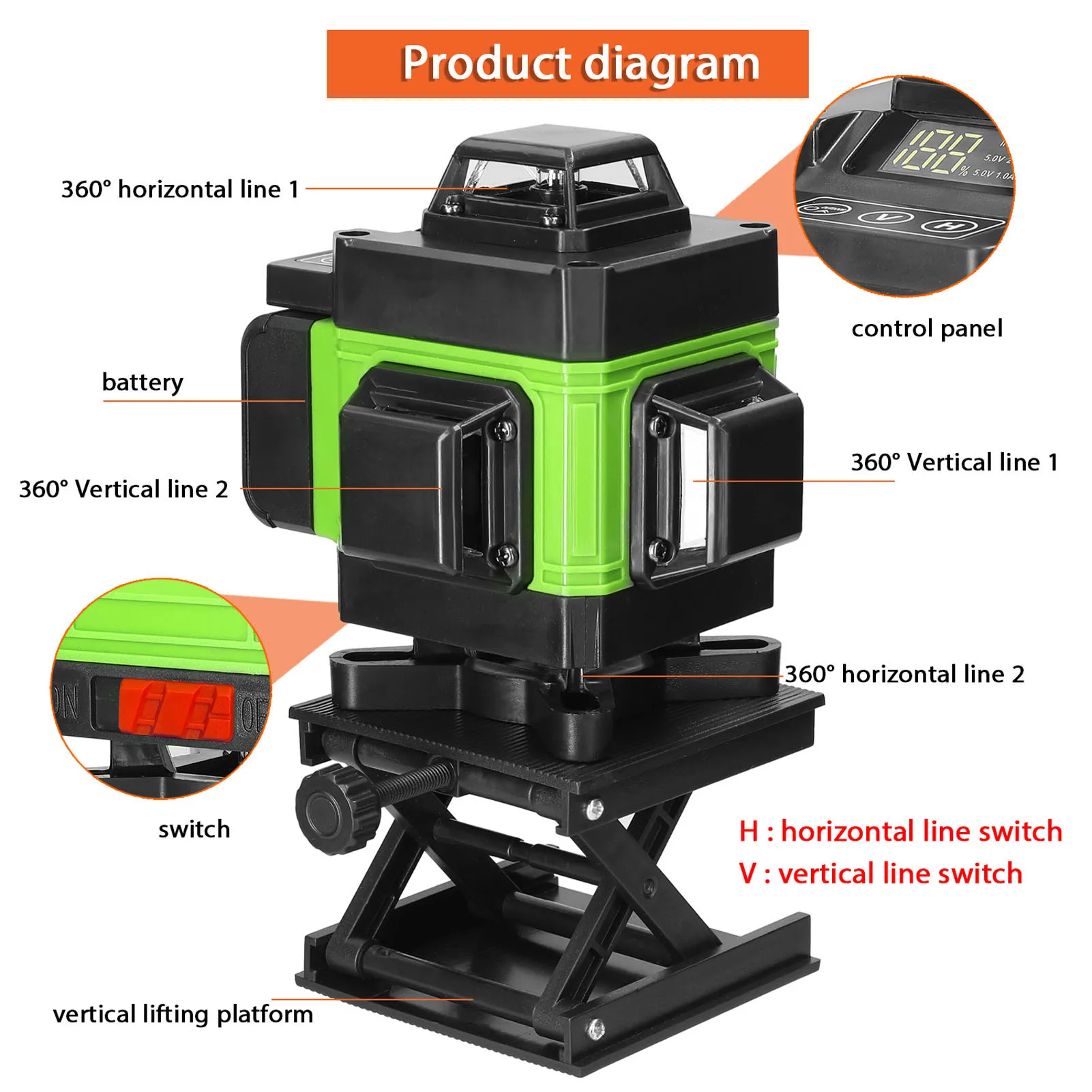

4D 16 lines for finer positioning, with self-leveling system, flexibility and stability.
Adopts optical glass, fine transmission, with clear laser light.
Push button design, push left to open it, push right to close it.

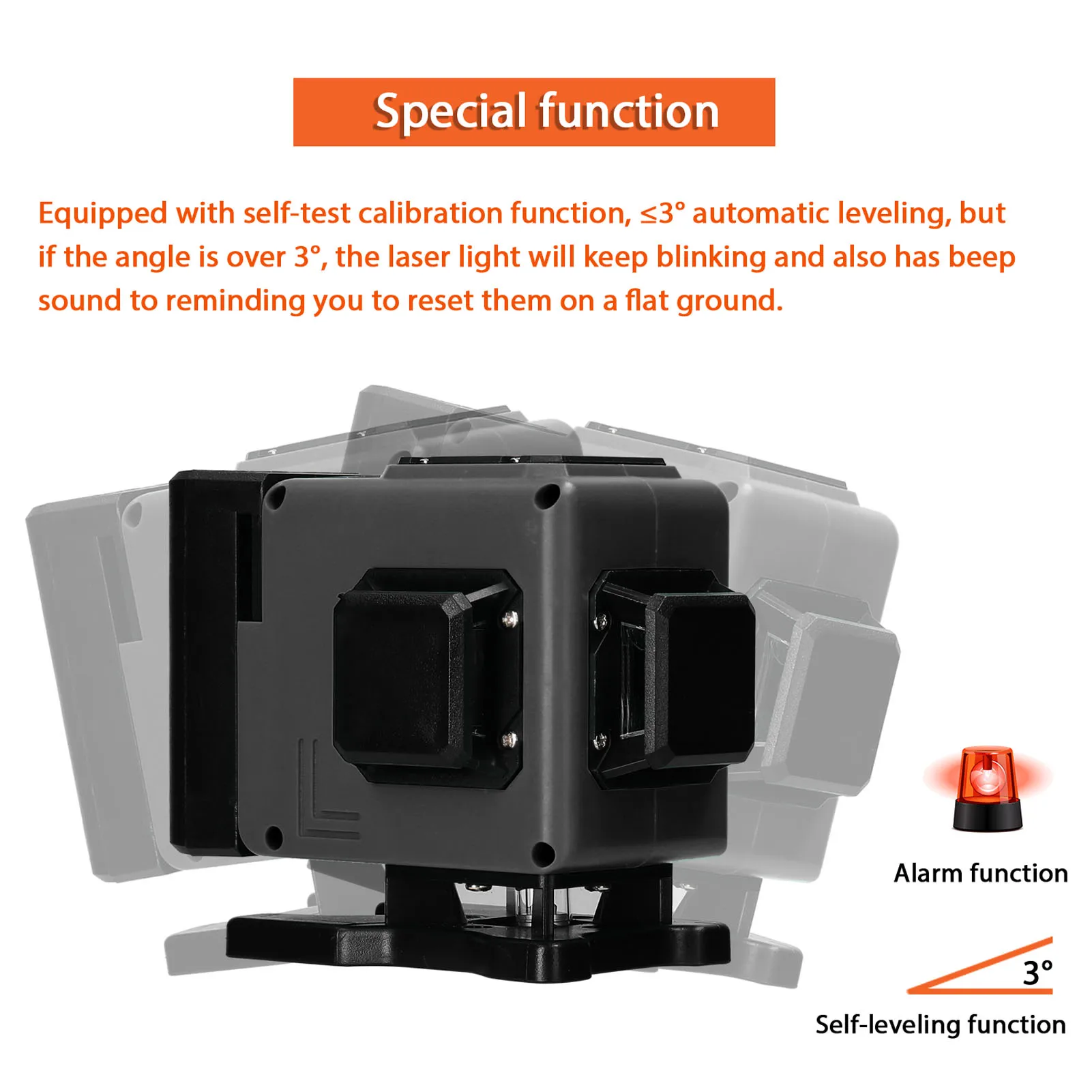

Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and also has beep sound to reminding you to reset them on a flat ground.
Equipped with LCD display, with battery remaining electricity display function for you to recharge the battery in time.
The magnetic-damping compensation system ensures quick leveling time.

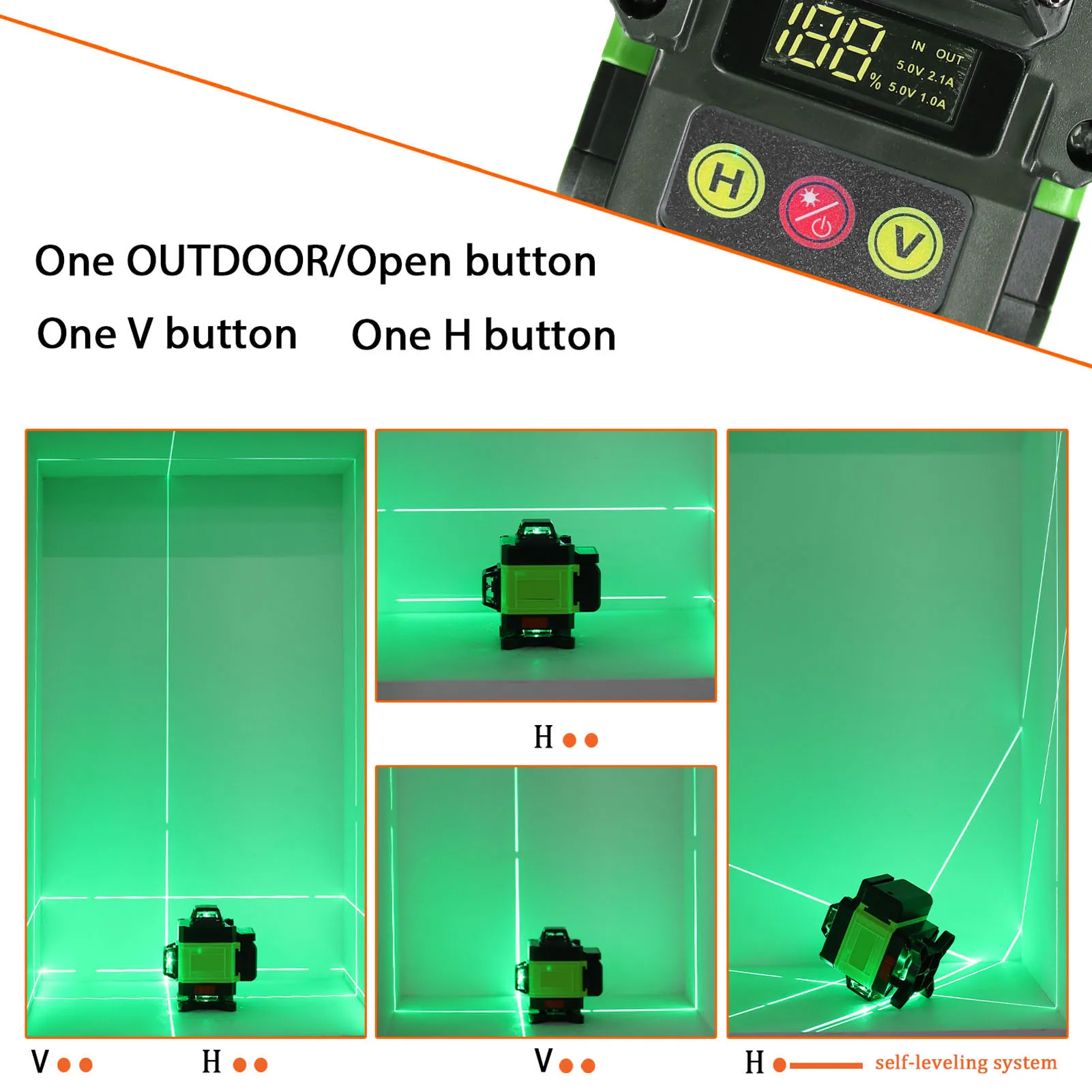

Three touching buttons design, one OUTDOOR/Open button, one V button, and one H button, the slashline, horizontal line and vertical line with a clear division.
1/4" thread size on the bottom for easy connection, it can be used with tripod to adjust the working height of the machine.
The T-shape bracket has 360° rotatable base, and equipped with spirit-bubble, can make the machine quickly find the target(1/4" screw size).
With 7mm wall mounted distance, general for indoor and outdoor use.

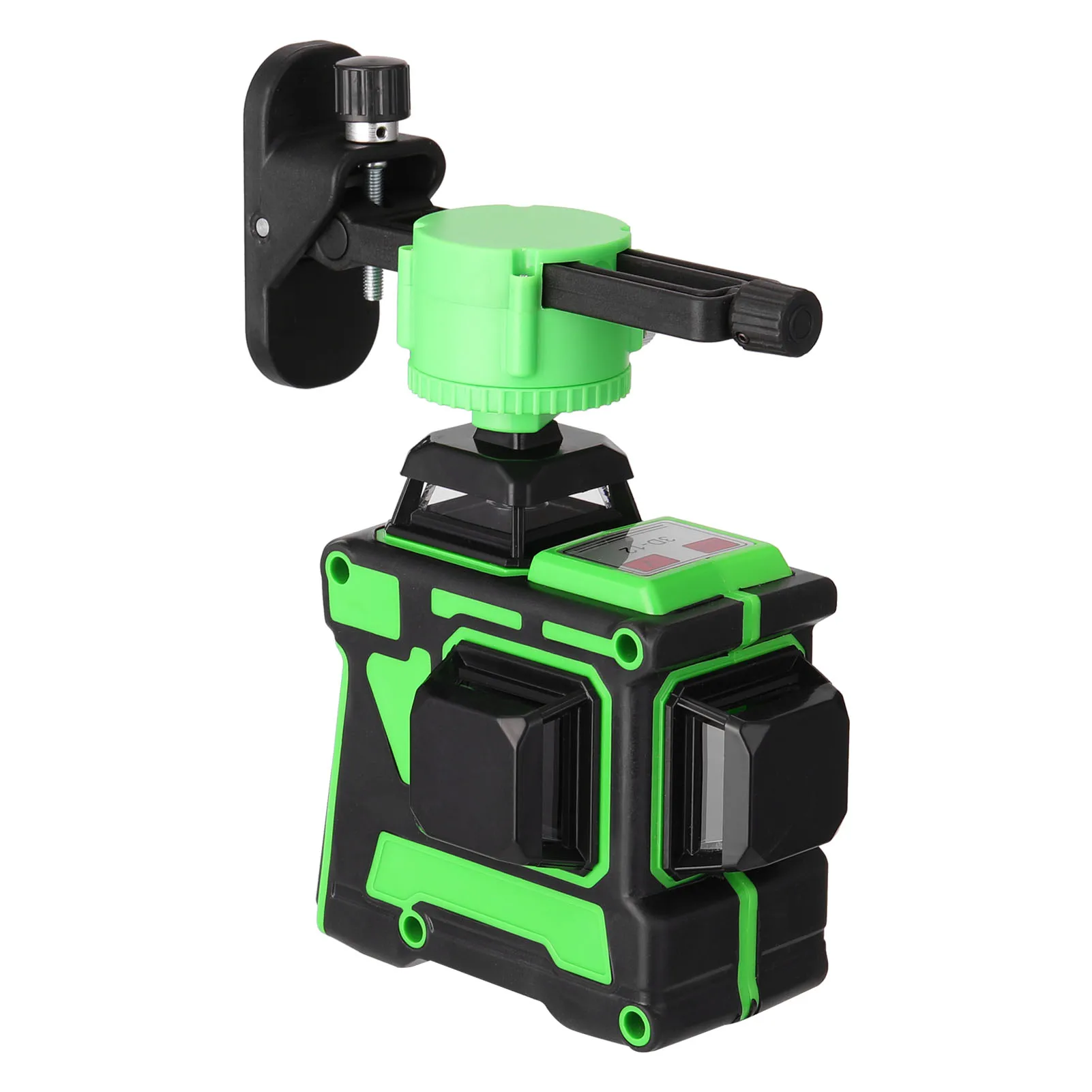

Equipped with window clip holder for works with wall-mounted bracket.

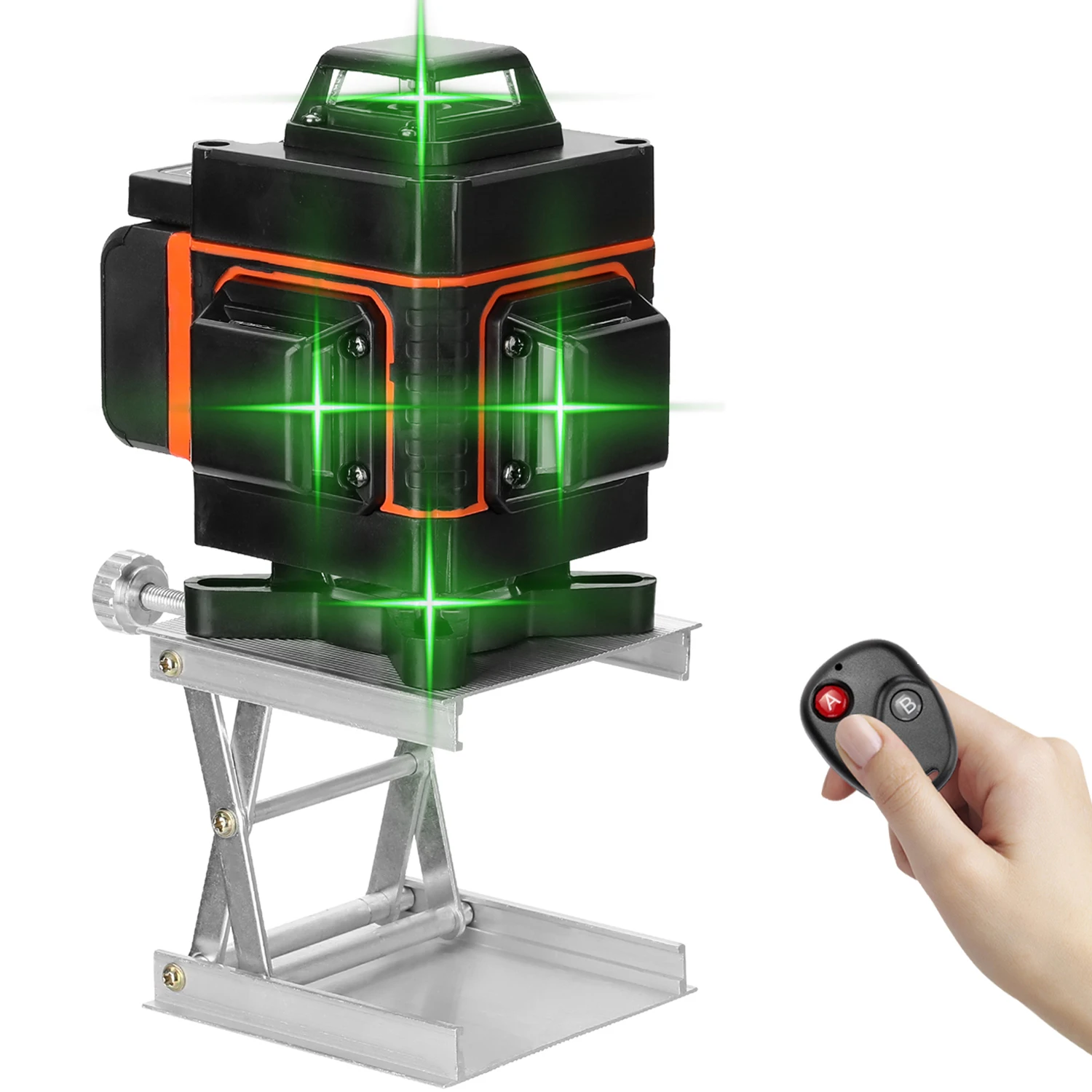

Comes with one remote control, A=vertical line, B=horizontal line.
The remote controller also has laser light brightness adjustable function, long press A to light up and long press B to dim it.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
1/4" to 5/8" thread adapter for easy connection, it can be used with 5/8" thread tripod to adjust the working height of the machine.
Easy to carry with the carrying bag, providing quick and convenient mobility and storage.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics metal
Color: black+green
Battery: 2 * rechargeable battery, 3.7V, 1500mAh (included, you will find there are two 18650 batteries inside if disassemble one)
Laser ray: 360°*4, 16lines(40)
Display: LCD display
Wavelength: Green light 532nm
Laser lines accuracy: ±0.2mm/10m
Self-levelling-range: ±3°
Alarm angle: 3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Battery size: 73 * 52 * 30mm / 2.87 * 2.05 * 1.18in
Level machine: 127 * 103 * 135mm / 5.00 * 4.06 * 5.31in
Assemble size: 129 * 103 * 135mm / 5.08 * 4.06 * 5.31in
Wall-mounted bracket size: 145 * 124 * 35mm / 5.71 * 4.88 * 1.38in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
1/4" to 5/8" adapter size: 23 * 23 * 30mm / 0.91 * 0.91 * 1.18in

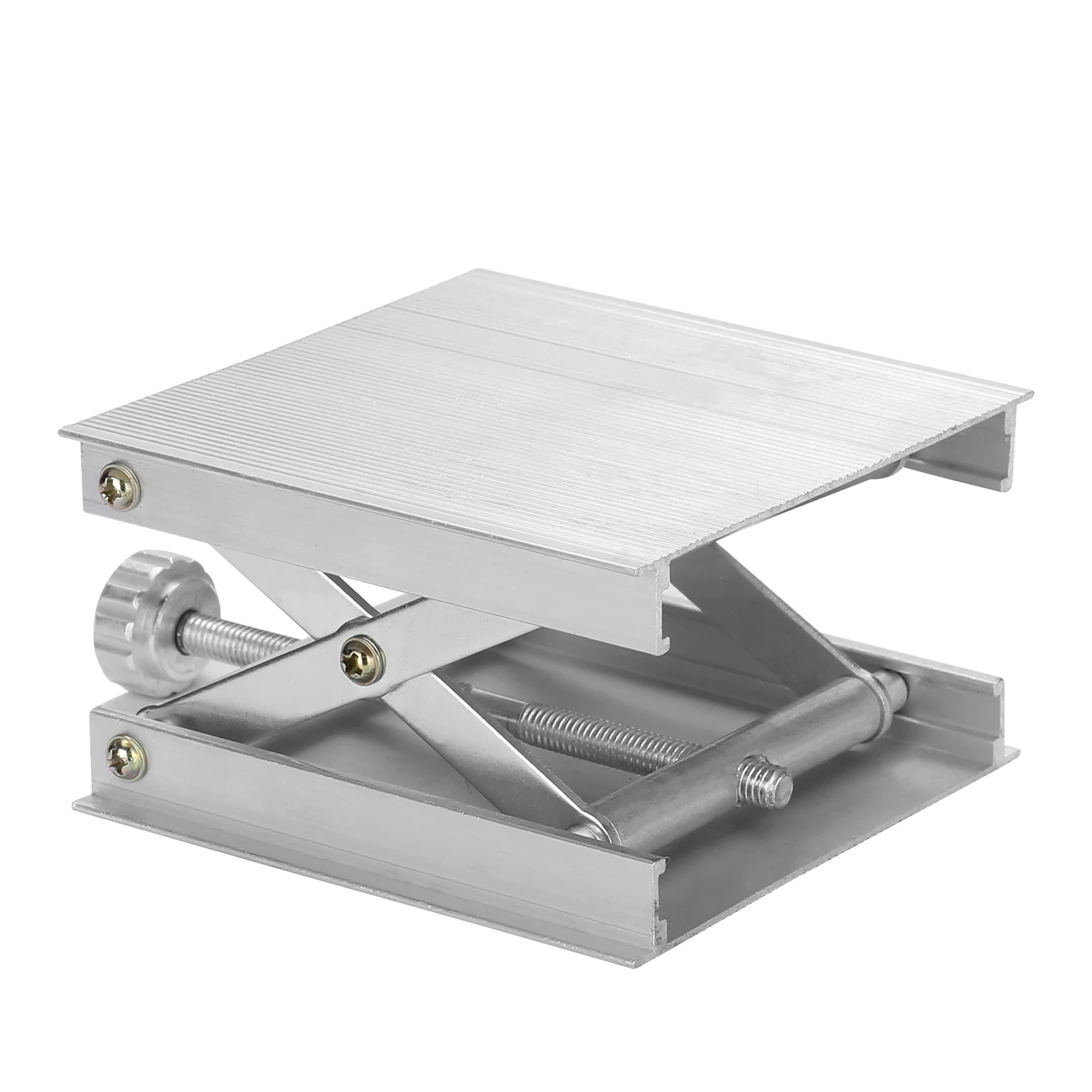

Lifting platform size: 115 * 91 * 30mm / 4.53 * 3.58 * 1.18in
Clip holder: 25 * 22 * 62mm / 0.98 * 0.87 * 2.44in
Carrying bag: 235 * 215 * 165mm / 9.25 * 8.46 * 6.50in
Item weight: 1322g / 2.91lb
Package size: 220 * 160 * 270mm / 8.66 * 6.30 * 10.63in
Package weight: 1468g / 3.24lb

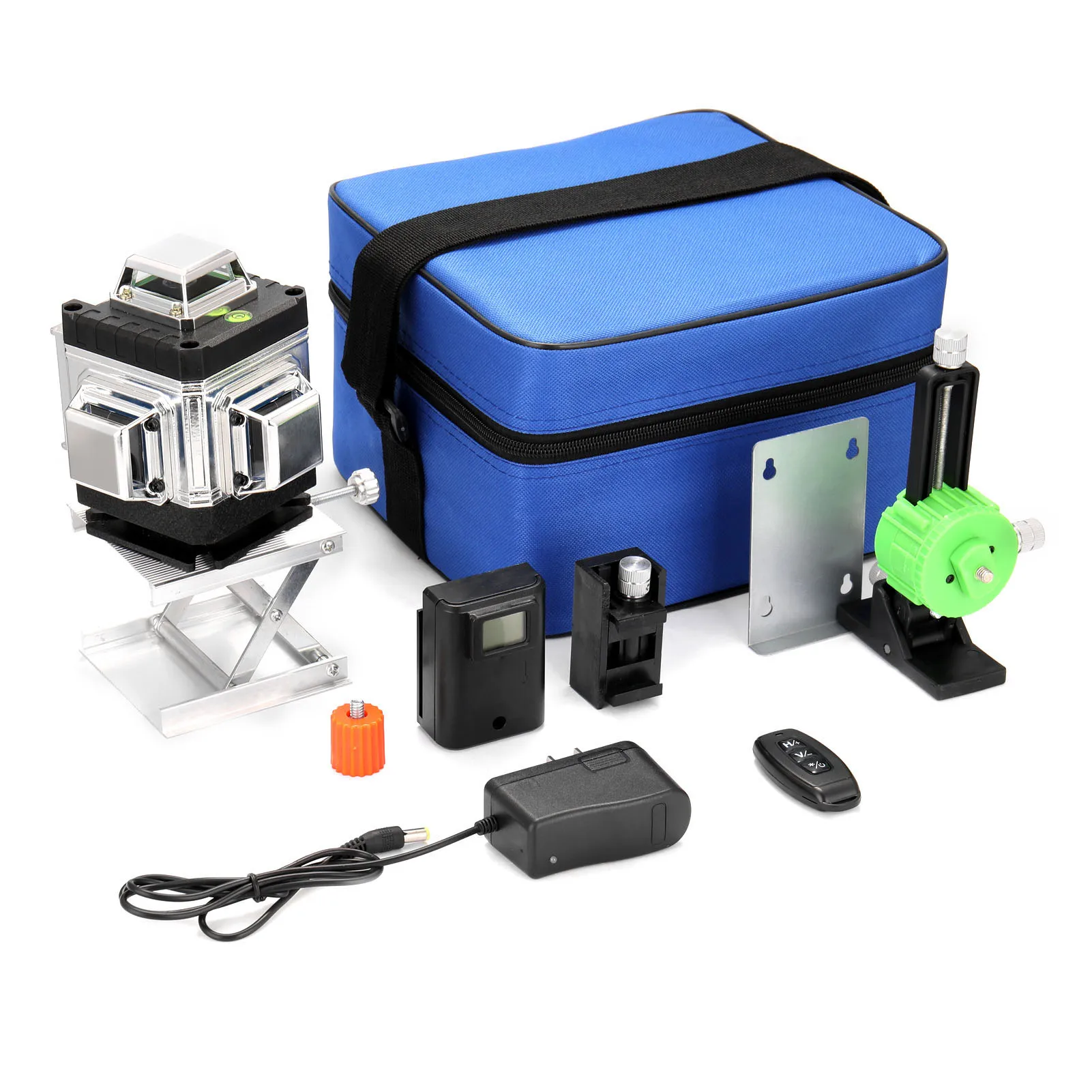

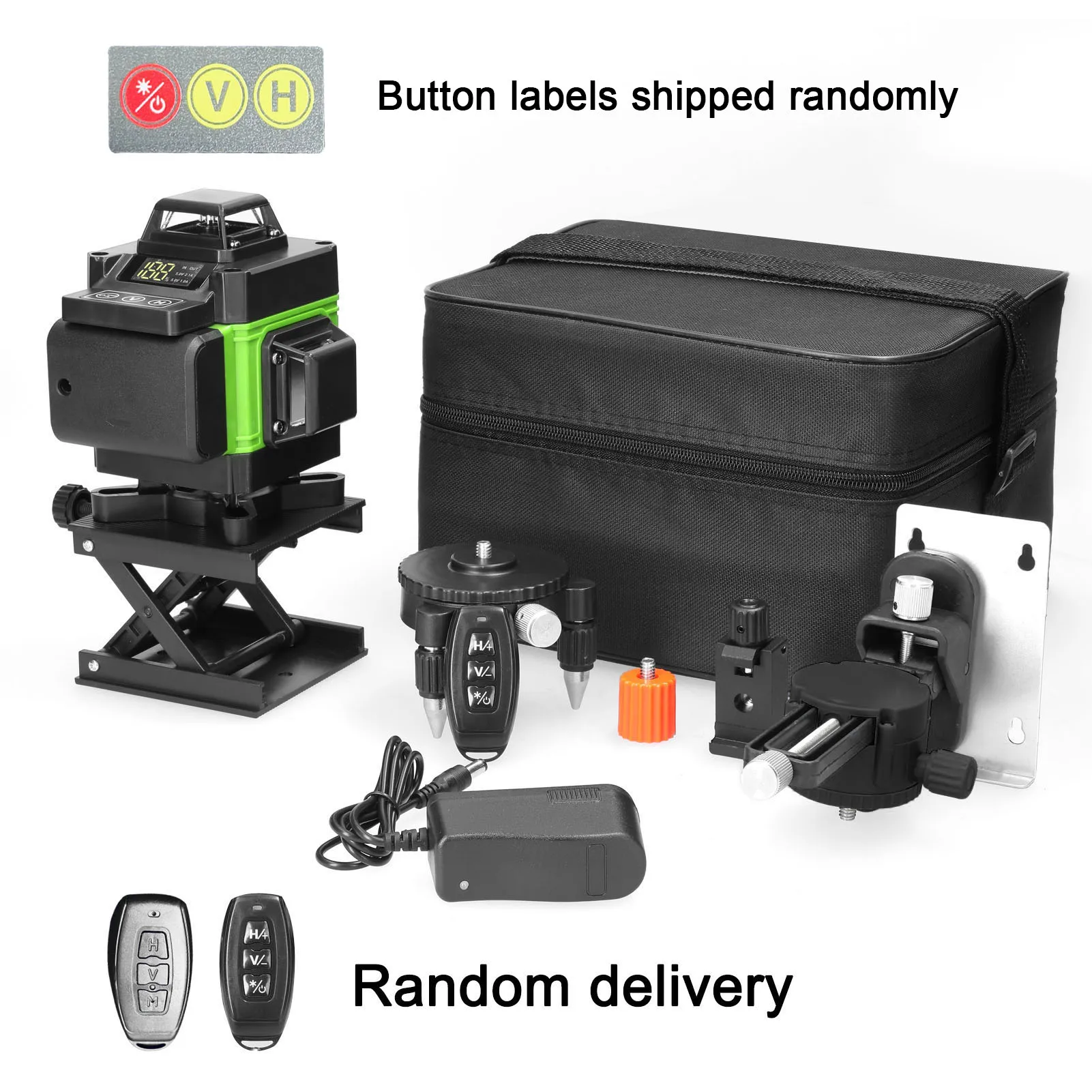

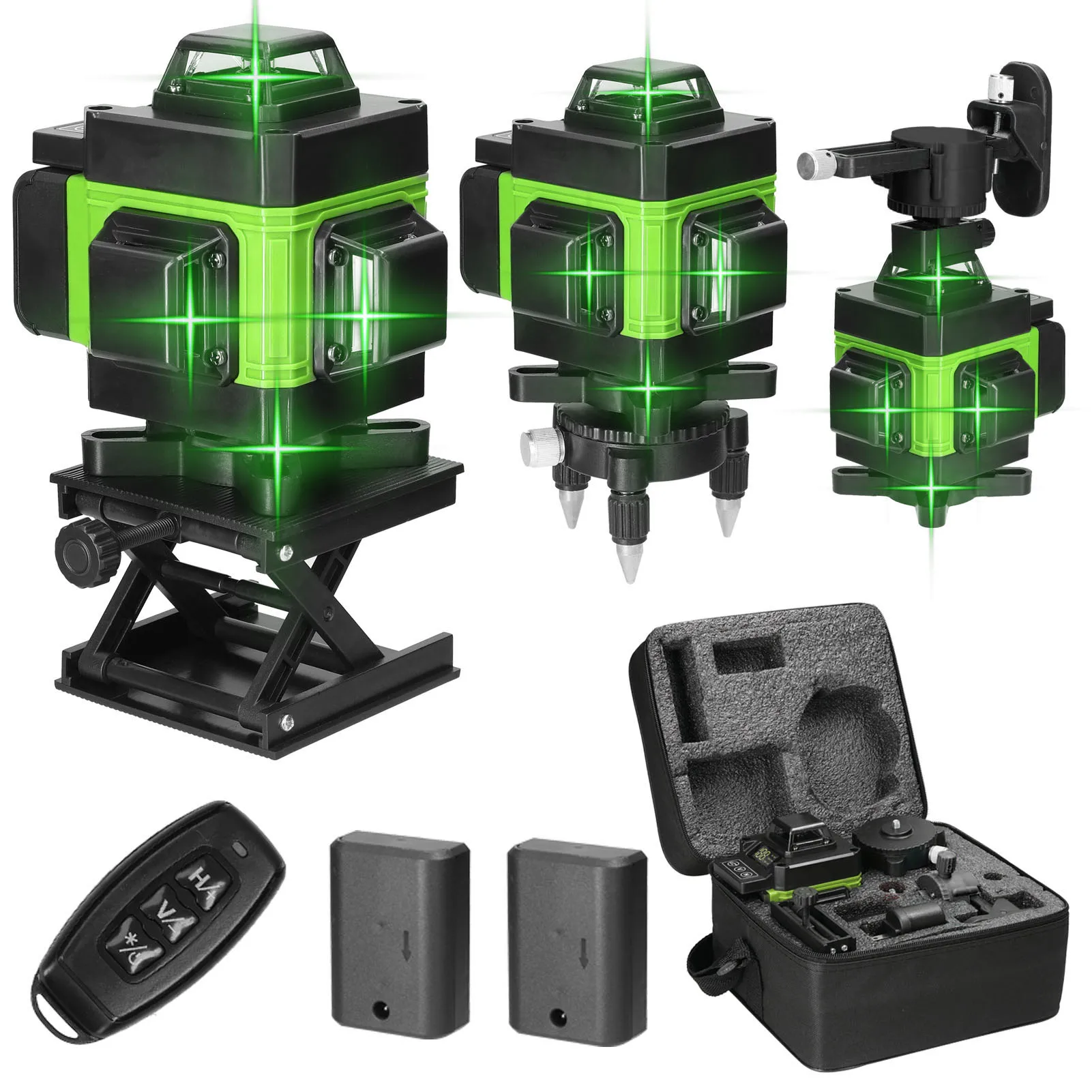

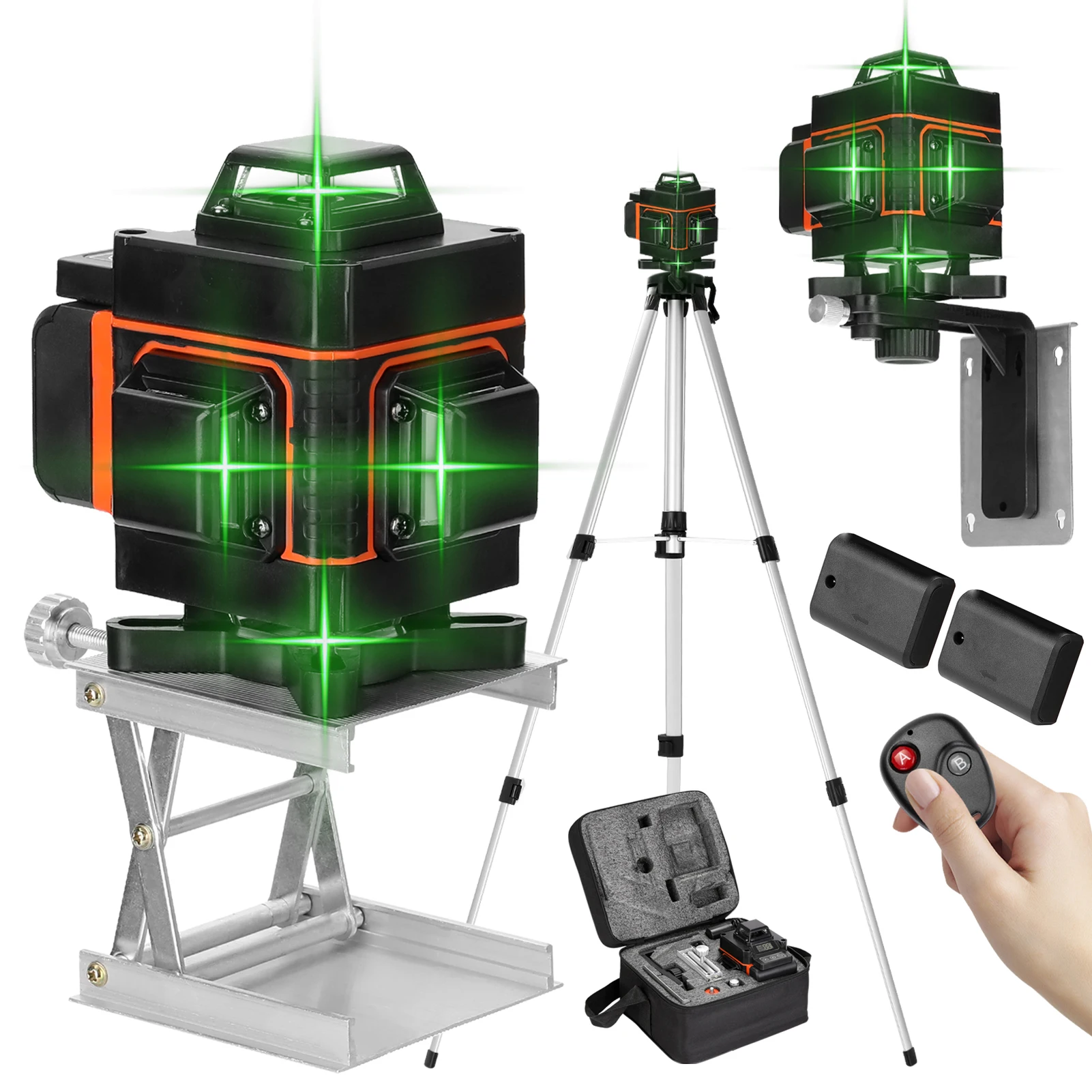

Packing List:
1 * Level Machine
2 * Battery
1 * Lifting Platform
1 * Mini Remote Controller
1 * Wall Mounted Bracket
1 * Clip Holder
1 * Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Cable
1 * Carrying Bag
1 * Manual
4D 16 lines for finer positioning, with self-leveling system, flexibility and stability.
Self-leveling function can conquer small rugged place such as 3°, over 3° the laser light will keep blinking to remind you to put it on a flat place.
Alarm function beyond the safe range.
The magnetic-damping compensation system ensures quick levelling time.

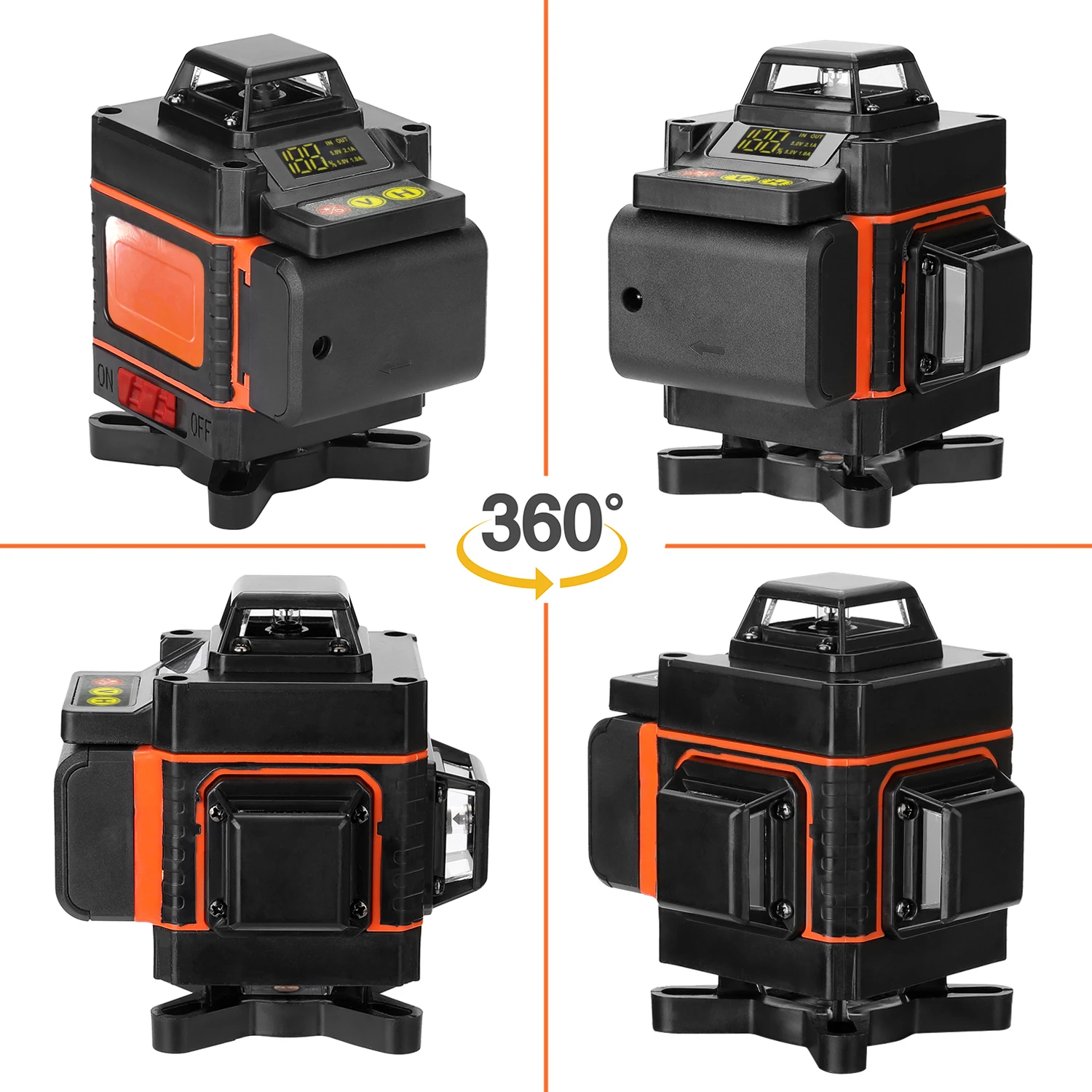

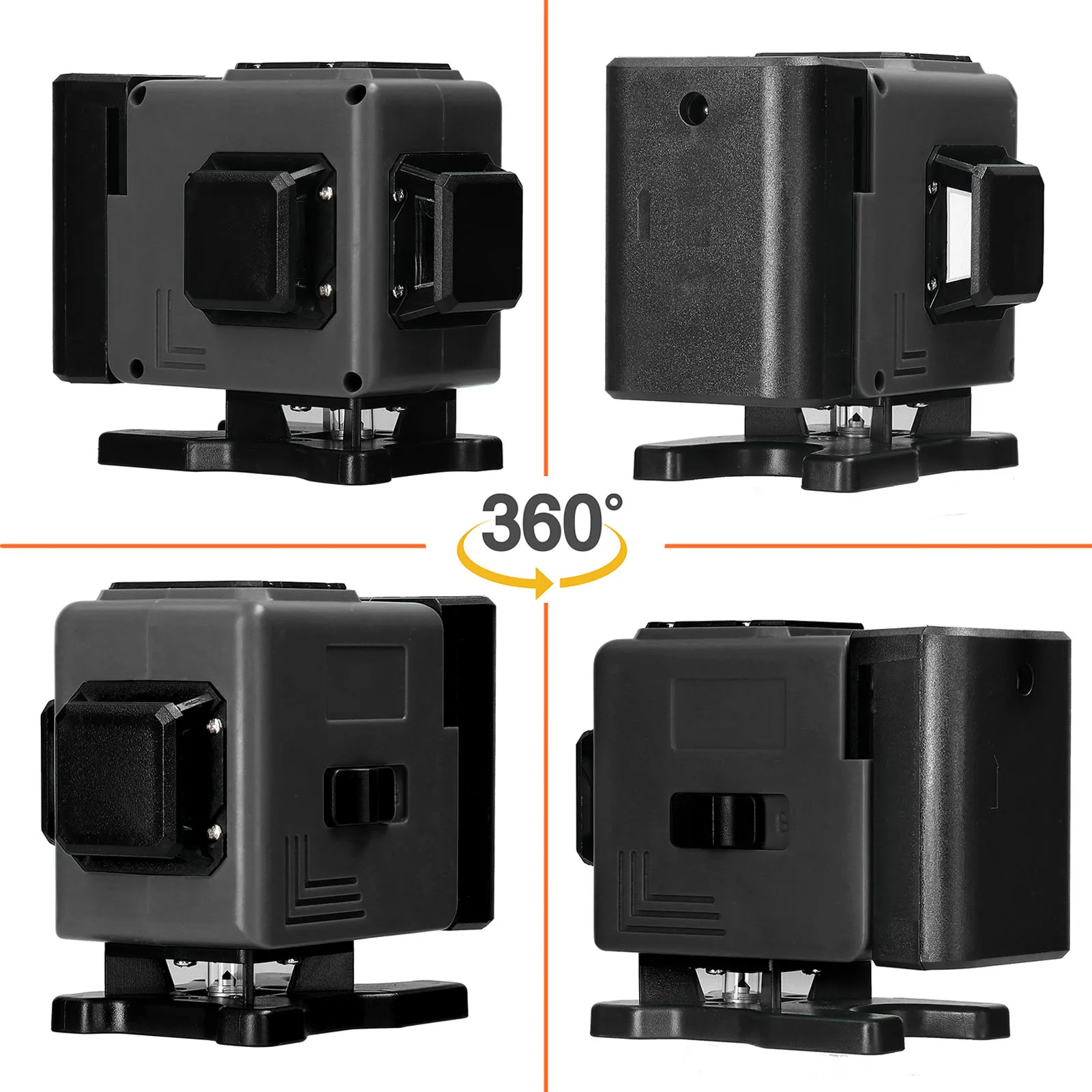

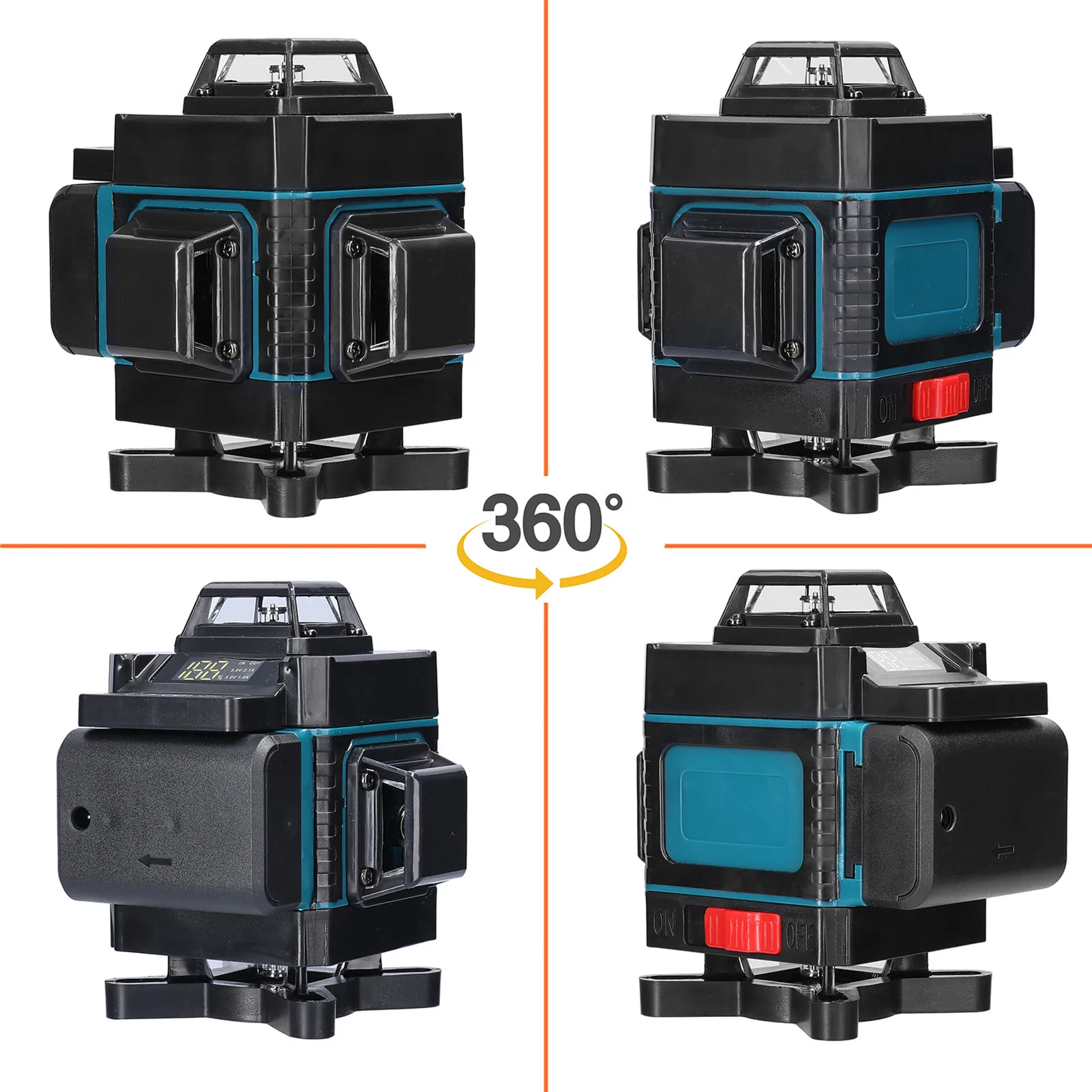

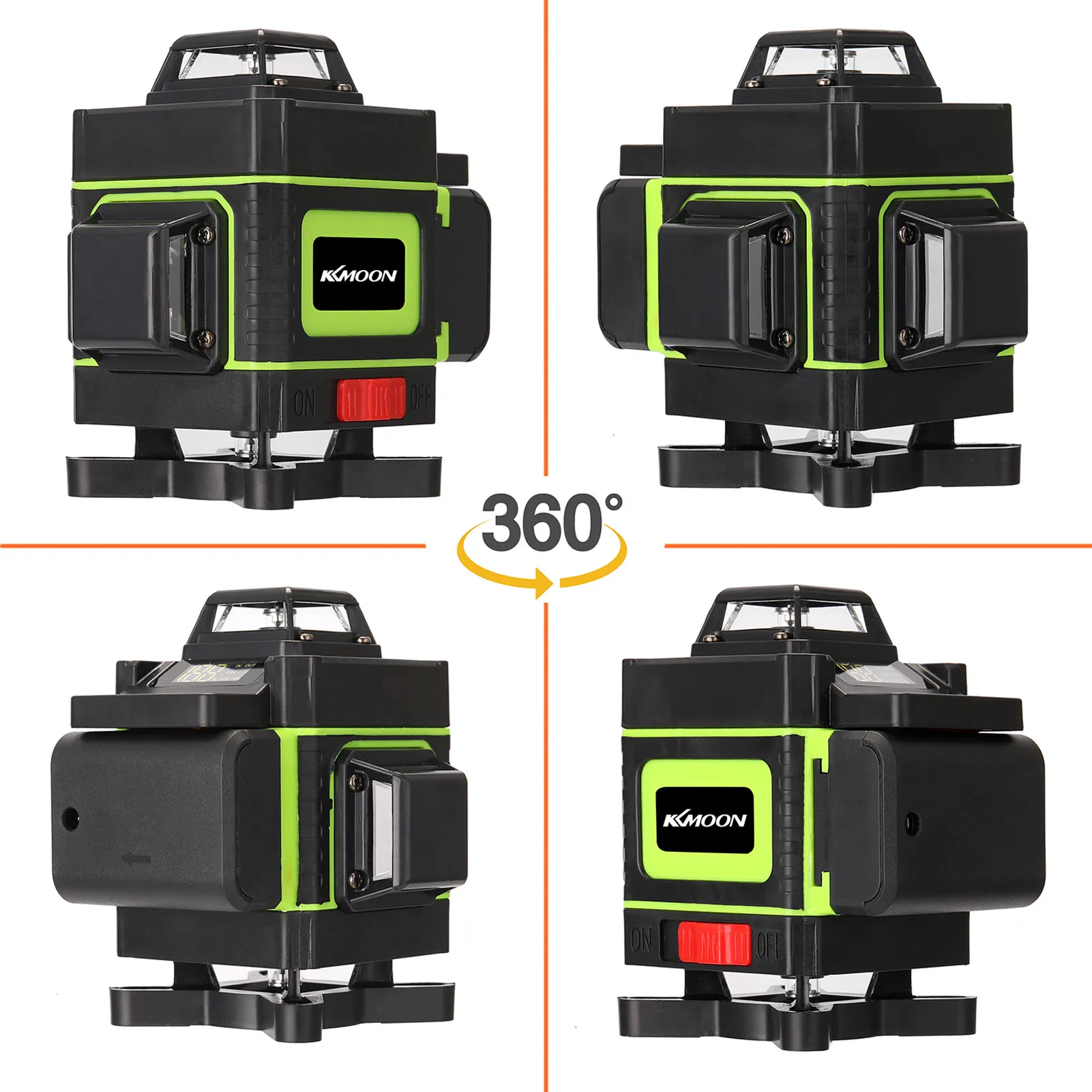

360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.

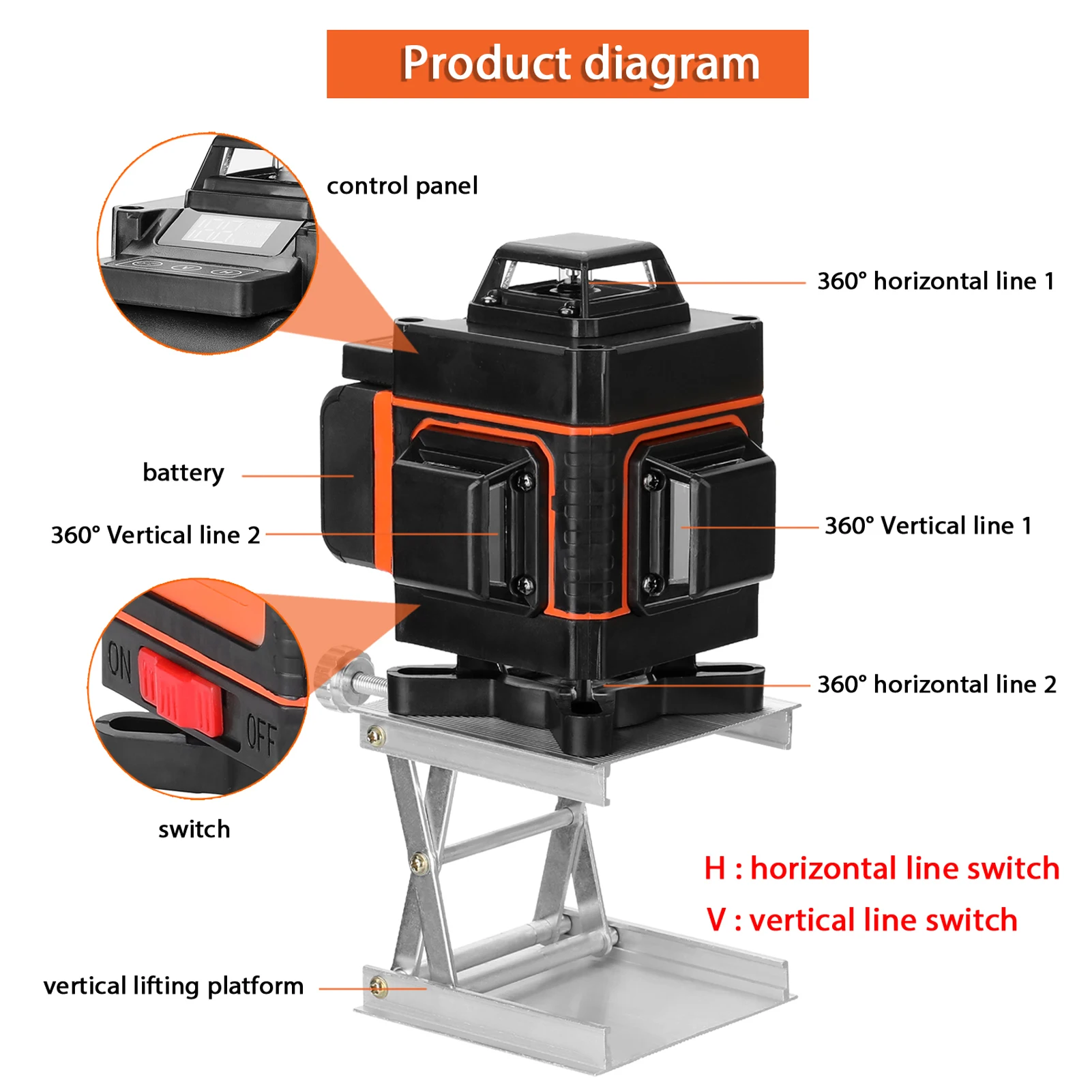

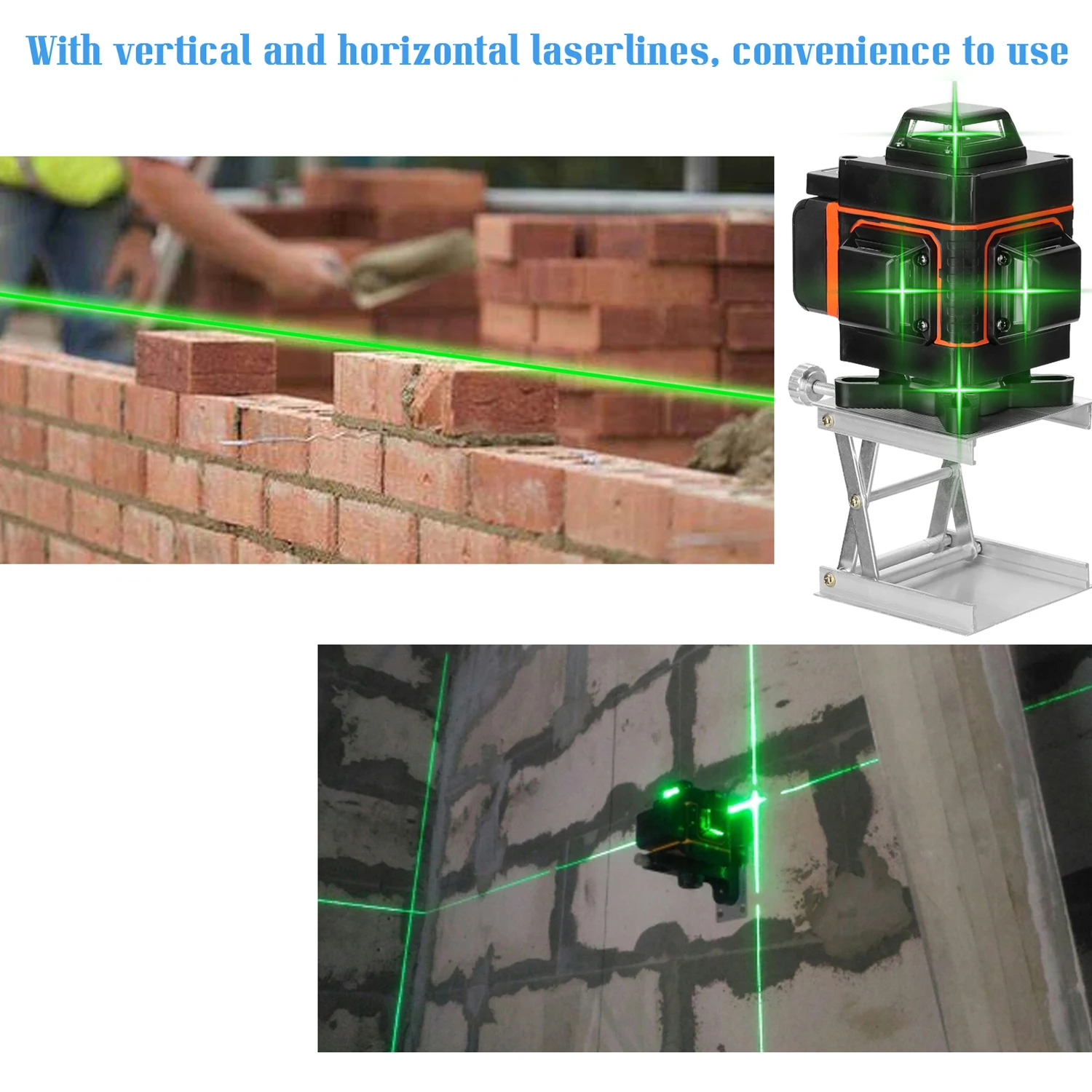

A 360° horizontal line can be drawn on the wall.
Two vertical lines can be drawn on the wall.
Leaning function, it can be applied in a leaning position like upstairs building.
With 7mm wall mounted distance, general for indoor and outdoor use.

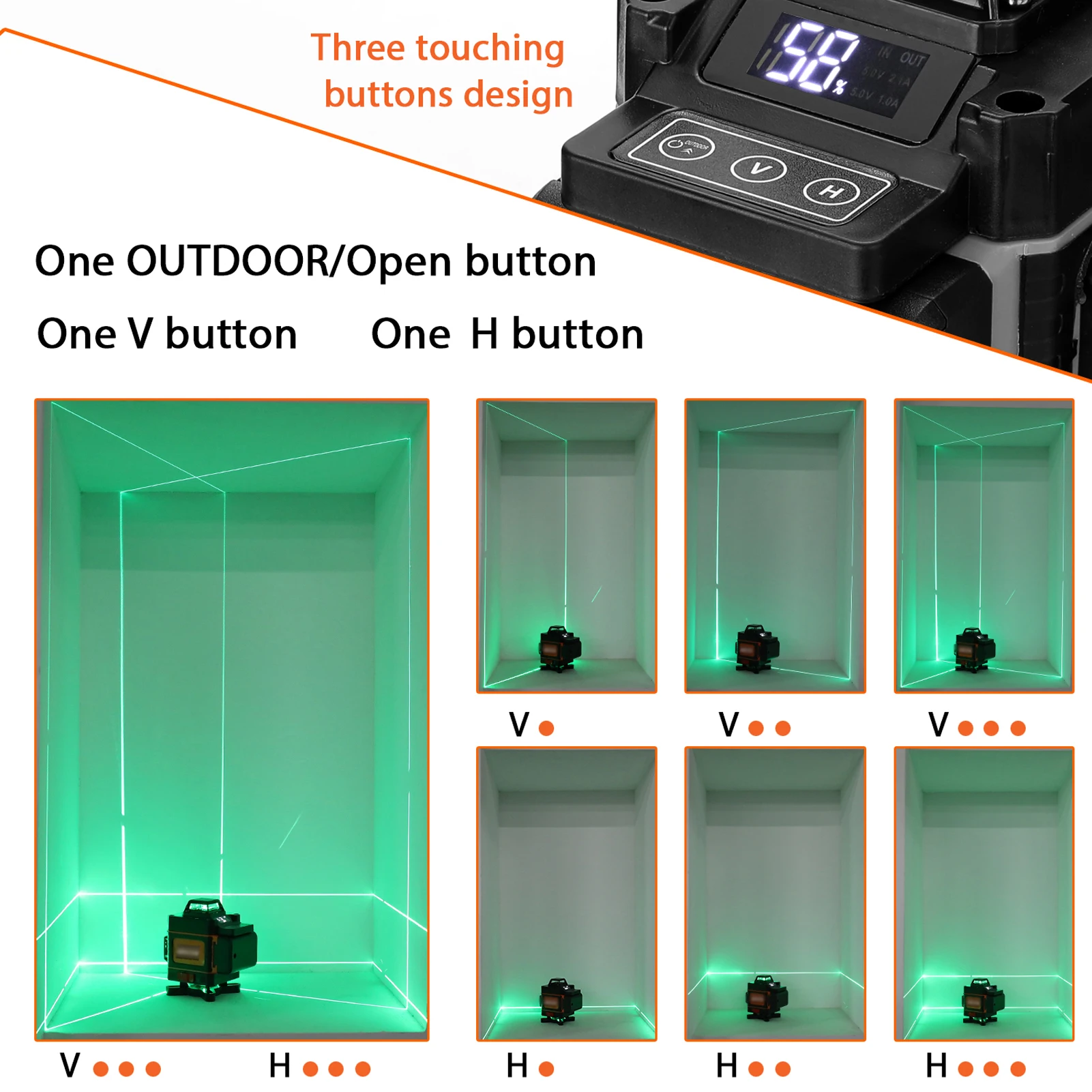

Three touching buttons design, one OUTDOOR/Open button, one V button, and one H button, the slashline, horizontal line and vertical line with a clear division. (the laserline is brighter under outdoor mode)
Comes with one remote control, A=vertical line, B=horizontal line.
Laser light brightness adjustable, long press the A button of the remote controller to turn it up and long press B button to turn it down.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Easy to carry with the case, providing quick and convenient mobility and storage.
Note: Please do not let the laser line shoot to your eyes directly.
Specifications:
Name: Laser Level
Main material: plastics metal
Battery: 1 * rechargeable battery, 3.7V, 3000mAh (included)
Laser ray: 360°*4, 16lines(40)
Angle direction: 4 surface, 8 lines
Display: LED display
Wavelength: Green light 532nm, 10m both sides, 5m each side
Laser lines accuracy: ±1mm/8m
Self-levelling-range: ±3°
Alarm angle: 3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Level machine size: 125 * 103 * 132mm / 4.92 * 4.06 * 5.20in
Bag size: 235 * 210 * 160mm / 9.25 * 8.27 * 6.30in
Package size: 220 * 165 * 250mm / 8.66 * 6.50 * 9.84in
Package weight: 1574g / 3.47lb

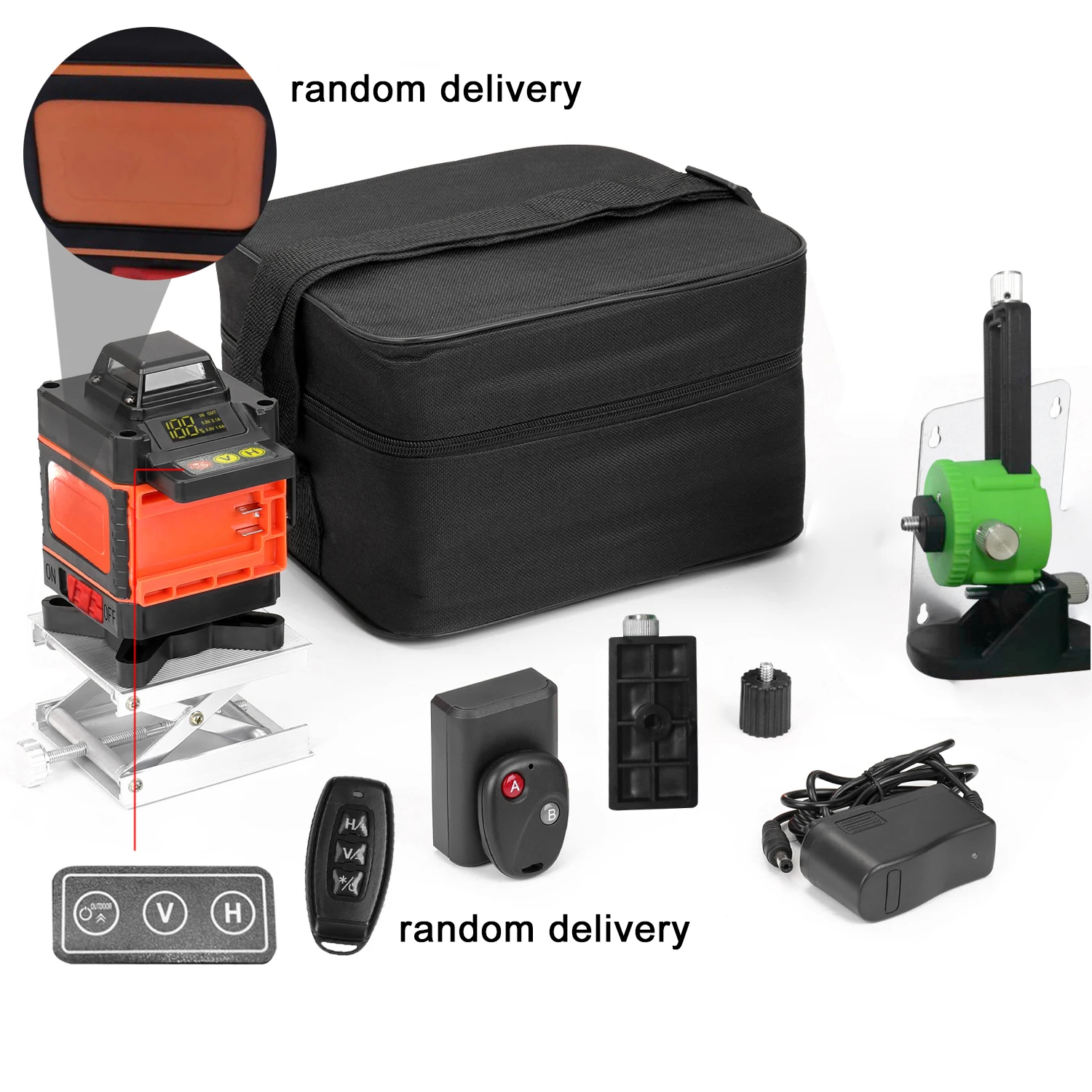

Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Mini Remote Control
1 * Wall Mounted Bracket
1 * Holder
1* Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Cable
1 * Carrying Bag
1 * Manual
![](https://ae01.alicdn.com/kf/S8dc3ebbbcf794208ba891d1a8b9d6ddcc.jpg)
![](https://ae01.alicdn.com/kf/Sfd973744c4a6405ab17f57f7b03de3a5a.jpg)
![](https://ae01.alicdn.com/kf/S54d66aff182e4b928460a1cf07b4d4ca5.jpg)
![](https://ae01.alicdn.com/kf/S980cb985400549fb94a98d222d75294eq.jpg)
![](https://ae01.alicdn.com/kf/S0182df4824c643a885f00ec235a88e2bM.jpg)
Features:
4D 16 lines for finer positioning, with self-leveling system, flexibility and stability.
Self-leveling function can conquer small rugged place such as 3°, over 3° the laser light will keep blinking to remind you to put it on a flat place.
Alarm function beyond the safe-range.
The magnetic-damping compensation system ensures quick levelling time.
360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.
1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.
A 360° horizontal line can be drawn on the wall.
Two vertical lines can be drawn on the wall.
Leaning function, it can be applied in a leaning position like upstairs building.
With 7mm wall mounted distance, general for indoor and outdoor use.
Three touching buttons design, one OUTDOOR/Open button, one V button, and one H button, the slashline, horizontal line and vertical line with a clear division.(OUT= slashline)
Comes with one remote control, A=vertical line, B=horizontal line.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Easy to carry with the case, providing quick and convenient mobility and storage.
Tripod Stand:
Made of thicken aluminum alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.
Equipped with bubble-level to help you to check whether the tripod is horizontal or not.
Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable for most of laser level with 5/8" interface.
Note:
The laser output maker is located on the output hole.
Please do not let the laser line shoot to your eyes directly.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics metal
Battery: 2 * rechargeable battery, 3.7V, 3000mAh (included, you will find there are two 18650 batteries inside if disassemble one)
Laser ray: 360°* 4, 16 lines(40)
Angle direction: 4 surface, 8 lines
Display: LED display
Wavelength: Green light 532nm, 10m both sides, 5m each side
Laser lines accuracy: ±1mm/8m
Self-levelling-range: ±3°
Alarm angle: 3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Tripod stand interface: 5/8"
Tripod stand size: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in
Tripod stand weight: 680g / 1.50lb
Level machine size: 125 * 103 * 132mm / 4.92 * 4.06 * 5.20in
Bag size: 235 * 210 * 160mm / 9.25 * 8.27 * 6.30in
Package size: 440 * 215 * 255mm / 17.32 * 8.46 * 10.04in
Package weight: 2559g / 5.64lb
Packing List:
1 * Level Machine with Battery
1 * Replacement Battery
1 * Lifting Platform
1 * Mini Remote Control
1 * Wall Mounted Bracket
1 * Holder
1 * Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Adapter (EUPlug)
1 * Level Machine Carrying Bag
1 * Manual
1 * Tripod Stand
1 * Tripod Stand Carrying Bag
![](https://ae01.alicdn.com/kf/S9b4950fd3b854240a561a1b6c49d10721.jpg)
![](https://ae01.alicdn.com/kf/S32426b2fb28b4eb88d56ad378fe21d39x.jpg)
![](https://ae01.alicdn.com/kf/S07042997f1594313a55dafc051387bc1h.jpg)
![](https://ae01.alicdn.com/kf/Se52c914604e34e3682b0023b2624629cb.jpg)
![](https://ae01.alicdn.com/kf/S909d04f62a124b53923f7d50839b1acaV.jpg)
Specifications:
Name: Laser Level
Main material: plastics+metal
Type: green-EU Plug
Laser class: class 2, output power <1mW
Line type: 4 * 360°
Wavelength: 532nm (Green)
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)
Horizontal/vertical: ±2mm/10m
Automatic leveling-range: ±3°
Working temperature: -5℃ to 50℃
Waterproof grade: IP54
Working distance: 25m
Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in
Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in
Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in
Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in
Item weight: 1485g / 3.27lb
Package size: 220 * 165 * 255mm / 8.66 * 6.50 * 10.04in
Package weight: 1649g / 3.64lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Recharger
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Thread Adapter
1 * Carrying Bag
1 * Guideline
![](https://ae01.alicdn.com/kf/Sad6147a52f4743518c51a52e86eadc34A.jpg)
![](https://ae01.alicdn.com/kf/Sb8b2ac0fd502427682bbc55cf029abf3s.jpg)
![](https://ae01.alicdn.com/kf/S8838254e5aa24a33b694e39ee064cad7V.jpg)
![](https://ae01.alicdn.com/kf/Sdcdc6a74396f4cec86cf331e1d8dfacdG.jpg)
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable lithium battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 520nm
Horizontal/vertical accuracy: ±1mm/7m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working distance: 10m
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 116 * 73 * 110mm / 4.57 * 2.87 * 4.33in
Rotation base size: 97 * 82 * 73mm / 3.82 * 3.23 * 2.87in
Wall mounted bracket size: 127 * 75 * 55mm / 5.00 * 2.95 * 2.17in
Platform size: 112 * 92 * 32mm / 4.41 * 3.62 * 1.26in
Target plate size: 117 * 75 * 14mm / 4.61 * 2.95 * 0.55in
1/4inch to 5/8inch adapter size: 23 * 23 * 32mm / 0.91 * 0.91 * 1.26in
Carrying bag size: 220 * 195 * 130mm / 8.66 * 7.68 * 5.12in
Item weight: 1140g / 2.51lb
Package size: 250 * 220 * 150mm / 9.84 * 8.66 * 5.91in
Package weight: 1300g / 2.87lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter
1 * Rotation Base
1 * Wall Mounted Bracket
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Adapter
1 * Guideline
1 * Carrying Bag
Specifications:
Name: Laser Level
Main material: plastics metal
Battery: 1 * 3.7V, 3000mAh battery(included, you will find there are two 18650 batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(40)
Wavelength: Green light 532nm
Horizontal/vertical accuracy: ±0.2mm/10m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working-range: about 25m in diameter
Working time: about 5 hours
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 135 * 105 * 126mm / 5.31 * 4.13 * 4.96in
Bag size: 220 * 250 * 145mm / 8.66 * 9.84 * 5.71in
Item weight: 1373g / 3.03lb
Package size: 215 * 165 * 255mm / 8.46 * 6.50 * 10.04in
Package weight: 1550g / 3.42lb
Packing List:
1 * Level Machine
1 * Lifting Platform
1 * Mini Remote Control
1 * Wall Mounted Bracket
1 * Clip
1* Iron Board
1 * 1/4" to 5/8" Adapter
1 * Power Cable
1 * Carrying Bag
1 * Manual
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble one)
Laser ray: 360 * 4, 16 lines
Laser wavelength: green light 520nm
Laser lines accuracy: ±0.2mm/10m
Self-levelling-range: ±3°
Working distance: 25m
Working temperature: -5℃ to 50℃
Item size:
Level machine: 103 * 106 * 133mm / 4.06 * 4.17 * 5.24in
Battery size: 74 * 53 * 30mm / 2.91 * 2.09 * 1.18in
Base size: 96 * 82 * 73mm / 3.78 * 3.23 * 2.87in
Wall-mounted bracket size: 160 * 87 * 72mm / 6.30 * 3.43 * 2.83in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 111 * 92 * 33mm / 4.37 * 3.62 * 1.30in
Carrying bag: 233 * 213 * 152mm / 9.17 * 8.39 * 5.98in
Item weight: 1494g / 3.29lb
Package size: 250 * 220 * 160mm / 9.84 * 8.66 * 6.30in
Package weight: 1659g / 3.66lb
Packing List:
1 * Level Machine
2 * Battery
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * 1/4inch to 5/8inch Adapter
1 * Clip Holder
1 * Power Adapter (EU Plug )
1 * Carrying Bag
1 * Guideline
-------4D Type8--------
Features:
Laser Level:
Compact size, lightweight and portable, providing quick and convenient mobility and storage with the carrying box.
Output 16 laser lines separately or simultaneously for finer positioning, with 3° self-leveling system, flexibility and stability.
Using fine quality laser diodes and high p-recision conical mirrors, the lase lines emitted is fine and bright with high accuracy, and the brightness is adjustable.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to reminding you to reset them on a flat ground.
LCD display design, you can see the battery remaining capacity clearly.
Push button design, push right to open it, push left to close it.
Touching buttons design, horizontal line, vertical line and tilt line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Press the "OUTDOOR" button for 3 seconds to enter tilt mode then you can place the laser tool at any-angle to project the tilt lines; Press the "OUTDOOR" button shortly or long time press "H" or "V" button, you can adjust the laser brightness according to the working condition freely.
Comes with one remote controller, "V"=vertical line, "H"=horizontal line, and you can adjust the brightness of laser light easily by press the "+"or "-" button.
Scanning QR code on the back of remote controller to download cellphone APP, convenient to control the level machine.
The laser level is controlled by the APP through BT connection, and also has electric quantity display, laser light brightness adjustable and voice control function.
The T-shape bracket with 7mm wall mounted distance, which has 360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target (1/4 inch screw size).
With 360° rotatable base, with 1/4 inch thread, for easy connected to 1/4 inch thread tripod to adjust the working height of the machine.
1/4 inch to 5/8 inch thread adapter for easy connection, it can be used with 5/8inch thread tripod to adjust the working height of the machine.
The laser level lifting bracket, height adjustable, anti-slip texture design for increasing friction, more stable placement.
Waterproof and dustproof, suitable for both indoor and outdoor use, continuous laser pulsed laser.

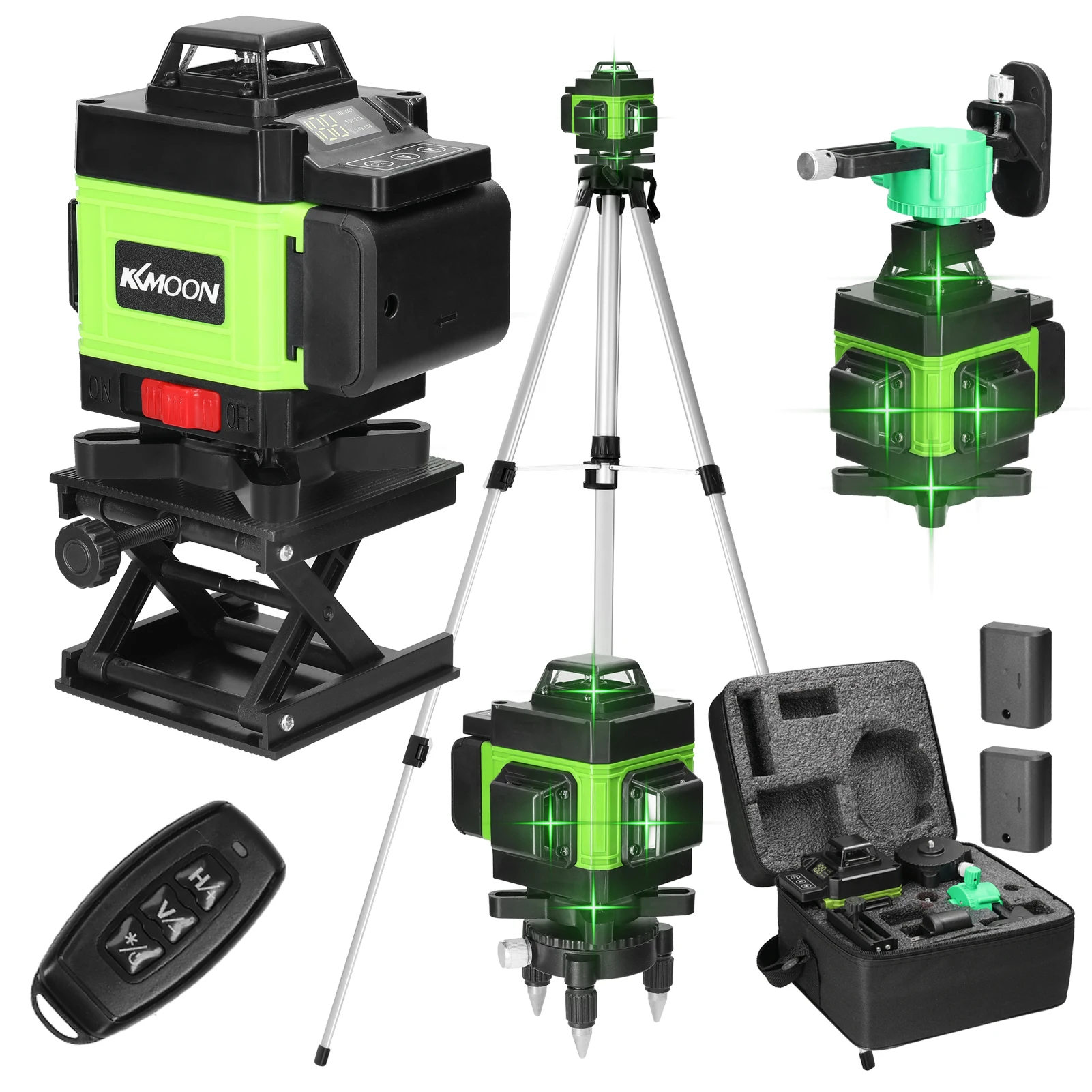

1.2m Tripod Stand:
Made of thicken aluminum alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.
Equipped with bubble-level to help you to check whether the tripod is horizontal or not.
Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable to most of laser level with 5/8" interface.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Type: blue-EU Plug, blue-US Plug, blue-UK Plug, green-EU Plug, green-US Plug, green-UK Plug (optional)
Laser class: class 2, output power <1mW
Line type: 4 * 360°
Wavelength: 532nm (Green)
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)
Horizontal/vertical: ±0.2mm/10m
Automatic leveling-range: ±3°
Working temperature: -5℃ to 50℃
Waterproof grade: IP54
Working distance: 25m
Tripod stand interface: 5/8"
Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in
Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in
Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in
Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in
1.2m tripod stand size: 470 * 99 * 95mm / 18.50 * 3.90 * 3.74in
Package size: 470 * 215 * 255mm / 18.50 * 8.46 * 10.04in
Package weight: 2455g / 5.41lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Recharger
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Thread Adapter
1 * Carrying Bag
1 * Guideline
1 *1.2m Tripod Stand
-------4D Type9--------
Features:
Laser Level:
Compact size, lightweight and portable, providing quick and convenient mobility and storage with the carrying box.
Output 16 laser lines separately or simultaneously for finer positioning, with 3° self-leveling system, flexibility and stability.
Using fine quality laser diodes and high p-recision conical mirrors, the lase lines emitted is fine and bright with high accuracy, and the brightness is adjustable.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to reminding you to reset them on a flat ground.
LCD display design, you can see the battery remaining capacity clearly.
Push button design, push right to open it, push left to close it.
Touching buttons design, horizontal line, vertical line and tilt line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Press the "OUTDOOR" button for 3 seconds to enter tilt mode then you can place the laser tool at any-angle to project the tilt lines; Press the "OUTDOOR" button shortly or long time press "H" or "V" button, you can adjust the laser brightness according to the working condition freely.
Comes with one remote controller, "V"=vertical line, "H"=horizontal line, and you can adjust the brightness of laser light easily by press the "+"or "-" button.
Scanning QR code on the back of remote controller to download cellphone APP, convenient to control the level machine.
The laser level is controlled by the APP through BT connection, and also has electric quantity display, laser light brightness adjustable and voice control function.
The T-shape bracket with 7mm wall mounted distance, which has 360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target (1/4 inch screw size).
With 360° rotatable base, with 1/4 inch thread, for easy connected to 1/4 inch thread tripod to adjust the working height of the machine.
1/4 inch to 5/8 inch thread adapter for easy connection, it can be used with 5/8inch thread tripod to adjust the working height of the machine.
The laser level lifting bracket, height adjustable, anti-slip texture design for increasing friction, more stable placement.
Waterproof and dustproof, suitable for both indoor and outdoor use, continuous laser pulsed laser.
1.5m Tripod Stand:
Made of thicken aluminum alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.
Equipped with bubble-level to help you to check whether the tripod is horizontal or not.
Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable to most of laser level with 5/8" interface.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Laser class: class 2, output power <1mW
Line type: 4 * 360°
Wavelength: 532nm (Green)
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)
Horizontal/vertical: ±0.2mm/10m
Automatic leveling-range: ±3°
Working temperature: -5℃ to 50℃
Waterproof grade: IP54
Working distance: 25m
Tripod stand interface: 5/8"
Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in
Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in
Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in
Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in
1.5m tripod stand size: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in
Package size: 440 * 215 * 255mm / 17.32 * 8.46 * 10.04in
Package weight: 2455g / 5.41lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Recharger
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * 1/4inch to 5/8inch Thread Adapter
1 * Carrying Bag
1 * Guideline
1 * Tripod Stand
-------4D Type10--------
Features:
Adopts optical glass, fine transmission, with clearly laser light.
16 lines for finer positioning, with self-leveling system, flexibility and stability.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and also has beep sound to reminding you to reset them on a flat ground.
Alarm function beyond the safety ranges.
The magnetic-damping compensation system ensures quick levelling time.
Three touching buttons design, one V button, one H button, and one OUTDOOR button, the button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
Short press the OUTDOOR button, the laser light will flash, Long press the OUTDOOR button, it will output oblique line.
1/4" screw size rotation base for easy connection, it also can be used with tripod by it's 5/8inch thread to adjust the working height of the machine.
Comes with one T-type wall mounting bracket, 7mm wall mounted distance, general for indoor and outdoor use.
Equipped with window clip holder for works with wall-mounted bracket.
The laser level lift bracket, height adjustable, anti-slip texture design for increasing friction, more stable placement.
Comes with 1/4 inch to 5/8inch adapter for easy connected with tripod to adjust the working height of the machine.
Comes with one remote controller, "V"=vertical line, "H"=horizontal line, and you can adjust the quantity of laser lines easily by press the "+"or "-" button, and press "*" button the laser lights will flash, and long press "V" button to reduce luminance and press "H" button to increase luminance.
Scanning QR code on the back of remote controller to download mobilephone APP, convenient to control the level machine(the voice control function is not supported).
Comes with the carrying bag, easy to carry, providing quick and convenient mobility and storage.
Note: Please do not let the laser line shoot to your eyes directly.
Tripod Stand (Optional):
Made of thicken aluminium alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.
Three heights adjustable, you can adjust according to your demands easily.
Equipped with bubble-level to help you to check whether the tripod is horizontal or not.
Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.
With fixed plectrum to control to extend length to lock it tightly.
Suitable to most of laser level with 5/8" interface.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included, you will find there are two batteries inside if disassemble it)
Laser ray: 360°* 4, 16 lines(4D)
Wavelength: green light 520nm
Horizontal/vertical accuracy: ±1mm/7m
Self-levelling-range: ±3°
Waterproof grade: IP54
Working distance: 10m
Green light working temperature: -5℃ to 50℃
Level machine size(assemble with battery): 130 * 103 * 132mm / 5.12 * 4.06 * 5.20in
Rotation base size: 97 * 83 * 70mm / 3.82 * 3.27 * 2.76in
Wall mounted bracket size: 85 * 72 * 160mm / 3.35 * 2.83 * 6.30in
Iron board size: 100 * 60 * 12mm / 3.94 * 2.36 * 0.47in
Platform size: 114 * 91 * 30mm / 4.49 * 3.58 * 1.18in
Clip holder size: 62 * 25 * 23mm / 2.44 * 0.98 * 0.91in
1/4inch to 5/8inch adapter size: 23 * 23 * 30mm / 0.91 * 0.91 * 1.18in
Carrying bag size: 235 * 216 * 150mm / 9.25 * 8.50 * 5.91in
Tripod stand size: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in
Item weight: 2008g / 4.43lb
Package size: 440 * 255 * 216mm / 17.32 * 10.04 * 8.50in
Package weight: 2200g / 4.85lb
Packing List:
1 * Level Machine
2 * Battery
1 * Battery Adapter
1 * Rotation Base
1 * Wall Mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * Clip Holder
1 * 1/4inch to 5/8inch Adapter
1 * Guideline
1 * Carrying Bag
1 * Tripod Stand
![](https://ae01.alicdn.com/kf/HTB1_ER_aQ9E3KVjSZFG76319XXaX.png)
![](https://ae01.alicdn.com/kf/HTB1m709aNiH3KVjSZPf760BiVXaM.png)
