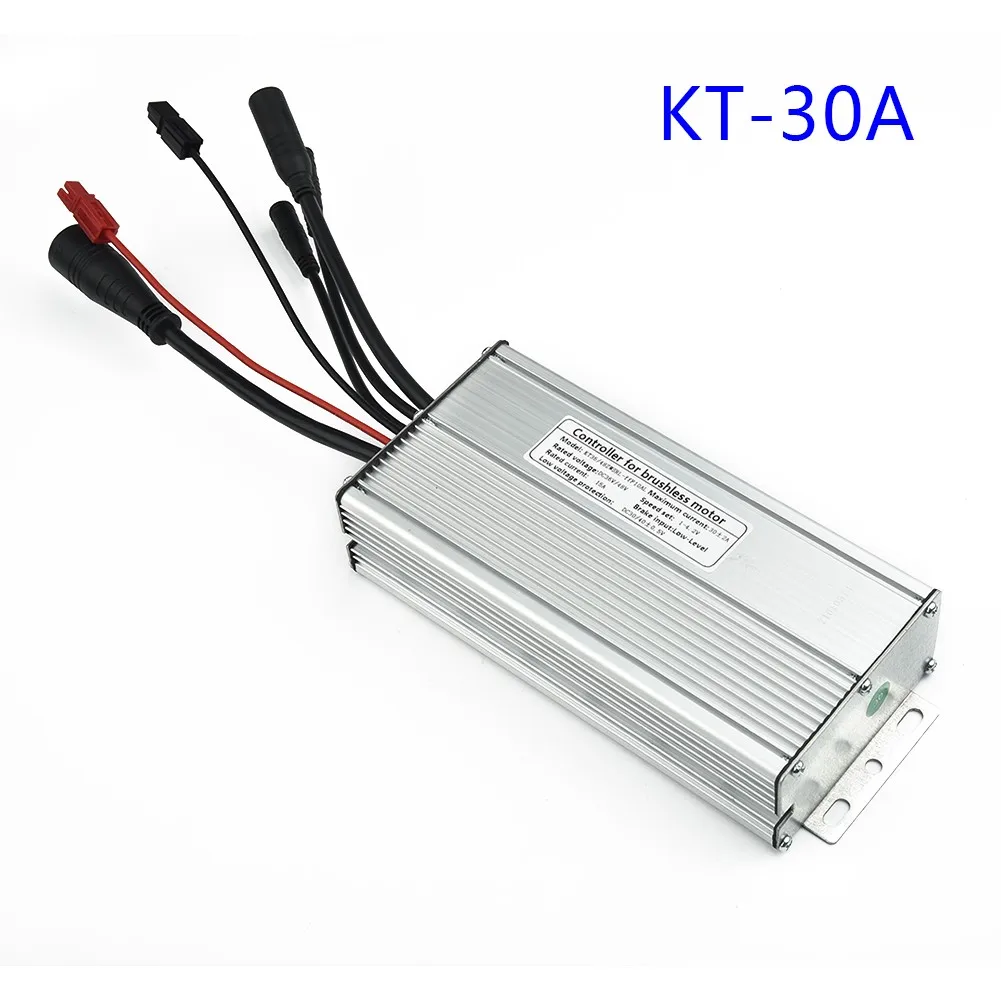

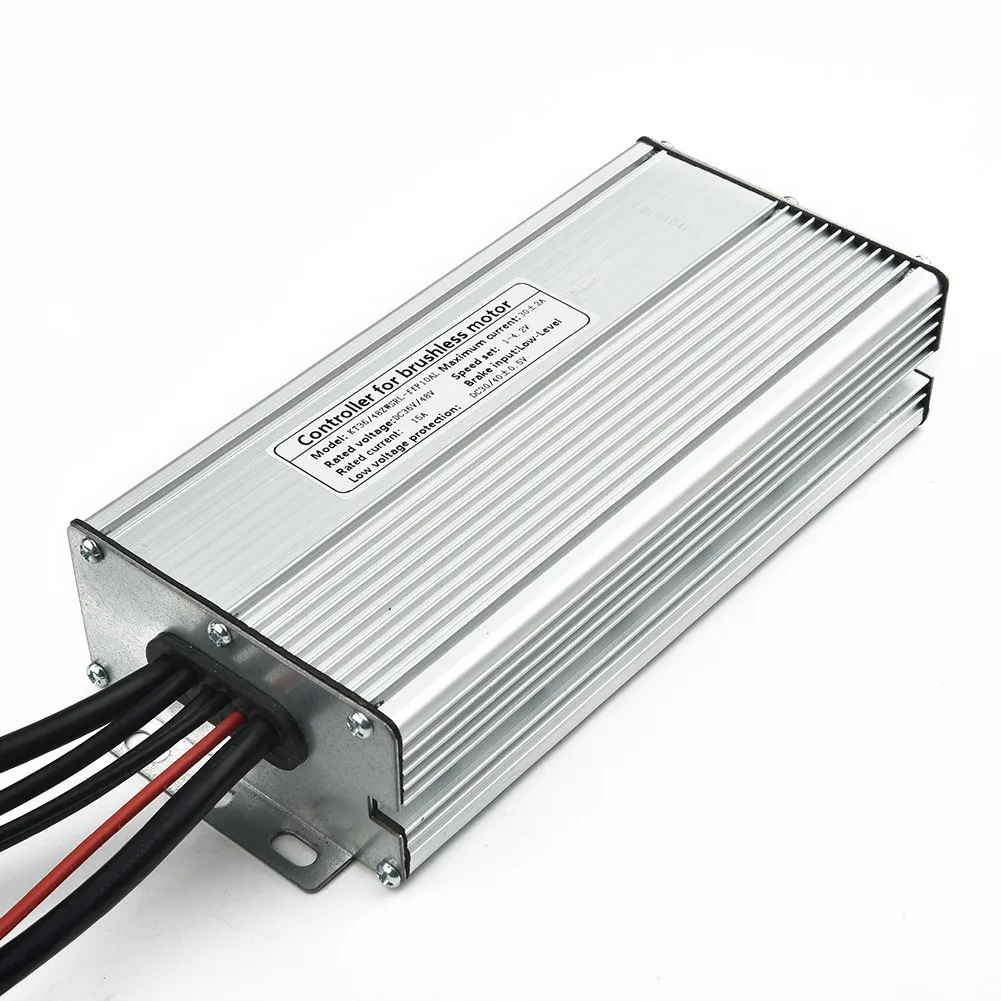

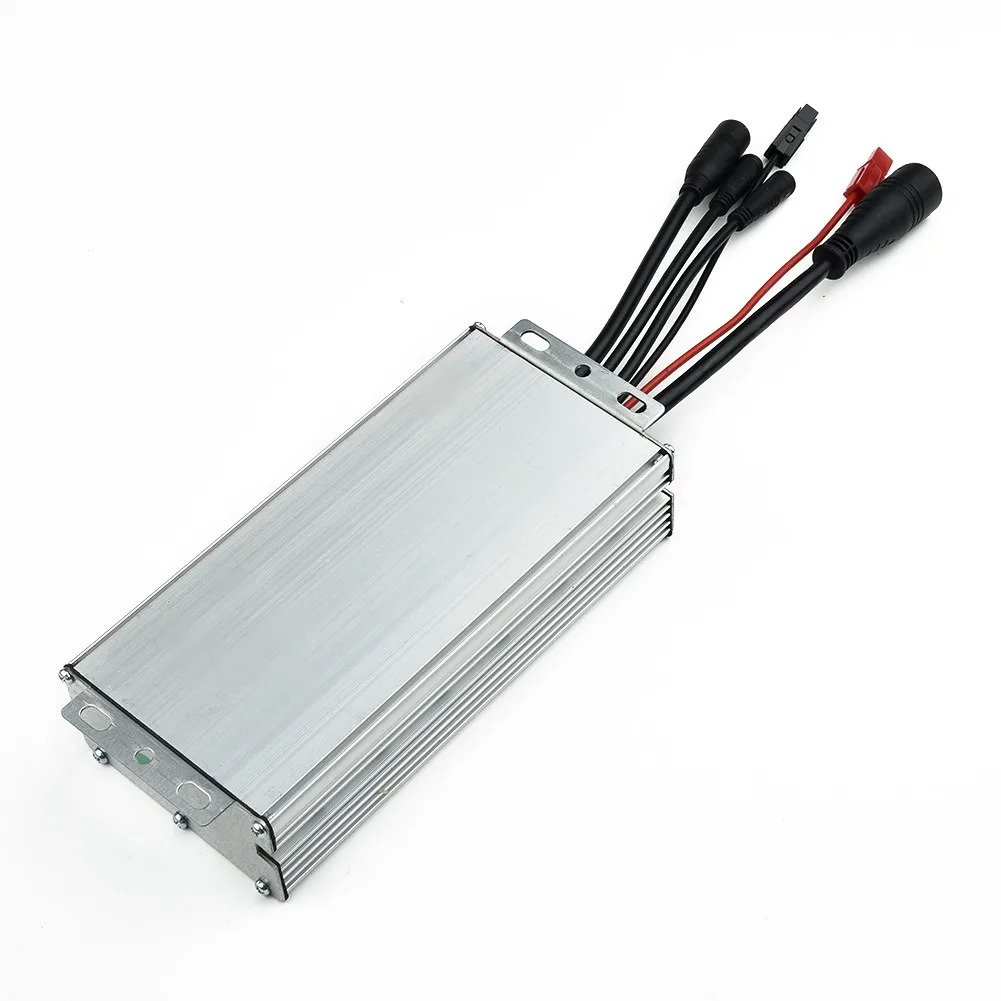

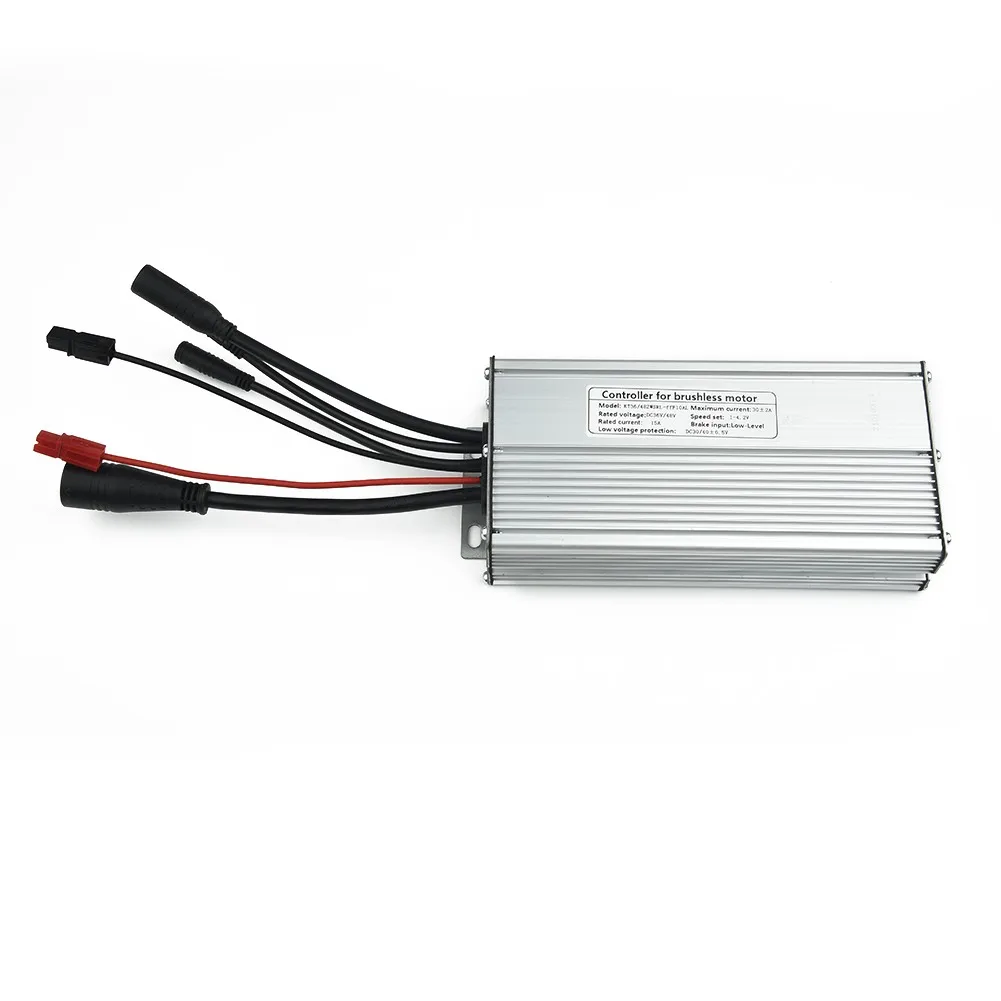

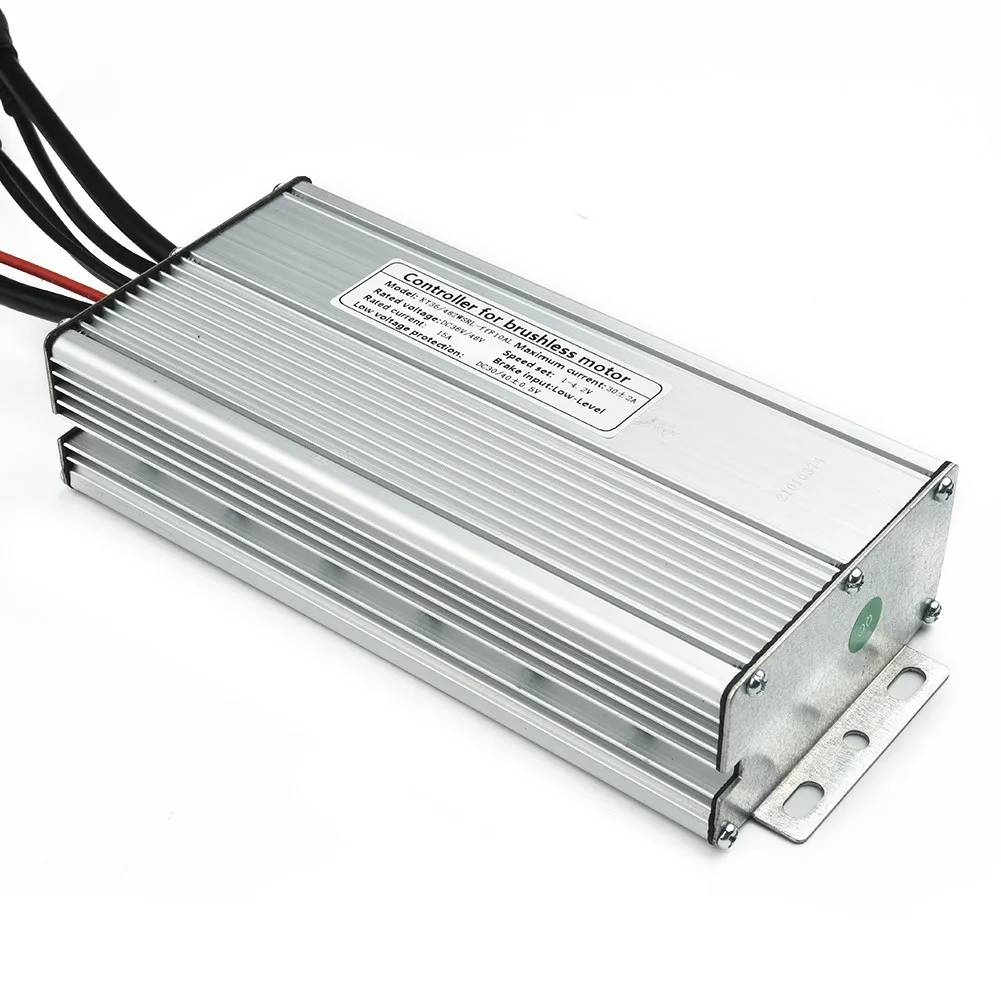

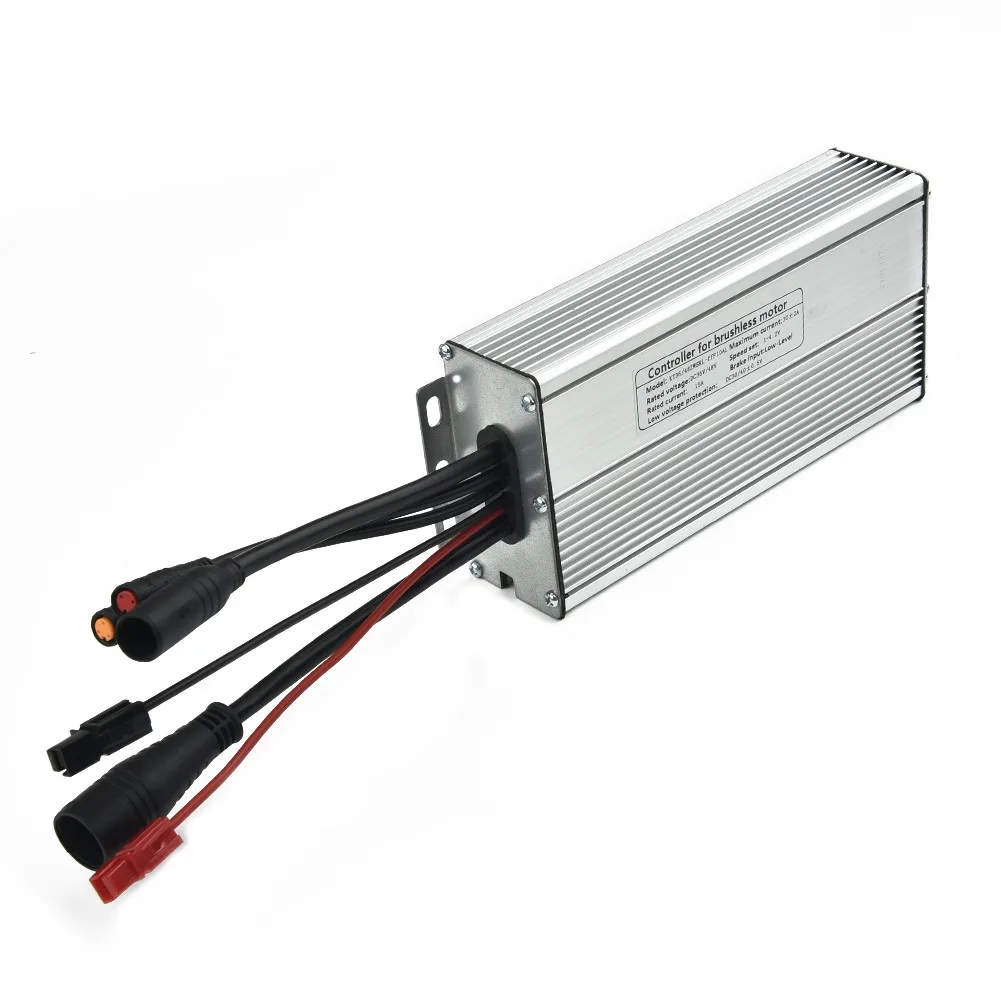

Description:

* brand new and high quality

*Made of high quality material, more durable

*It's compact, light and easy to carry

*Only Applicable to KT series motors

*With Display function, suitable for KT LED790-900S LCD1-LCD8 all Display, with headlight function, headlight switch on the Display

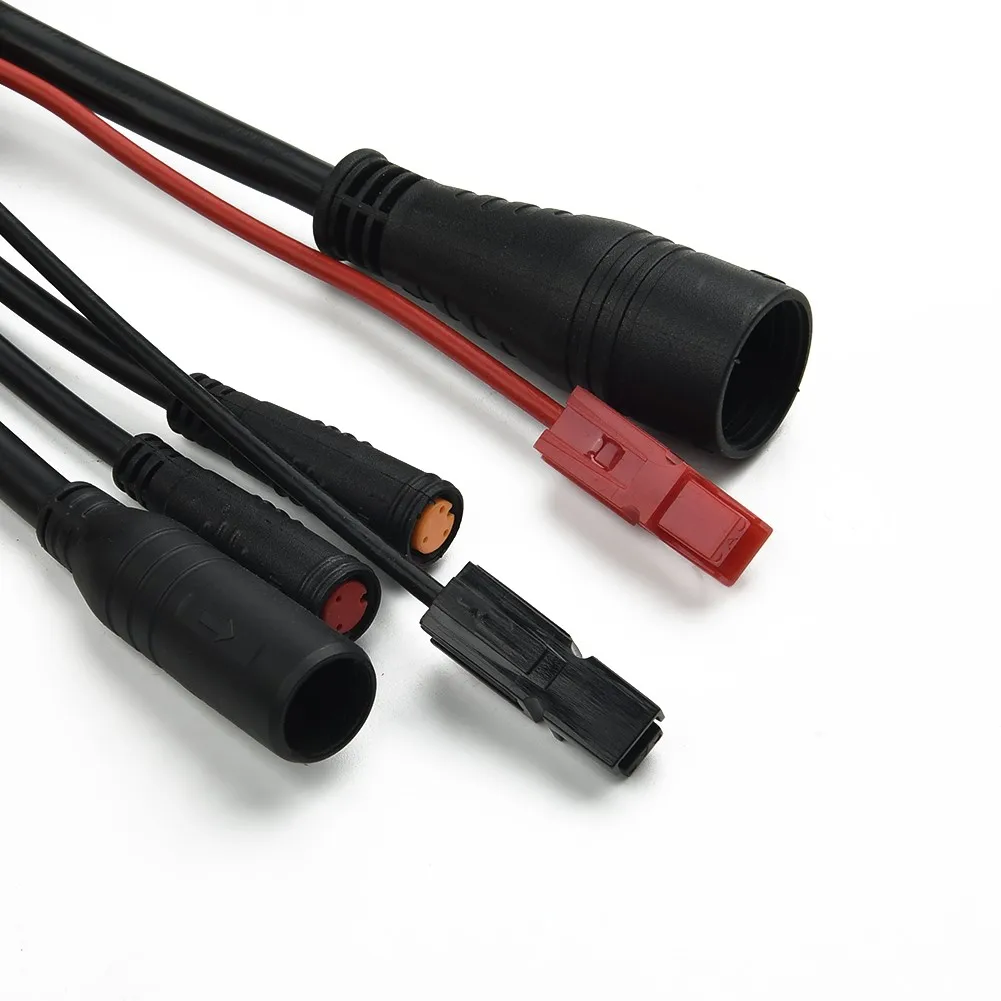

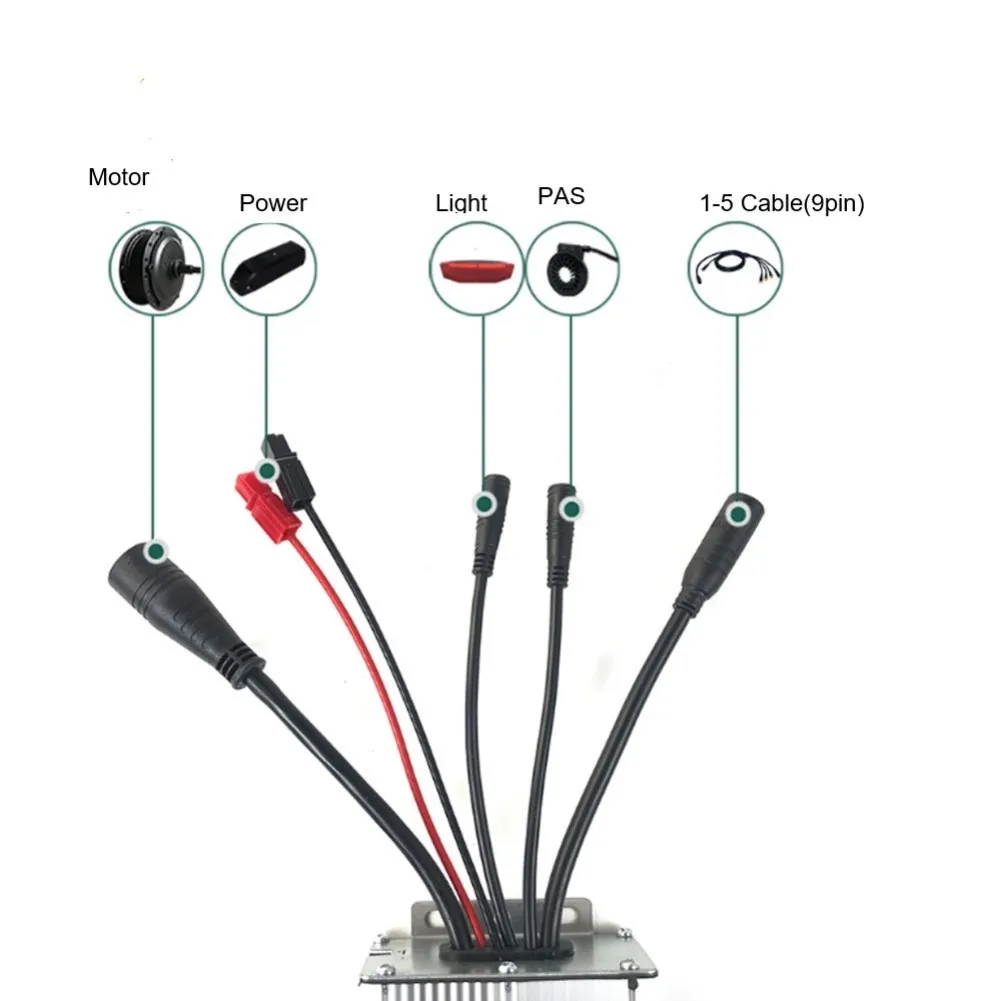

*Connectors:Motor(9 Pins)、Power、PAS (3pin waterproof plug)、1 to 5 cable(9 pins ) 、Light cable(2 Pins)

Specification:

*Maximum current: 30±1A

*Power: 1000W

*Rated voltage: DC36V/48V

*Speed setting: 1-4.2V

*Rated current: 15A

*Brake input: low level

*Low voltage protection: DC30/40±0.5V

*Material: Aluminum + Plastic

*Color: As picture shown

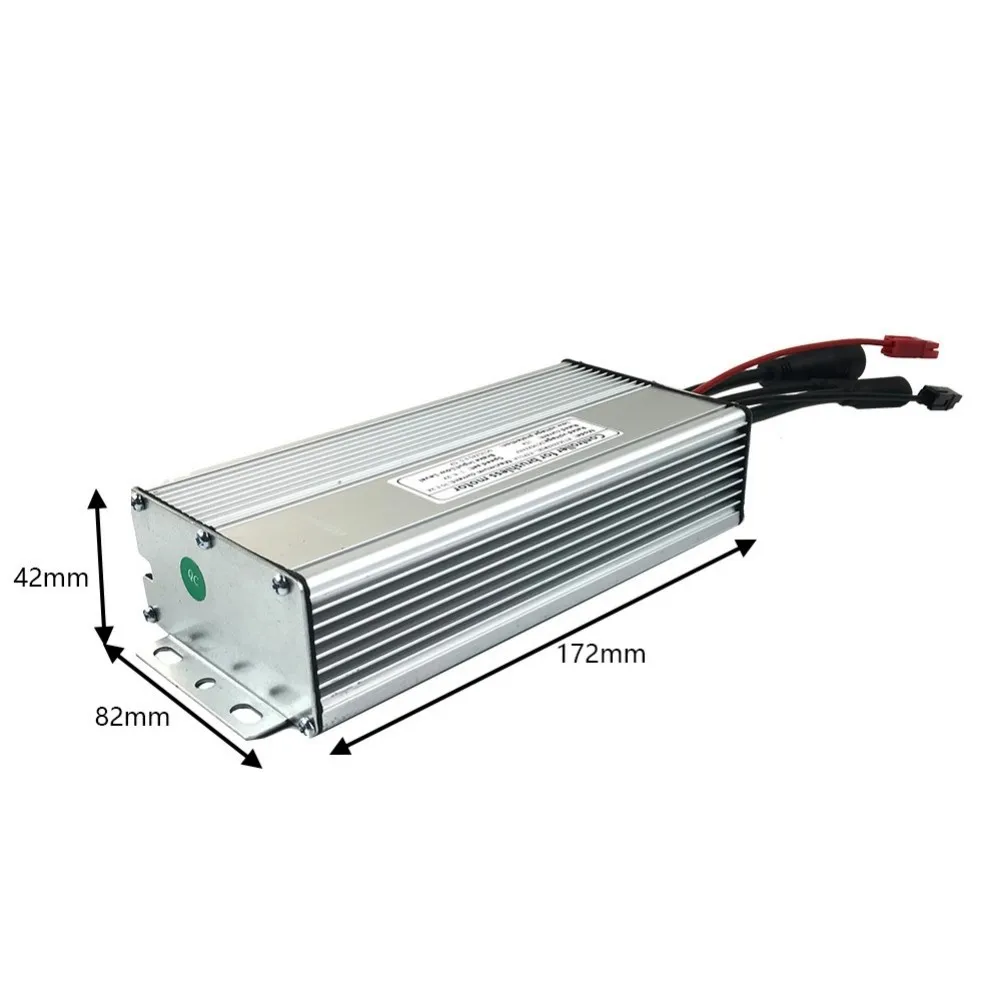

*Controller size: 17*8*4cm (Approx.)

*Weight: 550g

Package Includes:

1 x Controller

Note:

1.First of all, make sure that the outlet of your motor is same,and motor is brushless motor.

2.This controller can work with eletric bicyle only, not suitable for electric scooter.

3.KT controller just only compatible with KT display(same communication protocol) . Please make sure that your system is KT system.

4. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

5. Please allow slight manual measurement deviation for the data.
