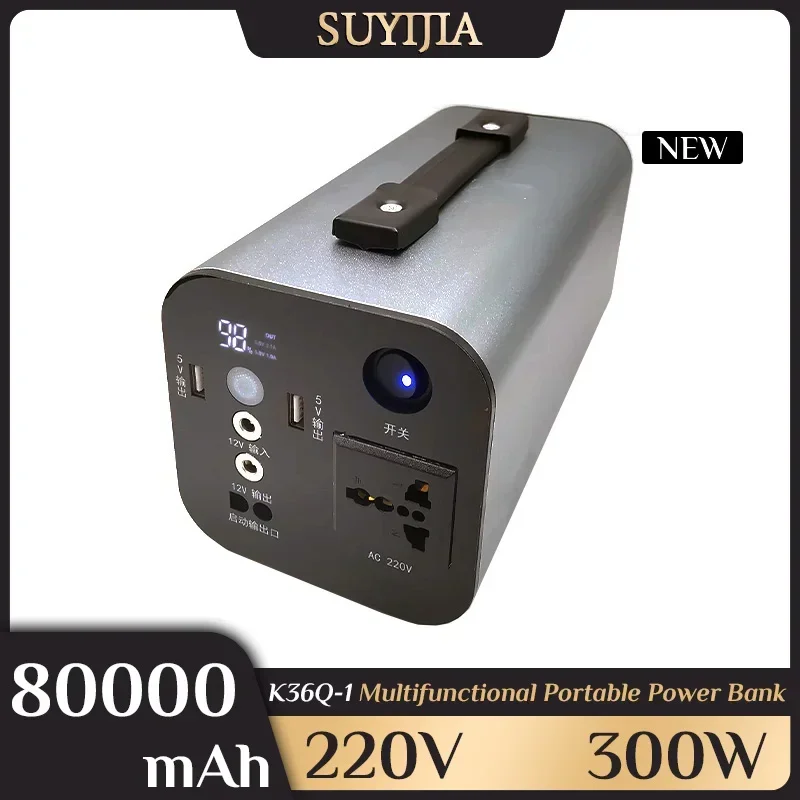

K36Q-1 80000mAh 300W 220V Li-Ion Portable Mobile Power Bank Supply for Phone Drone Laptop Camera Camping Emergency Power Supply

Specification
Product name: Multifunctional portable emergency energy storage power supply
Product model: K36Q-1 /300W (metal boot version)
Battery type: rechargeable lithium iron phosphate battery
Input charging function: DC15/3A
AC inverter output: 110/220V-50H2/300W
DC output: 9V-12V 10AMAX
USB output: 5V/1A 5V/2A
Battery rated power: 256Wh 3.2V 80000mAh
Car starting current: 800A
Working environment temperature: -20℃~60℃
Working environment humidity: 5%-8%
Storage temperature: -10℃~55℃

Net weight of mobile power supply: about 3.7KG
Total weight: 4.3KG
Size: 240*120*130mm

widely used:
Car appliances/car air pump tool/telephone/camera/drone/fan/laptop/small fan/camping/solar panel/power tool/projector/car refrigerator/ventilator, etc.

Packing list: K36Q-1 300W energy storage power bank * 1 PCS

*Before using the power supply, please read the contents of the manual carefully*

Use the original power adapter to charge this product
1. Select the original power adapter and connect its connector with the corresponding input port of this product.
2. Connect the power adapter to the 220V power outlet, and the power indicator light on the digital display will start to flash, indicating that the charging is in place.

Charge digital devices
1. Select the original charging cable for digital products, connect one end to the digital product, and the other end to the output port, and then turn on the USB/DC switch.
2. Check whether the power supply of the electrical equipment matches the output power of this product: press the ON/OFF switch to connect to the 220V power supply, the indicator light is on, and the electrical equipment is powered on; the display will display the current power.

low battery alarm
1. When the power is lower than 10%, it enters the low voltage alarm, and the display/light starts to flash. When the device is charging, it will blink until it is out of power. When there is no device charging, it will blink for about 5 seconds and then turn off.

other
When not using the inverter function, please turn off the inverter switch in time to save power.

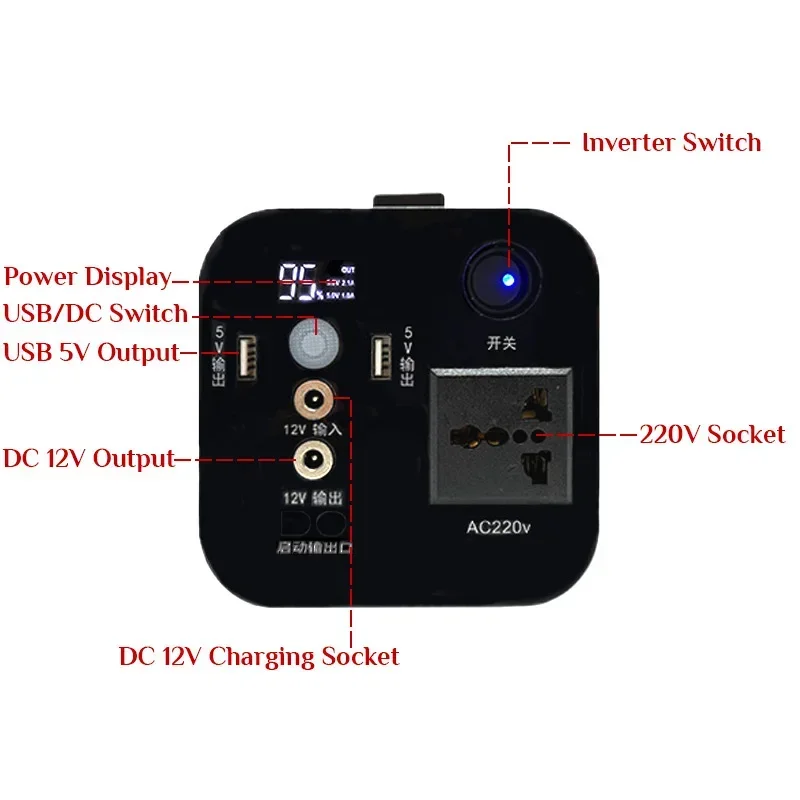

LCD screen description:
For safer and longer cycle life, this product uses lithium iron phosphate battery, but the voltage drop of lithium iron phosphate is not more obvious than other lithium batteries, so please ignore the percentage displayed on the LCD screen.

Note: When using the product, the voltage display is unstable, please stop the input and output to obtain a more accurate display.

Charging instructions:
1. Please turn on the product ("ON/OFF" switch is on) before charging.
2. To ensure 100% full charge, please wait for the green light of the charger to come on.

Commercially available 12V models can start/auxiliary ignition, and are equipped with intelligent anti-reverse connection starter clips.

Vehicle Start Instructions:
1. Before starting the vehicle, please make sure that the red positive pole and the black negative pole are connected correctly, otherwise it will cause damage due to reverse connection.
2. Please charge the product to above (55%) before use to start the vehicle;
3. The performance of lithium iron phosphate battery will decrease at low temperature (below 10°C), and the vehicle may not be able to start below 0°C.

12V car starting steps

1. It is very important that the red clip completely clamps the positive (+) pole of the battery, and the black clip completely clamps the negative (-) pole of the battery.

2. Fully insert the battery clip connector into the host's EC5 port.

3. Turn the ignition switch of the car to the START position.

4. After the car starts, unplug the plug within 30 seconds and remove the battery clip.

5. Do not start continuously, and the start time should not exceed 3 seconds; if the start is unsuccessful, you must wait for more than 30 seconds to start the second time (do not start continuously, it is very important)

6. In the case of severe power shortage of the car battery (doors, headlights cannot be opened normally, etc.), it is necessary to remove the negative pole to start, so as to avoid the power supply being sucked back and causing expansion due to overload discharge.
Note: For models with start-stop technology and drivers, the negative pole cannot be removed.

CAUTION: Do not allow the metal parts of the battery clips to touch each other or the same piece of metal.

Precautions:

1. Before using this product, please be sure to read the product manual in detail, and operate it correctly according to the instructions in the manual.

2. Do not disassemble the device by yourself, this product does not install any parts that can be disassembled/maintained by yourself.

3. It is strictly forbidden to contact the product with objects or heat sources above 55 degrees Celsius, it is strictly forbidden to throw the product into fire or water, and it is strictly forbidden to charge the mobile power in an environment below 0 degrees Celsius.

4. Do not vibrate, knock or hit this product with force. If the product encounters strong impact, strong extrusion, or falls from a height of more than 1 meter, or the shell is deformed or bulged, please stop using the product.

5. Do not expose the product to sunlight, do not place the product in an environment with corrosive substances, and do not use other chemical solutions to clean the product.

6. When the car is charging the product, it is recommended to start the car before charging.

7. Once the product has abnormal heating or liquid leakage, please stop using it immediately. If the liquid accidentally splashes into the eyes, do not rub the eyes, flush the eyes with water immediately, and seek medical attention immediately if the situation is serious

8. In order to avoid abnormality of this product, it is recommended to use the charging cable, adapter and power adapter produced by the original factory.

9. Please dispose of waste mobile power according to the national environmental protection regulations.

WARNING: Use this product in accordance with accompanying directions. Failure to follow instructions could result in fire or other damage to the product. Keep this product out of the reach of children.
