Description
Comfast 300Mbps Outdoor Bridge coverage Signal booster Amplifier High Power 2.4Ghz CPE 1-5km Transmission 14dBi High Gain Wifi Receiver For IP Camera Projects CF-E314N V2
CF-E314N V2 is an outdoor long-distance transmission wireless network bridge, suitable for wireless signal transmission in security monitoring projects, supporting a transmission distance of 5 kilometers and a wireless transmission rate of 300Mbps. It is suitable for the transmission of monitoring projects such as scenic spots, ports, oil fields, and construction sites.
note :It is recommended to use in pairs, the transmission distance can reach 1-5km
Specifications:
300mbps Project Outdoor CPE
- 11b: 1, 2, 5.5, 11Mbps;
- 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
- 11n: MCS0-MCS15 (20MHz&40MHz Analog Bandwidth);
- 20MHz: 144.4Mbps
- 40MHz: 300Mbps

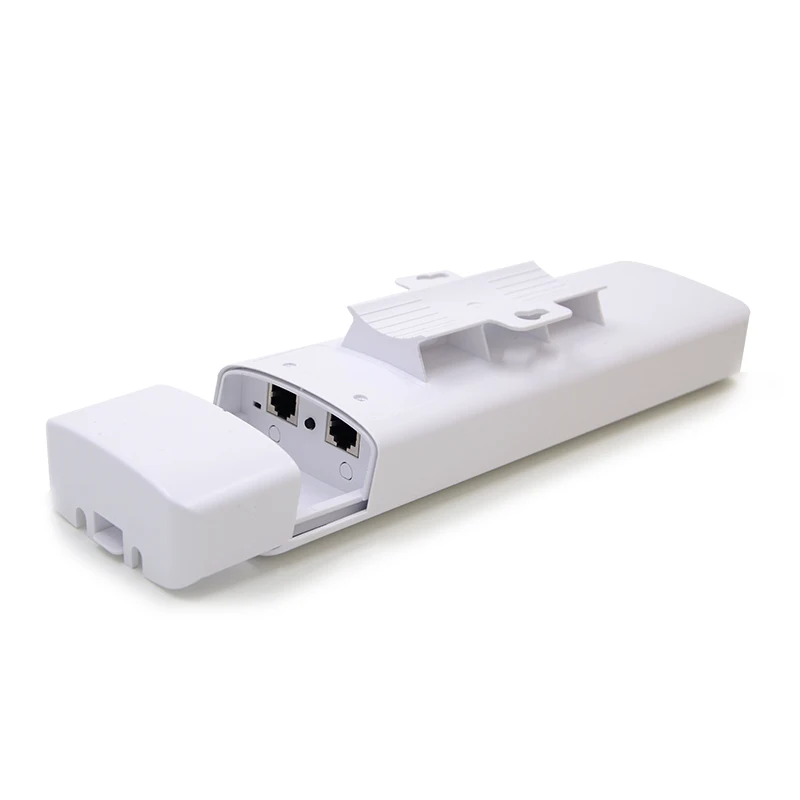

- 1* 10/100Mbps WAN RJ45 Ethernet Port;
- 1* 10/100Mbps LAN RJ45 Ethernet Port;
- 1* POE Output Slide Switch;
- 1* RESET Button
Package included :
![](https://ae01.alicdn.com/kf/HTB1JcrjXIfrK1Rjy0Fmq6xhEXXaG.jpg)
![](https://ae01.alicdn.com/kf/HTB122LiXLfsK1RjSszbq6AqBXXat.jpg)
Comprehensive protection to against severe outdoor environnments
Precise structural design provides the ability to handle different kinds of rugged surroundings
Lighting Protection & Waterproof & Dustproof & Antifreeze & High Temperature & Antioxidant Resistant & Resistance to extrusion Shockproof
Low Temperature Protection
It can support work and start up under low temperature
Qualcomm chip Perfect Performance
As Qualcomm's global strategic partner , COMFAST products all use Qualcomm chipset , because we believe that QUALCOMM holds the high performance highland around the world

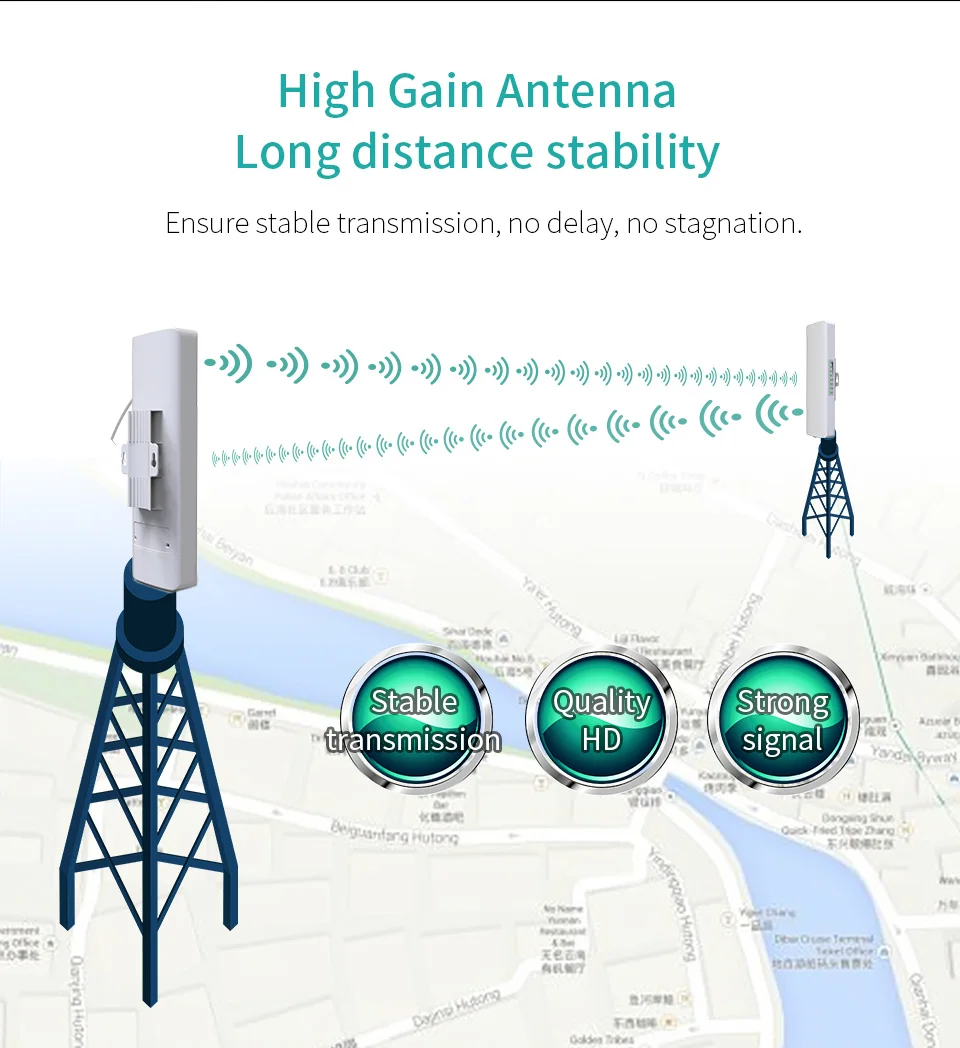

High Gain Antenna Long distance stability
Ensure stable transmission , no delay , no stagnation
More channels Less interference
It provides more optional channels And support channel automatic selection. Substantially reduce the interference. From same channel when transfer signal
48V POE Power Supply ,Reduce network costs
Toggle the switch to the left , connect a network cable to supply power to the surveillance camera , and realize view transmission , saving engineering cost and power supply troubles
Hidden SSID Safety Wifi
Support SSID hiding , solve network problems,and ensure project stability

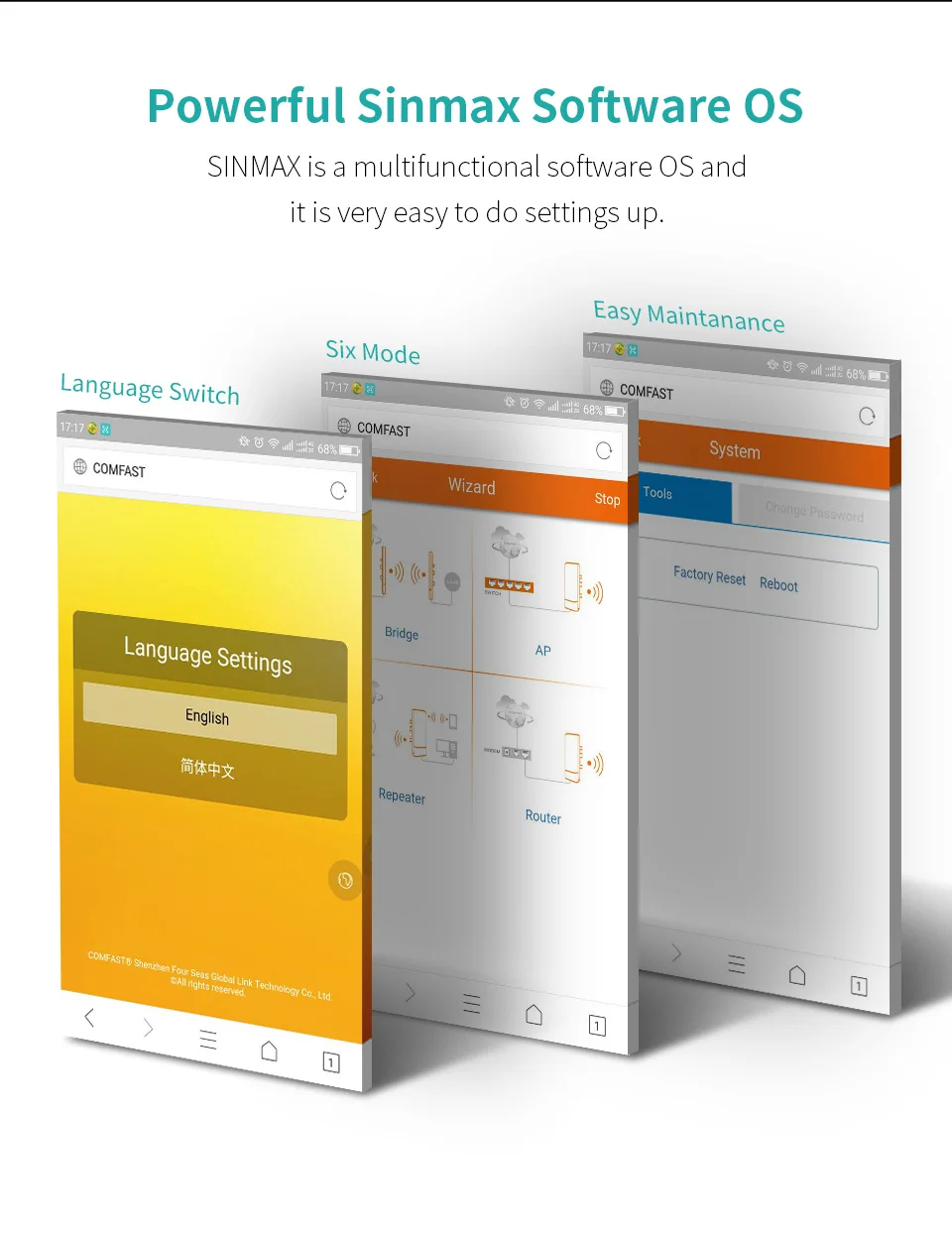

Powerful Sinmax Software OS
SINMAX is a multifunctional software OS and it is very easy to do settings up
Applicable scene
Elevator & Community & Driving school
Factory & Scenic spot & Site
Elevator Monitoring Application
Connect Application Diagram
Point to Point Connection Diagram
Multiple cameras connecting way 1 : Connect the camera to the switch , then connect with COMFAST CPE It will transmit the data through two CPE

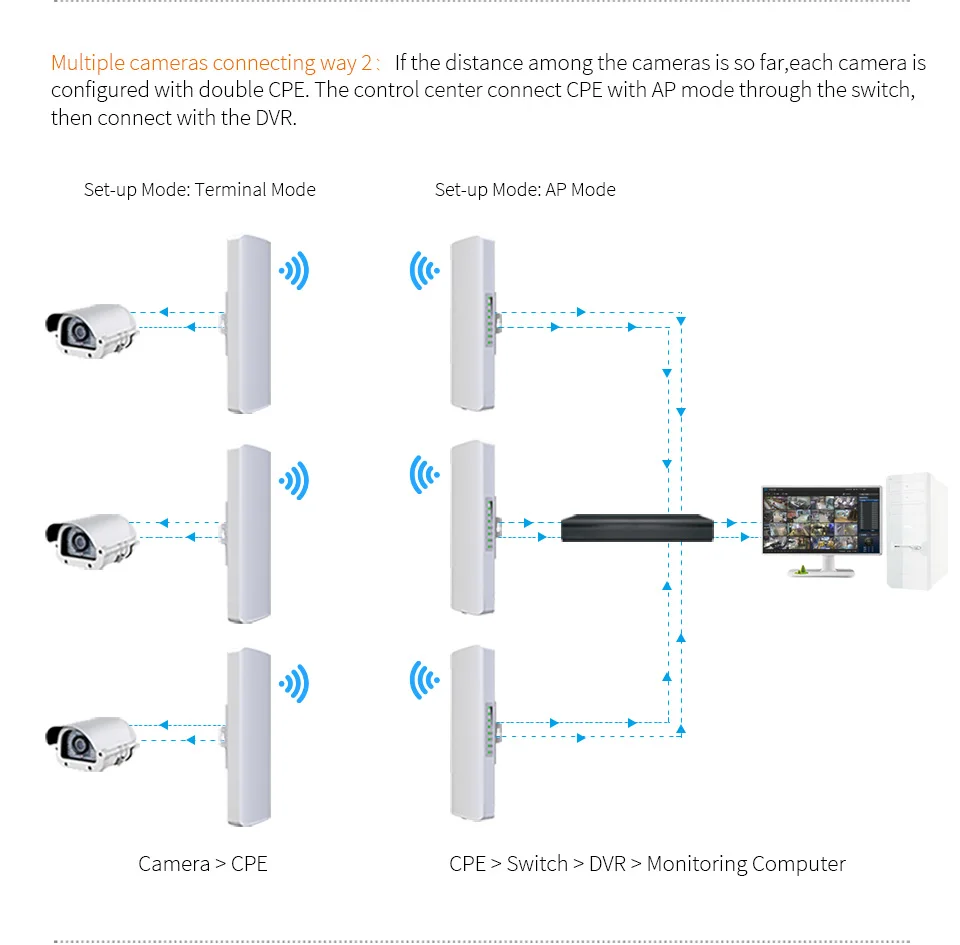

Multiple cameras connecting way 2 : If the distance among the cameras is so far , each camera is configured with double CPE . The control center connect CPE with AP mode through the switch ,then connect with the DVR
Point to Multi-point Connection Diagram
If the angle between camera and control center is within 60 , there can consider one point to multi point connection . It can reduce CPES with the transimitting mode , which can save project cost a lot . Pls pay attention that it has to be meet the angle and brandwith requirements
Easy to install and maintain
Stainless ties are fixed installation without installation tools

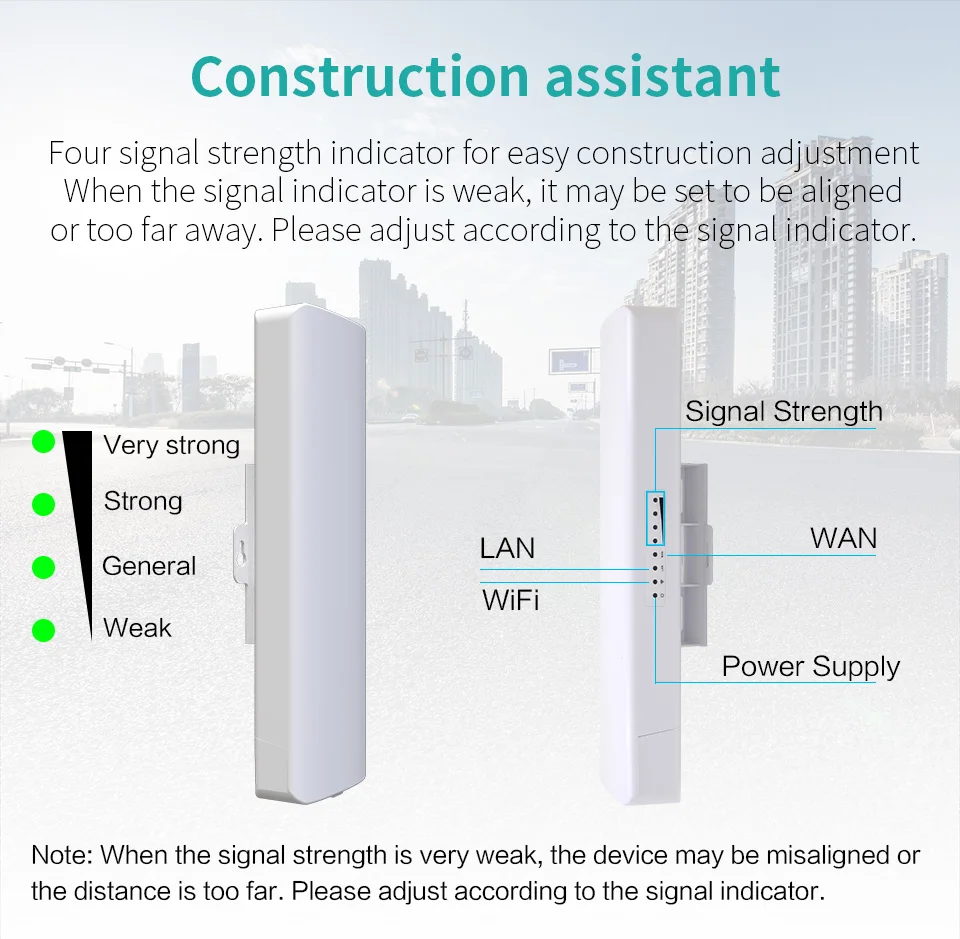

Construction assistant
Four signal strength indicator for easy construction adjustment.When the signal indicator is weak , it may be set to be aligned or too far away . Please adjust according to the signal indicator
Note : When the signal strength is very weak , the device may be misaligned or the distance is too far . Please adjust according to the signal indicator .
How to connect
Packing List
![](https://ae01.alicdn.com/kf/HTB1FA6mXUrrK1RkSne1q6ArVVXav.jpg)
Dear customer, if you have any questions you can contact us at any time, please contact us before raising any disputes or leaving any neutral/negative feedback, we will try our best to solve it for you, your satisfaction is always our first priority.
Q1: How long Range is the wifi transmission distance of this device?
Q2: What is the frequency of this device? What is the transfer rate?
2.4Ghz, 300Mbps
Q3: What scenario is this device used for?
Q4: Is it possible to accept internet from home router via WiFi and transmit further?
Yes, the router WiFi can be used as the transmitter or as the receiver (for reference only, the specific application needs to be combined with the actual situation)
Q5: What scenario is this device used for?
Yes, a device can be set to AP mode and repeater mode, but the transmission distance of WiFi is the same as the normal relay and AP coverage. If you use one device, it is recommended to set AP mode.
