2L Free Shipping Solvent Distillation Rotary Evaporator,chiller and pump
Description
1 years warranty, Lead time:
220V : 2-3 days
110V: 3-5 days
Remark:
We have special shipping way to Mexico and Thailand ,Customer don't need to pay any Customs tax at your country. The Thailand customer is near to China, it can't pay any extra freight. Mexico customer should pay extra USD 250.00 for expensive freight(Because the freight is higher than usual express company, After finishing the customs clerance, we will arrange the usual express company to deliver to you ) . Please understand.
1> Chiller
Chiller
HC-3/20 is ideal for internal and external temperature control when cooling are required. This compact, space-saving design offers consistent system performance and easy operation at an unbeatable low price.
This unit can be utilized for a variety of end-user and OEM applications,including electron microscopes, general laboratory apparatus and cooling, water-jacketed incubators, rotary evaporators, electrophoresis , spectrophotometers, enzyme and protein assays, laser cooling and more.
Main features
1) The microprocessor-based PID controller increase heat/cool responsiveness to ensure constant temperature.
2) The unique LCD display panel and environmental control system features part-load sound levels belowthat of conventional speech at a distance of two meters
3) Environmental technology also optimize compressor and evaporator performance, reducing overall energy consumption and prolonging compressor life.
4) QDC fittings and stainless steel reservoir facilitate user-friendly operation and simple maintenance.
The vinyl feet ensure stable placement on your benchtop.
5)Used famous compressor EMBRACO compressors
Specifications
Model | HC-3/20 |
Electrical requirements | 110V 60Hz 1-PH or 220V 50/60Hz, 500 watts |
Compressor | Power: 115V 60Hz 1 HP |
Recirculating pump | Output: 15 watts |
Reservoir | Dimensions: 5 x 11 x 5" (WxDxH) |
Temperature controller | Type: Digital microprocessor PID controlled |
Temperature sensor type | Pt100 |
Housing | Powder coated type 42 stainless steel |
Recommended coolant | For 50°F/10°C or higher: distilled water |
Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
Built-in swivel casters | No |
Unit/shipping dimensions | 16 x 9 x 22" / 24 x 14 x 30" (WxDxH) |
Unit/shipping weight | 60 Lbs / 105 Lbs |
Safety | Compressor over-temp protection |

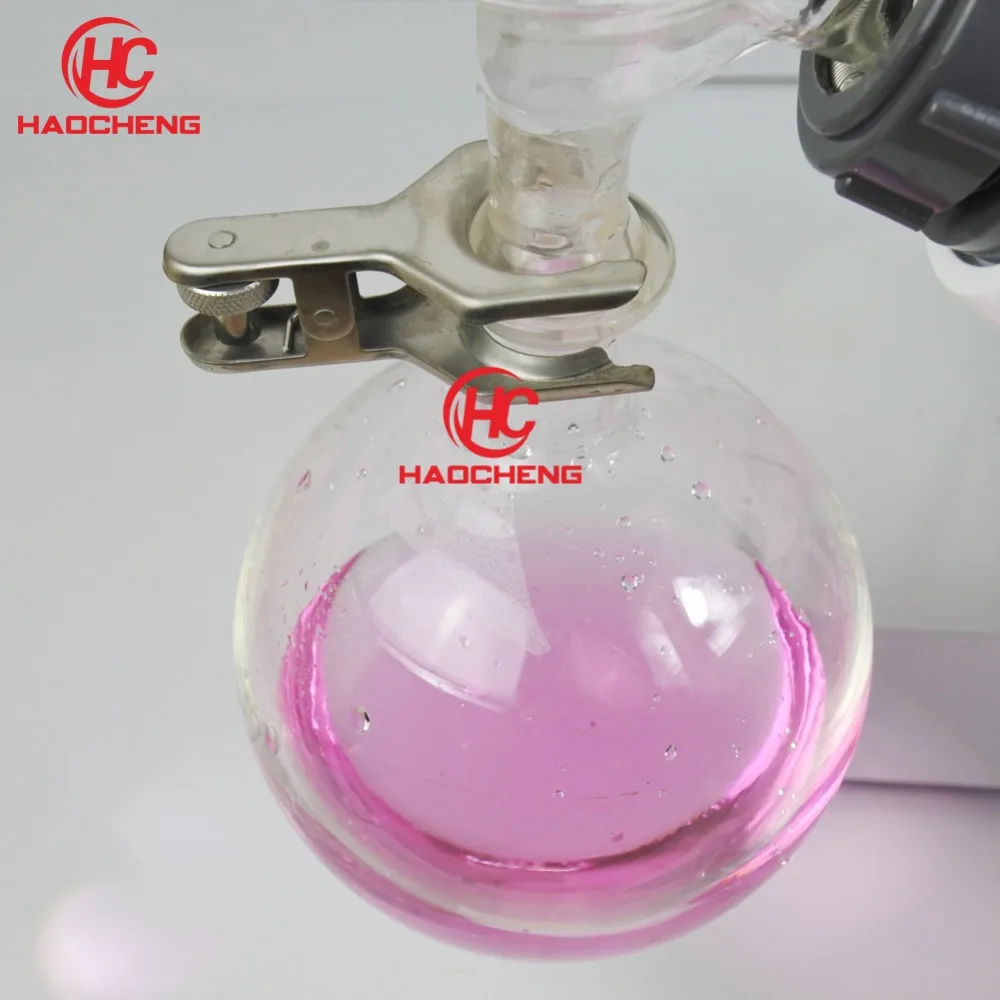

2> Rotary Evaporator
Introduction
◎ The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
◎ The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low Temperature Cooling Liquid Circulating Pump.
Features:
Digital displays for rotation speed and heating bath temperature
Speed range 0 - 120 rpm
Specifications
3> Vacuum Pump
Features
◎The machine adopts the double vacuumtaps
◎Cabinet to strengthen polypropylene,the host divided into two types for stainless steel and corrosion-resistant material.
◎Corrosion-resistant, pollution-free,small noise, easy to move, and add vacuum control valve according to customer's requirement
Contact Information:
What's App: +86-136-3282-3215
