Description
Camping Portable Power Station 2400W 1800W 1000W 600W LiFePo4 Battery Backup 110V/220V AC Outlet Solar Generator Outdoors Travel Hunting Blackout
1800w 220v Portable Power Station Lifepo4 Camping Emergency Power Bank 1600W 110V Outdoor Camping Rechargeable Generator

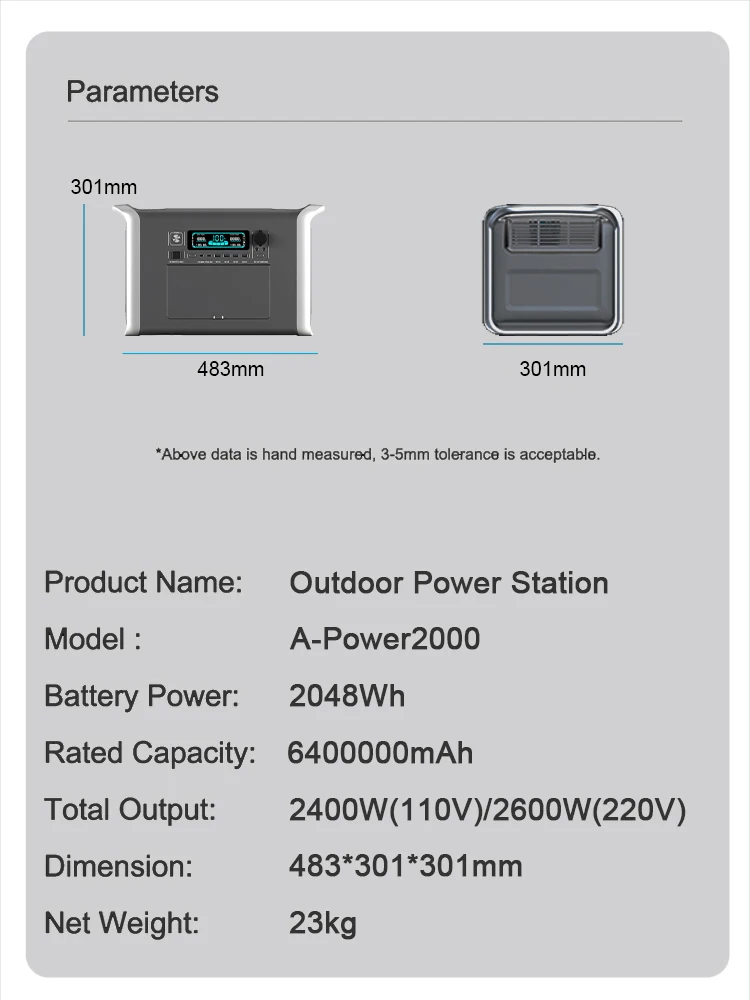

2400W 2048wh Power Station
2000W 2048WH Portable Power Station

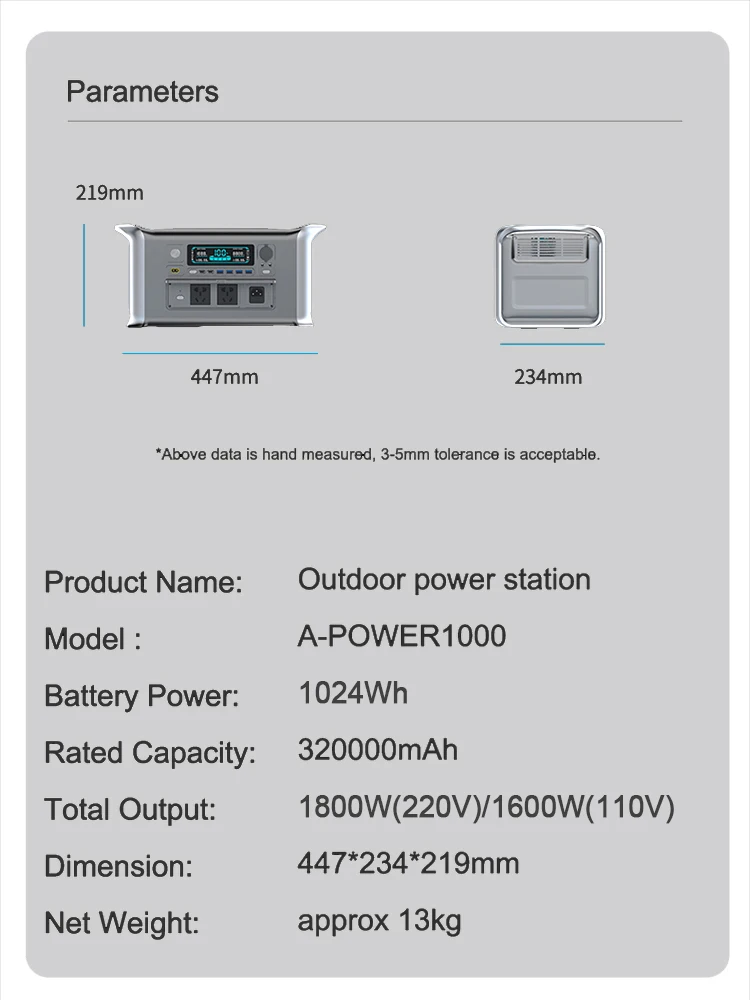

AP1000 Model 1800W 1024Wh Lifepo4 Portable Power Station

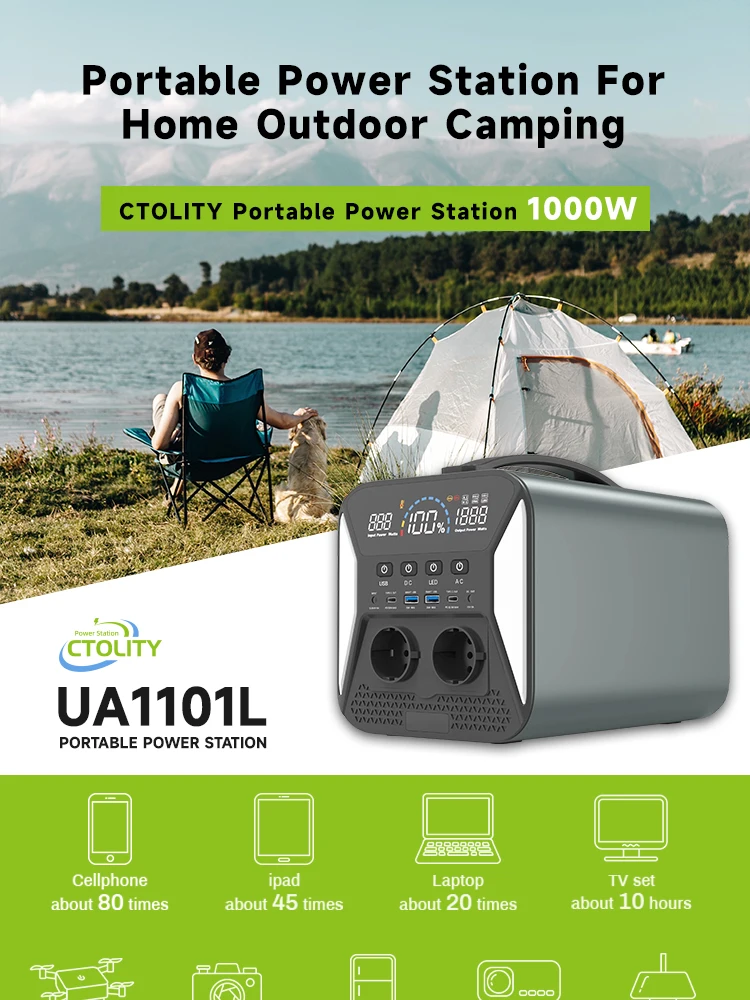

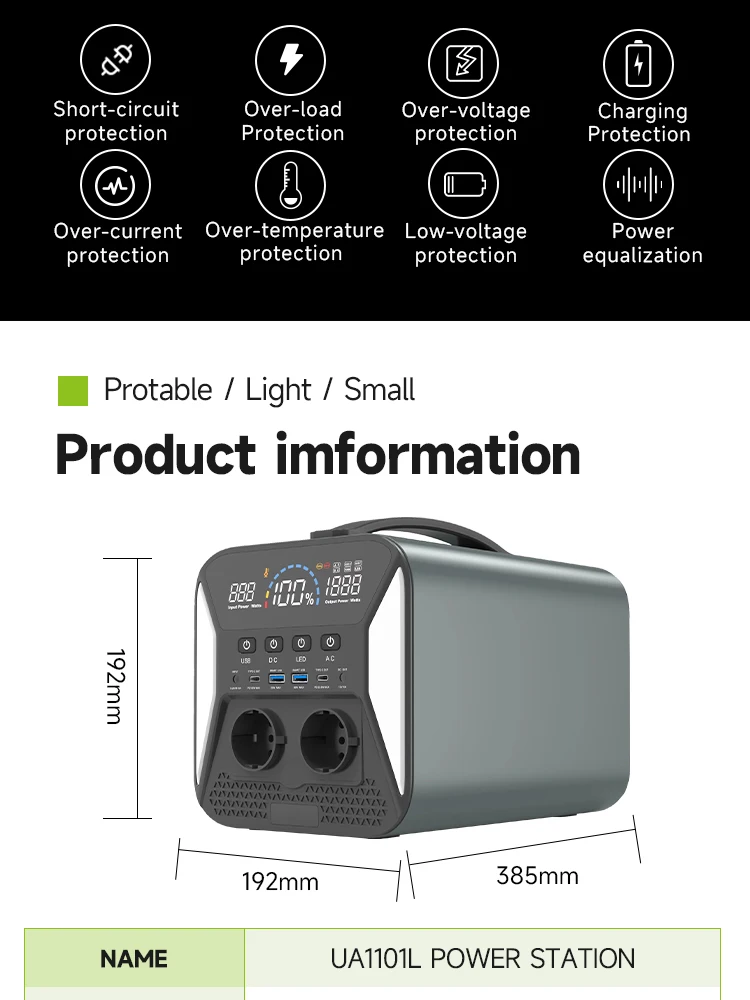

UA1101L Model 1000W 1024Wh with Lifepo4 Battery

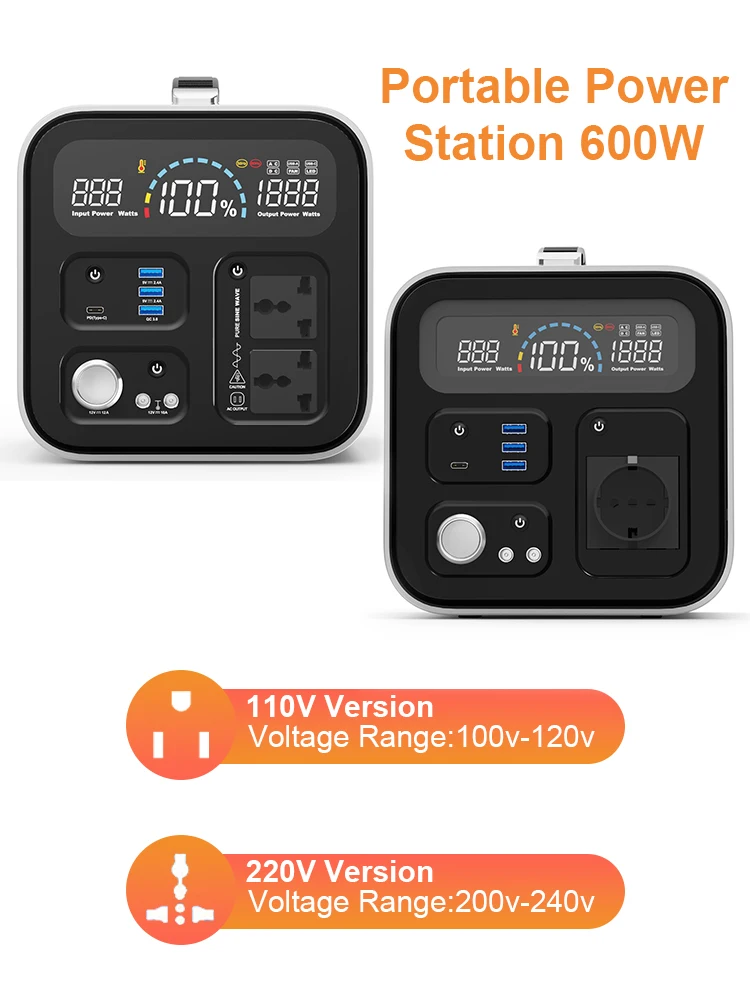

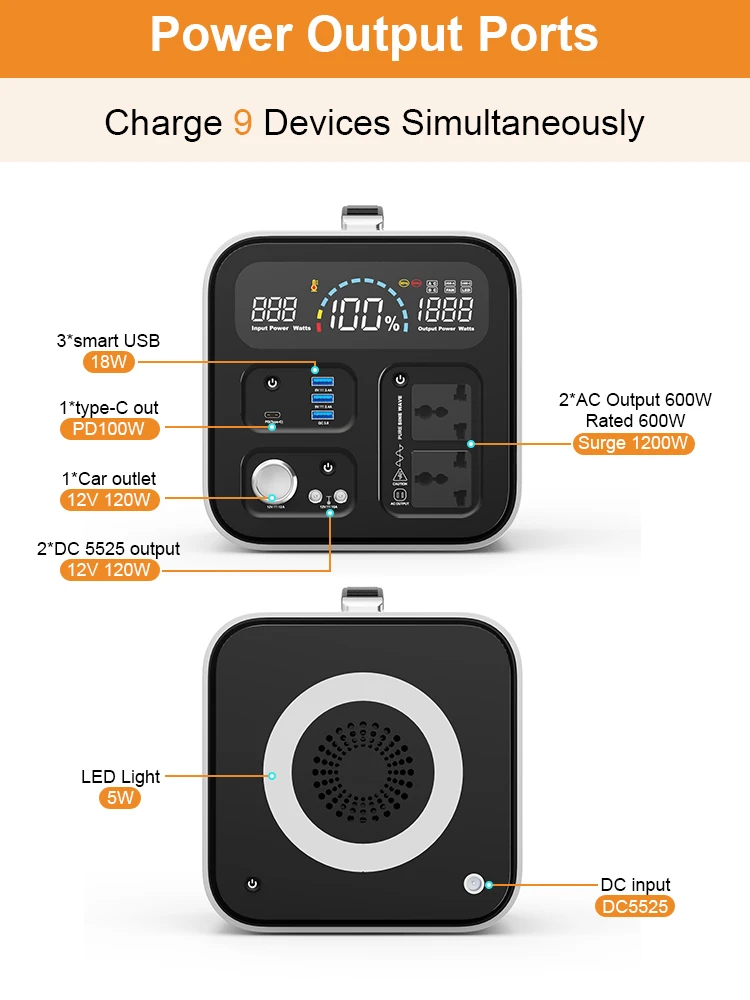

UAF550 600W 595WH Emergency Battery Backup Power Bank

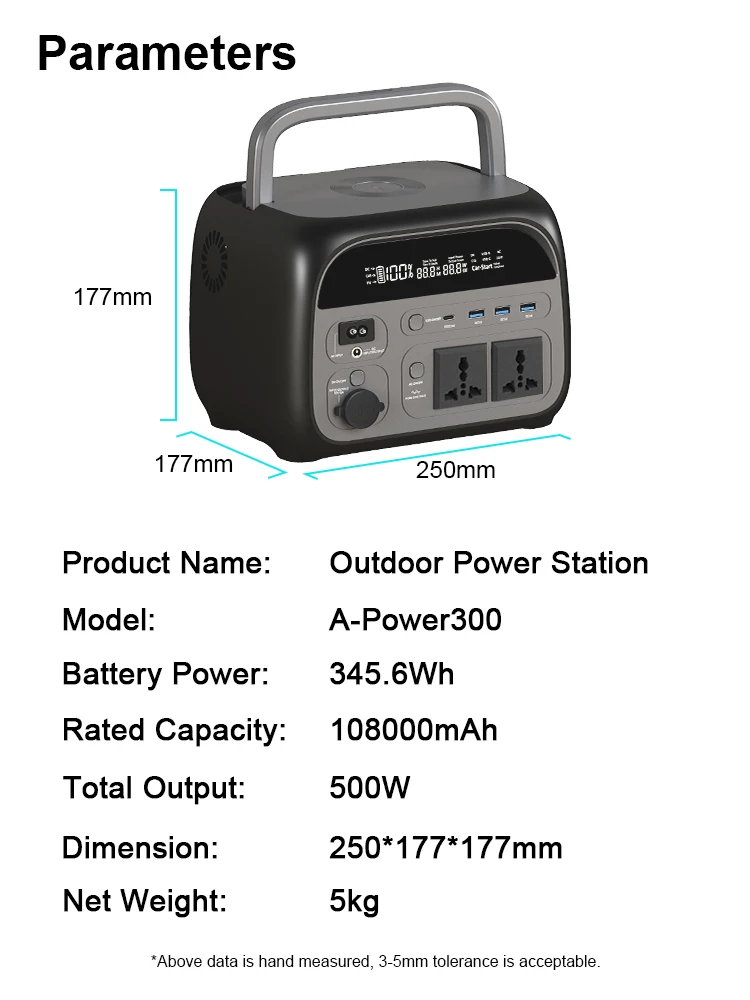

500W 345WH Power Station
2.Product Electrical Perfomance Index
No. | Item | Specifications | Remark |
2.1 Battery Pack | |||
No. | Model | ||
Apower400 | |||
2.1.1 | Cell Type | Apower400 LiFePO4 32700 6Ah | |
2.1.2 | Single Cell Capacity | 6000mAh | |
2.1.3 | Battery Pack Method | 6S3P | |
2.1.4 | Battery Rated Capacity | 108000mAh | Total cell capacity |
2.1.5 | Battery Rated Power | 345.6Wh | |
2.1.6 | Battery Rated Voltage | 19.2V | |
2.1.7 | Discharge Cut-off Voltage | 15V | |
2.1.8 | Internal Resistance | ≤1mR(Single Cell) | AC test internal impedance |
2.1.9 | Working Temperature | -10~60℃ | |

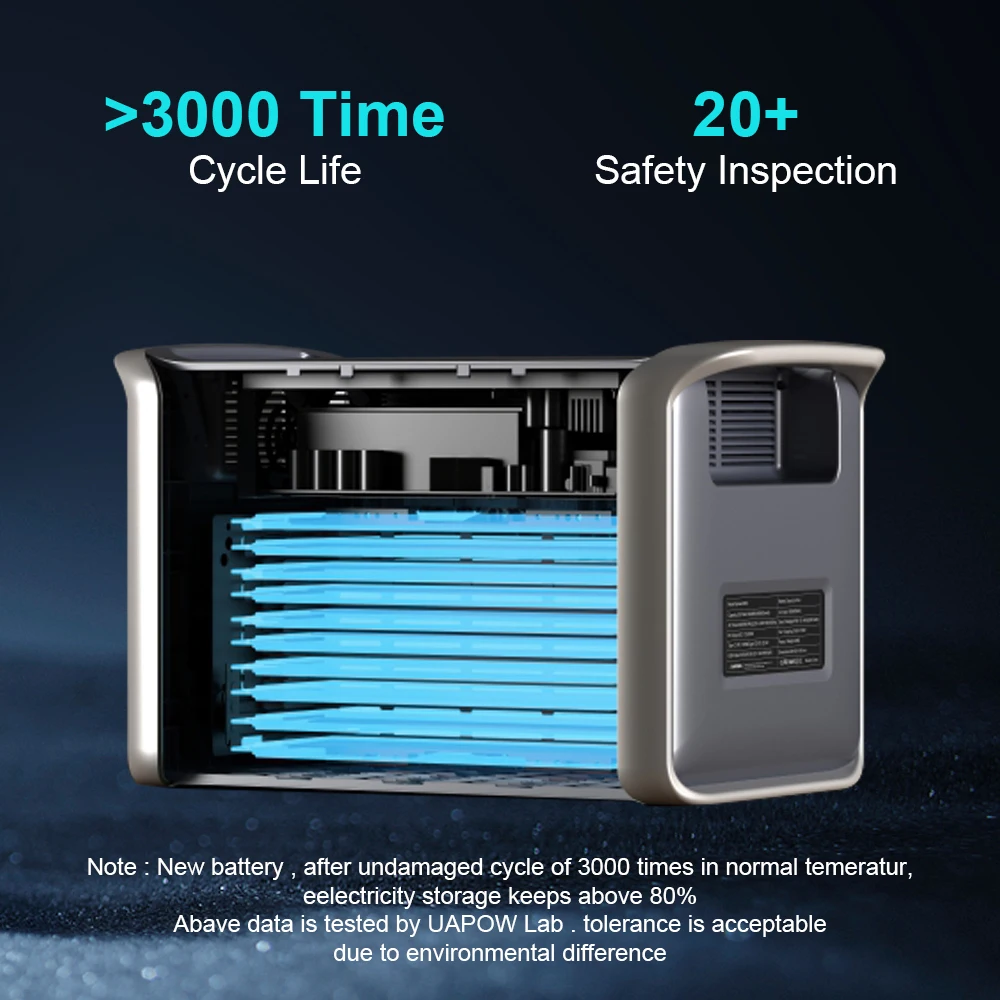

2.1.10 | Life Cycle | 3000cycles>80% | |
2.2 | |||
No | Model | ||
Apower400 | |||
2.2.1 | Series Availability | 6 Series | |
2.2.2 | Charge Current | 20A(MAX) | |
2.2.3 | Discharge Current | 26A | |
2.2.4 | Single Cell Over Voltage | 3.65V | |
Response Time | 2S | ||
Over Voltage Recover | 3.4V | ||
2.2.5 | Single Cell Below Voltage | 2.5V | |
Response Time | 2S | ||
Below Voltage Recover | 2.9V | ||

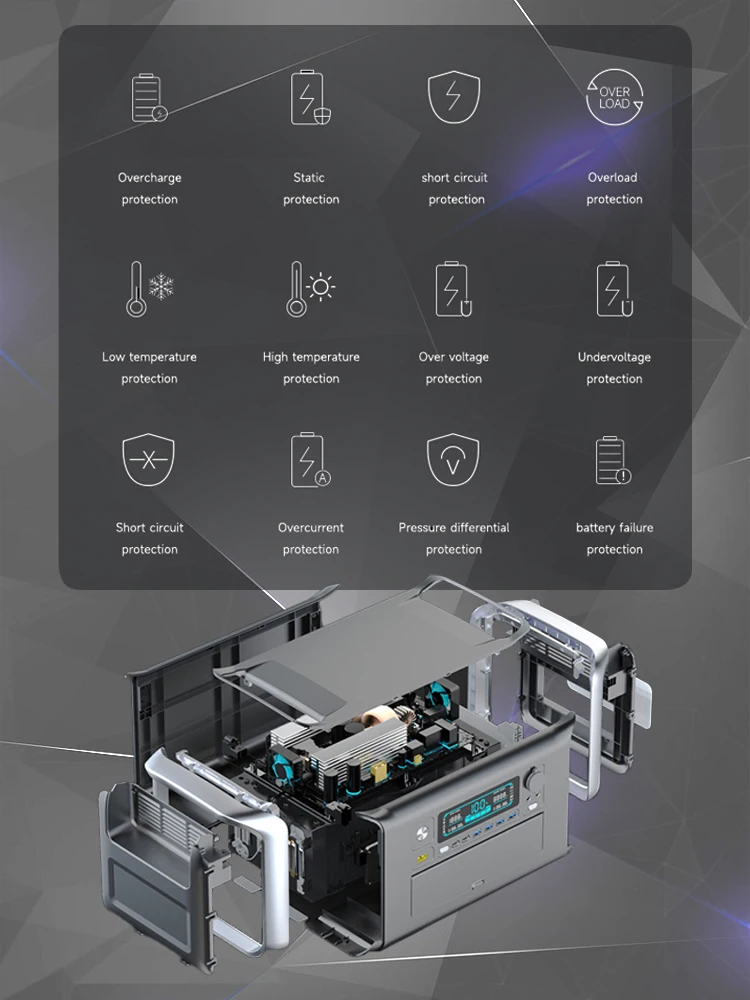

2.2.6 | Short Circuit Protection | Impedance less than 50mΩ consider as short circuit. | |
Recover | Software delete |

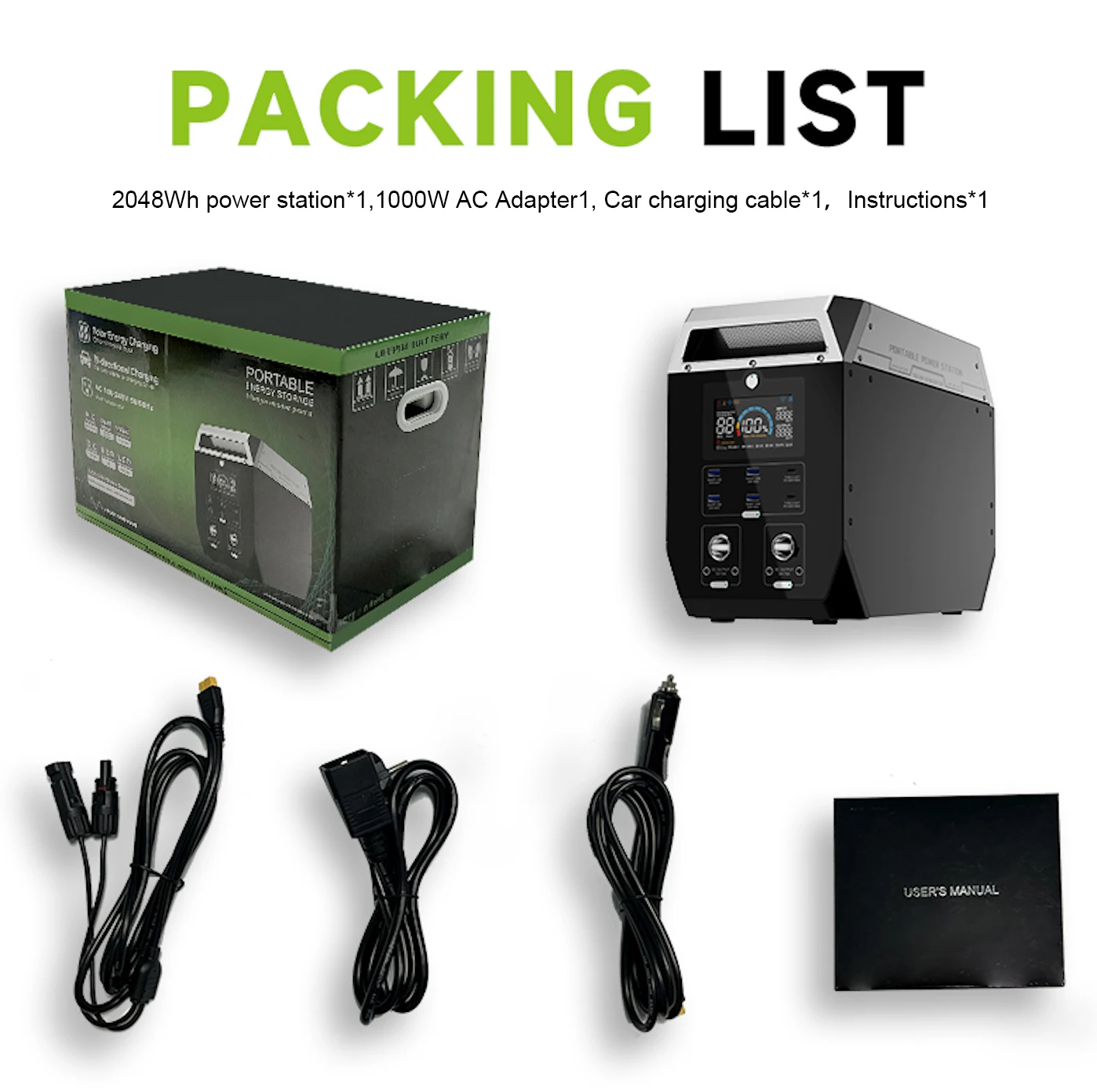

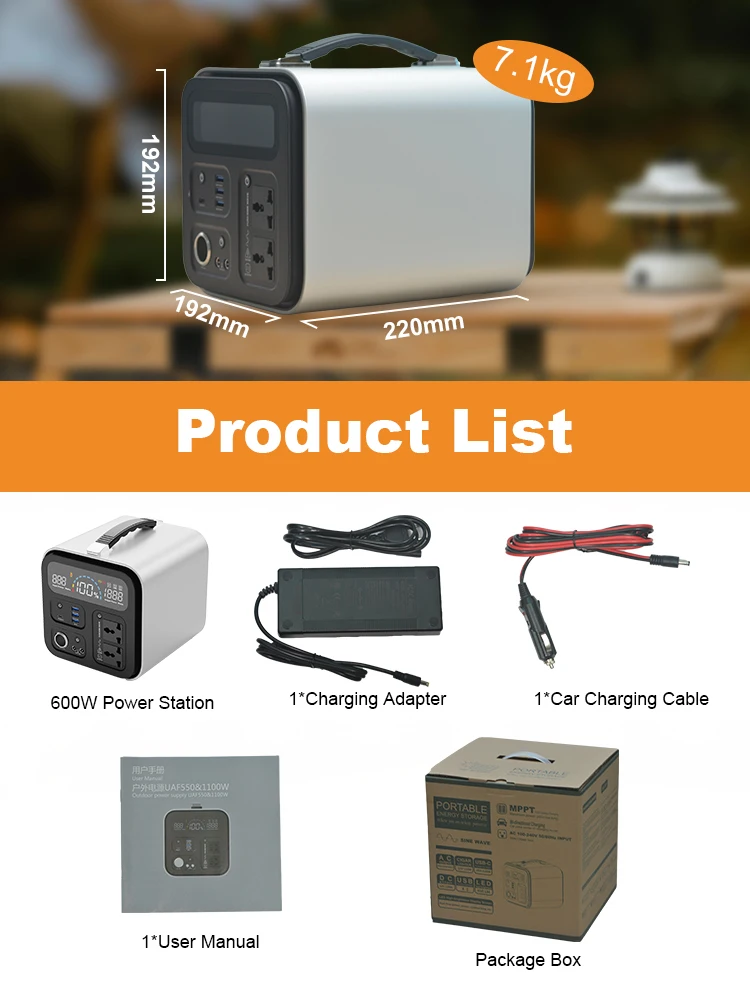

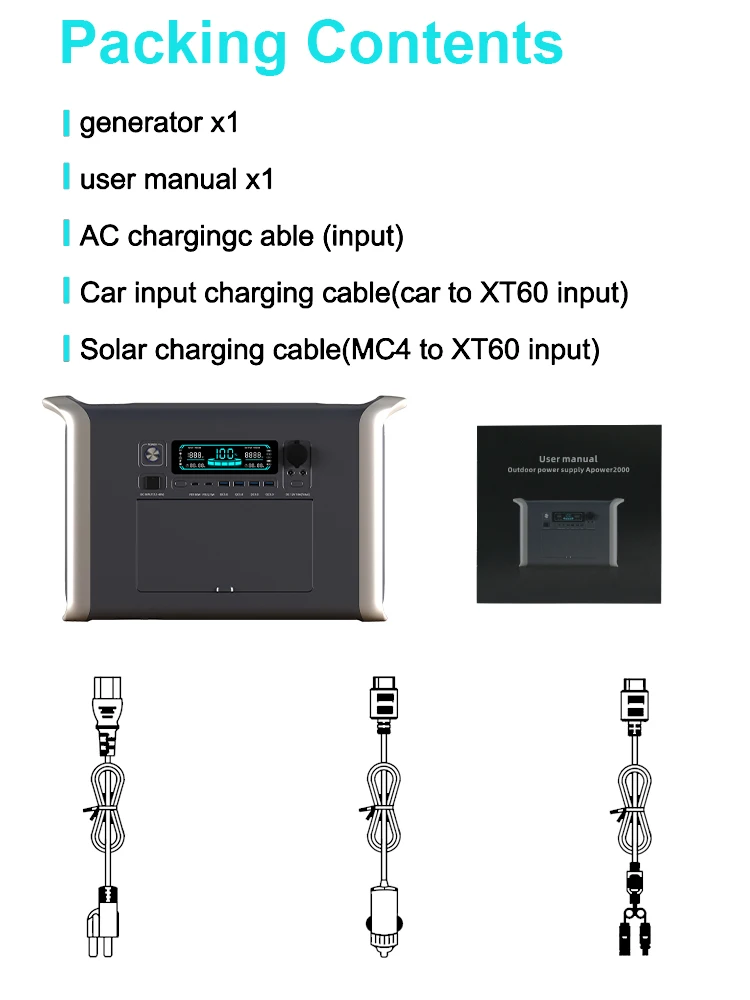

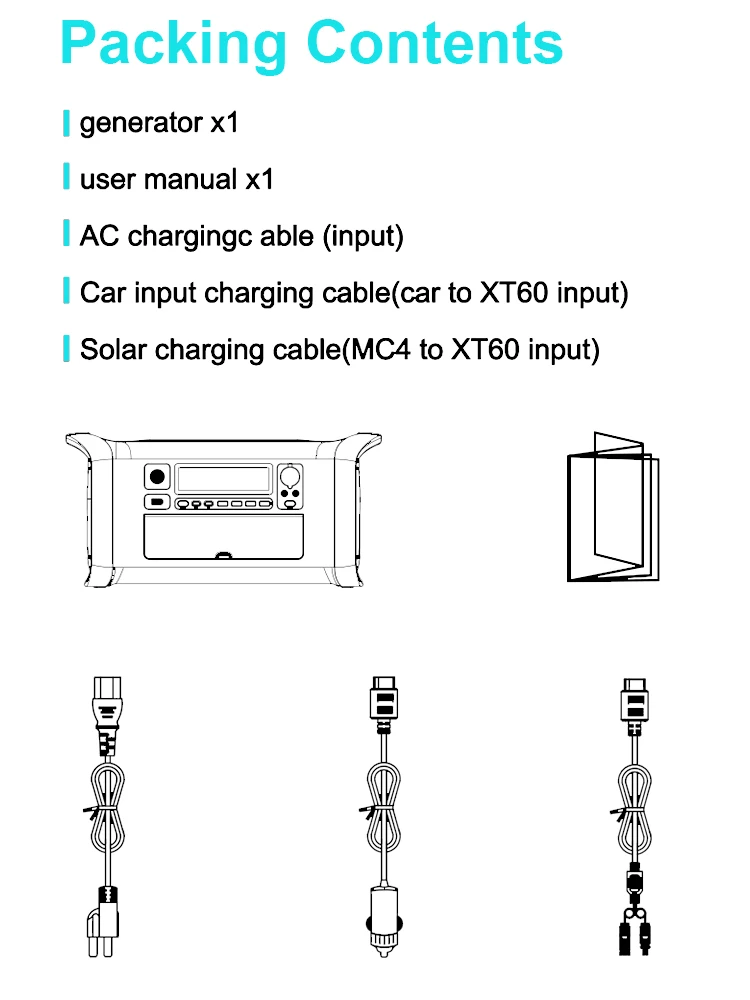

Packaging
Q & A
Q:Can you ODM or OEM?
A:Yes, OEM/ODM service offered, custom's own design packaging available.
Q: Can I get a lower price if I order large quantities?
A:Yes, cheaper prices with bulk orders.

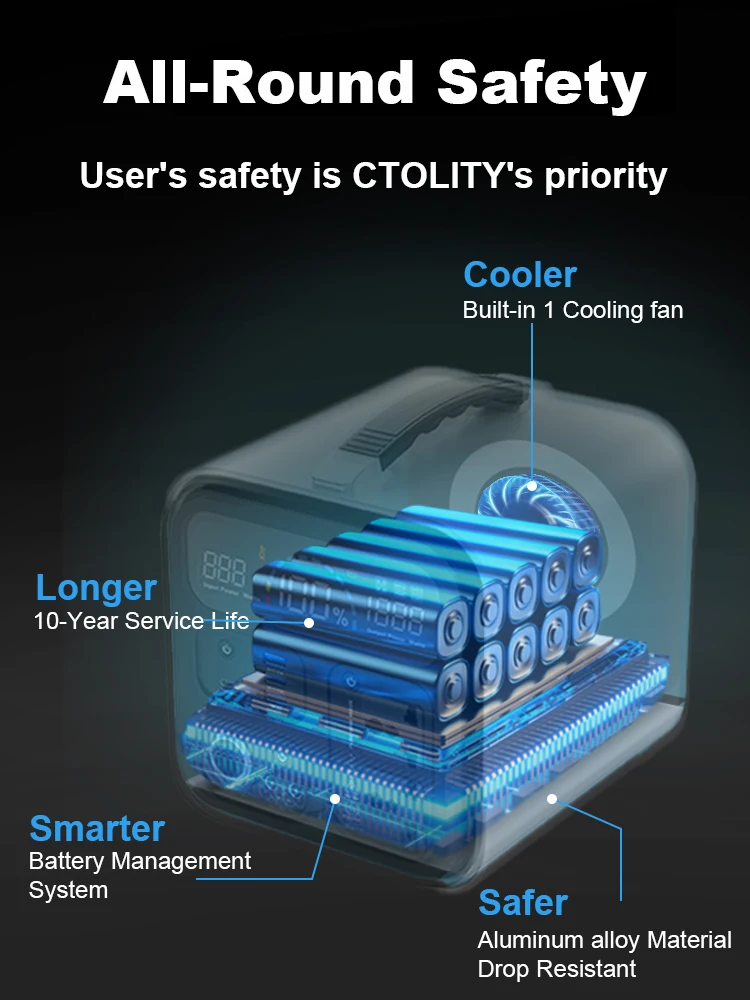

Q:If the product is no fan for cooling, will it be safe?
A:The products are designed by top designers and use high-performance components. The products without fan are quieter and safer.
Q:How long can the product be stored?
A:Half or above of the battery, it can be generally stored for 6-12 months. It is recommended to charge it every three months.

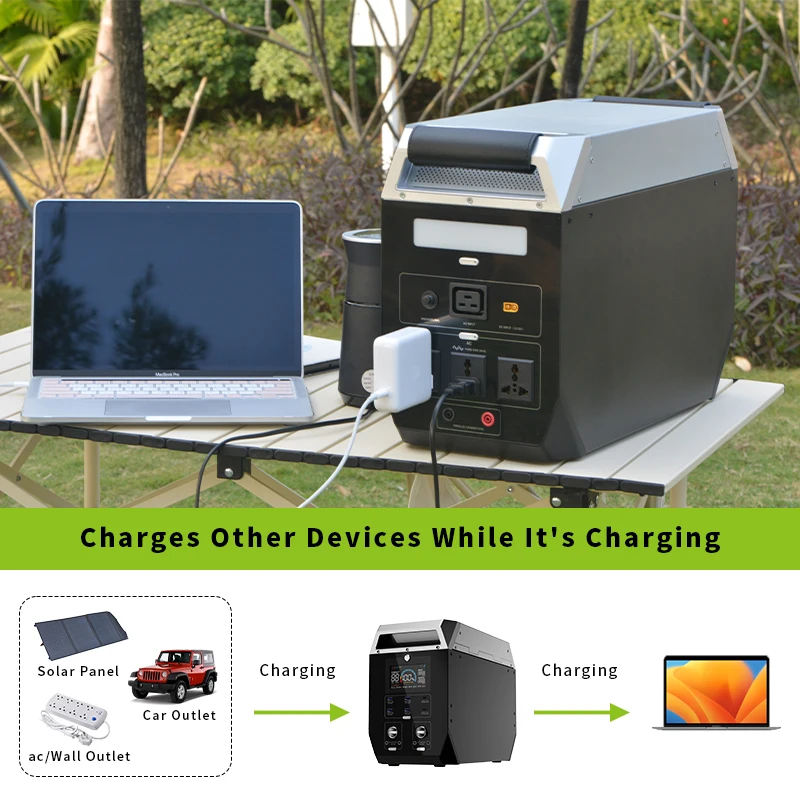

Q:Can the product be discharged while being charged (output used)?
A:This product supports discharging while charging, and it can be used at the same time. When the output power is greater than the input power, the battery power is slowly reduced, and when it is reduced to the low battery state, the output is turned off.
