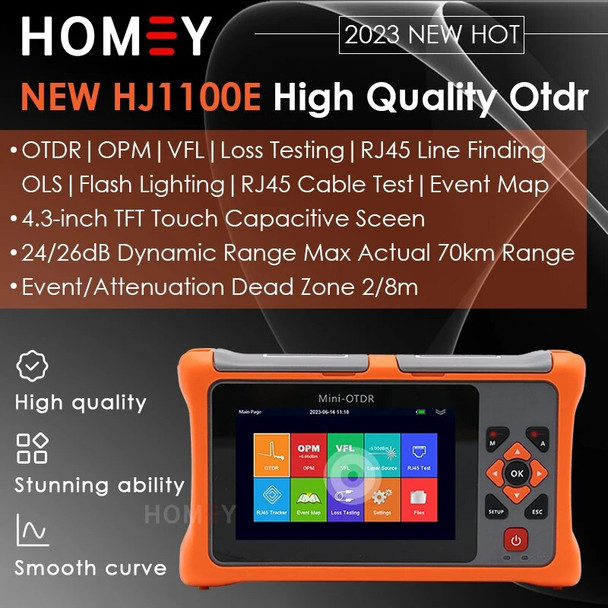

2023 NEW OTDR 26/24dB Active Live Fiber Optic Reflectometer Touch Screen VFL OLS OPM Event Map Ethernet Cable Tester Equipment

Attention!!!

1. Default OPM type is Type A: +10dBm ~ -70dBm.
If you need Type B :+26dBm ~ -50dBm specially, please remark it when you placing order.
Note:Type A use for Telecom, Type B use for CATV.

2. You Choose the HJ-1100E Series, there also has another version HJ-1100 Series in our store. Please confirm your choosed product.

Features

1、Nine-in-one function

2、The 4.3-inch full-view capacitive touch screen supports multi-touch

3、Cover plate type tempered glass panel, don't worry about screen scratch

4、Support horizontal version, vertical version, perfect fusion of the two habits of user operations

5、Support charging treasure charging, do not worry about the battery is not enough

6、In line with the international standards of test data with perfect simulation software, so that your report more simple

7、Sink type light port design, so that the instrument light port to get better protection

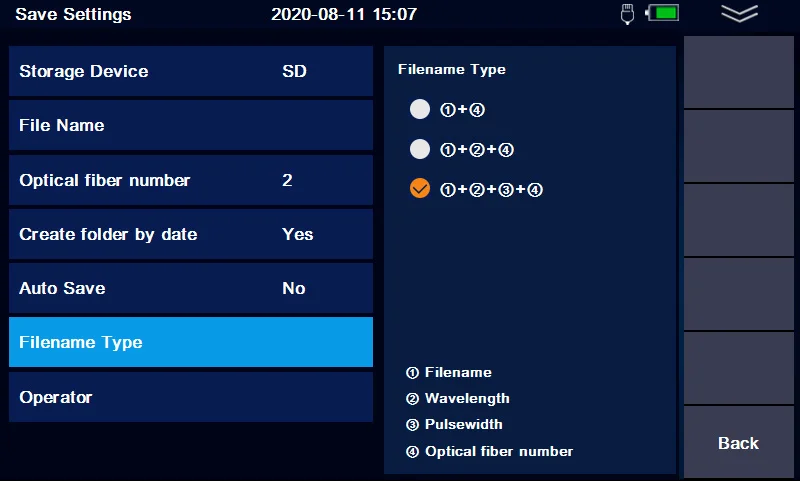

8、Support U disk, SD card and Micro USB export data protection

9、Any interface supports screen capture

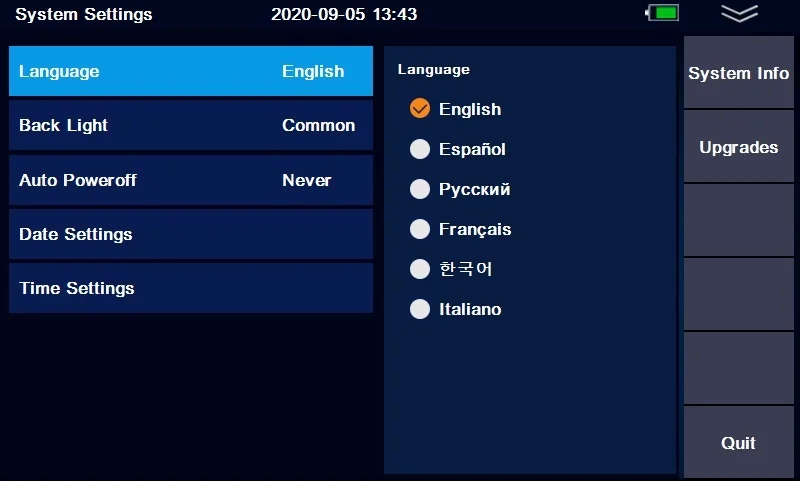

10、Support :English,French,Korean,Spanish,Italian

Physical indicators

1、4.3-inch capacitive touch screen with full viewing , TFT 800x480 resolution

2、Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours

4、Size: 175x105x45mm, weight: 560g (including battery)

5、Working temperature: -10~+55°C, storage temperature: -20~+80°C

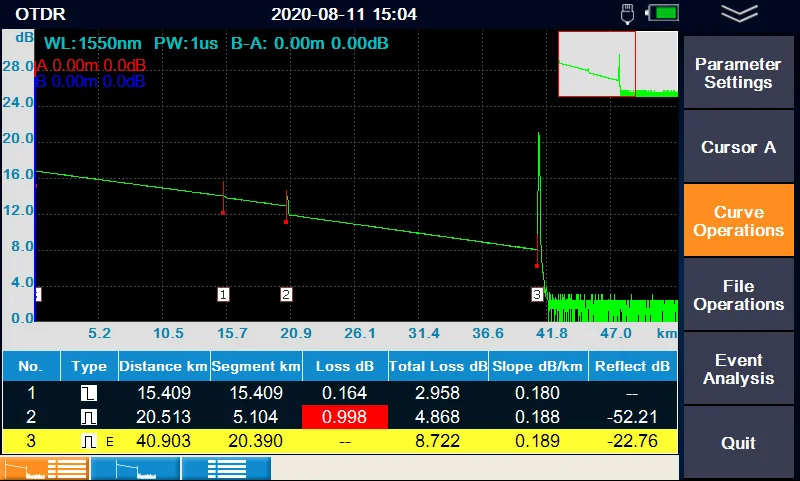

1 OTDR

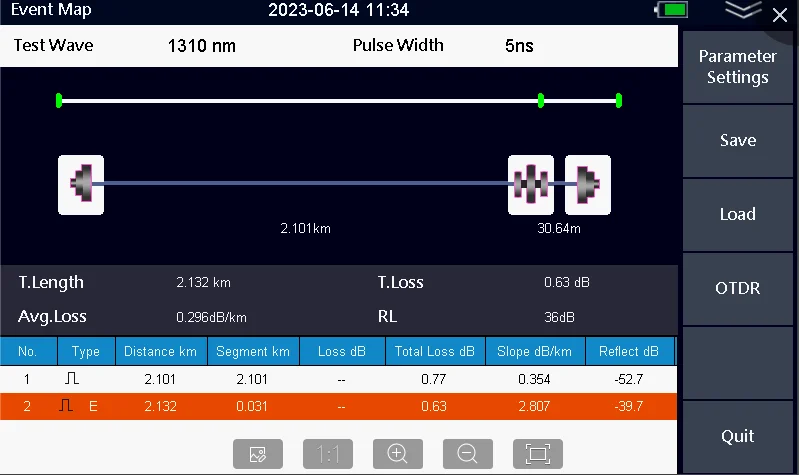

2 EVENT MAP

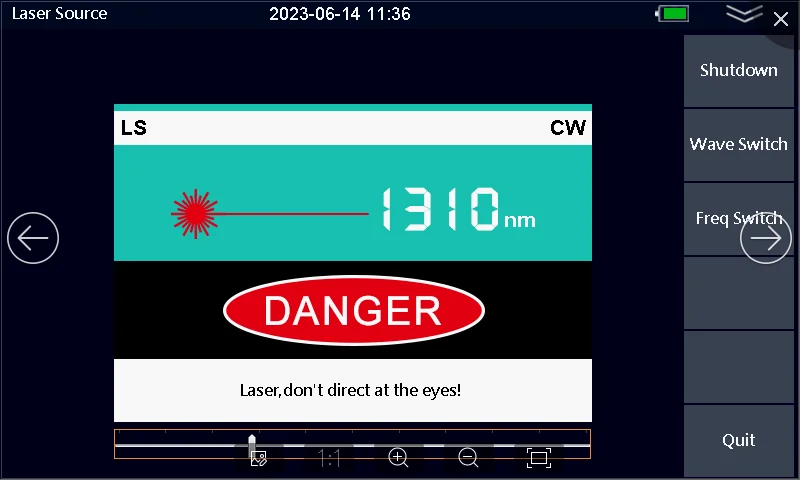

3 Optical Light Source

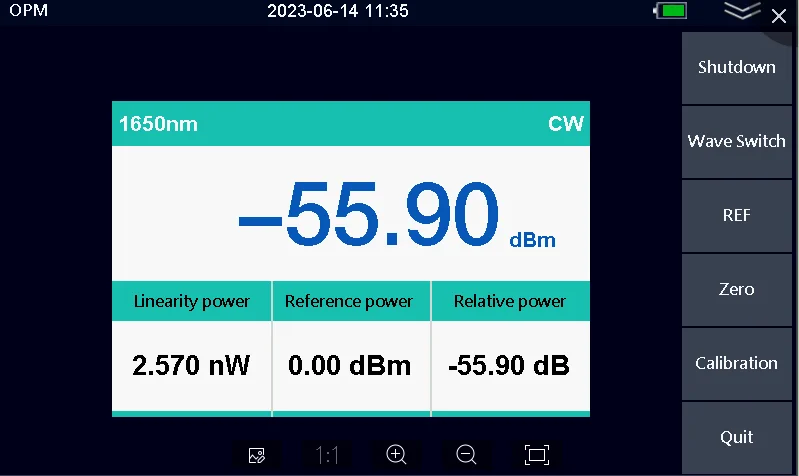

4 Optical Power Meter

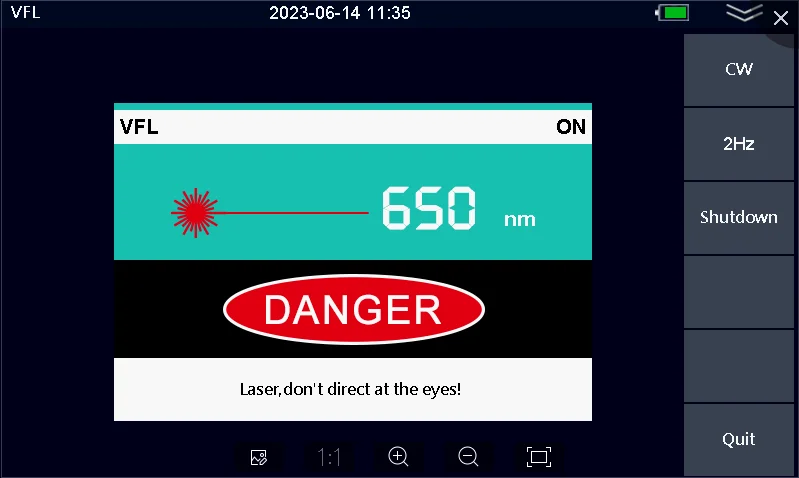

5 Visual Fault Locator (VFL)

6 Insertion Loss Testing

7 RJ45 Line Tracking

8 RJ45 Cable Testing
9 LED Light

Please note: This dual-wavelength OTDR does not support online testing

Observação: este OTDR de comprimento de onda duplo não suporta testes online

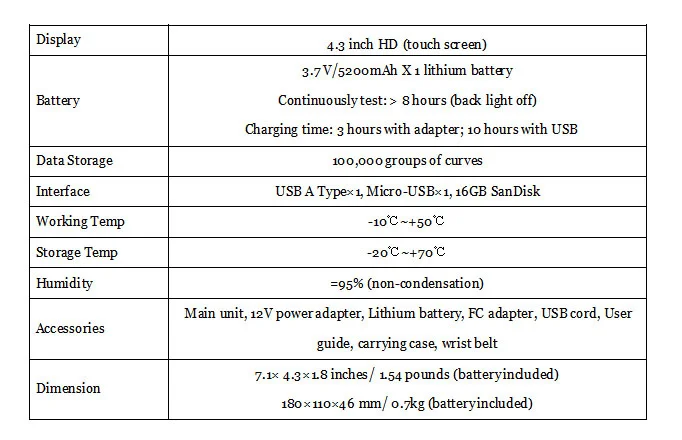

General Specification

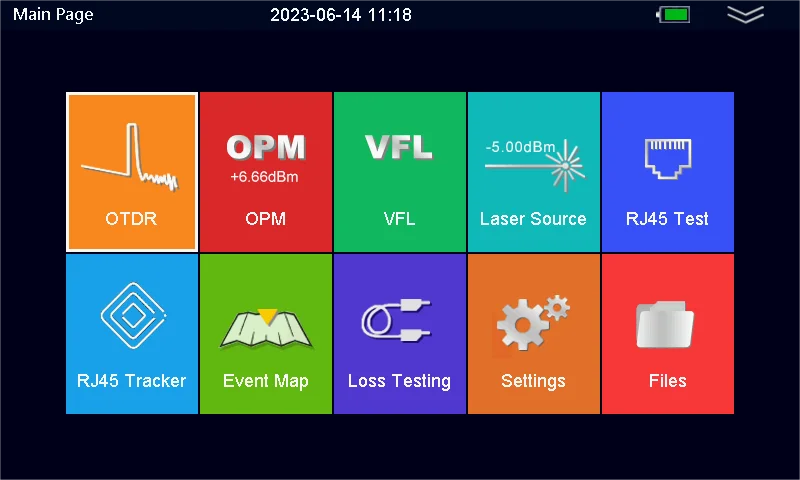

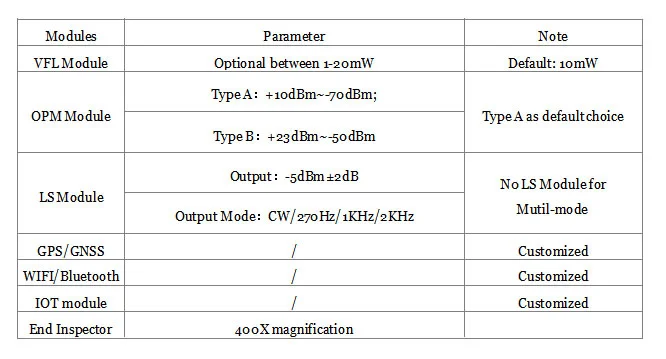

List of Operational Modules

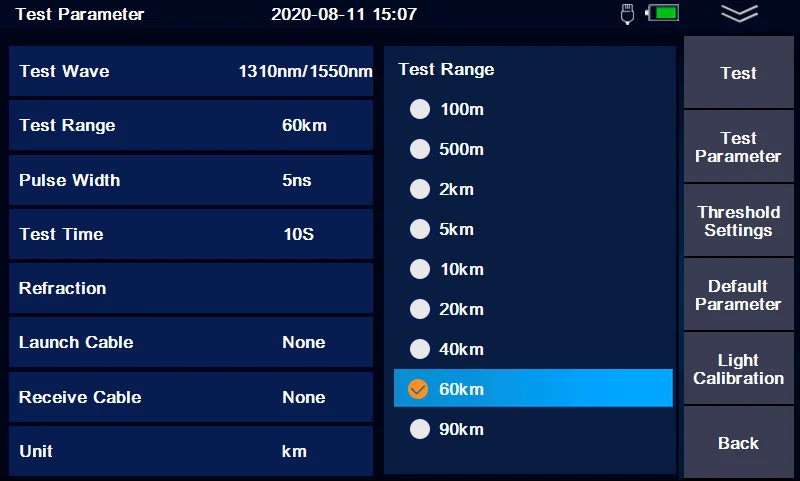

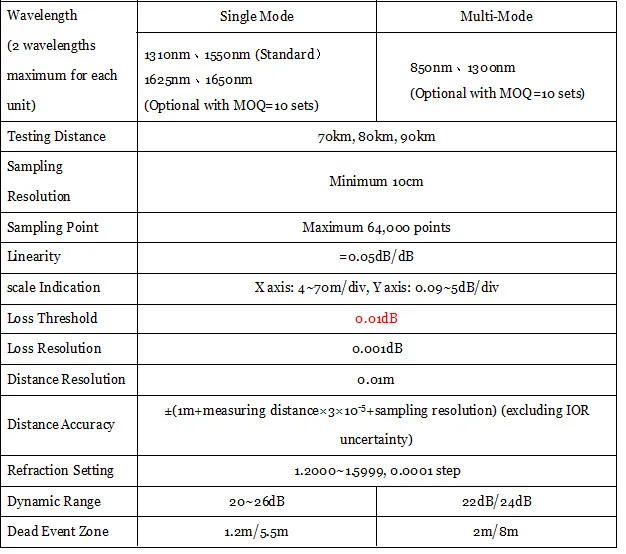

Test Parameter

Notes:

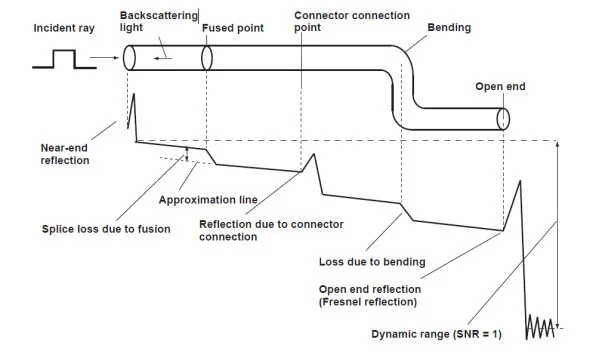

①Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.
