Product Description

item	4 inch scene penl & 3 Gang relay switch 2 in one
Network	Zigbee
Customized support	Software reengineering
Place of Origin	China
	Guangdong
Brand Name	Golden Security
Model Number	GS-T3E
Max. Current	16A
Max. Voltage	110V~250V
Mechanical Life	100000 Times
Product name	Zigbee smart home system
Size	86*86mm
Application	smart life APP
Voice Control	Alexa google home
Panel Material	4 inch display
Gang	3 Gang
Wireless Type	zigbee
Control	App remote control
Application scenarios	Control the lights, curtains, air conditioners,othersmart home devices

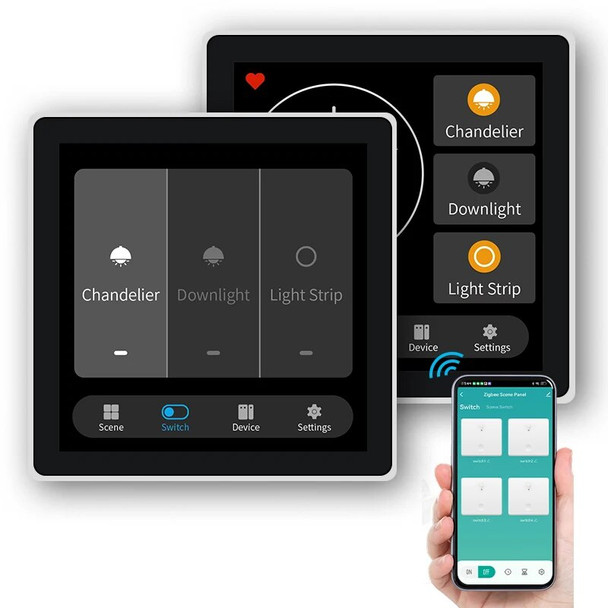

4 inch scene panel & 3 Gang relay switch 2 in one

①It is a ZigBee smart switch, and also is a multi-functional scene panel when connected
with Tuya smart gateway.
②Intelligent devices control, such as lights, curtains, air conditioners, and other smart home devices through panel. Smart scene
linkage, customize application scenarios and bind smart devices according to your needs. Only one touch to quickly start the smart
devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home
mode).

It's a Zigbee smart switch with 3 gang relays.

1)T3E a zigbee smart switch with build-in 3 relay outputs to control lights.

2)Compatible with European standard wall boxes, simple in-wall installation.

Specification

① Network: ZigBee
② Operating System: RTOS
③ Storage: 16MB+2MB
④ Touch: G+F single touch
⑤ Display: 480*480 HD IPS LCD
⑥ CPU: Xtensa-LX7 dual core 240MHz
⑦ Relays: 3 gang switch (EU-type)
⑧ Touch screen G+G 5 touch industrial grade capacitive screen
⑨ Dimensions: 86*86*36mm

Smart switch with build-in 3 realys

T3E is 3 Gang Smart switch,it can connect with maximum 200W

Lamp dierctly.

Smart curtain control

You can wireless control the smart curton on/off directly from T3E touch screen smart panel,just link the on or off button of curtain motor with smart panel scene button via smart life APP.

Exquisite clock design

Exquisite clock with 3 lamps control can be designed as the home page, it's much easily to turn on or turn off the lamps fastly.

One-click start scenario mode control

one touch to quickly start the smart devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home mode).

Quick control the device on LCD display

You can quick control all the wireless zigbee smart device via LCD display quickly,such as lights/curtain/Roller shutter/air condioner

Air conditioner control

After link the u
niversal remote infrared transcoder with the related keys of T3E ,then you can control the air conditioner directly from LCD display.

T3E is not the Smart gateway,but the scene panel and 3 Gang Switch two in one

T3E is a touch screen smart switch with 3 Gang,it's not the smart gateway,it control the other smart device,like smart curtain,smart u
niversal remote infrared transcoder,other smart switch,smart roller shutter via wireless scene setting finished by tuya APP or smart life APP

Certifications

Recommend Products

Company Profile

Shenzhen Golden Security Technology Co., Ltd. was established in 2011, and is a professional high-tech enterprise focusing on R&D, production and sales of smart home automation system and security system with more than 12 years.

Our core products are
* Security alarm systems:WiFi/GSM/3G/4G Alarm Systems and related series of accessories
* Smart Home Systems:4 inch smart gateways, 4 inch touch screen 3 Gang relay switch & scene panel 2 in 1 ,smart dimming controller, Zigbee & BLE gateway hub, PIR and microwave sensor WIFI/ZigBee, Smart Video door phone, Knob Dimmer Switch,Temperature and humidity + light sensor, Smart ZigBee Switch and related series of accessories.

Security Cameras: Tuya WiFi cameras, IP Cameras & Solutions.tuya series WiFi cameras including Outdoor solar powered PTZ camera,waterproof wireless floodlight IP Cameras,10X Optical zoom floodlight PTZ Camera ,baby monitor camera,mini IP camera,wireless IP camera for indoor use & CCTV camera Solutions.
* IPC360 Home series wireless IP camera,including solar battery outdoor PTZ camera,ip could wireless camera,10X Optical zoom floodlight PTZ Camera,and wireless camera NVR kit,POE IP camera,etc

All our products are passed the CE, RoHS testing, these powers are 100 % fully load burn-in testing to make sure the quality.We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Western Europe, USA, Thailand ,Republic of Korea,Malaysia,India, Serbia,Russia,Middle east and South Africa.

"Golden Security" has accumulated more than 80 utility model patents and 3 invention patents, and our R&D department can provide OEM and ODM services to customers worldwide.
"Continuous innovation, technology leads smart life" is our belief for long-term development.
it adheres to the "co-creation, win-win" cooperation concept to develop and expand market share together. Welcome distributors and agents from all over the world to join us.

Real picture of the factory

Exhibition

FAQ

1. Are you the source manufacturer or trading company?
We are the source manufacture with our own R&D department over than 10 Full-time engineers,at the meantime we are the national high-tech enterprise in China.

2. how can we guarantee quality?
We can provide 2 years free warranties for all of our distributors,we can also provide the replaced components and parts to our distributors for free when there is falites and delivery together with new order.

3.what can you buy from us?
* Smart Home Systems:4 inch smart gateways, 4 inch touch screen 3 Gang relay switch & scene panel 2 in 1 ,smart dimming controller, Zigbee & BLE gateway hub, PIR and microwave sensor WIFI/ZigBee, Smart Video door phone, Knob Dimmer Switch,Temperature and humidity + light sensor, Smart ZigBee Switch and related series of accessories.

4.Which network does T3E touch panel work?and should it work with gateway?
T3E is working with wireless Zigbee network,and It need work with smart home automation gateway together,then it can be controlled by mobile APP or google home alexa voice control.

5.Is T3E LCD panel with built-in relay to control lights?
Yes,T3E is with builit-in relay to control lights,and the maximum related power is 300W/Gang.

6.Does T3E support Alexa , Google Assistant voice control & Homekit ?
T3E can support Alexa and google home voice control,but right now it can't support home kit.

7.Is WiFi version version available for T3E touch screen LCD panel?
About Feb of 2023,we will launch a WiFi version of T3E touch screen LCD panel.
