2022 Original Kcosit K7G Industrial Rugged Windows 10 Pro Tablet PC Win10 Intel N4120 10.1" HD 8GB RAM 128GB WiFi RS232 USB 3.0
Description
Standard Version (Without GPS ,Without 4G LTE)
-
Waterproof Grade: IP67 Waterproof Level Shockproof and Dustproof
-
Operation System: Windows 10 Pro
-
CPU: Intel Gemini lake N4120 (Quad-Core)
-
Display Size: 10.1"
-
Display Resolution : 800×1280 (IPS+HD+300NITS) (Standard Version)
1920×1200 (IPS+FHD+1000Nit) (Optional, MOQ=500pcs) -
RAM+ROM: 8GB RAM+128GB ROM
-
Camera: Dual Camera 5.0MP Back+ 2.0MP Front
-
Battery Capacity: 5000mAH/7.6V
-
Built-in: WiFi WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Optional Function
1.QR 1D/2D Barcode Scanner
2.NFC
3.Fingerprinter Reader
4.4G LTE Module Band Mode 2G Gsm 900/1800MHZ , 3G WCDMA 900/2100MHZ, 4G lte B1,B3,B7,B20
5.RFID UHF band
6.GPS Module BD2/GPS/Glonass (Choose two of the three)
7.Metal Holder For Vesa
8.Vehicle Mount Holder
Standard Pacakge Include:
1. 1X Tablet
2. 1X Battery 5000mAh
3. 1X AC Charger(US or EU )
4. 1X Hand Strap (optional)
5. 1x Charger Dock (optional)
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | IP67 Rugged Tablet PC | ||||
| Dimensions | 280×184×26.5mm | |||||
| Weight | 1.15KG | |||||
| LCD | Screen Size | 10.1" | ||||
| Screen Resolution | 800×1280 (IPS+HD+300NITS) (Standard) | |||||
| 1920×1200 (IPS+FHD+1000Nits) (Optional, MOQ=500pcs) | ||||||
| TP | Touch Module | G+G Multi-Touch (10 Points) | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 5000mAh/7.6V | |||||
| Working Time | Over 5 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Gemini lake N4120 (Quad-Core) | ||||
| Speed | 1.1GHz ~ 2.6GHz (N4120) | |||||
| GPU | Type | Intel UHD 600 Graphics | ||||
| Memory | Capacity | 8GB LPDDR4 | ||||
| Storage | eMMC | 128GB | ||||
| SSD | Optional (Mini PCI-E slot) | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W*2pcs with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Light-sensor | Built-in | Optional | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Intel AC3165 | Bluetooth4.2 | ||||
| 4G LTE | Optional | Optional (Mini PCI-E slot) | ||||
| QR code Scanners | Standard | Optional | ||||
| GPS | BD2/GPS/Glonass (Choose two of the three) | Optional | ||||
| NFC | Optional | Optional | ||||
| Fingerprinter | Optional | Optional | ||||
| RFID | UHF band | Optional | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||

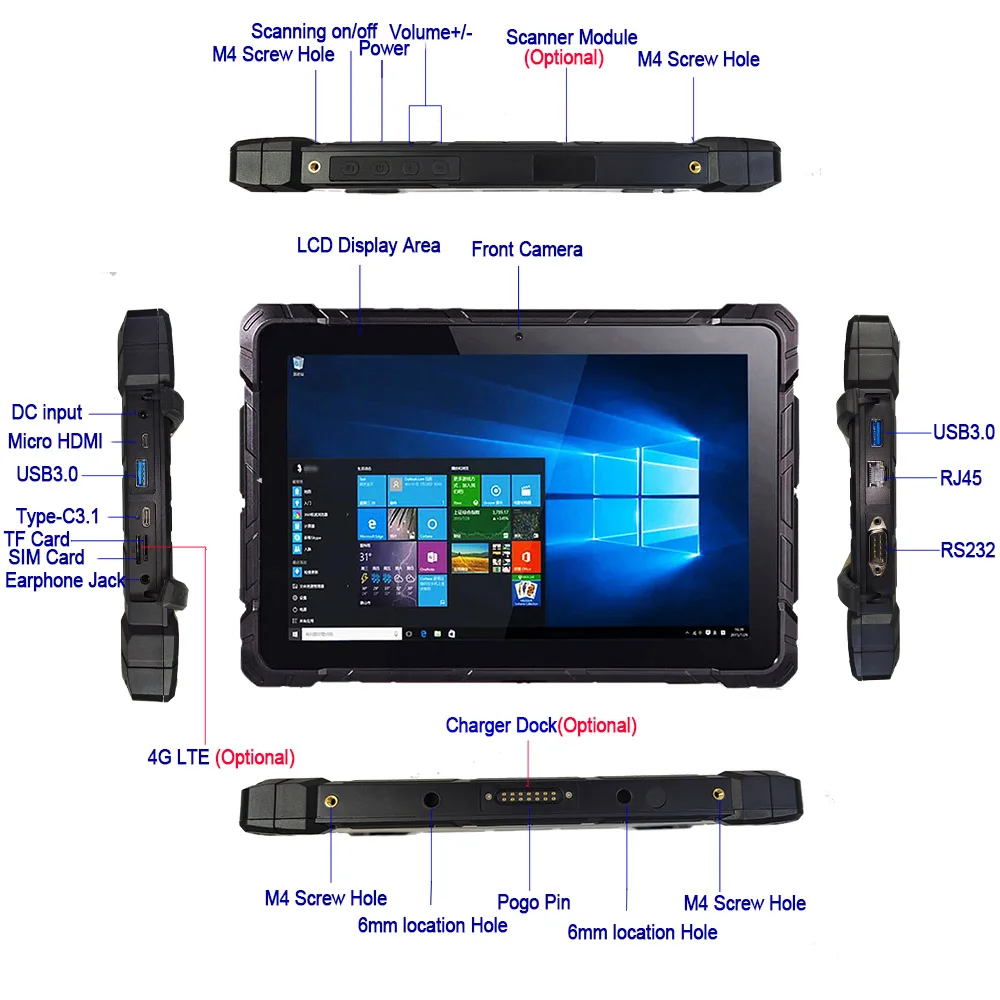

| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Type-C | Type-C 3.1 | ×1pc | ||||
| USB Interface | USB3.0 | ×2pcs | ||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 512GB) | ||||

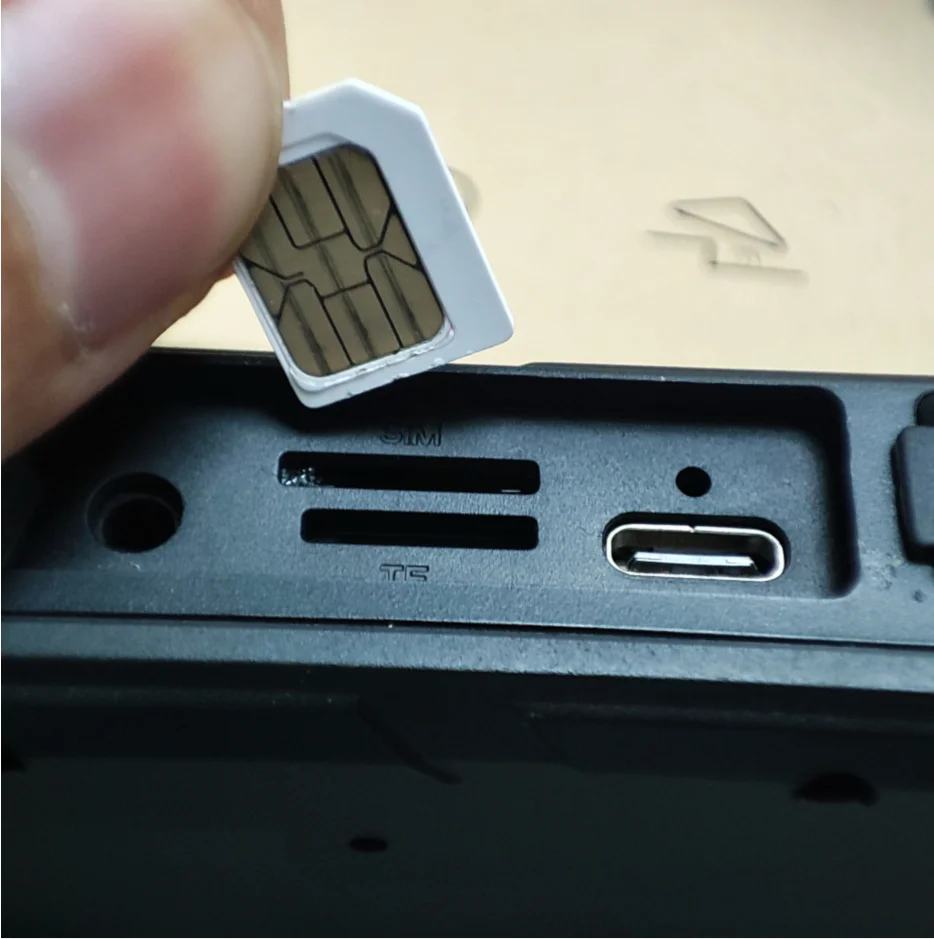

| SIM Card Slot | SIM Slot for 4G LTE | ×1pc | ||||
| Audio Jack | 3.5mm standard headphone+Microphone | ×1pc | ||||
| HDMI | Micro HDMI 2.0 | ×1pc (Output 4K@60fps UHD video) | ||||
| COM Port | DB9 (RS232) | ×1pc | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| HotKey | Hot Key for QR Scanner | ×1pc | ||||
| Forced outage | Power restart when push restart button | ×1pc | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 12V/3A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Handle Straps | Handle straps and hand clasping | Optional | ||||
| Extension Docking | USB2.0; Power charging; RJ45; RS232 | Optional | ||||
| Vehicle Bracket | USB2.0; Power charging; RJ45; RS232 | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Power on Function | By Power Button or Auto Power on | Optional | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | Yes | ||||
| PXE | Preboot Execution Environment | Yes | ||||
| Security | TPM2.0 (Hardware) contained | Yes | ||||
| Operating System | Windows 10 Pro | Yes (Officoal Windows license is Optional) | ||||
| Environment: | ||||||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) | ||||
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||
| Certification: | ||||||
| IP67 | IP67 Certification | Yes | ||||
| CE | CE-Red | Yes | ||||
| MIL-STD-810G | Match the military standard of USA | Yes | ||||
