Description
Basic Version + Pro Version Spec (NO WiFI Bluetooth+NO 4G LTE+ NO GPS)
- Waterproof Grade: IP67 Waterproof Level Shockproof and Dustproof
- Operation System: Android 9.0 (optional Linux Debian 10)
- CPU: NXP i.MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz

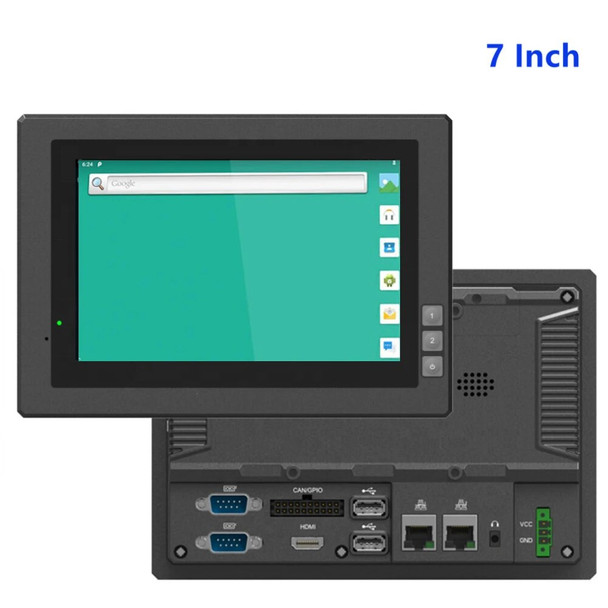

- Display Resolution : 7" HD (1280 x 800) Capacitive Touch 800Nits
- RAM+ROM: =2GB RAM+16GB
- RAM+ROM: =4GB RAM+64GB (Optional)
- Standard Extended Cable Interfaces :
- 1X RJ45 LAN 1000M (POE 25W is Optional)
- GPIOx8 ( Each cable can be customized for input or output)
- SIM slot X1 (Optional)
- CAN : default Can Bus 2.0Bx (Optional extra Can bus 2.0Bx1)
- USB : USB host×2, USB Type-C device×1
- Micro SD Card Slot X1 1, support up to 512GB
- COM 4 (Optional) 1. RS232×4 2. RS232×3 + RS485×1 3. RS232×3 + RS422×1 4. RS232×2 + RS485×2
- (When optional BT is selected, will occupy one RS232 port)
- WiFi+ Bluetooth 5.0(Optional)
- GPS Built-in or External(Optional)
- 4G LTE 3G/4G(Optional)
- ADD one More CAN (Optional)
System | CPU | NXP i.MX 8M Mini Cortex®-A53 1.6GHz Quad-core processor |
OS | Android 9.0 / Linux Debian 10 | |
RAM + ROM | 2GB LPDDR4 (4GB is optional) + 16GB Flash (Optional) | |
GPU | 3D GPU (1×shader, OpenGL® ES2.0), 2D GPU | |
Sensors | Gyroscope & accelerometer | |
Display | LCD | 1280×800, 800 nit, 170°/170° viewing angle |
Touch Screen | Multi-point capacitive touch screen | |
Interfaces | LAN | 1000M×1 (PoE is optional, 25W), 100M×1 |
GPIO | ×8 (Software freely define input and output) | |
CAN | Default CAN Bus 2.0B×1, optional extra CAN Bus 2.0B×1 | |
COM 4 (Optional) | 1. RS232×4 | |
2. RS232×3 + RS485×1 or 3. RS232×3 + RS422×1 | ||
4. RS232×2 + RS485×2 | ||
When optional BT is selected, will occupy one RS232 port | ||
SIM Slot | ×1 | |
Micro SD Card Slot | ×1, support up to 512GB | |
USB | USB host×2, USB Type-C device×1 | |
Earphone Jack | 3.5mm | |
Optional Function | Cellular Network | 3G/4G (LTE, DC-HSPA+, WCDMA, GSM) |
Wi-Fi | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | |
BT | BT 5.0, 2402MHz~2480MHz | |
GNSS | GPS, GLONASS | |
Power | Power Supply | DC 8~36V |
Power Consumption | ≤12.5W (≤2.5W when standby) | |
Others | Speaker | ×1 |
Dimension | 206mm×144mm×31mm | |
Weight | 790g | |
Environment | Operating Temp: -20°C~60°C (-4°F~140°F) | |
Storage Temp: -30°C~70°C (-22°F~158°F) |
