2022 Handheld Fiber Optic Manual Laser Fiber Weld Equipment Welding Machine 3 In 1 Cleaning Cutting Machinery For Metal
Description
Feature of Machine
1. Flexible for welding/cutting/cleaning work-piece with an optical fiber up to 8-10 m.
2. The weld seam is smooth with nice appearance, no grinding or only a little grinding.

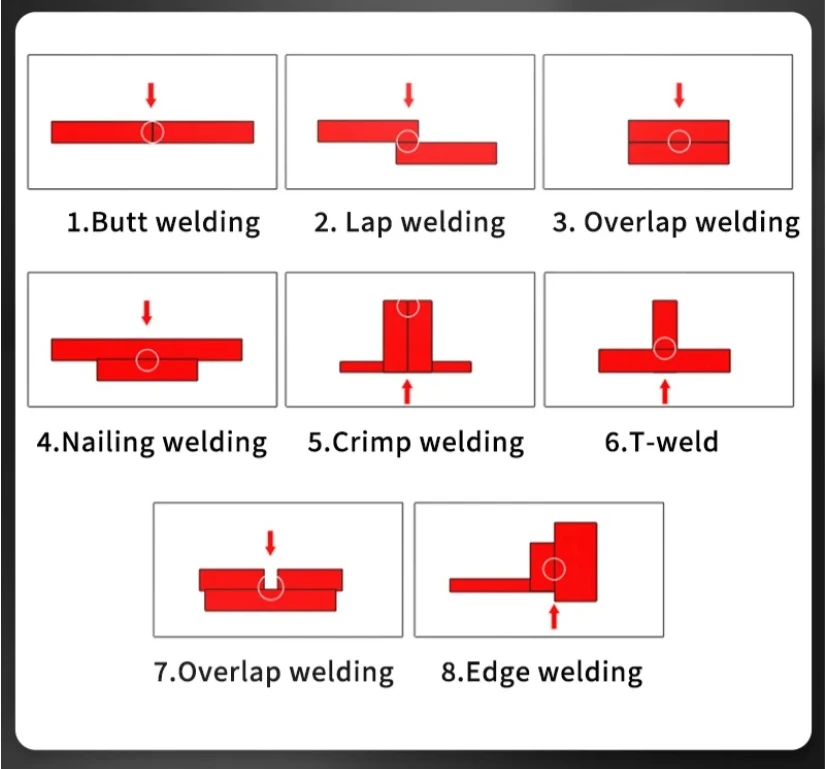

3. Applicable to a variety of welding processes, including spot welding, seam welding and overlap welding.
4. A contact-less cleaning for metal rust removal, paint removal, oil grease dirt removal.
5. Easy cut on metal for optional using.
6. With Use program-controlled robot can weld sharp parts with specific routine, can cut metal in specific shape.
7. It's simple and easy to handle, and do not need a traditional professional welder.
8. Do not need wear face-mask instead of wear the laser protective goggles.
9. Low use-cost. Low power consumption, low gas consumption and low lens consumption.
Specification
Temperature Monitoring indicator : There are double protect lens, and one focus lens for the welding head. When any one of them is dirty, the indicator light alarm, and machine will stop emitting laser.
|
Industrial Water chiller: One of thebiggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.
Control sytsem boardcard
V2 control system boardcard is the core part to realize the function change between cleaning, welding, cutting.

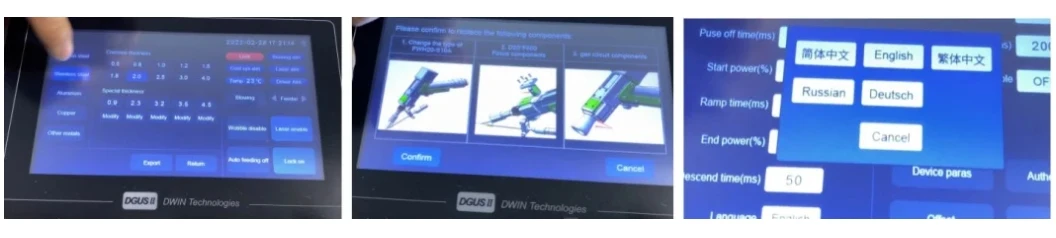

Touch Screen Control Panel:Easy to operate, interactive control system expand the tolerance range and welding width of the processing parts, have processing library for different metal material and thickness.Support Russian, English, Japanese, Korean, German, Portuguese, Spanish, Arabic Language.

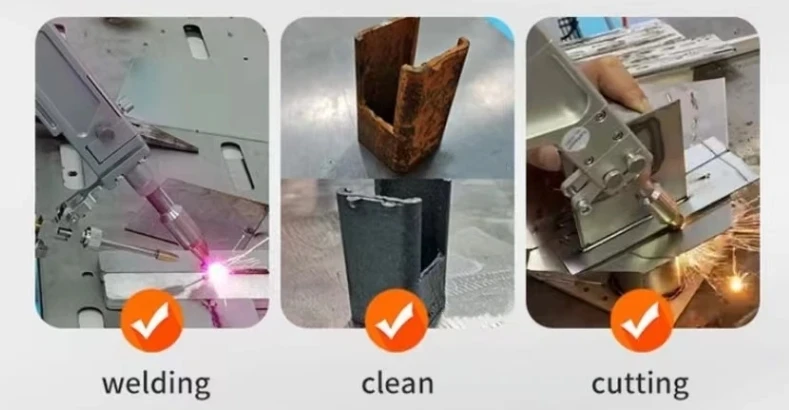

Support welding, cleaning, cutting.
Automatic Wire feeder device: Auto mode and Manual mode. Wire feeder device will be not selected if gap within 0.5mm. If gap is more than 0.5mm, wire feeder device must be selected. If gap is 0.6mm, you can use 0.8mm wire. If gap is 0.8mm, you can use 1.0mm wire. If gap is 1.0mm, you can use 1.2mm wire etc.
Different welding nozzle: machine was equipped with different welding nozzle: 20, 16, 12, 10, 08 wire feeding welding nozzle, and cutting nozzle. One set.
Applicable Industries
3 In 1 Handheld laser welding machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, including copper - brass, titanium - molybdenum, titanium - gold, nickel - copper, and so on.
3 In 1 Handheld laser welding machine is widely used in the kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, battery manufacturing, craft gifts, household and other industries.
Also can clean rust , paint , coating and oil etc on metal .
Our Service:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Package
1.Outside package: Strong wooden case.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Fumigation-free packaging size:103*65*126cm (could ship via air)
Total weight:175KG
FAQ
1. What's material can fiber laser weld?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
2.Which fiber source does we applied
Raycus- Made in China;
RECI - Made in China;
3.What's the thickness of a laser Welding Machine could weld?
1000W could weld Stainless Steel and Carbon Steel Up to 3mm, Aluminum and Brass to 1.5mm.
1500W could weld Stainless Steel and Carbon Steel Up to 5mm, Aluminum and Brass to 2mm.
2000W could weld Stainless Steel and Carbon Steel Up to 7mm, Aluminum and Brass to 4mm.
How to place a order:
contact me for more details thanks.
