Description
2 years wanrranty offered
Please pay attention to the lead time: 220V : 1-3 days
110V : 3-5 days
Introduction
Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature. It can be combined with the rotary evaporator, glass reactor and other instruments to proceed kinds of chemical reactions.
Feature
◎Used imported famous cooling compressors,such as Embraco compressors and can work for a long time

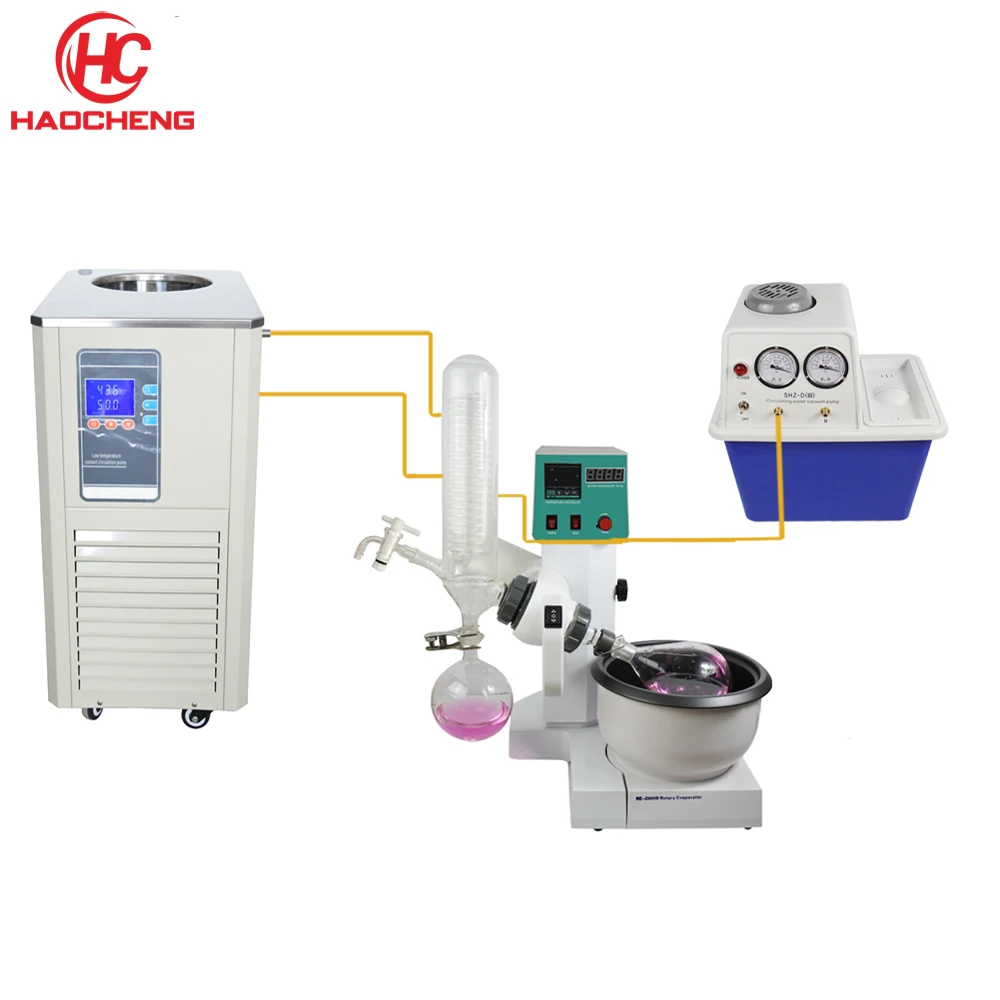

◎Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.

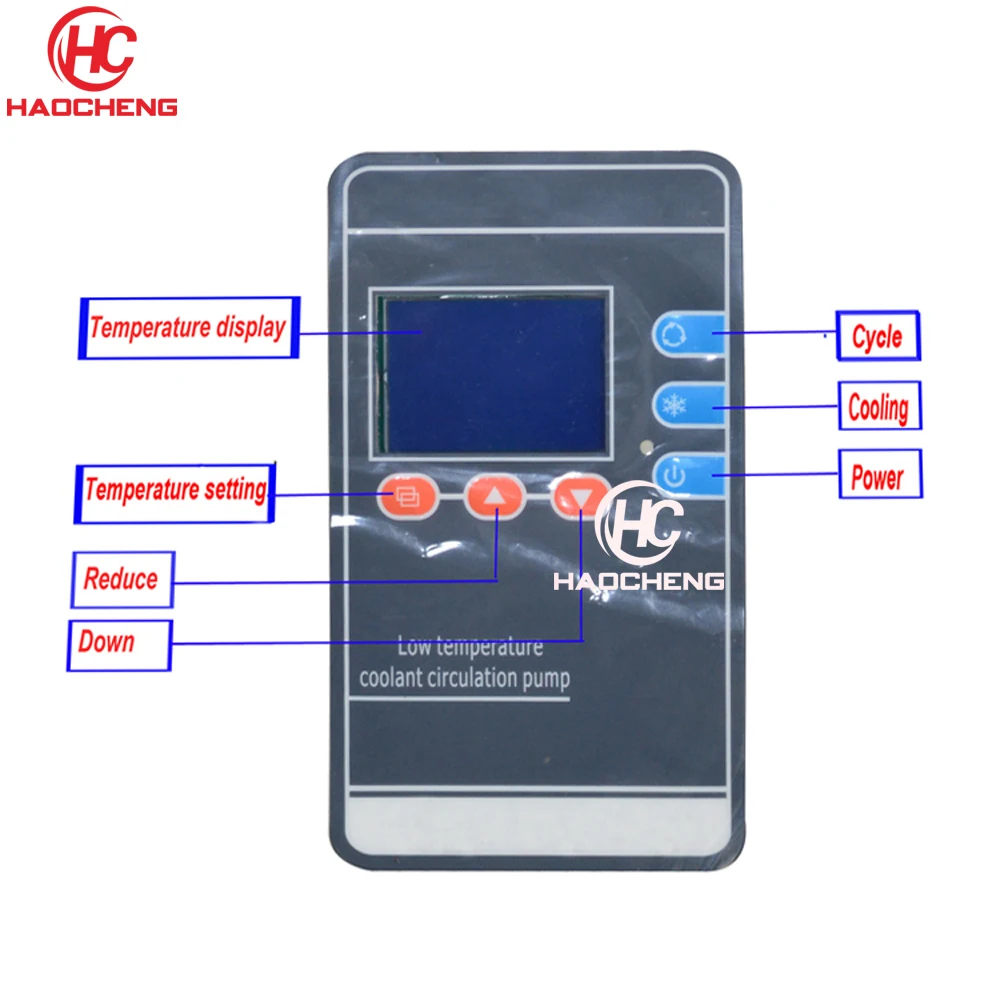

◎ Digital LCD displaymake the temperature setting simple
◎ Stainless steel reservoir facilitate userfriendly operation and simple maintenance

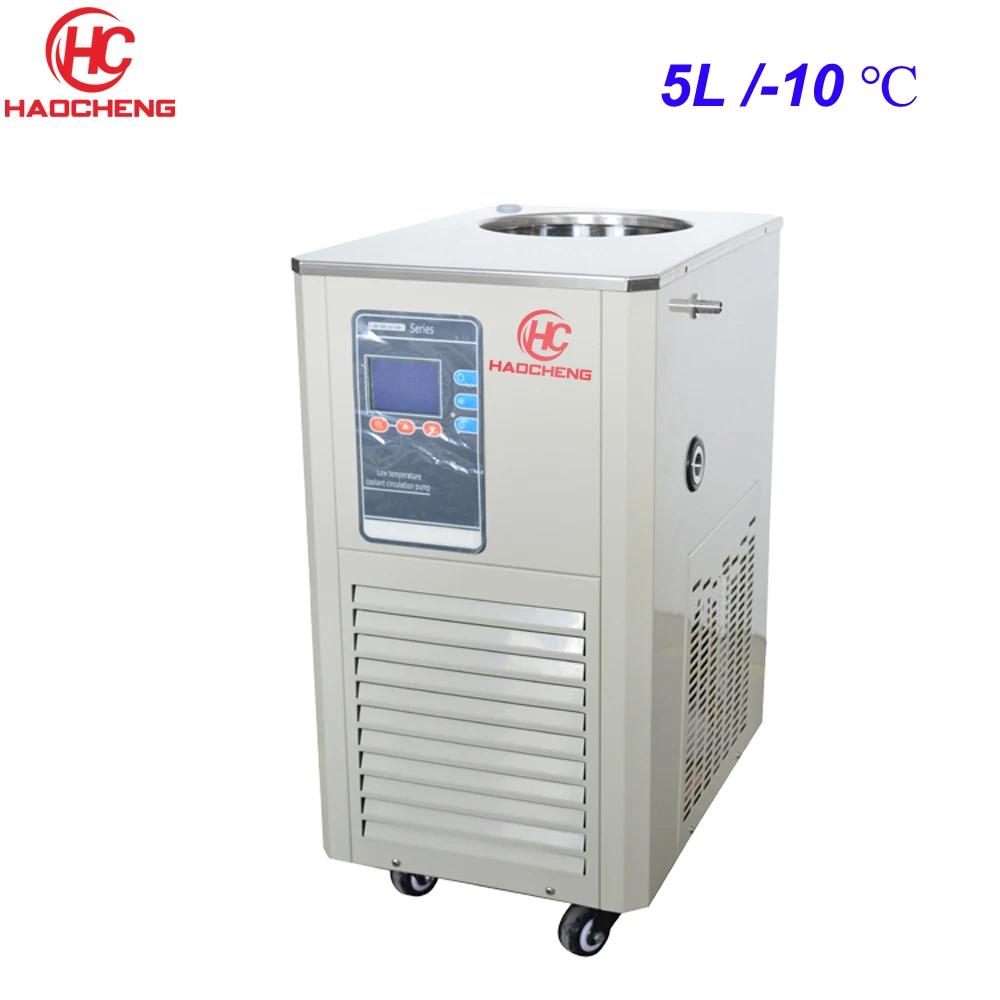

◎ 5L/-10 Degree
Matching Machines-------------Rotary Evaporator
Specifications
Model | HC5/10 |
Bath Volume | 5L |
Working Temperature Range (°C) | -10 to 20 |
Power Supply | 220V-50HZ/ 110V-60HZ |
Temperature Controller | Digital Microprocessor PID Controlled and Thermocouple Type: PT100 |
Temperature Precision (°C) | ±0.2 |
Compressor | Imported Compressor,Such as Embraco |
Cooling Capacity(W) | 280-1328 |
Refrigerant | R404A |
Reservoir(MM) | φ255×130 |
Flow rate (L/Min) | 20 |
Lift (M) | 5-7 |
Safety Protection | Delay time, Over-current, Overheating |
Weight(Kg) | 55 |
