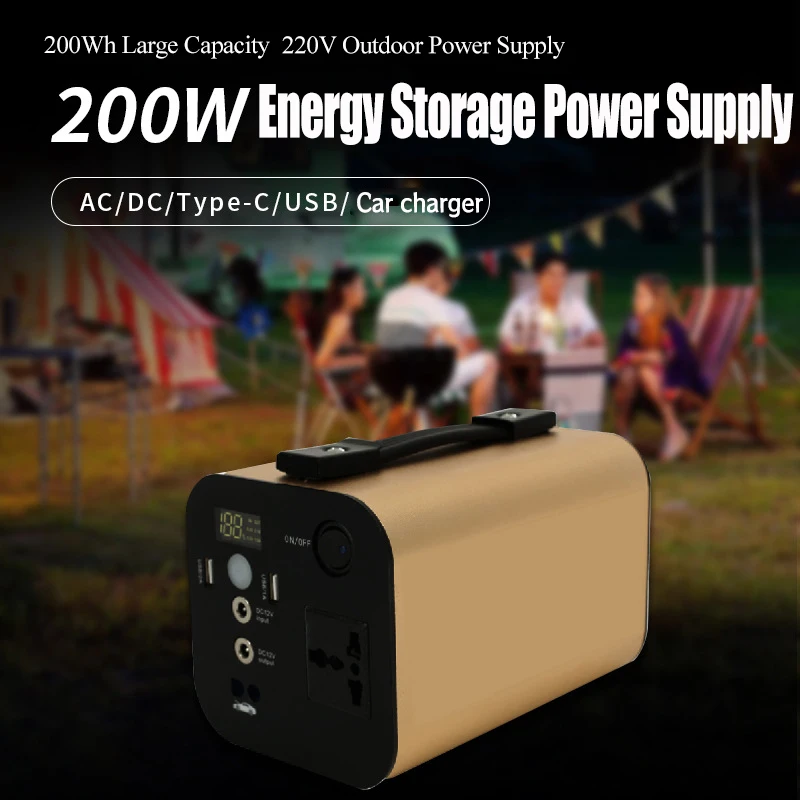

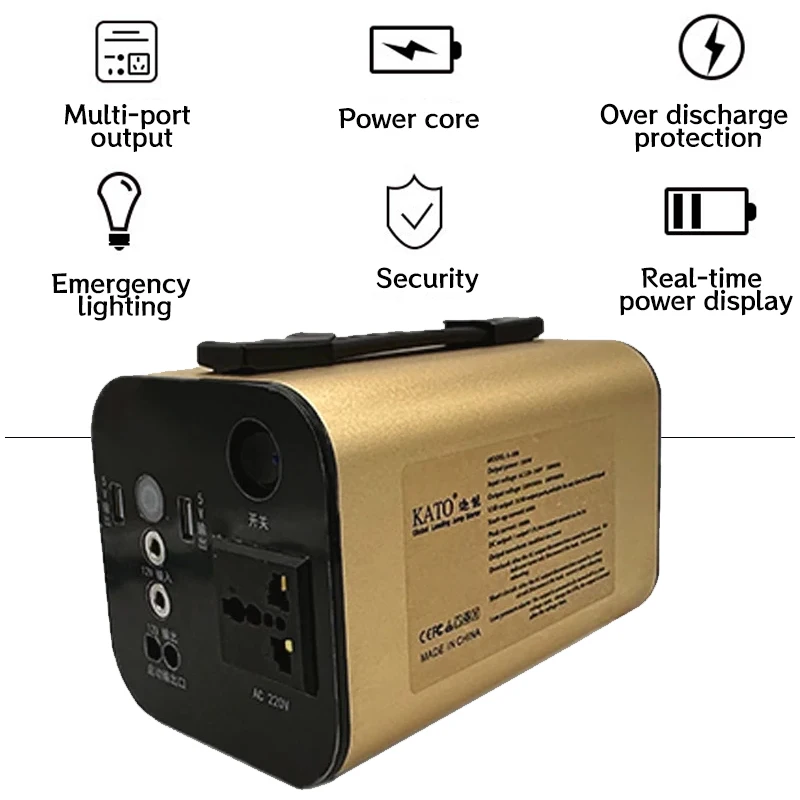

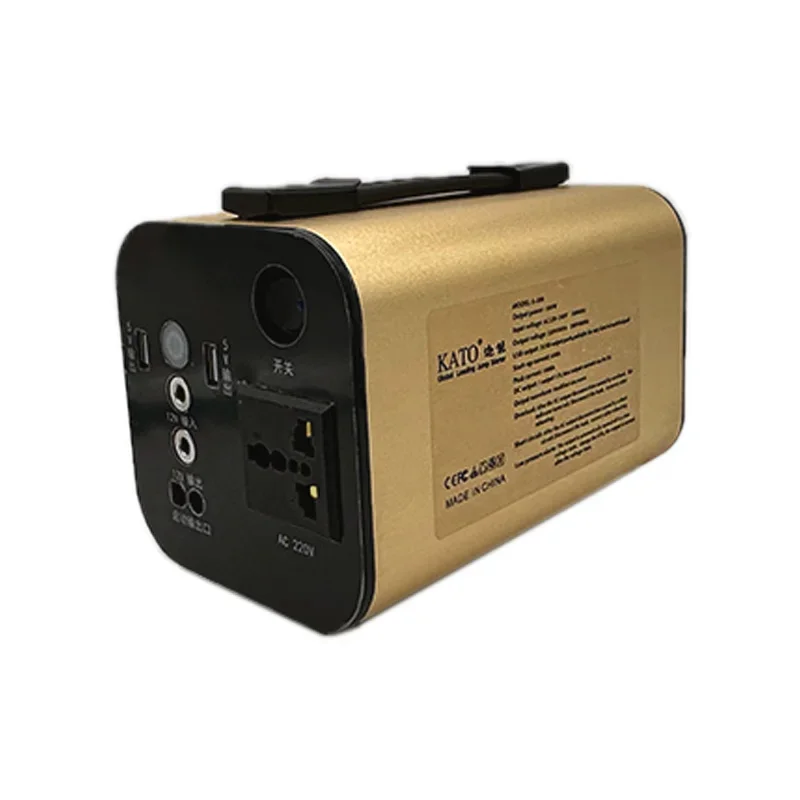

Portable Power Station 220V Mobile Power Supply 200W Car Charger Supply Startup Power Supply Outdoor Camping Energy Storage Supply

Product parameters:
Brand Name: Suyijia
Product name: Metal portable energy storage belt to start a multifunctional power supply
Model: K33
Built-in battery: 200Wh (50000mAh), lithium iron phosphate battery
Battery energy: 200W
Output: DC5.5V / 2.1A : 12V / 6A 72W
(Applicable to car electronic appliances/car air pump tools, etc.)
Start function: 12.8V
Starting current: peak value 400A

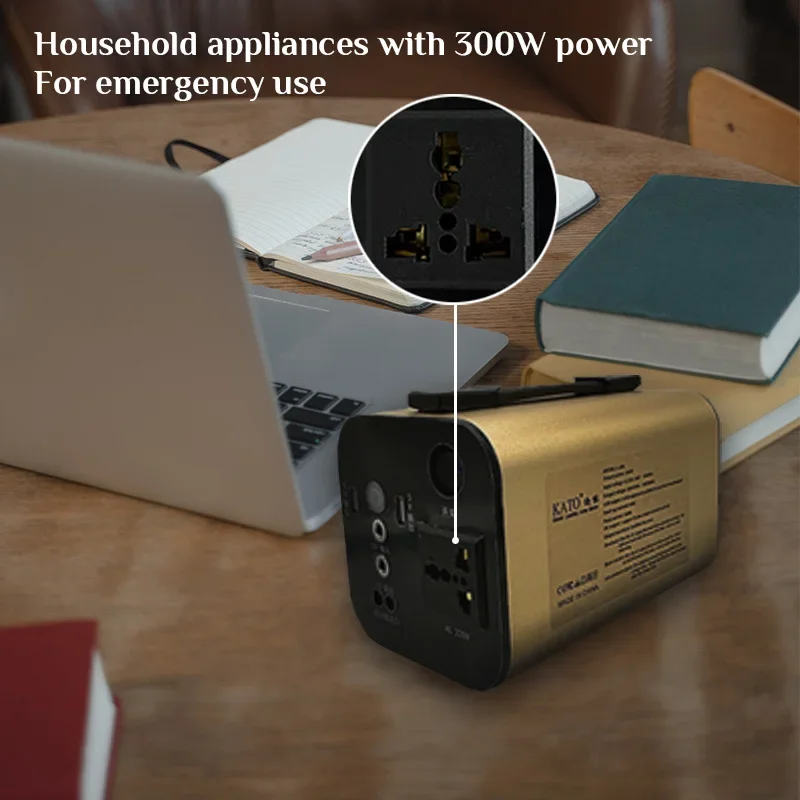

AC output: 220V~50Hz 200W
AC output voltage: AC220V

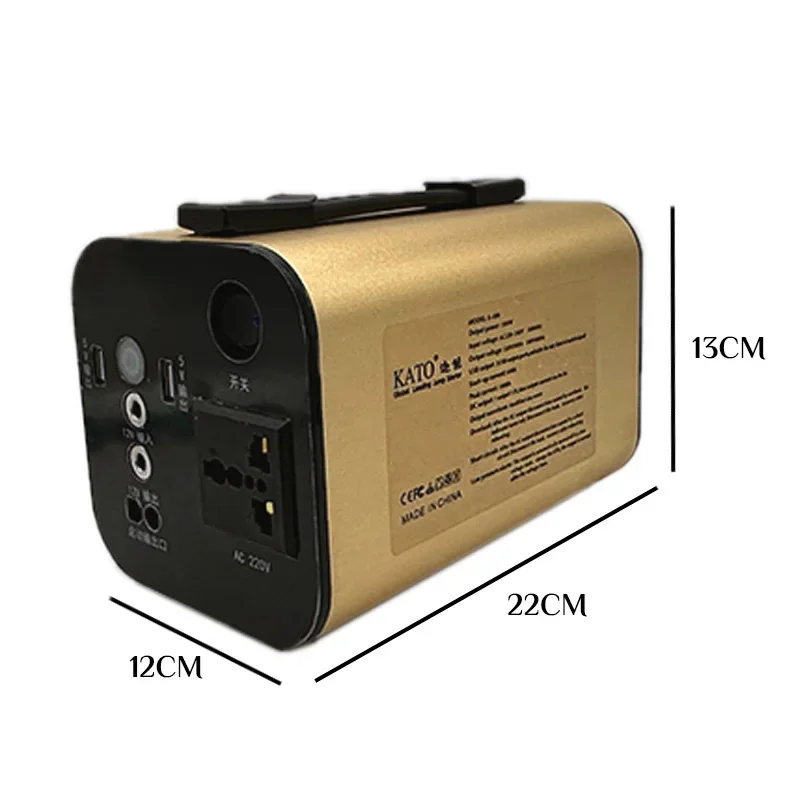

Product specification: 12x13x22CM (approx.)
Product weight: 3.15kg (including charging kit)
DO terminal EC5 head car start port: maximum continuous current: 12V 80A, instantaneous start current: 800A
Car charger output port: 12V 10A 120w
Total input power: 45W 15V 3A DC5.5
USB total output power: 5V 2.1A*2 21w
Working temperature: -10C-40C
Lifespan: >2000 times
AC output: 220V~50Hz 200W
US/Japan plug: 110V~50Hz 200W

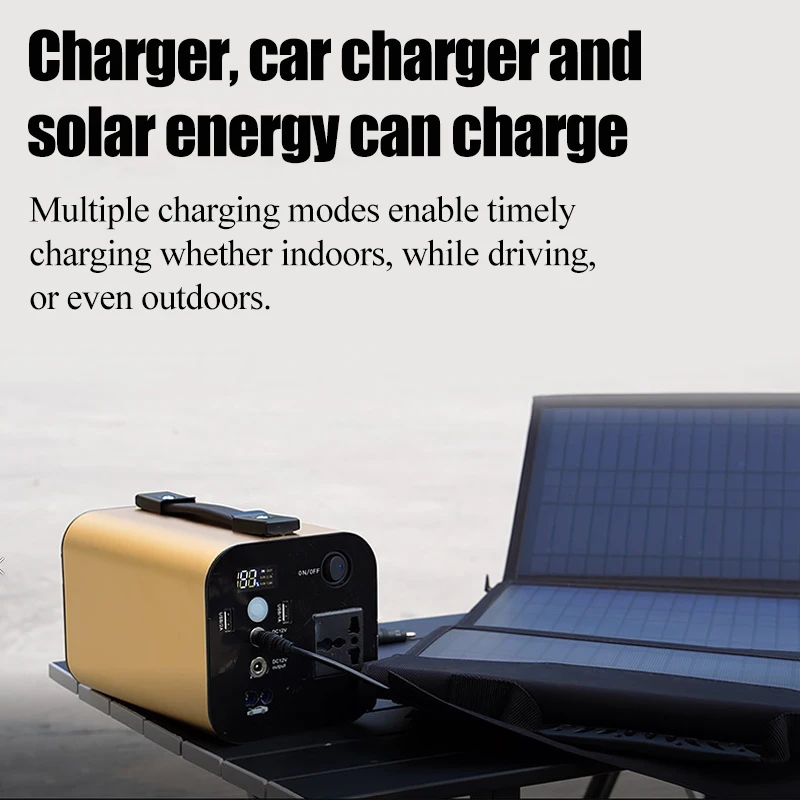

Charging method: 18V-24V solar panel, AC adapter, car charger
Adapter: 15V/2A
Solar panel input: 18V~24V/60W recommended
USB interface: USB 2.0
Full charge time: 5-6 hours

widely used:

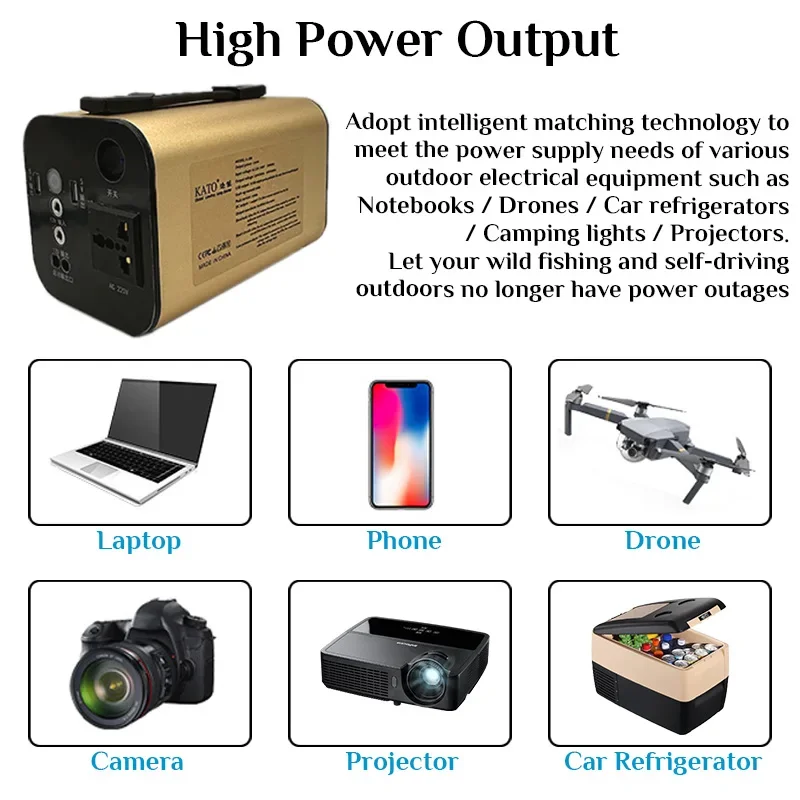

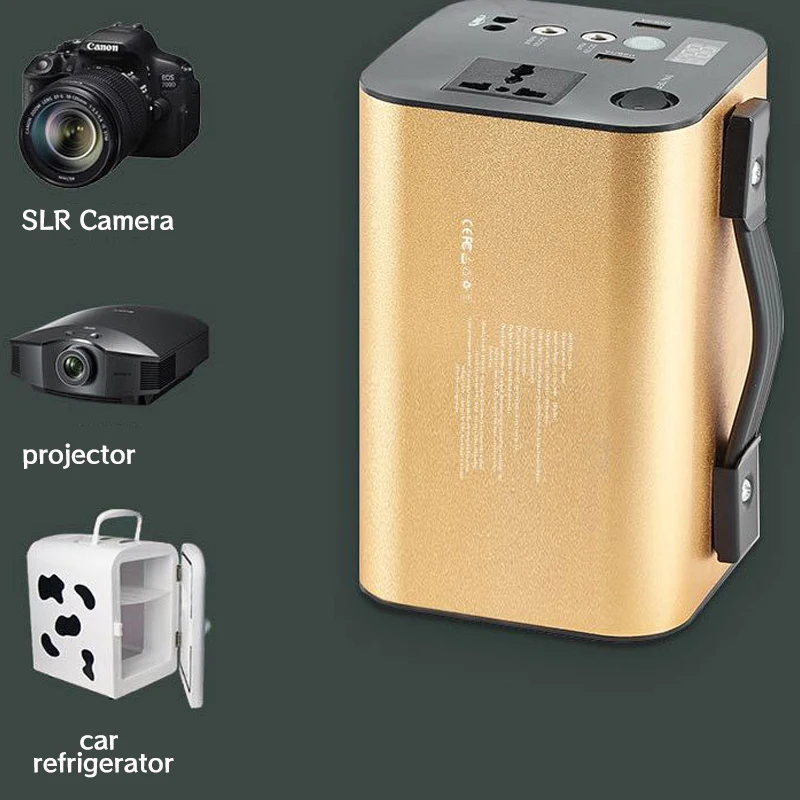

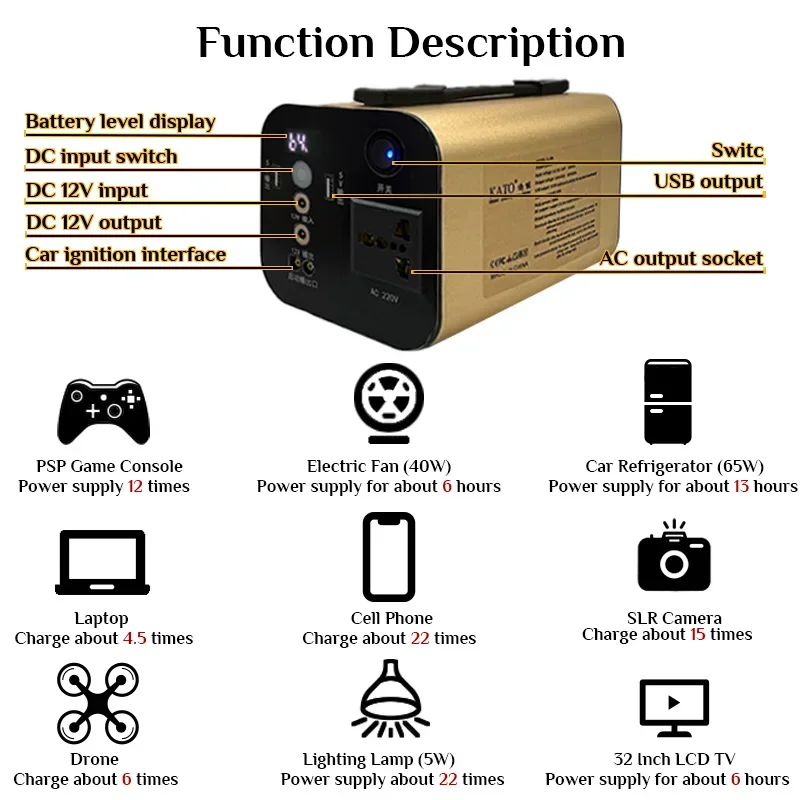

Car electronic appliance/car air pump tool/telephone/camera/drone/fan/laptop/small fan/camping/solar panel/power tool/projector/car refrigerator/etc.

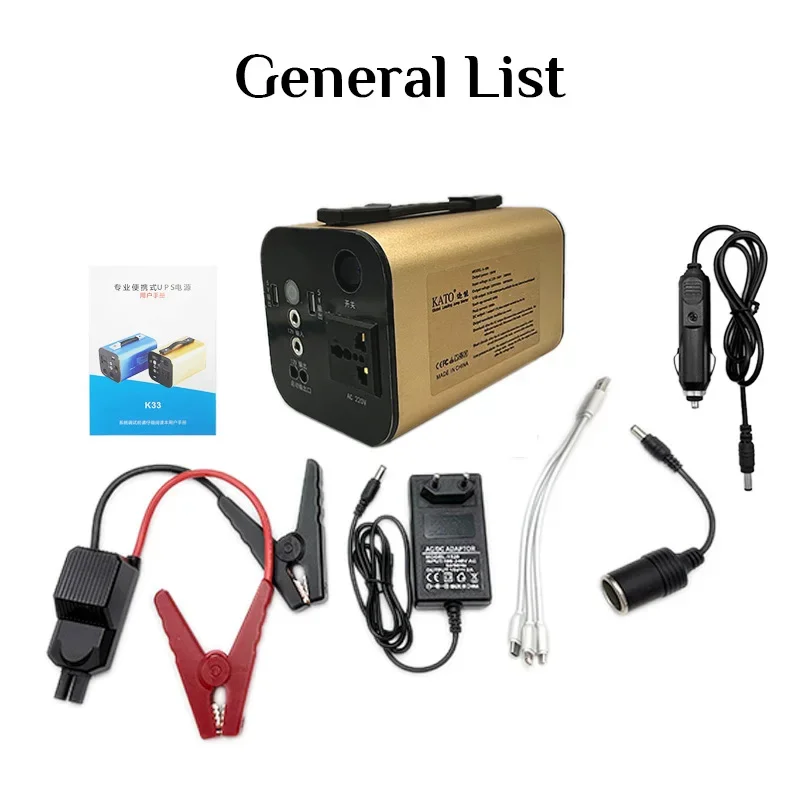

Packing list: 1PCS K33 energy storage power supply*1

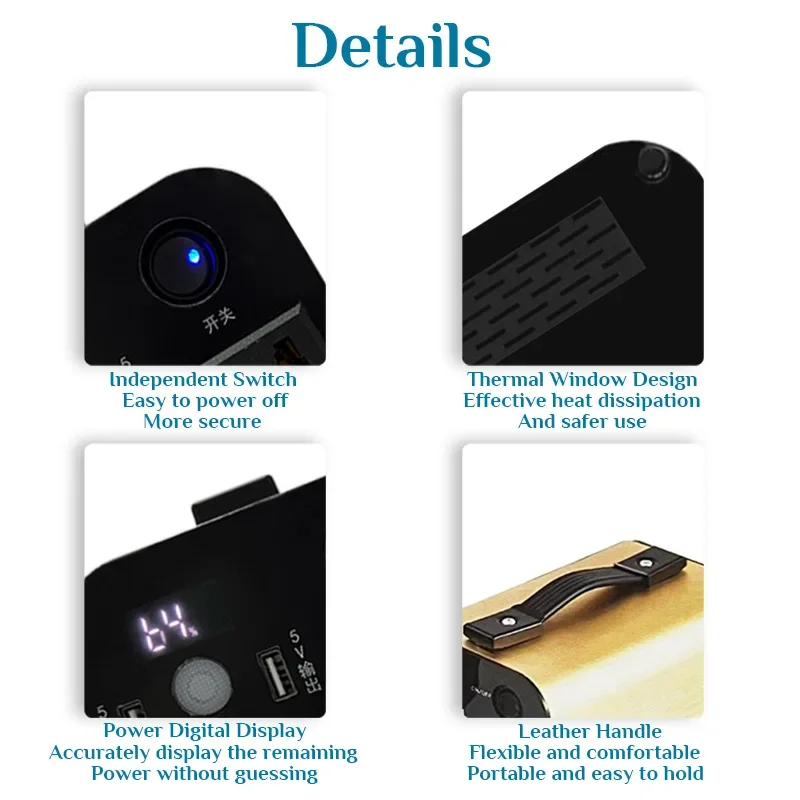

LCD screen description:
For safer and longer cycle life, this product uses lithium iron phosphate battery, but the voltage drop of lithium iron phosphate is not more obvious than other lithium batteries, so please ignore the percentage displayed on the LCD screen.

Note: When using the product, the voltage display is unstable, please stop input and output to obtain a more accurate display.

Charging instructions: 1. Please turn on the product before charging (the switch "ON/OFF" is turned on).
2. To ensure 100% full charge, please wait until the green light of the charger is on.
Commercially available 12V models can start/auxiliary ignition, equipped with intelligent anti-reverse connection starter clip.

Instructions for starting the vehicle:

1. Please make sure that the red positive pole and black negative pole are connected before starting the vehicle, otherwise it will cause damage due to reverse connection.

2. Before use, please charge the product to a power level above 12.6V (55%) to start the vehicle;

3. The performance of lithium iron phosphate battery will decrease at low temperature (below 10°C), and the vehicle may not be able to start below 0°C.

The correct operation process of automatic start of the car

Instructions:

1. Before starting the car, please make sure that at least 2 LED indicators of the main unit are on, then fully insert the blue plug into the main unit socket, and confirm that the cable indicator light is off.

2. Connect the red clip to the positive (+) battery terminal and the black clip to the negative (-) battery terminal.

3. Start the vehicle.

4. When the vehicle starts, please make sure to unplug the clamp wire from the power bank, and then unplug the clamp wire from the car battery terminal. Please do not connect the red and black clips to the vehicle battery terminals within 30 seconds.

Special instructions for smart jumper cables:

Follow the instructions on the cable lights:

1. Light on: Indicates that the wiring is correct, the circuit is normal, and the engine can be started.

2. The light is off: it means that the positive and negative poles of the battery are connected incorrectly, and the main unit cannot be turned on and working. Please check and make sure that the wiring is correct.

3. Light flashes quickly: Indicates a short circuit, the light goes out soon, please check and reconnect.

4. The light flashes slowly: it means that the battery is in an overcharge protection state, and the relay is disconnected to protect the product. Especially after the startup is successful, if you do not unplug the cable clip, the light will flash slowly. If you want to start again, please unplug the cable clip from the host and the car, and then reconnect correctly according to the first instruction.

5. After starting the car and pulling up the clip cable, please wait 30 seconds before trying to connect the black and red clips.

*Please read the product instruction manual carefully before using this product*

Note: Place the power supply away from places with humid air and direct sunlight for a long time. When it needs to be placed for a long time, please pull out the power fuse for safety.
Power off and store. Do not disassemble and modify the power supply without permission, otherwise you will bear the safety consequences yourself, thank you!

Precautions:

1. Do not get close to the fire source;

2. Do not use and store in high temperature and humid environment;

3. Please keep it out of the reach of children;

4. Do not disassemble the battery or change the structure of the battery by yourself, so as not to cause a fire.

5. When a new battery is used for the first time or used for a long time after storage, it must be fully charged before it can be used.

guard against:

1. Please allow slight color difference between the paper card and the picture shown.

2. Please allow small size deviation due to human measurement.

3. Due to the influence of light and monitor brightness, the color tone of the photo may be slightly different from the real object!

4. Insert the battery in the correct orientation to avoid short circuits.

5. Please keep the battery out of reach of children to prevent children from swallowing.

6. Please store the battery in a dry and cool place.

7. Do not charge the battery or throw it into fire.
