1kit 410mm Universal Thermocouple With M6*0.75 Thread On Head Umbrella Heater fits Outdoor Gas Patio Heater End Connection M8x1
(No reviews yet)
Write a Review
Description
Product Descripion

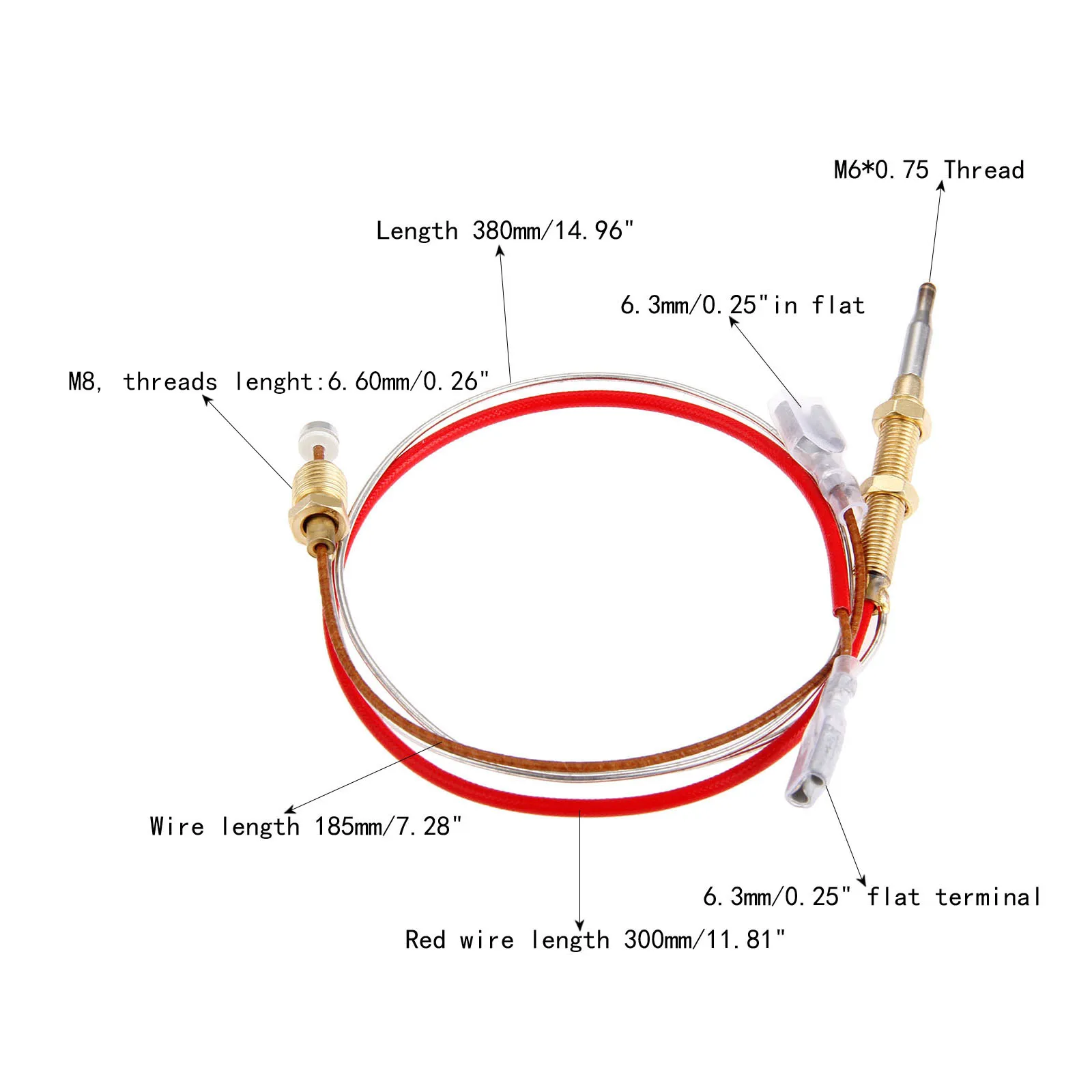

Features Universal thermocouple with M6*0.75 Thread on headLongest wire length 410mm 6.3mm Flat terminal end Suitable for gas Patio heater Open valve time less than 10s

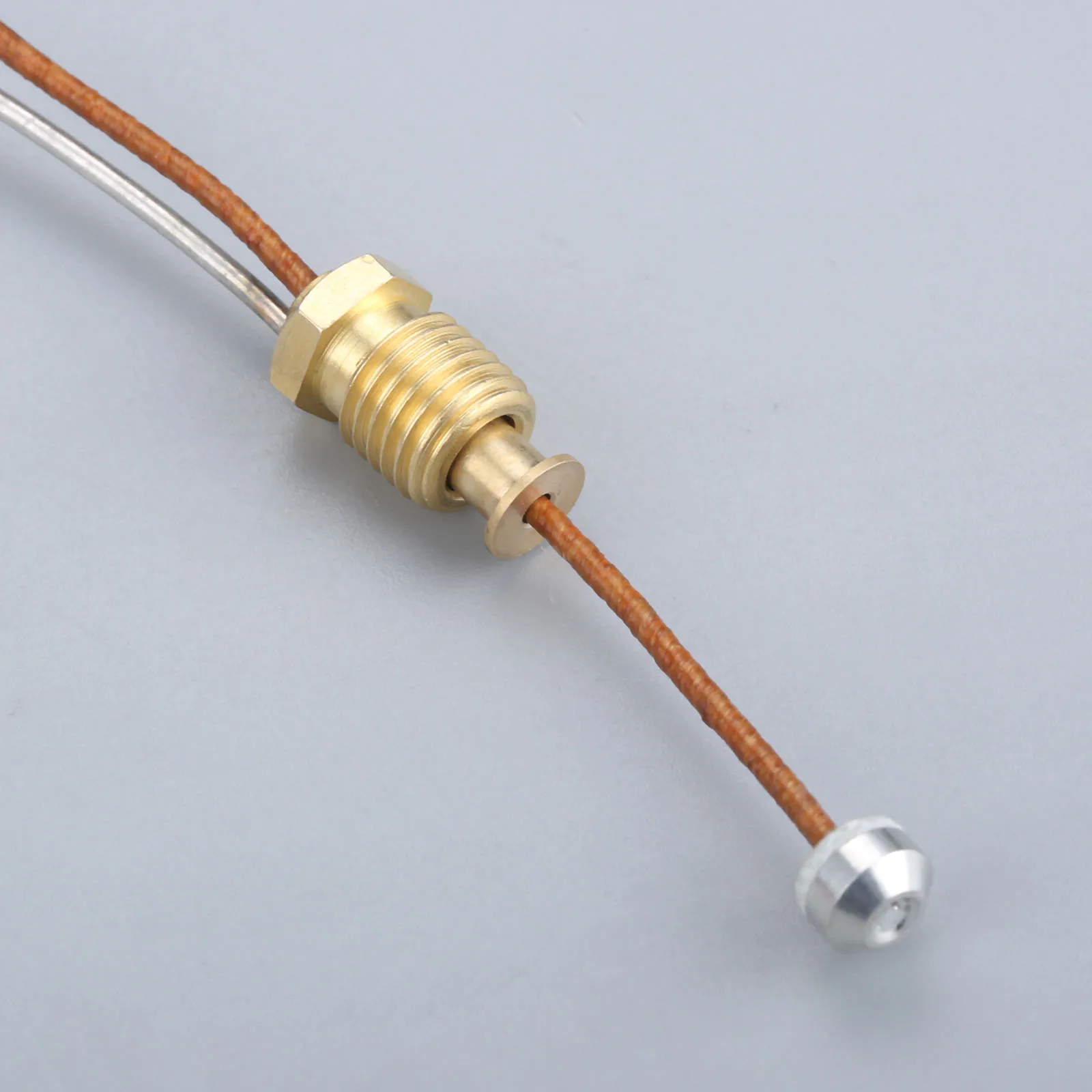

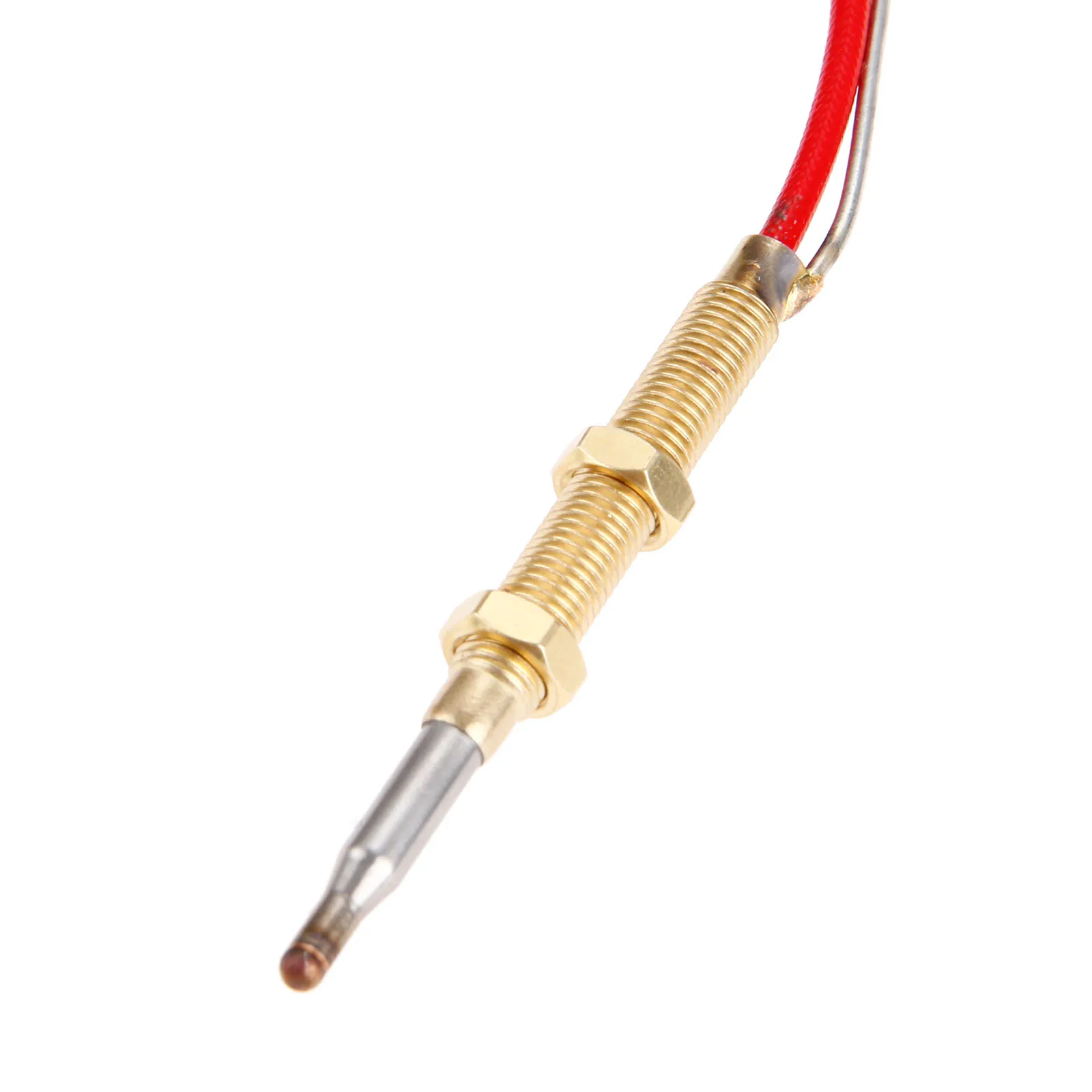

Length: 410mm including two nuts Head Thread: M6 x 0.75 End connection:M8 x 1 Terminal size:6.3mm flat Usage: This thermocouple is used for outdoor gas patio heater. 1. Install the thermocouple tip on a board and use two nuts to fix its location 2. Keep the tip about 5mm from the burner hole. 3. Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread is 8mm before your buying) 4. Connect two flat terminals well with the current tilt switch terminals. 5. Turn on the gas and push your valve 5-10s till the thermocouple end is heated. 6. Release your hand and it work well. If failed, please check: a. If your thermocouple is heated on flame; b. If the thermocouple end is well connected with valve c. If the terminals connect tilt switch well. 1Pc x 410mm Universal Thermocouple
|
|
|
|
|
|
|
|
|
|
|
