Description

multi-language:Chinese, English, Spanish, Portuguese, German, French

OPM:850/1300/1310/1490/1550/1625nm; -70~+10db(default) or -50~+26db(if you need ,tell us)

SLS: 1310/1550nm
VFL:10mW,650nm

Type	Testing wavelength	Dynamic range
350-S-A32	1310/1550	32/30
350-S-A35	1310/1550	35/33
350-S-A37	1310/1550	37/35
350-S-A40	1310/1550	40/38
350-S-A42	1310/1550	42/40
350-S--B33	1625	33
350-S-C26	1650	26
350-S-C33	1650	33
350-S--D35	1490	35
350-S-AB35	1310/1550/1625	35/33/33
350-S-AB38	1310/1550/1625	38/35/36
350-S-AB43	1310/1550/1625	43/41/41
350-S-AC35	1310/1550/1650	35/33/32
350-S--AD38	1310/1490/1550	38/35/36
350-M26	850/1300	20/26
350-SM32	1310/1550/850/1300	32/30/20/26
350-SM35	1310/1550/850/1300	35/33/20/26
350-SM42	1310/1550/850/1300	42/40/20/26

Product Features

Pulse Width:3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs,20μs.
Testing Distance:500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km.
Measurement Time: Use defined (smart link) ; with real time measurement function.
Linearity:<0 05dB/dB.
Loss Threshold:0.01dB.
Loss Resolution:0.001dB.
Distance Resolution:0.01m.
Sampling Resolution:minimum 0.25m.
Sampling Point:Maximum 128,000 points.
Distance Accuracy:+/-(1m+measuring distancex3x 105+sampling resolution ).
Intermnal visual source:10mw, CW/2Hz .
Stable laser source:>- 5dBm.
DataStorage :80000 groups of curve.
Interface:3 USB port.

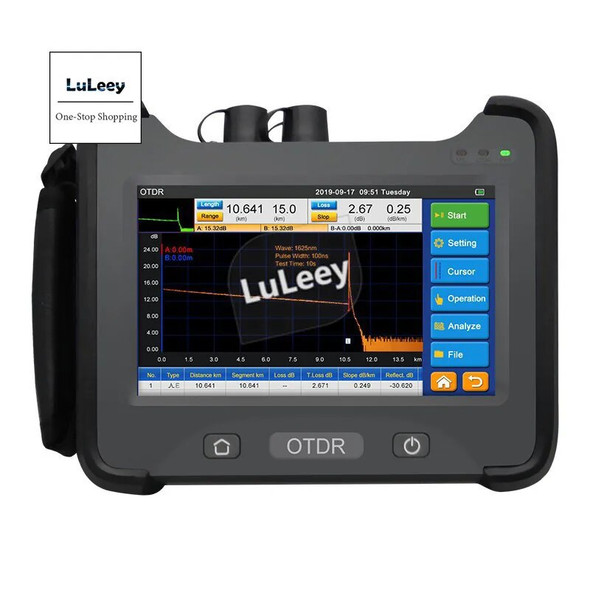

Display:7 inch capacitive touching screen.Battery:7.4V/66Ah lithium battery, continuous 8 10 hours.
Working Temp:-10C~ +50 degrees Celsius.
Storage Temp :-20C~ +75 degrees Celsius.
Relative Humidity:≤90%, non-den.
Dimension :230*185*70mm/ 1.5kg.
Option:SC/ST, Bare fiber adapter.

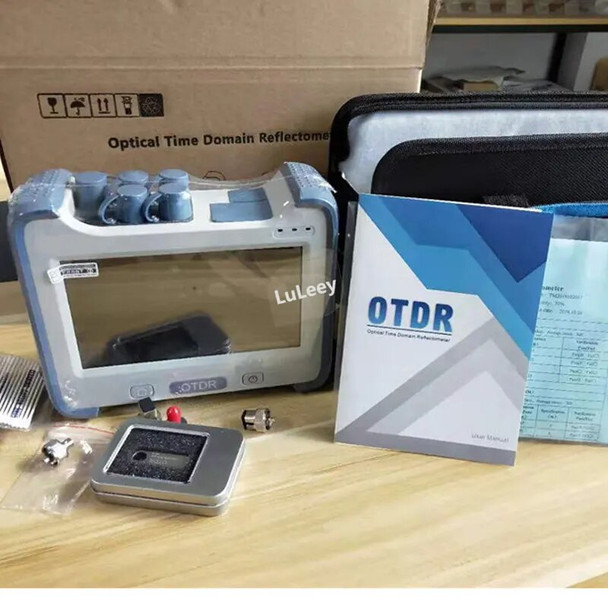

Package Include

Main unit, 8. 4V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case.
