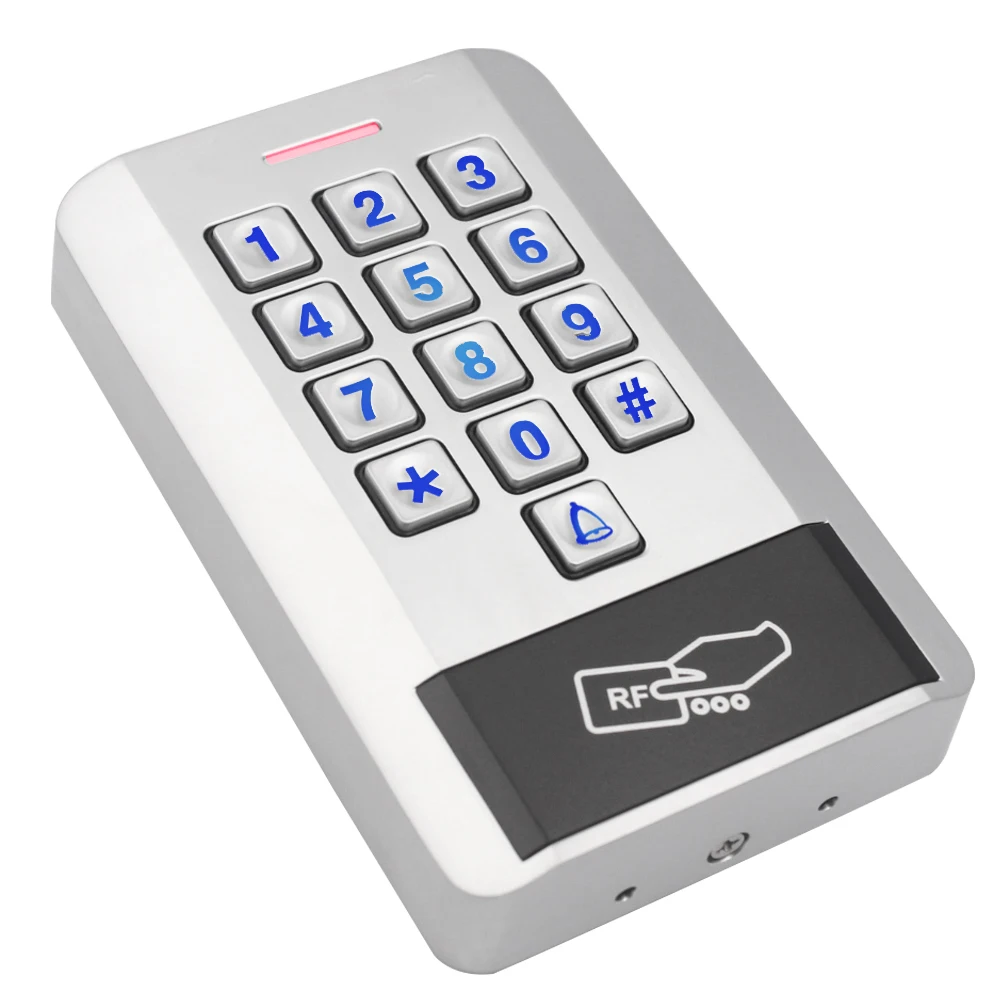

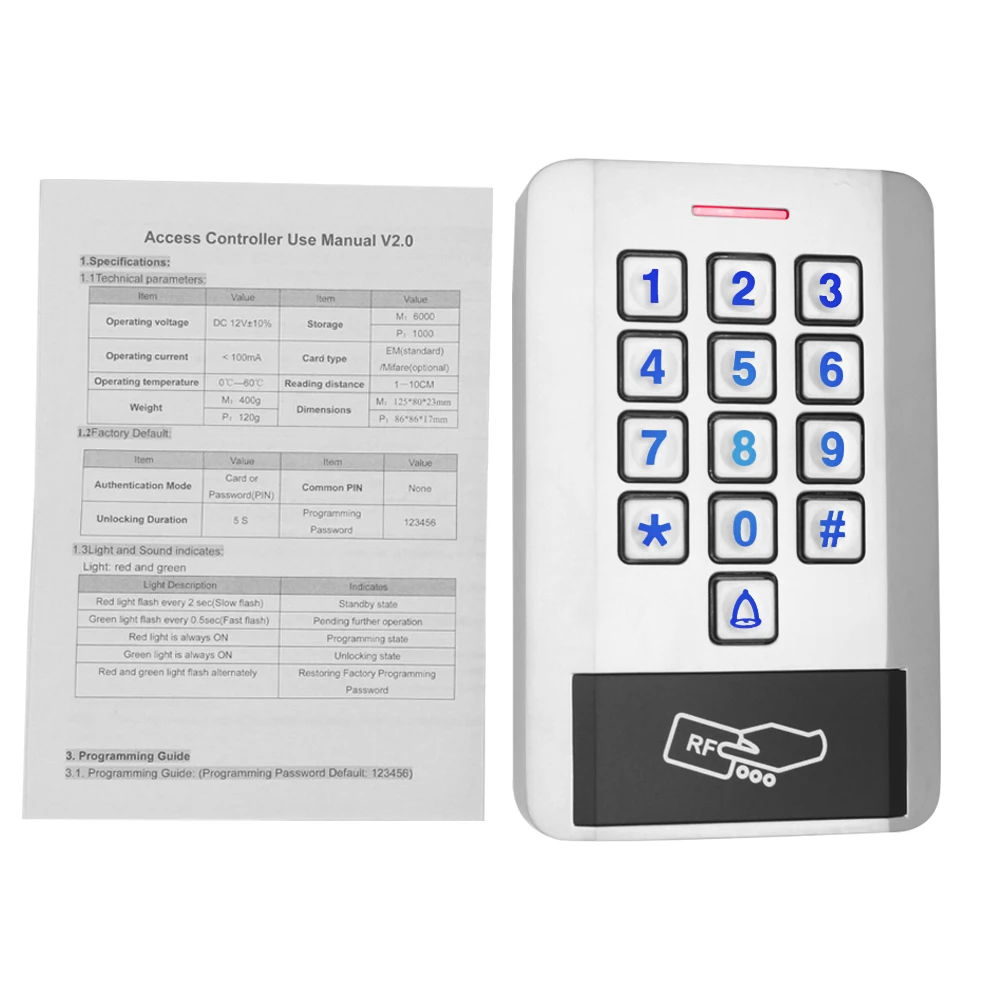

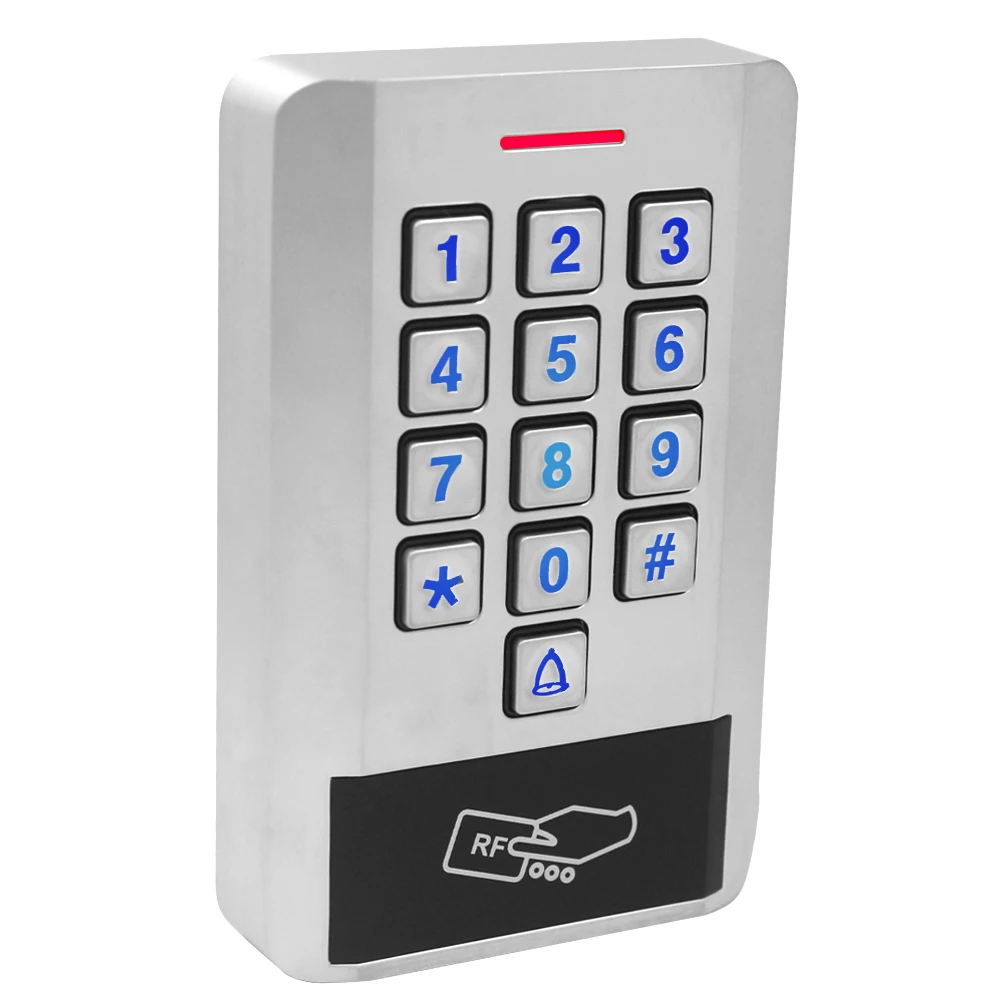

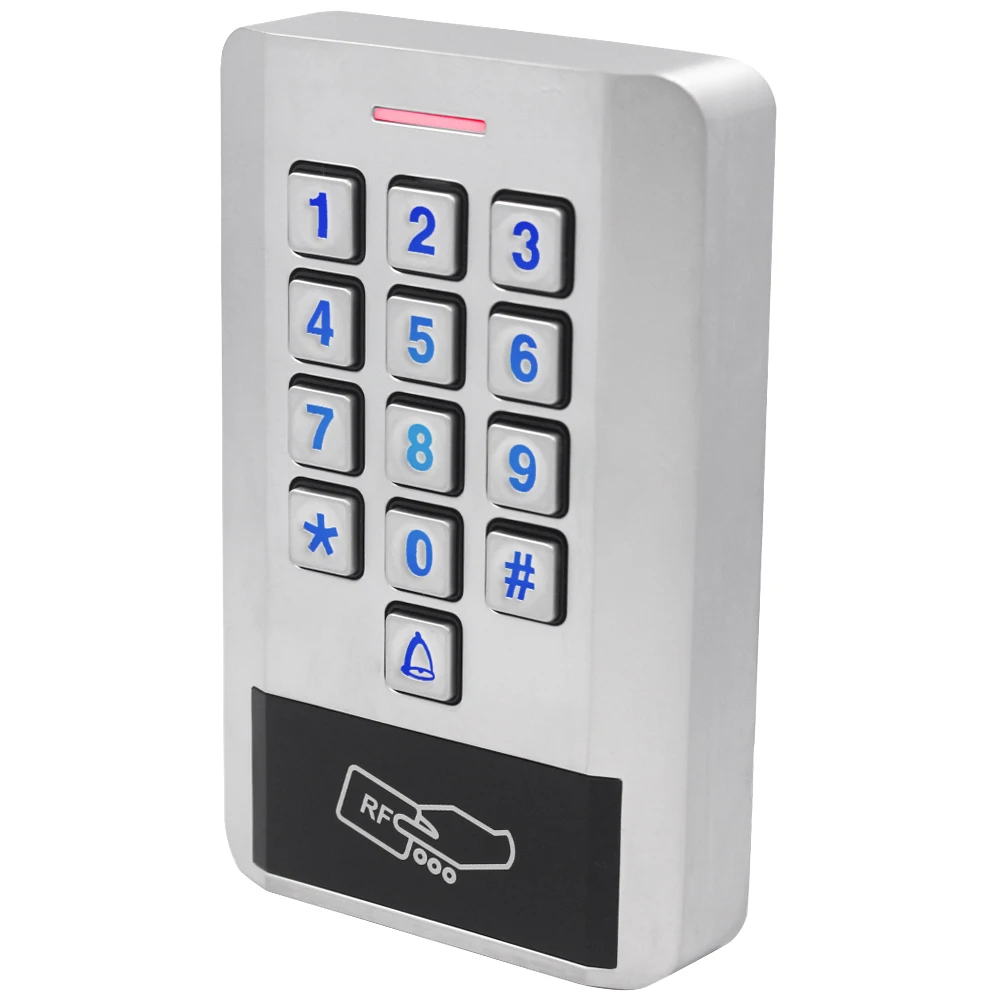

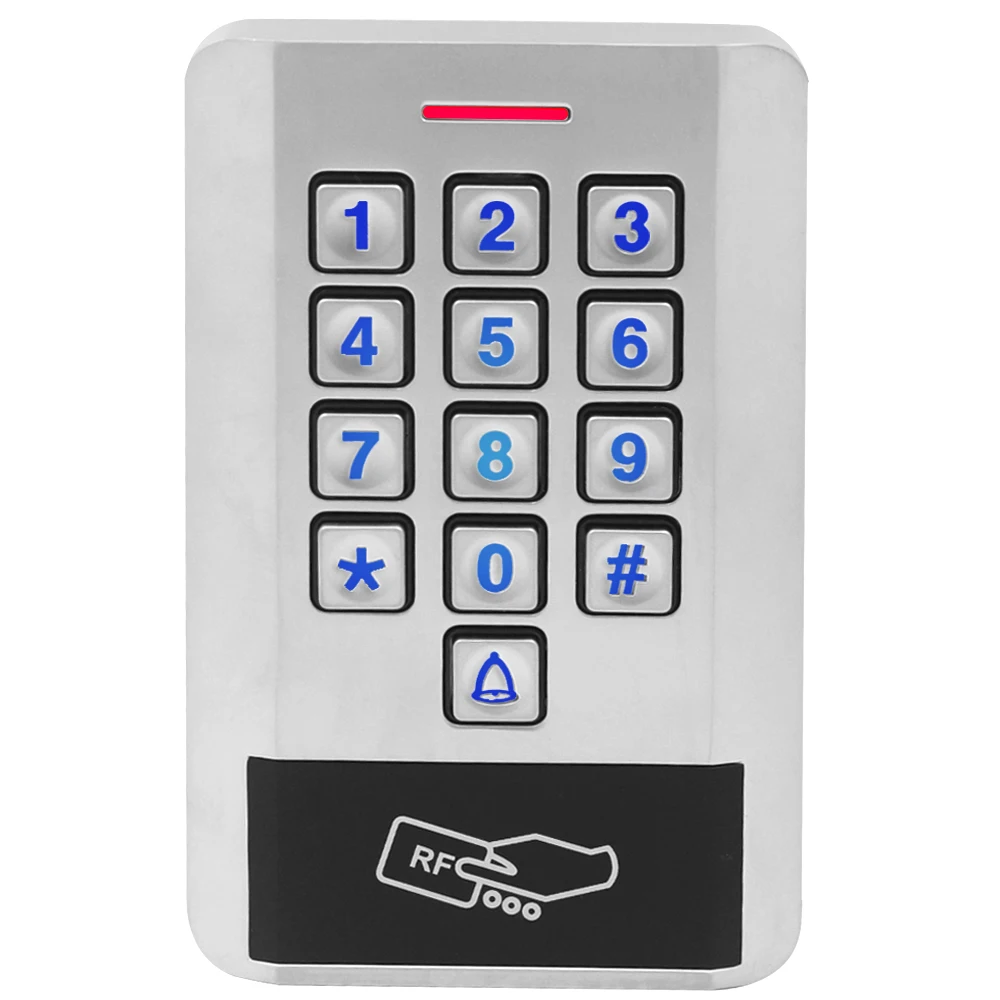

125KHZ RFID Password Keypad Access Control Backlight Waterproof IP68 Metal Case Door Standalone Access Control 6000 user wiegand 26 input

Overview:

The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.

Feature:

1. Waterproof,conforms to IP68

2. Strong Zinc Alloy Electroplated anti-vandal case

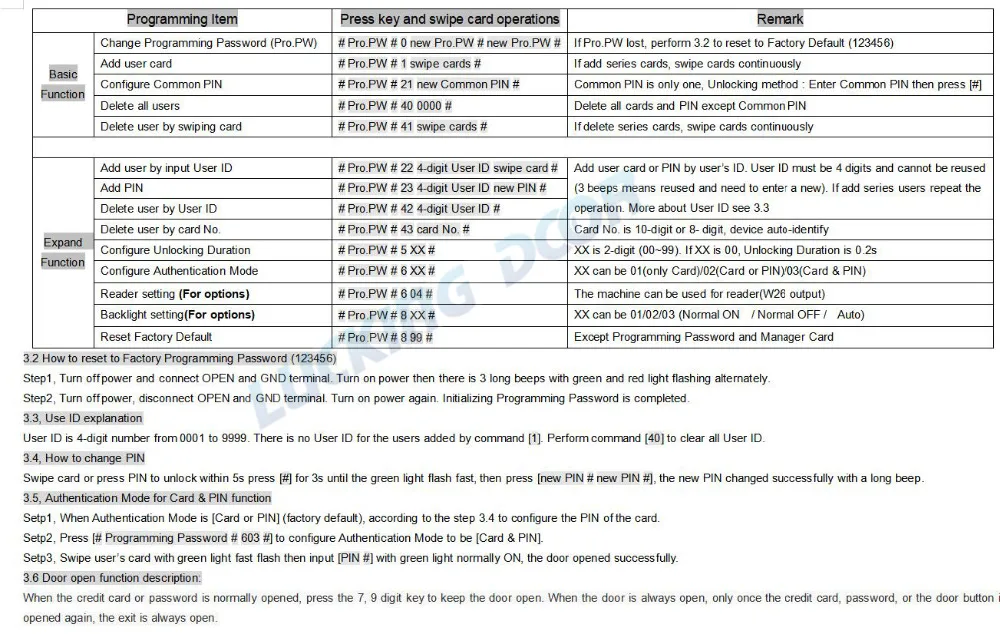

3. Full programming from the keypad

4. 2000 users,Supports Card, PIN, Card + PIN

5. Can be used as a stand alone keypad

6. Backlight keys

7. Wiegand 26 input for connection to external reader

8. Adjustable door output time,alarm time,door open time

9. Very low power consumption (30mA)

10. Fast operation speed,<20ms with 2000 users

11. Lock output current short circuit protection

12. Easy to install and program

13. Built-in light dependent resistor (LDR) for anti tamper

14. Built-in buzzer

15. Red,yellow and green LEDs display the working status

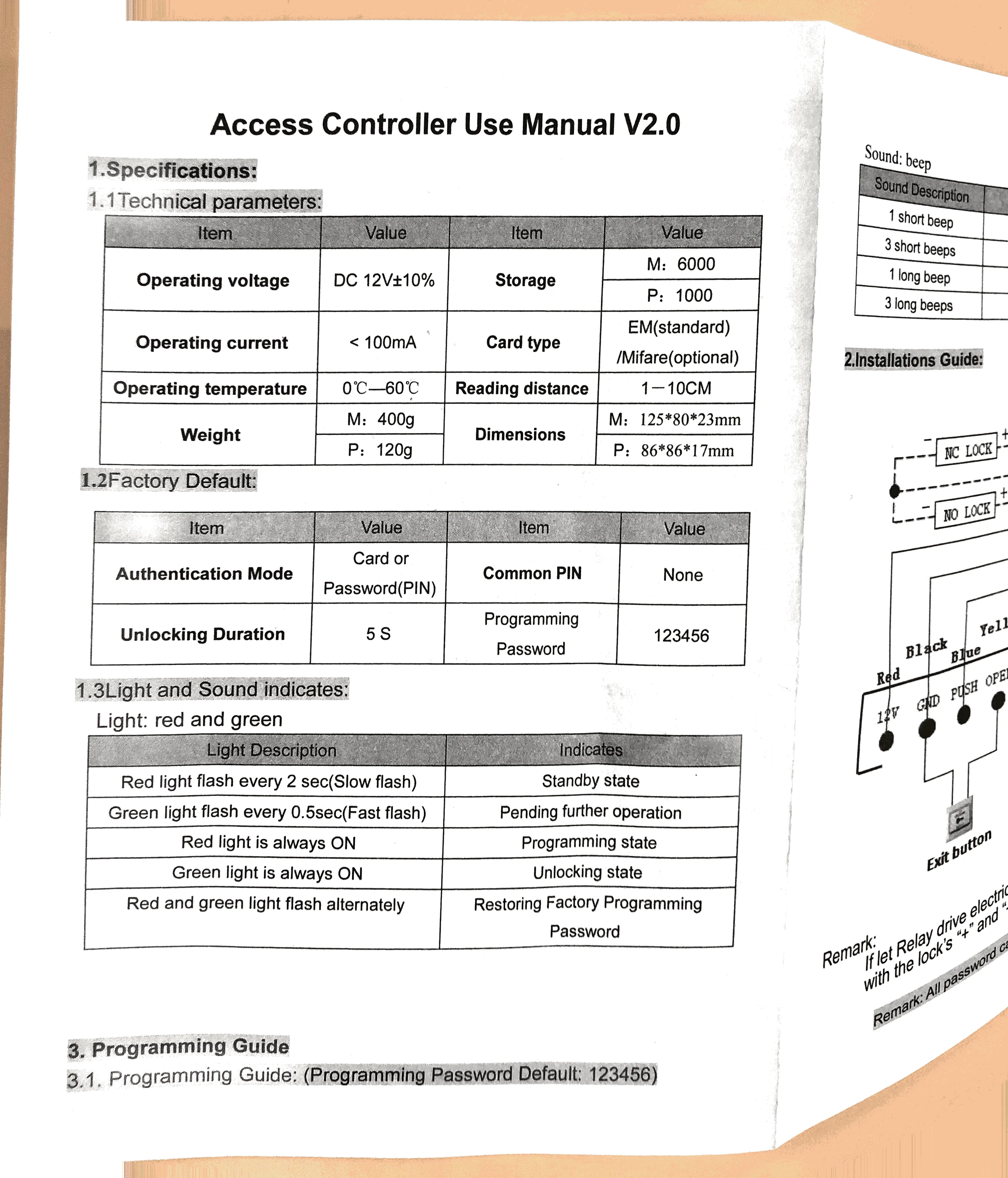

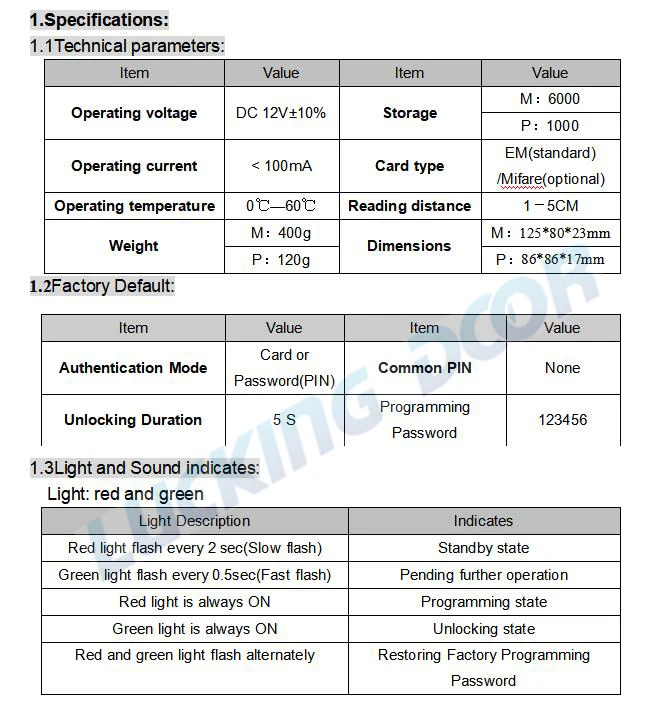

Specification:

1.Operating Voltage : DC12V

2.User Capacity: 6000

3.Card Reading Distance: 5~8cm

4.Current: <30mA (Standby); <60mA (Active)

5.Lock Output Load: <3A

6.Alarm Output Load: <20A

7.Operation Temperature: -45C~60C

8.Operating Humidity: 10%~90% RH

9.Waterproof: Conforms to IP68

10.Adjustable Door Relay time: 0~99 seconds

11.Wiegand Interface: Wiegand 26 bit

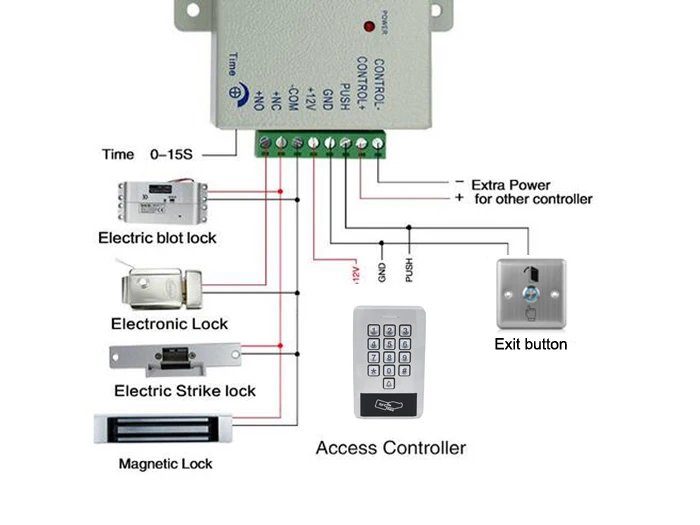

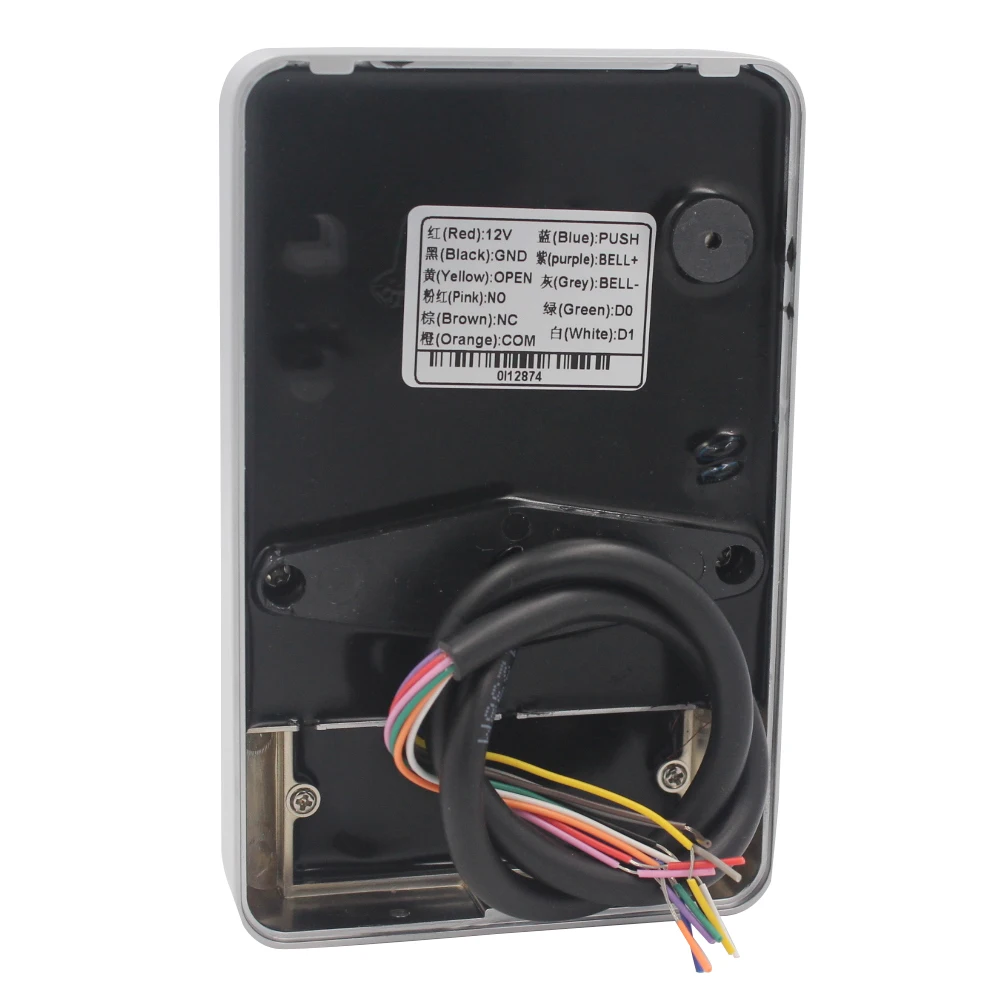

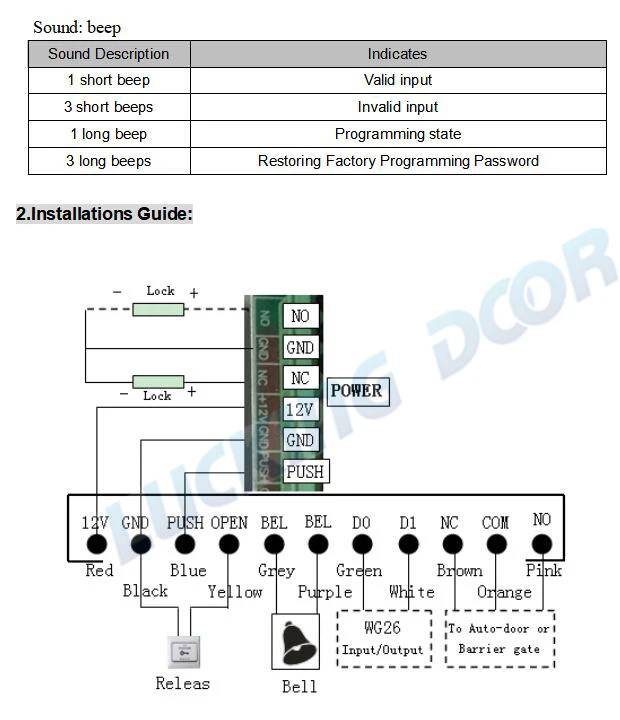

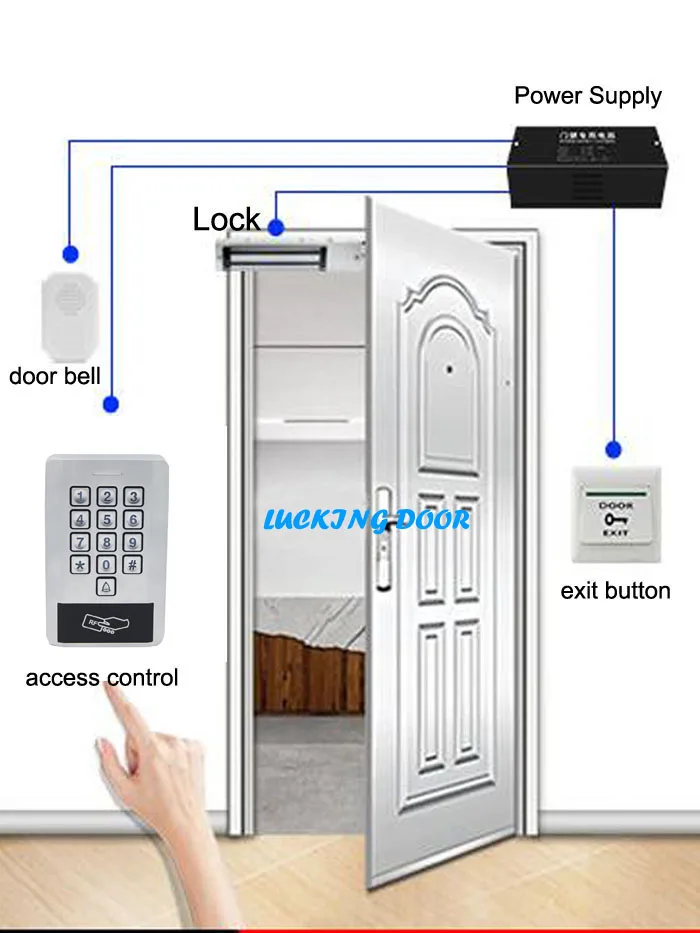

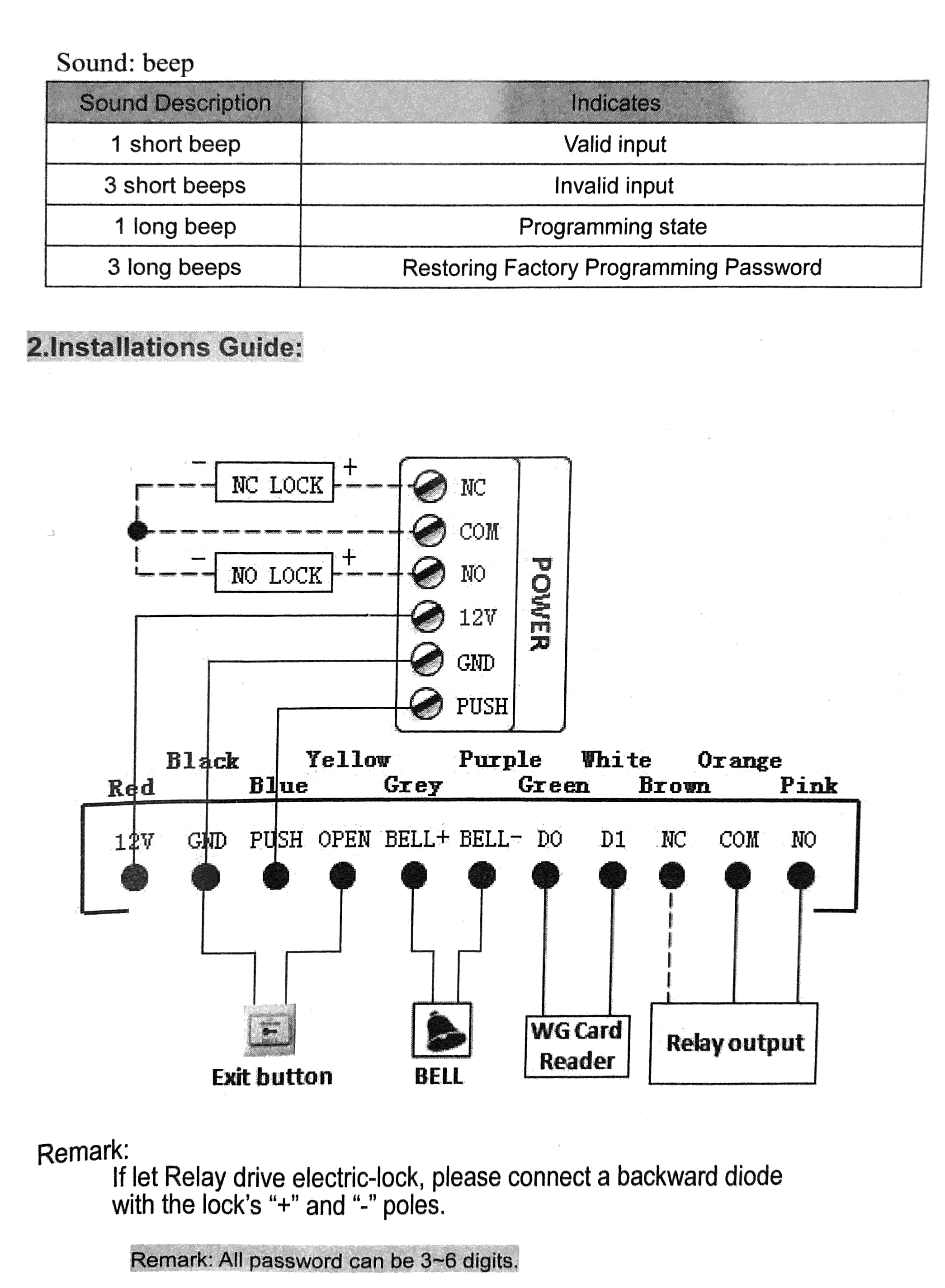

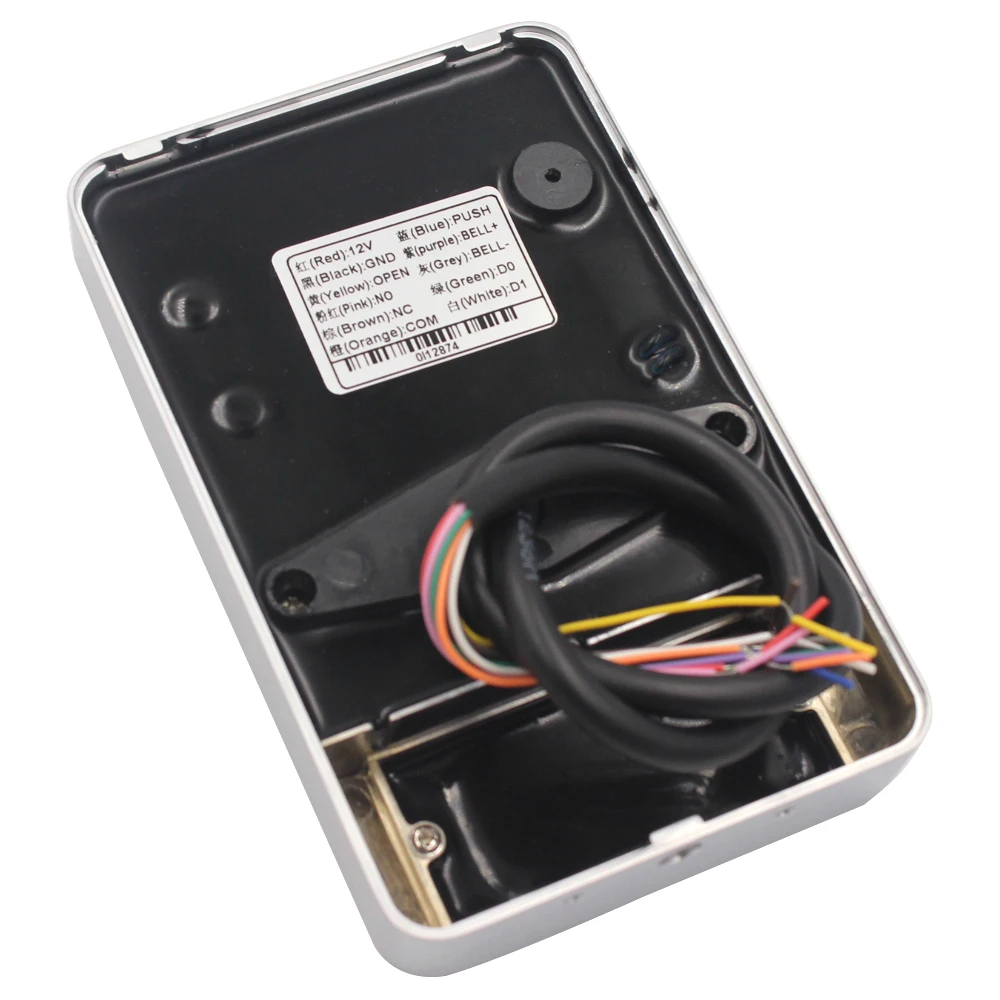

12.Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader

13.Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCIK, etc)

14.Frequency: 125khz
