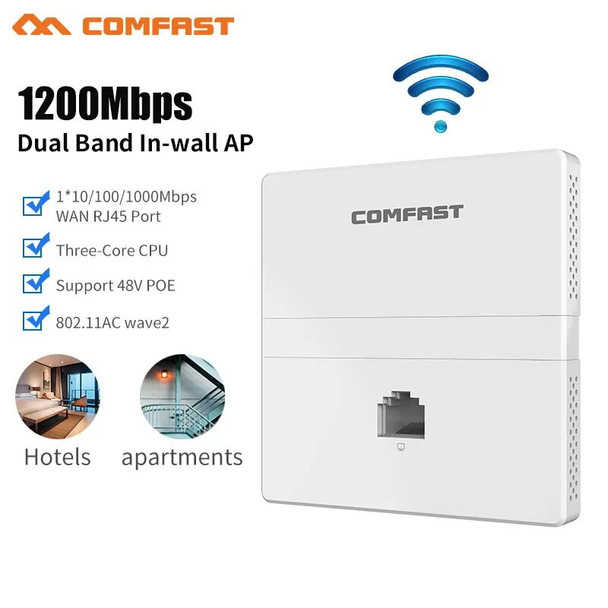

1200Mbps Wireless Dual Band In Wall AP 2.4 +5.8Ghz Gigabit Ethernet Access Point 802.11 AC Hotel Home RJ45 Lan Router Repeater
Description
Comfast CF-E538ACV2 1200Mbps Dual Band In Wall AP 2.4ghz +5.8ghz Gigabit RJ45 Wan/Lan Port Wifi Repeater AP For Hotel Dormitory Wifi Coverage Solution
Product Feature :
2.Chipset: MT7621DA+MT7613B+MT7603E;
3.DDR: 128MB; Flash: 16MB;
4.Antenna :Built-in 2*2.4G dBi antennas
Built-in 2*5G dBi antennas
5. Transmission Rate; 2.4GHz: 300Mbps .8GHz: 867Mbps
6.Physical Ports : 1*10/100/1000Mbps RJ45 WAN(Blue) port, support 48V POE power supply;
1*10/100/1000Mbps RJ45 LAN Grey port, connect to the network cable
7.Power Supply: 802.3af/802.3 at POE Power Supply (0-100m);
Package included :
CF-E538ACV2 Wall AP *1
Screw *2
Note： The wall AP need connected with 48V poe switch or 48v poe adapter , if your home do not have 48V poe switch or 48V poe adapter , please order this 48v poe adapter with ap together. thanks
New Arrival 1200Mbps 86 Panel In-wall AP
Application: Hotel / Dormitory/ Apartroom
1200Mbps / 2.4&5.8Ghz /Gigabit Ethernet / Plug and play
POE Power Supply More Convenient You can realize data transmission and power supply with only one network cable. Convenient and save on engineering costs.
Three-core CPU Stable Performance Three-core CPU High Concurrency Strong Signal
Dual Band 5G Priority 2.4G&5Ghz dual band,5G will be connected in priority, better WiFi experience
Gigabit High Speed Transmission
1200Mbps wireless transmission plus Gigabit Ethernet,enjoy the WiFi freely
Support 802.11AC Wave 2
802.11AC Wave 2 MU-MIMO (Multi-User,Multi-Input,Multi-Output) technology allows a Wave2 AP to communicate with Multiple clients simultaneously, significantly increasing multi-users throughput and overall user experience
RF Hardware Acceleration CPU Hardware Acceleration MU-MIMO Optimization Beamforming
AC Management Plug and play
Soft AP mode,plug and play,managed by AC Gateway
Chinese and English SSID
Support Chinese and English SSID, provide you with more choice of Network Settings
Intelligent flow control
No need to set up,Intelligent detection of broadband speed and automatically allocate broadband，automatically prioritize network behavior,Real-time optimization of broadband resources to ensure smooth network
Internet - Manage User’s download speed -
User A: download speed within 20BM/S;
User B: download speed within 60BM/S;
User B: Unlimited
Comprehensive coverage Seamless roaming
Seamless roaming，auto switch, matched with AC gateway,support Unified management for multiple APs, clear WiFi dead zone; Auto switch to another AP with better signal if users move.
Set up steps
1.Access network cable crystal head
2. Knock off the panel seal, align the screw holes on the device and the cassette, install the screws to fix it, and then cover the seal.
Q&A
Q1. What is the firmware language ?What language can i change to ?
A: The access Point support English and Chinese ,generally you can choose English when setting ;
Q2.How many ssid can be set in this access point ?
A:The access Point can set 16 ssid
Q3.How many users can connected at the same time ?
A:This Access Point support 10-30 users at the same time as no obstacles environment
Q4.The access point support connected with 24V poe switch?
A:This Access Point need connected with 48V Poe Switch, or 48V Poe adapter ,can not connected with 24V poe switch or adapter.
Q5.The access point gigbit port ?
A:This Access Point with Gigabit Port , it Included 1*10/100/1000Mbps RJ45 WAN Blue Port ,
1*10/100/1000Mbps RJ45 LAN Gray Port .
A6.The access point support roaming ?
A:This Access Point support roaming wifi ,suggest choose AC router matched with ap together. More suitable set the same ssid ,make managment , and check the access point working condition.
Q7.What included in the package ?Does it included poe adapter?
A:The package included the 1pcs access point and Installation guide, Warranty Card;
Poe Adapter are not included in the package .
If you need poe adapter you can order in this link
https://www.aliexpress.com/item/1005004521980243.html?
