1080P 10X Camera Live Streaming Webcam Office Classroom Camera Studio Broadcast USB PTZ Camera
Description
1080P 10X Camera PTZ USB Webcam Live Streaming Camera Character:
● Adopts 1/2.9 inch, effective 2.07-megapixel high-quality CMOS sensor. Resolution is up to 1920×1080 with a frame rate of up to 30fps, clear and true video shows people’s facial expressions and movements vividly.
● 10X Optical Zoom, 68.8°wide-angle.
● Leading auto focus algorithm makes lens autofocus more quickly, accurately, and stably.
● Low Noise CMOS effectively ensures high SNR of camera video. The adoption of advanced 2D/3D noise reduction technology not only further reduces the noise, but also ensures image sharpness.

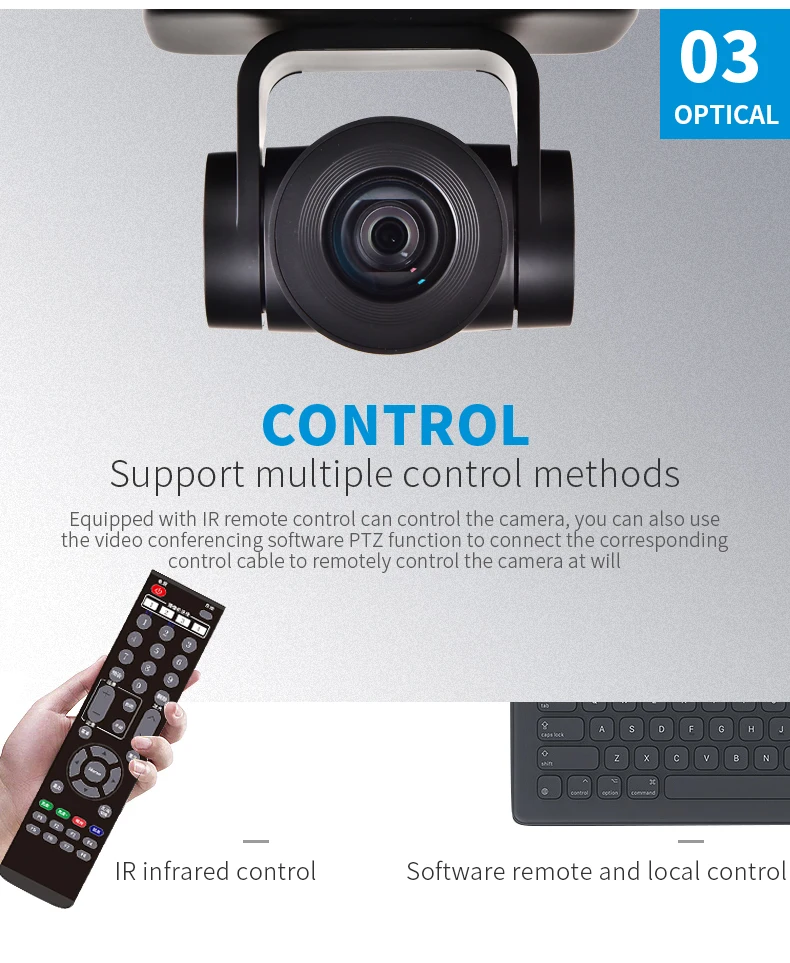

● Support RS232, 485.
● Support VISCA、PELCO-D、PELCO-P.
● Adopting step driving motor mechanism and motor drive controller with hig precision is to ensure PTZ works smoothly with low speed and without noise.
● Support low-power sleep/wake-up, the consumption is lower than 400mW under
sleep mode.
● Multiple Preset: Support 255 preset positions (the remote controller is
set to 10preset positions).
● Wide Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation, and Emergency command systems.
Parameters:
Model | VC110 |
Camera Lens Parameter | |
Sensor | 1/2.9 inch high-quality HD CMOS sensor |
Effective Pixels | 2.07 megapixel 16:9 |
Video Format | 1920×1080P@30 fps/25fps；1280×720P@30fps/25fps；1024×576P@30fps/25fps； |
960×540P@30fps/25fps；800×448P@30fps/25fps；640×360P@30fps/25fps； | |
320×176P@30fps/25fps, etc. | |
View Angle | 8.8°～ 68.8° |
Focal length | f=4.34mm～41.66mm |
Aperture | F1.85 – F2.43 |
Optical Zoom | 10X |
Digital Zoom | 10X |
Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
NDR | 2D﹠3DNDR |
White Balance | Auto / Manual/ One |
Focus | Auto / Manual/ One Push |
Exposure | Auto / Manual |
BLC | On/Off |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W |
S/N ration | >55dB |
Interface performance | |
Output | 1*USB2.0：A type |
Video compression format | MJPG、H.264、H.265 |
Control | RS232、RS485 |
Protocol | VISCA/Pelco-D/Pelco-P； |
Power | HEC3800 outlet (DC12V) |
USB Parameter | |
OS | Windows 7,Windows8,Windows10,Mac Osx,Linux etc. |
Video compression format | MJPG/H264/H265 |
USB protocol | UVC |
PTZ Parameter | |
Pan | -170°～+170° |
Tilt | -30°～+90° |
Pan speed | 0.1 ～60°/s |
Tilt speed | 0.1～30°/s |
Preset speed | Pan: 60°/s, Tilt: 30°/s |
Preset Number | 255 presets (10 presets by the remote controller) |
Other Parameter | |
working voltage | 12V |
working current | 0.25A(max) |
Consumption | 2.5W(max) |
Stored Temperature | -10℃～+60℃ |
Storage Humidity | 20%～95% |
Working Temperature | -10℃～+50℃ |
Working Humidity | 20%～80% |
Dimension | 156.8mm×112.6mm×139.5mm |
Weight | 1kg |
Using environment | Indoor |
Random Accessory | Power supply, USB2.0 cable, Remote controller, Manual, |
Optional Accessories | Mounting bracket |
