100T(50MM--150MM), hydraulic lifting jack split type, industrial grade jack lifter tool equipment

(No reviews yet) Write a Review

SKU:
UPC:
MPN:

$200.04 - $709.93

Current Stock:

Quantity:

Description

Description

9016-12

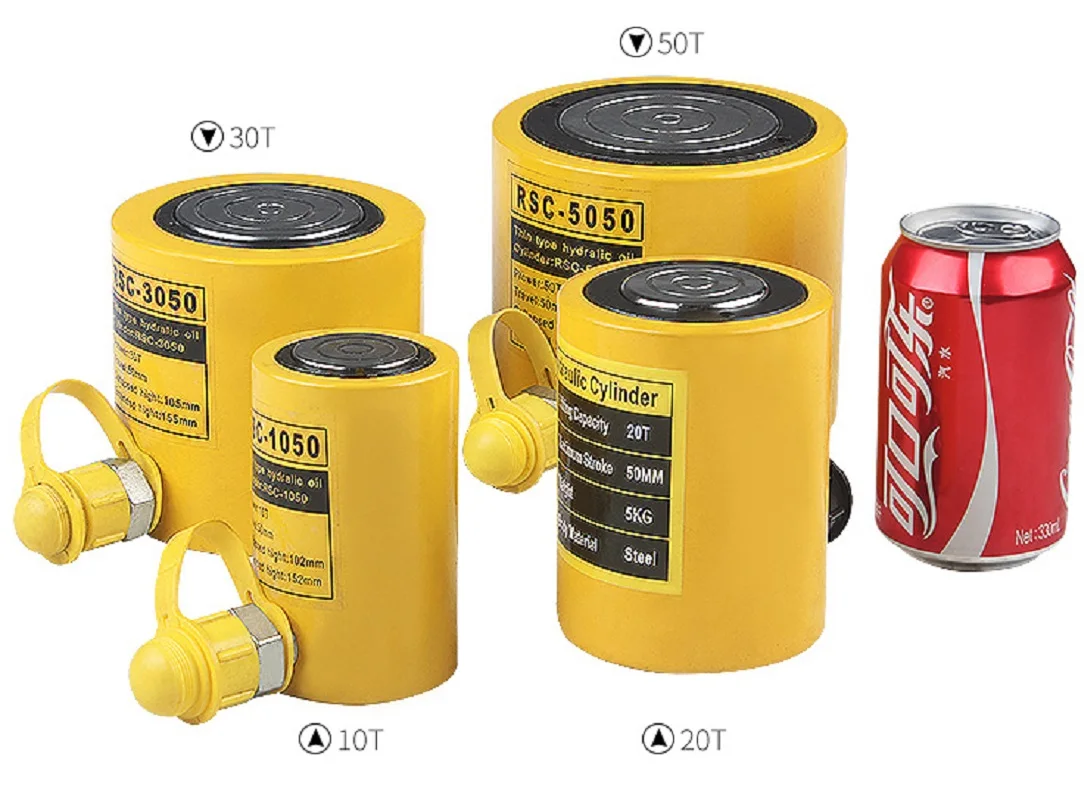

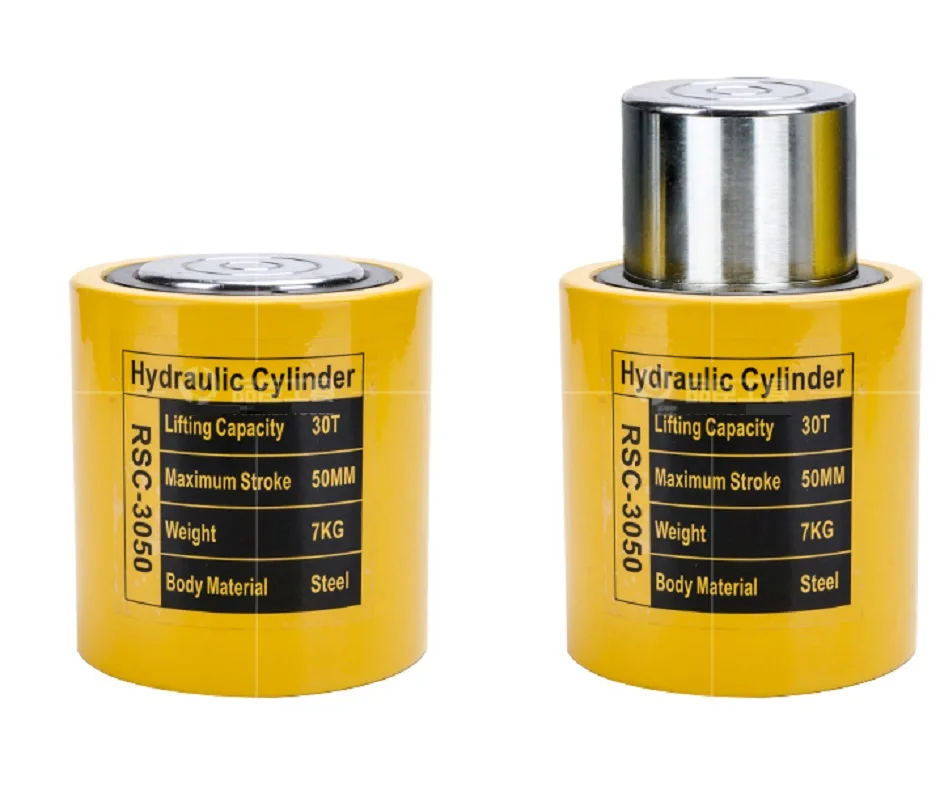

Split type hydraulic jack
Price is without pump.
Keep jack put on flat surface.

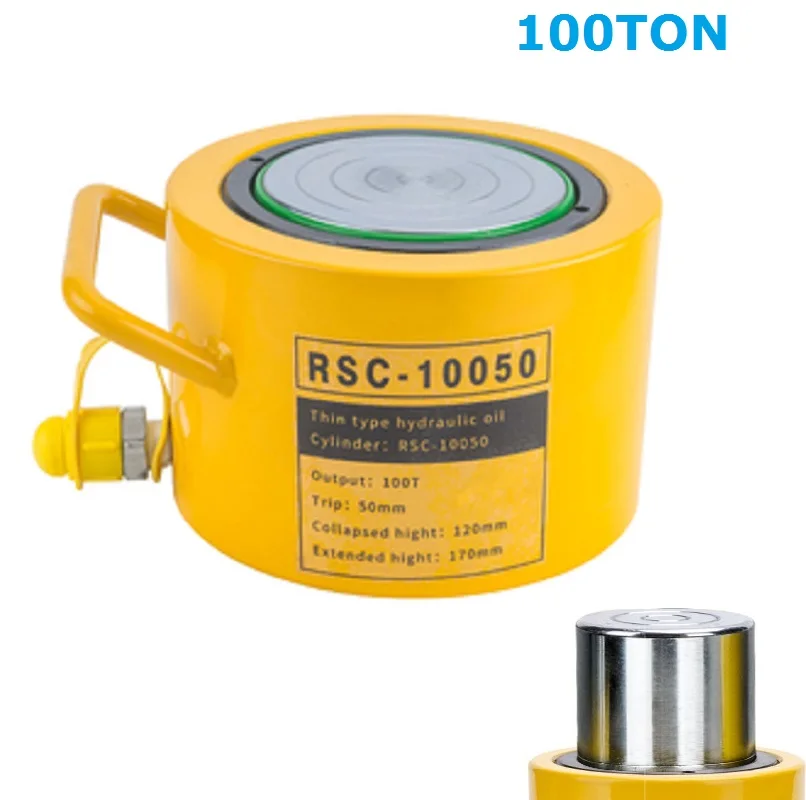

Model: 100T(50MM), RSC series, short type
Quantity:1pc

Remark:
We do not recommend for vehicle use.
Pressure relief first. The jack cannot retract automatically after pressure relief. The jack can retract only with the help of gravity pressure, which is not a quality problem
Below are example to cooperate with electric pump and manual pump. Only for reference.

9016-36

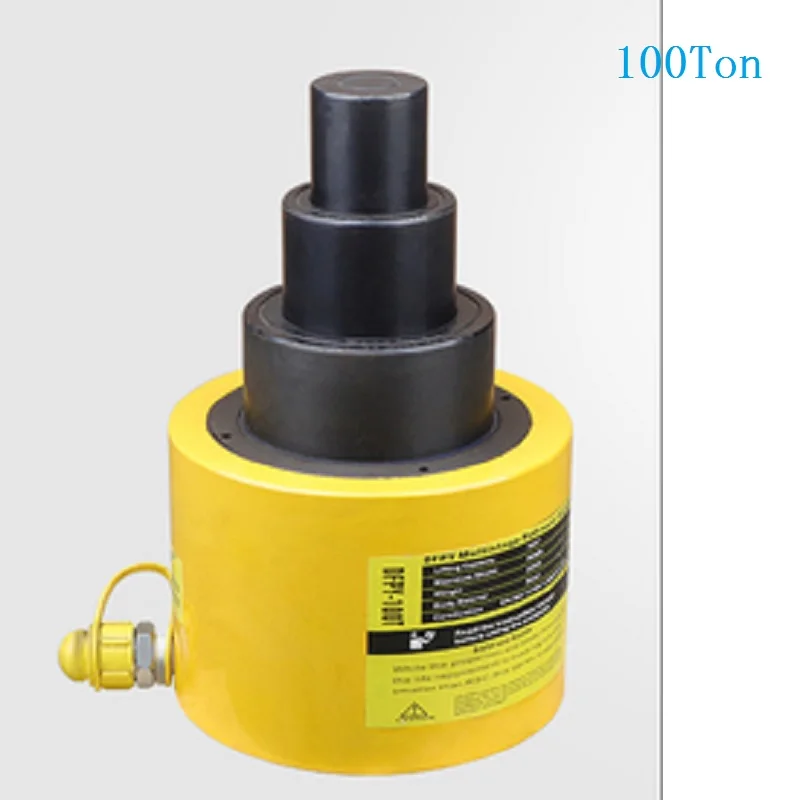

Split type hydraulic jack, multi-section
Price is without pump.
Keep jack put on flat surface.

Model: 100T(150MM), short type
Quantity:1pc

Remark:
We do not recommend for vehicle use.
Pressure relief first. The jack cannot retract automatically after pressure relief. The jack can retract only with the help of gravity pressure, which is not a quality problem
Below are example to cooperate with electric pump and manual pump. Only for reference.

Loading	Stroke(MM)	Outer diameter(MM)	Inner diameter(MM)	Main shaft diameter(MM)	Weight(KG)	Body height(MM)	Overall height(MM)	Compression area(CM2)	Oil used
20T	100	88	65	54	4.8	105	205	22.9	0.2L
30T	100	105	75	68	7	108	208	31	0.3L
50T	150	128	100	85	9.5	112	262	56	0.6L
100T	150	175	135	110	22	122	272	95	0.9L
