Features:

• Instructions

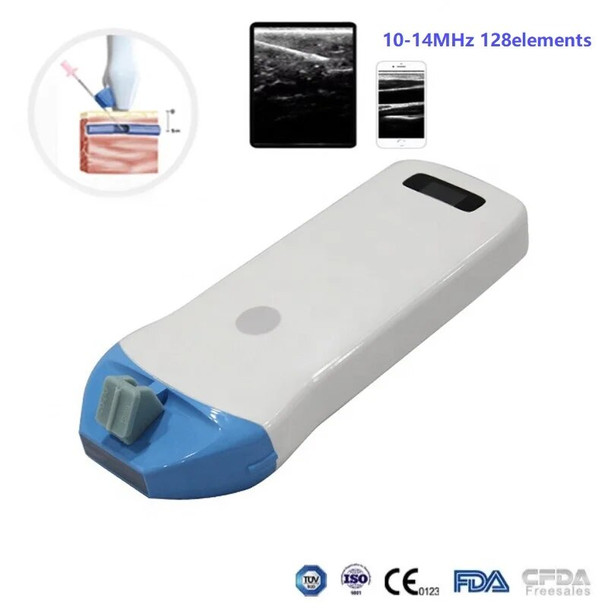

• Wireless Probe is a mini ultrasound scanner without screen. Probe device combined with integrated ultrasound boards, ultrasound probe integrated with usg board, imaging transmisson done by special wifi to pad and phone.

• The Mini ultrasound Visual Diagnosis Device adds built-in screen, can synchronous display on smart phone or tablet.

• Wireless probe devices supply inside wifi hot spot for connection, this wifi signal has no limitation by internet or GSM net, no requirement on working environment.

• Features

• -Small and Compact size, easy to carry.

• -Wireless type without probe cable, working freely.

• -Waterproof design, convenient for sterilization.

• -Remote diagnosis convenience, capable for images transfer to doctors.

•


• Parameter:

• -Scanning mode: Electronic linear

• -Display mode: B, B/M

• -Probe element: 128

• -Channel of RF circuit board: 32

• -Probe frequency and scan depth, head width:

    Small Linear head 10MHz/14MHz, 20/30/40/55mm, 25mm

• -Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise,

• -Cineplay: auto and manual, frames can set as 100/200/500/1000

• -Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.

• -Measure: Length, Area, Angle, heart rate, Obstetrics

• -Image save: jpg, avi and DICOM format

• -Image frame rate: 18 frames / second

• -Battery working time: 3~5 hours(according to different probe and whether keep scan)

• -Battery charge: by USB charge or wireless charge, take 2 hours

• -Dimension: 156×60×20mm

• -Weight: 220g~250g

• -Wifi type: 802.11g/20MHz/5G/450Mbps

• -Working system: Apple iOS and Android, Windows
